Busch-Jaeger Busch-WelcomeTouch 83220-SM Series User manual

2
CKA001473B7474 │13.01.2017
Busch-Welcome®
83220-SM-xxx
Busch-WelcomePanel®

Busch-Welcome®
| 2CKA001473B7474 — 2 —
1Safety ....................................................................................................................................................................... 3
2Intended use ............................................................................................................................................................ 3
3Environment ............................................................................................................................................................. 3
3.1 Busch-Jaeger devices ............................................................................................................................. 3
4User Manual............................................................................................................................................................. 3
5Operation ................................................................................................................................................................. 4
5.1 Standard operation ................................................................................................................................. 4
5.1.1 Control elements ..................................................................................................................................... 4
5.1.2 Welcome screen and status bar .............................................................................................................. 6
5.2 Control actions ........................................................................................................................................ 7
5.2.1 Setting up the voice and video connection .............................................................................................. 7
5.2.2 Opening the door .................................................................................................................................... 8
5.2.3 Muting ..................................................................................................................................................... 9
5.2.4 Switching the light ................................................................................................................................. 10
5.2.5 Camera surveillance ............................................................................................................................. 11
5.2.6 Events and picture memory / history ..................................................................................................... 12
5.2.7 Inserting the SD card ............................................................................................................................ 15
5.2.8 Settings ................................................................................................................................................. 16
5.2.8.1 Overview ............................................................................................................................................... 16
5.2.8.2 Volume .................................................................................................................................................. 18
5.2.8.3 Display .................................................................................................................................................. 19
5.2.8.4 Date / time ............................................................................................................................................. 21
5.2.8.5 Camera list ............................................................................................................................................ 22
5.2.8.6 Language .............................................................................................................................................. 24
5.2.8.7 Door Entry System ................................................................................................................................ 26
5.2.8.8 Firmware update ................................................................................................................................... 27
5.3 Cleaning ................................................................................................................................................ 28
5.4 Adjusting the device .............................................................................................................................. 29
5.4.1 Terminal resistor ................................................................................................................................... 29
5.4.2 Setting the master/slave switch ............................................................................................................. 29
6Technical data........................................................................................................................................................ 30
7Mounting / Installation ............................................................................................................................................ 31
7.1 Requirements for the electrician ........................................................................................................... 31
7.2 General installation instructions ............................................................................................................ 31
7.3 Mounting ............................................................................................................................................... 32
7.4 Connection ............................................................................................................................................ 35
8Addressing ............................................................................................................................................................. 36
8.1 Use of several outdoor stations ............................................................................................................. 36
8.1.1 Uniform assignment of the doorbell push-buttons ................................................................................. 36
8.1.2 Different assignment of the doorbell push-buttons ................................................................................ 37
8.2 Assigning the doorbell push-button of an outdoor station to an apartment ........................................... 38
8.2.1 Factory setting ...................................................................................................................................... 38
8.2.2 Change in the assignment of the doorbell push-buttons ("Offset") ........................................................ 39
8.3 Basic settings ........................................................................................................................................ 40
8.3.1 Defining the standard outdoor station ................................................................................................... 40
8.3.2 Setting the address of the outdoor station ............................................................................................. 40
8.3.3 Setting the address of the indoor station ............................................................................................... 41
8.3.4 Setting of the door opener or light switch .............................................................................................. 42
8.3.5 Setting of the door opener times and light times ................................................................................... 42

Busch-Welcome® Safety
| 2CKA001473B7474 — 3 —
1 Safety
Warnin
g
Electric voltage!
Risk of death and fire due to electrical voltage of 100 … 240 V.
– Work on the 100 … 240 V supply system may only be performed by authorised electricians!
– Disconnect the mains power supply prior to installation and/or disassembly!
2 Intended use
The Busch-WelcomeTouch® 83220-SM-xxx is an integral part of the BuschWelcome® door communication system
and operates exclusively with components from this system. The device must only be installed in dry indoor
rooms.
3 Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
3.1 Busch-Jaeger devices
All packaging and devices from Busch-Jaeger bear the markings and test seals for proper disposal. Always
dispose of the packaging material and electric devices and their components via the authorized collecting depots
and disposal companies.
Busch-Jaeger products meet the legal requirements, in particular the laws governing electronic and electrical
devices and the REACH ordinance.
(EU Directive 2012/19/EC WEEE and 2011/65/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006).
4 User Manual
Detailed information for planning Busch-Welcome® systems is contained in the user manual. Download at
www.Busch-Jaeger.de.

Busch-Welcome® Operation
| 2CKA001473B7474 — 4 —
5 Operation
5.1 Standard operation
5.1.1 Control elements

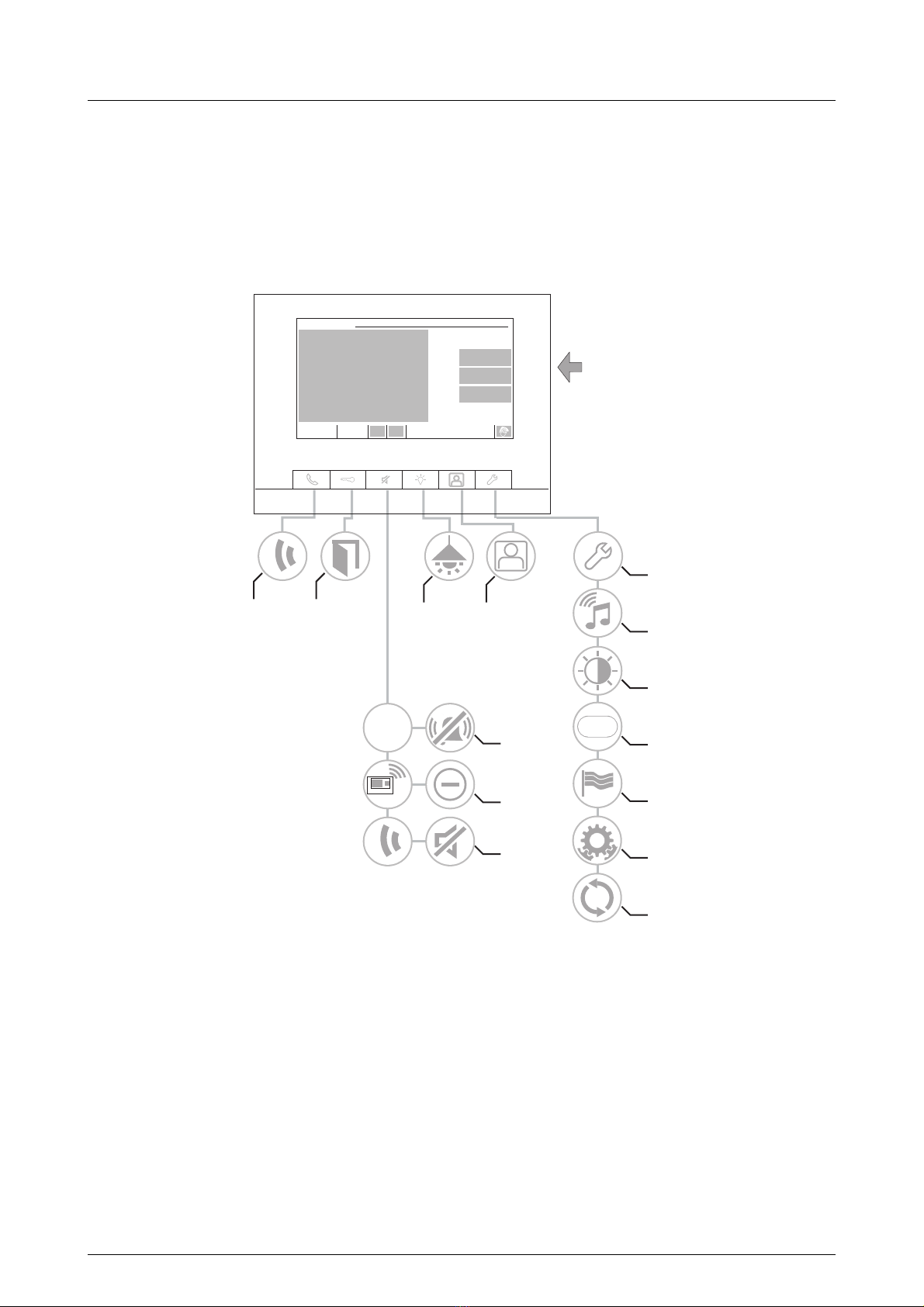

Fig. 1: Overview of control buttons
12
6
6-1
6-2
6-3
6-4
6-5
45
3-1
3-2
3-3
SD-Card
Mo.31.
6-6

Busch-Welcome® Operation
| 2CKA001473B7474 — 5 —
No. Function
1 Press this button accept a call.
2 Press this button to open the door.
3-1 Press this button to deactivate the doorbell.
3-2 While a call is pending, this button has the "reject call" function.
– Press this button to reject a call.
3-3 During the conversation the button has the "mute" function.
Press on this button to activate the mute function.
– The party at the other end cannot hear you.
– Press the button again to continue the conversation.
4 Press this button to switch on the lighting.
5 Press this button to display the camera surveillance.
– In the camera surveillance area you can change to the "Events and picture storage/history" function.
6 Press this button to change to "Settings".
– Setting nos. 6-1 to 6-6 are available on the touch screen.
6-1 • The ring tone volume
6-2 • The brightness of the display
6-3 • The time and date
6-4 • The local language
6-5 • The door communication system
6-6 • The firmware update

Busch-Welcome® Operation
| 2CKA001473B7474 — 6 —

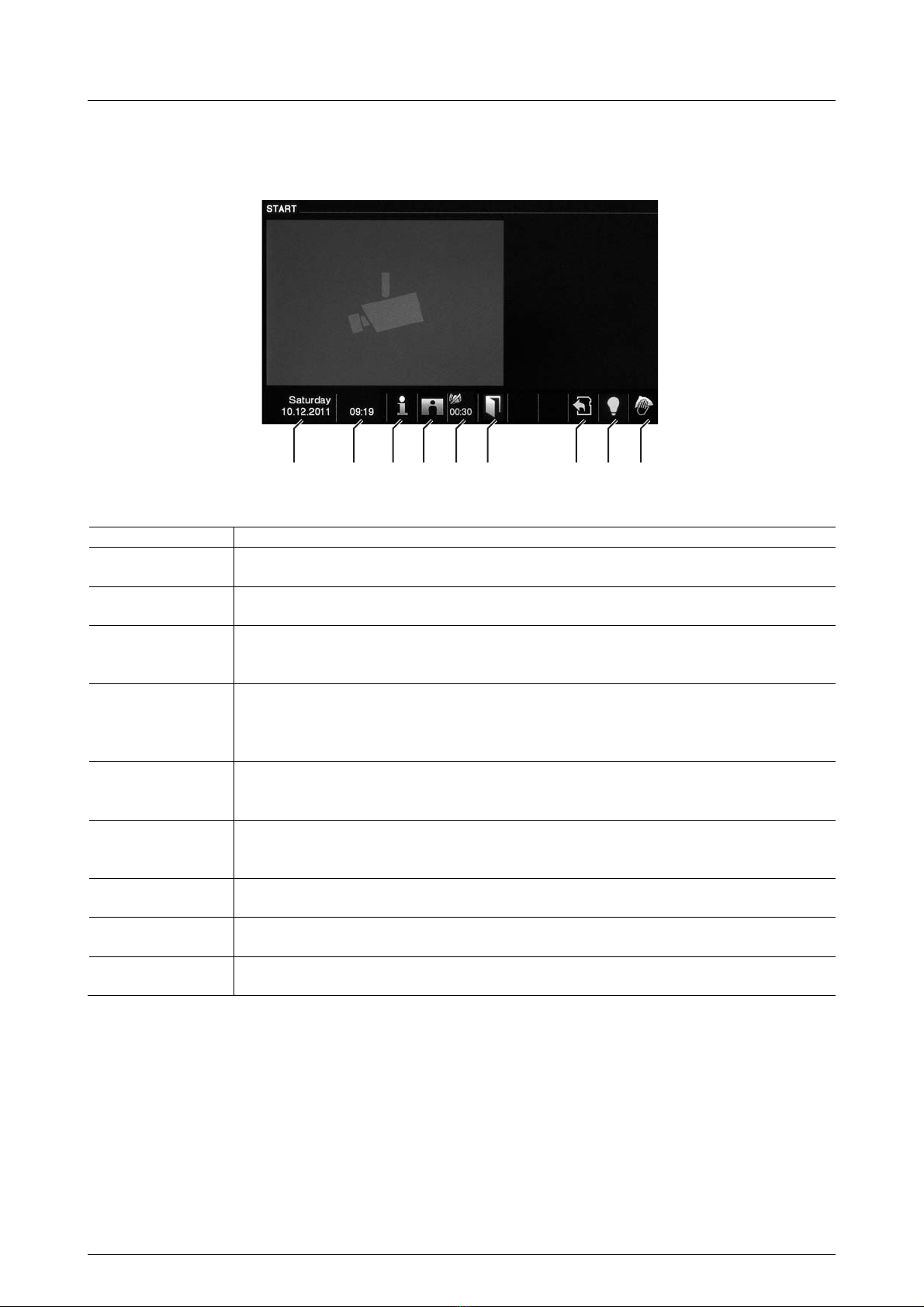

5.1.2 Welcome screen and status bar
Fig. 2: Status bar
No. Function
1 Current date
- Set the date by touching the button.
2 Time
- Set the correct time by touching the button.
3 System information
- Call up the address (number of the indoor station) of this panel and the current hardware and software
information by touching the button.
4 History
- New information is available in History (events and picture memory) when this icon flashes. E.g., a
missed call.
- Display the events and picture memory by touching the button.
5 Mute function
- The icons "crossed-out handset" and "crossed-out bell" indicate the mute function of the microphone or
the loudspeaker of the panel.
6 Open entrance door
- The "Open door" icon is displayed when you press the door opener or activate the function "Automatic
door opener".
7 SD card
- The icon shows whether you have inserted an SD card.
8 Light
- The icon is shown when you have switched the light directly from the panel.
9 Cleaning blockage
- The icon is shown when the display is blocked to prevent functions being triggered during cleaning.
12 3 4 5 6 7 8 9

Busch-Welcome® Operation
| 2CKA001473B7474 — 7 —
5.2 Control actions

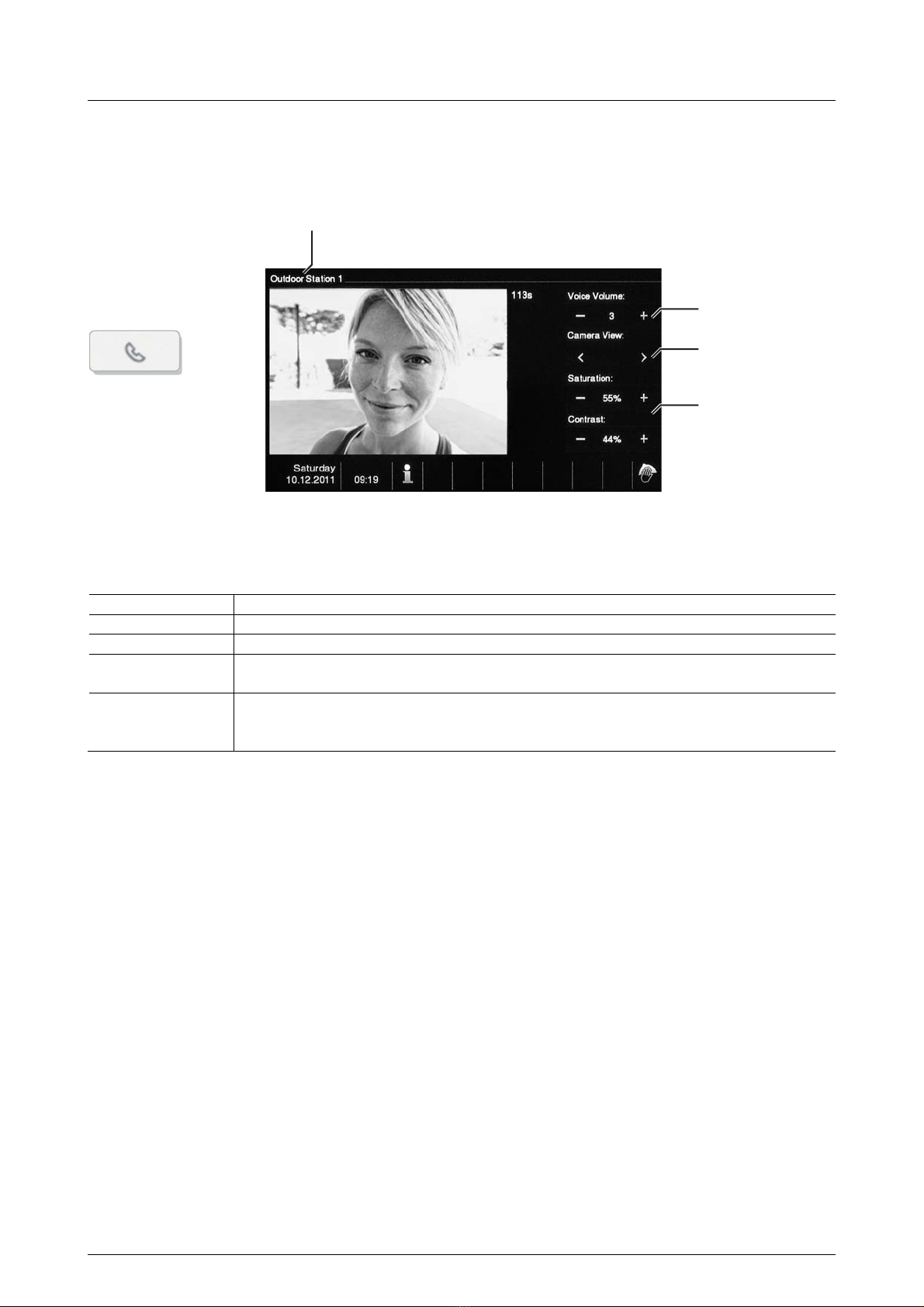

5.2.1 Setting up the voice and video connection
Fig. 3: Setting up the voice and video connection
The following functions are available for setting up the voice and video connections (pressing the handset button):
No. Function
1 Designation of camera
2 Set the volume by touching the respective buttons (plus and minus).
3 If several outdoor stations or external cameras are connected:
– Select the camera by touching the respective buttons (forward and back).
4 Set the display by touching the respective buttons.
• Saturation of the display (plus and minus)
• Contrast of the display (plus and minus)
2
3
1
4

Busch-Welcome® Operation
| 2CKA001473B7474 — 8 —
5.2.2 Opening the door
Fig. 4: Opening the door
When activating the door opener (by pressing the key button), the following function is available:
No. Function
1 The "Open door" icon is displayed when you press the door opener or activate the function "Automatic door
opener".
1

Busch-Welcome® Operation
| 2CKA001473B7474 — 9 —
5.2.3 Muting

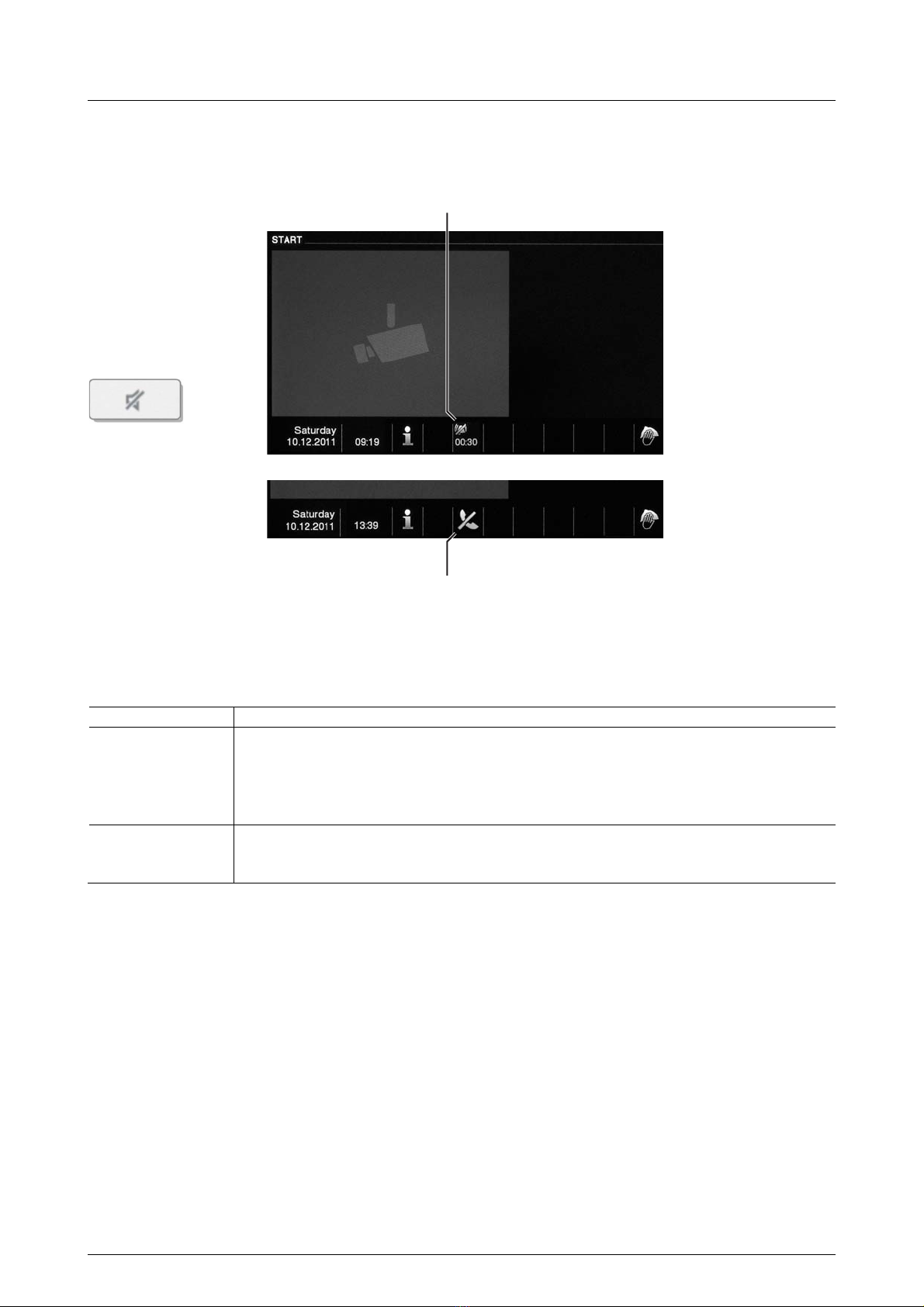

Fig. 5: Mute function (mute timer)
The following functions are available for muting (mute timer):
No. Function
1 No call is pending:
If you press the "Mute function" while no call is pending the bell sound of the panel is deactivated for a
certain period.
- If calls come in during this time, only the video image is displayed.
- Missed calls are displayed in the events and picture storage.
2 A call is pending:
If you press the button "Mute function" during a call, the microphone of the panel is deactivated until the
button is pressed again.
2
1

Busch-Welcome® Operation
| 2CKA001473B7474 — 10 —
5.2.4 Switching the light

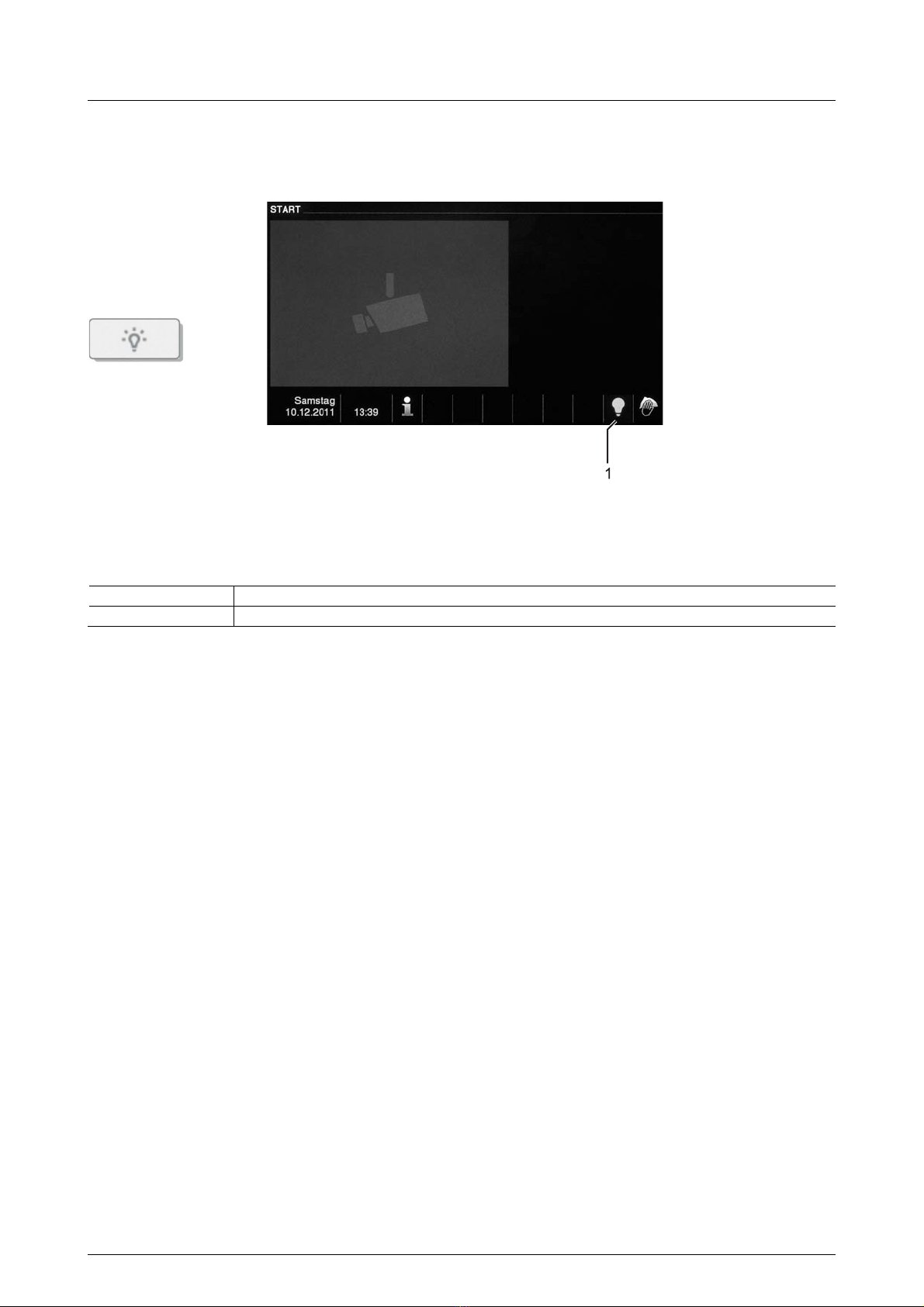

Fig. 6: Switching lights
When activating the light switch, the following function is available:
No. Function
1 The "Light" icon is displayed when you press the button "Switching lights".

Busch-Welcome® Operation
| 2CKA001473B7474 — 11 —

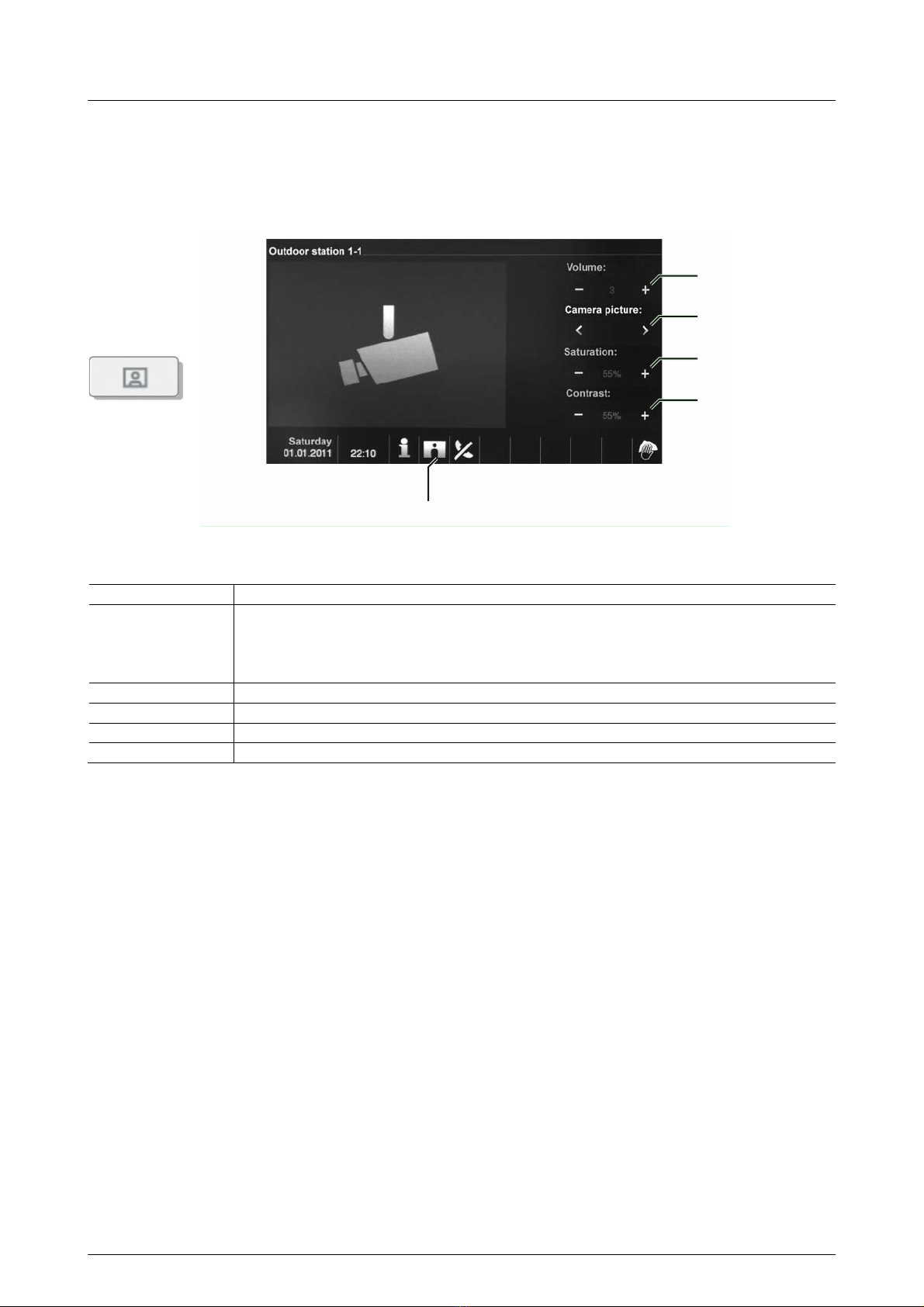

5.2.5 Camera surveillance
In the camera surveillance you change between the pictures in the integrated camera. Here you can also make
settings for the volume and the camera image.
Fig. 7: Camera surveillance
No. Function
1 "Calling up events and picture memory / history".
– If you have activated the function "Auto snapshots activated" in the system settings, the flashing icon in
the status bar signals a newly taken snapshot.
– The symbol stops flashing when you call up the events and picture storage.
2 Setting contrast for currently selected camera picture.
3 Setting saturation for currently selected camera picture.
4 Selecting a camera picture
5 Setting the volume for currently selected surveillance camera.
1
2
3
4
5

Busch-Welcome® Operation
| 2CKA001473B7474 — 12 —

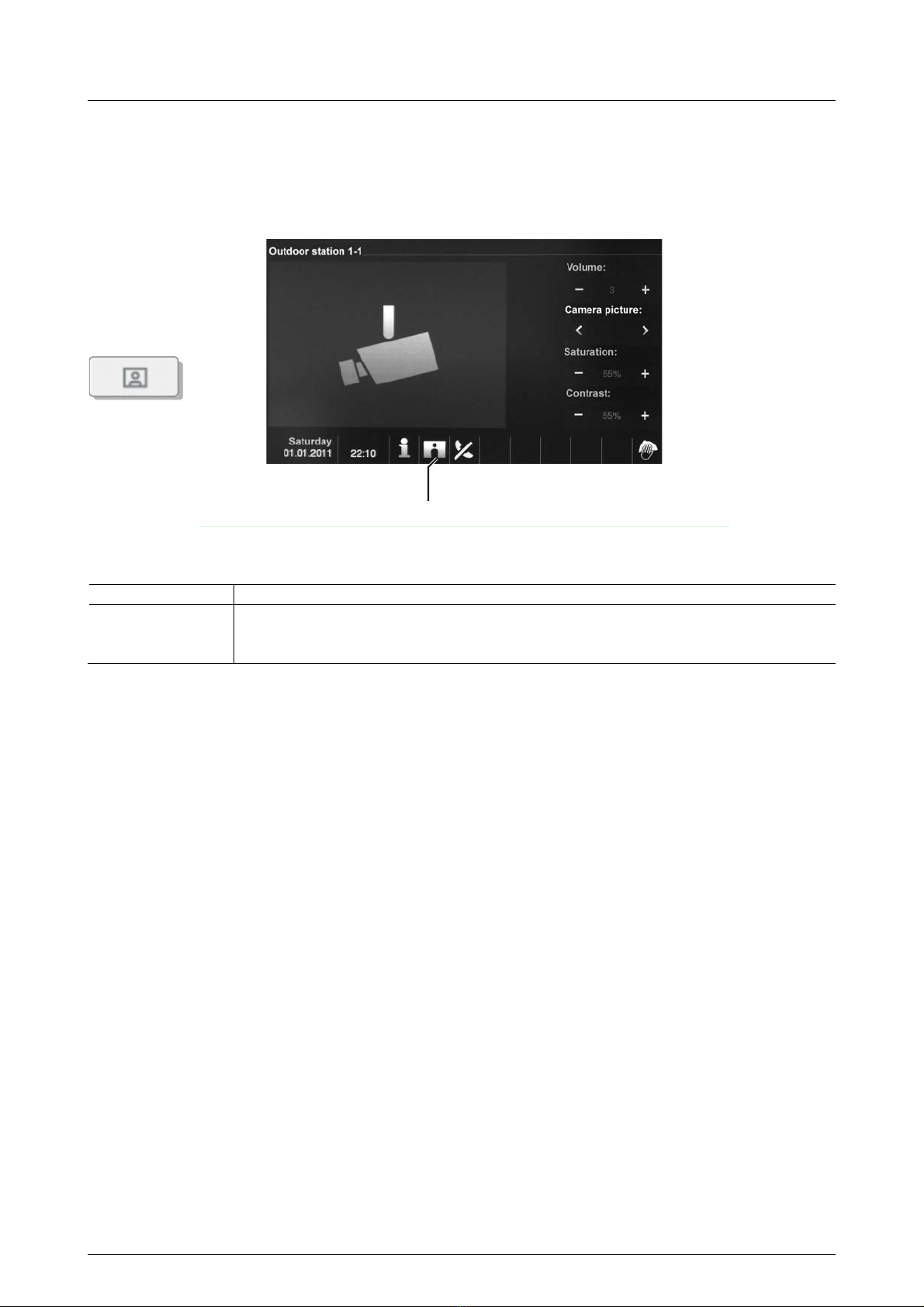

5.2.6 Events and picture memory / history
The panel records all events. Pressing the "History" button (1) displays the last 100 events (prior events are
overwritten).
Fig. 8: Events and picture storage / history
No. Function
1 If you have activated the function "Auto snapshots activated" in the system settings, the flashing icon in the
status bar signals a newly taken snapshot.
– The symbol stops flashing when you call up the events and picture storage.
1

Busch-Welcome® Operation
| 2CKA001473B7474 — 13 —

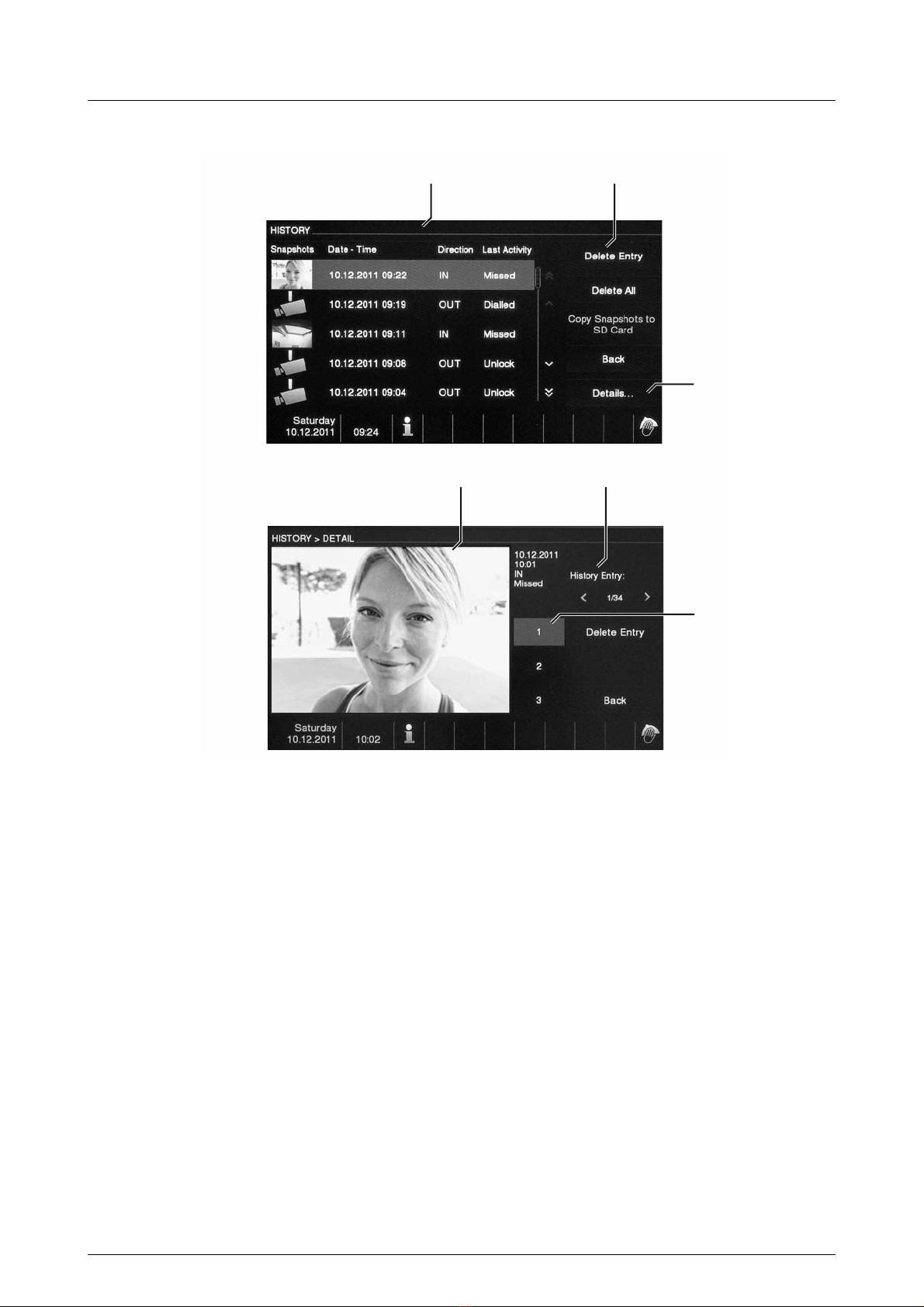

Fig. 9: Events and picture storage / history
1
3
2
6
54

Busch-Welcome® Operation
| 2CKA001473B7474 — 14 —
During a call you can take a snapshot at any time by pressing the "History" button, even when the "Automatic
snapshots" function is not active.
The following functions are available for the "Events and picture storage /history" function.
No. Function
1 If you have activated the system setting "Automatic snapshots", a miniature view is displayed in the events
list when incoming calls are missed.
– Date, time and the type of the event are recorded together with the snapshot.
– If no automatic snapshots are active, a camera icon is displayed in the miniature view.
2 Individual entries or the entire list can be deleted at any time.
– Snapshots which you would like to archive can be copied on an inserted SD card (SD, SDHC).
3 Three pictures are always taken when a visitor rings the bell. This ensures an optimum snapshot.
– All recorded pictures are called up via the detail view.
4 Display of the detail view of a record
5 Select the event by tapping the respective buttons (forward and back).
6 Select the single picture by tapping the respective buttons (1 to 3).

Busch-Welcome® Operation
| 2CKA001473B7474 — 15 —
5.2.7 Inserting the SD card
Fig. 10: Inserting the SD card

Busch-Welcome
®
Operation
| 2CKA001473B7474 — 16 —
5.2.8 Settings
5.2.8.1 Overview

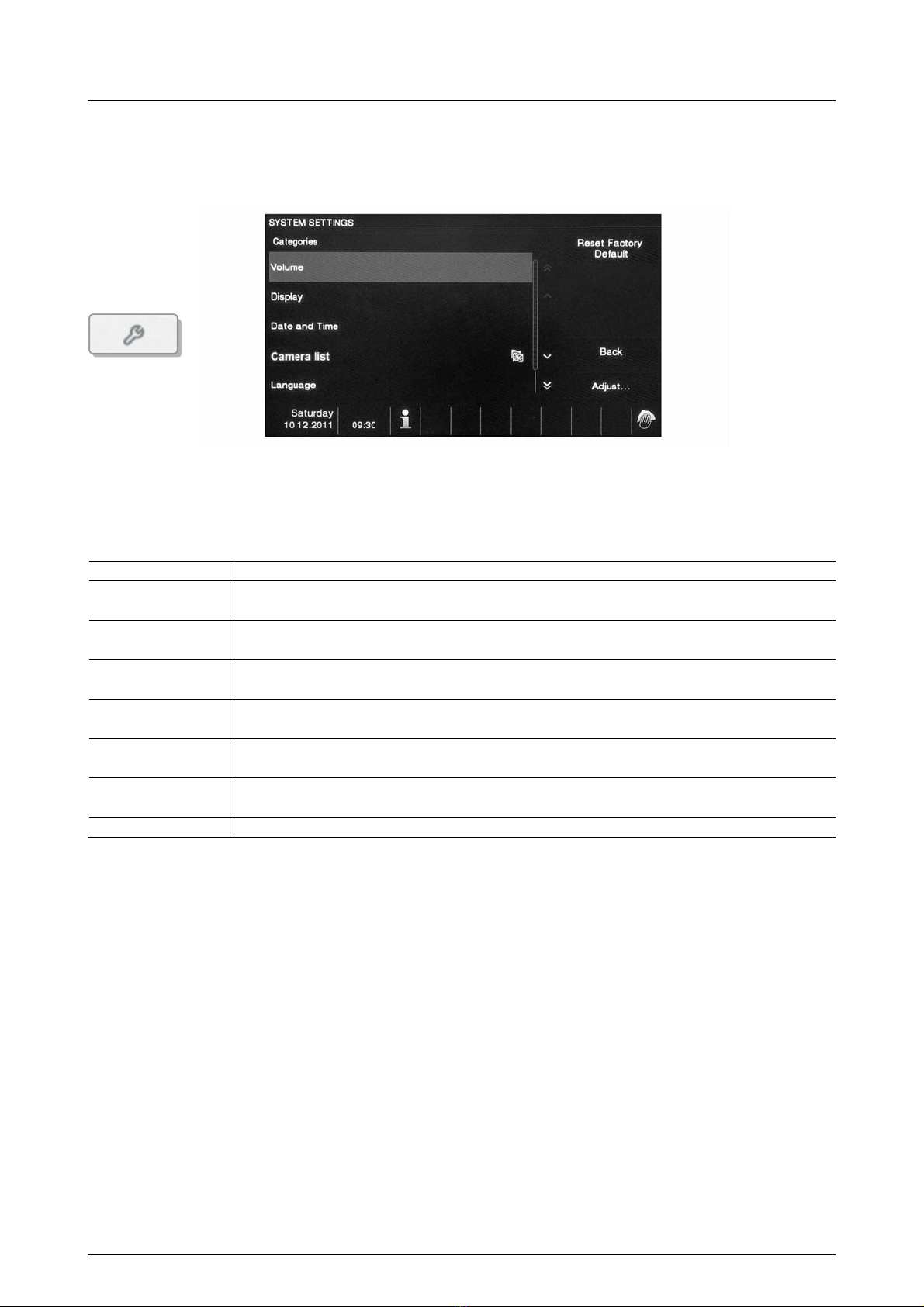

Fig. 11: Overview of settings
The following areas are available when pressing the "Settings" button:
No. Function
1 Volume
– The volumes of the bell sounds
2 Display
– Different display settings
3 Date and time
– Different time settings
4 Camera list
– Different settings of integrated surveillance cameras
5 Language
– The local language
6 Door communication system
– Different system settings, e.g. bell sounds.
7 Firmware update

Busch-Welcome® Operation
| 2CKA001473B7474 — 17 —

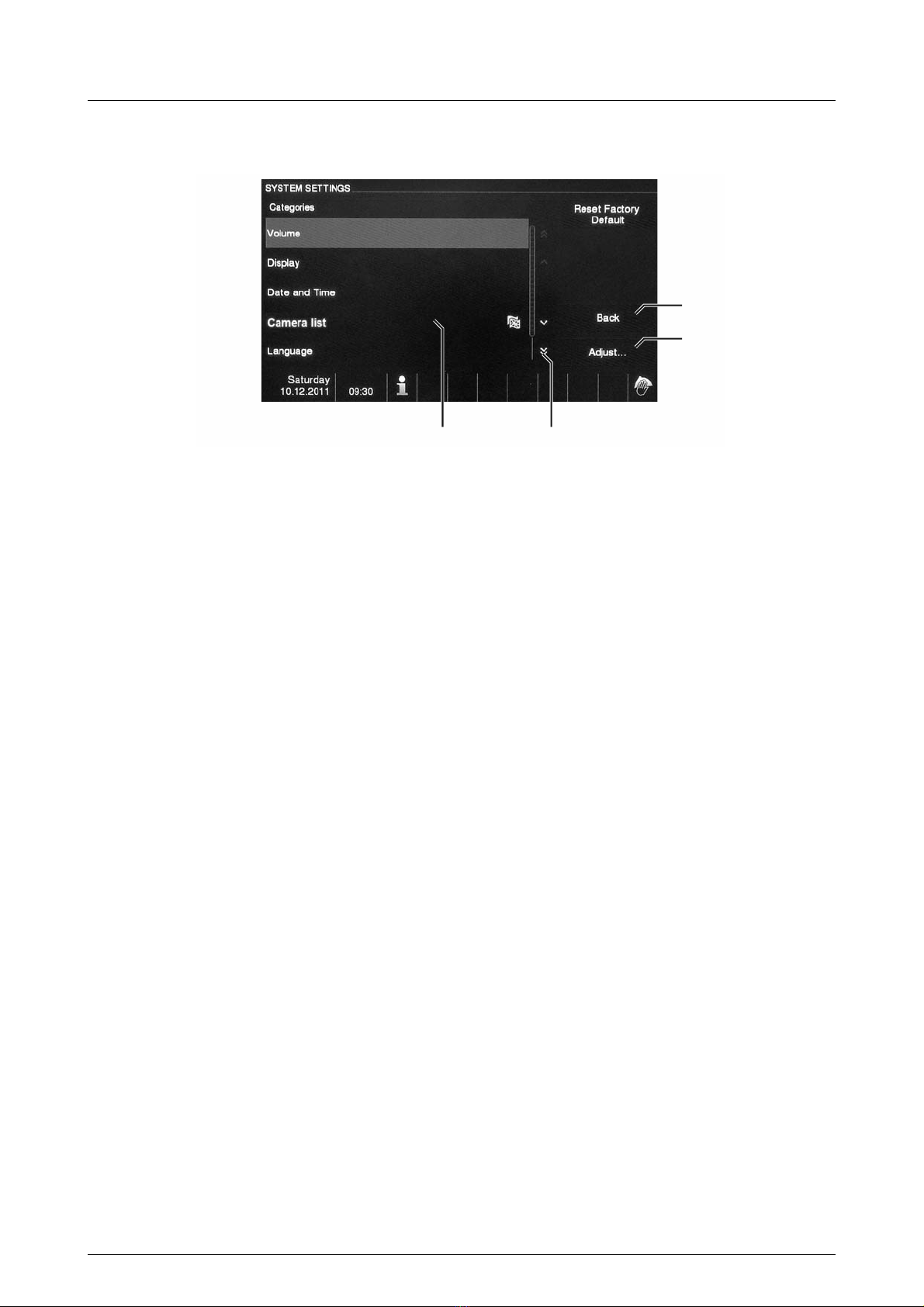

Fig. 12: Settings
To change into the settings areas of the list field (1), carry out the following steps:
1To display the hidden functions, tap on the scroll buttons (2).
2Tap on one of the setting areas.
3Tap on button "Set" (3).
– The device changes to the setting area selected.
– The individual functions are described in the following chapters.
– The device changes back to the start page via button "Back".
1 2
4
3

Busch-Welcome® Operation
| 2CKA001473B7474 — 18 —
5.2.8.2 Volume
Fig. 13: Setting the volume
When changing to "Volume" the following functions become available:
No. Function
1 Bell-sound volume
– Set the volume of the bell sound via the "Plus / minus" buttons.
2 Mute timer
- Use the "Plus / minus" buttons to set the time of the mute function which you activate via the "mute"
button.
– Before the adjustment tip on ""Hours" or "Minutes". The active range is marked with a frame.
3 OK
– By tipping on this button you activate the settings.
4 Back
– By tipping on this button you return to the start page without saving the settings.
1
2
4
3

Busch-Welcome® Operation
| 2CKA001473B7474 — 19 —
5.2.8.3 Display
Fig. 14: Display settings
When changing to "Display", the following functions become available:
No. Function
1 Brightness
- Set the brightness of the display via the "Plus / minus" buttons.
2 Screen saver
– The display is preset as digital clock
– If an SD card with suitable pictures is located in the device, you can select a screen saver via the fold-
down menu. If several pictures are stored on the SD card they are displayed as a slide show.
Slide show (electronic picture frame)
– Each picture appears for 20 seconds.
Picture requirements:
– The pictures must be stored on the SD card in directory "DCIM" (Digital Camera Images) on the first
level.
– The maximum admissible size of the picture is 2048 x 1960 pixel.
– The maximum admissible resolution of a picture is 800 x 480 pixel.
– The resolution of the display is 800 x 600. Larger pictures will be reduced to this resolution.
– The format supported is "jpg".
3 Touch feedback
– By tipping on the checkbox you activate or deactivate the feedback tone which sounds when the display
is touched.
4 The entire screen
– Activate or deactivate the full-page mode of the door camera by tipping on the checkbox. The full-page
mode remains active for the period the picture of the visitor is shown after the door bell has been rung.
5 OK
– By tipping on this button you activate the settings.
6 Back
– By tipping on this button you return to the start page without saving the settings.
7 Calibration
– If the buttons and the associated graphics of the display are no longer superimposed, the monitor must
be calibrated.
– Tip on the calibration button and then consecutively on the 5 displayed position crosses. Finally confirm
the dialogue box displayed.
The display has been calibrated.
1
234
98 7
6
5

Busch-Welcome® Operation
| 2CKA001473B7474 — 20 —
8 Screen saver Off
– Select the active period for the screen saver via the fold-down menu until it switches itself off
automatically.
– Available are 5 / 15 / 30 minutes.
– To protect the display the maximum period for the display is limited to 30 minutes.
9 Screen saver On
– Select the start time for the screen saver via the fold-down menu.
– Available are 30 / 60 / 120 seconds.
