Bushnell NEO GHOST User manual

User Manual
®
08-15

2

3
LANGUAGE PAGE
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
4-17
18-31
32-45
46-59
60-73

4
Care and Maintenance
The NEO Ghost is durable and waterproof. To help ensure reliable operation, the following care and
maintenance guidelines are recommended :
• Avoid exposing the unit to extreme environmental conditions for a prolonged period of
time.
• Avoid severe impacts on the unit.
• You may clean the unit occasionally with a soft, damp cloth.
• DO NOT expose the unit to strong chemicals such as gasoline and alcohol, as they will
damage the unit.
• Store the unit in a dry place when it is not in use.
WARNING
Do not attempt to open the NEO Ghost.
Risk of explosion if battery is replaced with incorrect type.
• Do not attempt to open, disassemble or service the internal battery. The battery must be
replaced by a qualied technician.
• Do not crush, puncture or short the battery’s external contacts. Do not expose to
temperatures above 140oF (60oC).
• Properly recycle or dispose of the battery. Do not dispose in re or water.
Legal Disclaimer
By using this product, you agree that Bushnell Outdoor Products will not be held legally responsible
for any injury or damage to you or any person or property caused by the user’s improper operation
and/or poor judgment while using this product.
Note: See Limited Warranty for other limitations to our liability.
Additional Information
The Global Positioning System (GPS), a network of 32 satellites orbiting Earth, is operated and
maintained by the U.S. government. This GPS device requires at least 3 satellites to be acquired to
accurately determine your position. Any change made to the system by the government could aect
the accuracy and performance of this product.
Bushnell Golf GPS Website
www.bushnellgolf.com is the best online resource for all our Golf GPS product owners, including
product support, FAQs, etc. It also serves as a portal to access iGolf.com GPS course les to use
with these Bushnell products. Registering your NEO Ghost via www.bushnell.igolf.com is not
required, but will ensure you have access to the latest updated GPS course data.

5
Contents Page #
Charging the Battery 6
Package Contents / Computer Requirements / Updates 6
Buttons and Functions 7
Getting Started 8
Using the Play Golf Mode 8
Button Functions in Play Golf Mode 9
Using the Play Golf Menu / Play Menu Items 10
Using the Settings Mode 11
Settings Menu Items 11-13
Accessing Updated Golf Course Data 14
How to Find the Product ID / Serial Number 15
Warranty Information 16
Table of Contents

6
Charging the Battery
The rechargeable battery of the NEO Ghost is long lasting and
provides up to 16 hrs (3 rounds of golf typically) on a charge.
However, battery life may be reduced due to a variety of factors
(external temperature, etc). All rechargeable batteries lose their
eective charge length over time. At the end of your round,
be sure to completely power o your NEO Ghost by pressing
and holding the PWR button until the display goes o.
To check your remaining battery life, select “Battery” from the
PLAY GOLF menu (pg. 10), or from the SETTINGS menu (pg. 11).
To recharge the battery, attach the smaller plug on the included
USB cable to the port at the bottom side of the unit and connect
the large (standard) USB plug to your computer. The NEO Ghost
and USB cable are compatible with all USB ports, including
iPhone/other smartphone USB chargers. Once
connected, press the PWR button-the display
will read “CHARGING”. When the Ghost is fully
charged (about 4 hrs from totally discharged
state, less if partial charge remains) and ready
to use, “CHARGING COMPLETED” will be
displayed (press PWR to check charge status if
not displayed).
Package Contents
1 - Bushnell NEO Ghost GPS Rangender
1 - USB/Charging Cable
1 - Quick Start Guide
Computer Requirements
USB Port
OS: Windows (XP/Vista/Windows 7 or higher), Mac (OS X 10.4 or higher)
Firmware/Software Updates
Please check www.bushnellgolf.com periodically for the latest rmware
and software releases.

7
*Note: Backlight is activated with any button push. The
backlight will remain lit for 10 seconds after last button push.
Backlight is disabled in Play Golf Mode.
1. SHOT DISTANCE Button: Press at starting point, walk to
ball position to nd length of shot.
2. MENU Button: View Menu options/items.
3. UP Button: Scrolls up through Menu.
4. SELECT Button: Selects highlighted Menu item.
5. DOWN Button: Scrolls down through Menu.
6. PWR Button: Press & hold (1.5 sec.) to power on/o.
7. USB Port: Connect to PC or smartphone charger with
supplied cable to charge.
▲
◄
▼
Buttons and Functions
1
2
MENU
SHOT
3
UP
▲
5
DOWN
▼
4
SELECT
◄
PWR 6
USB
7
Rear View
Product ID (serial #)

8
GETTING STARTED
1. First, be sure the battery has a full
charge. If you are using it for the rst
time, it should be charged until full
(see pg. 6). Next, make sure you are
outdoors, in a location with a clear
view of the sky overhead, to ensure
good reception of GPS satellite signals.
Now, you’re ready to power up and use
your NEO Ghost.
2. Press and hold the PWR button on the
top side of the unit until it powers on
(start screen as shown on right). Press
and hold again to turn o the power.
3. To turn on the backlight after the unit
is powered on, briey press and release
the PWR button.
4. The display will show the Main Menu
(from the time & date display screen,
press the MENU button on the right side),
with a choice of two operating modes:
PLAY GOLF or SETTINGS.
USING THE PLAY GOLF MODE
1. Highlight PLAY GOLF and press the
SELECT button. Display will show
”SEARCHING”, then SELECT COURSE.
2. Use the UP/DOWN buttons to select
(highlight) your course from list of
nearby courses (closest distance at
top), then press SELECT.
3. The display will show“LOADING”, then:
Current hole # (at upper left), Par for
the hole (upper right), and distances
to the center (large number at center
screen), front (lower left) and back
(lower right) of green. (see next page)

9
BUTTON FUNCTIONS IN PLAY GOLF MODE
• Press UP or DOWN buttons to manually advance to the
next hole (useful for “shotgun” starts), or go back to the
previous hole.
• Press the SHOT button at the tee (“point
A”)-display will update to indicate
distance from point A to your current
location (“point B”) as you walk. Useful
to measure the length of your shot.
Press SHOT again to return to zero and
set a new starting point.
• Press the SELECT button to display
distances to bunkers, hazards, etc. for
the hole from your current location.
Press SELECT again to return to the
regular PLAY GOLF display.
SHOT
NEXT HOLE
MENU
PREVIOUS
HOLE
HAZARDS/
ROUND INFO
Button Functions in Play Golf Mode
Hole #
Front of the
Green Distance
Back of the
Green Distance
Center of the
Green Distance
Par
Information
Displayed Info in Play Golf Mode

10

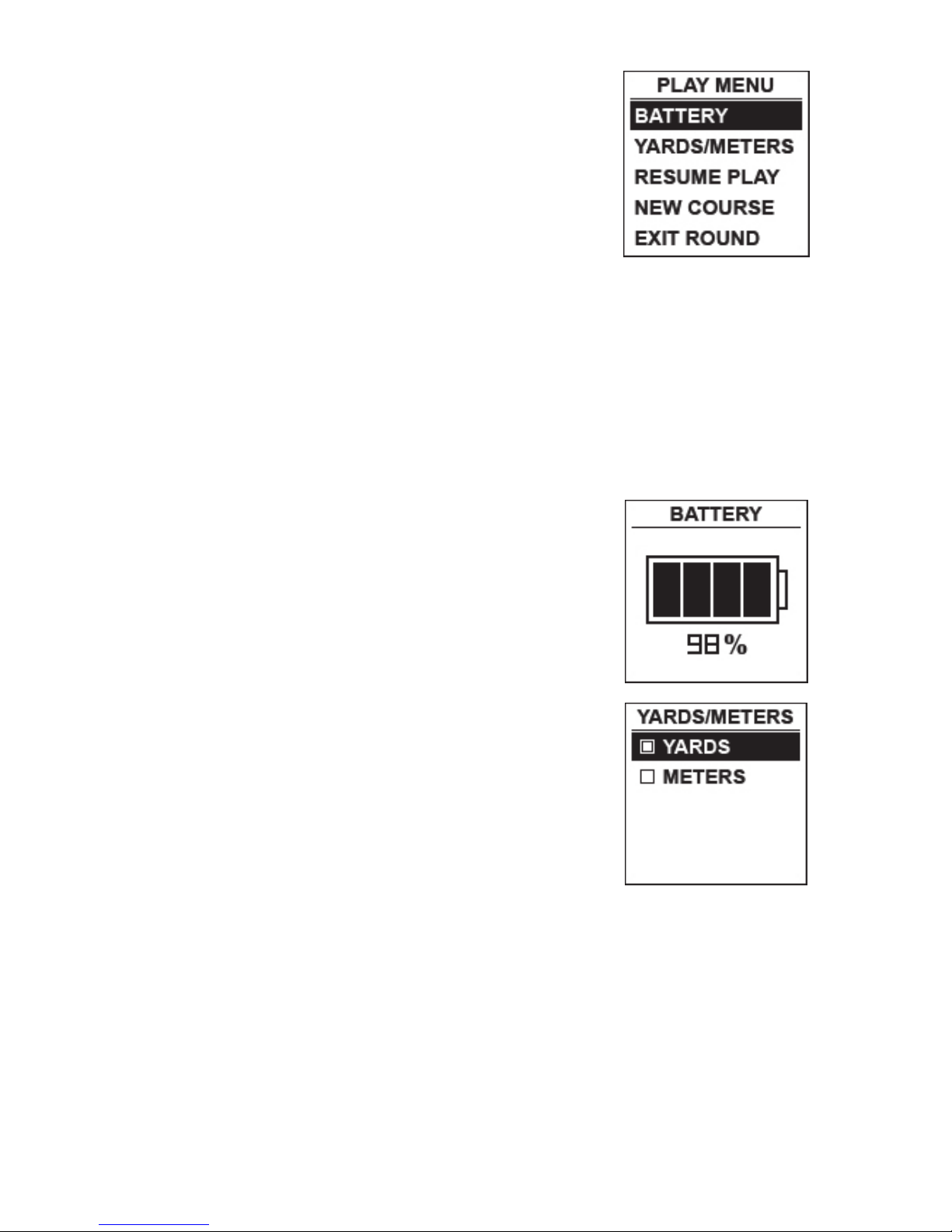

USING THE PLAY MENU IN PLAY GOLF MODE
1. In PLAY GOLF Mode, press the MENU
button to view the PLAY MENU.
2. Select item from menu using UP/
DOWN buttons to highlight it, then
press SELECT button.
3. If multiple options are available for a
setting, use UP/DOWN to highlight
your choice, then press select.
4. A dot in a checkbox to the left of a setting indicates the
current setting (to change it, highlight a dierent setting
and press SELECT).
5. Press MENU button to return to previous menu screen.
PLAY GOLF MENU ITEMS
• BATTERY*: press SELECT button to see
battery condition (charge %). (*also
provided in the SETTINGS Menu)
• YARD/METER*: press SELECT. Dot in
checkbox indicates current setting
(default=YARDS). To change how
distances are displayed, highlight
YARDS or METERS, press select. (*also
provided in the SETTINGS Menu)
• RESUMEPLAY: from any screen, returns display to showing
current hole and distances based on current location.
• NEW COURSE: select another golf course from list.
• EXIT ROUND: stops tracking course, ends current game.

11

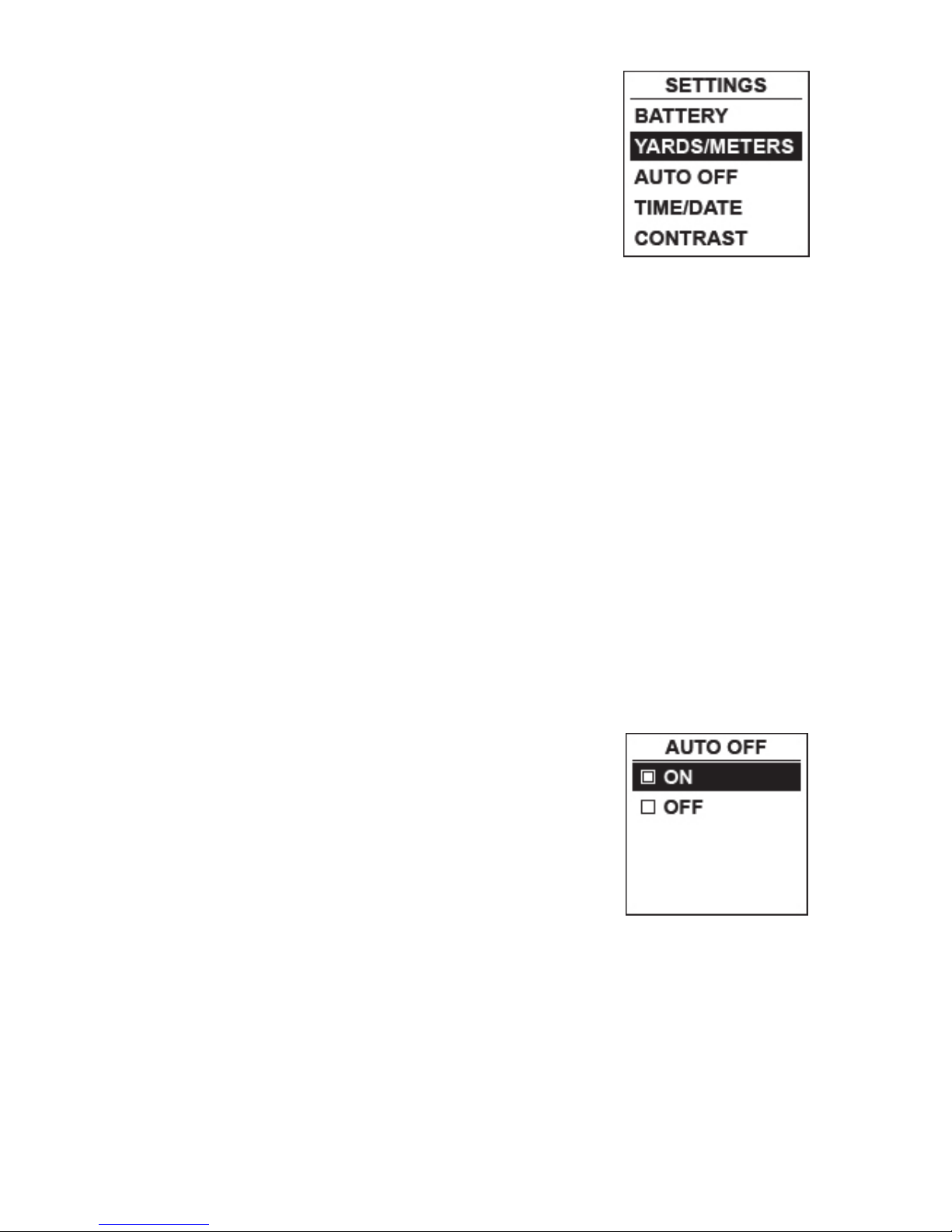

USING THE SETTINGS MODE
1. Highlight SETTINGS (if you are in PLAY
GOLF mode, press MENU and select
EXIT ROUND to go to the main menu)
and press SELECT.
2. Select item from menu using UP/
DOWN buttons to highlight it, then
press SELECT button.
3. If multiple options are available for a setting, use UP/
DOWN to highlight your choice, then press select.
4. A dot in a checkbox to the left of a setting indicates the
current setting (to change it, highlight a dierent setting
and press SELECT).
5. Press MENU button to return to previous menu screen.
SETTINGS MENU ITEMS
• BATTERY*: press SELECT button to see battery condition
(charge %). (*also provided in the PLAY GOLF Menu)
• YARD/METER*: press SELECT. Dot in checkbox indicates
current setting (default=YARDS). To change how distances
are displayed, highlight YARDS or METERS, press select.
(*also provided in the PLAY GOLF Menu)
• AUTOOFF:pressSELECT. Dotincheckbox
indicates current setting (default=OFF).
ON=unit will automatically power o
after 30 minutes if no buttons have been
pressed (or if unit has not auto advanced
to next hole as you walk the course).
OFF=unit will stay powered on until
user manually powers o by holding PWR button. To change
setting, highlight ON or OFF, press SELECT.
NOTE: selecting “ON” can help avoid running down the
battery charge if you forget to power o after a round-but
there is the possibility of losing GPS satellite contact, along
with all data generated since your start of play. “OFF” is the
normally recommended setting. Use “ON” with caution.

12

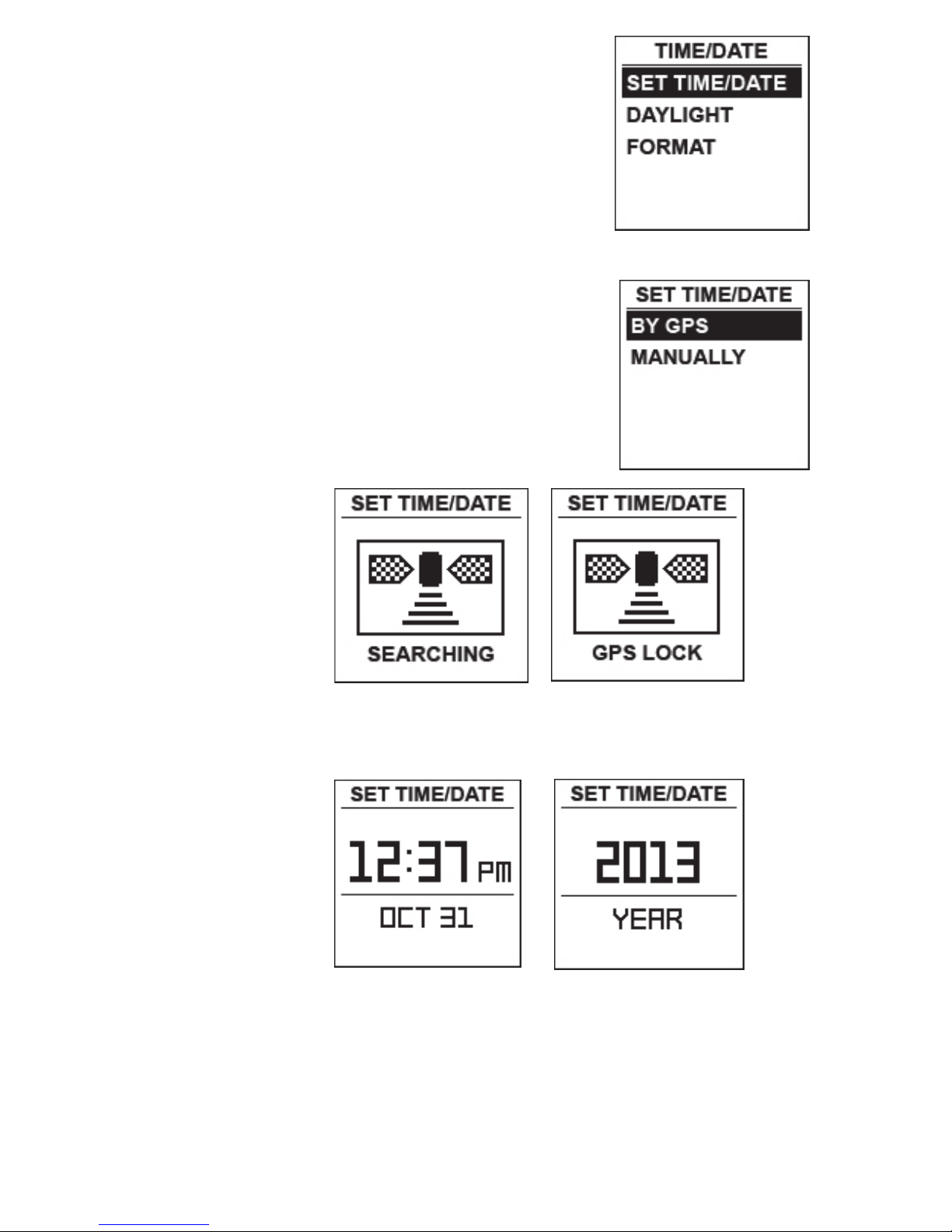

• TIME/DATE > press SELECT then
highlight and select one of these four
time/date related settings:
1) TIME ZONE: scroll through
list and highlight your time zone
(list continues if DOWN button
is pressed at bottom of screen),
press SELECT.
2) SET TIME/DATE: press SELECT
and highlight a method:
• BY GPS: press SELECT to
automatically set the time
based on your current GPS
location.
• MANUALLY: use the UP/DOWN buttons to enter
the correct current time and date yourself.

13

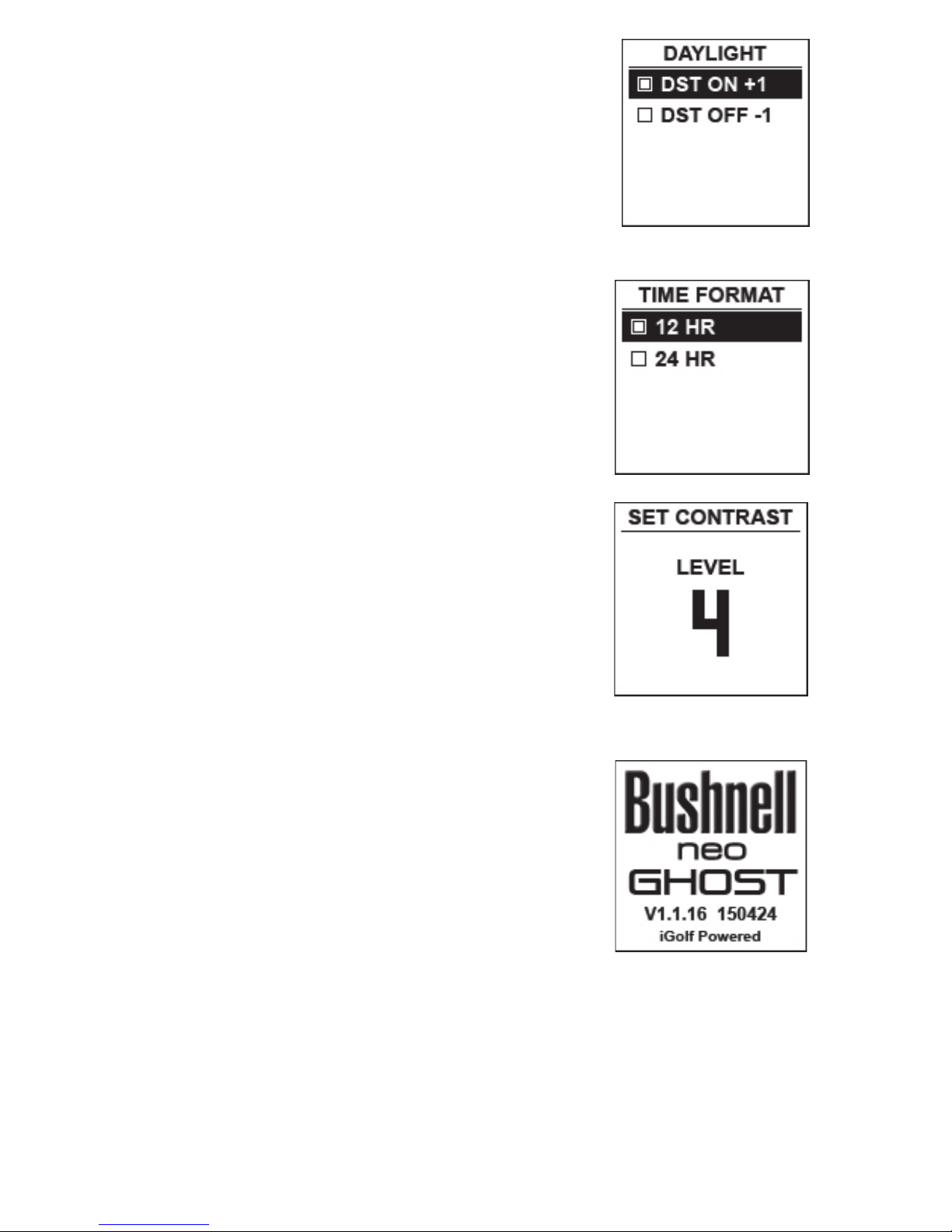

3) DAYLIGHT SAVI: press SELECT
and highlight current daylight
savings time status for your
location:
• DST ON +1
• DST OFF -1
4) FORMAT: press SELECT and
highlight preference for time
display:
• 12 HOUR
• 24 HOUR
• CONTRAST: press SELECT then
use UP/DOWN to select the display
contrast level for best viewing quality,
from 1 (lowest) to 10 (highest). Lower
contrast can improve screen viewing
in bright sun, as can higher contrast
settings on cloudy days.
• ABOUT: press SELECT to display your
unit’s rmware version.

14
Accessing Updated Golf Course Data
Your NEO Ghost is pre-loaded with data for over 33,000 courses
located worldwide. It is ready to use right out of the box, with no
need to download software or pay any membership fees.
But you might be thinking, “What if a new course opens
sometime after my unit was made? Is there a way to update the
database in my unit to add it?” The answer is yes, and it’s simple
to do.
Go to www.bushnellgolf.com and view the product page for
any of the dierent color versions of the NEO Ghost. You’ll nd
three orange links you can click:
• How to Update Your Golf GPS with the Latest Maps
Click this link for step-by-step directions for nding and
downloading new course data from iGolf.com
• Request Course Update
Click this link to go to a form you can ll out and email
to iGolf to submit a course that is not included in the
database, or if you nd information (data for a hole) that
is not mapped correctly on an existing course.
• Search for Available Courses on Your Bushnell Golf GPS
Click this link to search the current iGolf database to
verify a course you are interested in is included.
You can also go to: https://igolf.com and click “Join Now”, ll in
your contact info on the registration form then select “I Have A
GPS Device”to access course updates.
Use the provided USB cable to connect
your NEO Ghost to your PC or Mac. Once
connected, the screen will display “USB
MODE”.

15
Product ID (serial #)
How to Find the Product ID / Serial Number
The serial # (Product ID) of your Ghost can be found on the
back of the unit. Write it down below for future reference. You
will need it to register on the iGolf site so you can access newly
added golf courses or update data for existing courses.
My Serial #/Product ID

16
ONE YEAR LIMITED WARRANTY
Your Bushnell
®
NEO Ghost is warranted to be free of defects in materials and
workmanship for one year after the date of purchase. In the event of a defect under
this warranty, we will, at our option, repair or replace the product, provided that you
return the product postage prepaid. This warranty does not cover damages caused by
misuse, improper handling, installation, or maintenance provided by someone other
than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed
below:
1. A check/money order in the amount of $10.00 to cover the cost of postage
and handling
2. Name and address for product return
3. An explanation of the defect
4. Proof of Date Purchased
Product should be well packed in a sturdy outside shipping carton to prevent
damage in transit, to the address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
9200 Cody 140 Great Gulf Drive, Unit B
Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1
For products purchased outside the United States or Canada please contact your
local dealer for applicable warranty information. In Europe you may also contact
Bushnell at:
Bushnell Germany GmbH
European Service Centre
Mathias-Brüggen-Str. 80
D-50827 Köln
GERMANY
Tel: [phone]
Fax: [phone]
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2015 Bushnell Outdoor Products
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
Other names may be trademarks of their respective owners.

17
This device complies with Part 15 of the FCC interference limits for Class B digital devices FOR HOME OR OFFICE USE.
These limits are designed to provide reasonable protection against harmful interference in a residential installation,
and are more stringent than“outdoor”requirements.
Operation of this device is subject to the following conditions; (1) This device may not cause harmful interference,
and(2) this devicemust acceptanyinterferencereceived, includinginterferencethatmay causeundesiredoperation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Bushnell
repair center. Unauthorized repairs or modications could result in permanent damage to the equipment, and will
void your warranty and your authority to operate this device under Part 15 regulations.
The shielded interface cable which is provided must be used with the equipment in order to comply with the limits
for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
FCC Statement

18
Entretien et maintenance
Le NEO Ghost est solide et étanche à l’eau. Il vous est recommandé de suivre les indications
d’entretien et de maintenance suivantes an de vous aider à garantir un fonctionnement en toute
abilité :
• Évitez d’exposer l’appareil à des conditions environnementales extrêmes pendant une
période de temps prolongée.
• Évitez les graves impacts sur l’appareil.
• Vous pouvez nettoyer l’appareil de manière occasionnelle avec un chion doux et humide.
• N’exposez PAS l’appareil à des substances chimiques agressives, telles que l’essence et
l’alcool, qui risqueraient de l’endommager.
• Conservez l’appareil dans un endroit sec lorsque vous ne l’utilisez pas.
MISE EN GARDE
N’essayez pas d’ouvrir le NEO Ghost.
Le remplacement de la batterie par une batterie inadaptée est susceptible d’entraîner un risque
d’explosion.
• N’essayez pas d’ouvrir, de démonter ou de réparer la batterie interne. La batterie doit être
remplacée par un technicien qualié.
• Veillez à ne pas écraser ou perforer les contacts extérieurs de la batterie, ni à créer de court-
circuit. N’exposez pas la batterie à des températures supérieures à 60 °C (140 °F).
• Recyclez ou jetez la batterie conformément à la réglementation en vigueur. Ne la jetez pas
au feu ou dans l’eau.
Limitation de responsabilité
En utilisant ce produit, vous reconnaissez que Bushnell Outdoor Products ne peut être tenue
légalement responsable en cas de blessure ou de préjudice subi par vous-même, un tiers ou un
bien en raison d’un usage inapproprié et/ou d’une négligence de l’utilisateur lors de l’utilisation
du produit.
Remarque : Voir « Garantie limitée » pour les autres limitations de notre responsabilité
Informations complémentaires
Le système GPS (Global Positioning System), un réseau de 32 satellites en orbite autour de la terre,
est géré et entretenu par le Gouvernement américain. Ce GPS nécessite l’acquisition d’au moins 3
satellites pour déterminer précisément votre position.Toute modication apportée au système par
le gouvernement pourrait aecter l’exactitude et la performance de ce produit.
Site web de Bushnell pour les GPS de golf
www.bushnellgolf.com est la ressource en ligne par excellence pour tous les utilisateurs
de notre GPS de golf. Ce site web propose un service client, une FAQ, etc., et sert de portail pour
accéder aux chiers de données des parcours GPS d’iGolf.com, à utiliser avec les produits Bushnell.
L’enregistrement de votre NEO Ghost sur www.bushnellgolf.com n’est pas une obligation, mais
vous permettra d’accéder aux dernières mises à jour des données sur les parcours GPS.

19
Table des matières Page
Chargement de la batterie 20
Contenu du kit/ Conguration requise/ micrologiciels 20
Boutons et fonctions 21
Pour commencer 22
Mode play golf 22
Fonction des boutons en mode play golf 23
Menu play en mode play golf/ options du menu play golf 24
Mode Settings 25
Options du menu settings 25-27
Accéder aux mises à jour des données pour le parcours de golf 28
Où trouver la référence du produit / le numéro de série 29
Garantie 30
Table des matières
Généré par iGolf

20
Chargement de la batterie
Le NEO Ghost est doté d’une batterie rechargeable longue durée
qui ore jusqu’à 16 heures d’autonomie (environ 3 parties de golf).
Cependant, un certain nombre de facteurs (température extérieure,
etc.) peuvent réduire la durée de vie de la batterie. Toutes les
batteries rechargeables perdent leur charge eective avec le temps.
À la n de votre partie, assurez-vous d’éteindre complètement
votre NEO Ghost en maintenant enfoncé le bouton MARCHE/
ARRÊT jusqu’à ce que l’écran s’éteigne.
Pour vérier l’autonomie de votre batterie, sélectionnez « Battery
» dans le Menu PLAY GOLF (p. 24), ou dans le menu SETTINGS
(p. 25). Pour charger la batterie, branchez la plus petite prise du
câble USB (inclus) sur le port situé sur la partie
inférieure de l’appareil et connectez la prise USB
standard à votre ordinateur. Le NEO Ghost et le
câble USB sont compatibles avec tous les ports
USB, y compris les chargeurs USB pour iPhone et
autres smartphones. Une fois l’appareil branché,
appuyez sur le bouton PWR (MARCHE/ARRÊT). La
mention « CHARGING » s’ache alors sur l’écran.
Lorsque le Ghost est complètement chargé (après
4 heures s’il était totalement déchargé et moins s’il
restait de la batterie) et prêt à l’emploi, la mention
« CHARGING COMPLETED » s’achera alors
sur l’écran (appuyez sur le bouton PWR (MARCHE/
ARRÊT) pour vérier l’état de charge, s’il ne s’ache pas).
Contenu du kit
1 - NEO Ghost GPS Rangender de Bushnell
1 - Câble USB/Chargeur
1 - Guide d’utilisation rapide
Conguration requise
Port USB
Système d’exploitation : Windows (XP/Vista/Windows 7 ou plus récent),
Mac (OS X 10.4 ou plus récent)
Mise à jour des logiciels/micrologiciels
Veuillez consulter régulièrement le site www.bushnellgolf.com pour
obtenir les dernières versions des logiciels et micrologiciels.
