Bushnell Tour V2 User manual


Model: 201930A
Literature #: 98-2032/01-11


English. . . . . . . . . . . . . . . . 3
French. . . . . . . . . . . . . . . . 16
Spanish. . . . . . . . . . . . . . . 30
German. . . . . . . . . . . . . . . 44
Italian. . . . . . . . . . . . . . . . . 58
Portuguese. . . . . . . . . . . . . . 72


Power eyePiece
Mode
triPod Mount


CONGRATULATIONS ON YOUR PURCHASE OF THE BUSHNELL® TOUR V2™ WITH
PINSEEKER™ TECHNOLOGY. The TOUR V2 is a precision Laser Rangefinding optical instrument
designed to provide many years of enjoyment. This booklet will help you achieve optimum performance
by explaining its adjustments and features as well as how to care for this precise laser rangefinding
optical instrument. To ensure optimal performance and longevity, please read these instructions before
using your TOUR V2.
INTRODUCTION
Your Tour V2 is Bushnell’s newest addition to an award winning line of golf laser rangefinders specifically made
for golfers. Tour V2 features PinSeeker™ technology, allowing the golfer to easily and quickly “zero” in on the
flag without acquiring background targets. The Tour V2 is the most compact laser rangefinder on the market,
weighing a mere 6.6 ounces and made to fit into the palm of your hand. Tour V2 also features and adjustable
eyepiece, 5X magnification, and is capable of providing distance from 5 to 1000 yards with incredible one yard
accuracy! Like other Bushnell laser rangefinders, the Tour V2 is not dependent upon reflectors, and will provide
distance to trees, bunkers, and virtually any object on the course, to any golf course in the world.

HOW OUR DIGITAL TECHNOLOGY WORKS
The TOUR V2 WITH PINSEEKER emits invisible, eye safe, infrared energy pulses. The TOUR V2 WITH
PINSEEKER’s Advanced Digital microprocessor and ASIC chip (Application-Specific Integrated Circuit)
results in instantaneous and accurate readings every time. Sophisticated digital technology instantaneously
calculates distances by measuring the time it takes for each pulse to travel from the rangefinder, to the
target, and back.
RANGING ACCURACY
The ranging accuracy of the TOUR V2 is plus or minus one yard/meter under most circumstances. The
maximum range of the instrument depends on the reflectivity of the target. The maximum distance for most
objects is 700 yards/640 meters while for highly reflective objects the maximum is 1000 yards/914 meters.
Note: You will get both longer and shorter maximum distances depending on the reflective properties of the
particular target and the environmental conditions at the time the distance of an object is being measured.
The color, surface finish, size and shape of the target all affect reflectivity and range. The brighter the color,
the longer the range. Red is highly reflective, for example, and allows longer ranges than the color black,
which is the least reflective color. A shiny finish provides more range than a dull one. A small target is more
difficult to range than a larger target. The angle to the target also has an effect. Shooting to a target at a
90 degree angle (where the target surface is perpendicular to the flight path of the emitted energy pulses)
provides good range while a steep angle on the other hand, provides limited ranging. In addition, lighting
conditions (e.g. the amount of sunlight) will affect
the ranging capabilities of the unit. The less light (e.g. overcast skies) the farther the unit’s maximum range
will be. Conversely, very sunny days will decrease the unit’s maximum range. 
english




GETTING STARTED
IINSERTING THE BATTERY

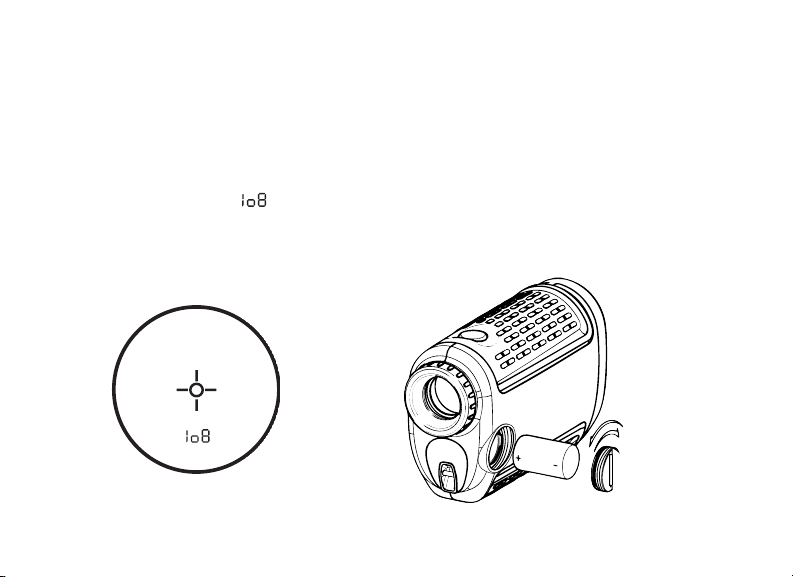

Remove the battery cap by lifting the battery door tab and then rotating counter clockwise. Insert a CR-2
3-volt lithium battery into the compartment positive end first, then replace the battery cap.
NOTE: It is recommended that the battery be replaced at least once every 12 months.
Low Battery Indicator: If the is displayed within the in-view readout, this means “low battery” or
battery charge is getting low and the 3-volt lithium battery should be replaced.


ADJUSTING THE EYEPIECE
Your TOUR V2 is constructed with an adjustable eyepiece (+/- 2 Diopter Adjustment) that allows one
to focus the LCD display relative to the image. Simply rotate the eyepiece until the reticle and object
distanced to are in focus to your eye.
OPERATIONAL SUMMARY
While looking through the 5x eyepiece, depress the power button once to activate the in-view Liquid
Crystal Display (LCD). Place the aiming circle (located in the center of the field of view) upon a target
at least 5 yards away, depress and hold the power button down until the range reading is displayed
near the bottom of the in-view display. Crosshairs surrounding the aiming circle indicate that the laser is
being transmitted. Once a range has been acquired, you can release the power button. The crosshairs
surrounding the aiming circle will disappear once the power button has been released (i.e. the laser is no
longer being transmitted). Note: Once activated, the LCD will remain active and display the last distance
measurement for 30 seconds. You can depress the power button again at any time to distance to a new
target. As with any laser device, it is not recommended to directly view the emissions for long periods
of time with magnified lenses. The maximum time the laser is transmitted (fired) is 10 seconds. To re-fire,
press the button down again.
LIQUID CRYSTAL DISPLAY (LCD) INDICATORS
Your TOUR V2 WITH PINSEEKER’s LCD incorporates illuminated indicators that advise the user unit of
measure, when the laser is actively firing, when a target has been acquired, and targeting modes. A
summary of these features is presented below:


UNIT OF MEASURE OPTIONS
The TOUR V2 can be used to measure distances in yards or meters. The unit of measure indicators are
located in the lower right portion of the LCD. To select between yards and meters, quickly press and
release the POWER button to turn on the unit (on top of the unit), look through the eyepiece, depress
the “MODE” button (left side of the eyepiece) and hold it down for approximately 5 seconds. If you are
changing from yards to meters, a change in unit of measure will be indicated by the illumination of the M
for meter indicator while the Y for Yard indicator is turned off. If you are changing from meters to yards,
the opposite will occur. The TOUR V2 will return to the last unit of measure setting used each time the
unit is turned on.
ACTIVE LASER
Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has
been acquired, you can release the power button. The crosshairs surrounding the circle will disappear
once the power button has been released (i.e. the laser is no longer being transmitted).
SELECTIVE TARGETING™ MODES
The TOUR V2 WITH PINSEEKER was especially designed with golfers in mind. The selective targeting
modes allow you to adjust the performance parameters of the unit to suit your specific situation and
environment. To move from one mode to another, press the POWER button once to turn on the unit. While
looking through the eyepiece, press the MODE button and quickly release. The different targeting modes
available and mode indicators are listed below:
PinSeeker (LCD Indicator - ) Ever have trouble getting distance to the flag? This advanced mode allows
easy acquisition of the flag without inadvertently getting distances to background targets (i.e. trees) that
have stronger signal strength.


Once in this mode, press the POWER button to turn the unit on. Next, align the aiming circle reticle onto
the flag that you want distance to. Next, press and hold the POWER button and move the laser slowly
over the flag or desired object until a circle surrounds the flag indicator. If the laser beam recognized
more than one object (i.e. flag and background trees), distance of the flag will be displayed and a circle
will surround the PinSeeker indicator informing the user that distance to the flag (i.e. closer object) is
being displayed in the LCD (as seen below). There may be times when only the laser beam only sees one
object in its path. In this case, the distance will be displayed, but because more
than one object was not acquired, a circle will not surround the flag indicator.
TIP: While pressing the POWER button, you can move the device slowly from
object to object and intentionally force the laser to hit multiple objects to ensure
that you are only displaying the closest of the objects recognized by the laser.
Once the device has shut off, the unit will always default back to the last
mode used.
Tour V2 - Slope Edition (LCD Indicator - ° ) This advanced and patented mode
found on SLOPE EDITION models features a built-in accelerometer-based
inclinometer that digitally displays the exact slope angle from -20 to +20
degrees of elevation and is +/- 1.0 degree accurate. The Slope +/-™ mode will
automatically compute an angle compensated range based upon distance and
slope angle determined by the laser rangefinder and built-in inclinometer. This
data is then combined with internal algorithmic formulas dealing with average
club use and ball trajectories. The angle compensated range provides direction
on how to play the shot (i.e. add distance if an incline, subtract distance if
a decline).


How to use Slope™ Mode
Once in this mode, you will see a “ ° ” in the field of view informing you that you are in the Slope
+/- Mode. Press the POWER button to obtain distance to the flag or other objects. Once the range is
displayed, continue to hold the POWER button down for approximately 2 seconds while holding the
aiming circle on the flag and keeping the unit as steady as possible so as to allow the inclinometer
enough time to measure slope. Then release the POWER button. Once you have released the power
button, a degree of angle and compensated range will be displayed beneath the standard distance as
seen below.

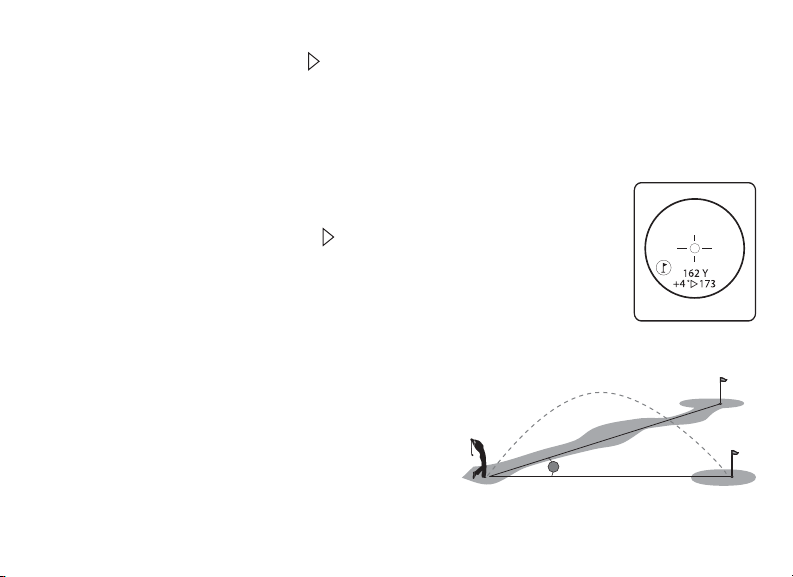

In this example, the true distance is 162 yards, slope is +4 degrees, and the
compensated range is 173 yards. The “ ” symbol means “Play-As”, so instead of
playing as 162 yards, “play-as” 173 yards.
The Advantage of Slope Edition
The distance to flag A in the drawing below is 162 yards.
It is also 162 yards to flag B although it is on a slope.
However, if you were to play this hole as 162 yards, the
ball (X) would fall short of the hole/flag because you did
nottake slope into account. 162 YARDS
162 YARDS
X
4°


The Truth about Slopes
Trying to determine slope angle with the naked eye can be rather deceiving. Most are not well versed
to accurately determine slope angle. For example, most golf courses average slope is approximately 4
degrees. A large slope at a golf course is generally no more than 8 degrees. Of course this can vary,
and that is why this device will measure slope from -20 to 20 degrees.
Some real world examples may help clarify. A moderate roof pitch is 6/12, which means that the roof
rises six inches for every 12 inch horizontal distance. That equates to 26.5 degrees. You can scramble
up this pitch when hanging Christmas lights, but climbing that slope for the distance of a good golf shot
on a course would be exhausting. To retrieve a 200 yards shot, you would climb 300 feet up!
Golf Example: Let’s say you are a strong golfer with a 300 yard shot. At a 20 degree slope the Pin
would be 50 feet above you. In other words, you be driving the ball to the top of a 5 story building!!!
NOTE: For your convenience, the Slope Edition also contains the PinSeeker® Mode/feature. If at any time
you prefer not to use the Slope Mode, simply press the MODE button to get to PinSeeker® or Standard
with Automatic SCAN Mode.™
Standard with Automatic SCAN: This setting allows most targets to be distanced up to 1000 yards.
Used for moderately reflective targets that are typical of most distancing situations. The minimum distance
in the standard mode is 5 yards. To use the Automatic SCAN feature, simply hold down on the POWER
button for approximately 3 seconds and SCAN the rangefinder from object to object while leaving the
POWER button depressed. Automatic SCAN will allow the range and display to be continuously updated
very rapidly as multiple objects are targeted.


OPTICAL DESIGN
Magnification and Coatings
The TOUR V2 features 5x magnification and Multi-Coated optics. A liquid crystal display (LCD) is mounted
within the optical system and when activated, displays a reticle for targeting, yards/meters, and Mode
indicators. Inherent in the manufacturing process are small black spots that appear in the optical system.
These are a natural characteristic of the LCD and cannot be fully eliminated in the manufacturing process.
They do not affect the distancing performance of the unit.
TRIPOD MOUNT
Molded into the bottom of your TOUR V2 is a threaded tripod mount that will allow you to attach a tripod
for a more stable operation during long periods of use.
SPECIFICATIONS:
Dimensions: Measuring 4.3 x 2.8 x 1.6 inches Display: LCD
Weight: 6.6 oz. Power Source: 3-volt lithium (included)
Ranging Accuracy: +/- 1 yard Field Of View: 367 ft. @ 1000 yards
Range: 5-1000 Yards / 5-914 Meters Extra Long Eye Relief: 21mm
Magnification: 5x Exit Pupil: 4.8 mm
Objective Diameter: 24 mm Built-In Tripod Mount
Optical Coatings: Multi-Coated Includes battery and carrying case
Patent #’s: 6,445,444 | 5,612,779 | 6,057,910 | 6,226,077 | 7,239,377 (Slope Edition) | 7,535,553
(Slope Edition) | 7,859,650

CLEANING
Gently blow away any dust or debris on the lenses (or use a soft lens brush). To remove dirt or fingerprints,
clean with a soft cotton cloth, rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing
may scratch the lens surface and eventually cause permanent damage. For a more thorough cleaning,
photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used.
Always apply the fluid to the cleaning cloth – never directly on the lens.
TWO-YEAR LIMITED WARRANTY




  
  
  
  
  
IN U.S.A. Send To: IN CANADA Send To:
   
    
    
   

In Europe you may also contact Bushnell at: 
 
  
  
  
 
  


TROUBLE SHOOTING TABLE
If unit does not turn on - LCD does not illuminate:
• Depress POWER button.
• Check and if necessary, replace battery.
If unit does not respond to key presses, replace the battery with a good quality 3 volt lithium battery.
If unit powers down (display goes blank when attempting to power the laser):
• The battery is either weak or low quality. Replace the battery with a good quality
3-volt lithium battery.
If target range cannot be obtained:
• Make sure LCD is illuminated.
• Make sure that the power button is being depressed.
• Make sure that nothing, such as your hand or finger, is blocking the objective lenses
(lenses closest to the target) that emit and receive the laser pulses.
• Make sure unit is held steady while depressing power button.
NOTE: The last range reading does not need to be cleared before ranging another target. Simply
aim at the new target using the LCD’s reticle, depress the power button and hold until new range reading is
displayed. Specifications, instructions, and the operation of these products are subject to change without notice.


FCC NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant
to Subpart B of Part 15 of FCC Rules.
Specifications and designs are subject to change without any notice or
obligation on the part of the manufacturer.
FDA Eye Safety
Class 1 laser product in accordance with IEC 60825-1:2007.
Complies with 21 CFR 1040.10 and 1040.11 for laser products except for deviations pursuant to Laser Notice
No. 50, dated June 24, 2007
Caution: There are no user controls, adjustments or procedures. Performance of procedures other than those specified
herein may result in access to invisible laser light.


MArche/ArrÊt (AliMentAtion) oculAire
Mode
Monture de tréPied


FrAnçAis


FELICITATIONS POUR VOTRE ACHAT DU TELEMETRE TOUR V2™ AVEC TECHNOLOGIE
PINSEEKER™ DE BUSHNELL.® Le TOUR V2 est un appareil a laser de haute precision conçu pour
offrir plusieurs annees de plaisir. Ce manuel vous aidera a atteindre la performance optimale en vous
expliquant les reglages et caracteristiques ainsi que l’entretien de cet appareil de telemetrie a laser de
haute precision. Pour assurer une performance et une duree de vie optimales, veuillez lire les instructions
avant d’utiliser votre TOUR V2.
INTRODUCTION
Le TOUR V2 est la nouvelle addition de Bushnell à sa ligne de télémètres à laser spécialement conçus
pour les golfeurs. Le TOUR V2 met en vedette la technologie PINSEEKER™ qui permet aux golfeurs de
cibler rapidement et facilement le drapeau, et non pas les objets en arrière-plan. Le TOUR V2 est le plus
compact des télémètres au laser sur le marché, pensant 6,6 oz (187 g), il est fait pour tenir dans votre
main. Il met aussi en vedette un oculaire ajustable, un grossissement 5 x et est capable d’offrir une portée
de 5 à 1000 yards (5 à 914 mètres) avec une précision incroyable de 1 yard (1 mètre)! Différent des
autres télémètres au laser Bushnell, le TOUR V2 ne dépend pas des réflecteurs et offre une distance à
partir des arbres, des abris en fait de n’importe quel objet sur le parcours, sur n’importe quel terrain de
golf au monde.


VOICI COMMENT NOTRE TECHNOGÉNIE NUMÉRIQUE FONCTIONNE
Le TOUR V2 avec PINSEEKER émet des impulsions d’énergie infrarouge invisibles et sans risque pour les
yeux. Son microprocesseur numérique avancé et la puce CIAS (Circuits intégrés à application spécifique)
du TOUR V2 avec PINSEEKER produisent chaque fois des relevés de distances précises et instantanées.
La technogénie numérique sophistiquée calcule instantanément les distances en mesurant le temps requis
par le parcours aller-retour de chaque impulsion du télémètre à la cible.
PRÉCISION DE L’ÉVALUATION DES DISTANCES
La précision de l’évaluation des distances du TOUR V2 est de +/- 1 yard/mètre dans la pluspart des cas.
La distance maximale du télémètre dépend de la réflectivité de la cible. La distance maximale pour la
majorité des objets est de 700 yards/640 mètres alors que le maximum pour les objets à haute réflectivité
est de 1000 yards/914 mètres. Note: Vous obtiendrez les distances maximales et minimales selon les
propriétés réfléchissantes d’une cible particulière et les conditions environnementales au moment de la
mesure de la distance d’une cible.
La couleur, le fini de la surface, la dimension et la forme de la cible affectent la réflectivité et la plage de
mesure. Plus la couleur est vive, plus la plage est longue. Par exemple, le rouge a une grande reflectivité
et permet une plus grande distance que le noir, la couleur ayant le moins de réflectivité. Un fini brillant
permet une plage plus longue qu’un fini mât. L’évaluation de la distance d’une cible de petite taille est
plus difficile que celle d’une grande taille. L’angle de la cible a également un effet. Viser une cible avec
un angle de 90 degrés (alors que la surface de la cible est perpendiculaire à la trajectoire émise par les
amplitudes d’impulsion) offre une distance maximale tandis qu’une pente raide offre une distance limitée.
De plus, les conditions d’éclairage (p. ex. le niveau d’ensoleillement) affectera les capacités de distance
de l’appareil. Moins d’ensoleillement (par ex.: journée nuageuse) permet de maximiser l’évaluation de
la distance de l’appareil. De manière générale, les journées très ensoleillées diminuent l’évaluation de la
distance maximale de l’appareil.


MISE EN PLACE DE LA PILE
Enlevez le cache de la pile en soulevant l’ergot du couvercle puis en le tournant dans le sens inverse des
aiguilles d’une montre. Insérez une pile au lithium de CR-2 de 3 volts dans le compartiment d’abord par
la borne positive, puis refermez le cache.
REMARQUE: Il est recommandé de remplacer la pile au moins une fois par an.
Indicateur de batterie faible: Si “ “est affiché lors de l’affichage, ceci indique que la charge de la pile
est faible et qu’elle doit être remplacée.


