Bushranger CSG010 User manual

CSG010

Congratulations on your purchase of the Bushranger® Gas Hot Water Shower.
To take full advantage of this product, please read this manual carefully before
using. Retain this manual for future reference for installation and warranty.

Table of contents
Product Information
Safety Instructions
Performance
Specications
Installation
Operation
Care and Maintenance
Troubleshooting
Technical Assistance
Warranty
1
3
4
7
9
13
17
18
19
20

Important
It is IMPORTANT that you read these instructions carefully and understand the
operation and safety features of this appliance. Familiarise yourself with the
appliance before connecting it to its gas container. Keep these instructions for
future reference.
The manufacturer reserves the right to make all the modications to its products
that it deems necessary or useful, also in your interests, without prejudicing its
essential functional and safety characteristics.
The manufacturer cannot be held responsible for any inaccuracies due to printing
or transcription errors that may be found in this handbook.
• Adjustments and maintenance must only be carried out by an
authorised person.
• The installation of all gas and combustion appliances must comply with the
standards in force. For more information contact your state regulatory ofce.
• This appliance is only to be used for the heating of water, it is not authorised
for any other purpose, any other use is considered improper and is potentially
dangerous.
• The manufacturer cannot be held responsible for any harm to people or
damage to property deriving from an incorrect installation or maintenance or
from an erroneous use of the appliance.
• Once the outer wrapping and the inner wrappings of the various parts
have been removed, check and make sure that the appliance is in perfect
condition. If you have any doubts do not use the appliance.
• The packaging materials used (cardboard, bags, polystyrene foam, nails,
etc.) must not be left anywhere in easy reach of children because they are
a potential hazard source. To safeguard the environment all packaging
materials are environment-friendly and recyclable.
• In the case of a failure and/or malfunction, DON’T ATTEMPT TO REPAIR. Take
the appliance back to the place of purchase, if unavailable call our customer
service team on 1800 654 767 detailing the trouble and product information.
Note: the pictures shown in the gures in this handbook are purely indicative.
| Gas Hot Water Shower
Page 1

Warnings
• Do not use the appliance if it has a leak, or has worn, deteriorated or
damaged seals. Accessible parts may be very hot. Keep young children away.
• It may be hazardous to attempt to t other types of gas containers
or cartridges.
• When storing this appliance, ensure that the cylinder is disconnected and
that the appliance and cylinder are stored in a well-ventilated area, free from
direct sunlight, heat and ignition sources. If being stored indoors, ensure that
the location complies with the standard AS/NZS1596.
• Do not use adaptors or modify the appliance to t other connectors
or cylinders.
• When using this appliance, children must be supervised by an adult at all times
• Never leave appliance unattended when operating.
• Do not use as a cooking appliance or modify for any other reason.
• Avoid twisting & kinking the LPG Gas hose.
• Do not place articles on or against this appliance.
• Do not place chemicals or ammable materials, or spray aerosols near
this appliance.
• Do not operate with panels, covers or guards removed from this appliance.
• If you smell gas immediately turn the gas off at the cylinder and move the
appliance & cylinder to a well-ventilated area outside, keeping well away from
sources of heat such as naked ames & pilot lights. Check for leaks using soapy
water as stipulated on page 5.
• Do not attempt to move or relocate the appliance whilst it is operating.
Extinguish the burner & allow cooling. Disengage the gas cylinder then move
the appliance.
CAUTION!
• THIS APPLIANCE IS NOT INTENDED FOR THE SUPPLY OF DRINKING WATER.
• THIS APPLIANCE IS INTENDED FOR THE SUPPLY OF HEATED WATER FOR THE
PURPOSE OF WASHING AND CLEANING ONLY.
• CHECK AND CONFIRM SAFE WATER TEMPERATURE BEFORE USING THIS
APPLIANCE. WATER FROM THIS APPLIANCE MAY BE VERY HOT.
• THIS APPLIANCE MUST BE PROTECTED FROM RAIN
• THIS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
• USE ONLY IN WELL-VENTILATED AREAS.
| Gas Hot Water Shower
Page 2

Safety Instructions
This appliance shall only be used in an above ground open air situation with
natural ventilation, without stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind and natural convection.

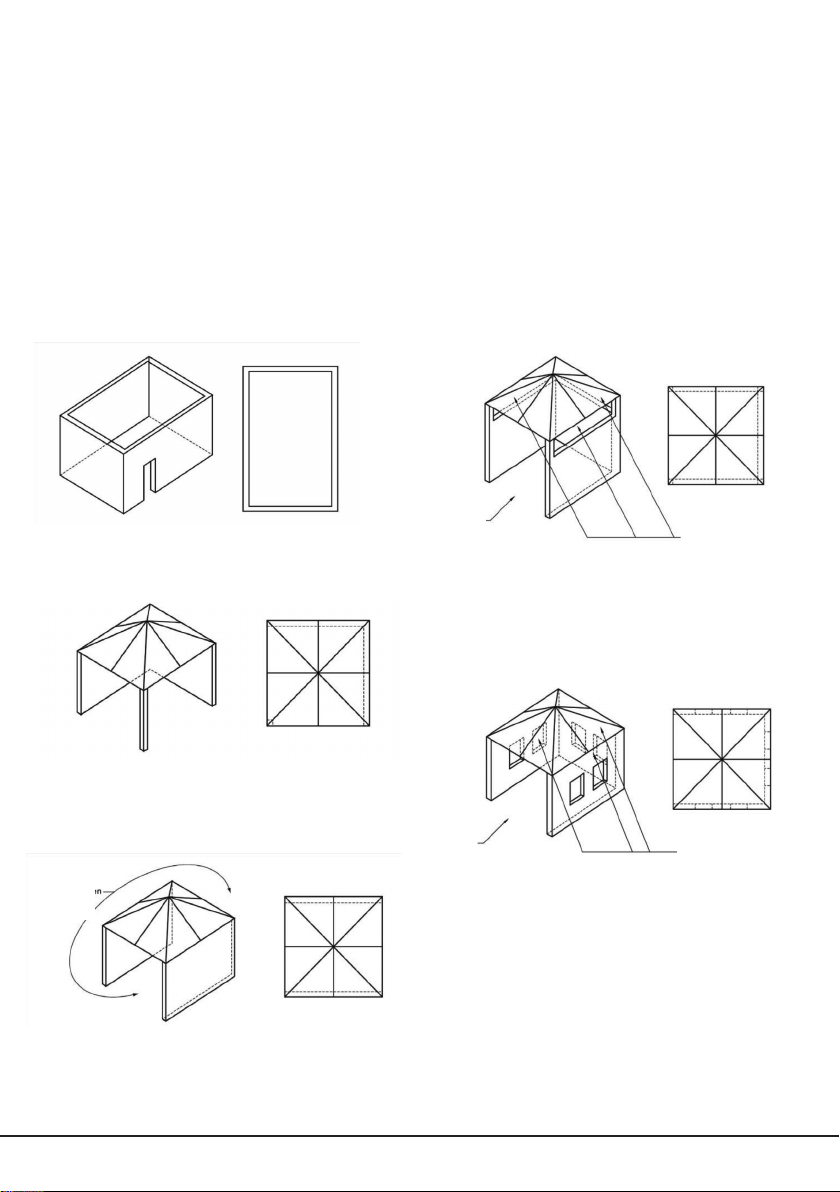

FIGURE D1 – Outdoor Area Example 1.
An enclosure with walls on all sides, but no
overhead cover. FIGURE D4 – Outdoor Area Example 4. With the
open side at least 25% of total wall area and
30% or more in the total of the remaining wall
area is open and unrestricted.
FIGURE D5 – Outdoor Area Example 5. With the
open side at least 35% of the total wall area
and 30% or more in total of the remaining wall
area is open and unrestricted. In the case of
balconies, 20% or more of the total wall area
shall remain open and unrestricted.
FIGURE D2 – Outdoor Area Example 2
Within a partial enclosure that includes an
overhead cover and no more than two walls.
FIGURE D3 – Outdoor Area Example 3.
With both ends open.
The following gures are diagrammatical representations of outdoor areas
suitable for use with this appliance. Rectangular areas have been used
in these gures – the same principles apply to any other shaped areas.
Any enclosure in which the appliance is used shall comply with one of the
following:
Open side at
least 25% of
total wall area
Open side at
least 25% of
total wall area
Both ends open
30 percent or more in total
of the remaining wall area
is open and unrestricted.
30 percent or more in
total of the remaining
wall area is open and
unrestricted.
| Gas Hot Water Shower
Page 3

Carbon Monoxide Hazard
Hanging The Appliance
Appliance Performance
This appliance can produce carbon monoxide, which has no odour. Using
it in an enclosed space (For example, caravan, tent, car or mobile home)
may cause DEATH.

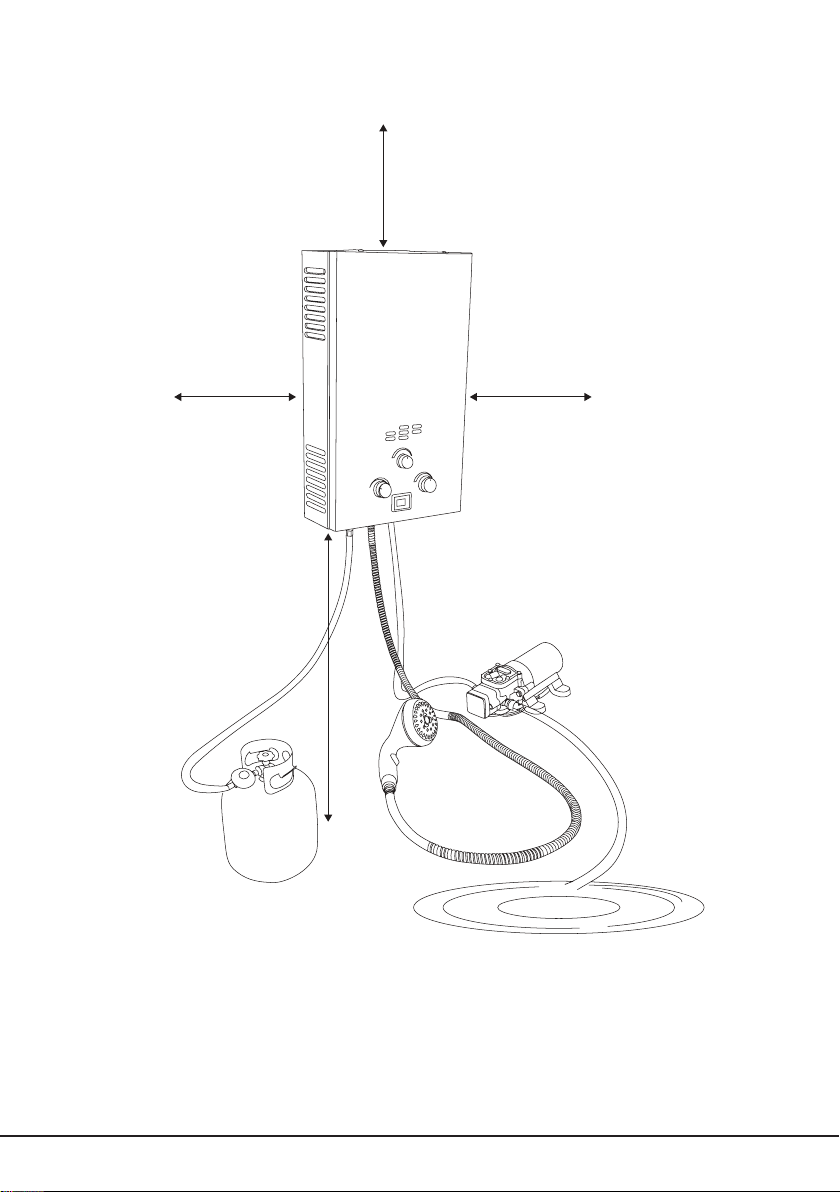

OUTDOOR USE ONLY – The appliance must be used outdoors only and is to be
operated no closer than 300mm from the sides, 1000mm from above and 1400mm
from below to all combustible surfaces, fabrics, ammable materials & people
The appliance is designed to be hung upright against a non-combustible vertical
surface. Do not operate from a non-upright position. Doing so can be dangerous
and will damage the appliance.
During operation ensure that air inlets and the top exhaust are kept free from
obstructions and closure.
Important – This appliance is designed to be used with a source water temperature
of 20°C or below. If the temperature of the outlet water exceeds 50°C the burners
will shut off; you will be required to turn the water ow off and back on to reignite
the burners.
This appliance is designed to raise the outlet water temperature by a maximum
(average) of 25°C above the source water temperature and can be adjusted by

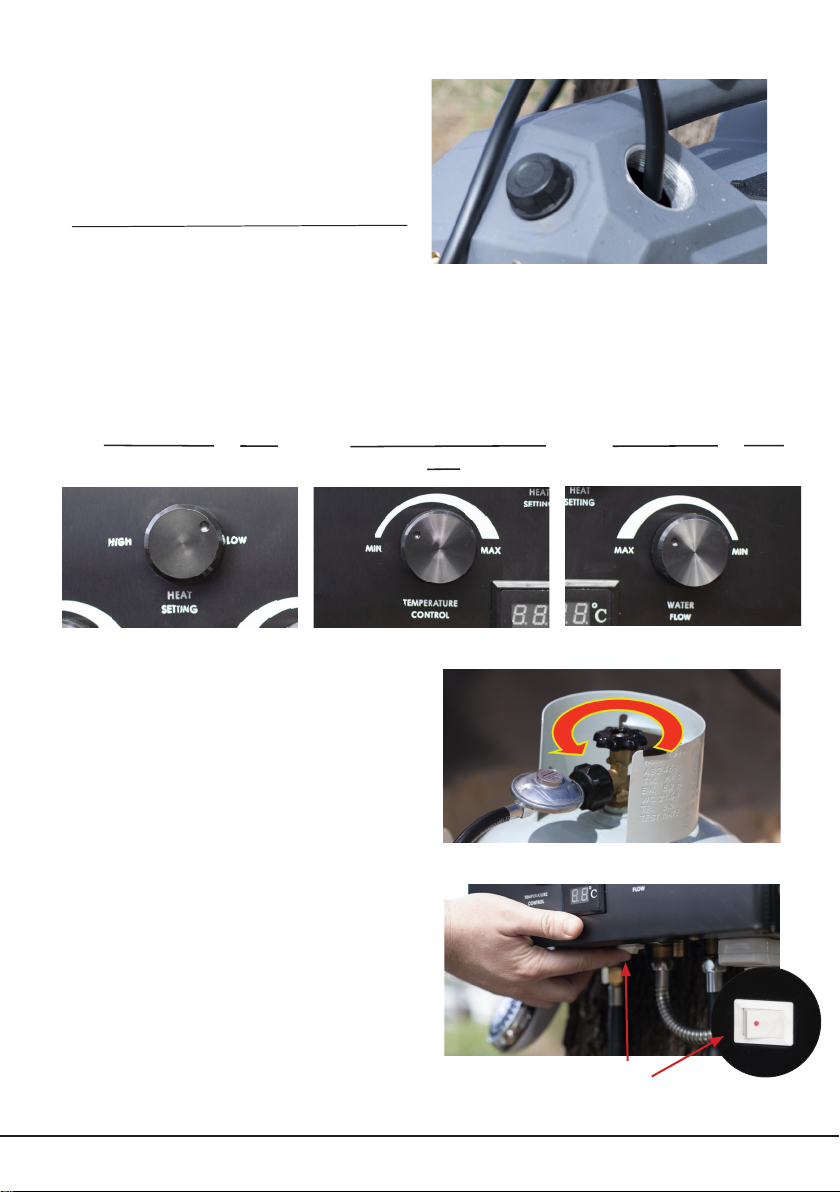

the gas regulator and water regulator control knobs located at the front of
the device.
| Gas Hot Water Shower
Page 4

Gas Type
This appliance shall only be used with the Australian approved LPG gas hose &
regulator assembly supplied with the appliance and must be connected only to
an LPG gas cylinder certied to AS2469 and AS2030.1 standards that are tted with
LCC27 connections.
This appliance and gas cylinder is to be stored in a dry and well ventilated
location free from direct sunlight, heat and ignition sources. Do not store when still
connected to the gas cylinder. If being stored indoors, ensure that the location
complies with AS/NZS 1596.
WARNING: It is hazardous to attempt to t other types of gas containers. Connect
and change cylinders in a well-ventilated location, preferably outside away from
people and any sources of ignition, such as naked ames, pilot ames, electric
heaters/equipment.

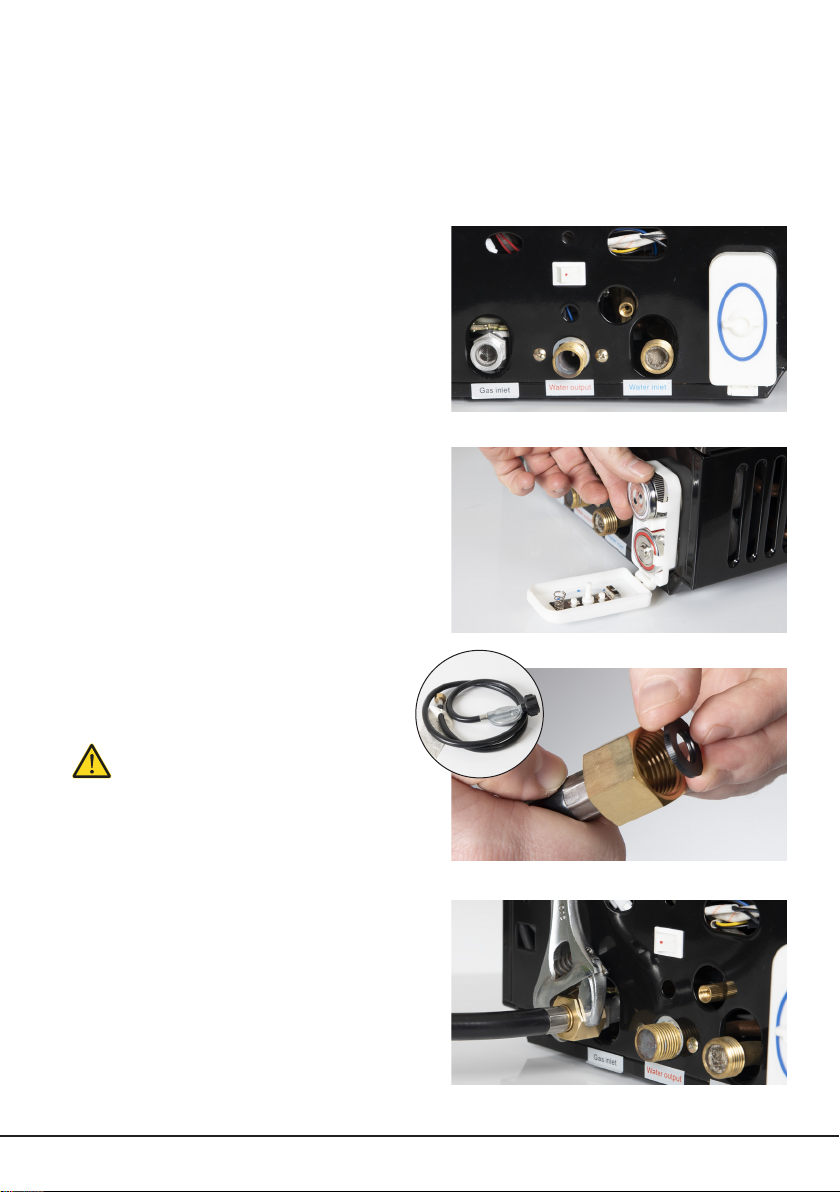

Checking For Gas Leaks
• Ensure rubber seals (i) between the regulator and gas cylinder, and (ii)
between the hose assembly and appliance inlet are in place and in good
condition before connecting the gas cylinder.
• Check that all connections are tight and that the gas cylinder connection has
been tightened before you turn the cylinder gas valve on.
• NEVER check for leaks with a ame or pilot light. Using soapy water, coat all
connections and if bubbles appear, turn the cylinder gas control off then
tighten the connections before re-testing.
• Inspect the appliance regularly for signs of wear, leaks or incorrect operation. If
symptoms such as aring of the burners, issues with lighting, damages to hoses
or connections or leaks from seals or gas controls are identied do not attempt
to repair, contact customer service on: 1800 654 767.
• To check if gas remains in the cylinder, disconnect from the appliance and
hold the cylinder in a vertical position then shake from side to side. If there is a
sound or liquid movement can be felt moving inside, the cylinder contains gas.
• When changing gas cylinders ensure this is conducted outside in a well-
ventilated location free from people, animals & ignition sources such as naked
ames, pilot lights & electrical equipment such as heaters or elements.
| Gas Hot Water Shower
Page 5

Safety Features
This appliance has been designed in accordance with and tested to AS2658. It is
equipped with the following safety features:
Over-temperature sensor – the appliance will not allow the burner to remain in
operation once the outlet water temperature reaches 50°C. To relight the burner
you will need to either:-
- Turn the switch off on the unit and allow cool water to ow through the unit until it
drops the internal temperature low enough to reignite the burner.
- Turn the water ow and gas off, allow unit to cool for 30min then reignite.
Water ow sensor – water must be owing through the system to allow the burner
to ignite. In the case that the water supply is restricted or no longer ows. For
example, if you close the water ow at the shower nozzle, the burner will be
extinguished and will not relight until the water ow recommences.
Tilt Switch – this safety device will not allow the burner to operate if the appliance
is any more than 45 degrees from its normal operating position. To relight the
burner you will need to turn the water ow off, position the appliance to the
normal operating position and turn the water ow back on.
Exhaust Flue Sensor – the appliance will shut down if the exhaust ue becomes
partially or fully restricted from operating properly. To relight the burner, turn all
gas and water devices off, remove restriction or re position the appliance in safe
operating location and start the appliance as per instructions.

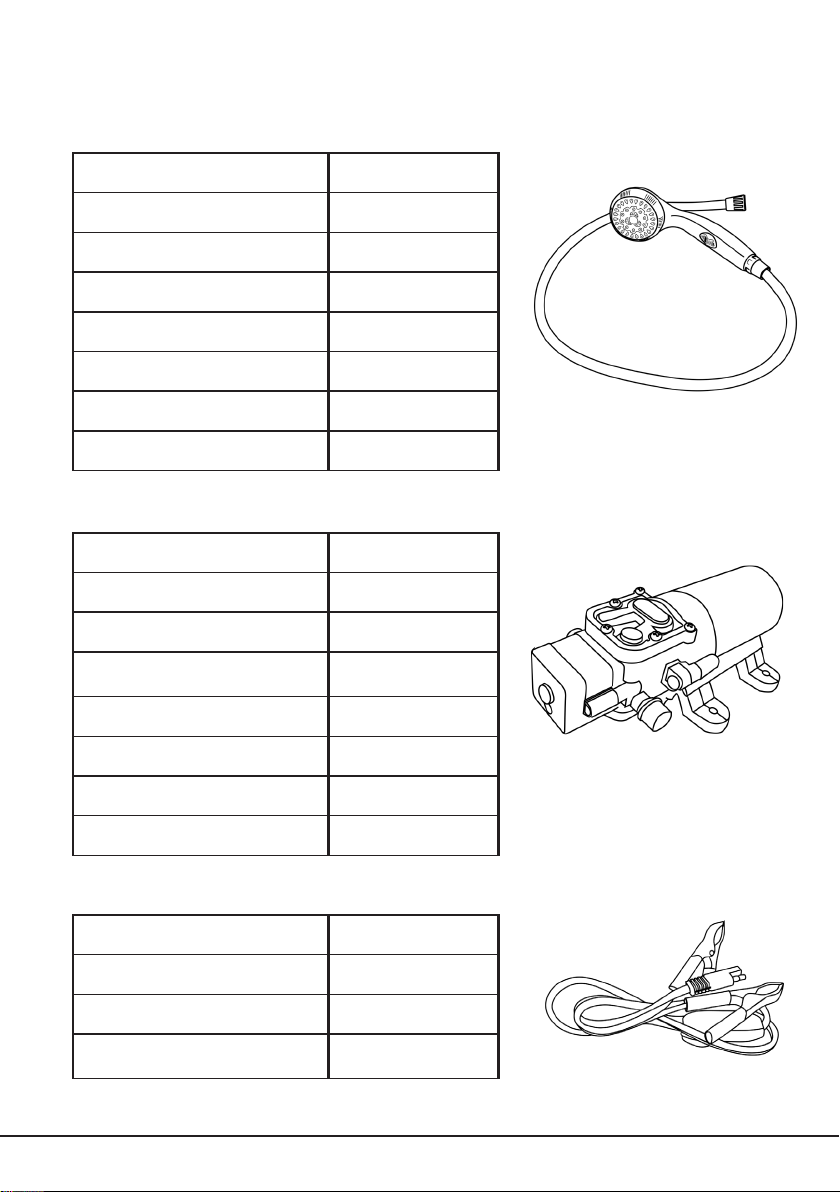

List of Parts Supplied
• 1 x LPG Portable Water Heater
• 1 x Gas hose and Regulator assembly
• 2 x Batteries ‘D’ Cell
• 1 x Water Pump – 4.3L/min, 12V DC
• 1 x Shower Rose with Hose and On/Off Switch
• 2 x Hose + hose clamps + ttings
• 1 x Pump wiring harness
Not included: Spanner, Screw Driver, Fresh Water Tank/Container or similar, Water
Pump 12V DC Power Supply and Gas Bottle.
If required, contact Bushranger 4x4 Gear for advice on the above items.
| Gas Hot Water Shower
Page 6

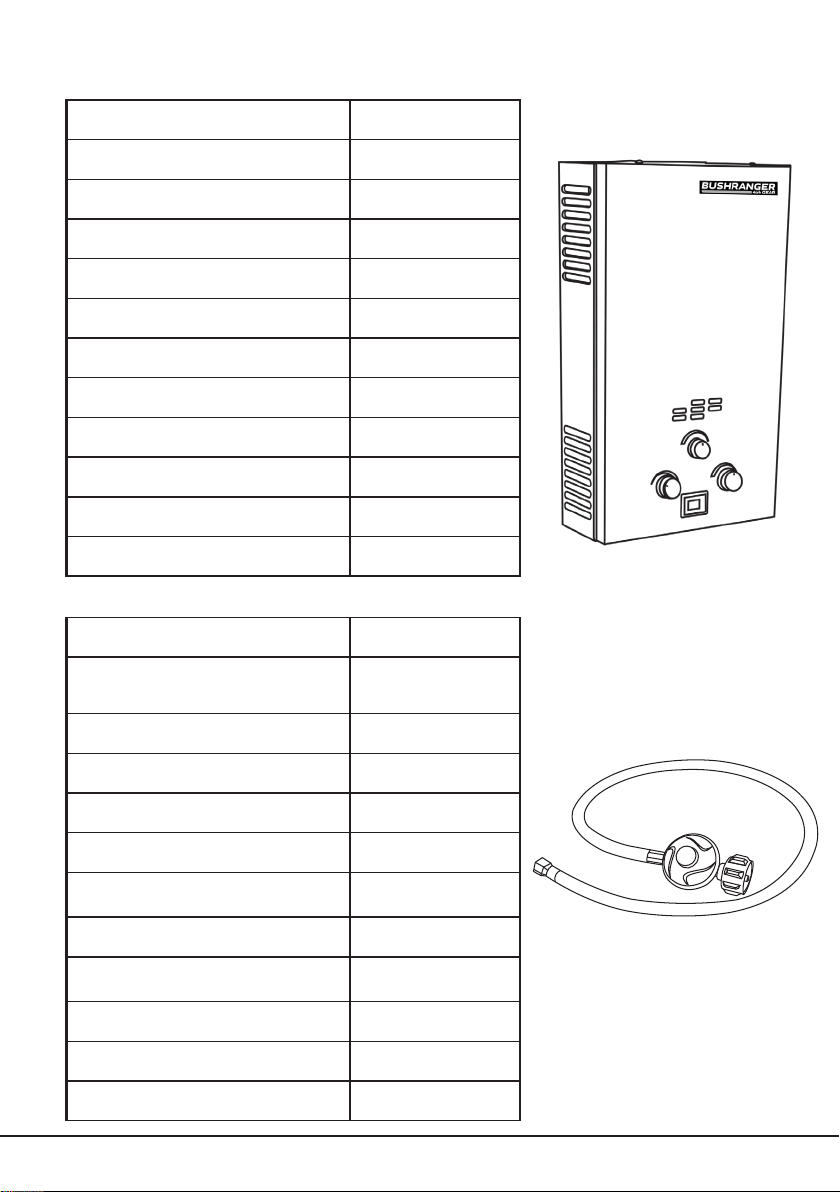

Specications
Model Number CSG010
Australian Standard AS2658
IAPMO GMK10458
Injector Size (mm) 0.62
Total NGC (MJ/h) 28
TPP (kPa) 2.75
Min. Water Pressure (kPa) 25
Max. Water Pressure (kPa) 1000
Size (mm) 500 x 300 x 140
Weight (kg) 4.7
Power (kW) 12
Water ow rate (max) (L/min) 6
Model Number T-2A & T-3A
Australian Standard AS/NZS 1869
AS/NZS 4621
AGA Certicate No. 8498
Inlet Pressure (kPa) 250 – 1750
Outlet Pressure (kPa) 2.8
Temperature Limit (°C) -20 to 60
Regulator Classication Low-Pressure Gas
Regulator
Flow Rate (kg/h) 1.5
Mounting Preferences Horizontal with
conical face up
Inlet Connection LCC27 tting
Size (mm) 35 x 75 x 1630
(hose included)
Weight (kg) 0.45
Heat Exchanger
Gas Hose and Regulator Assembly
| Gas Hot Water Shower
Page 7

Model Number FL-022
Power Supply (V DC) 12
Power Demand (Amps) 3.5
Pump Type Diaphragm
Pump
Pressure (PSI) 35
Flow Rate (L/min) 4.3
Size (mm) 185 x 110 x 65
Weight (kg) 0.67
Max. Flow Rate (L/min) 6 (Heat
Exchanger Limited)
Flow Restriction On / Off Switch
Flow Variations 4
Dimensions (mm) 2.75
Weight (kg) 0.27
Max. Water Pressure (kPa) 900
Size (mm) 400 x 295 x 140
Weight (kg) 0.26
Length (m) 2
Power Supply (V DC) 12
Fuse (Amps) 4
Connection type Cigarette and
Alligator Clamps
Pump
Power Cable
Shower Rose
Diaphragm
Pump
| Gas Hot Water Shower
Page 8

Installation Process (inc. 12V Water Pump)
Before use, it is important to prepare the unit by installing the proper components.
In this example, we will be preparing the portable water heater to be used with a
water input from the supplied 12-volt pump.
1. Remove the heater and components
from the box. Identify the gas input, hot
water output, cold water input as well
as a battery box, on the bottom of the
heater.
3. Locate the Gas Hose and Regulator.
insert the black rubber washer as shown
into the brass tting.
Insert black rubber washer
WARNING DO NOT USE TEFLON TAPE on the gas
or water ttings. The unit has been designed to
be assembled with the use of rubber washers.
2. Insert two ‘D’ batteries into the
‘battery box’ and close the battery box
lid. Note: The orientation of the battery
terminals.
4. Fit and tighten the hose tting with
an open ended 24mm spanner, taking
care not to over tighten as this could
break or crack the inlet pipe. The gas
input/bottle is now ready to be connected.
| Gas Hot Water Shower
Page 9

6. Attach the water inlet hose to the
water inlet via the crimped swivel tting,
tighten by hand.
CAUTION TAKE CARE Do not to over
tighten as this could break or crack the
inlet pipe.
9. Attach the shower rose to the exible
shower hose using the conical end
tting. Hand tighten only.
Do not over tighten.
7. Connect the free end of the black
water hose to the outlet side of the water
pump & tighten using a hose clamp.
Attach the second black hose to the
inlet side of the pump & tighten using a
hose clamp.
See Page 11 for more details.
8. Fit the clear rubber seals to both ends
of the chrome exible shower hose. Then
attach hexagonal end to the ‘water out’
connection (center connection) on the
unit. Do not over tighten.
Insert clear rubber washers
5. Locate the black water inlet hose
(with silver tting).Insert the black rubber
washer into this crimped swivel tting.
Insert black rubber washer
water
IN
(Water source
this side)
water
OUT
(Shower
this side)
| Gas Hot Water Shower
Page 10

Installing the 12V Pump
1. Install the pump in a suitable high and dry position to avoid any contact with
water, as the pump is not waterproof.
2. It is recommended to secure the pump to a mounting plate or bracket (not
provided).
3. Checking the direction of ow indicator arrows on the pump.
4) Connect the pump to a suitable 12 Volt power source (When not using the
Power Cable provided) Installation Tips for xed mounting:
5. Operate the pump, inspecting every joint and pipe run for leaks.
a. Using a hose clamp (supplied), connect a 1.5m length of fresh water hose
to the pump inlet. The other end of the inlet hose is located at a potable water
source.
a. It is recommended to seek a qualied auto electrician when xed mounting
of the water pump. It is important to use the correct gauge wire for the distance
from 12V power source and the current draw from the pump. Improper
installation may cause the pump to not function correctly and/or fail.
b. Be careful to properly route and secure all wiring.
c. Fuse appropriately.
d. Toggle switch with adequate amp rating is required to allow for
ON/OFF operation.
b. Using a hose clamp (supplied), connect the 1.5m length of fresh water hose
with crimped swivel tting from the pump outlet to the Gas Hot Water Shower.
Important: The pump must be NOT be installed with the motor
facing downwards.
WARNING: Do not use a 240-volt pump or other electrical appliances
where they could be affected by water.
Keep pump inlet hose (suction) and pump outlet hose (pressure) as short
as practical as not to exceed suction and pressure head. Excessive
suction or pressure head may cause damage to the pump and will void
warranty.
| Gas Hot Water Shower
Page 11

Typical Installation Above
The supplied meter LPG hose and regulator assembly connects to a 9 kg LPG
cylinder (maximum size). The water heater is then located 1.4 meters from ground
level to the connection points as shown above. Water pump and fresh water tank
are to be located in a convenient position as shown.
1.4m
1m 1m
Water source
*Gas cylinder not included
1m
300mm 300mm
1400mm
1000mm
| Gas Hot Water Shower
Page 12

Operation
Now that the Gas Hot Water Shower has been prepared for our intended use, we
can set it up for operation.
1. Find a suitable sturdy, non-combustible vertical surface to hang the unit. The unit
should be at least 300mm clear from the sides, 1000mm from above and 1400mm
from below, of all combustible surfaces, fabrics, ammable materials & people.
Hang the appliance on a suitable vertical surface by the top hanger attached to
the back cover of the heater.
The appliance is ready to be connected to both the gas and the water source.
2. Connect the Gas Hose to the
LCC27 LPG cylinder. Hand-tighten the
connection in a clockwise direction.
Open gas tap on cylinder one full turn
anti-clockwise and then check the
connections for leaks with soapy water.
DO NOT use a ame. If a leak is
detected, turn the cylinder valve off
(close), check seals and retighten all
connections and retest.
3. IMPORTANT
4. Once you determine that there are
no leaks present with the gas valve
open, turn the cylinder valve to the off
(close) position.
Notice: Position the gas cylinder away and to the side of the appliance; never
place the gas cylinder directly beside or above the appliance.
| Gas Hot Water Shower
Page 13

1. Adjust the front dials for unit startup
6. Connect water supply by the supplied
pump or an alternate pressurised water
source.
If using the pump supplied - place open
end of the hose into the water source.
The shower is now set up and ready to use.
Set HEAT SETTING to LOW
Heater Starting Process
Set TEMPERATURE CONTROL
to MIN
Set WATER FLOW to MAX
2. Turn the gas cylinder on in an anti-
clockwise direction one (1) full turn.
3. Switch LPG Water Heater ON using
the rocker switch located at the bottom
on the LPG Portable Water Heater.
Do this by having the red dot pushed in.
Switch
| Gas Hot Water Shower
Page 14

6. Turn on the 12V water pump to allow
water to ow through the shower unit.
Note: You should hear a series of clicks
and then the burner should ignite. The
burner ame can be seen operating
through the ‘viewing window’ located
at the front of the appliance.
7. Turn the shower rose switch to the ON
position and water should ow.
8. Adjust the temperature of the
water owing from the shower rose by
turning the ‘temperature control’ and
‘water ow’ knobs.
Note 1: If the unit does not start/water does not ow, check the troubleshooting
guide on page 18.
| Gas Hot Water Shower
Page 15

Note 2 (Water Temperatures): For higher temperatures, increase the HEAT
SETTING control and decrease the WATER FLOW control. Switch the TEMPERATURE
CONTROL from MIN to MAX will increase the temperature further.
A temperature in excess of 50°C will activate the Over Temperature Safety Sensor
and will shut down the burners. To relight the burner you will need to either:-
- Turn the switch off on the unit and allow cool water to ow through the unit until it
drops the internal temperature low enough to reignite the burner.
- Turn the water ow and gas off, allow unit to cool for 30min then reignite.
IMPORTANT – Water remaining in the heat exchanger while the ow is stopped
may become very hot. It will require water to ow through the unit for a short time
to clear the hot water. The user must check the temperature output to ensure it is
suitable and not too hot before showering.
Note 2: When using the 12V Pump provided with the water regulator knob set
to “low”, a small amount of pulsing may be experienced at the shower rose.
This is normal.
Note 3: After use, turn the gas cylinder valve off, wait for the ame to go out,
then turn the appliance control valve off.
WARNING
| Gas Hot Water Shower
Page 16

Care and Maintenance
Your LPG Portable Water Heater has a metal casing and a stainless steel face
plate and so, should be cleaned after each use. This will not only maintain the
appearance of your Gas Hot Water Shower, it will also add to its longevity.
Clean your LPG Portable Water Heater by following these steps:
More frequent cleaning may be necessary for coastal and tropical climates or in
salty or corrosive environments.
Always ensure no debris is present in the ue or unit as this may cause a re
when use.
NOTE: Failure to clean your LPG Portable Water Heater adequately or failure to
follow these cleaning instructions will void your warranty.
The use of ABRASIVE materials and/or ALKALINE based cleaners will damage the
LPG Portable Water Heater. Their use is strictly prohibited and will void
your warranty.
If you are unsure of how to adequately clean and maintain your LPG Portable
Water Heater, please contact your place of purchase for further information.
If using a water source other than drinking quality water, ensure that the
water inlet lter into the appliance is cleaned after each use.
Storage, Frost / Freezing temperatures: If the appliance is to be stored for any
length of time or subjected to temperatures below freezing, it is necessary to
drain any water trapped in the appliance.
1. Disconnect the inlet water hose.
2. Allow the hot water hose and shower rose to hang down.
3. Loosen the screw in the water drain valve located at the bottom of the
appliance, (near to the water inlet tting) allowing the appliance to drain.
Gently re-tighten the water drain screw.
1. Wipe down using a pH neutral soap solution, diluted in clean water.
2. Only use non-abrasive bre brushes or sponges while cleaning.
| Gas Hot Water Shower
Page 17
