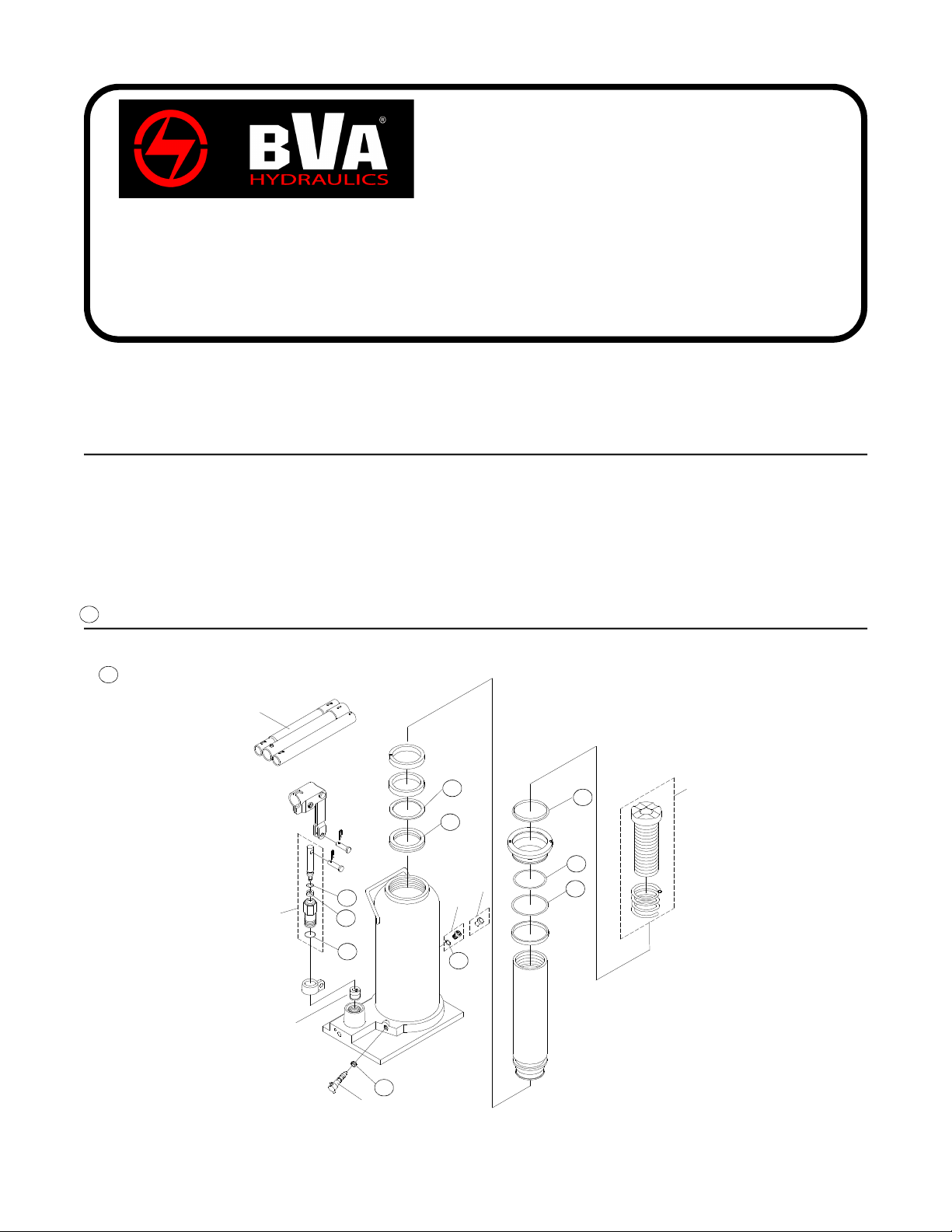

Orbital Pump
Bottle Jacks
Instruction Manual
SFA Companies 109 9 N. Pomona Ave. Kansas City, MO 6415
Tel: [phone] * Fax: [phone]
E-mail: [e-mail] Website: www.bvahydraulics.com
MODELS: J10124 J10126 - 12 Ton Capacity
J10204 J10206 - 20 Ton Capacity
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!

2
Save these instructions. For your safety, read, understand,
and follow the information provided with and on this jack
before using. The owner and/or operator of this equipment
shall have an understanding of this jack and safe operating
procedures before attempting to use. The owner and/or
operator shall be aware that the use and repair of this product
may require special skills and knowledge. Instructions and
safety information shall be conveyed in the operator's native
language before use of this jack is authorized. If any doubt
exists as to the safe and proper use of this jack, remove
from service immediately.
Inspect before each use. Do not use if broken, bent, cracked,
or damaged parts (including labels) are noted. Any jack that
appears damaged in any way, operates abnormally or is
missing parts, shall be removed from service immediately.
If you suspect that the jack was subjected to a shock load (a
load dropped suddenly, unexpectedly upon it), immediately
discontinue use until the jack has been checked by a BVA
Hydraulics authorized service center (contact distributor or
manufacturer for list of Authorized Service Centers). It is
recommended that an annual inspection be done by
qualified personnel. Labels and owner's manuals are
available from manufacturer.
PRODUCT DESCRIPTION
This product is designed to lift, position, or move, but not
sustain, rated capacity loads. It is not designed to be used
as a stand-alone device. Any load lifted, positioned, or
otherwise moved by this device, must immediately be
supported by appropriately rated mechanical means. A wide
variety of applications exist for this category of product.
Special skill, knowledge and training may be required for a
specific task and this product may not be suitable for all
jobs listed. Unsuitable applications include applications that
call for a device to lift, position, move or support persons,
animals, hazardous materials, mobile homes and
dwellings in general, mirrors, plate glass or to connect/
secure hatches, components, and materials between
bulkheads. The user ultimately must make the decision
regarding suitability of the product for any given task and
therefore accept responsibility for that decision.
HYDRAULIC JACK TECHNICAL
SPECIFICATIONS
Rated Capacity of J10124, J10126: 24,000 lb. (12 ton)
Rated Capacity of J10204, J10206: 40,000 lb. (20 ton)
Brand name: BVA
Hydraulic Pressure @ Rated Capacity:
J10124, J10126: 9,400 psi
J10204, J10206: 10,800 psi
BEFORE USE
Before using this jack, ensure that the intended load
contact point is able to withstand the load applied by this jack.
1. Before using this product, read the owner’s manual
completely and familiarize yourself thoroughly with the
product, its components, and recognize the hazards
associated with its use.
2. To familiarize yourself with basic operation, use the
operating handle to engage and turn the release valve:
a. Clockwise until firm resistance is felt to further thread
engagement. This is the ‘CLOSED’ release valve
position used to pressurize the hydraulic fluid and
raise the ram plunger.
b. Counter-clockwise, but no more than 1/2 turn from the
closed position. This is the ‘OPEN’ release valve position
used to lower the ram plunger.
. Check that the pump operates smoothly and that the
extension screw will thread up/down easily before putting
into service. Replace damaged or missing parts with factory
authorized replacement parts only. Repair of this product
may require special skills and knowledge and should only
be attempted by a factory authorized service center. Contact
the manufacturer or distributor of this product for a list of
factory authorized service centers. Lubricate as instructed
in Maintenance Section.
Bleeding/ Venting Trapped Air
With the release valve in the OPEN position (2b above) and
with saddle fully lowered, locate and remove the oil filler plug.
Insert the handle into the handle sleeve; then pump 6 to 8 full
strokes. This will help release any pressurized air which may
be trapped within the reservoir. Oil level should be even with
the bottom of the oil filler plug hole. Reinstall the oil filler plug.
Use of this device may require special skills and
knowledge. Read, understand, and follow all printed materials
provided with and on this device before use.
To avoid personal injury and/or property damage:
• Read understand and follow all printed materials
provided with and on this jack.
• This is a lifting device only! Never work on, under, or
around a load supported only by a hydraulic jack.
• Immediately support the lifted load with appropriately
rated mechanical means.
• Use only on hard, level surfaces capable of
sustaining rated capacity loads.
• Center load on saddle.
• No alteration shall be made to this device. Use only
attachments, adapters and accessories provided by
the manufacturer.
• Be alert and sober when using this product! Never
operate this equipment when under the influence of
drugs or alcohol.
• Use only high grade hydraulic jack oil in this product.
• Always use a calibrated means of determining how
much force is being applied by this product. Never
exceed the rated capacity of the jack.
WARNING
!
!
!

Model Capacity
(tons)
Min. Height
(in.)
Max. Height
(in)
Ext. Screw
(in)
Hyd. Lifting
(in)
Base Size
(L x W) Weight (lbs)
J10124 9 1/2 18 5/8 1/8 6 19.6
J10126 6 1/8 10 5/8 1 1/2 16.5
J10204 9 5/8 18 /4 4 5 1/8 29.
J10206 6 1/2 11 1/4 2 2 /4 22.2
12
20
7 1/2" x 4 5/8"
7 1/2" x 5 /8"
!
!
SPECIFICATIONS
Figure 1 - Typical Bottle Jack Components
Handle
Assembly
Saddle
Handle Sleeve
Assembly
Handle
Oil Filler Screw/ Plug
(not shown)
Release Valve
Extension Screw
Ram
Reservoir
OPERATION
Use of this device may require special skills and knowledge. Read, understand, and follow all printed materials provided
with and on this device before use.
Raising the Ram Plunger
1. Assemble the -pc handle, ensure that spring clips align with slots.
2. Locate and close release valve by turning handle clockwise until firm resistance is felt to further thread engagement.
. Pump until load reaches desired height. Immediately secure with appropriately rated mechanical devices. It is recommended
you follow the load with cribbing and blocking where practical.
Never allow personnel to work or pass under a load until the load is secured by cribbing, blocking, or other mechanical
means.
Lowering
Make certain that all personnel are clear of the load before lowering. Control the rate of descent of the load at all times.
The more you open the release valve, the faster the load descends.
1. Use the manufacturer's provided operating handle to engage and slowly turn the release valve counter-clockwise, but no
more than 1/2 turn.
f the operating handle is damaged, operates abnormally, or will not positively engage the release valve, immediately
discontinue use of the jack until a manufacturer's replacement handle assembly can be acquired.
2. Push ram down and handle sleeve in to reduce exposure to rust and contamination after removing jack from under load.
!
!

4
MAINTENANCE
Important : Use only good grade hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil,
transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and
immediate loss of load. We recommend Mobil DTE1 M or equivalent.
Adding
1. With saddle fully lowered set jack in its upright, level position. Locate and remove oil filler plug/screw.
2. Fill with oil even with the bottom of the oil filler hole. Reinstall the oil filler plug/screw.
Changing oil
For best performance and longest life, replace the complete fluid supply at least once per year.
1. With saddle fully lowered set jack in its upright, level position. Locate and remove oil filler plug/screw.
2. Lay the jack on its side and drain the fluid into a suitable container.
Note: Dispose of hydraulic fluid in accordance with local regulations.
. Fill with oil even with the bottom of the oil filler hole. Reinstall the oil filler plug/screw.
Lubrication
A periodic coating of light lubricating oil to pivot points will help to ensure that pump piston linkages move freely.
Note: Never apply oil to saddle. If saddle extension threads require lubrication; clean thread surfaces with a clean, dry cloth,
then apply a drop of bearing grease to the threads. Distribute evenly as possible along the thread post.
Cleaning
Periodically check the pump piston and ram plunger, and saddle for signs of rust or corrosion. Clean as needed and wipe with
a clean, oil soaked rag.
Note: Never use sandpaper or abrasive material on these surfaces !
Storage
Store the jack with pump piston, ram plunger and saddle fully lowered and release valve open, but never more than 1/2 turn.
This will help prevent rust and corrosion to those critical surfaces.
Possible Causes Corrective Action
Jack will not pressurize
Jack *bleeds off after lift
* 'bleeds off' means load slowly and
unintentionally lowers after lifting
While lowering, fluid leaks from
reservoir area
Jack saddle will not descend to
lowest advertised height
Ram plunger will not remain
lowered after released from contact
with load (creeps back up)
Poor lift performance
Will not lift to full extension
• Release valve not tightly closed
• Load is too heavy
• Hydraulic unit malfunction
• Reservoir overfilled
• Ram plunger/cylinder deformed,
seized up in ram cylinder and/or
top nut, likely the result of off-
center loading
• Air trapped in system
• Fluid level low
• Air trapped in system
• Hydraulic unit malfunction
• Fluid level low
• Ensure release valve tightly closed
• Consider higher capacity jack
• Contact Service Center
• Drain fluid to proper level
• Contact Service Center
• Follow the Owners Manual instructions
for bleeding air from system.
• Ensure proper fluid level
• Follow the Owners Manual instructions
for bleeding air from system.
• Contact Service Center
• Ensure proper fluid level
TROUBLESHOOTING
Symptom

5
LIMITED LIFETIME WARRANTY
BVA Hydraulics®, represented in the United States by SFA Companies [“SFA”] warrants this product to be free from defects in
material and workmanship for the life of the product as long as the original purchaser owns the product. The warranty is non-
transferable and is subject to the terms, exclusions, and limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers
as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will
not provide any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not
performed by BVA Hydraulics or one of its authorized personnel), improper fluid use, or use of the product in any manner
for which the product was not intended or the use of which is not in accordance with the instructions or warnings provided
with the product.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact SFA for
disposition. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty is
limited to the repair or replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER
CHANNELS DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF BVA
HYDRAULICS IS AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR
PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and others are not
covered by this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the
package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
SFA Companies
109 9 N. Pomona Ave. Kansas City, MO 6415
Tel: [phone]
E-mail: [e-mail]

6
Item Part Number for Model: Description Qty
J10124 J10126 J10204 J10206
1a 505-9-0092-207 505-9-0092-208 - - Oil Filler Plug 1
1b - - 24-4-1900-208 24-4-1900-208 Oil Filler Screw Assy. 1
2 181- -2100-10 181- -2100-10 181- -2100-10 181- -2100-10 Handle Assembly 1
187- -1100-201 270- -1100- 04 A19- -1100-109 226- -1100-104 Extension Screw Assy. 1
4 2 8-6-1701-40 2 8-6-1701-40 2 8-6-1701-40 2 8-6-1701-40 Release Valve 1
5 26-4-1415-105 226-4-1415-105 226-4-1415-105 226-4-1415-105 Pump Assy. 1
6 A20-4-1500-106 A20-4-1500-106 A20-4-1500-106 A20-4-1500-106 Valve Catridge 1
R 186- -9901-107 186- -9901-107 226- -9906-108 226- -9901-108 Seal Kit -
J10124-M0
rev 08/07
Note: Not all components of the jack are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
Orbital Pump
Bottle Jacks
Service Parts
SFA Companies 109 9 N. Pomona Ave. Kansas City, MO 6415
Tel: [phone] * Fax: [phone]
E-mail: [e-mail] Website: www.bvahydraulics.com
MODELS: J10124 J10126 - 12 Ton Capacity
J10204 J10206 - 20 Ton Capacity
N/A - Part is not available as replacement
(-) - Part not exist
R - Parts included in Seal Kit
1b
2
4
5
R
R
R
R
R
R
R
R
1a
6
R
R

SFA Companies
109 9 N. Pomona Ave. Kansas City, MO 6415
Tel: [phone]
E-mail: [e-mail]

SFA Companies
109 9 N. Pomona Ave. Kansas City, MO 6415
Tel: [phone]
E-mail: [e-mail]
