BZB Gear BG-ADAMO-JR User manual

BG-ADAMO-JR
1080P HD AUTO TRACKING HDMI 2.0/3G-SDI/USB 2.0/USB 3.0 Live Streaming
PTZ Camera with Tally Lights
User Manual

BZBGEAR BG-ADAMO-JR PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 2
Table of Contents
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 6
Installation and Handling Caution 8
Camera Interface 8
Mounting 9
Wall Mounting 9
Ceiling Mounting 10
Operating Instructions 10
Power on and Self-check 10
Remote 11
Remote Buttons Introduction 11
Network Connection 15
Web Client Login 18
SD Card Recording 20
Auto-Tracking Configuration 21
Zone Tracking Setup 22
General Configuration 23
Streaming 24
VIDEO STREAM CAPTURE 24
LIVE STREAM PUBLISH 25
Serial Port Communication and Control 26
VISCA Protocol List 26
VISCA PROTOCOL RETURN COMMAND 26
VISCA PROTOCOL CONTROL COMMANDS 26
VISCA PROTOCOL INQUIRY COMMANDS 30
PELCO-D PROTOCOL COMMAND LIST 33
PELCO-P PROTOCOL COMMAND LIST 34
Maintenance and Troubleshooting 35
MAINTENANCE 35
TROUBLESHOOTING 35
Tech Support 36
Warranty 36
Mission Statement 36
Copyright 36

BZBGEAR BG-ADAMO-JR PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 3
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●Wipe the lens with a soft, dry cloth when cleaning. Wipe it gently with a mild detergent if
needed. Do not use strong or corrosive detergents to avoid scratching the lens and
affecting the image.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards. The power supply of the product is ±12V, and the max electrical current is
2A.
●Electromagnetic fields at specific frequencies may affect the video image. This product
is Class A and may cause radio interference in household applications and appropriate
measures may be required for proper operation.

BZBGEAR BG-ADAMO-JR PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 4
Introduction
The BZBGEAR BG-ADAMO-JR is an ultra-high-definition PTZ camera that delivers 1080P
resolution video at 60 fps. Available in a 12x optical zoom lens with a 70.28° wide-angle,
20x optical zoom lens with a 60.05° wide-angle, or 30X optical zoom 58.1°wide-angle lens.
Featuring USB 2.0, USB 3.0, LAN, HDMI, and 3G-SDI video connections allowing for
flexible workflow options. The 3D noise reduction technology combined with the low-noise
CMOS sensor ensures impeccable image clarity. The innovative auto-tracking software is
intuitively designed for ease-of-use with two modes (presenter and zone) for exceptional
results.
Features
●1080P HD Resolution: The SONY CMOS sensor captures images in resolutions up to
1920x1080 with a frame rate of up to 60fps.
●Interfaces / Multiple Simultaneous Streaming Outputs: With a variety of outputs
such as HDMI 2.0, 3G-SDI, USB3.0, USB 2.0, and LAN, the ADAMO can
simultaneously broadcast multiple streams to multiple outputs.
●Optical Zoom Lens: The ADAMO features either a 12X optical zoom 70.28°wide-angle
lens，or 20X optical zoom 60.05°wide-angle lens or 30X optical zoom 58.1°wide-angle
lens.
●Multiple Audio/Video Compression Standards: H.264/H.265 video compression is
supported by the LAN interface, USB 3.0 supports YUY2, and USB 2.0 supports MJPG,
H.264, YUY2, NV12, H.265. USB 3.0 supports YUY2. The A-IN supports AAC audio
compression coding.
●Advanced Auto Focusing Algorithm: The lens promptly snaps into focus with
dependable accuracy and stability.
●Low Noise and High SNR: A high SNR (Signal to Noise Ratio) image is achieved using
low noise CMOS sensors. The sophisticated 3D noise reduction technology further
reduces the noise while ensuring high image clarity, even in low light.
●Supported Network Protocol: ONVIF, GB/T28181, RTSP, RTMP.
●Control Options: 5pin Phoenix terminal (compatible with RS232 andRS485)，LAN, or
IR remote control. Protocols include VISCA, PELCO-P/D, ONVIF, and VISCA over IP.
●Multiple Presets: Configure up to 255 presents using the Web GUI, or 10 presents via
the IR remote control.
●Two Mode Auto-Tracking Software: Presenter mode continuously tracks keeping the
subject perfectly framed. Zone mode holds the frame in predetermined zones.

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 5
Packing List
•1 x BG-ADAMO-JR
•1 x IR Remote Control
•1 x User Manual
•1 x 12V/1.5A Power Supply
Specifications
Camera Parameters
Optical Zoom
12X
f=4.1 mm～49.2mm ±5%
20X
f=5.05 mm～91.49 mm ±5%
30X
f=5.2 mm～148.4 mm ±5%
View Angle
Horizontal: 6.57˚（N）～
70.28˚（W）
Vertical: 3.76˚（N）～ 42.06˚
（W）
Horizontal: 3.45˚（N）～
60.05˚（W）
Vertical: 1.96˚（N）～ 35.07˚
（W）
Horizontal: 2.14˚（N）～
58.1˚（W）
Vertical: 1.2˚（N）～ 33.8˚（
W）
Iris Value
F1.8(Wide) ～F2.68(Tele)
±5%
F1.80(Wide) ～F2.90(Tele)
±5%
F1.3(Wide) ～F4.8(Tele) ±5%
Sensor
1/2.8 inch SONY CMOS sensor
Effective Pixels
2M megapixel 16:9
Video Format
HDMI：
1080P60/50/30/25/59.94/29.97/24/23;1080I60/50/59.94; 720P60/50/59.94
SDI：
1080P60/50/30/25/59.94/29.97/24/23;1080I60/50/59.94; 720P60/50/59.94
USB 2.0:
MJPG：
1920*1080/1280*720/1024*768/1024*576/800*600/720*576/720*480/704*576/640*360/352*28
8/320*240/640*480P30/25/20/15/10/5;
H264:
1920*1080/1280*720/1024*768/1024*576/800*600/720*576/720*480/704*576/640*480/640*36
0/352*288/320*240P30/25/20/15/10/5;
HEVC:
1920*1080/1280*720/1024*768/1024*576/800*600/720*576/720*480/704*576/640*480
/640*360/352*288/320*240P30/25/20/15/10/5
YUY2：640*360 /432*240P30/25/20/15/10/5
NV12：640*360 /432*240P30/25/20/15/10/5
USB 3.0:
YUY2：1920*1080P30/25;1280*720P60/50/30/25;960*540/800*600/640*480P30;
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
3D DNR
White Balance
Auto / Manual/ One Push/ Specified Temperature
Focus
Auto/Manual/One Push Focus
Exposure Mode
Auto/Manual/Shutter priority/Aperture priority/brightness priority
Aperture
F1.8 ～F11 CLOSE
Shutter Speed
1/25～1/10000
BLC
ON/OFF

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 6
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode
SNR
≥50dB
Interface
Product Interfaces
HDMI, 3G-SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, SD (FAT32), 5-pin Phoenix
terminal (compatible with RS232 andRS485), DC12V, Power Switch
Video Compression Format
LAN Interface: H.264, H.265
USB 2.0 Interface: MJPG, H264, YUY2, NV12
USB3.0 Interface: YUY2
Audio Input Interface
Stereo 3.5mm AUX
Audio Output Interface
HDMI, LAN, 3G-SDI, USB 2.0, USB 3.0
Audio Compression Format
AAC
Network Interface
10M/100M/1000M adaptive Ethernet port, PoE Plus power supply, audio and video output
Network Protocols
RTSP, RTMP, ONVIF, GB/T28181; VISCA IP control protocol
Control Interface
5 pin Phoenix terminal (compatible with RS232 andRS485)，LAN
Serial Communication
Protocol
VISCA/Pelco-D/Pelco-P;
Baud Rate: 115200/38400/9600/4800/2400
USB Communication Protocol
UVC (Video)
Power Interface
HEC3800 outlet (DC12V), PoE+
Supply Adapter
AC110V~AC220V to DC12V/2.5A
Input Voltage
DC12V±10%
Input Current
<2.5A
Power Consumption
<30W
PTZ Parameters
Pan Rotation
-170°～+170°
Tilt Rotation
-30°～90°
Pan Control Speed
0.1°/s ～100°/s
Tilt Control Speed
0.1°/s ～70°/s
Preset Speed
Pan: 78.8°/s, Tilt: 31.7°/s
Preset Number
255 presets via Web GUI (10 presets using remote control)
Other Parameters
Stored Temperature
-10℃～+60℃
Storage Humidity
20%～95%
Working Temperature
-10℃～+50℃
Working Humidity
20%～80%
Dimension
(L)mm*mm(W)*mm(H)
Weight
~4 Lbs
Application
Indoor

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 7
Installation and Handling Caution
●Do not manually rotate the camera head as it could cause mechanical failure.
●Place the camera on a stable table or horizontal surface. Installing on a slanted surface will
result in a slanted image.
●Do not place obstacles within the camera’s rotation circumference.
●For proper operation and synchronization, do not power the camera on until the cable
installation has been completed.
Camera Interface

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 8
Mounting
Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall.
Mounting to plasterboard is not recommended for safety reasons.

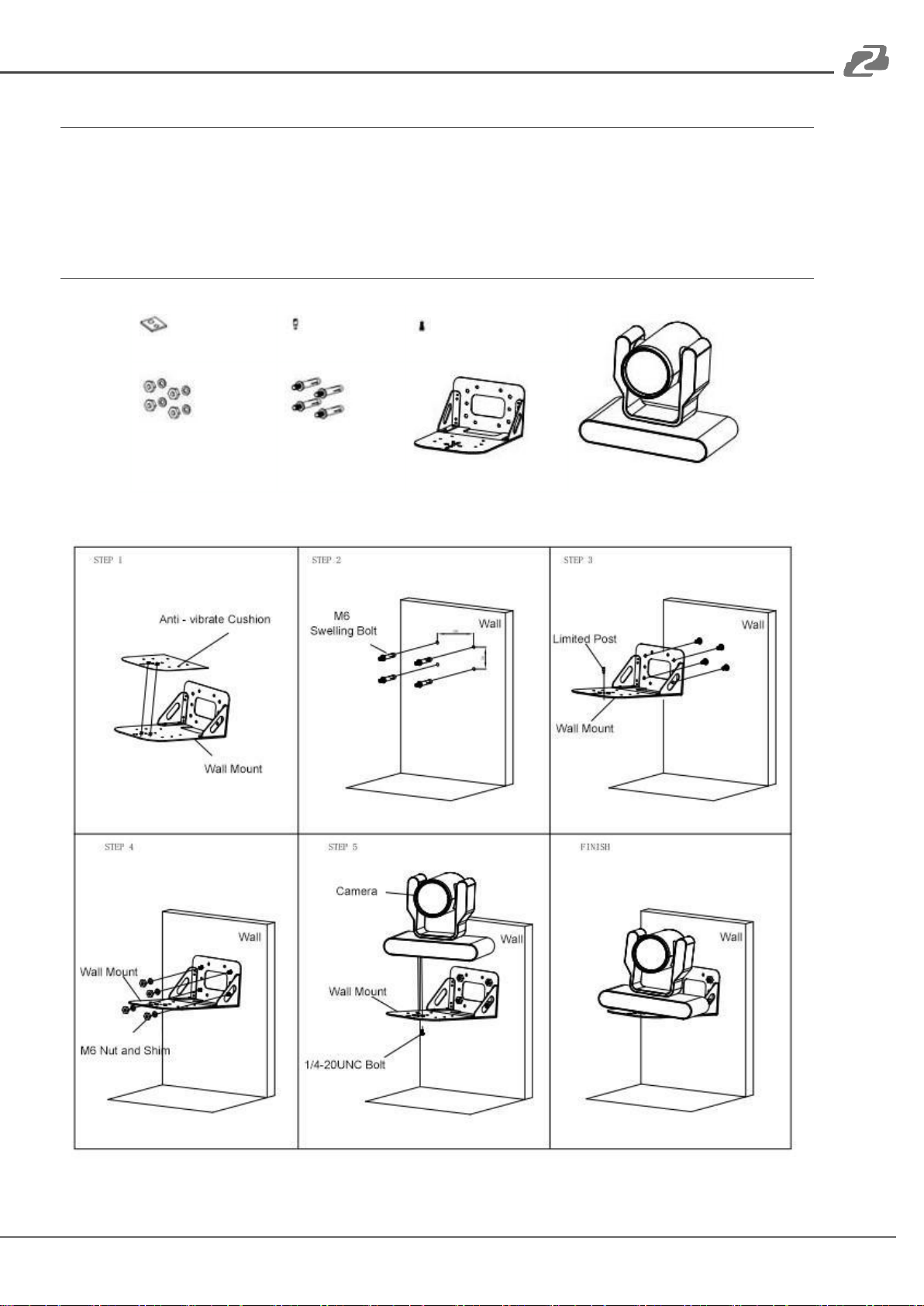

Wall Mounting
Anti-vibrate Cushion
Limited Post
1/4-20 UNC Bolt
Camera
M6 Nut and Shim
M6 Swelling Bolts
Wall Mounting Bracket

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [email protected] 9
Ceiling Mounting
Operating Instructions
POWER ON AND SELF-CHECK
1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of
the camera. or connect to a PoE enabled network switch using a category cable.
2. Camera Self-check: The remote-control IR indicator and tally lights will flash when
powered on. The camera will pan-tilt to the lowest left position, then return to the HOME
position (both the horizontal and vertical positions are in the middle). The lens/zoom will
move through its complete range. Once the remote-control IR indicator and tally lights
stop flashing, the self-check has been completed.
Notes:
1. After the power-on and self-check, the camera will automatically return to the preset 0
position.
2. The factory default address for the IR remote-control is #1.

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 10

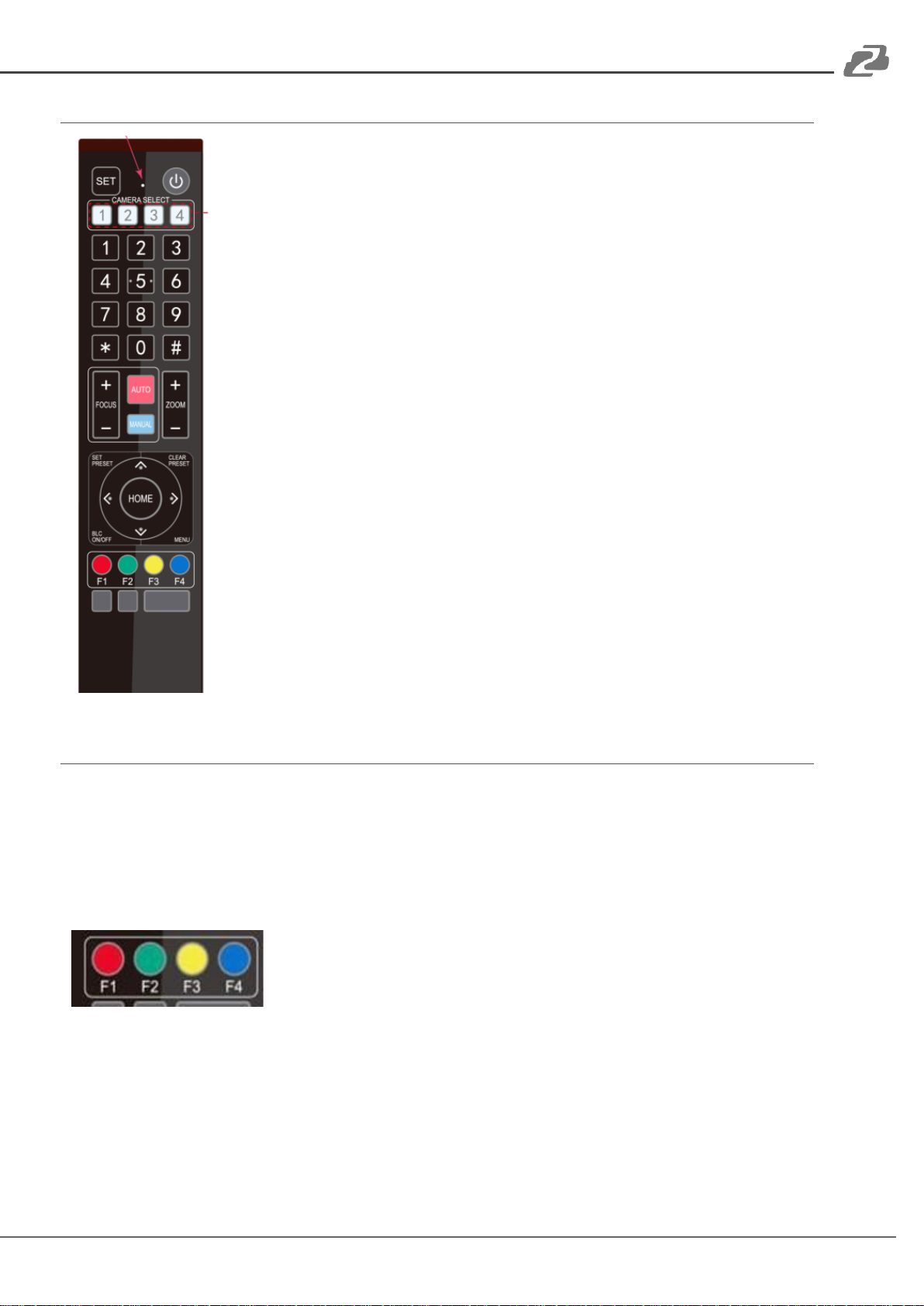

REMOTE
One-to-One Code Matching:
Out of the box the remote is automatically paired with the camera.
Should the camera need to be re-pair with the remote, perform the
steps below.
1. Press the "set" and " * " keys combined for 3 seconds. The
LED indicator will start flashing.
2. The camera will receive the signal and power on if not already
on.
3. The LED indicator will turn off if the code matching is
successful.
If the one-to-one code matching has failed, the LED indicator will
flash for 20 seconds and turn off. The camera will stop code
matching and go into sleep mode. Press any key to wake the camera
up and reattempt code matching.

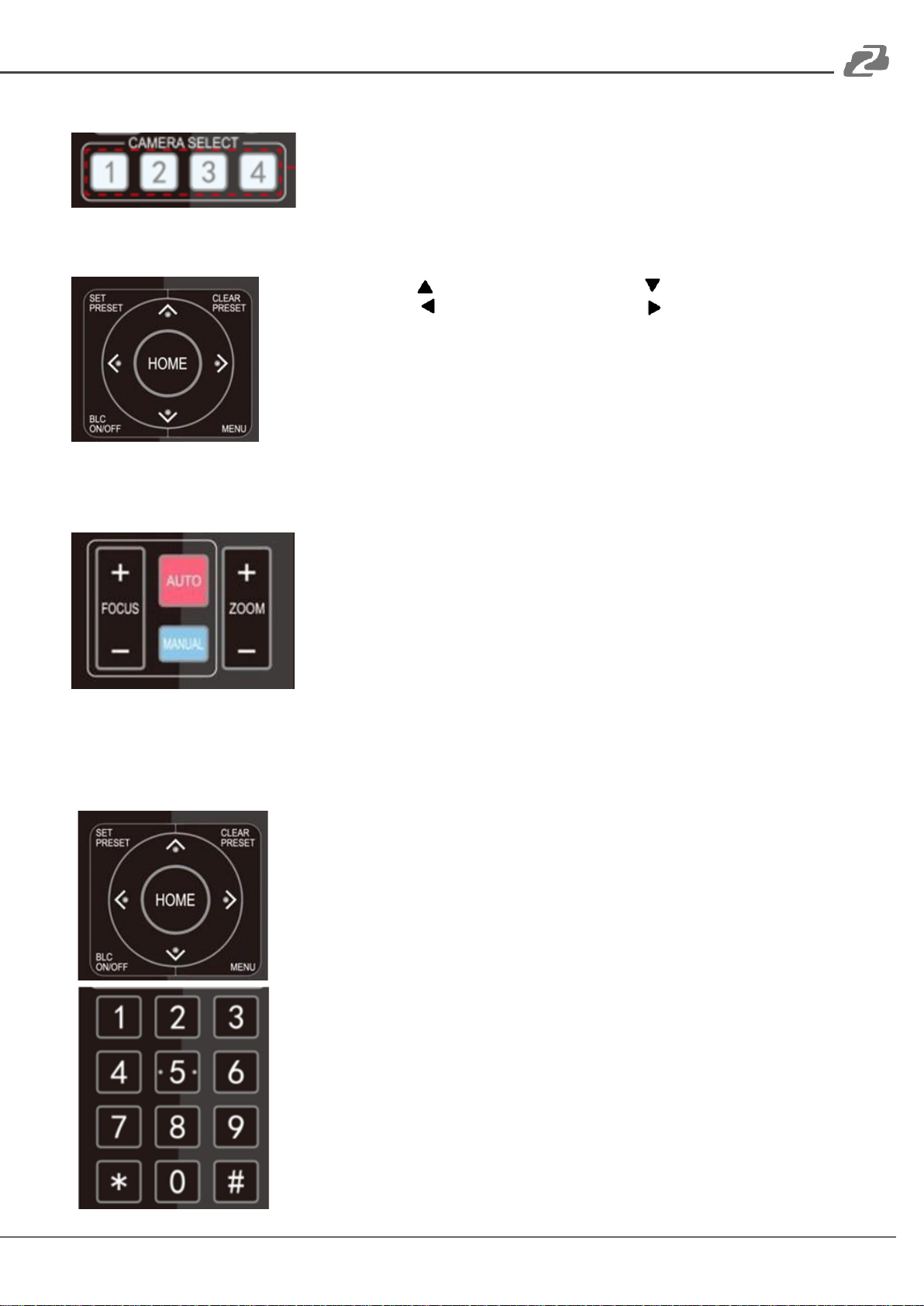

REMOTE BUTTONS INTRODUCTION
In this manual, “press the button” means a click rather than a “press and hold”. Special instructions
will be given if pressing and holding the button for more than one second is required. When a
button-combination is required, perform the actions in sequence. For
example,【*】+【#】+【F1】means press “【*】” first, then “【#】” and press “【F1】” last.

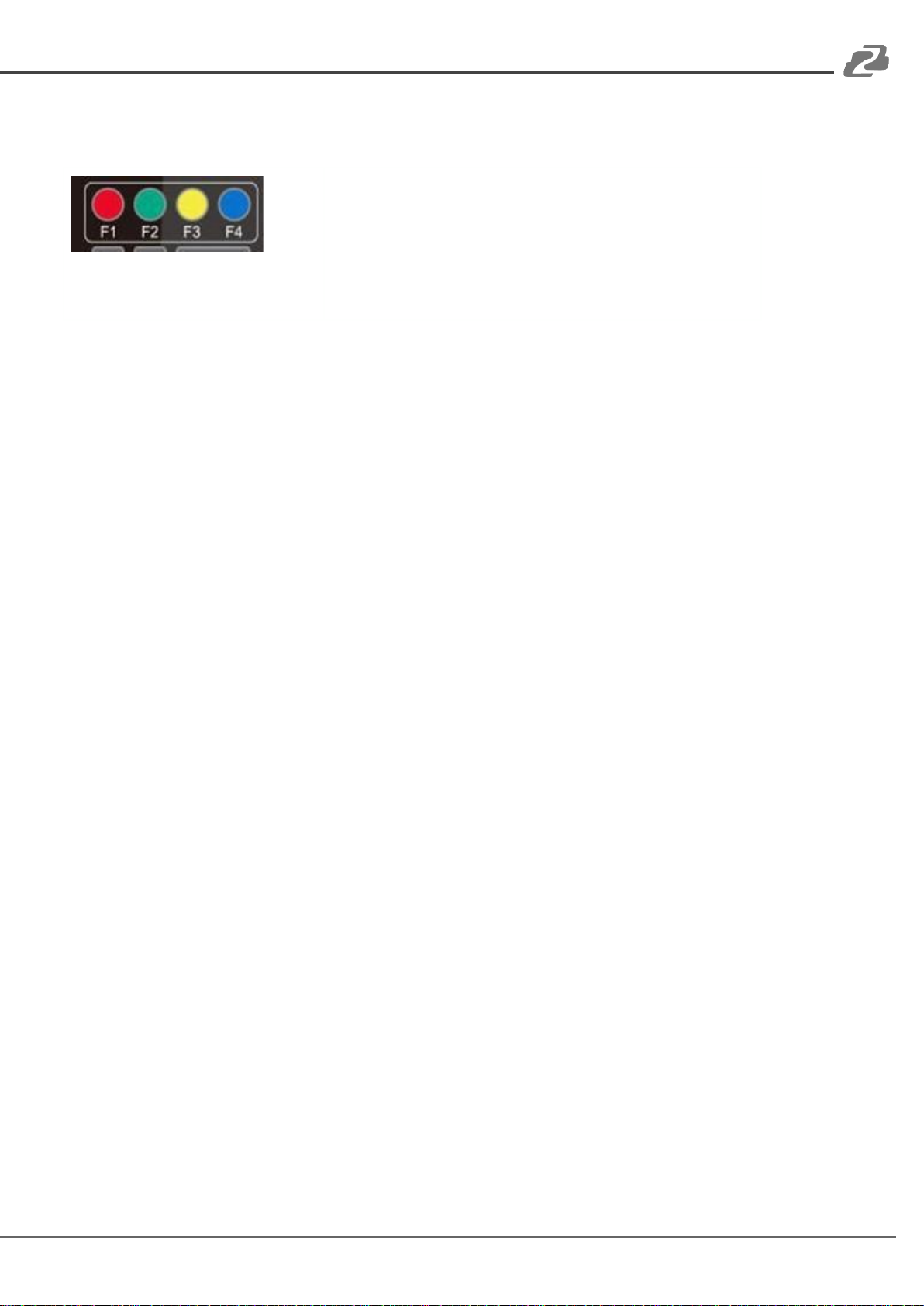

1. Camera Remote Control Address Setting
【*】+【＃】+【F1】: Camera Address No.1
【*】+【＃】+【F2】: Camera Address No. 2
【*】+【＃】+【F3】: Camera Address No. 3
【*】+【＃】+【F4】: Camera Address No. 4

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 11
2. Camera Selection
Select the camera’s address to control it.
3. Pan/Tilt Control
Up: press Down: press
Left: press Right: press
Return to middle position: press 【HOME】
Press and hold the up, down, left, or right button to
pan/tilt the camera. The camera will continue to move
in the arrow direction until either the button is released
or the camera has reached its full range of motion.
4. Focus Control and Zoom
FOCUS + (near) : Press to adjust the lens focus.
FOCUS - (far) : Press to adjust the lens focus.
MANUAL : Press to enter manual focus mode.
AUTO : Press to return to auto focus mode.
ZOOM + : Press to zoom in.
ZOOM - : Press to zoom out.
5. Set and Clear Presets
Set Preset: Press the【SET PRESET】button, then press the
number buttons 0-9 to set the preset positions.
Note: 10 presets are available via remote control.
Call Preset: Press the 0-9 number buttons to call a preset
position.
Clear Preset:Press the【CLEAR PRESET】button, then press
the desired number button to clear its preset position.
BLC ON/OFF: Turn on/off the BLC.
Menu: Enter/Exit OSD menu or return to the previous menu.
Note: Pressing the【#】key three times in a row will clear
all presets.

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 12
6. Auto Tracking Buttons
F1: Turn off auto tracking
F2: Turn on auto tracking
F3: Switch auto tracking modes
F4: Switch auto tracking to follow a different person
7. Key Combinations
【#】+【#】+【#】: Cancel all preset positions
【*】+【#】+【3】: The menu is set to Chinese
【*】+【#】+【9】: Toggle forward and backward
【#】+【*】+ 【Auto】: Stop aging mode
【#】+【#】+【0】: Switch video format 4KP60
【#】+【#】+【2】: Switch video format 4KP30
【#】+【#】+【4】: Switch video format 1080P60
【#】+【#】+【6】: Switch video format 1080I60
【#】+【#】+【8】: Switch video format 1080P30
【*】+【#】+【6】: Restore factory image defaults
【*】+【#】+【4】: The menu is set to English
【*】+【#】+【Auto】: enter aging mode
【*】+【*】+【7】: Turn on green tally light
【*】+【*】+【8】: Turn on red tally light
【*】+【#】+ 【Manual】: IP, username, password
restore to default
【#】+【#】+【1】: Switch video format 4KP50
【#】+【#】+【3】: Switch video format 4KP25
【#】+【#】+【5】: Switch video format 1080P50
【#】+【#】+【7】: Switch video format 1080I50
【#】+【#】+【9】: Switch video format 1080P25
【*】+【*】+【1】: Enable DHCP
【*】+【*】+【2】: Disable DHCP
【*】+【*】+【3】: Display current IP address
【*】+【*】+【4】: Reboot camera
【*】+【*】+【5】: Start recording to SD card
【*】+【*】+【6】:Stop recording to SD card
【*】+【*】+【9】: Turn off tally light

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 13
1. Main Menu

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 14
Network Connection
Connection Mode
●Direct connection: Connect the camera directly to the computer using an ethernet cable.
●Internet connection mode: Connect the camera and computer to a router or switch and
access via the local area network (LAN).
Note: Ensure power and network connections are secured to prevent video issues caused
by poor connection quality.
The computer must be on the same subnet as the camera to connect successfully. The device will
not be accessible otherwise. The camera’s default IP address is 192.168.5.163, therefore the
computer must be connected to the 192.168.5.x subnet.
●To connect to the camera, open the Local Area Connection Properties on the computer.
●For Windows users right-click on the internet connection in the lower right hand corner of
the desktop. Select “Open Network & Internet Settings”.
●Select “Change Adapter Options”

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 15

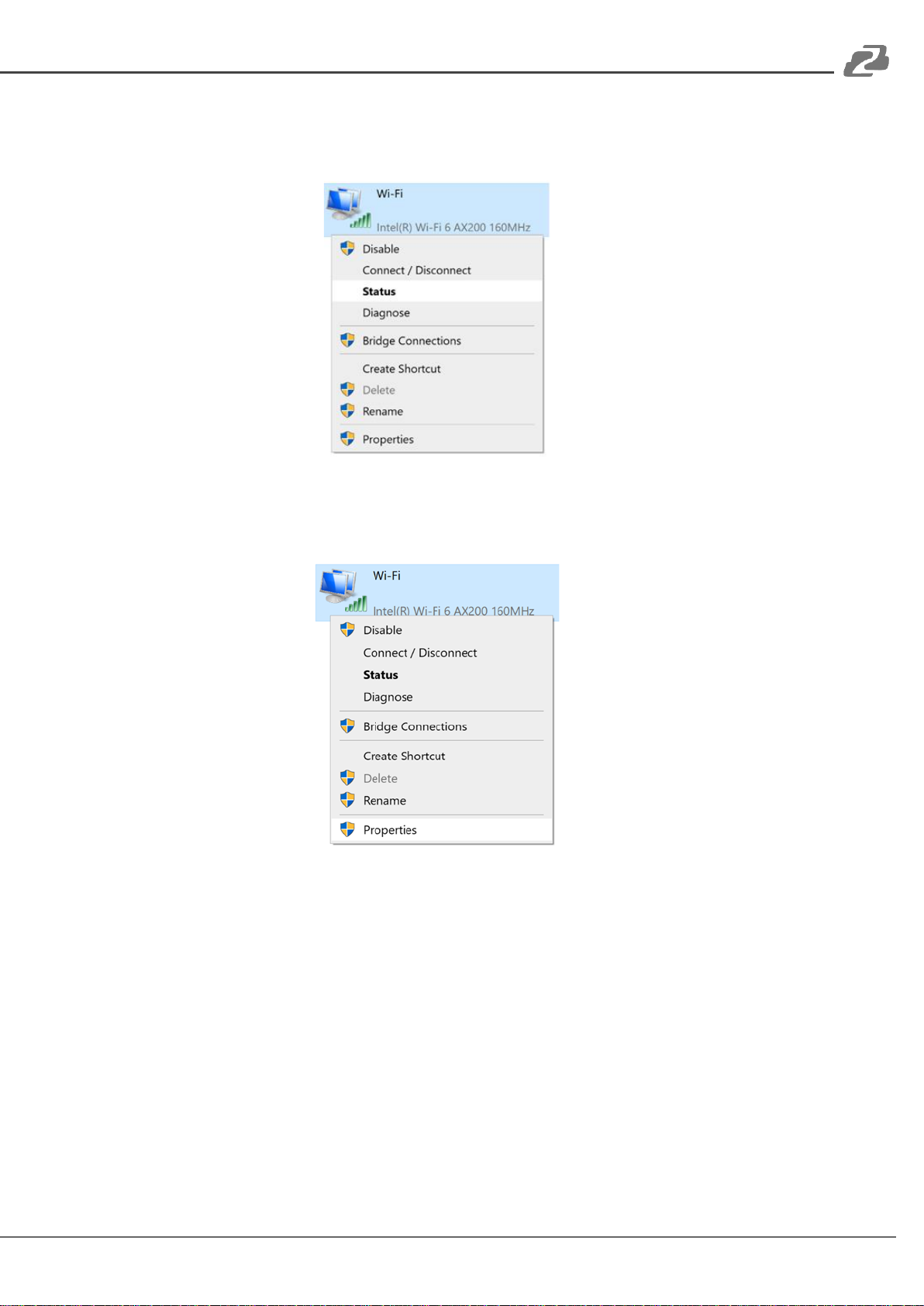

●Right-click on your connection and select “Status".
Then click “B” Take note of your current IPv4 Address and Default Gateway as you will
need this information later. Close the Details and Status windows.
●Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”.

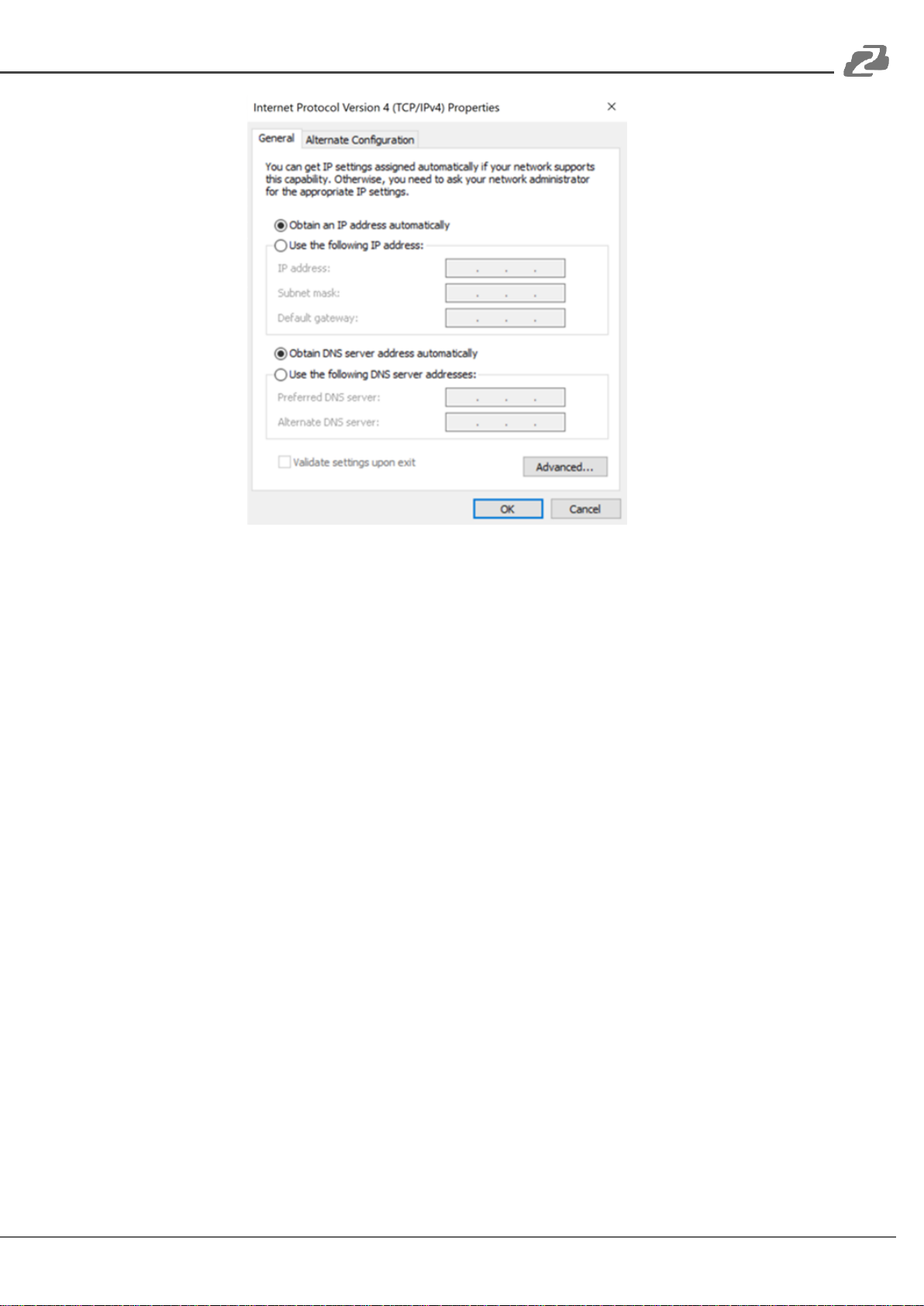

●Select “Internet protocol version 4 (TCP/IPv4” as shown below and click “Properties”.

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 16
For the following steps refer to the diagram below.
●Click on the bubble for “Use the following IP address”
●In the IP address field, enter a non-conflicting IP address on the same subnet as the
camera. If there is another device with the same IP address, you will not be able to
connect. In the example below uses 192.168.5.200
●In the Subnet mask field enter 255.255.255.0
●In the Default gateway field type 192.168.5.1
●Leave the DNS fields blank.
●Click “OK” to apply the settings.

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 17
Web Client Login
●Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as
the administrator (Default Username/Password: admin). Users can preview and configure
in the Web Client.
●When logged in as a normal user (Default Username/Password: user1 or user2), users can
only preview with no options for configuration.
●Navigate to Configuration in the top left corner of the screen. Click “Ethernet” on the left-
hand side.

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 18
●Enter an unused IP address on
your network.
Note: you should have this
information from the “Status”
and “Details” pages of your
internet connection noted
above.
●In this example we use
192.168.30.116
●Change the Subnet Mask to
255.255.255.0
●Default gateway of your
network
●Click “Save”
●Reboot the Camera
Navigate to Configuration -> DNS
●In the “Preferred DNS Server” type
8.8.8.8
●In the “Alternative DNS Server” type
8.8.4.4
●Click “Save” and reboot the camera
once more.
●Once you have completed the camera network setup, repeat the steps on your computer
to adjust the “Internet Protocol Version 4 (TCP/IPV4) Properties.” Select the bubbles to
“Obtain an IP address automatically” and “Obtain DNS server address automatically.”

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 19

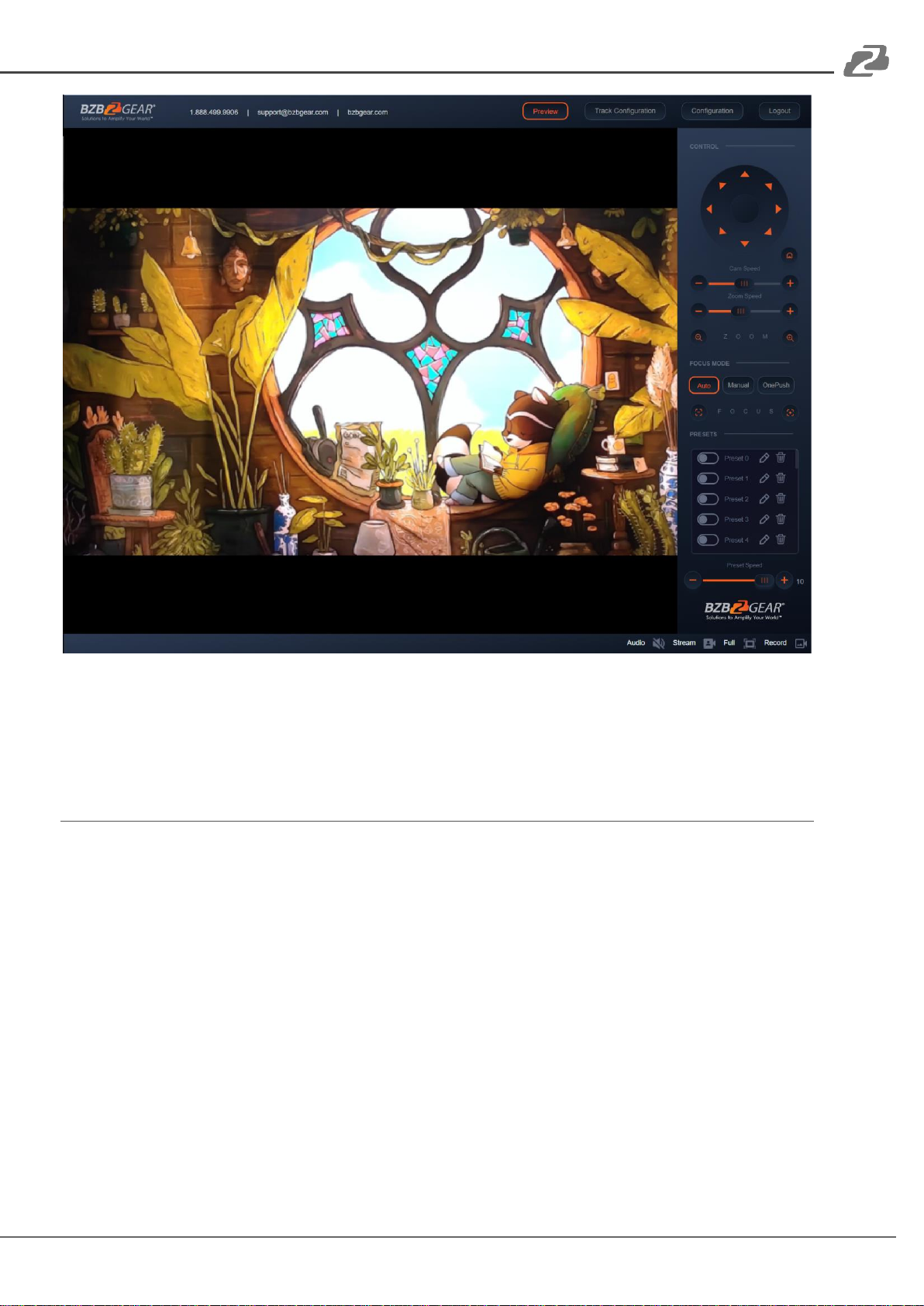

●Preview

BZBGEAR BG-ADAMO-JR-1080P PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: [phone] · Email: [e-mail] 20
After successfully logging into the management interface, the web portal will enter the “Preview”
tab. In Preview, users can control pan/tilt, zoom, focus, video capture, sound, focus, full screen
preview, as well as set the preset position, run, delete, and other operations.
SD Card Recording
●The recording option will appear in the bottom right corner of the “Preview Screen” after a
compatible SD card is inserted into the camera.
○The BG-ADAMO line of cameras currently only supports FAT32 format at this time.
Before recording, ensure the SD card has been formatted properly.
●The BG-ADAMO is capable of using micro SD cards up to 1Tb when properly formatted.
○Note: If your SD card does not allow you to format it to FAT32 a program such as
“rufus-3.21.exe” may be required.
○Note: FAT32 only allows for file sizes up to 4Gb so longer/higher resolution
recordings may be broken up into several files.
●Recording parameters are changed by editing the Video Encode “Main Stream” settings.
●Synchronize the camera time before recording as file names will be generated based on
system time.
●WARNING! Be careful when inserting a Micro SD card into the unit as there is an air gap
above the SD socket and it may be possible to push a SD card into the housing if not
properly inserted.
