BZB Gear BG-4KCH User manual

BG-4KCH
USB-C 4K Video Capture Box with Scaler
User Manual
CONTACT
1.888.499.9906 | [e-mail] | bzbgear.com
FOLLOW US

TABLE OF CONTENTS
INTRODUCTION.........................................................................................................................1
FEATURES..................................................................................................................................1
PACKAGE CONTENTS ..............................................................................................................1
SPECIFICATIONS.......................................................................................................................2
PANEL DESCRIPTIONS.............................................................................................................3
CONNECTION DIAGRAM...........................................................................................................3
VIDEO STREAMING...................................................................................................................4
TROUBLESHOOTING...............................................................................................................12
USB PIN DEFINITION...............................................................................................................12
TECH SUPPORT.......................................................................................................................13
WARRANTY ..............................................................................................................................13
MISSION STATEMENT.............................................................................................................13

-1-
INTRODUCTION
The BG-4KCH USB-C 4K Video Capture Box with Scaler provides a simple, reliable way to capture
HDMI video signals. Users can instantly capture HDMI signals from devices like PTZ cameras, video game
consoles, or PC’s for broadcast to streaming services including YouTube, Twitch, and Facebook. The
utilization of large volume image buffer technology prevents video tearing, allowing for optimal image
reproduction. Compact and portable, the BG-4KCH is an ideal fit for a video technicians toolkit, as well as
anyone needing a discreet capture device.
FEATURES
HDMI video and audio streams over USB 3.1 Type-C Gen 1
Supports UVC1.0/1.1/1.5
Supports video resolution up to 4K2K@30
Supports deinterlace & scaler*
Auto-detection on video format to ensure plug-play operations
Recording Video Format: Software Compression
Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
Compatible with most 3rd party software including YouTube, Twitch, Facebook, OBS Studio, and Zoom
Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12)
(capture up to 720P@30)
Low Latency (3~4ms at 1080P)
System Requirements (Recommanded)
- Windows® 7(SP1) / Windows 8.1 / Windows 10
- PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
- Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
- 4GB RAM or higher
PACKAGE CONTENTS
1x BG-4KCH
1x USB 3.0 A to C Cable (host to device)
1x User Manual
* Scale-up feature supports up to 1080P@60
○
!

-2-
SPECIFICATIONS
Model Name
BG-4KCH
Technical
Role of usage
Video Capture Device
Input Video bandwidth
297MHz
Output bandwidth
Up to 350Mbps (USB-C)
Video support(USB-C)
Up to 4K2K@30
Audio Input
HDMI Embedded Audio
Audio Format
2CH 16bit PCM
Recording Mode
Software Compression
Recording Video Format
RGB/YUY2/NV12 (USB3.1 Gen 1), YUY2/NV12 (USB2.0)
ESD protection
Human body model —±15kV [air-gap discharge] &
±8kV [contact discharge]
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω]
Firmware update
Feasible via USB-C Port
Input
1x HDMI
Output
1x USB-C
HDMI connector
Type A [19-pin female]
USB connector
USB 3.1 Type C (SuperSpeed USB)
Software compatibility
(not complete list)
OBS Studio (Windows, Linux, MAC)¸Potplayer (Windows), VLC (MAC, Linux),
AMCap (Windows), XSplit Boardcast (Windows), Skype (Windows, MAC),
Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS Support
Windows 7 /8.1 /10, Mac and Linux OS
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
77 x 38 x 19mm [3" x 1.5" x 0.7"]
Package
165 x 111 x 42mm [6.4" x 4.4" x 1.7"]
Carton
490 x 426 x 352mm [1'6" x 1'4" x 13.8"]
Weight
Model
58g[2 oz]
Package
142 g[5 oz]
Power supply
Via USB-C
Power consumption
3 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

-3-
PANEL DESCRIPTIONS
1. USB-C OUT: Connect to a USB host (PC, NB, MAC…)
2. LED INDICATOR: Power & input signal indicator LED
[Blue] Device power on
[Green] Input detects HDMI signal
[Red]* Input source is HDCP protected
3. HDMI IN: Connect to an HDMI source
CONNECTION DIAGRAM
*When the input source is HDCP protected, LED will become red to indicate the content is
legally encrypted and can NOT be captured.
○
!

-4-
VIDEO STREAMING
Create a Video Stream
Users can create video streams on their streaming platform of choice. The below steps show how to complete the
video streaming settings from Twitch and YouTube.

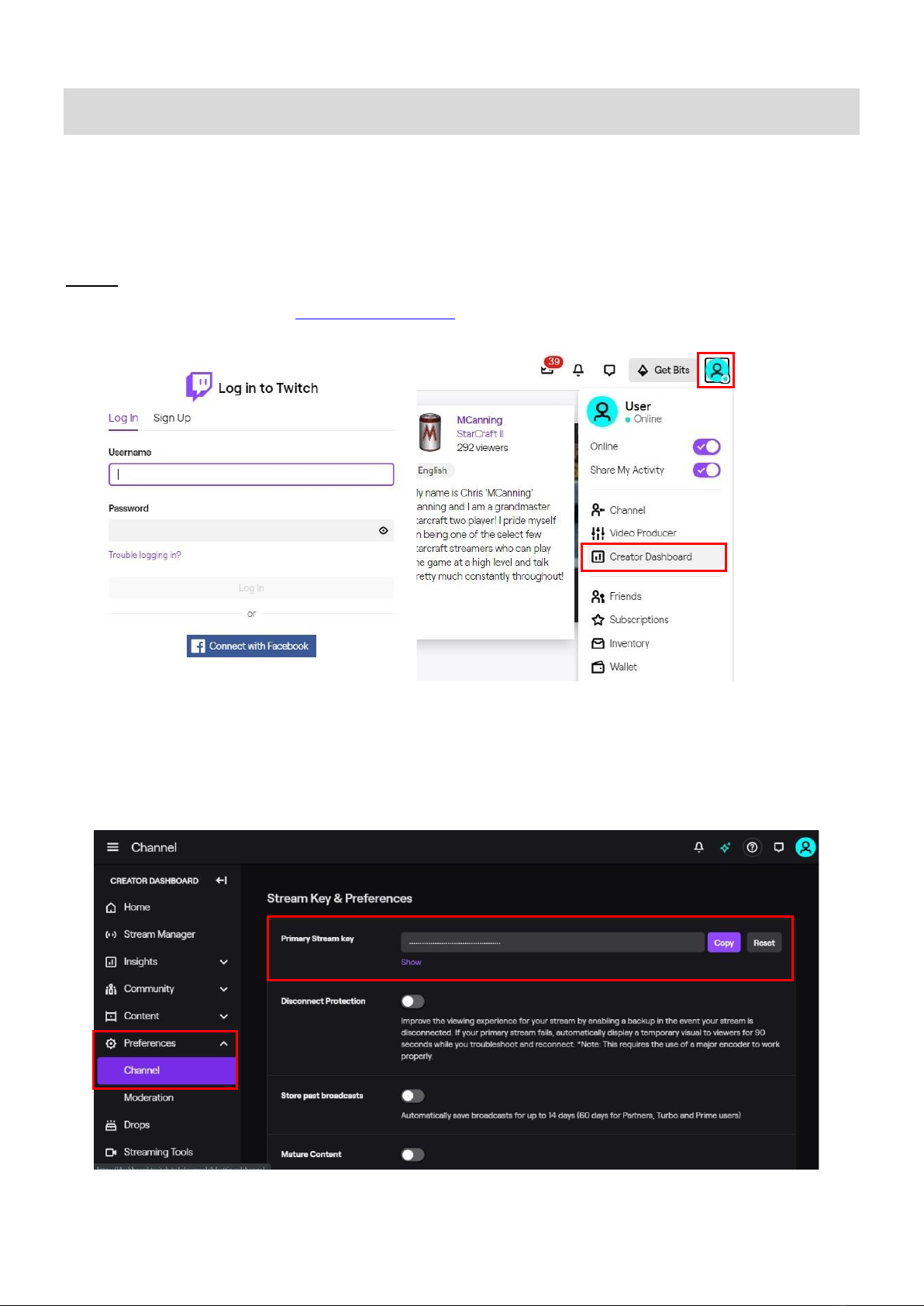

Twitch
1. Browse the Twitch website (https://www.twitch.tv/) and log in, then select "Creator Dashboard" from your
account drop-down menu at the top right of the screen.
2. Find "Preferences" in the left menu, and click "Channel", then you will see "Primary Steam key" on the screen.
Copy the "Primary Steam key" and paste it into the "Stream Key" field in the OBS, then click "Start Streaming"
in the software.
*Please refer to steps 4-6 of the OBS software control program.

-5-
3. Go back to Twitch and select "Channel" from your account drop-down menu.
4. At this point, you will see the player start live streaming.

-6-

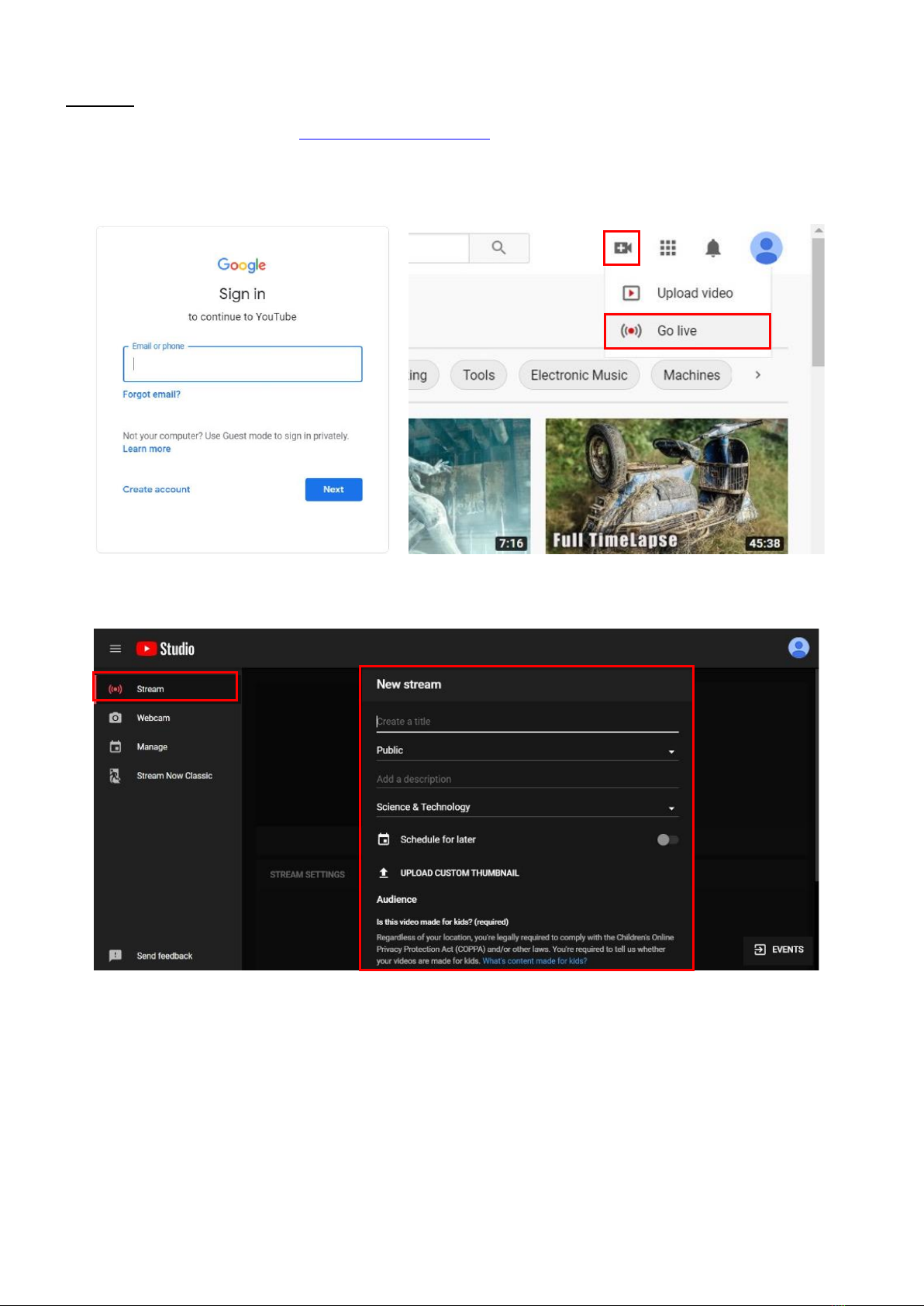

YouTube
1. Browse the YouTube website (https://www.youtube.com/) and log in, then lick "Go live" from the "Create" icon
menu at the top right of the screen.
* If your account is using YouTube for the first time to create a video stream, you need to wait 24 hours to enable
the function.
2. Click "Stream" in the left menu, and fill in the relevant information of the live video to create a new stream.

-7-
3. You will see "Stream key" from the “STREAM SETTINGS” below. Copy the "Stream key" and paste it into the
"Stream Key" field in the OBS, then click "Start Streaming" in the software.
*Please refer to steps 4-6 of the OBS software control program.
4. Next, go back to YouTube, and then wait for 30-60 seconds, the player will display the live preview. At the same
time, the "GO LIVE" button at the top right will turn blue, please press this button.
5. The player on YouTube will start live streaming.

-8-
Stream and record videos with OBS
OBS is popular USB capture freeware and has excellent compatibility. Please start with OBS if users are not familiar
with USB capture device.
Download the software
Browse the download page of the OBS official website (https://obsproject.com/download), then select the
suitable computer operating system and start downloading.
Start the software control program
After downloading the software, please open it and follow the below steps to complete the video streaming settings.
Step1
Step2-3
Step4-7

-9-
1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the name of the scene to create
a new scene.
2. Find the "Source" window, click "+" in the lower left corner, and then select "Display Capture" or "Video
Capture Device" to create a new source.
3. Next, you can set display capture properties. If you select "Display Capture" in step 2, you can select the primary
monitor or other extended monitor as the display source. If you select "Video Capture Device" in step 2, you
can select USB video device as the display source. After all settings are completed, click “OK”.

-10-

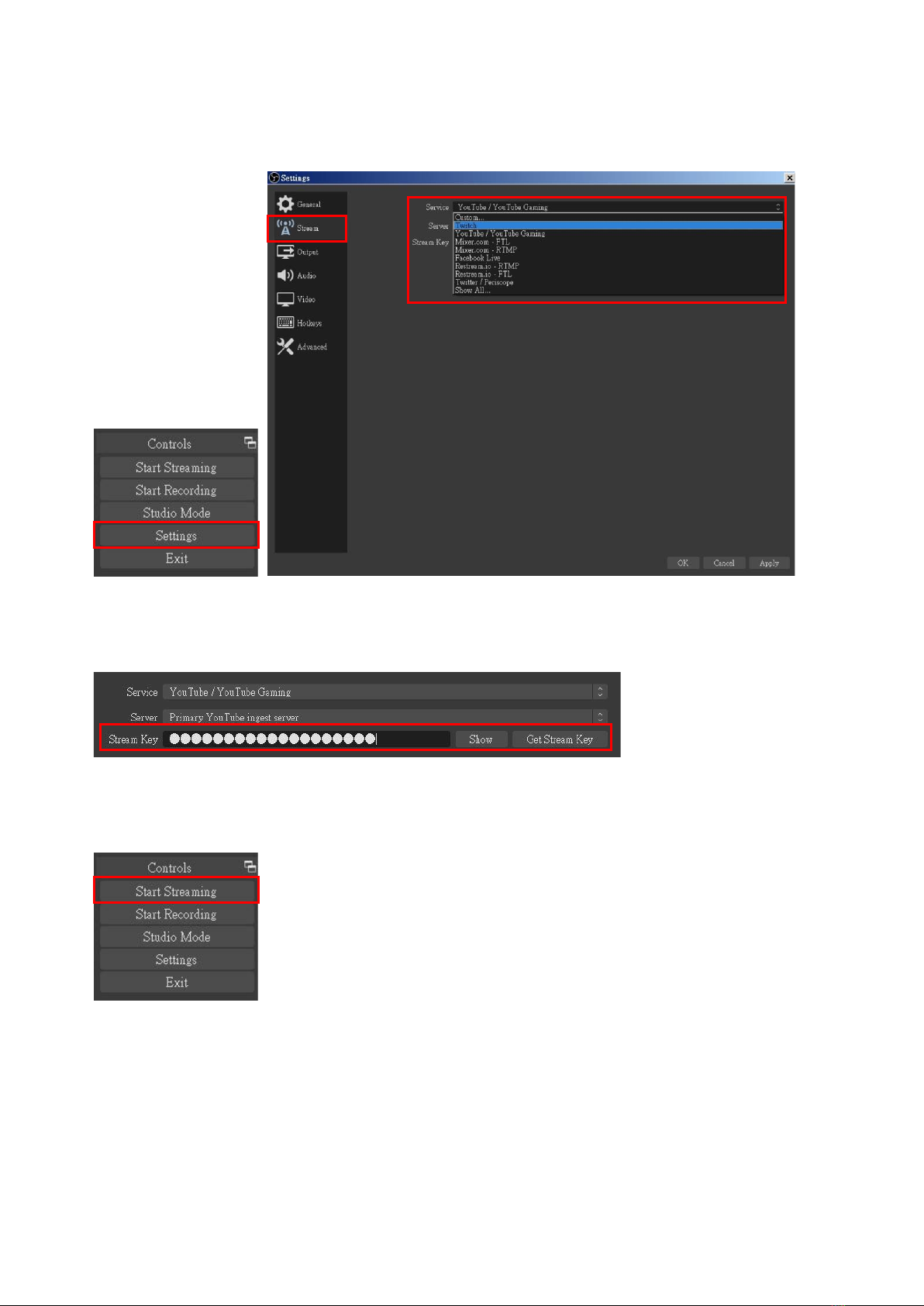

4. Click "Settings" and then select "Stream" to perform streaming settings. Users can choose service providers,
including Twitch, YouTube, etc.
5. Paste the stream key provided by the service provider into the "Stream Key" field, then click "Apply" and "OK"
after setting. In addition, users can lick "Get Stream Key" at this step to open the service provider website.
6. Please click "Start Streaming". At this time, the screen after clicking "Start Streaming" will be displayed in the
live video.

-11-

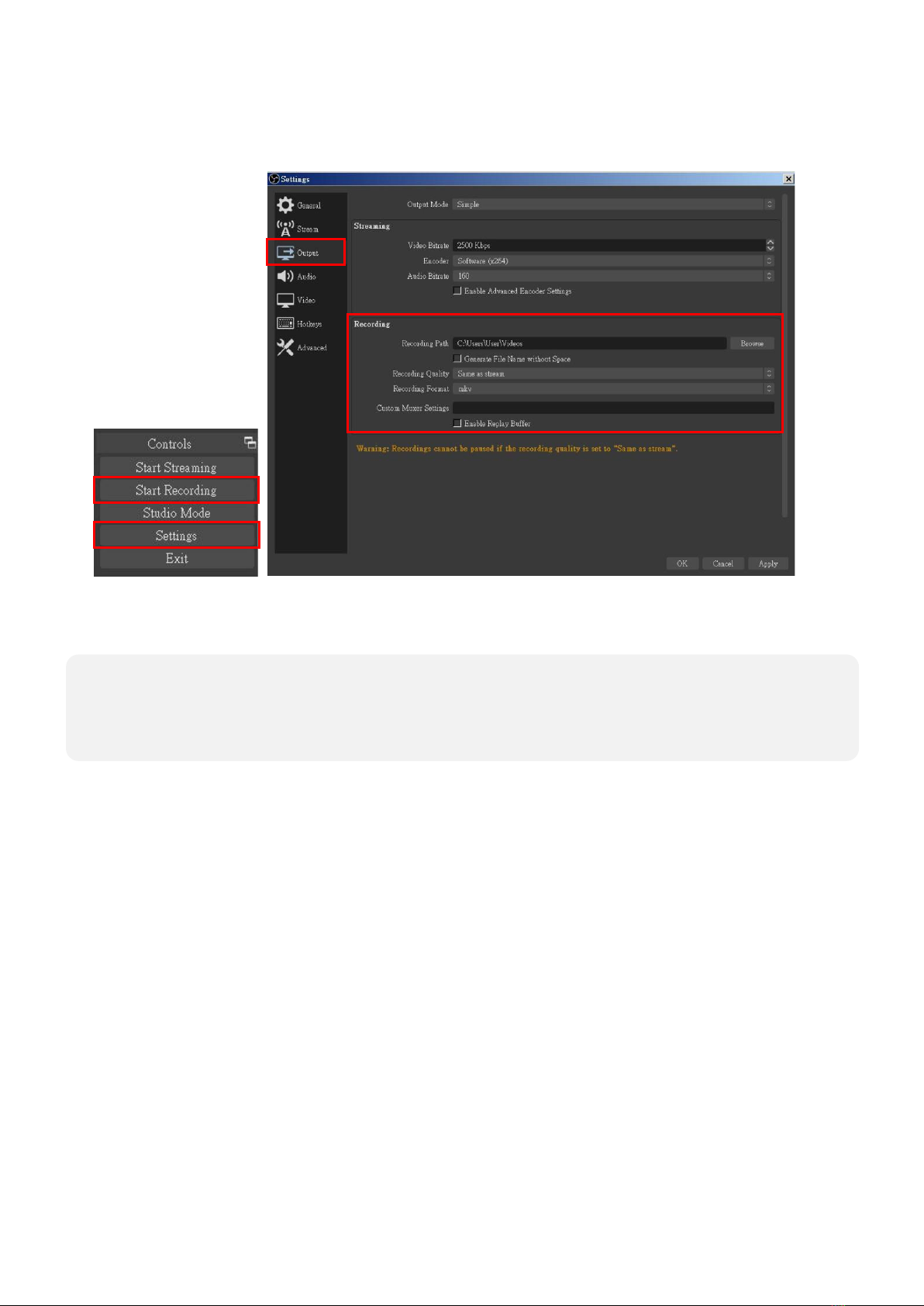

7. On the other hand, users can also click "Start Recording" to record videos with OBS. Besides, you can click
"Settings" and then select "Output" to set “Recording Path” and “Recording Format”.
The procedures the manual demonstrates are based on the interface that each website
provided at the time the manual was written. These procedures may not be accurate and
are subject to change by the provider.
○
!

-12-
TROUBLESHOOTING
1. The BG-4KCH supports HDCP to protect legal content from copyright infringement. If an HDMI input
is eequipped with HDCP protection, the status LED will turn red to indicate the presence of HDCP. No
capture will be legally allowed if HDCP is detected. Please use non-HDCP protected HDMI sources or
disable HDCP in order to enable content capture. Check connected device for an option to disable
HDCP.
2. Due to the complexities of OS and computer hardware, different USB ports on your PC or laptop may
have different performance or limitations. If the device does not work on one USB connection it still
may work on another.
3. If video quality is low or the video connection is intermittent, try another HDMI cable.
USB PIN DEFINITION
P1
P2
VBUS
A4, B4, A9, B9
1
VBUS
Dn1
A7
2
D-
Dp1
A6
3
D+
GND
A1, B1, A12,
B12
4
GND
SSTxn1
A3
5
SSRX-
SSTxp1
A2
6
SSRX+
GND
A1, B1, A12,
B12
7
GND
SSRxn1
B10
8
SSTX-
SSRxp1
B11
9
SSTX+

-13-
TECH SUPPORT
Before contacting tech support, we may have answered your question already! Visit our BZBGEAR
support page at bzbgear.com/support for valuable information on our products.
Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start
guides, and step-by-step troubleshooting instructions. Also visit our YouTube channel BZB TV at
youtube.com/c/BZBTVchannel for help setting up, connecting, and other how-to videos regarding our
products.
If you still need answers, please call 1.888.499.9906, email [e-mail], or chat at
bzbgear.com.
WARRANTY
BZBGEAR Pro AV products and Cameras come with a three-year warranty. An extended two-year
warranty is available for our Cameras upon registration for a total of five years.
For an extended two-year warranty on our Cameras, follow these steps:
1. Register your Camera within 90 days of purchase by visiting bzbgear.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase details, including serial
number and a copy of your sales receipt.
For complete warranty information, please visit bzbgear.com/warranty or scan the QR code below.
