BZB Gear BG-SDITPG User manual

BG-SDITPG
12G/6G/3G/HD/SD-SDI Video Test Pattern
Generator/Tester/Analyzer
User Manual

BZBGEAR BG-SDITPG PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-SDITPG PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Connection Diagram 9
Appendix 10
Tech Support 12
Warranty 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-SDITPG PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-SDITPG PRODUCT MANUAL
Introduction
The BG-SDITPG 12G/6G/3G/HD/SD-SDI Pattern Generator is an advanced SDI pattern
generator with multi-format (12G/6G/3G/HD/SD) and multi-pattern support. With still and
moving video test patterns, other features such as audio (SMPTE-291M) are also provided.
BG-SDITPG can support up to 8 channel AES compliant audio with a 48KHz sample rate. It
is equipped with four buttons and an LCM screen for ease of use. The BG-SDITPG provides
a cost-effective way to calibrate and test SDI enabled video devices and displays.
Features
●Output resolutions: NTSC 525@60, PAL 625@50, [email protected],
720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60,
[email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50,
[email protected], 1080p@60, [email protected], 4K2K @24, 4K2K @25, 4K2K @29.97, 4K2K
@30, 4K2K @50, 4K2K @59.94, 4K2K @60
●Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 5.94Gbps, 5.934Gbps,
11.88Gbps, 11.868Gbps,270 Mbps
●Resolution: 10bit
●Video Patterns: 100% Color Bars, Borderline, Random Noise, Check Field, Black,
Vertical Lines, Black / White alternate fields, Full Grey / Full White, Black to White
Gradient, Random Generator for all still patterns, moving squares White noise,
Inverse effect with still pattern, Scrolling Title (see Appendix for illustrations)
●Save Settings to Memory Option
●ANC Data: EDH (RP-165), SMPTE 352M, SMPTE 291M
●Control: By LCM & panel buttons
●Video Output: SDI output (SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI)
Packing List
●1x BG-SDITPG
●1x 12V power supply unit
●1x User Manual
●1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-SDITPG PRODUCT MANUAL
Technical Specifications
Role of usage
Pattern generator
Technical
SDI standards
12G/6G/3G/HD/SD-SDI
Auto SDI rate detection
Yes
Supported protocols
SMPTE 259M (270 Mbps / 360 Mbps)
SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps)
SMPTE 424/425M (2.97 & 2.97/1.001Gbps)
SMPTE ST-2081 (5.94&5.94/1.001Gbps)
SMPTE ST-2082 (11.88&11.88/1.001Gbps)
Video bandwidth
11.88Gpbs
Data rates
143 / 270 / 1483 / 1485 / 2967 / 2970 / 5934 / 5940 / 11868 / 11880 Mbps
Video support
[12G] 4K2K@50/59.94/60
[6G] [email protected]/24, 25, 30
[3G] 1080p@50/59.94/60 (4:2:2)
[HD] 720p@50/59.94/60, 1080p@24/30, 1035i@50/59.94/60, 1080i@50/59.94/60
[SD] [email protected], PAL@50Hz
SDI signal type
SMPTE-292M / 259M / 424M / ST-2081 / ST-2082
Output impedance
75W
Cable (Belden 1694A)
equalization / transmission
[12G-SDI] up to 50m (165ft) / [6G-SDI] up to 100m (330ft) / [3G-SDI] up to 200m
(660ft)
Audio support
Yes
PCB Stack-up
6-layer board [impedance control — differential 100W; single 75W]
Output
2x BNC [SDI]
BNC connector
75W interlocking socket
[HD] Eye pattern
characteristics
Amplitude: Within 800mV <10%Long time jitter <1.0 UI
Rise overshoot: Less than 2% Timing jitter <1.0 UI
Fall overshoot: Less than 2% Alignment jitter <0.2 UI
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
5.9” x 7.5” x 1.3” [150 x 190 x 32mm]
Package
10.3” x 6.7” x 3.8” [263 x 170 x 97mm]
Carton
1'7” x 1.2' x 11.3” [512 x 364 x 288mm]
Weight
Model
1.5 lbs [660g]
Package
2.8 lbs [1260g]
Fixedness
Interlocking power supply
Power supply
12V 2A DC
Power consumption
8 Watts [max]
Operation temperature
32~104°F / 0~40°C
Storage temperature
-4~140°F / -20~60°C
Relative humidity
20~90% RH [no condensation]
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-SDITPG PRODUCT MANUAL

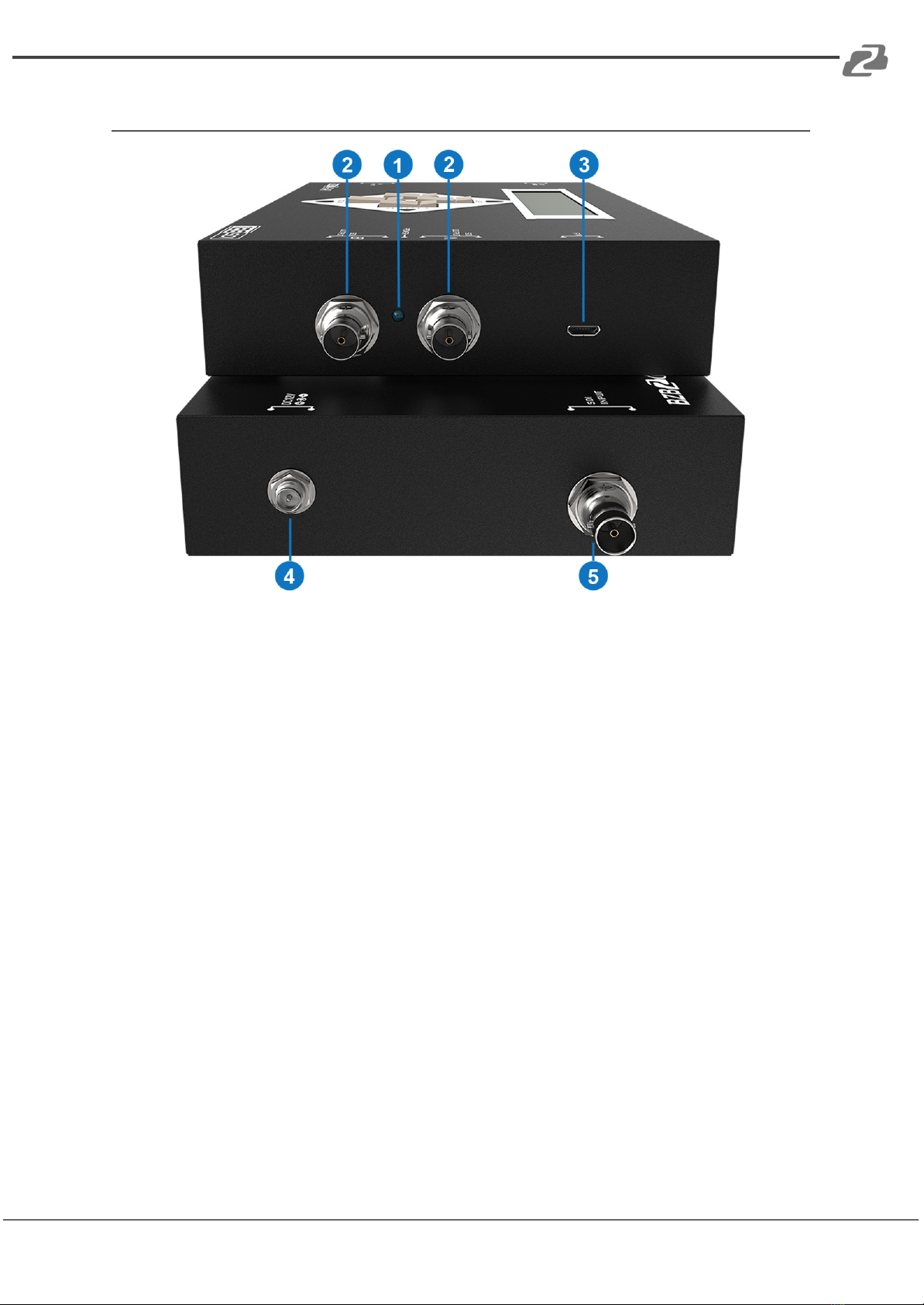

Operation Controls and Functions
1. POWER LED: Power LED indicator
2. SDI OUTPUT: Connect to an SDI device for SDI signal output either from the
chosen pattern or the SDI source signal
3. Mini-USB: F/W update
4. +12V DC: Connect to a 12V DC power supply unit
5. SDI INPUT: Connect to an SDI source
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-SDITPG PRODUCT MANUAL

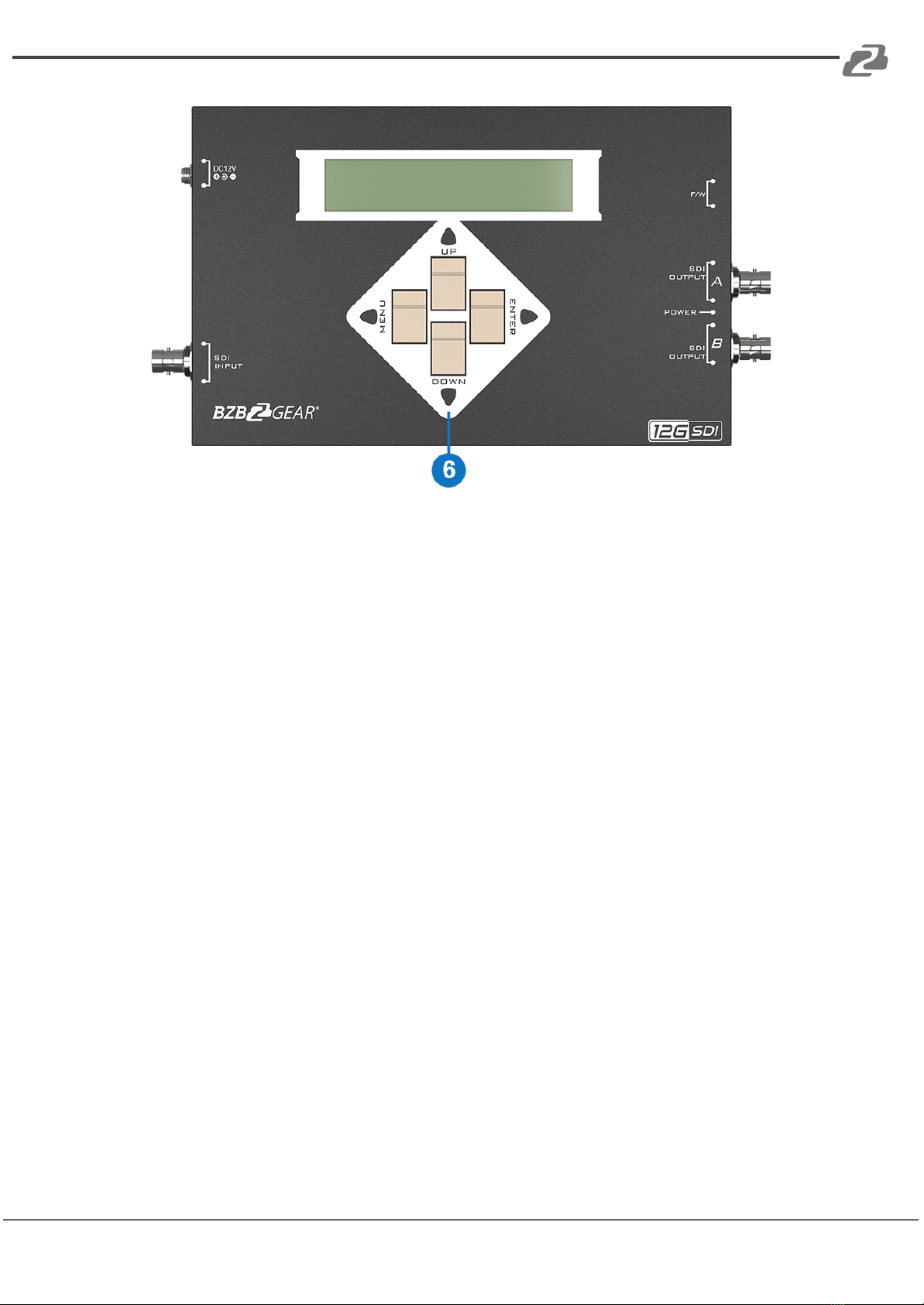

6. PUSH BUTTONS:
●[Menu] - Trigger the menu operation
●[Enter] - Enter the menu item
●[Up] - Choose the last menu item
●[Down] - Choose the next menu item
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-SDITPG PRODUCT MANUAL

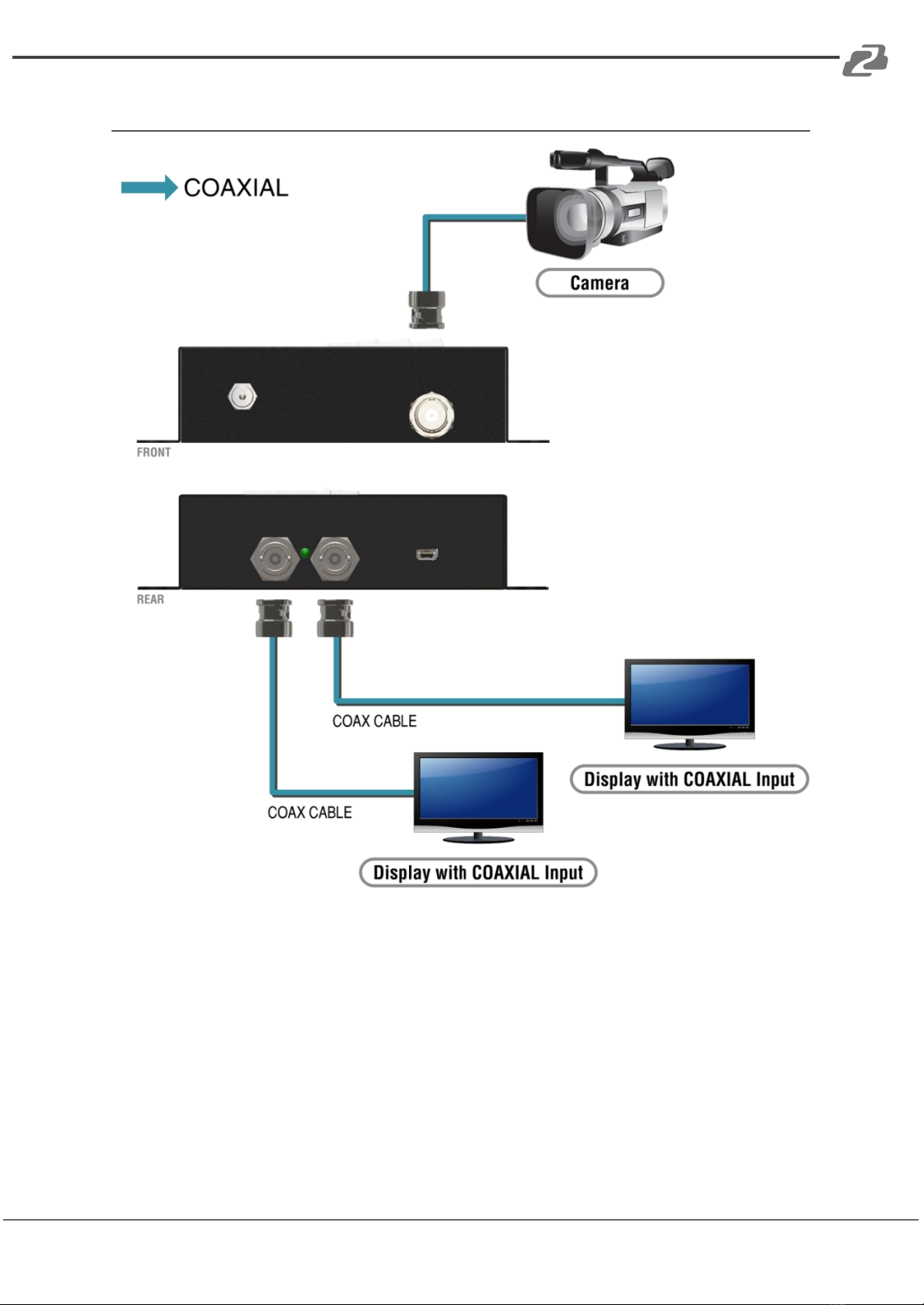

Connection Diagram
Notice:
1. In HDMI bypass mode, users must be aware that jitters coming from HDMI sources such
as DVD players may be much higher than normal requirements according to SMPTE
requests on HD-SDI signals. This will result in SDI output with high jitters or even no SDI
outputs!
2. Due to the high frequency bandwidth and low jitter requirement of 3G-SDI signals, it is
strongly recommended to use just one SDI OUTPUT with one 75 ohm cable.
3. Features including timings and patterns may change without notice after the firmware is
updated!
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-SDITPG PRODUCT MANUAL
Appendix
●Data Identification Word of Ancillary Data Packet
ANC Data
DID
SDID/DBN
352M
0x41
0x01
RP-165-EDH*
0xF4
0x00
* Data Type 1(SMPTE-291M)

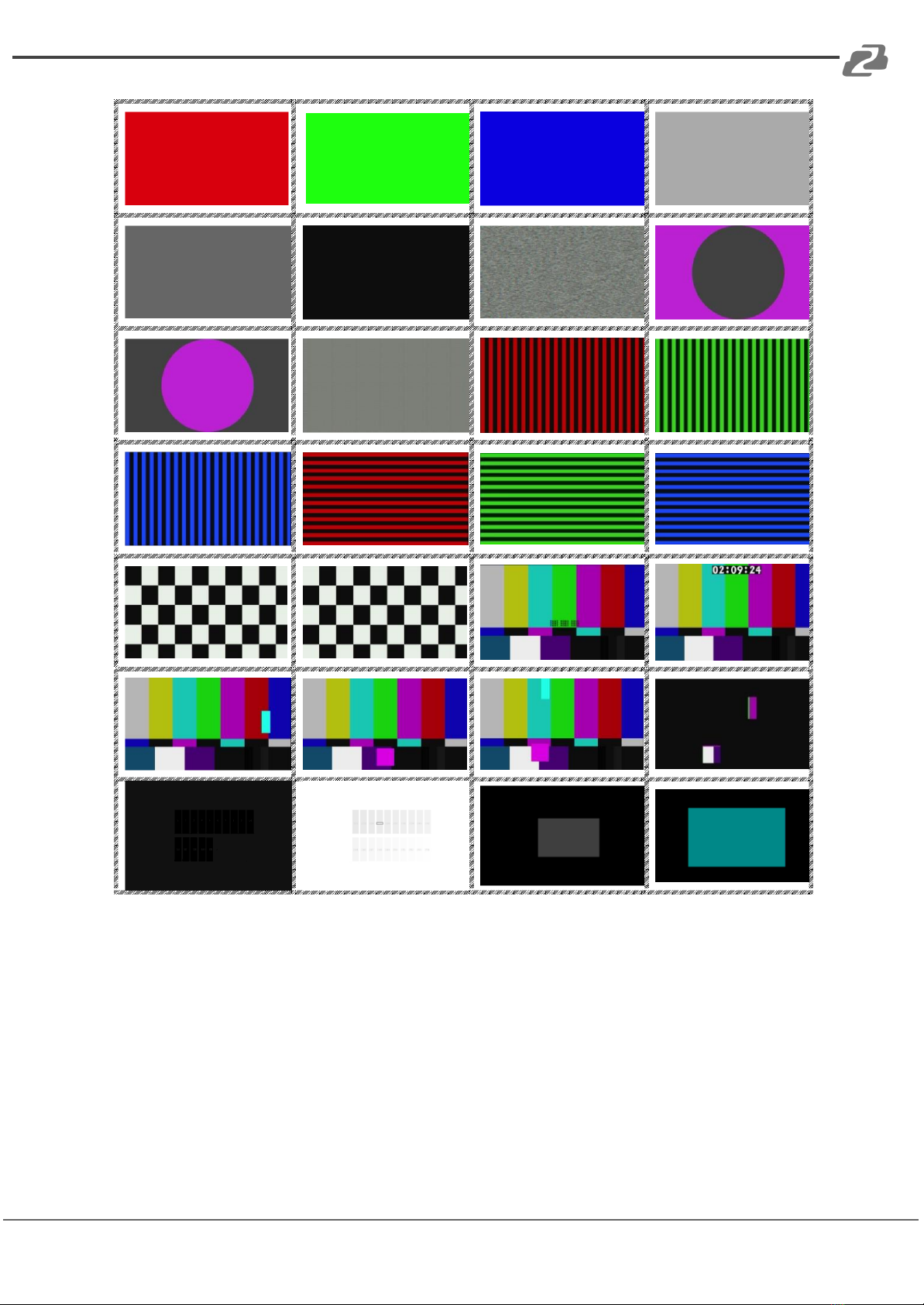

●Built-in Video Pattern
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-SDITPG PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-SDITPG PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
