C. Crane CCRadio-EP PRO User manual

INSTRUCTION MANUAL
PLEASE READ ALL THE INSTRUCTIONS COMPLETELY
BEFORE USE AND SAVE THIS MANUAL FOR FUTURE
REFERENCE
C.CRRNE
CC Radio gEP PRO

Page 3 CCRadio-EP PRO
For your future reference:
Serial No. (Found inside battery compartment): ___________________
_
Date of purchase / Name & address of dealer: _____________________
_________________________________________________________ _
The box should contain the CCRadio-EP PRO, an AC Power Adapter,
this manual and a warranty card. If anything is missing or damaged,
please contact C. Crane immediately. We recommend that you keep the
box in the unlikely event that your radio needs servicing.
Unpacking
Thank you for purchasing a CCRadio-EP PRO.
It is a radio built specically for “ease of use” that addresses the desires
of some of our customers. Inside, it has the technology we have
developed over the years to help tune in a station more clearly and
provide excellent audio. Built-in is the patented Twin Coil Ferrite® AM
Antenna. There is also a large high-quality speaker along with bass and
treble controls so that the audio is accurate and rich. We hope the
CCRadio-EP PRO will give you many years of learning, news and
entertainment. If you have questions about your radio, please give us a
call or email: [email protected]
Owners Record

CCRadio-EP PRO Page 4
Safety Instructions
Please read IMPORTANT SAFETY INSTRUCTIONS before use. It is
important to read and understand all instructions. Keep these
precautions and instructions where all who will use this radio will read
them.
WARNING: To prevent re or electric shock hazard do not expose
this product to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock, do not remove the
radio back. No user serviceable parts inside. Refer servicing to
qualied service personnel.
CAUTION:
• Before turning the unit on, set your volume control to a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly
without distortion.
• Long-term exposure to loud sounds may cause hearing damage. It is
best to avoid high volume levels when using headphones/earbuds,
especially for extended periods.
THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE
TRIANGLE IS A WARNING SIGN ALERTING YOU OF
“DANGEROUS VOLTAGE” INSIDE THE RADIO.
THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A
WARNING SIGN ALERTING YOU OF IMPORTANT
INSTRUCTIONS ACCOMPANYING THIS RADIO.
~
w
W'

Page 5 CCRadio-EP PRO
Safety Instructions
Read before operating equipment. Save these instructions.
To prevent damage to your radio or possible injury to you or others, read
these safety precautions and instructions entirely before applying power to
your radio.
1.) COMMON CARE
Check the radio, AC adapter, batteries and any accessories regularly. Do
not use the radio if there is any sign of damage. Only operate in
accordance with the instructions in this manual.
2.) PROPER BATTERY HANDLING
Never mix di󰀨erent type of batteries or use old batteries with new. This may
cause the batteries to leak or explode. Dead batteries are also prone to
leakage. Remove the batteries when no charge remains. Orientate the
batteries correctly in the unit according to the diagram. Do not store
batteries with metal objects like paper clips. We recommend you remove
batteries from the radio if you are not going to use the radio for one month
or more.
3.) DISCONNECT THE RADIO IN CASE OF MALFUNCTION
If you smell or notice smoke, disconnect the AC adapter and remove the
batteries immediately to avoid burns. Contact C. Crane for inspection and
service before any future operation. Only use the AC adapter supplied with
the unit and replace it if wires become frayed or exposed.
4.) KEEP OUT OF REACH OF CHILDREN
The radio is heavy when batteries are installed. Use only on a stable, level
surface. Dropping the radio can cause damage or injury. Keep the AC
Adapter cord in a position so someone cannot trip and cause the radio to
fall.
5.) KEEP AWAY FROM WATER AND MOISTURE
Keep the radio dry. Liquids and moisture can damage the radio. If a liquid
leaks into the radio do not operate and seek a qualied service shop. To
clean, remove the power adapter and use a damp cloth on the exterior
only.
6.) KEEP AWAY FROM EXTREME TEMPERATURES
Extreme temperatures can damage the radio. Do not leave or use the radio
where it can be subjected to high or very cold temperatures.
7.) DO NOT ATTEMPT TO SERVICE RADIO
Refer all service work to a qualied service shop when the radio does not
appear to operate normally, exhibits a change in performance or the radio
has received damage. Never open the radio as this may expose you to
dangerous voltages and this will void all warranties.
8.) OUTSIDE ANTENNAS OR CABLES
Outside antennas or cables should not be used with this radio unless
installed by qualied personnel.
w
w
w
w
w
w
w
w

CCRadio-EP PRO Page 6
Table of Contents
Owners Record..........................................................................
Safety Instructions......................................................................
Quick Start Guide.......................................................................
Radio Controls and Functions....................................................
Getting Started
Powering Your Radio..............................................................
AC Operation..........................................................................
Installing the Batteries............................................................
Specications.............................................................................
Troubleshooting Guide............................................................
3
4
7
8
10
10
11
12
13

Page 7 CCRadio-EP PRO
Quick Start Guide
1. Plug in the supplied AC Power Adapter or 4 “D” batteries (see
“Powering Your Radio” on Page 10).
2. Turn the radio on by pressing the red POWER button on the top of
the radio (see “Radio Controls and Functions on Page 8 for location).
3. Adjust the VOLUME knob to your preferred listening level.
4. Select the BAND switch to either AM, FM or FM Stereo.
5. For best FM reception, lift, extend and rotate the FM WHIP ANTENNA.
6. Adjust the TUNING knob until your desired radio station frequency is
indicated on the dial or until your station has best reception.
7. For best AM reception please tune slowly to nd your AM station so
you can hear the audio. If you tune too fast it may appear to skip over
your station. Typically, you will nd a weak station image right before
the station you want. If you tune a little further, you will nd the main
signal of the station comes in much clearer.
You can often enhance AM
reception by tuning the small
“AM FINE TUNING” knob (on
the right side of the radio) by
“ear”, for maximum clarity.
The radio comes with this
knob locked in position, so you
must remove the sticker rst.
Finally, rotate the entire
radio until station reception
is best. Adjust the
WIDE-NARROW knob for your
sound preference along with
the Bass and Treble.
Main signal AM station
Weak station

CCRadio-EP PRO Page 8

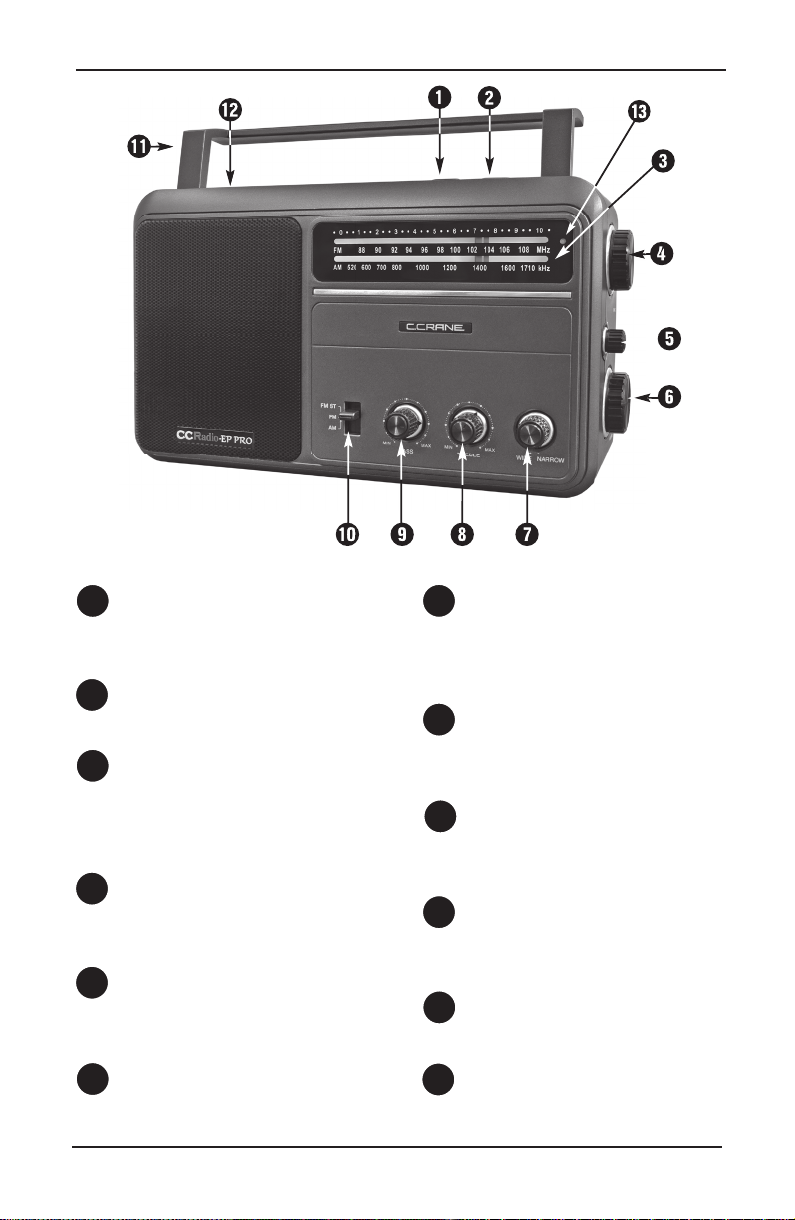

Radio Controls and Functions
DISPLAY LIGHT BUTTON
Use to turn the dial backlight
ON or OFF.
POWER BUTTON
Turn the power ON or OFF.
AM/FM TUNING DIAL
Sliding pointer indicates the
station frequency being
received on AM or FM.
AM/FM TUNING KNOB
Rotate to tune in a radio
station to AM or FM.
AM FINE TUNING KNOB
Rotate for ne tuning once
your station has been selected.
VOLUME KNOB
Rotate to raise or lower the
volume level.
WIDE/NARROW SWITCH
(AM only) Adjust for optimal
audio clarity when listening to
music or voice.
TREBLE KNOB
Adjust high pitch tones to
your preferred listening level.
BASS KNOB
Adjust low pitch tones to your
preferred listening level.
BAND SELECTION SWITCH
Select between AM, FM and
FM Stereo.
FLIP UP HANDLE
For easy portability.
FM WHIP ANTENNA
Lift and fully extend: rotate
for best FM radio reception.
12
11
10
9
8
7
6
5
4
3
2
1

Page 9 CCRadio-EP PRO
13
14
15

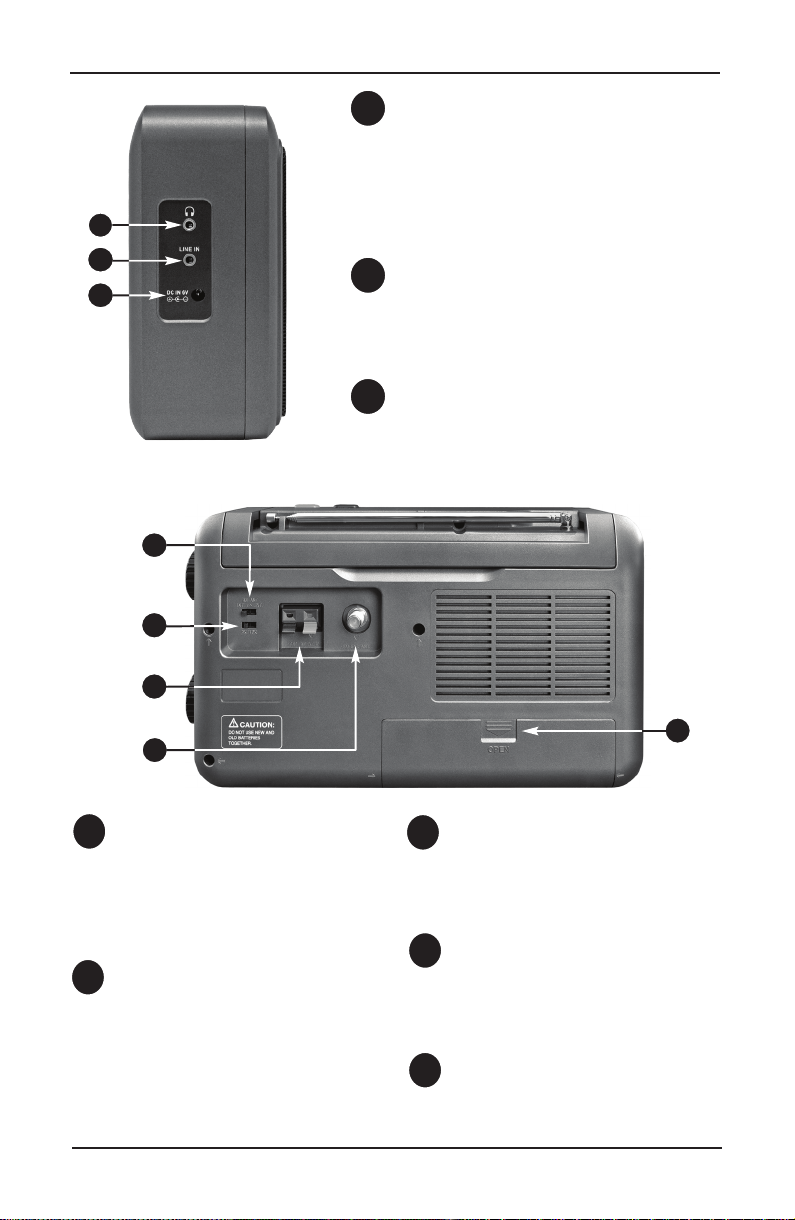

HEADPHONE JACK
Use for private listening with
optional headphones or earbuds.
Can also be used as an audio output
for an optional recording device or to
connect amplied speakers.
LINE INPUT JACK
For connecting a portable music
player or other device which would
use the radio as the speaker.
POWER JACK
Use to connect the AC Power
Adapter for continuous power to
radio.
Radio Controls and Functions
14
15
13
16
17
18
ANTENNA SELECTION
SWITCH
Normally keep it set to ‘INT’
(Internal) except when an
external antenna is used.
9K-10K AM TUNING STEP
SWITCH
Set this switch to ‘10K’ for
use in the United States. ‘9K’
steps are used in Europe and
many other countries.
EXTERNAL AM ANTENNA
CONNECTION and GROUND
To connect and ground an
external AM antenna.
EXTERNAL FM ANTENNA
CONNECTION
Connect an external FM
antenna.
BATTERY COMPARTMENT
For portable use of the radio,
insert four “D” cell batteries.
19
20
16
17
18
20
19

CCRadio-EP PRO Page 10
Getting Started
Powering Your Radio
Before powering your radio be sure to read the Safety Instructions on
page 4.
The CCRadio-EP PRO will run on four “D” size alkaline batteries or on
120V AC house current using the included AC power adapter. Batteries
are optional.
AC Operation
Before you plug the AC power adapter into the radio, be sure the AC
voltage is 120 Volts/60 Hz.
Note: If you have batteries in the radio and you use the AC power
adapter the batteries will automatically be disconnected.

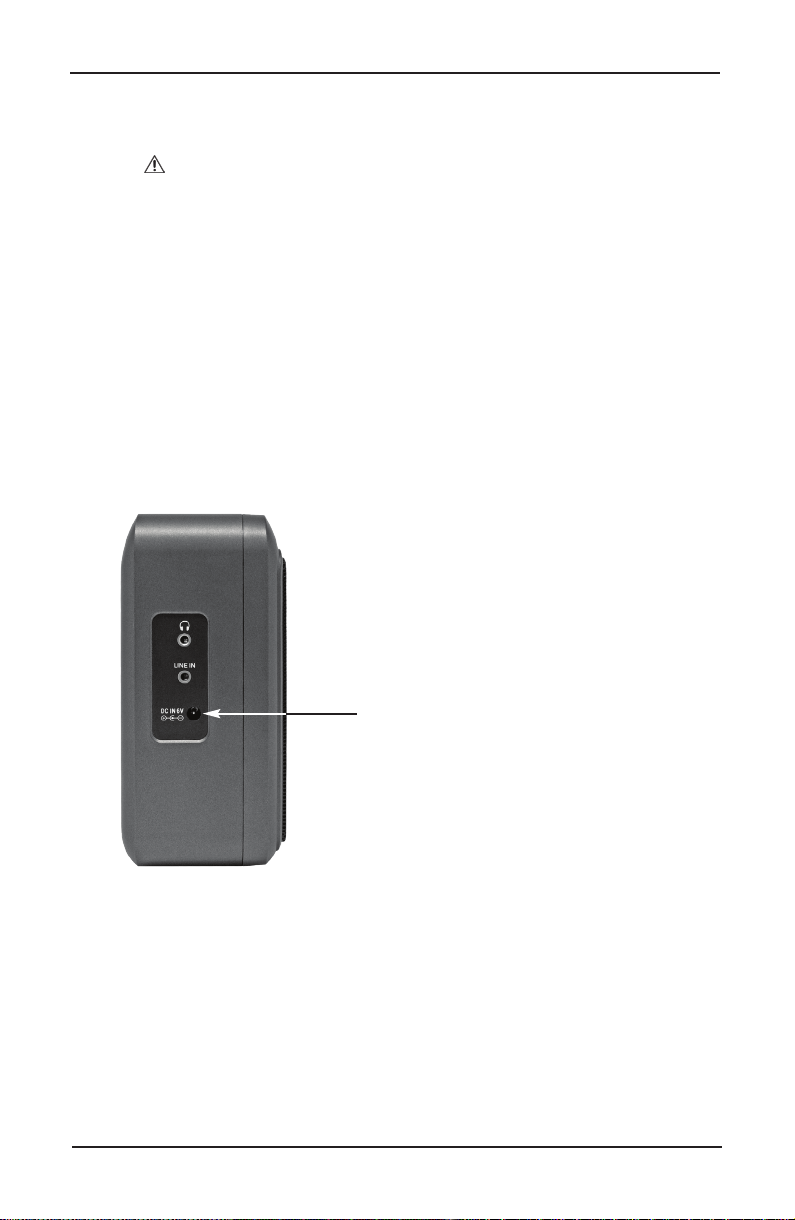

Plug the supplied AC power adapter into
the “DC IN 6V” power jack on the left
side of the radio.

Page 11 CCRadio-EP PRO
Installing the Batteries
1.) Position the radio face
down on a soft surface,
with the bottom of the
radio facing you.
2.) On the battery
compartment see the
arrow marked “OPEN”.
Use two ngers on the
arrow to press the cover
down and toward you
until the cover slides o󰀨.

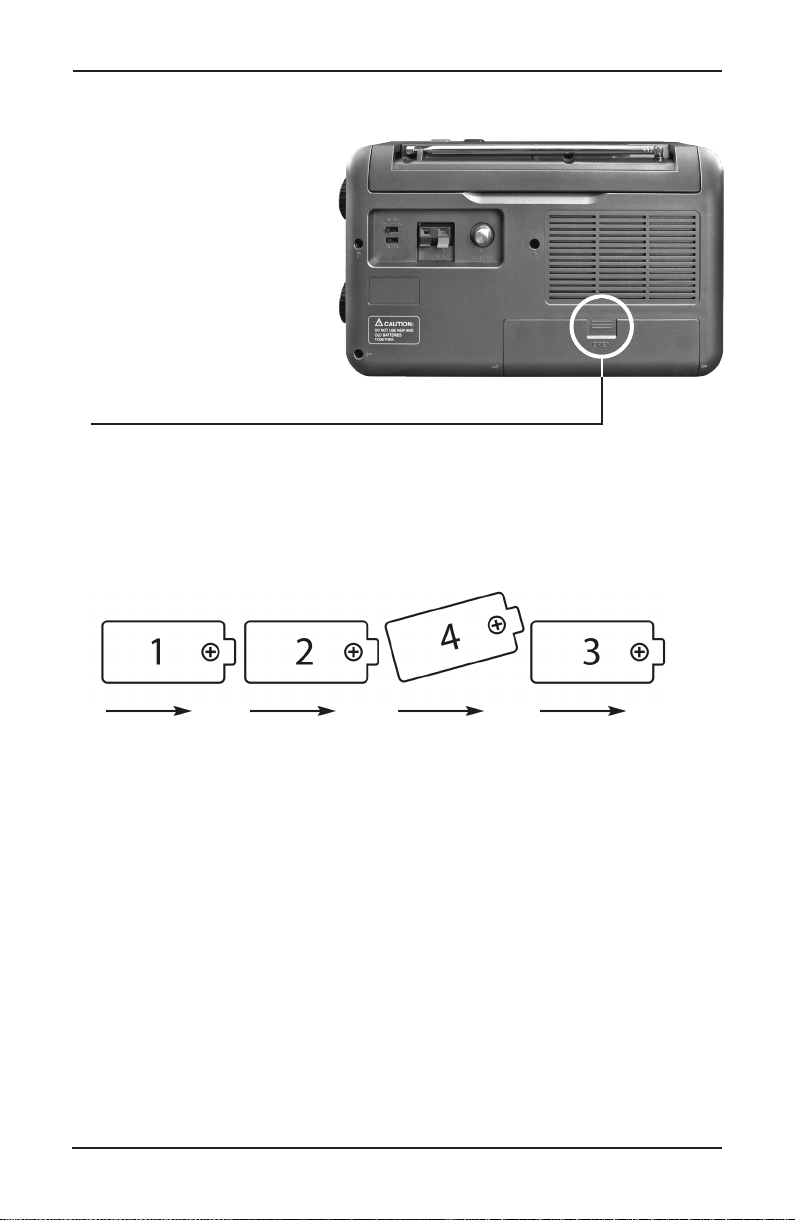

3.) Insert four “D” batteries as shown in the diagram inside the battery
compartment. Notice that the fourth battery is inserted between the
second and third batteries for easiest insertion. Be sure that the “+”
polarity mark on the batteries point to the right.
Getting Started
4.) Replace the battery compartment door by sliding it towards the top of
the radio.
Note: When the batteries are very low you may notice a decrease in
volume or that radio operation has become irregular. Test the radio by
using the AC power adapter to conrm that low batteries are the problem.
Important: Since batteries have been known to sometimes leak, we
recommend removing the batteries when not in use for more than 30
days or if the radio is primarily used with the AC power adapter.

CCRadio-EP PRO Page 12
Specications
DIMENSIONS:
11.4” W X 7.3” H X 2.75” D
WEIGHT:
3.1 pounds without batteries
INPUT POWER:
4 “D” size batteries
6V DC 800 mA tip negative
AUDIO OUTPUT:
2 Watt RMS
SPEAKER:
5 Watts 8 Ohms
HEADPHONE JACK:
3.5mm 32 Ohms
FREQUENCY COVERAGE:
FM Band: 87.50 - 108 MHz
AM (MW) Band: 520 - 1710 kHz
SENSITIVITY:
FM > 5uv
AM (MW) > 0.2 mV/m
BANDWIDTH:
Wide > 6 kHz
Narrow > 2.5 kHz
Note: Specications are subject to change without notice.

Page 13 CCRadio-EP PRO
Troubleshooting Guide
The CCRadio-EP PRO will not turn on:
1. Be sure that the batteries are installed correctly.
2. Make sure all the batteries are good.
3. If using the AC Power Adapter, make sure that it is plugged fully into
the power jack.
The CCRadio-EP PRO has poor reception on FM:
1. Fully extend and rotate the FM whip antenna.
2. Adjust the band switch to “FM” instead of “FM ST” which requires a
better signal.
3. Check the “INT/EXT ANTENNA” switch on the back of the radio for
the proper setting.
4. Consider trying a more powerful external FM antenna.
The CCRadio-EP PRO has poor reception on AM, or is receiving
multiple stations:
1. Rotate the radio for the best reception.
2. Try positioning the TWIN COIL FERRITE© AM FINE TUNING Knob to
the “Normal” position. If the reception still needs improvement, adjust
the knob for the best station tuning accuracy.
3. Adjust the WIDE/NARROW switch to NARROW for best AM audio
clarity.
4. Move the radio away from electronic devices like computers and TV
sets.
5. Use the radio on batteries. Sometimes the interference can be
transmitted to the radio over the AC power lines.
6. Concrete, stucco, brick and metal buildings can greatly reduce radio
reception. Try the radio outdoors; if the reception is improved, try an
external antenna.

All rights reserved. No part of this booklet may be reproduced, in any form or
means whatsoever, without permission in writing from C. Crane.
R7-2020
Model: CCRadio-EP PRO
ANSI C63.4: 2003
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
1.) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2.) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
NOTICE: Any changes or modications not expressly approved by the
party responsible for compliance could void the users authority to
operate the equipment.
Copyright ©2020 by C. Crane, Fortuna, CA 95540
Phone: [phone] Web: ccrane.com
