Cabletron Systems MMAC-Plus 9G426-02 User manual

TM
The Complete Networking Solut
ion
MMAC-Plus
™
9G426-02
User’s Guide

Notice
i
Notice
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
© Copyright February 1997 by:
Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9032017 February 1997
LANVIEW and MMAC-Plus are registered trademarks, and SmartSwitch is a trademark of Cabletron
Systems, Inc.
CompuServe is a registered trademark of CompuServe, Inc.
i960 microprocessor is a registered trademark of Intel Corp.
Ethernet is a trademark of Xerox Corporation.

Notice
ii
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
VCCI Notice
This equipment is in the 1st Class Category (information equipment to be used in commercial and/or
industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference
by Information Technology Equipment (VCCI) aimed at preventing radio interference in commercial
and/or industrial areas.
Consequently, when used in a residential area or in an adjacent area thereto, radio interference may be
caused to radios and TV receivers, etc.
Read the instructions for correct handling.

Notice
iii
DOC Notice
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
Declaration of Conformity
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European Representative Address: Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a Commercial or Light Industrial
Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the
above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
___________________________________ ___________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
___________________________________ ___________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
___________________________________ ___________________________________
Location Location

Notice
iv
Safety Information
CLASS 1 LASERTRANSCEIVERS
The GPIM-F01 is a Class 1 Laser Product
The GPIM-F01 uses Class 1 Laser transceivers.Read the following safety
information before installing or operating these adapters.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation
limits. This control loop eliminates the need for maintenance checks or adjustments. The
output is factory set, and does not allow any user adjustment. Class 1 Laser transceivers
comply with the following safety standards:
• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and
Human Services (FDA).
• IEC Publication 825 (International Electrotechnical Commission).
• CENELEC EN 60825 (European Committee for Electrotechnical
Standardization).
When operating within their performance limitations, laser transceiver output meets the
Class 1 accessible emission limit of all three standards. Class 1 levels of laser radiation are not
considered hazardous.
CLASS 1
LASER PRODUCT

Notice
v
Safety Information
CLASS 1 LASERTRANSCEIVERS
Laser Radiation and Connectors
When the connector is in place, all laser radiation remains within the fiber. The maximum
amount of radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10
-6
watts.
Removing the optical connector from the transceiver allows laser radiation to emit directly
from the optical port. The maximum radiance from the optical port (under worst case
conditions) is 0.8 W cm
-2
or 8 x 10
3
W m
2
sr-1.
Do not use optical instruments to view the laser output. The use of optical instruments to
view laser output increases eye hazard. When viewing the output optical port, power must
be removed from the network adapter.

Notice
vi

vii
Contents
Chapter 1 Introduction
Features........................................................................................................................... 1-2
Related Manuals............................................................................................................ 1-5
Getting Help .................................................................................................................. 1-5
Chapter 2 Installing the 9G426-02 Module
Unpacking the Module................................................................................................. 2-1
The Module’s Physical Layout.................................................................................... 2-2
User Accessible Components on the Module’s Daughterboard ............................ 2-3
DIP Switch............................................................................................................... 2-3
Removing the daughterboard from the motherboard...................................... 2-5
Installing the Module into the MMAC-Plus Chassis............................................... 2-9
The Reset Switch ......................................................................................................... 2-11
Chapter 3 Operation
SmartSwitch ASIC......................................................................................................... 3-2
Traditional Switch.................................................................................................. 3-2
SecureFast Switch (SFS) ........................................................................................ 3-2
VLAN.............................................................................................................................. 3-2
VLAN Domains............................................................................................................. 3-4
SecureFast VLAN Switches ......................................................................................... 3-5
i960 Core......................................................................................................................... 3-5
INB NIB .......................................................................................................................... 3-5
System Management Buses ......................................................................................... 3-6
SMB-1 Bus ............................................................................................................... 3-6
SMB-10 Bus ............................................................................................................. 3-6
System Diagnostic Controller...................................................................................... 3-6
DC/DC Converter ........................................................................................................ 3-7
INB Interface ................................................................................................................. 3-7
ITDM Arbitration Levels.............................................................................................. 3-7
Monarch/Slave MMAC-Plus Modules...................................................................... 3-8
Chapter 4 LANVIEW LEDs

Contents
viii
Chapter 5 Specifications
Technical Specifications................................................................................................5-1
CPU ..........................................................................................................................5-1
Memory ...................................................................................................................5-1
Standards.................................................................................................................5-1
Network Interfaces ................................................................................................5-1
Safety...............................................................................................................................5-2
Service.............................................................................................................................5-2
Physical...........................................................................................................................5-2
Dimensions .............................................................................................................5-3
Weight......................................................................................................................5-3
Environment ...........................................................................................................5-3

1-1
Chapter 1
Introduction

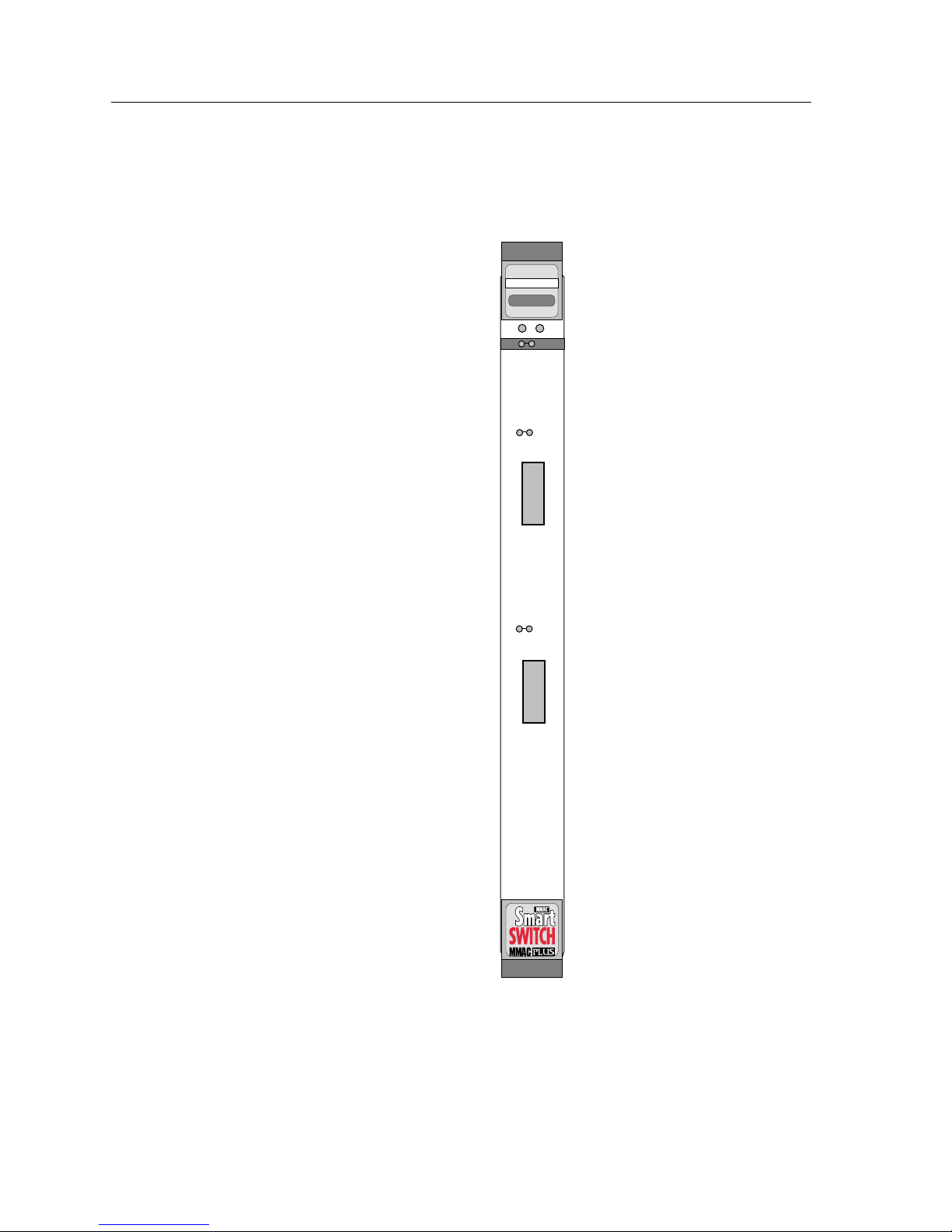

The 9G426-02 (Figure 1-1) is a two front panel port switching module, occupying
a single slot in the MMAC chassis. The module connects to the Internal Network
Bus B, providing a high speed backplane for communication among other
modules in the MMAC-Plus chassis. This module uses a SmartSwitch ASIC
design and an advanced Intel i960
®
microprocessor. This microprocessor provides
a platform for all management functions within a scalable RISC-Based
Architecture.
Network management information is available through a variety of methods. All
information based on Simple Network Management Protocol (SNMP) is
accessible either via an in-band (Front Panel port), Side Band (SMB-10), or via the
Environmental Module’s COM ports. Serial Line Internet Protocol (SLIP) or
Point-to-Point Protocol (PPP) are supported by the Environmental Module’s
COM ports. For more information on the SMB-10, SLIP or PPP refer to the
MMAC-Plus Local Management User’s Guide.
The 9G426-02 also features front panel LANVIEW™ Diagnostic LED’s to offer at-
a-glance status information about each front panel port as well as the operation of
the overall module.
Ethernet networks are connected to the 9G426-02 module through GPIMs built
into the front of the module. These ports interface with the FPS switch through
GIGA-BIT Network Interface Blocks (GNIB) and are based upon an ASIC
architecture. The GPIMs are Fiber Channel and are MMF with SC connectors.
The 9G426-02 Module uses GPIMs which utilize a 850 nanometer laser. Follow
applicable safety precautions when using this module to prevent injury.
!
CAUTION

Introduction
1-2
Features
Processor
The 9G426-02 is equipped with an advanced Intel i960 microprocessor. This
microprocessor provides a platform for all management functions such as
Spanning Tree, RMON, and MIB support within a scalable RISC-Based
architecture.
Fast Packet Switching
The 9G426-02 incorporates a hardware based switch design referred to as the
SmartSwitch ASIC, a collection of custom ASICs designed specifically for high
speed switching. Because all frame translation, address lookups, and forwarding
decisions are performed in hardware, the 9G426-02 can obtain a throughput
performance of greater than 750K pps.
Management
The 9G426-02 features SNMP for local and remote management. Local
management is provided through the RS-232 Com ports on the MMAC-Plus
Environmental Module using a standard VT-220 terminal or emulator. Remote
management is possible through Cabletron’s SPECTRUM or any SNMP
compliant management tool. Included as management features are the IETF
Standard Management Information Base (MIBs) RMON (RFC1271), IETF MIB II
(RFC-1213), IETF Bridge MIB (RFC-1493), and a host of other Cabletron enterprise
MIBs. The 9G426-02 also offers the user a wide variety of statistical network
management information to enhance network planning and troubleshooting. This
module provides information for each front panel Ethernet Gigabit port,
including packet counts along with errored frame information such as collisions,
CRCs, and Giants, via a variety of industry standard and private MIBS. Industry
standard IEEE 802.1d bridging, including Spanning Tree Algorithm, is supported.
Connectivity
The 9G426-02 module has one interface to the INB and two front panel MMF SC
connectors. The INB interface is a fixed connection to INB-2 which allows the
9G426-02 to communicate with other MMAC-Plus modules supporting various
LAN technologies including: Token Ring, FDDI, Ethernet, WAN and ATM. Each
front panel MMF SC connector provides 1 Ethernet Gigabit connection for MMF
links up to 100 meters in length.
Standard Ethernet/Full Duplex Operation
The 9G426-02 Module supports MMF. The use of MMF allows each port on the
9G426-02 Module to operate in full duplex mode.

1-3
Introduction
Management Information Base (MIB) Support
The 9G426-02 provides MIB support including:
• RMON (RFC-1271)
• IETF MIB II (RFC-1213)
• IETF Bridge MIB (RFC-1493)
and a host of other Cabletron Enterprise MIBs.
LANVIEW LEDs
The 9G426-02 uses LANVIEW – the Cabletron Systems built-in visual diagnostic
and status monitoring system. With LANVIEW LEDs you can quickly identify, at-
a-glance, system status as well as the device, port, and physical layer status. Two
LEDs indicate the transmission and reception of data from the INB MMAC-Plus
backplane connection. Each of the 2 Ethernet front panel ports features two LEDs
per port to indicate the port’s Administrative status (enabled/disabled), LINK
status (Link/Nolink), and Data Activity (receiving and transmitting data).
For a complete list of supported MIBs, refer to the release notes provided in
the 9G426-02 package.
NOTE

Introduction
1-4
Figure 1-1. The 9G426-02 Module
E
N
E
T
1
SMB CPU
9G426-02
GIGA ENET
INB
E
N
E
T
2

1-5
Introduction
Related Manuals
The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.
MMAC-Plus Installation Guide
MMAC-Plus 9C300-1 Environmental Module User’s Guide
MMAC-Plus 9C214-1 AC Power Supply User’s Guide
MMAC-Plus Local Management User’s Guide
INB Terminator Modules Installation Guide
Getting Help
If you need additional support related to this device, or if you have any questions,
comments, or suggestions concerning this manual, contact Cabletron Systems
Technical Support:
Phone: [phone]
Monday – Friday
8
A
.
M
. – 8
P
.
M
. Eastern Time
CompuServe: GO CTRON from any ! prompt
Internet mail: [email protected]
FTP: ctron.com (134.141.197.25)
Login: anonymous
Password: your email address
BBS: [phone]
Modem setting: 8N1: 8 data bits, No parity, 1 stop bit
Before calling Cabletron Systems Technical Support, have the following
information ready:
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g.,
changing mode switches, rebooting the unit, etc.)
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)

Introduction
1-6
• The serial and revision numbers of all Cabletron Systems products in the
network
• The device history (i.e., have you returned the device before, is this a recurring
problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
For additional information about Cabletron Systems products, visit our World
Wide Web site: http://www.cabletron.com/

2-1
Chapter 2
Installing the 9G426-02 Module
This chapter describes the physical layout of the 9G426-02 Module and explains
how to prepare and install the module in an MMAC-Plus chassis.
The 9G426-02 module occupies a single slot in the MMAC-Plus chassis. Install the
9G426-02 module by following the steps starting below.
Unpacking the Module
1. Carefully remove the module from the shipping box. (Save the box and
packing materials in the event the module must be reshipped.)
2. Remove the module from the plastic bag. Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
3. Carefully examine the module, checking for damage. If any damage exists,
DO NOT install the module. Contact Cabletron Systems Technical Support
immediately.
Never expose the module’s components to Electrostatic Discharge. Make sure you have
attached the module’s disposable grounding strap to your wrist and always place the
module on a non-conductive surface.
!
CAUTION
The INB Terminator Modules must be installed on the rear of the chassis before powering
up this module. Refer to the INB Terminator Modules Installation Guide for
information and installation procedure.
NOTE

Installing the 9G426-02 Module
2-2
The Module’s Physical Layout
The 9G426-02 Module has two major circuit boards on which components are
attached (see Figure 2-1). The module’s base-level circuit board is known as the
motherboard. The module’s second-level circuit board is known as the
daughterboard. The removable daughterboard attaches to the motherboard’s
connectors and standoffs. Both the motherboard and the daughterboard contain
components that are accessible to the user.
Figure 2-1. The 9G426-02 Module’s two major circuit boards
motherboard daughterboard

2-3
Installing the 9G426-02 Module
User Accessible Components on the Module’s
Daughterboard
The user accessible components on the module’s daughterboard are located on
the underside of the daughterboard. These components include an eight position
DIP switch, a replaceable SMB-1 PROM, a replaceable BOOT PROM, and sockets
for DRAM and FLASH memory. You can access the DIP switch without
removing the daughterboard. However, to access the other user-accessible
components on the daughterboard, you must remove the daughterboard from the
motherboard.
DIP Switch
An eight position DIP switch is located on the module’s daughterboard as shown
in Figure 2-2. The functions of the switches are listed in Table 2-1.
Figure 2-2. Location of DIP Switch on the 9G426-02 Module’s Daughterboard
8642 7531
N
O
DIP Switch
(side view in
insert)

Installing the 9G426-02 Module
2-4
Table 2-1. Function of DIP Switch
Switch Function Description
8 Clear
Password
1
When toggled, this switch clears user-entered
passwords stored in NVRAM, and restores the
default passwords. Once the passwords are
reset, you can use the defaults or enter new
passwords.
7 Clear
NVRAM
2
The module uses NVRAM to store user
entered parameters such as IP addresses,
device name, etc. To reset these parameters to
the factory defaults, toggle this switch. Once
reset you can use the defaults or enter new
parameters which are stored in NVRAM when
the module is powered down, and remain
there until the switch is toggled again.
6 Force BootP
Download Toggling this switch after pulling the board out of the MMAC-Plus, clears download
information from NVRAM and forces image
files to be downloaded from the station
connected to the EPIM on the Environmental
Module configured to act as that module’s
B
OOT
P server.
5 Reserved For Factory Use Only
4 Reserved For Factory Use Only
3 Reserved For Factory Use Only
2 Reserved For Factory Use Only
1 Reserved For Factory Use Only
1Do not toggle Switch 8 unless you intend to reset the user configured passwords to their
factory default settings.
2Do not toggle Switch 7 unless you intend to reset the user parameters to the factory
default settings.
!
CAUTION
