SmartSwitch 9000
9H423-28
User’s Guide
9032061-01

i
Notice
Notice
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
© Copyright March 1998 by:
Cabletron Systems, Inc.
35 Industrial Way
Rochester, NH 03867-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9032061-01
LANVIEW is a registered trademark, and SmartSwitch is a trademark of Cabletron Systems, Inc.
CompuServe is a registered trademark of CompuServe, Inc.
i960 microprocessor is a registered trademark of Intel Corp.
Ethernet is a trademark of Xerox Corporation.

Notice
ii
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
VCCI Notice
This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.
DOC Notice
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class Aprescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

iii
Notice
DECLARATION OF CONFORMITY
ADDENDUM
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European Representative Address: Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a
Commercial or Light
Industrial Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with
this notice conforms to the above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
____________________________________________________ ______________________________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
____________________________________________________ ______________________________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
____________________________________________________ ______________________________________________________
Location Location

Notice
iv
Safety Information
CLASS 1 LASERTRANSCEIVERS
The FPIM-05 and FPIM-07 are Class 1 Laser Products
The FPIM-05 and FPIM-07 use Class 1 Laser transceivers. Read the
following safety information before installing or operating these
adapters.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation
limits. This control loop eliminates the need for maintenance checks or adjustments. The
output is factory set, and does not allow any user adjustment. Class 1 Laser transceivers
comply with the following safety standards:
• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and
Human Services (FDA).
• IEC Publication 825 (International Electrotechnical Commission).
• CENELEC EN 60825 (European Committee for Electrotechnical
Standardization).
When operating within their performance limitations, laser transceiver output meets the
Class 1 accessible emission limit of all three standards. Class 1 levels of laser radiation are not
considered hazardous.
CLASS 1
LASER PRODUCT

v
Notice
Safety Information
CLASS 1 LASERTRANSCEIVERS
Laser Radiation and Connectors
When the connector is in place, all laser radiation remains within the fiber. The maximum
amount of radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10
-6
watts.
Removing the optical connector from the transceiver allows laser radiation to emit directly
from the optical port. The maximum radiance from the optical port (under worst case
conditions) is 0.8 W cm
-2
or 8 x 10
3
W m
2
sr-1.
Do not use optical instruments to view the laser output. The use of optical instruments to
view laser output increases eye hazard. When viewing the output optical port, power must
be removed from the network adapter.

Notice
vi

vii
Contents
Chapter 1 Introduction
Features...........................................................................................................................1-2
Related Manuals............................................................................................................1-6
Getting Help .................................................................................................................. 1-6
Chapter 2 Installing the 9H423-28 Module
Unpacking the Module.................................................................................................2-1
Installing an FEPIM ......................................................................................................2-1

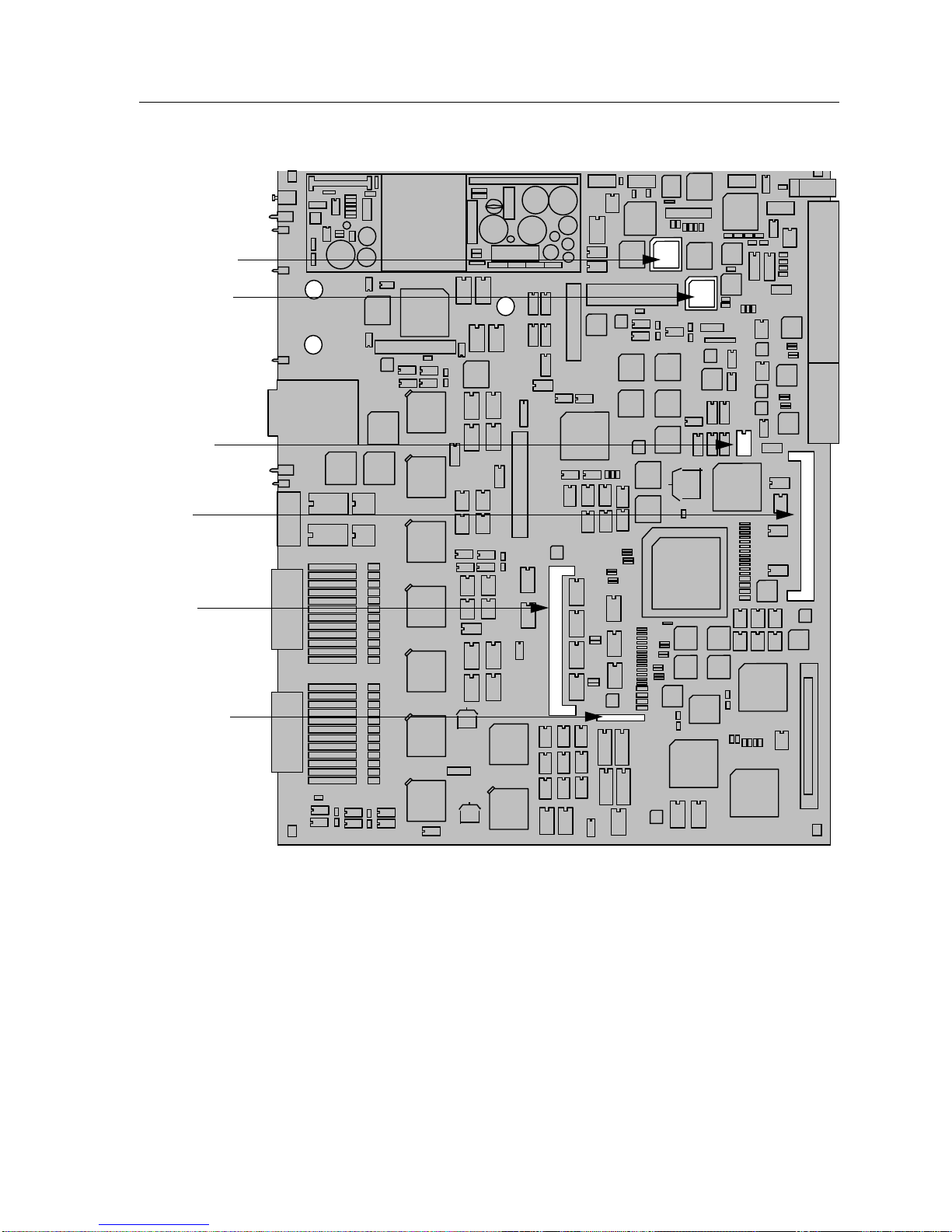

User Accessible Components......................................................................................2-2
Setting the Module DIP Switch...................................................................................2-3
Installing the Module in the SmartSwitch 9000 Chassis .........................................2-5
The Reset Switch ........................................................................................................... 2-7
Chapter 3 Operation
ENIB/FENIB..................................................................................................................3-2
SmartSwitch ASIC.........................................................................................................3-3
Traditional Switch..................................................................................................3-3
VLAN..............................................................................................................................3-3
VLAN Domains......................................................................................................3-4
Fully-Meshed VLAN Domains............................................................................ 3-5
SecureFast VLAN Switches.........................................................................................3-5
i960 Core......................................................................................................................... 3-6
INB NIB ..........................................................................................................................3-6
System Management Buses .........................................................................................3-6
SMB-1 Bus...............................................................................................................3-6
SMB-10 Bus.............................................................................................................3-7
System Diagnostic Controller...................................................................................... 3-7
DC/DC Converter ........................................................................................................3-7
INB Interface..................................................................................................................3-7
ITDM Arbitration Levels ...................................................................................... 3-8
Monarch/Slave SmartSwitch 9000 Modules .....................................................3-9
Chapter 4 LANVIEW LEDs

Contents
viii
Chapter 5 Specifications
Technical Specifications................................................................................................5-1
CPU..........................................................................................................................5-1
Memory ...................................................................................................................5-1
Standards:................................................................................................................5-1
Network Interfaces ................................................................................................5-1
Safety...............................................................................................................................5-2
Service.............................................................................................................................5-2
Physical...........................................................................................................................5-2
Dimensions .............................................................................................................5-2
Weight......................................................................................................................5-2
Environment...........................................................................................................5-3
FE-100TX........................................................................................................................A-1
FE-100FX........................................................................................................................A-1

1-1
Chapter 1
Introduction

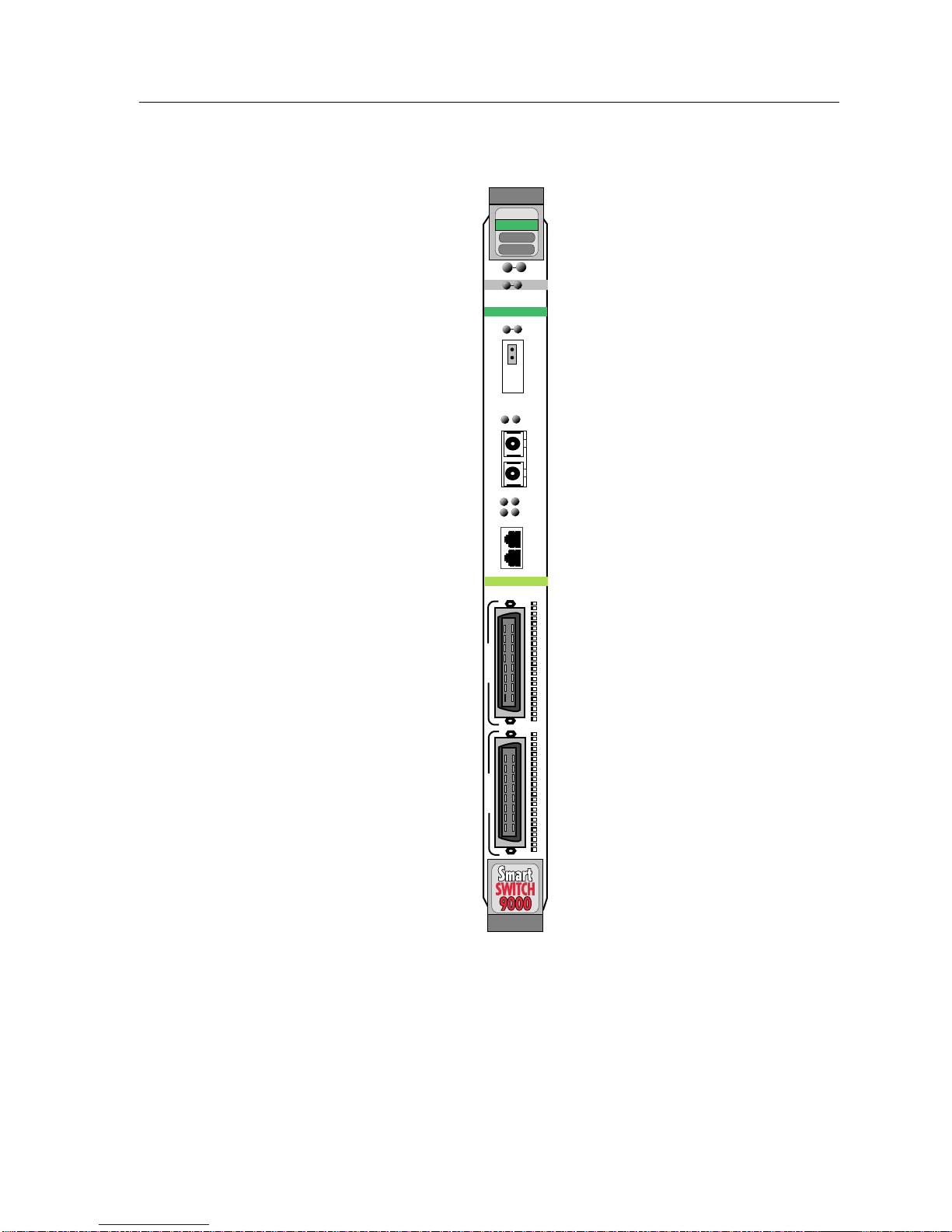

The 9H423-28 (Figure 1-1) is a switching module with twenty-four 10 Mbps
Ethernet ports and four 100 Mbs Fast Ethernet ports. The module is configured
with two RJ21 connectors, two RJ45 connectors, two ST fiber connectors and a slot
for an FEPIM. The two RJ21 connectors provide twenty-four 10 Mbps Ethernet
ports. The RJ45 connectors, ST connectors and FEPIM (the module supports either
the FE-100TX or the FE-100FX) provide the four 100 Mbps Ethernet ports. The two
ST connectors represent a single port, as one connector is for transmit and one is
for receive. Each module also provides an additional port that connects directly to
the Internal Network Bus (INB) backplane interface. This module uses a
SmartSwitch ASIC design and an advanced Intel i960
®
microprocessor. This
microprocessor provides a platform for all management functions within a
scalable RISC-Based Architecture.
This module can operate in two modes: either as a 28-port Ethernet traditional
switch (using 802.1d standards) with a high speed backbone connection, or as a
Secure Fast Switch (SFS) with 28 Ethernet connections. Each port can be
configured to operate in the Full Duplex mode. This configuration allows each
10BASE-T port to provide a full 20 Mbps of bandwidth and the 100BASE-T ports
to provide 200 Mbps of bandwidth. The fiber ports on this module operate only in
Full Duplex mode.
Network management information is available through a variety of methods. All
information based on Simple Network Management Protocol (SNMP) is
accessible either via an in-band (Front Panel port), Side Band (SMB-10), or via the
Environmental Module’s COM ports. Serial Line Internet Protocol (SLIP) or
Point-to-Point Protocol (PPP) is supported by the Environmental Module’s COM
ports. For more information on the SMB-10, SLIP, or PPP, refer to the
SmartSwitch
9000 Local Management User’s Guide.
The 9H423-28 also features front panel LANVIEW™ Diagnostic LED’s to offer at-
a-glance status information about each front panel port, as well as the operation
of the overall module.

Introduction
1-2
Features
Processor
The 9H423-28 module is equipped with an advanced Intel i960 microprocessor.
This microprocessor provides a platform for all management functions, such as
Spanning Tree, RMON, and MIB support, within a scalable RISC-Based
architecture.
Fast Packet Switching
The 9H423-28 module incorporates a hardware-based switch design referred to as
the SmartSwitch ASIC, a collection of custom ASICs designed specifically for
high-speed switching. Because all frame translation, address lookups, and
forwarding decisions are performed in hardware, these modules can obtain a
throughput performance of greater than 750K pps.
Management
The 9H423-28 features SNMP for local and remote management. Local
management is provided through the RS-232 COM ports on the SmartSwitch 9000
Environmental Module, using a standard VT-220
TM
terminal or emulator. Remote
management is possible through Cabletron’s SPECTRUM or any SNMP-
compliant management tool. Included as management features are the IETF
Standard Management Information Base (MIBs) RMON (RFC1271), IETF MIB II
(RFC-1213), IETF Bridge MIB (RFC-1493), and a host of other Cabletron enterprise
MIBs. These modules also offer a wide variety of statistical network management
information to enhance network planning and troubleshooting. The 9H423-28
provides information for each front panel Ethernet port, including packet counts
along with errored frame information, such as collisions, CRCs, and Giants, via a
variety of industry standard and private MIBS. Industry-standard IEEE 802.1d
bridging, including Spanning Tree Algorithm, is supported.
Connectivity
The 9H423-28 module has one interface to the INB and 28 front port connections.
The INB interface is a fixed connection to INB-B that allows the module to
communicate with other SmartSwitch 9000 modules supporting various LAN
technologies including: Token Ring, FDDI, Ethernet, WAN, Fast Ethernet and
ATM. The module is configured with two RJ21 connectors, two RJ45 connectors,
two ST fiber connectors and a slot for an FEPIM. The two RJ21 connectors provide
twenty-four 10 Mbps Ethernet ports, and the RJ45 connectors, ST connectors and
FEPIM (the module supports either the FE-100TX or the FE-100FX) provide four
100 Mbps Ethernet ports. The multimode ST connectors provide a 100BASE-FL
connection, with links up to 2000 meters in length.
Auto-negotiation
The auto-negotiation feature (available only with the 100BASE-T RJ45 ports )
allows the module to automatically use the fastest rate supported by the device at
the other end (either 10 Mbps or 100 Mbps at either half or full duplex). To

1-3
Introduction
negotiate duplex, both the 9H423-28 and the attached device must be configured
for auto-negotiation. If only the 9H423-28 is configured for auto-negotiation, the
module will set the connection to half duplex at either the 10 Mbps or 100 Mbps
rate. This technology is similar to how modems negotiate transmission speed,
finding the highest transmission rate possible. Similarly, auto-negotiation
determines the highest common speed between two devices and communicates at
that speed. If no common speed is detected, the device will be partitioned.
Standard Ethernet/Full Duplex Operation
The 9H423-28 module supports both 100BASE and 10BASE technology. This
allows each port on the module to be configured, through local and or remote
management (SNMP), to operate in standard Ethernet mode (simplex) or full
duplex mode. Operating in standard Ethernet mode limits bandwidth to 10
Mbps/100Mbps per port, while operating in duplex mode doubles bandwidth
from 10 Mbps/100Mbps to 20 Mbps/200 Mbps per port.
Management Information Base (MIB) Support
The 9H423-28 module provides MIB support including:
• RMON (RFC-1271)
• IETF MIB II (RFC-1213)
• IETF Bridge MIB (RFC-1493)
and a host of other Cabletron Enterprise MIBs.
INB
The 9H423-28 module attaches to INB-B of the SmartSwitch 9000 Backplane. The
INB Backplane is designed to transport fixed length data blocks between modules
in the SmartSwitch 9000 using an INB Time Division Multiplexing (ITDM) design.
The SmartSwitch 9000 INB bus delivers 2.5 Gbps of true data bandwidth with all
control and management communication being serviced on the 8-bit out-of-band
bus. The time slices of the INB manager operates in all three modes at once,
without user intervention.
All RJ45 connections are capable of auto-negotiation, and can operate at 10 Mbps
or 100 Mbps, full or half duplex. Fiber connections can only operate at the 100
Mbps rate, full or half duplex.
NOTE
For a complete list of supported MIBs, refer to the release notes provided with the
9H423-28.
NOTE

Introduction
1-4
Arbitration for the backplane is accomplished in the INB Time Division
Multiplexing (ITDM) logic. The arbitration is a three-level scheme that ensures
that no one can get the backplane for more than one time slice at a time.
The ITDM RAM contains 256 4-bit locations. This RAM is used to hold slot
numbers of modules participating in INB backplane arbitration. The arbitration
engine accesses this RAM once every time slice to get a slot number. That slot
number will be granted access on the next time slice if it is requesting. The
arbitration engine is always one time slice ahead, meaning that the value read
from the RAM is for the next time slice, not the current time slice.
LANVIEW LEDs
The 9H423-28 module uses LANVIEW – the Cabletron Systems built-in visual
diagnostic and status monitoring system. With LANVIEW LEDs, you can quickly
identify, at a glance, system status as well as the device, port, and physical layer
status. Two LEDs indicate the transmission and reception of data from the INB
SmartSwitch 9000 backplane connection. Each of the 12 Ethernet front panel ports
features two LEDs per port to indicate the port’s Administrative status (enabled/
disabled), LINK status (Link/Nolink), and Data Activity (receiving and
transmitting data).

1-5
Introduction
Figure 1-1.
The 9H423-28 Module
FAST ENET
9H423-28
CPUSMB
INB
FAST ENET
ETHERNET
28
27
26X
25X
12
1
10
B
A
S
E
T
24
13
10
B
A
S
E
T

Introduction
1-6
Related Manuals
The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.
SmartSwitch 9000 Installation Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide
SmartSwitch 9000 Local Management User’s Guide
INB Terminator Modules Installation Guide
Getting Help
For additional support related to this device or document, contact the Cabletron Systems Global Call
Center:
Before calling the Cabletron Systems Global Call Center, have the following information ready:
• Your Cabletron Systems service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g., changing mode switches,
rebooting the unit, etc.)
• The serial and revision numbers of all involved Cabletron Systems products in the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
Phone [phone]
Internet mail suppor[email protected]
FTP ctron.com (134.141.197.25)
Login anonymous
Password your email address
BBS [phone]
Modem setting 8N1: 8 data bits, No parity, 1 stop bit
For additional information about Cabletron Systems or its products, visit the
World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .
To send comments or suggestions concerning this document, contact the
Cabletron SystemsTechnical Writing Department via the following
email address: [email protected]
Make sure to include the document Part Number in the email message.

2-1
Chapter 2
Installing the 9H423-28 Module
The 9H423-28 module occupies a single slot in the SmartSwitch 9000 chassis.
Install the modules by following the steps starting below.
Unpacking the Module
1. Carefully remove the module from the shipping box. (Save the box and
packing materials in the event the module must be reshipped.)
2. Remove the module from the plastic bag. Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
3. Carefully examine the module, checking for damage. If any damage exists,
DO NOT install the module. Contact Cabletron Systems Technical Support
immediately.
Installing an FEPIM
The 9H423-28 provides a slot for a Cabletron FEPIM (Fast Ethernet Port Interface
Module). The 9H423-28 SmartSwitch module is shipped without FEPIMs. To
install an FEPIM, follow the procedure below:
1. Remove the module if it is installed in the SmartSwitch 9000 chassis.
2. Remove the two screws securing the plate on the side of the FEPIM slot.
The INB Terminator Modules must be installed on the rear of the chassis before
powering up this module. Refer to the INB Terminator Modules Installation
Guide for information and installation procedure.
NOTE

Installing the 9H423-28 Module
2-2
3. Install the FEPIM as shown in Figure 2-1. Ensure that the rear connector is
seated firmly before tightening the three mounting screws.
4. Replace the plate and two screws on the side of the FEPIM slot.
Figure 2-1. Installing an FEPIM
User Accessible Components
Figure 2-2 shows the various components that can be accessed by users. These
consist of an eight-position dip switch (explained in the next section), replaceable
PROMs, and sockets for memory and flash upgrades. These will be used for
future upgrades. Instructions for installing the components will be supplied with
the upgrade kit.

2-3
Installing the 9H423-28 Module
Figure 2-2. User Accessible Components
Setting the Module DIP Switch
The DIP switch on the 9H423-289 module (Figure 2-2 ), is an eight-switch DIP
located near the right and center of the module. Each switch is set according to the
functions described in Table 2-1. If switch settings are changed, the processor on
the module must be reset, using the reset switch or repowering the module, for
changes to take effect.
St
SMB1 Prom
Boot Prom
Flash
DRAM
Dip
Switches
CNXSTATS
Connector

Installing the 9H423-28 Module
2-4
See the Cautions at the end of this table.
Table 2-1. Function of DIP Switch
Switch Function Description
8Clear
Password
-1
This module stores user entered passwords in
NVRAM (Nonvolatile random access memory). To
clear these passwords, toggle this switch and then
reset the module’s processor. Once the module resets,
factory default passwords are placed in NVRAM. You
can use these default passwords or, if desired, enter
new passwords. To enter new passwords, refer to the
Module Local Management User’s Guide.
7Clear
NVRAM
-2
This module stores user entered parameters such as IP
addresses, subnet masks, default gateway, default
interface, SNMP traps, bridge configurations and
module specific configurations in NVRAM. To clear
these parameters toggle this switch and then reset the
module’s processor. Once the module resets, factory
default parameters are placed in NVRAM. You can
use the default parameters or, if desired, enter new
parameters. To enter new parameters, refer to the
Module Local Management User’s Guide.
6Force BOOTP
Download
This module uses BOOTP (Boot Strap Protocol) to
download new versions of the image file into Flash
Memory. This procedure forces image files to be
downloaded from the PC or Workstation, configured
to act as the BOOTP server, connected to the EPIM
port in the Environmental Module.
5 Reserved
For Factory Use Only
4 Reserved
For Factory Use Only
3 Reserved
For Factory Use Only
2 Reserved
For Factory Use Only
1 Reserved
For Factory Use Only
Caution: Do not toggle Switch 8 unless you intend to reset the user configured
passwords to the factory default settings.
Caution: Do not toggle Switch 7 unless you intend to reset the user entered
parameters to the factory default settings.
!
CAUTION
