Caffitaly System VENUS S08 User manual

Model S08
Imported by Roasting Australia Pty
Limited
11 Hoyle Avenue, Castle Hill NSW
2154 Ph:AU: 02 9846 0307
NZ: 0800 450 894
Email:[e-mail]
caffitalysystem.com.au

SAFETY WARNINGS
CAREFULLY read the following instructions!
In this way you will avoid the risk of personalinjuryand damage to the appliance.
This appliance is intended to be used in domestic environments. Not suitable for
Professional use.
ONLY use Caffitaly System compatible capsules. Damage caused by using incorrect
capsules will void the Warranty.
Use the TEA button (Blue) for Tea and Hot Water ONLY! Incorrect use of this
button will cause damage to the machine and void the Warranty.
Use of the appliance in any manner other than as directed within this manual could
cause harm to the operator and void the Warranty. The manufacturer will not be
responsible for injury or damage resulting from improper use of the appliance.
After removing the packaging, check that the appliance is not damaged. If damage
is detected, or upon the first sign of a defect (unusual noise or odours), or if any
other problem is detected inside the appliance, do not use it and contact the
Caffitaly System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.
The packaging elements (plastic bags, etc.) must not be left within reach
of children as they are potential sources of danger.
Only use the appliance if the power cord is intact. If the cord is damaged it must be
replaced by the manufacturer or importer due to potential electrical safety risks.
Contact the Caffitaly System Customer Service Line on AU 02 9846 0307
| NZ 0800 450 894.
Use and store the appliance indoors. Make sure the electrical elements, plug and
cord are dry. Never submerge the appliance in water. Protect the appliance from
sprays and drips. Water and electricity together constitute a risk of electrocution.
Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
Only connect the appliance to power outlets complying with the requirements of
the law. Make sure that the power supply voltage matches the rating shown on the
data plate on the bottom of the appliance. This appliance includes an earthed pin
and must be used with a power outlet with earthed connection.
Do not pull on the power cord to disconnect it. Remove the plug carefully to avoid
damage to the outlet.
1

SAFETY WARNINGS - Continued
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance
Never place your hands inside the capsule compartment. There is a risk of injury.
Do not open the lever while the appliance is operating. If the lever is raised during
the delivery of a product, the machine can emit jets of hot water. Risk of Burns!
Do not remove parts of the appliance, OR insert objects into the openings. This could
cause electric shocks! Any operation that is not described in this instruction manual
should only be performed by an Authorised Support Centre. Please contact the
Caffitaly System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.
Install the appliance on a solid, stable, heat resistant surface with an incline no greater
than 2 degrees.
When the Indicator Light blinks ORANGE and the machine beeps, it is advisable to
perform the descaling cycle, as illustrated on Page 15. If you do not, the appliance may
be damaged.
Clean the appliance carefully and regularly with a soft cloth and a mild detergent, do
not use alkaline cleaning agents. If it is not cleaned, the build-up that forms may be
hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
Unplug the machine if you do not expect to use the appliance for a long period of time
(leaving on vacation, etc.)
SYMBOLS GUIDE
2

INTRODUCTION
Safety Warnings 1
Symbol Guide 2
Contents 3
Caffitaly System Customer Care Line 3
INSTALLATION AND USE
Machine Components 4
Instruction Images 5
First Use or after a long period of disuse 7
Correct Use of the Dial 7
Turning on the Appliance 8
Dispensing Coffee using Factory Settings 8
Adjusting the Cup / Mug Height 9
Programming the Quantity of Coffee in a Cup 9
General Operating Indications 9
CLEANING AND MAINTENANCE
Daily Maintenance 10
Descaling 10
Troubleshooting 10
Energy Saving 12
Instructions for Use and Disposal 12
Troubleshooting 12
Technical Data 13
Thank you for having chosen our product and for your confidence in our company.
You can savour your favourite hot beverages at any time of the day with our appliance
by choosing one of the capsules that Caffitaly System offers you.
For example: an espresso, a cocoa flavoured beverage or a tea will be
ready in just a few seconds.
CAFFITALY SYSTEM CUSTOMER CARE INFORMATION
Ph: AU: 02 9846 0307
NZ: 0800 450 894
Email: [e-mail]
caffitalysystem.com.au
3

A: Single Espresso Indicator Light
B: Double Espresso Indicator Light
C: Tea or Hot Water Indicator Light
D: Multifunction Indicator Light
E: Dispensing Button

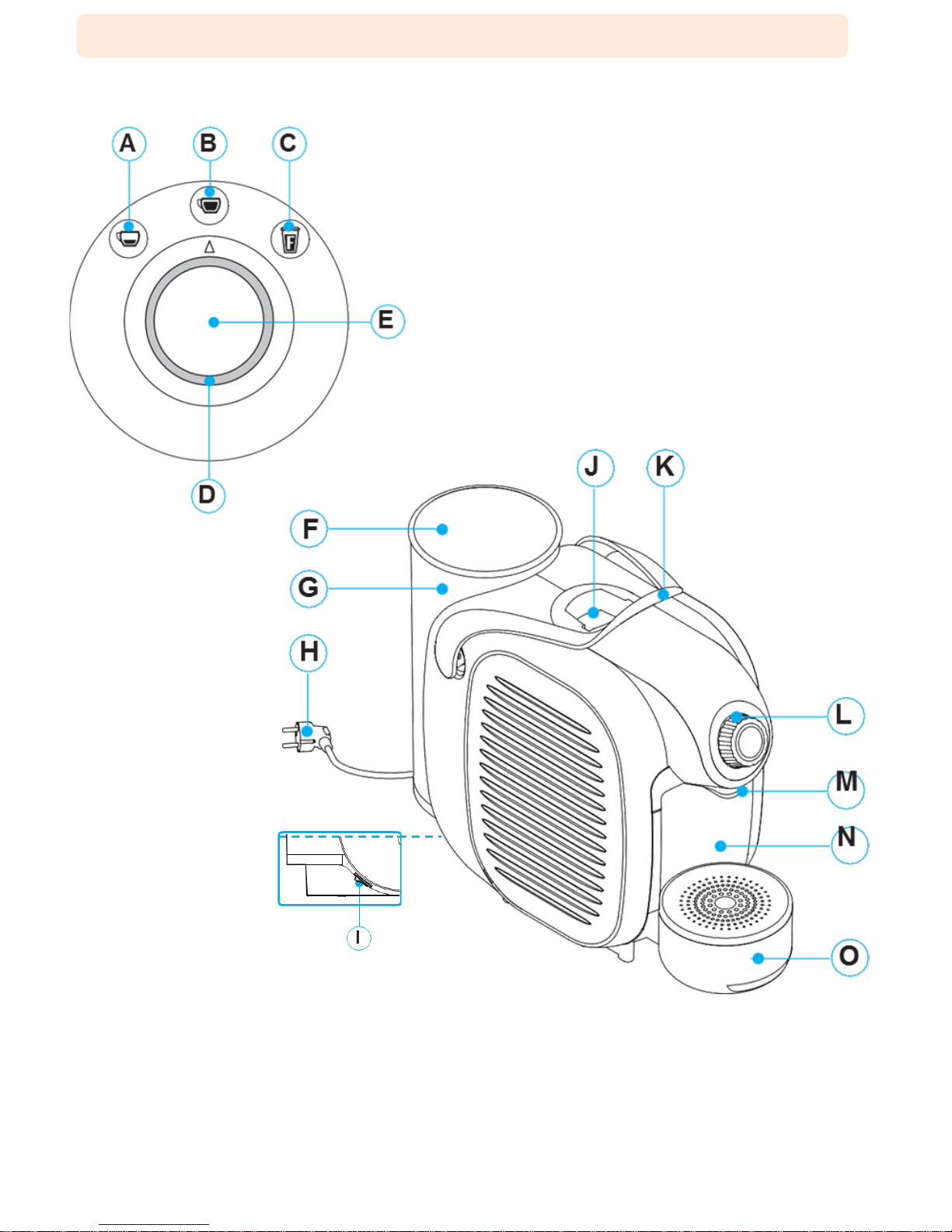

MACHINE COMPONENTS - DIAL
F: Water Tank Cover
G: Water Tank
H: Power Cord
I: Power ON/OFF Switch
J: Capsule Compartment
K: Lever for Opening / Closing Capsule Compartment
L: Dial
M: Dispensing Spout
N: Used Capsule Drawer
O: Drip Tray
4

1
45
3
6
2
7
10
8
11
9
12
INSTRUCTION DIAGRAMS
5

14
17
15
18
13
16
INSTRUCTION DIAGRAMS Continued…
6

FIRST TIME USE
We recommend following these steps after not having used the machine for a long
period of time.
Please ensure you only use Caffitaly System Capsules
which can be identified by the Caffitaly logo.
CORRECT USE OF THE DIAL
7
1. Fit the capsule drawer into the drip tray and slot them into the machine (Fig. 15).
2. Plug the power cord supplied into the relevant socket on the bottom of the appliance (Fig.
16).
3. Fill the tank with fresh, still water (Fig. 4).
4. Make sure the lever is closed (Fig. 3).
5. Plug in the appliance and turn it on (Fig. 13).
As well as warning lights A-B-C, warning light D also blinks RED.
6. Place a large container (at least 250 ml) under the dispensing spout (Fig. 9).
Press button E. Wait for the machine to complete the priming cycle and fi ll with water.
NOTE: if warning light D continues to blink RED after the filling cycle, repeat the previous
steps.
Warning lights A-B-C-D will blink simultaneously to indicate that the machine is warming up.
7. When warning light D and the light indicated by the knob (A,B or C) are lit steadily, and the
machine beeps twice, perform a rinse cycle by pressing button E.
8. Press the button E again to rinse a second time. Wait for the machine to complete the rinse
cycle.
9. At the end of this operation, empty out the water from the used capsule drawer (Fig. 6).
-To dispense a ‘Single Espresso (A) Double Espreso (B), before pressing button E, turn the knob
so that it is aligned with warning light A or B (1st and 2nd from the left respectively, lit in
WHITE).
-The selected warning light comes on and the machine beeps. This procedure also applies
when using orzo, ginseng and cocoa capsules or dispensing milk.
-In ‘Tea or Hot Water’ mode, before pressing button E, turn the knob so that it is aligned with
warning light C (3rd from the left, lit in BLUE).
-The blue warning light comes on and the machine beeps. This setting also applies when using
tea, chamomile or infusion capsules.
Do not select warning light C when dispensing espresso or any other coffee with an intense
flavour. In this function the machine is set for low pressure and this reduces the "crema",
diminishes the flavour of the coffee, and could cause a break in the flow.

CORRECT USE OF THE DIAL - Continued…
NOTE: Traces of the beverage just dispensed may remain in the circuit of the machine.
To retain maximum beverage flavour, when dispensing milk, hot chocolate or instant
drinks, rinse it briefly. Rinsing is carried out by pressing button E without inserting a
capsule.
We would advise you to carry out this procedure at least once a week in any case.
1. Fill the tank with fresh, still water (Fig. 4).
2. Switch on the appliance by pressing the power on/off switch (Fig. 14).
3. Warning lights A-B-C-D will blink simultaneously to indicate that the machine is warming up.
When warning light D and the light indicated by the knob (A,B or C) are lit steadily, and the
machine beeps twice, the machine is ready to use.
TURNING ON THE APPLIANCE
DISPENSING COFFEE USING FACTORY SETTINGS
1. Raise the lever to open the capsule compartment (Fig. 1).
2. Insert the capsule, pressing it gently into place (Fig. 2).
3. Close the lever fully (Fig. 3).
4. Place a cup or espresso cup under the coffee dispensing spout (Fig. 7 or 8).
5. urn the knob so it is aligned with warning light A or B, depending on the desired coffee beverage.
The selected warning light (A or B) comes on and the machine beeps.
6. Press and release button E. The machine beeps.
The selected warning light (A or B) flashes, while warning light D remains lit steadily. Dispensing
stops when the programmed amount is reached.
7. Raise the lever to eject the used capsule into the drawer (Fig. 1).
8. Close the lever (Fig. 3).
NOTE: the quantities of coffee dispensed can be programmed according to personal taste and the
size of the cups or espresso cups used.
To program the quantities, please refer to chapter ‘Programming the quantity of coffee in a cup’.
8

PROGRAMMING THE QUANTITY OF BEVERAGE IN A CUP
9
ADJUSTING THE CUP/ MUG HEIGHT
The machine can be adjusted for the use of large cups or espresso cups.
- The machine is initially set for the use of large cups (Fig. 7).
- For the best possible results when using espresso cups, raise the drip tray, expand the bottom
part and fix it in place by turning it clockwise (Fig. 10).
- Reposition the drip tray and start using the espresso cups (Fig. 8).
1. Raise the lever to open the capsule compartment (Fig. 1).
2. Insert the capsule, pressing it gently into place (Fig. 2).
3. Close the lever fully (Fig. 3).
4. Place a cup or espresso cup under the dispensing spout (Fig. 7 or 8).
5. Turn the knob so it is aligned with warning light A or B, depending on the desired coffee
beverage.
The selected warning light (A or B) comes on and the machine beeps.
6. Press and hold button E.
The selected warning light (A or B) flashes, while warning light D remains lit steadily.
7. On reaching the desired amount of coffee, release the button; the machine will beep three times. Now the
button is programmed. The quantity of coffee dispensed can be programmed from a minimum of 20 up to
a maximum of 250 ml.
8. Raise the lever to eject the used capsule into the drawer (Fig. 1).
9. Close the lever (Fig. 3).
GENERAL OPERATING INDICATIONS
DESCALING SIGNAL:
•When warning light D blink YELLOW every 5 seconds, a descaling cycle should be carried out (see
chapter on ‘Descaling’).
HEATING:
•Warning lights A-B-C-D blink simultaneously.
WHEN THE WATER RUNS OUT DURING OPERATION:
•The water tank is empty when indicator light D blinks RED and the appliance emits 3 beeps followed
by a single intermittent beep.
•Fill the water tank with fresh, still water (Fig. 4).
•Press button E. Wait for the machine to complete the priming cycle and fill with water.
•When warning light D and the light selected by the knob (A,B or C) are lit steadily, the machine is
ready to use.
IF THE LEVER IS RAISED WHILE DISPENSING:
Raising the lever while dispensing a product (Fig. 1) may cause splashes of hot water. Danger of
scalding!
•Warning light D blinks RED. The appliance will immediately stop dispensing.
•Close the lever (Fig. 3).
•Press button E to reset the alarm.
•The appliance is ready for use again.

DAILY MAINTENANCE
Use a soft cloth and a neutral detergent to clean the surfaces of the appliance.
Do not use jets of water to clean the appliance.
The plastic parts of the machine including the Water Tank are NOT dishwasher
safe.
DESCALING
Descaling signal: when indicator light D blinks YELLOW every 5 seconds, a descaling cycle should
be carried out, as illustrated below. The warning light will only stop blinking yellow once the
descaling cycle is complete.
The machine features an advanced program that monitors how much water is used
to dispense beverages. This measurement provides the user with indications as to
when the machine needs to be descaled.
It is advisable to use the Caffitaly System descaling agent, designed to comply with the
technical characteristics of the machine, in full observance of consumer safety. The
descaling agent must be disposed of in compliance with manufacturer instructions
and/or with current regulations in force in the country where the appliance is used.
CAREFULLY read the directions for use on the packaging of the
descaling agent. Avoid contact with eyes, skin and machine surfaces.
Switch the machine off during descaling, and do not lift the lever. A
person must be present during the operation.
Do not use vinegar: it could damage your machine!
Continued over page… 10
1. Remove the drip tray and used capsule drawer (Fig. 6).
2. Lift the used capsule drawer (Fig. 11); empty and rinse it.
3. Remove the grid (Fig. 12). Empty the drip tray and rinse it out with water.
4. Remove the water tank (Fig. 5); empty and rinse it.
NOTE: Traces of the product just dispensed may remain in the circuit of the machine. To
retain maximum beverage flavour it is advisable - when dispensing milk, hot chocolate or
instant drinks - to perform a short rinse. Rinsing is carried out by pressing button E
without inserting a capsule. We would advise you to carry out this procedure at least
once a week in any case.

1. Switch the machine off by pressing the power on/off switch (Fig. 14).
2. Empty and rinse out the used capsule drawer and drip tray (Fig. 6).
3. Remove and empty the water tank (Fig. 5).
4. Mix the contents of a bottle of Caffitaly System descaling agent with approximately 750 cc. of
water (a total of 1 litre) and pour into the tank.
5. Make sure that the lever is lowered (Fig. 3) and that there is no capsule inside the capsule
compartment.
6. Remove the drip-tray (Fig. 17).
7. Place a container (at least 500 ml) under the dispenser (Fig. 18).
8. Turn the knob all the way to the left (anticlockwise).
9. Press button E and at the same time switch on the machine by pressing the power on/off
switch.
10. The machine beeps twice and warning light D comes on steadily in WHITE.
11. Press button E to start the descaling cycle.
The machine dispenses the descaling solution at intervals (5 doses with a 4-minute pause
between each one, for a total duration of about 25 minutes). During this phase, when
button E and the knob must not be touched, warning light D blinks in YELLOW and RED
alternately.
If the container fills up, empty it out.
12. When the fi rst phase is complete, the machine beeps and warning light D remains steadily
lit in WHITE. The water tank is empty.
13. Carefully rinse out the water tank and refi ll it with fresh water (Fig. 4).
14. Empty and rinse the used capsule drawer, the drip tray and the container used and put
them back in place.
15. Press button E to start the rinse cycle.
16. Rinse water (about 500 ml) will be run through the machine. During this phase warning light
D blinks YELLOW and RED alternately.
17. When the rinse cycle is complete, the machine beeps and warning lights A-B-C-D blink
simultaneously; the machine is warming up.
18. When warning lights A and D are lit steadily and the machine beeps twice, the appliance is
ready to use.
19. Carefully empty and rinse out the water tank and refi ll it with fresh, still water (Fig. 4).
20. Empty and rinse out the used capsule drawer and drip tray (Fig. 6).
DESCALING Continued…
11

ENERGY SAVING
The machine will automatically reduce consumption after 1 hour of inactivity.
Warning lights A-B-C-D blink slowly and sequentially. To restore normal operating conditions,
press button E or raise the lever. The appliance will start warming up.
When warning light D and the light selected using the knob (A,B or C) are lit steadily, the
machine is ready for use.
INSTRUCTIONS FOR USE AND DISPOSAL
The appliance has been manufactured using high quality materials that can be reused or
recycled. Dispose of the appliance in a suitable waste collection centre.
All materials and objects in contact with food products comply with the requirements of
European Regulation 1935/2004
TROUBLESHOOTING
No coffee comes out.
Indicator light D blinks
RED.
The water tank isempty. Fill the tank with fresh water. Press
button E to refill the circuit. When the
warning lights remain steadily lit, the
appliance is ready foruse.
The coffee is nothot
enough.
-Cold cups / espresso cups.
-Scale build-up inmachine.
-Preheat cup.
-Descale.
The lever cannot be
lowered. -The used capsule drawer isfull.
-Capsule stuck inside the
machine.
-Empty out the used capsule
drawer.
-Remove the used capsule.
Warning light D islit
steadily inRED.
Heating problems. Turn off the machine, then turn it
back on. If the problem persists, take
the machine to an Authorised
Service Centre.
When button Eis Incorrect quantity Reprogram the quantity associated
pressed todispense programming. with that button.
coffee, themachine See ch. "Programming thequantity
seems to work butthen of coffee in acup".
stops without dispensing
any coffee, oronly
dispenses a tiny amount.
Coffee is dispensed very
slowly, and is of poor
quality.
Warning light C was
selected with anespresso
capsule.
Select warning lights Aor B.
PROBLEM POSSIBLE CAUSE SOLUTION
12

See the data plate on the base of the machine.
Max. 15bar
< 70 dBA
About 4kg
1litre
Ambient temperature: 10°C -40°C
162 mm 283 mm 370mm
13
TECHNICAL DATA
caffitalysystem.com.au
