Campanola CAN16 User manual

CAN16
取扱説明書
INSTRUCTION MANUAL

1
English
Thank you for your purchase of this Campanola watch.
Before using the watch, read this instruction manual carefully to ensure correct
use.
After reading the manual, store it in a safe place for future reference.
Visit the Citizen website (http://www.citizenwatch-global.com/) to view visual
guides for operation of your watch. Some models may be equipped with external
features (calculation scale, tachymeter, etc.). Visual guides for operation of such
external features can also be found on the website.
To check the movement number
A case number—4 alphanumeric characters and
6 or more alphanumeric characters—is engraved
on the case back. (Figure on the right)
The first 4 characters of the case number
represent the movement number of the watch.
In the example on the right, " " is the
movement number.
Engraving position example
The engraving position may differ
depending on watch model.

2
This manual contains instructions that should be strictly followed at all times
not only for optimal use, but to prevent any injuries to yourself, other persons or
property.
We encourage you to read the entire booklet (especially, pages 16 to 23) and
understand the meaning of the following symbols:
■ Safety advisories are categorized and depicted in this manual as follows:
DANGER Highly likely to cause death or serious injury
WARNING Can cause serious injury or death
CAUTION Can or will cause minor or moderate injury or damage
Safety precautions (IMPORTANT)

3
English
■ Important instructions are categorized and depicted in this manual as follows:
Warning (caution) symbol followed by instructions that should
be followed or precautions that should be observed.
Warning (caution) symbol followed by prohibited matters.
Safety precautions (IMPORTANT)

4
Before using this watch
◆Protective stickers
Be sure to remove any protective stickers that may be on your watch (case
back, band, clasp, etc.). Otherwise, perspiration or moisture may enter the
gaps between the protective stickers and the parts, which may result in a skin
rash and/or corrosion of the metal parts.
◆Band adjustment
We recommend seeking the assistance of an experienced watch technician
for sizing of your watch. If adjustment is not done correctly, the bracelet may
unexpectedly become detached leading to loss of your watch or injury.
Consult Citizen Owners’ Help Desk.

5
English
Before using this watch
◆How to use a specially designed crown
Some models are equipped with a specially designed crown to prevent
accidental operation.
Unlock the crown prior to operate your watch.
Unlock Lock
Screw
down
crown
Rotate the crown
counterclockwise until
it releases from the
case.
Push the crown in to
the case. With gentle
pressure towards the
case, rotate the crown
clockwise to secure it
to the case. Be sure to
tighten firmly.

6
Table of contents
Parts identication …………………………………………………… 7
Winding the mainspring ……………………………………………… 8
Adjusting the time ………………………………………………… 11
Adjusting the date (quick date indicator adjustment) …………… 12
Characteristics of Mechanical watches …………………………… 13
Water resistance …………………………………………………… 16
Precautionary items and usage limitations ……………………… 18
Warranty and service ……………………………………………… 24
Specications………………………………………………………… 26
Customer support center …………………………………………… 28

7
English
Table of contents
Parts identification
• The actual appearance of the watch may differ from the illustrations on this instruction manual.
2
8
Date indicator
Second hand
Minute hand
Crown
Hour hand
Power reserve
indicator hand

8
This is an automatic winding mechanical watch, using a mainspring as power
source. When wearing the watch, your hand’s movement rotates the oscillating
weight to wind the mainspring automatically.
• When your hand’s movement is small and/or a few, winding may become
insufficient.
• Once the mainspring is wound fully, the watch will run for about 42 hours.
• You can check the winding amount of the mainspring (power reserve indicator,see
page 10).
For optimal performance, wind the mainspring frequently.
• You can wind the mainspring manually (see page 9).
Winding the mainspring

9
English
Winding the mainspring
◆Winding the mainspring manually
1. Push the crown in to position 0.
2. Rotate the crown to wind the mainspring.
• Turn the crown by rubbing it down from the back side
of the watch.
60
50
10
40
20
•
30

10
Winding the mainspring
• When the watch stops, turning the crown about 65 times will wind the mainspring
fully.
• Turning the crown after the mainspring’s full winding does not damage the
mainspring.
◆About power reserve indicator
Power reserve indicator hand shows the approximate amount of current
winding.
Maximum amount of
winding:
The watch will run for about
42 hours
For using the watch
comfortably, it is
recommended to keep the
hand within this area.
Power reserve
indicator hand
When the hand moves
to this area, the watch
will stop soon.
Wind the mainspring
manually.

11
English
Adjusting the time
When the watch stops, wind the mainspring
manually before setting.

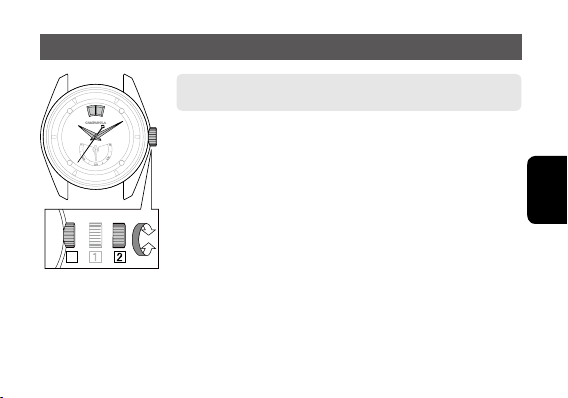

1. Pull the crown out to position 2as the second hand
points 0 second.
The second hand stops.
2. Rotate the crown to adjust the time.
The hour/minute hands and the date indicator move
together.
• Be sure to set AM/PM correctly.
• The date indicator do not move together when moving
hands counterclockwise.
3. Push the crown in to position 0following a certain time
signal.
60
50
30
10
40
20
•

12
Adjusting the date (quick date indicator adjustment)

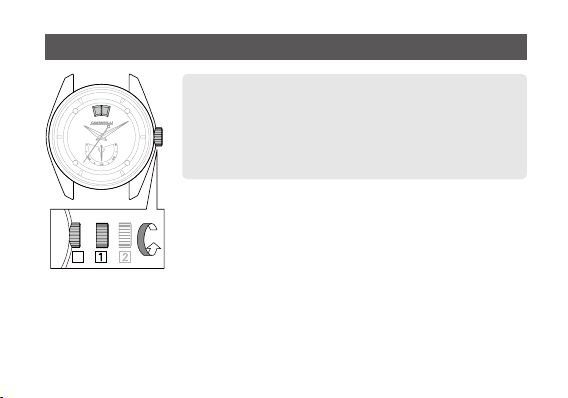

Adjust the date indicator on the first days of March,
May, July, October and December.
• Because the watch changes the date indicator, do not
execute the quick date indicator adjustment in the
following time on the watch:
Between 8:00 PM to 2:00 AM
1. Pull the crown out to position 󱦯.
2. Rotate the crown counterclockwise to adjust the date.
3. Push the crown in to position 0to finish this
procedure.
60
50
30
10
40
20
•

13
English
Characteristics of Mechanical watches
◆About time accuracy of mechanical watches
The time accuracy described on this instruction manual is the static accuracy at
normal temperature. The accuracy of mechanical watches may get out of the
described range depending on the following three usage conditions or other
reasons.
• Winding amount of the mainspring
• Attitude
• Usage environment (temperature, magnetism, impact, etc.)
Winding amount of the mainspring
Mechanical watches keep accuracy most stably when the mainspring is
sufficiently wound.
Attitude
Accuracy of mechanical watches varies affected by gravity. The accuracy varies
as the result that may take various attitude while worn and gravitate to a different
direction every moment.

14
Usage environment (temperature, magnetism, impact, etc.)
• Metal parts are used for the part for keeping accuracy in mechanical watch. The
accuracy varies affected by their thermal expansion and contraction.
• Metal parts are used in mechanical watches. Magnetism affects them and accuracy
of the watches in consequence. Do not bring them close to things which have or
generate strong magnetism.
• Strong shocks may also affect the accuracy.
Characteristics of Mechanical watches

15
English
Characteristics of Mechanical watches
◆Maintenance
Mechanical watches may become inaccurate due to insufficient lubrication or
worn parts. Have the watch disassembled and cleaned (overhaul) every 2-3 years
(charge basis). It may be difficult to restore the watch from degradation after
long-term use to its initial performance even after repairs.

16
Water-related use
Minor exposure
to water (washing
face, rain, etc.)
Swimming and
general washing
work Skin diving, marine sports Scuba diving using an air tank
Operate the crown
or button when
the watch is wet
Name Indication Specification
Dial or Case back
Non-water resistant watch — Non-water resistant NO NO NO NO NO
Everyday-use
water resistant watch WATER RESIST(ANT) Water resistant to
3 atmospheres OK NO NO NO NO
Upgraded everyday-use
water resistant watch
WATER RESIST(ANT) 5 bar Water resistant to
5 atmospheres OK OK NO NO NO
WATER RESIST(ANT) 10/20 bar Water resistant to
10 or 20 atmospheres OK OK OK NO NO
WARNING Water Resistance
• Refer to the watch dial and the case back for the indication of the water resistance of your watch.
The following chart provides examples of use for reference to ensure that your watch is used properly.
(The unit "1bar" is roughly equal to 1 atmosphere.)
• WATER RESIST(ANT) ××bar may also be indicated as W.R.××bar.
• Non-water resistant models are not designed to come into contact with any moisture. Take care
not to expose a watch with this rating to any type of moisture.
• Water resistance for daily use (to 3 atmospheres) means the watch is water resistant for occasional
accidental splashing.
Water resistance

17
English
Water-related use
Minor exposure
to water (washing
face, rain, etc.)
Swimming and
general washing
work Skin diving, marine sports Scuba diving using an air tank
Operate the crown
or button when
the watch is wet
Name Indication Specification
Dial or Case back
Non-water resistant watch — Non-water resistant NO NO NO NO NO
Everyday-use
water resistant watch WATER RESIST(ANT) Water resistant to
3 atmospheres OK NO NO NO NO
Upgraded everyday-use
water resistant watch
WATER RESIST(ANT) 5 bar Water resistant to
5 atmospheres OK OK NO NO NO
WATER RESIST(ANT) 10/20 bar Water resistant to
10 or 20 atmospheres OK OK OK NO NO
Water resistance
• Upgraded water resistance for daily use (to 5 atmospheres) means that the watch may be
worn while swimming, but is not to worn while skin diving.
• Upgraded water resistance for daily use (to 10/20 atmospheres) means that the watch may be
worn while skin diving, but not while scuba or saturated diving using helium gas.

18
CAUTION To Avoid Injury
• Be particularly careful when wearing your watch while holding a small child, to avoid injury.
• Be particularly careful when engaged in strenuous exercise or work, to avoid injury to yourself and
others.
• Do NOT wear your watch while in a sauna or other location where your watch may become
excessively hot, since there is the risk of burns.
• Be careful when putting on and taking off your watch, since there is a risk of damaging your
fingernails, depending on the manner in which the band is fastened.
• Take off your watch before going to bed.
CAUTION Precautions
• Always use the watch with the crown pushed in (normal position). If the crown is of the screw
lock-type, make sure it is securely locked.
• Do NOT operate the crown or any push buttons when the watch is wet. Water may enter the watch
causing damage to vital components.
• If water enters the watch or the watch fogs up and does not clear up even after a long time, consult
your dealer or Authorized Service Center for inspection and/or repair.
Precautionary items and usage limitations

19
English
• Even if your watch has a high level of water resistance, please be careful of the following.
- If your watch is immersed in sea water, rinse thoroughly with fresh water and wipe with a dry cloth.
- Do not pour water from a tap directly onto your watch.
- Take off your watch before taking a bath.
• If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in for
repair. Otherwise, pressure inside the watch will increase, and parts (crystal, crown, push button,
etc.) may come off.
CAUTION When Wearing Your Watch
<Band>
• Leather, genuine skin and rubber (urethane) bands will deteriorate over time due to perspiration,
body oils and dirt. Be sure to replace the band periodically.
• The durability of a leather band may be affected when wet (fading, peeling of adhesive), owing to
the properties of the material. Moreover, wet leather may cause a rash.
• It is recommended to take off the watch if it gets wet, even if the watch itself is water resistant.
• Do not wear the band too tightly. Try to leave enough space between the band and your skin to
allow adequate ventilation.
• The rubber (urethane) band may be stained by dyes or soil present in or on clothing or other
accessories. Since these stains may not be removable, caution is required when wearing your watch
with items that tend to easily transfer color (articles of clothing, purses, etc.). In addition, the band
may be deteriorated by solvents or moisture in the air. Replace with a new one when it has lost
elasticity or become cracked.
Precautionary items and usage limitations
