Model 092 Barometric Pressure Sensor
1. Introduction
The Model 092 Barometric Pressure Sensor is designed to measure ambient
atmospheric pressure and is configured at Campbell Scientific for analog
output. It is recommended for wind farm power performance research.
2. Cautionary Statements
•Install the sensor such that it faces North in the Northern Hemisphere, or
South in the Southern Hemisphere. This orientation will shield the
polycarbonate sensor housing from most direct sunlight.
•The pressure sensor element is light sensitive. Only operate the 092 when
the polycarbonate case is closed.
•Pressure conditions in the range of 10 to 10,000 millibars will not harm the
sensor, but the measurement accuracy is not guaranteed beyond the range
of 600 to 1100 millibars.
3. Initial Inspection
•Upon receipt of the 092, inspect the packaging and contents for damage.
File damage claims with the shipping company, but contact Campbell
Scientific to arrange for repair or replacement.
•The model number and cable length are printed on a label at the
connection end of the cable. Check this information against the shipping
documents to ensure the expected product and cable length are received.
4. Quickstart
4.1 Installation
Please review Section 7, Installation for complete guidelines.
To install the 092:
1. The 092 enclosure is pre-supplied with desiccant and does not need to be
opened.
2. Attach the 092 to the tripod or tower leg using the supplied U-bolts.
Figure 4-1 shows the 092 installed on a vertical mast.
1

Model 092 Barometric Pressure Sensor

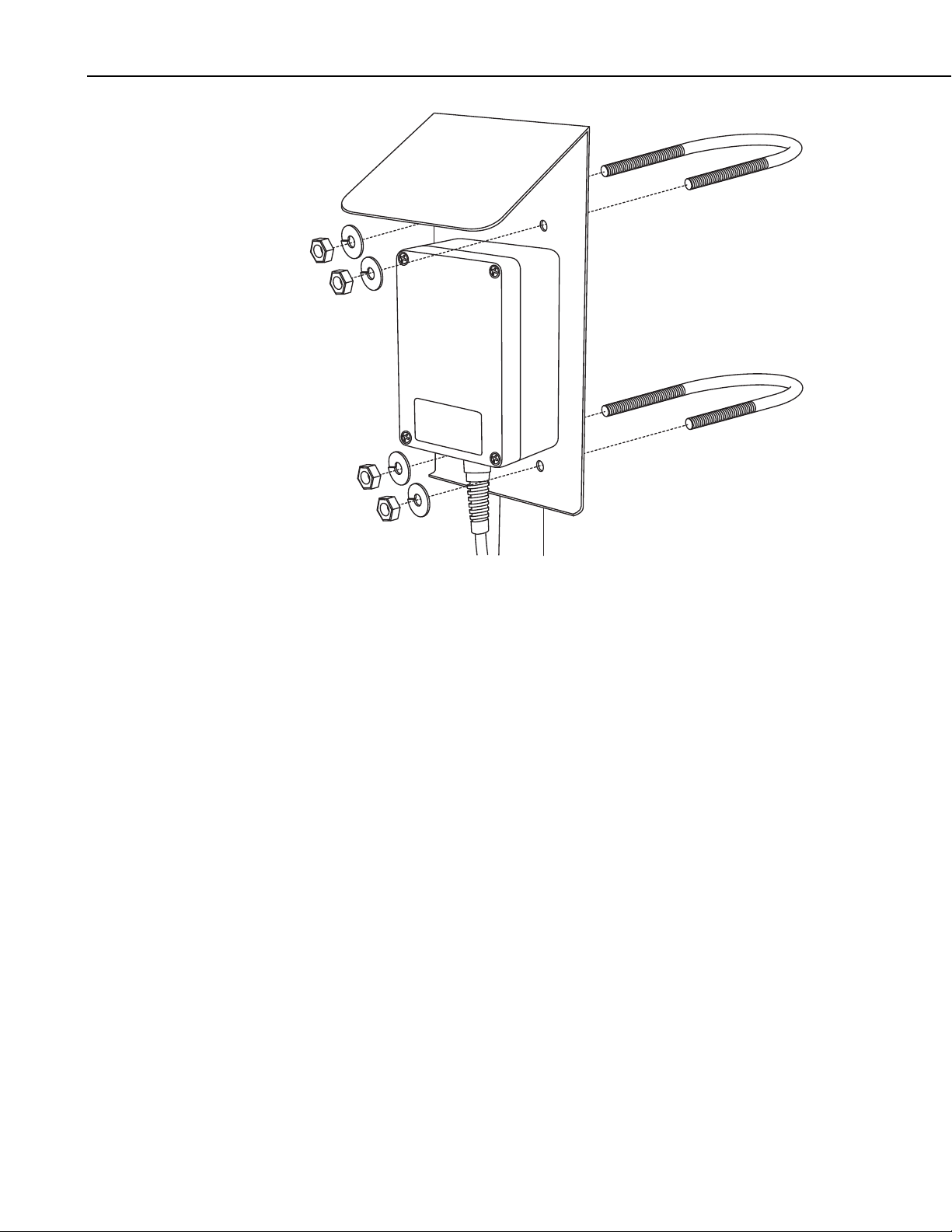

FIGURE 4-1. 092 installed on a vertical mast
Individual wire leads connect to the CR1000 datalogger as shown in step 5 of
the procedure in Section 4.2, Programming with Short Cut. A more
generalized wiring diagram is provided in Section 7.2, Wiring.
2

Model 092 Barometric Pressure Sensor
4.2 Programming with Short Cut
Short Cut Program Generator for Windows can be used to program the
CR1000 datalogger to measure the 092 as outlined in the following procedure.
Short Cut can also program other 092 compatible Campbell Scientific
dataloggers.
1. Open Short Cut and click on New Program.
2. Select a scan interval.
3

Model 092 Barometric Pressure Sensor

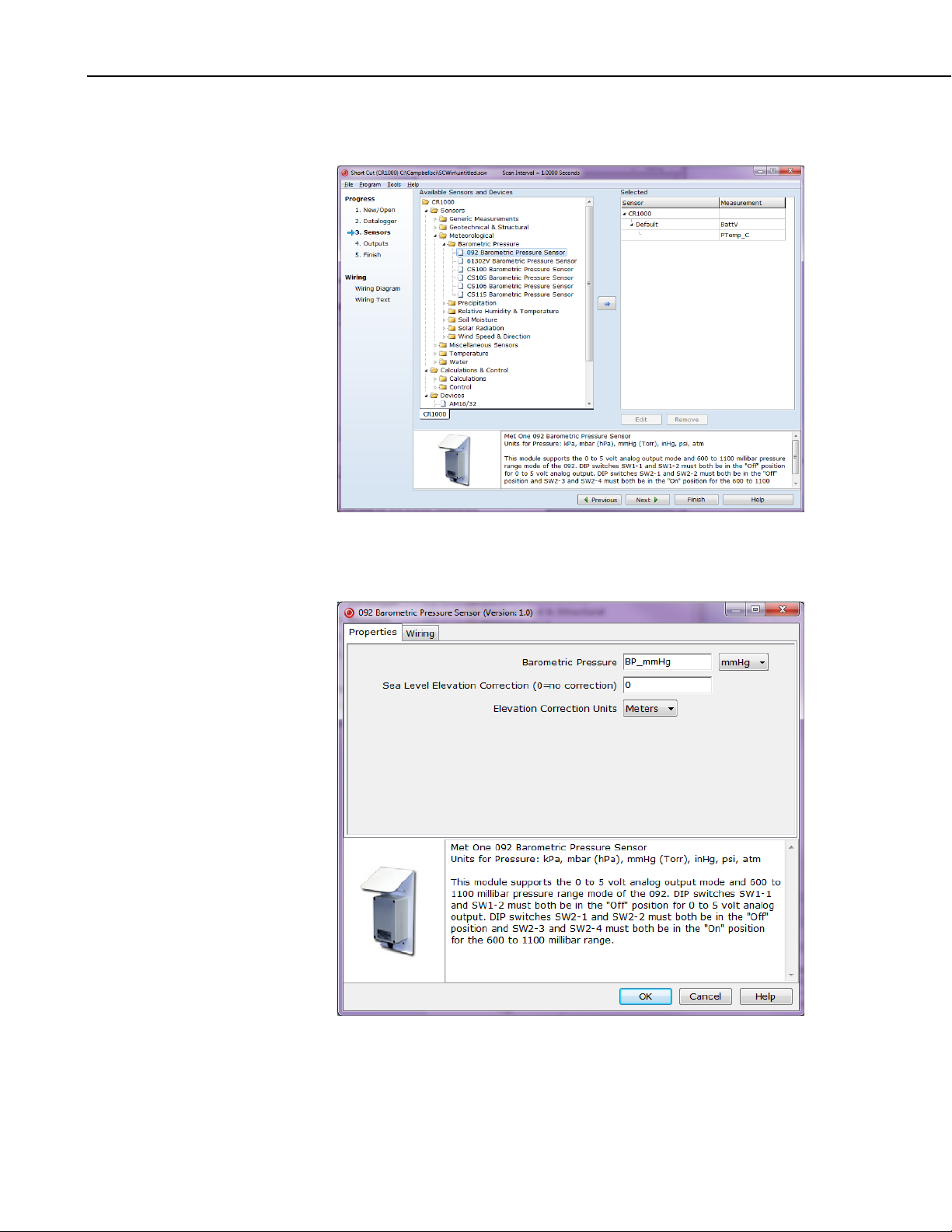

3. Select 092 Barometric Pressure Sensor and click the right arrow to add
it to the list of sensors to be measured.
4. Define the name of the public variable, or use the default BP_mmHg to
hold the barometric pressure measurement. Select the desired units of
measure, or use the default mmHg.
4

Model 092 Barometric Pressure Sensor
5. Sensor connections to the CR1000 datalogger are shown in the Wiring
tab.
6. Select the desired output data for final storage and click Finish.
7. Click Wiring Diagram for a description of sensor wiring for this example.
Send the program from the PC to the CR1000 datalogger when prompted
if a telecommunications link is active.
5

Model 092 Barometric Pressure Sensor
5. Overview
The 092 ships from Campbell Scientific pre-wired for analog output with the
following settings:
•Analog Output Voltage: 0 – 5 VDC
•Range: 600 – 1100 mbar
Refer to Appendix A, Analog Output Configurations for available analog
output options.
The 092 utilizes an on-board microcontroller and piezoresistive pressure sensor
module. This module contains an analog to digital converter, a temperature
sensor, and non-volatile memory for storage of factory determined calibration
coefficients. The microcontroller polls the sensor module once per second.
Measurements are temperature corrected, the calibration coefficients applied,
and the processed pressure measurement stored for output.
The pressure sensor element is light sensitive. Do not operate
the 092 with the top cover of the polycarbonate case off.
NOTE
All wiring terminals on the 092 are protected from static surge damage by
transzorbs and current limiting resistors.
Although the 092 is configured at Campbell Scientific for analog output,
digital output options including RS-232 and SDI-12 are available. Refer to the
MetOne 092, 594, 6633A Barometric Pressure Sensor Manual for more
information.
6

Model 092 Barometric Pressure Sensor
6. Specifications
Features
•The following 092 barometer settings are configurable:
omeasurement range
odata output option / communication option
oanalog output range
•Specifications listed here are limited to those applicable to the 092 as
it is configured and shipped by Campbell Scientific, Inc.
Compatibility: CR800 Series
CR1000
CR3000
CR23X
CR10(X)
Measurement
Range: 600 to 1100 mbar
Resolution: 0.1 mbar (.003 Hg)
Accuracy: ±0.35 mbar @ 25°C
±0.75 mbar @ 0 to55°C
±1.5 mbar @ -40°C
Long Term Stability: ±1 mbar in 12 months
Temperature
Operating range: -40 to 55°C
Compensated range: -40 to 55°C
Power requirement
Source: 6-16 Vdc
Load: 10 mA @ 12Vdc
Output: Analog, 0 to 5 Vdc
Enclosure: Polycarbonate
Size: 120 x 80 x 55 mm (4.7 x 3.1 x 2.2 in.)
CE Certification: See Appendix C
Calibration: Factory calibrated against a NIST
traceable anemometer.
7. Installation
7.1 Mounting
The 092 is factory mounted to a solar shield. The solar shield mounts by way
of two U-bolts to a vertical pipe with diameter up to 2” IPS. Install the sensor
such that it faces North in the Northern Hemisphere, or South in the Southern
Hemisphere. This orientation will shield the polycarbonate sensor housing
from most direct sunlight.
7

Model 092 Barometric Pressure Sensor
7.2 Wiring
TABLE 7-1. Connecting the 092 to Campbell Scientific Dataloggers
Wire Color Wire Description CR23X
CR800-series
CR1000
CR3000
CR5000
Terminal
CR10(X)
CR500
CR510
Terminal
Red Power 12V 12V 12V
White Signal SE Input SE Input
Black Ground G G
Green Signal Reference G
Clear Shield G
7.3 Programming
The following CR1000 programming example can be used, in whole or in part,
if the datalogger is being programmed with CRBasic Editor. Programming is
similar with the CR800 and CR3000.
'CR1000 with 092 Barometric Pressure Sensor
'-Wiring-
'1H: White
'Ground: Green
'Ground: Clear
'G: Black
'12V: Red
'Declare Variables and Units
Public BattV
Public PTemp_C
Public BP_mmHg
Units BattV=Volts
Units PTemp_C=Deg C
Units BP_mmHg=mmHg
'Define Data Tables
DataTable(Table1,True,-1)
DataInterval(0,60,Min,10)
Average(1,BP_mmHg,FP2,False)
EndTable
DataTable(Table2,True,-1)
DataInterval(0,1440,Min,10)
Minimum(1,BattV,FP2,False,False)
EndTable
8

Model 092 Barometric Pressure Sensor
'Main Program
BeginProg
'Main Scan
Scan(5,Sec,1,0)
'Default Datalogger Battery Voltage measurement 'BattV'
Battery(BattV)
'Default Wiring Panel Temperature measurement 'PTemp_C'
PanelTemp(PTemp_C,_60Hz)
'092 Barometric Pressure Sensor measurement 'BP_mmHg'
VoltSE(BP_mmHg,1,mV5000,1,1,0,_60Hz,0.1,600)
BP_mmHg=BP_mmHg*0.75006
'Call Data Tables and Store Data
CallTable(Table1)
CallTable(Table2)
NextScan
EndProg
8. Maintenance
8.1 Cleaning
Periodic cleaning of the sintered filter at the base of the unit may be required in
dusty conditions. Remove the filter and clean with distilled water.
8.2 Calibration
Calibration is performed against a NIST traceable standard. Calibration
coefficients are stored in non-volatile memory at the factory. No user
calibration procedure is available. The sensor must be returned to Met One
Instruments when calibration is desired. Yearly calibrations are recommended.
Calibration Contact:
Met One Instruments
1600 Washington Blvd.
Grants Pass, OR 97526
Phone [phone]
Fax [phone]
Met One Instruments
3206 Main Street
Suite 106
Rowlett, TX 75088
Phone [phone]
Fax [phone]
9

Model 092 Barometric Pressure Sensor
10

Appendix A. Analog Output
Configurations
The 092 ships from Campbell Scientific pre-wired and pre-configured for
analog output with the following settings:
•Analog Output Voltage: 0 – 5 Vdc
•Range: 600 – 1100 mbar
Output voltage and measurement ranges are set by DIP switches. Dip switch
settings are listed in Tables A-1 and A-2. Highlighted settings are those set at
the factory by Campbell Scientific, Inc. Complete information concerning
measurement, output, and communications settings is available in the Met One
092, 594, 6633A Barometric Pressure Sensor Manual, which is available at
www.campbellsci.com.
TABLE A-1. Dip Switches SW1:
Analog Output Voltage Settings
Range SW1-1 SW1-2
0-1 Vdc On On
0-2 Vdc On Off
0-2.5 Vdc Off On
0-5 Vdc* Off* Off*
*Factory configuration at Campbell Scientific, Inc.
A-1

Appendix A. Analog Output Configurations
A-2
TABLE A-2. Dip Switches SW2: Analog Output Pressure Range Settings
RANGE SELECTION SWITCH SETTINGS
LOWER UPPER LOWER UPPER LOWER UPPER
mbar mbar mm Hg mm Hg in Hg in Hg SW2-1 SW2-2 SW2-3 SW2-4
600 800 450 600 17.72 23.62 ON ON ON ON
600 900 450 675 17.72 26.58 OFF ON ON ON
600 1000 450 750 17.72 29.53 ON OFF ON ON
6001110014501825117.72132.481OFF1OFF1ON1ON1
700 800 525 600 20.67 23.62 ON ON OFF ON
700 900 525 675 20.67 26.58 OFF ON OFF ON
700 1000 525 750 20.67 29.53 ON OFF OFF ON
700 1100 525 825 20.67 32.48 OFF OFF OFF ON
677.1 1083.6 508.0 812.8 20.00 32.00 ON ON ON OFF
800 900 600 675 23.62 26.58 OFF ON ON OFF
800 1000 600 750 23.62 29.53 ON OFF ON OFF
800 1100 600 825 23.62 32.48 OFF OFF ON OFF
2 2 22 22ON2ON2OFF2OFF2
2 2 22 22OFF2ON2OFF2OFF2
900 1000 675 750 26.58 29.53 ON OFF OFF OFF
900 1100 675 825 26.58 32.48 OFF OFF OFF OFF
1Factory configuration at Campbell Scientific, Inc.
2Settings with no pressure values are invalid settings. If the switches are set to either of these combinations,
the analog output will default to the full range of 600 to 1100 mbar.

Appendix B. Wiring
The 092 ships from Campbell Scientific pre-wired for analog output. Internal
cable connections are shown in Figure B-1.
FIGURE B-1. Analog wiring
B-1

Appendix B. Wiring
B-2
