Instructions for use
Campingaz®HYPERTorch®A2000/ A2000PZ
Consumption: 160 g/h (2.24 kW)
- Injector Ø0.26 Campingaz®HYPERTorch®A2000/A2000PZ
Category: direct pressure butane/propane mixture.
Thank you for choosing this Campingaz®HYPERTorch®A2000 / A2000PZ blowtorch.
A - IMPORTANT: YOU ARE USING GAS, BE VERY CAREFUL!
The purpose of these instructions is to enable you to use your Campingaz®HYPERTorch®A2000 /
A2000PZ blowtorch correctly and in complete safety.
Please read them carefully to familiarize yourself with the blowtorch prior to assembling the gas container.
Keep these instructions in a safe place so that you can refer to them if needed.
Please observe these instructions and the safety measures printed on the Campingaz®CG 1750HY
/ CG 3500HY Hyperformance Gas cartridges. Failure to observe these instructions may result in
the user and people in the immediate vicinity being put at risk.
This blowtorch must be used exclusively with Campingaz®CG 1750HY or CG 3500HY Hyperformance
Gas cartridges. Using other gas containers may be dangerous or at least might negatively impact
the performance of your blowtorch.
The Société Application Des Gaz accepts no responsibility where cartridges of any other make
are used.
This blowtorch must only be used in adequately ventilated areas (minimum 2 m3/h/kW) and at a good
distance from any flammable material.
Do not use blowtorch blowtorches which leak, function incorrectly or are damaged. Return it to your retailer
who will inform you of your nearest after-sales service.
Never modify this blowtorch or use it for purposes for which it is not intended.
B - PREPARATION FOR OPERATION
Installing a CAMPINGAZ®cartridge CG 1750HY or CG 3500HY Hyperformance Gas
(When the existing cartridge is empty, read paragraph D: “Removing the cartridge”)
To install or remove a cartridge, always work in a well-ventilated area, preferably outside and never in the
presence of a flame, heat source or spark (lit cigarette, electrical blowtorch, etc.) at a good distance from
other people and flammable material.
AS CAMPINGAZ®CG 1750HY OR CG 3500HY HYPERFORMANCE GAS CARTRIDGES ARE
VALVE-OPERATED, THEY CAN BE DETACHED FROM THE BLOWTORCH, EASILY TRANSPORTED,
EVEN WHEN NOT EMPTY.
- Check that the blowtorch O-ring seal (1) is in good condition and properly positioned (Fig. 1). Check
this every time you install a cartridge. If the O-ring is damaged or worn, return the blowtorch to your
retailer, who will replace the seal.
- Check that the control knob (2) is closed (turned fully clockwise).
- Insert the cartridge in the stabilizer (4) supplied with the blowtorch (Fig. 2).
- Place the blowtorch upright on the top of the cartridge, as shown in Fig. 2.
- Gently screw the blowtorch onto the cartridge. Check that the assembly threads are properly engaged.
- Only tighten by hand. Excessive force could damage the threads on the cartridge.
- The blowtorch is now ready to operate.
In case of leakage (gas smell before opening the valve), put immediately the blowtorch outside, in a
well-ventilated area, without inflammation source, where it will be possible to locate and stop the leak. If
you wish to check the tightness of the blowtorch, do it outside. Do not try to locate a leak with a flame, use
gas leak detection liquid.
C - OPERATING THE BLOWTORCH
Lighting your blowtorch HYPERTorch®A2000

- Once lit, open the gas to a medium setting by turning the control knob (2) around 1/4 turn in the direction of


 
Lighting up your blowtorch HYPERTorch®A2000PZ
 
the Campingaz®
(Fig. 3a) are closed.
- The Campingaz®
 
- Press the button (3) (Fig. 2) once or as many times as necessary to light up the burner.
 ®
ensure the air holes are fully opened (Fig. 3c).
 

NOTE: Move the Campingaz®
too hot to be touched without gloves.
Extinguishing
- Turn the control knob (2) fully clockwise (towards the “-” arrow Fig. 2).
Important recommendations:
 substances.
While the blowtorch is in operation and afterwards, some of the components are extremely hot

without suitable protection.
Do not misuse your blowtorch or use it for applications for which it was not designed.
Handle the blowtorch very carefully. Take care not to drop it.
Never leave an ignited blowtorch unattended.
Do not inhale the combustion gases emitted during utilization (burnt paint, brazing, etc.).
Respect the environment: deposit empty cartridges in an appropriate place.
If you use this blowtorch indoors, the area must observe elementary ventilation conditions enabling the
supply of air required for combustion and avoiding any build-up of non-burned gas (2 m3/h/kW minimum).
D - REMOVING A CAMPINGAZ
®
HYPERFORMANCE GAS CARTRIDGE CG 1750HY or CG 3500HY
Always change the cartridge outdoors and well away from any source of ignition.

- Before disconnecting the cartridge, check that the blowtorch flame is out and that the blowtorch is outdoors,
well away from any other flame and any other person.
- Separate the cartridge from the nozzle by unscrewing it. Replace the O-ring seal (1) if it is split or worn.
- Place the blowtorch upright on the cartridge to ensure that the threads are properly engaged, and screw
on gently by hand.
- Check that there are no leaks on the assembly, as described in Section B.
E - REPLACING THE NOZZLE
Your blowtorch is supplied equipped with a nozzle that can be changed or replaced by another type of
nozzle, which may be purchased separately (see www.campingaz.com).
- Allow the nozzle to cool completely.
- Unscrew the nozzle by hand, in the direction of the arrow A (Fig. 2).
- Screw the new Campingaz®nozzle in place by hand, replacing the worn nozzle (or a different type, pur-
chased as an accessory).
F - STORAGE AND TROUBLESHOOTING
When your blowtorch is completely cool:
- Always unscrew the cartridge from the blowtorch when the blowtorch is not being used. Store these ele-
ments in cool, dry and well ventilated place. The blowtorch and cartridge should be protected from direct
sunlight and temperatures exceeding 50°C while being stored.
- Regularly check the blowtorch O-ring seal (1). Check that it is properly positioned and in good condition
(Fig. 1). Have it replaced if it is damaged or worn.
- The blowtorch should give years of trouble-free service. However, if the gas pressure falls or you are
unable to light the gas, check whether the cartridge (5) is empty. If the cartridge still contains gas, the
injector is probably blocked.
- If the injector is blocked (i.e. the cartridge contains gas but you cannot light the blowtorch), do not try to
unblock it, it must be replaced: take the blowtorch to your retailer (The blowtorch may only be disassem-
bled by an approved service agent).
- If large yellow flames appear when the nozzle is facing downwards (non-vaporised, liquid gas feeds the
nozzle), turn the blowtorch round and observe the pre-heating time mentioned in C.
G - OTHER NOZZLES AND ACCESSORIES AVAILABLE
The blowtorch must be hold manually when used with accessories sold separately.
www.campingaz.com
GB
Years 2
Warranty Period

Campingaz®HYPERTorch®A2000/ A2000PZ
Débit: 160 g/h (2,24 kW)
- injecteur Ø0.26 Campingaz®HYPERTorch®A2000 / A2000PZ
Catégorie: pression directe mélange butane/propane
®HYPERTorch®A2000 / A2000PZ.
A - IMPORTANT: VOUS UTILISEZ DU GAZ, SOYEZ PRUDENT !
        ®HYPERTorch®A2000 /
A2000PZ correctement en toute sécurité.
Veuillez les lire attentivement pour vous familiariser avec le chalumeau avant de monter la cartouche
de gaz. Conservez ces instructions dans un endroit sûr pour vous y reporter le cas échéant. Veuillez
respecter ces instructions ainsi que les mesures de sécurité imprimées sur les cartouches de gaz
CAMPINGAZ®HYPERFORMANCE GAS®CG 1750 HY / CG 3500HY. Le non respect de ces instruc-
tions peut être dangereux pour l’utilisateur et son entourage.
Ce chalumeau doit uniquement être utilisé avec les cartouches de gaz CAMPINGAZ®HYPERFORMANCE
GAS®CG 1750HY ou CG 3500HY. L’utilisation d’autres cartouches de gaz peut s’avérer dangereuse ou
pourrait tout au moins avoir un impact négatif sur la performance de votre chalumeau.
La Société Application Des Gaz décline toute responsabilité en cas d’utilisation d’une cartouche
de toute autre marque.
Ce chalumeau doit uniquement être utilisé dans des zones correctement ventilées (minimum de 2 m3/h/kw)
et à bonne distance de tout matériau inflammable.
Ne pas utiliser un chalumeau qui fuirait, ne fonctionnerait pas correctement ou serait endommagé.
Rapportez-le à votre revendeur qui vous indiquera le service après-vente le plus proche de chez vous.

B - MISE EN SERVICE
Installation d’une cartouche de gaz CAMPINGAZ®HYPERFORMANCE®CG 1750HY ou CG 3500HY
(Lorsque la cartouche en place est vide, lisez le paragraphe D intitulé «Retrait de la cartouche»)

 (cigarette allumée, chalumeau électrique, etc.) loin

COMME LES CARTOUCHES DE GAZ CAMPINGAZ®HYPERFORMANCE®CG 1750HY OU CG 3500HY
FONCTIONNENT AVEC UNE VALVE, ELLES PEUVENT SE DÉTACHER DU CHALUMEAU, ELLES SE
TRANSPORTENT FACILEMENT, MÊME LORSQU’ELLES NE SONT PAS VIDES.
- Vérifiez que le joint torique du chalumeau (1) est en bon état et bien placé (Fig. 1). Vérifiez cela à
chaque installation de cartouche. Si le joint torique est endommagé ou usé, renvoyez le chalumeau
à votre revendeur qui remplacera le joint.

- Insérez la cartouche dans le stabilisateur (4) fourni avec le chalumeau (fig. 2).
- Placez le chalumeau droit au dessus de la cartouche, comme le montre la fig. 2.

-

- Le chalumeau peut maintenant être utilisé.
 


fuite avec une flamme, utilisez un liquide de détection de fuite de gaz.
C - FONCTIONNEMENT DU CHALUMEAU
Allumage de votre chalumeau CAMPINGAZ® HYPERTorch® A2000





Allumage de votre chalumeau CAMPINGAZ®HYPERTorch®A2000PZ
 
®puis faites-glisser cette

®
fermé (Fig. 3b).
- 
de la flèche .
- Appuyez une fois sur le bouton (3) (Fig. 2) ou autant de fois que nécessaires pour allumer le bec.
- ® puis faites
.
- 
grandes flammes jaunes.
REMARQUE: ®seulement dans les 2 premières minutes après

Extinction
.
Quelques conseils supplémentaires:
Utilisez toujours le chalumeau avec une extrême précaution, en le tenant éloigné de matières

Lorsque le chalumeau est utilisé, certains composants sont brûlants (en particulier le bec du brûleur
®). Ne touchez pas ces éléments sans protection appropriée.
N’utilisez pas votre chalumeau de manière erronée ou pour des applications pour lesquelles il n’est pas conçu.
Manipulez le chalumeau avec soin. Veillez à ne pas le laisser tomber.
Ne laissez jamais le chalumeau allumé sans surveillance.
N’inhalez pas les gaz de combustion générés pendant l’utilisation (peinture brûlée, brasure, etc.).
Respectez l’environnement: déposer vos cartouches vides dans un endroit approprié.
Si vous utilisez ce chalumeau à l’intérieur, le local doit être ventilé de manière à fournir l’air requis
par la combustion et à éviter l’accumulation de gaz non brûlés (2 m3/h/kW minimum).
D - RETRAIT D’UNE CARTOUCHE DE GAZ CAMPINGAZ
®
HYPERFORMANCE GAS
®
CG 1750HY ou CG 3500HY
Effectuez toujours l’opération de changement de cartouche à l’extérieur et à une bonne distance de
toute source d’ignition .

- Avant de déconnecter la cartouche, vérifiez que la flamme du chalumeau est éteinte et que le chalumeau



doucement à la main.

E - REMPLACEMENT DU BEC
     
séparément (visitez www.campingaz.com).
- Laissez le bec refroidir complètement.
- Dévissez le bec à la main dans le sens de la flèche A (fig. 2).
- Mettez le nouveau bec Campingaz®
en mettre un différent, acheté comme accessoire).
F - STOCKAGE ET ANOMALIES DE FONCTIONNEMENT
Lorsque votre chalumeau est complètement refroidi :


de la lumière directe et de températures au-dessus de 50°C.


- Le chalumeau devrait fonctionner des années sans problème. Si cependant la pression du gaz baisse

probablement bouché.


(le chalumeau peut être démonté uniquement par un agent de service après-vente agréé).
- En cas de grandes flammes jaunes lorsque le bec est dirigé vers le bas (du gaz liquide, non vaporisé alimente
le bec), retournez le chalumeau et observez le temps de préchauffage mentionné en C.
G - AUTRES BECS ET ACCESSOIRES DISPONIBLES

www.campingaz.com
FR
Ans 2
Période de garantie
HYPERTorch®A2000
HYPERTorch®A2000PZ
GB
FR
AR
GR
RU
English
Français




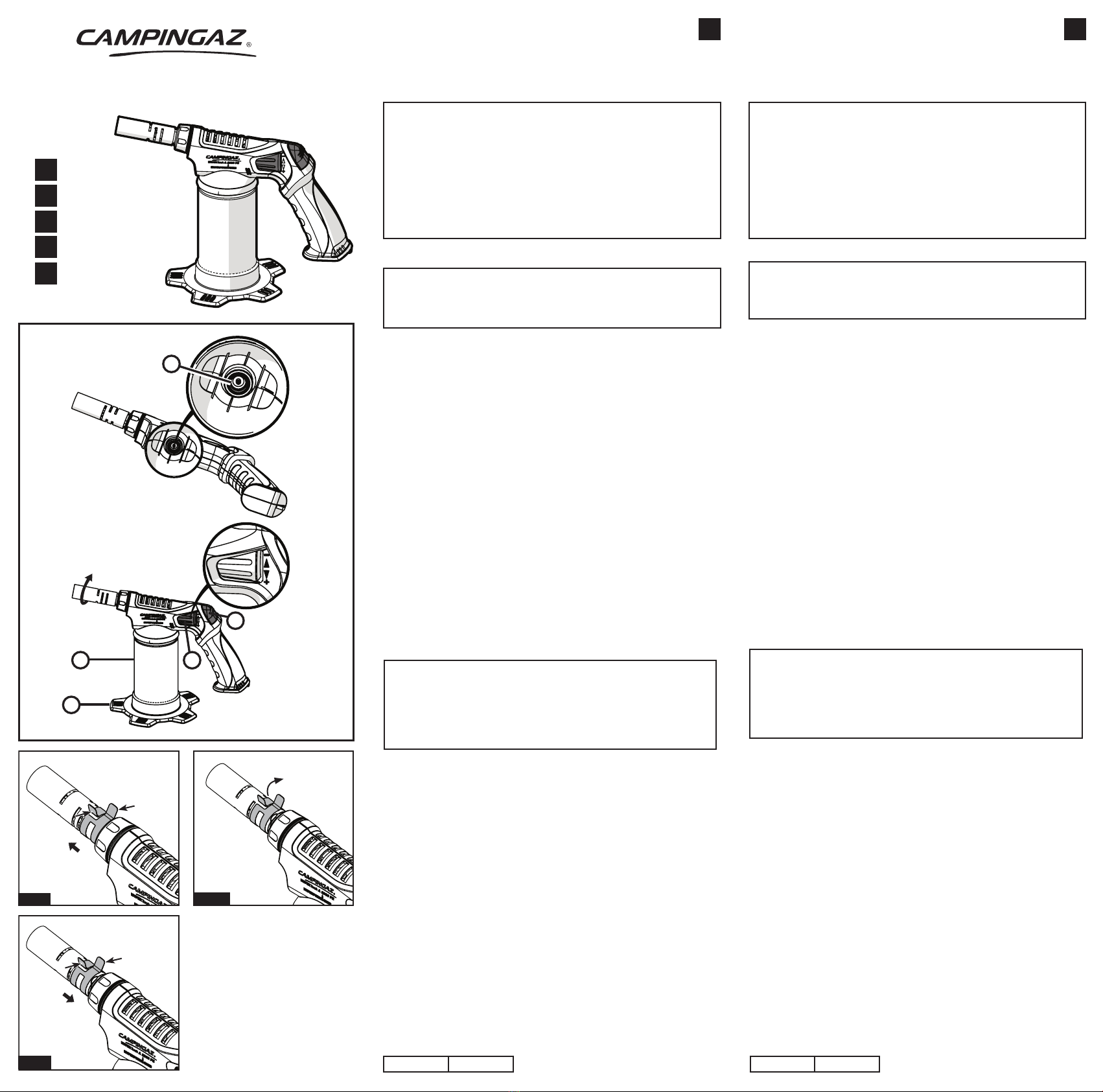

Fig. 1
Fig. 2
2
3
4
5
A
1
Fig. 3a Fig. 3b
Fig. 3c
Campingaz®

control


Campingaz®HYPERTorch®A2000/ A2000PZ
2.24160
Ø0.26 CAMPINGAZ®HYPERTorch®A2000/A2000PZ

CAMPINGAZ®HYPERTorch®A2000 / A2000P
 
CAMPINGAZ®HYPERTorch®A2000 / A2000PZ



CAMPINGAZ HYPERFORMANCE®
GAS®CG 1750HY / CG 3500HY

CAMPINGAZ®HYPERFORMANCE GAS®CG
 CG 3500HY1750HY

Société Application Des Gaz

32





CG 3500HYCAMPINGAZ®HYPERFORMANCE GAS®CG 1750HY



CG 3500HYCAMPINGAZ®HYPERFORMANCE GAS®CG 1750HY

11

2
.(24
.2







CAMPINGAZ®HYPERTorch®A2000
.(22
2  

CAMPINGAZ®HYPERTorch®A2000PZ

3®Campingaz
Campingaz
3
2  
23
®Campingaz
3
5
2®Campingaz 
.

.((22
:
  

®Campingaz


 



32
CG 3500HYCAMPINGAZ®HYPERFORMANCE GAS CARTRIDGE CG 1750HY

.((2


1



www.
.(campingaz.com

.(2
Campingaz®



50
11


5






www.campingaz.com
AR

Campingaz®HYPERTorch®A2000 / A2000PZ

 Ø0.26 Campingaz®HYPERTorch®A2000 / A2000PZ

®HYPERTorch®A2000 / A2000PZ.

              ®
HYPERTorch®
               


®HYPERFORMANCE GAS®CG 1750HY / CG 3500HY.


          ®
HYPERFORMANCE GAS®

           

3

           

              


®HYPERFORMANCE GAS®




    ®HYPERFORMANCE GAS®     
          


             








              




®HYPERTorch®A2000





®HYPERTorch®A2000PZ
 
®

®
- .
.
- ®

- 
.
 ®


.
:


®). 



.


.


3

®
HYPERFORMANCE GAS
®






 .








     ®           








 





    
      



www.campingaz.com
GR 
Campingaz®HYPERTorch®A2000 / A2000PZ

-  Ø0.26 Campingaz®HYPERTorch®A2000 / A2000PZ

®HYPERTorch®A2000 / A2000PZ.

         
®HYPERTorch®A2000 / A2000PZ.



 ®HYPERFORMANCE GAS®CG 1750HY / CG 3500HY.




CAMPINGAZ®HYPERFORMANCE GAS®       




3





®HYPERFORMANCE GAS®



         
  
 
   ®HYPERFORMANCE GAS®   


           
           






 .





 
®HYPERTorch®A2000





®HYPERTorch®A2000PZ
 
® 

® 

- 
.
.
- ® 
.
- 
.
®


.
:



®). 



.


.


3










 




®








 

- The blowtorch should give years of trouble-free service. 






 

www.campingaz.com
RU
 2

 2

 2

