CanadianSolar CSI Series User manual

CSI SERIES GRID-TIED PV Inverter
CSI-7KTL1P-GI-FL & CSI-8KTL1P-GI-FL
CSI-9KTL1P-GI-FL & CSI-10KTL1P-GI-FL
INSTALLATION AND OPERATION MANUAL
VERSION 1.2
CANADIAN SOLAR INC.
Global Headquarters:
545 Speedvale Avenue, West Guelph, Ontario N1K 1E6, Canada
Tel: [phone]
Sales Inquiries Email: [email protected]
Technical Inquiries Email: [email protected]
CANADIAN SOLAR (USA) , INC.
North America Headquarters:
3000 Oak Road, Ste 400, Walnut Creek, CA 94596
Tel: [phone]
Sales Inquiries Email: [email protected]
Technical Inquiries Email: [email protected]
This manual is subject to change without prior notification. Copyright is
reserved. Duplication of any part of this issue is prohibited without written
permission.
Europe, Middle East & Africa
Canadian Solar EMEA GmbH
Landsberger Strasse 94, 80339 Munich, Germany
Tel.: [phone]
E-mail: [email protected]

Important notes
● Product specifications are subject to change without notice. Every attempt has been made
to make this document complete, accurate and up-to-date. Individuals reviewing this
document and installers or service personnel are cautioned, however, that Canadian Solar
reserves the right to make changes without notice and shall not be responsible
for any damages, including indirect, incidental or consequential damages caused by reliance
on the material presented including, but not limited to, omissions, typographical errors,
arithmetical errors or listing errors in the material provided in this document.
For professional use only
● Professional installer must read these guidelines carefully and strictly follow these instructions.
Failure to follow these instructions may result in death, injury or property damage.
The installation and handling of Inverters requires professional skills and should only be
performed by qualified professionals. The installers must inform end–users (consumers) the
aforesaid information accordingly.
● Canadian Solar accepts no liability for customers' failure to comply with the instructions
for correct installation and will not be held responsible for upstream or downstream systems
Canadian 's equipment has supplied.
● The customer is fully liable for any modifications made to the system; therefore, any hardware
or software modification, manipulation, or alteration not expressly agreed with the
manufacturer shall result in the immediate cancellation of the warranty.
● Given the countless possible system configurations and installation environments, it is
essential to verify adherence to the following:
● There is sufficient space suitable for housing the equipment.
● Airborne noise produced depending on the environment.
● Potential flammability hazards.
● Canadian Solar will not be held liable for defects or malfunctions arising from:
● Improper use of the equipment.
● Deterioration resulting from transportation or particular environmental conditions.
● Performing maintenance incorrectly or not at all.
● Tampering or unsafe repairs.
● Use or installation by unqualified persons.
● This product contains lethal voltages and should be installed by qualified electrical or service
personnel having experience with lethal voltages.

1. Introduction
2. Safety Instructions
2.1 Safety Symbols
2.2 General Safety Instructions
2.3 Notice For Use
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
3.3 Keypad
3.4 LCD
4. Installation
4.1 Select Location for the Inverter
4.2 Mounting the Inverter
4.3 Electrical Connections
Contents
3
5
5
5
6
7
7
7
8
8
9
9
11
13
………………………
………………………………………
………………………………………………
………………………………
………………………
……………………………………………
…………………………………………………
………………………………………………
…………………
…………………………………
……………………………
6. Operation 20
………………………………………………
5. Start & Stop
5.1 Start the Inverter
5.2 Stop the Inverter
19
19
19
………………………………………
………………………………
…………………………………
………………………………………………
……………………………………
………………………………………
1.1 Product Description 3
…………………………………
1.2 Packaging 4
…………………………………………
4.3.1 Connect PV side of inverter 13
………………
4.3.2 Connect grid side of inverter 16
………………
18
4.3.3 Max. overcurrent protection device (OCPD)
18
…

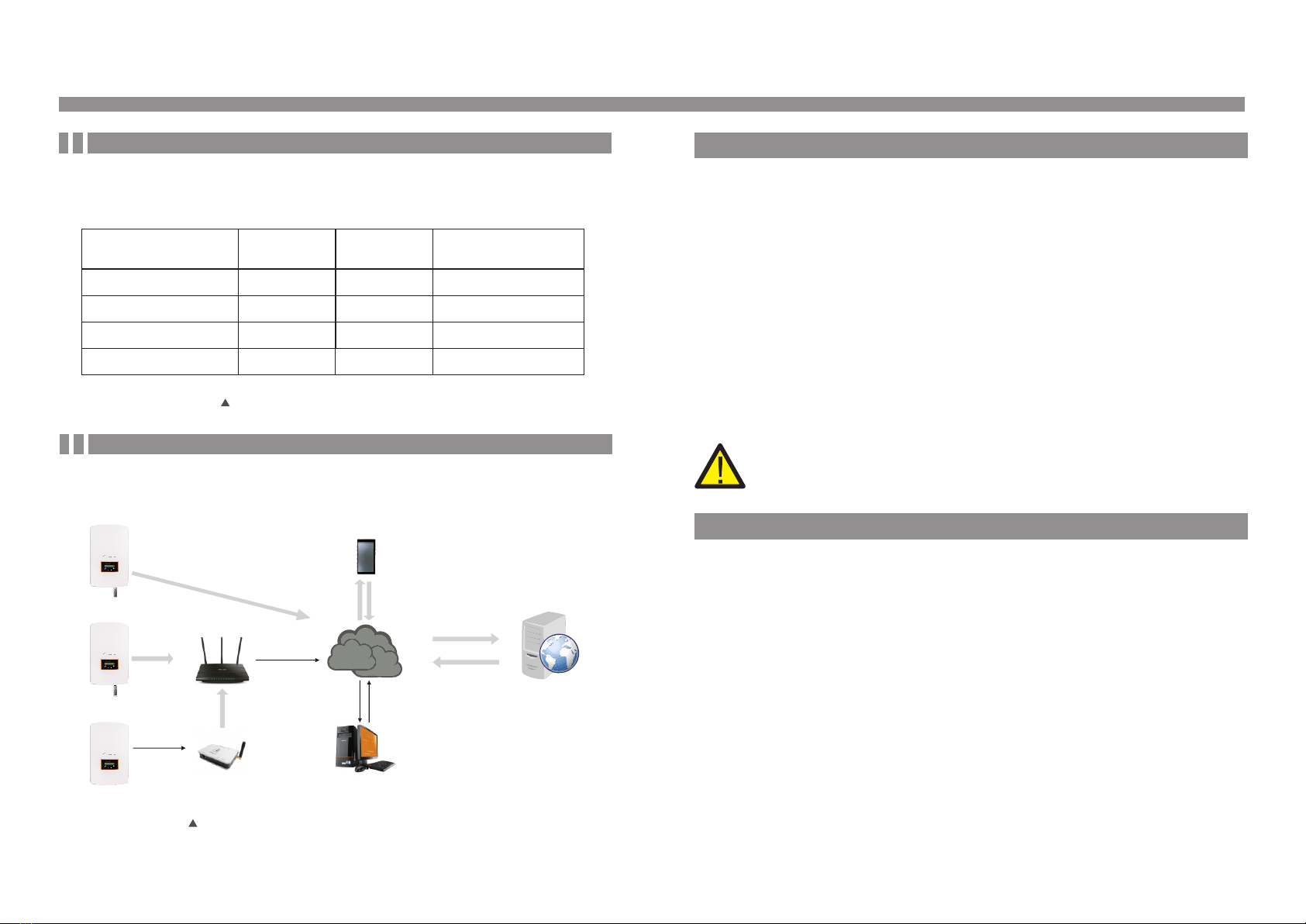

4.3.4 Inverter monitoring connection ……………
6.2.1 Lock screen 21
……………………………………
6.2 Information 20
…………………………………………
6.1 Main Menu 20
…………………………………………

1. Introduction

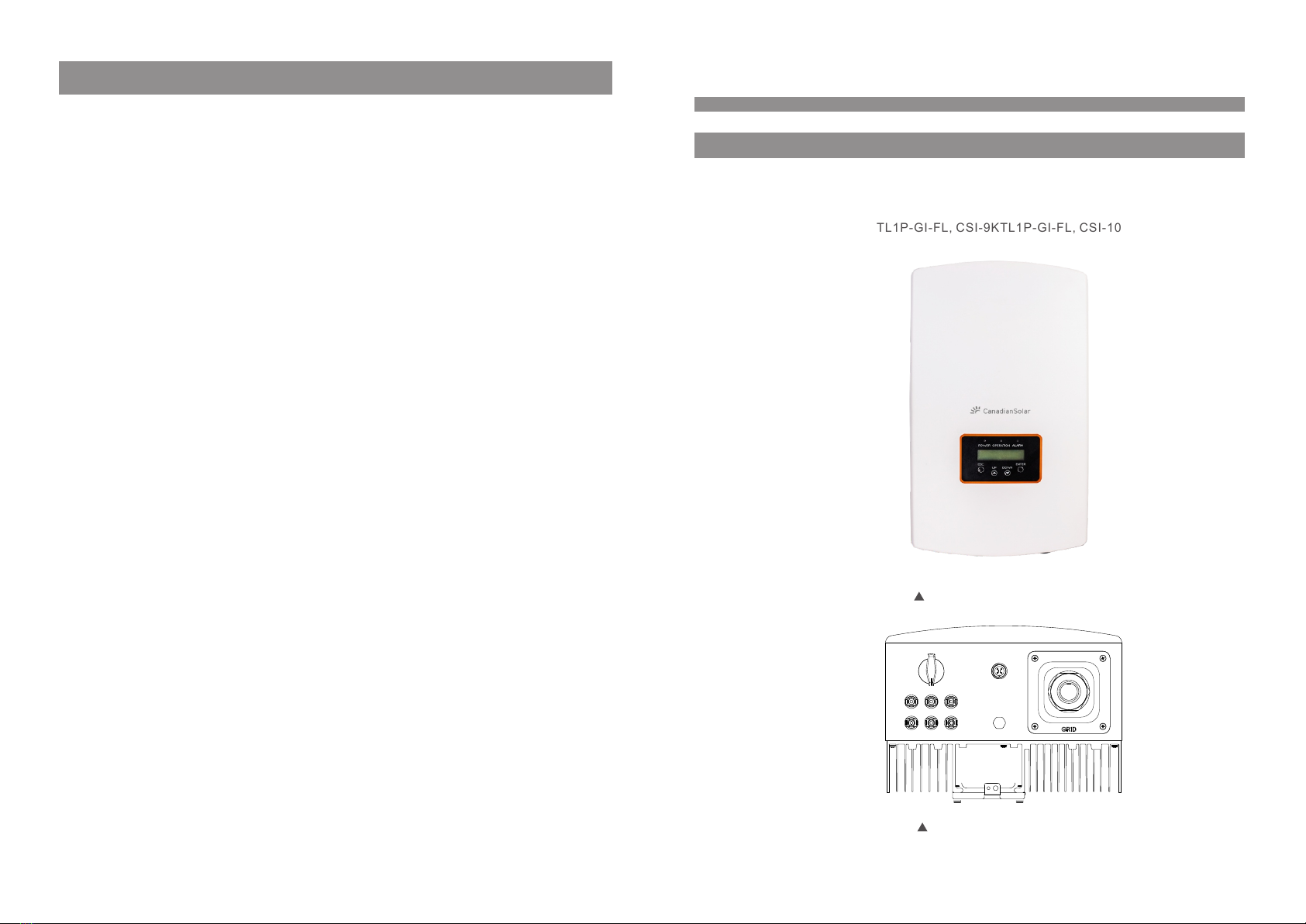

1.1 Product Description
Figure 1.1 Front side view
.3.
Canadian Solar single phase inverters integrate DRM and backflow power control
function, that could suitable for smart grid requirement.
Single phase series inverter contain 4 models which are listed below:
CSI-7KTL1P-GI-FL, CSI-8KTL1P-GI-FL, CSI-9KTL1P-GI-FL, CSI-10KTL1P-GI-FL
Figure 1.2 Bottom side view
6.3 Settings
6.3.1 Set Time
6.3.2 Set Address
6.4 Advanced Info.
6.4.1 Alarm Message
Contents
22
22
22
23
23
………………………………………………
………………………………………
……………………………………
………………………………………
………………………………
6.4.3 Version
6.4.4 Daily Energy
6.4.5 Monthly Energy and Yearly Energy
6.5 Advanced Settings
6.5.1 Select Standard
6.5.2 Grid ON/OFF
7. Maintenance
8. Troubleshooting
9. Specifications
24
24
24
25
25
27
29
29
32
…………………………………………
……………………………………
…………
…………………………………
………………………………
…………………………………
………………………………………………
…………………………………………
……………………………………………
6.4.2 Running Message 24
……………………………
28
……………………………
6.5.3 Clear Energy
6.5.4 New Password
27
27
………………………………
…………………………………
6.4.6 Daily record
6.4.7 Communication Data
25
25
……………………………………
…………………………
6.5.5 Power control
6.5.6 Calibrate Energy
27
28
………………………………
…………………………………
6.5.7 AUS STD. Settings
10. Installation and commissioning checklist
36
……………

2.Safety Instructions
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
.5.
CAUTION:
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed, could result in some damage or the destruction of the inverter.
2.1 Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
WARNING:
WARNING symbol indicates important safety instructions, which if not
correctly followed, could result in serious injury or death.
Improper use may result in potential electric shock hazards or burns. This manual
contains important instructions that should be followed during installation and
maintenance. Please read these instructions carefully before use and keep them for
future reference.
WARNING:
Please don’t connect PV array positive(+) or negative(-) to ground, it could
cause serious damage to the inverter.
1. Introduction
1.2 Packaging
1
5
32
When you receive the inverter, ensure that all the parts listed below are included:
Table 1.1 Parts list
4
.4.
CSI SERIES GRID-TIED PV Inverter
CSI-7KTL1P-GI-FL & CSI-8KTL1P-GI-FL
CSI-9KTL1P-GI-FL & CSI-10KTL1P-GI-FL
INSTALLATION AND OPERATION MANUAL
VERSION 1.2
Part #
1
Description
PV grid tie inverter
2
Wall/pole bracket
3
Locking screws
4
5
Number
1
1
1
3 pairs
1
Manual
DC connector

3. Overview

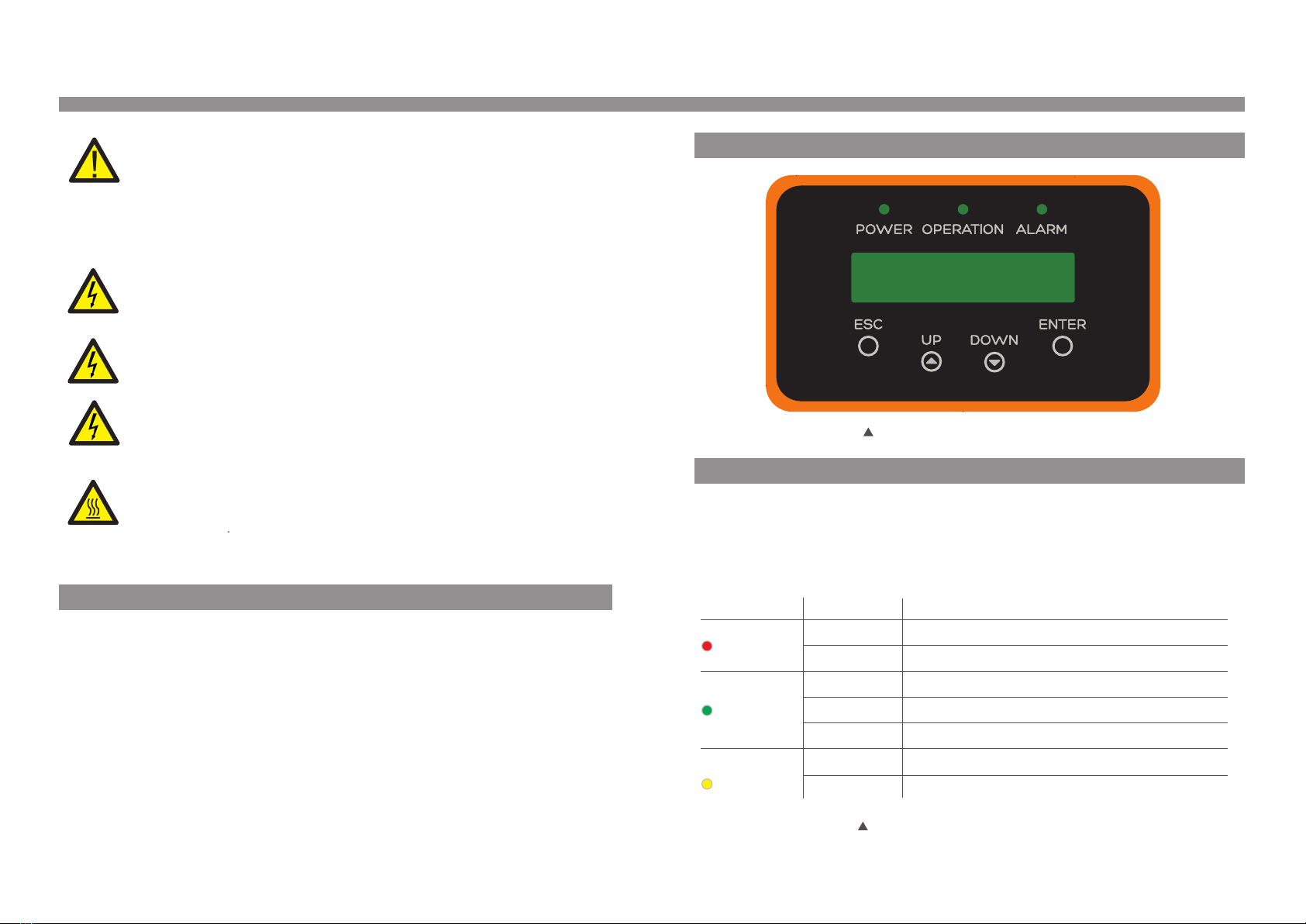

3.1 Front Panel Display
Figure 3.1 Front Panel Display
3.2 LED Status Indicator Lights
There are three LED status indicator lights in the front panel of the inverter. Left LED:
POWER LED (red) indicates the power status of the inverter. Middle LED: OPERATION
LED (green) indicates the operation status. Right LED: ALARM LED (yellow) indicates
the alarm status. Please see Table 3.1 for details
Description
The inverter can detect DC power
No DC power or low DC power
The inverter is operating properly.
The inverter has stopped to supply power.
The inverter is initializing.
Alarm or fault condition is detected.
The inverter is operating properly.
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Light
POWER
OPERATION
ALARM
Table 3.1 Status Indicator Lights
2.Safety Instructions
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
5. To startup the inverter, the Grid Supply Main Switch (AC) must be switched on, before
the solar panel's DC isolator shall be switched on. To stop the inverter, the Grid Supply
Main Switch (AC) must be switched off before the solar panel's DC isolator shall be
switched off.
.6.
CAUTION:
The PV array (Solar panels) supplies a DC voltage when they are exposed to
sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter. Do not
remove cover for 5 minutes after disconnecting all power sources(service technician
only). Warranty may be voided if the cover is removed without unauthorized .
CAUTION:
The surface temperature of the inverter can reach up to 75℃ (167 F).
To avoid risk of burns, do not touch the surface of the inverter while it’s operating.
Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the Inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic source
and output circuit conductors shall have disconnects that comply with the NEC
Article 690, Part II. All Canadian Solar single phase inverters feature an
integrated DC switch.
CAUTION:
Risk of electric shock. Do not remove cover. There is no user serviceable
parts inside. Refer servicing to qualified and accredited service technicians.
.7.

4. Installation
4.1 Select a Location for the Inverter
.9.
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
3. Overview
The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter,
which shows the following information:
Inverter operation status and data;
Service messages for operator;
Alarm messages and fault indications.
.8.
To select a location for the inverter, the following criteria should be considered:
Do not install in small closed spaces where air cannot circulate freely. To avoid
overheating, always make sure the flow of air around the inverter is not blocked.
Figure 4.1 Recommended Installation locations
Exposure to direct sunlight will increase the operational temperature of the inverter and
may cause output power limiting. Canadian Solar recommends inverter installed to avoid
direct sunlight or raining.
To avoid over heating ambient air temperature MUST be considered when choosing
the inverter installation location. Canadian Solar recommends using a sun shade
minimizing direct sunlight when the ambient air temperature around the unit exceeds
104°F/40°C.

When 1 or more inverters are installed in one location, a minimum 12inchs clearance
should be kept between each inverter or other object. The bottom of the inverter should
be 20inchs clearance to the ground.
Visibility of the LED status indicator lights and the LCD located at the front panel of
the inverter should be considered.
Adequate ventilation must be provided if the inverter is to be installed in a confined space.
NOTE:
Nothing should be stored on or placed against the inverter.
300mm
500mm
500mm
300mm 300mm
300mm 300mm
Figure 4.2 Inverter Mounting clearance
Install vertically with a maximum incline of +/- 5°.If the mounted inverter is tilted to an
angle greater than the maximum noted, heat dissipation can be inhibited, and may result
in less than expected output power.
4. Installation4. Installation
.11.
Dimensions of mounting bracket:

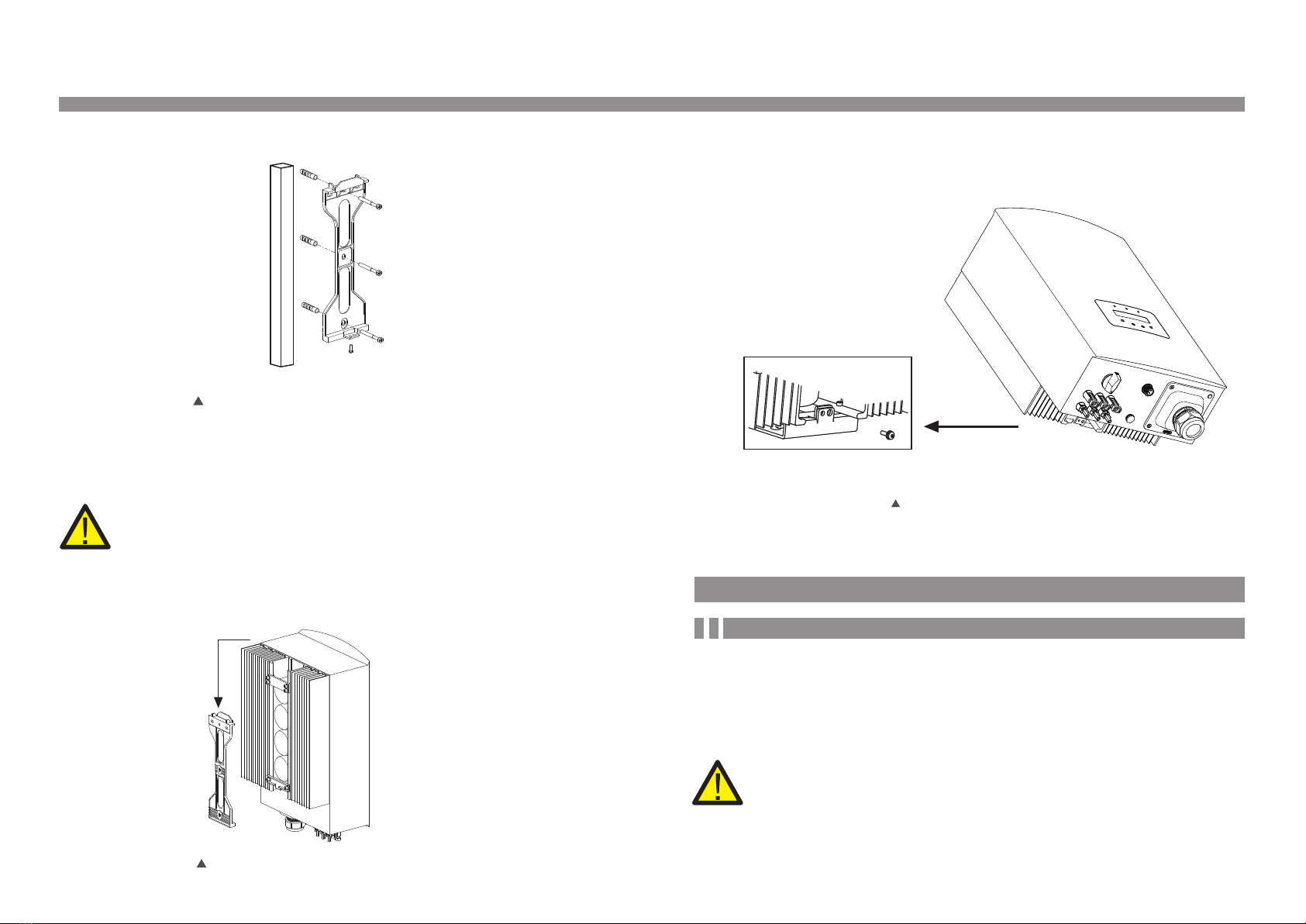

Figure 4.4 Inverter wall mounting
Please see Figure 4.4 and Figure 4.5 for instruction on mounting the inverter to a wall or pillar.
Figure 4.3 Inverter wall mounting
4.2 Mounting the Inverter
The inverter shall be mounted vertically. The steps to mount the inverter are listed below:
1. According to the figure 4.2, select the mounting height of the bracket and mark the
mounting holes. For brick walls, the position of the holes should be suitable for the
expansion bolts.
Locking screw
Suitable fixing screws
Bracket
Install on a wall or strong structure capable of bearing the weight.
.10.

.13.
4. Installation4. Installation
.12.
4.3 Electrical Connections
4.3.1 Connect PV side of inverter
The electrical connection of the inverter must follow the steps listed below:
1. Switch the Grid Supply Main Switch (AC) OFF.
2. Switch the DC Isolator OFF.
3. Assemble PV input connector to the Inverter.
Before connecting inverter, please make sure the PV array open circuit voltage is
within the limit of the inverter
Figure 4.5 Inverter pillar mounting
2.Make sure the bracket is horizontal and the mounting holes (in Figure 4.4 and Figure 4.5)
are marked correctly. Drill the holes into the wall or pillar at your marks.
WARNING:
The inverter must be mounted vertically.
3. Use the suitable screws to fix the bracket to the wall.
4. Lift up the inverter (be careful to avoid body strain), and align the back bracket on the
inverter with the convex section of the mounting bracket. Hang the inverter on the
mounting bracket and make sure the inverter is secure (see Figure 4.6)
Figure 4.6 Wall Mount Bracket
5. Use screws to fix the bottom of the inverter to the mount bracket.
Figure 4.7 Fix the inverter
The are two holes at the bottom of bracket, one to fix the inverter, another for the
lock. The diameter of the lock should be less than 0.27in (7mm).

iii) Crimp the contact pin to the wire using a proper wire crimper.
Figure 4.12 Crimp the contact pin to the wire
iv) Insert the contact pin to the top part of the connector and screw up the cap nut to
the top part of the connector.
4. Installation

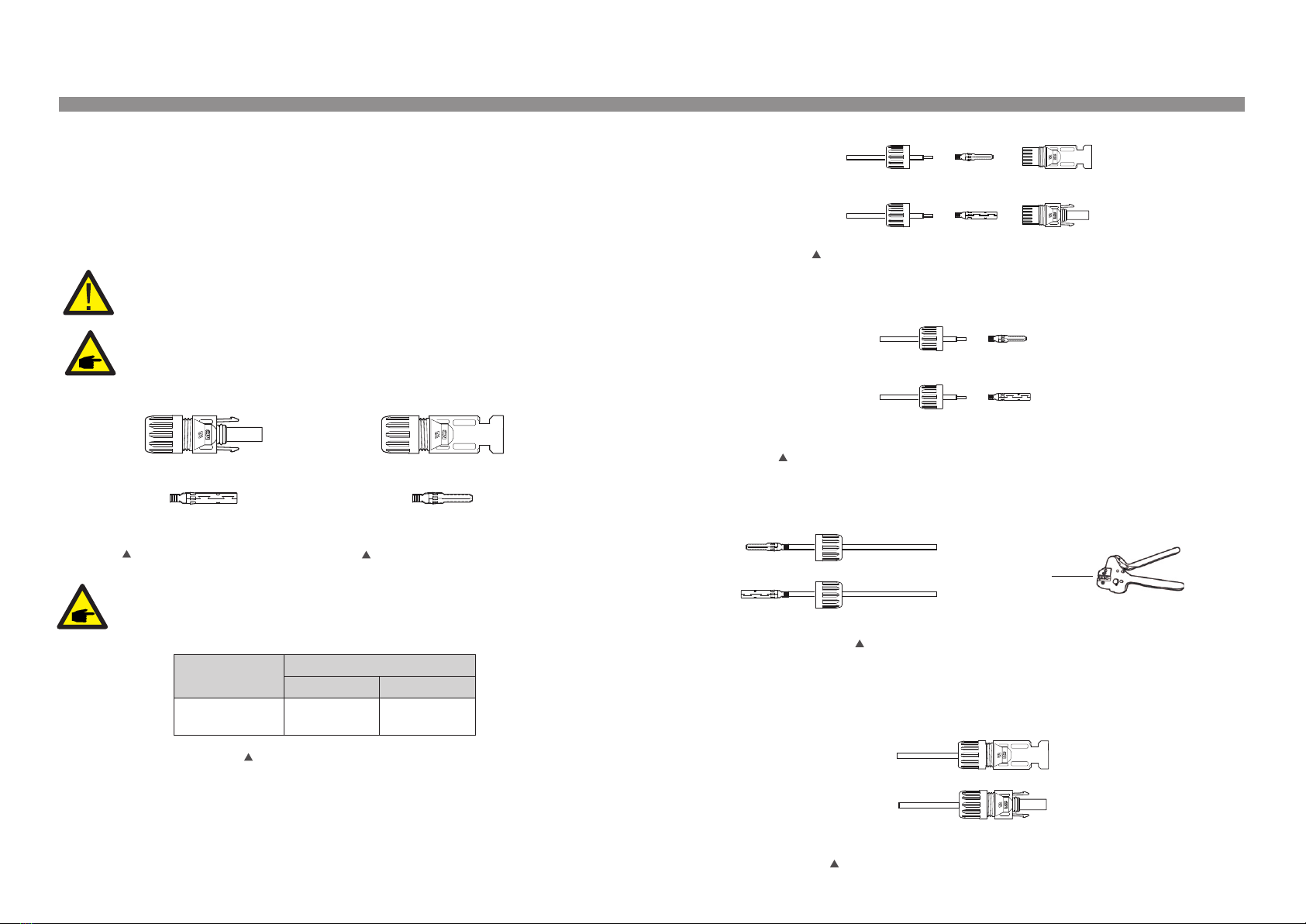

The steps to assemble the DC connectors are listed as follows:
I) Strip off the DC wire for about 7mm, Disassemble the connector cap nut.
ii) Insert the wire into the connector cap nut and contact pin.
Figure 4.10 Disassemble the Connector Cap nut
Figure 4.11 Insert the Wire into the Connector Cap nut and contact pin
4. Installation
Before connection, please make sure the polarity of the output voltage of PV array
matches the“DC+”and “DC-”symbols.
Maximum 600Voc for
CSI-7KTL1P-GI-FL CSI-8KTL1P-GI-FL
CSI-9KTL1P-GI-FL CSI-10KTL1P-GI-FL
Please don’t connect PV array positive or negative pole to the ground, it could
cause serious damages to the inverter
Figure 4.8 DC+ Connector Figure 4.9 DC- Connector
Please use approved DC cable for PV system.
Cable type
4.0~6.0
Cross section
Range
Industry generic PV cable
（model: P V1-F）
Recommended
value
4.0（12AWG）
（12~10AWG）
.15.
.14.
Table 4.1 DC cable
Figure 4.13 Connector with Cap nut Screwed on
Crimping plier

Figure 4.15 Stripped AC Wires
4. Installation
Figure 4.14 Connect the DC Connectors to the Inverter
v) Then connect the DC connectors to the inverter. Small click will confirm connection.
For all AC connections, 10- 25mm 105 ℃ cable is required to be used. Please make sure
2
the resistance of cable is lower than 1.5ohm. If the wire is longer than 20m, it's recommended
to use 16-25mm cable.
2
4. Installation
4.3.2 Connect grid side of inverter
.17.
Additional explanation:
If the diameter of the protective layer of the ACcable is less than the
recommended (18-25mm)it should be spirally wounded the protective.
B) Disassemble the 4 screws on the AC terminal cover and take out the cover.
Disassemble the screw under terminal rack and Pull out the terminal(as shown
in figure 4.16)
cable diameter 18~25mm
cable size 10-25mm
60mm
x
PE
L
N
2
x=10mm
x
The steps to assemble the AC grid terminals are listed as follows:
A) Strip the end of AC cable outer insulating jacket about 60mm then strip the end of each
wire about 10mm. (as shown in figure 4.15)
Figure 4.16 Disassemble AC terminal cover
C) Insert the 3 cables into AC terminal and use the slotted screwdriver to tight the screws.
The torque is 2-2.5Nm.( as shown in figure 4.17)
Figure 4.17 Connect cable to AC terminal
WARNING:
Please do not put the insulating layer of the cable in to the terminal when tight
the screws, otherwise it will cause poor contact.
D) Push the AC terminals along the rail to the inside of the inverter then tighten the screw
under rack. Lock the 4 screws of AC terminal and tighten the cap nut of AC terminal.
(as shown in figure 4.18)
Figure 4.18 Tighten the AC terminal
.16.

4. Installation
.18.
CSI-9KTL1P-GI-FL
CSI-8KTL1P-GI-FL
CSI-7KTL1P-GI-FL
Table 4.3 Rating of grid OCPD
The inverter can be monitored via Wi-Fi or GPRS. All communicationCanadian Solar
devices are optional (Figure 4.18). For connection instructions, please refer to the
Canadian Solar Monitoring Device installation manuals.
4.3.4 Inverter monitoring connection
Figure4.18 Wi-Fi communication function
Internet
GPRS monitoring
Wi-Fi monitoring
Smart phone monitoring
PC monitoring
Web server
Router
Wi-Fi monitoring
Wi-Fi box
5.1 Start the Inverter
To start up the Inverter, it is important that the following steps are strictly followed:
1. Switch the grid supply main Switch (AC) ON first.
2. Switch the DC switch ON. If the voltage of PV arrays are higher than start up voltage,
the inverter will turn on. The red LED power will light.
3. When both the DC and the AC sides supply to the inverter, it will be ready to generate
power. Initially, the inverter will check both its internal parameters and the parameters
of the AC grid, to ensure that they are within the acceptable limits. At the same time,
the green LED will flash and the LCD displays the information of INITIALIZING.
4. After 30-300 seconds (depending on local requirement), the inverter will start to
generate power. The green LED will be on continually and the LCD displays
GENERATING.
WARNING:
Do not touch the surface when the inverter is operating. It may be
hot and cause burns.
5.2 Stop the Inverter
To stop the Inverter, the following steps must be strictly followed:
1. Switch the Supply Main Switch (AC) OFF.
2. Wait 30 seconds. Switch the DC Switch OFF. All the LEDs of the inverter will be off in one
minute.
5. Start & Stop
To protect the inverter's AC grid connection conductors, recommends Canadian Solar
installing breakers that will protect against overcurrent. The following table defines OCPD
ratings for the 7-10kW single phase inverters. Canadian Solar
4.3.3 Max. over current protection device (OCPD)
.19.
60
60
40
Inverter Rated
voltage(V)
Current for protection
device (A)
220/230
220/230
220/230
Rated output
current (A)
31.8/30.4
36.4/34.8
40.9/39.1
60
220/230 45.5/43.5 CSI-10KTL1P-GI-FL

6. Operation
V_DC1 350.8V
I_DC1 5.1A
V_DC3 350.8V
I_DC3 5.1A
V_Grid 230.4V
I_Grid 8.1A
Status: Generating
Power: 1488W
Grid Frequency
F_Grid 60.06Hz
Total Energy
0258458 kwh
This Month: 0123kwh
Last Month: 0123kwh
Today: 15.1kwh
Yesterday: 13.5kwh
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
V_DC1: Shows input 01 voltage value.
I_DC1: Shows input 01 current value.
V_DC3: Shows input 03 voltage value.
I_DC3: Shows input 03 current value.
V_Grid: Shows the grid's voltage value
I_Grid: Shows the grid's current value.
F_Grid: Shows the grid's frequency value.
This Month: Total energy generated this month.
Last Month: Total energy generated last month.
Today: Total energy generated today.
Yesterday: Total energy generated yesterday.
Display Duration Description
Table 6.1 Information list
Inverter SN
00000000000000 10 sec Display series number of the inverter
Figure 6.2 Locks and Unlocks the Screen of LCD
(b)(a)
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 6.2(a)) or unlocks (Figure 6.2 (b)) the screen.
5.2 Stop the Inverter
6.2.1 Lock screen
6. Operation
.20. .21.
6.1 Main Menu
Figure 6.1 Operation Overview
5 sec
Start
Power 3424W
01-01-2014 12:04
Status: Generating
01-01-2014 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu
There are four submenus in the Main Menu (see Figure 6.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
6.2 Information
The Canadian Solar Single Phase 4G Inverter main menu provides access to operational
data and information. The information is displayed by selecting "Information" from the menu
and then by scrolling up or down.
During normal operation, the display alternately shows the power and the operation
status with each screen lasting for 10 seconds (see Figure 6.1). Screens can also be
scrolled manually by pressing the UP and DOWN keys. Press the ENTER key to
access to the Main Menu.
Status: Shows instant status of the Inverter.
Power: Shows instant output power value.
Total generated energy value.

6. Operation
.23.
.22.
6. Operation
6.3 Settings
The following submenus are displayed when the Settings menu is selected:
1. Set Time
2. Set Address
6.3.1 Set Time
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 6.3.
NEXT=<ENT> OK=<ESC>
01-01-2016 16:37
Figure 6.3 Set Time
Press the UP/DOWN keys to set time and data. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
6.3.2 Set Address
This function is used to set the address when muti inverters are connected to single monitor.
The address number can be assigned from “01”to “99”(see Figure 6.4). The default address
number of Canadian Solar Single Phase Inverter is “01”.
6.4 Advanced Info - Technicians Only
After enter the correct password the Main Menu will display a screen and be able to access
to the following information.
1. Alarm Message 2. Running message 3.Version 4. Daily Energy
5. Monthly Energy 6. Yearly Energy 7. Daily Record 8. Communication Data
The screen can be scrolled manually by pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a submenu. Press the ESC key to return to the Main Menu.
6.4.1 Alarm Message
The display shows the latest alarm messages (see Figure 6.6). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous
menu.
Alarm001: OV-G-V
Time: 27-11 Data: 7171
Figure 6.6 Alarm Message
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Enter menu “Advanced Info.” and “Advanced settings” （need password）.
YES=<ENT> NO=<ESC>
Password:0000
Figure 6.5 Enter password
Select “Advanced Info.” from the Main Menu. The screen will require the password as below
The default password is “0010". Please press “down” to move the cursor, press “up” to
select the number.
YES=<ENT> NO=<ESC>
Set Address: 01
Figure 6.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.

6. Operation
.24.
6. Operation
6.4.2 Running Message
6.4.3 Version
The screen shows the model version and the software version of the Inverter
(see Figure 6.7).
Model: 08
Software Version: D20001
Figure 6.7 Model Version and Software Version
This function is for maintaince person to get running message such as internal temperature,
Standard NO. etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
6.4.4 Daily Energy
The function is for checking the energy generation for selected day.
Press DOWN key to move the cursor to day, month and year, press UP key to change the
digit. Press Enter after the date is fixed.
2015-02-22: 051.3kWh
2015-02-23: 061.5kWh
Press UP/DOWN key to move one date from another.
6.4.5 Monthly Energy and Yearly Energy
The two functions are for checking the energy generation for selected month and Year
Figure 6.8 Select date for daily energy
Figure 6.9 Daily energy
Figure 6.10 Select month for monthly energy Figure 6.11 Select year for yearly energy
YES=<ENT> NO=<ESC>
Select: 2015-02-23
YES=<ENT> NO=<ESC>
Select: 2015-02
YES=<ENT> NO=<ESC>
Select: 2015
6.4.7 Communication Data
The screen shows the internal data of the Inverter (see Figure 6.14), which is for service
technicians only.
01-05: 01 25 E4 9D AA
06-10: C2 B5 E4 9D 55
Figure 6.14 Communication Data
Press DOWN key to move the cursor, press UP key to change the
digit. Press Enter after the month/year is fixed.
2015-02: 0510kWh
2015-01: 0610kWh
Press UP/DOWN key to move one date from another.
2015: 0017513kWh
2014: 0165879kWh
Figure 6.12 Month energy Figure 6.13 Yearly energy
6.4.6 Daily record
The screen shows history of changing settings. Only for maintance personel.
This function is used to select the grid's reference standard (see Figure 6.11).
YES=<ENT> NO=<ESC>
Standard:AUS-Q-0.8
Figure 6.15
6.5.1 Selecting Standard
6.5 Advanced Settings - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 6.4 to enter password to access this menu.
.25.
Select Advanced Settings from the Main Menu to access the following options:
1. Select Standard 2. Grid ON/OFF 3.Clear Energy 4. New Password
5. Power Control 6.Calibrate Energy 7.AUS STD. Settings

6. Operation
.27.
6. Operation
.26.
NOTE:
This function is for technicians use only.
Press the UP/DOWN keys to select the standard (AS4777, VDE4105, VDE0126, UL-240V-A,
UL-208V-A, UL-240V, UL-208V, MEX-CFE, G83/2 (for 1-3.6kW models), G59/3 (for 4-5kW
models), EN50438 DK, EN50438 IE, EN50438 NL and “User-Def” function). Press the
ENTER key to confirm the setting. Press the ESC key to cancel changes and returns to
previous menu.
Selecting the “User-Def” menu will access to the following submenu (see Figure 6.16),
6.5.2 Grid ON/OFF
This function is used to start up or stop the power generation of Canadian Solar Single
Phase Inverter (see Figure 6.17).
Grid ON
Grid OFF
Figure 6.17 Set Grid ON/OFF
Screens can be scrolled manually by pressing the UP/DOWN keys. Press the ENTER key
to save the setting. Press the ESC key to return to the previous menu.
This function is used to set the new password for menu “Advanced info.” and “Advanced
information” (see Figure 6.18).
Enter the right password before set new password. Press the DOWN key to move the
cursor, Press the UP key to revise the value. Press the ENTER key to execute the setting.
Press the ESC key to return to the previous menu.
6.5.4 New Password
Figure 6.18 Set new password
YES=<ENT> NO=<ESC>
Password: 0000
6.5.3 Clear Energy
Clear Energy can reset the history yield of inverter
These two functions are applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
6.5.5 Power control
Active and reactive power can be set through power setting button.
There are 5 item for this sub menu:
1. Set output power 2. Set Reactive Power 3. Out_P With Restore
4. Rea_P With Restore 5. Select PF Curve
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
Figure 6.16
Below is the setting range for “User-Def”. Using this function, the limits can be changed
manually.
NOTE:
The " User-Def" function can be only used by the service engineer and
must be allowed by the local energy supplier.
OV-G-V1: 220---290V OV-G-F1: 50.2-53Hz(60.2-64Hz)
OV-G-V1-T: 0.1---9S OV-G-F1-T: 0.1---9S
OV-G-V2: 220---290V OV-G-F2: 50.2-53Hz(60.2-64Hz)
OV-G-V2-T: 0.1---1S OV-G-F2-T: 0.1---9S
UN-G-V1: 90---210V UN-G-F1: 47-49.5Hz(56-59.8Hz)
UN-G-V1-T: 0.1---9S UN-G-F1-T: 0.1---9S
UN-G-V2: 90---210V UN-G-F2: 47-49Hz(56-59.8Hz)
UN-G-V2-T: 0.1---1S UN-G-F2-T: 0.1---9S
OV-G-V1: 260V
OV-G-V1-T: 1S
Press the UP/DOWN keys to scroll through items. Press the ENTER key to edit the highlighted
item. Press the UP/DOWN keys again to change the setting. Press the ENTER key to save the
setting. Press the ESC key to cancel changes and returns to the previous menu.
Startup-T:10-600S Restore-T: 10-600S
NOTE:
This inverter inclding two level protections for voltage and frequency
under user-def mode; please set the same value both level one and
level two if the gird only have one level requriement, eg. Brazil...etc.

6. Operation
Maintenance or replacement could clear or cause a different value of total energy. Use this
function could allow user to revise the value of total energy to the same value as before. If
the monitoring website is used the data will be synchronous with this setting automatically.
(see Figure 6.19).
Press the DOWN key to move the cursor, Press the UP key to revise the value. Press the
ENTER key to execute the setting. Press the ESC key to return to the previous menu.
6.5.6 Calibrate Energy
Figure 6.19 Calibrate energy
YES=<ENT> NO=<ESC>
Energy:0000000kWh
.29.
.28.
6.5.7 AUS STD. Settings
This sub menu is enabled when the grid standard is set to AS4777. To comply with New AUS/
NZ 4777.2, Canadian Solar inverter could set different work mode to work with different
grid requirement.
There are 5 work mode in working mode submenu.
1. Fixed PF 2. Reac. Power 3. Power-PF 4. Volt-Watt 5. Volt-Var.
There are 4 setting under AUS STD settings.
1. Working mode 2. Power Rate limit 3. Freq. Derate set 4. 10mins OV-G-V set.
1. Fixed PF
Set PF (-0.8, +0.8), Default 1, Resolution 0.01
2. Reac. Power
Set reacive power (0, 60%), Default 0, Resolution 1%
The parameter in each model could be set as below:
7. Maintenance
8. Troubleshooting
The inverter is designed in accordance with the most important international grid-tied
standards and safety and electromagnetic compatibility requirements. Before delivering to
the customer, the inverter has been subjected to several tests to ensure its optimal operation
and reliability.
In case of failure, the LCD screen will display an alarm message. In this case, the inverter
may stop feeding into the grid. The failure descriptions and their corresponding alarm
messages are listed in Table 8.1:
Canadian Solar Single Phase Inverter does not require any regular maintenance. However,
cleaning the dust on heat-sink will help the inverter to dissipate the heat and increase its life
time.
The dust can be removed with a soft brush.
CAUTION:
Do not touch the inverter's surface when it is operating. Some parts of the inverter
may be hot and cause burns. Turn off the inverter (refer to Section 5.2) and wait for
a cool-down period before before any maintenance or cleaning operation.
The LCD and the LED status indicator lights can be cleaned with a damp cloth if they are too
dirty to be read.
NOTE:
Never use any solvents, abrasives or corrosive materials to clean the inverter.
7.Maintenance

8. Trouble Shooting
.31.
.30.
8. Trouble Shooting
NOTE:
If the inverter displays any alarm message as listed in Table 8.1; please
turn off the inverter (refer to Section 5.2 to stop your inverter) and wait for 5
minutes before restarting it (refer to Section 5.1 to start your inverter). If the
failure persists, please contact your local distributor or the service center.
Please keep ready with you the following information before contacting us.
1. Serial number of Canadian Solar Single Phase Inverter;
2. The distributor/dealer of Canadian Solar Single Phase Inverter (if available);
3. Installation date.
4. The description of problem (i.e. the alarm message displayed on the LCD and the status
of the LED status indicator lights. Other readings obtained from the Information submenu
(refer to Section 6.2) will also be helpful.);
5. The PV array configuration (e.g. number of panels, capacity of panels, number of strings
, etc.);
6. Your contact details.
Table 8.1 Fault message and description
Alarm Message
OV-G-V01/02/03/04
OV-G-F01/02
UN-G-F01/02
G-IMP
NO-GRID
OV-DC01/02/03/04
OV-BUS
UN-BUS01/02
GR ID-INTF01/02
IN I-FAULT
OV-TEM
Failure description
Over grid voltage
Under grid voltage
Over grid frequency
Under grid frequency
High grid impedance
No grid voltage
Over DC voltage
Over DC bus voltage
Under DC bus voltage
Grid interference
Initialization system fault
Over Temperature
Solution
1.Resistant of AC cable is too high.
Change bigger size grid cable
2.Adjust the protection limit if it’s
allowed by electrical company.
1.Check connections and grid switch.
2.Check the grid voltage inside inverter
terminal.
1.Reduce the module number in series
1.Restart inverter
2.Change power board
1.Check PV input connections
2.Check DC input voltage
(single phase >120V, three phase >350V)
3.Check if PV+/- is reversed
Inverter no power
on LCD
No power
LCD show initializing
all the time can not start-up
1.Check if the connector on main
board or power board are fixed.
2.Check if the DSP connector to
power board are fixed.
1.Check inverter surrounding ventilation.
2.Check if there’s sunshine direct on
inverter in hot weather.
1.Use user define function to adjust the
protection limit if it’s allowed by
electrical company.
1.Check inverter inductor connection
2.Check driver connection
1.Restart inverter or contact installer.
UN-G-V01/02
DC-INTF DC input overcurrent
1.Restart inverter
2.Identify and remove the string to the fault MPPT
2.Change power board
IG FOL-F Grid current tracking fail
OV-G-I Over grid current
OV-DCA-I
IG BT-OV-I Over IGBT current
12Power-FAULT 12V power supply fault
1.Restart inverter or contact installer.
IG-AD Grid current sampling fail
DSP-B-FAULT Comm. failure between main
and slave DSP
1.Remove all DC input, reconnect and
restart inverter one by one.
2.Identify which string cause the fault and
check the isolation of the string.
DCinj-FAULT High DC injection current
1.Check AC and DC connection
2.Check inverter inside cable connection.
1.Restart inverter or contact installer.
1.Restart inverter or contact installer.
Alarm Message Failure description Solution
PV ISO-PRO
01/02 PV isolation protection
ILeak-PRO
01/02/03/04 Leakage current protection
RelayChk-FAIL Relay check fail

.33.
.32.
47...52 or 57...62
Max. DC input voltage (Volts)
MPPT voltage range (Volts)
Max. input current (Amps)
MPPT number/Max input strings number
Rated grid voltage (Volts)
Rated output current (Amps)
Power Factor (at rated output power)
Operating frequency range (Hertz)
Max.efficiency
EU efficiency
MPPT efficiency
Max. DC input power (Watts)
Grid voltage range (Volts)
Model
Dimensions
Weight
Topology
Operating ambient temperature range
Ingress protection
Noise emission (typical)
Cooling concept
Max.operation altitude
Designed lifetime
Connention
Grid connection standard
Operating surroundings humidity
333W*573H*249D (mm)
600
10+10+10
15.6+15.6+15.6
3/3
220/230
160...285
50/60
98.1%
97.6%
>99.5%
18kg
Transformerless
IP65
<30 dBA
Natural convection
4000m
>20 years
-25℃.. .60℃
Display
Monitoring
Communication connections
Warranty Terms
Rated output power (Watts)
Max. output power (Watts)
Max. apparent output power (VA)
0...100% Condensing
Mc4 connector and Ip67 rated plug
LCD, 2×20 Z.
WiFi or GPRS
4 pins RS485 connector
5 Years STD (Extendable to 20 Years)
EN50438, G83/2, AS4777.2:2015,
VDE0126-1-1, IEC61727, VDE N4105
330
7000
7700
7700
31.8/30.4
8000
THDi (at rated output power) <1.5%
100...500
Startup voltage (Volts) 120
Max short circuit input current (Amps)
Rated DC voltage (Volts)
Rated grid frequency (Hertz)
47...52 or 57...62
Max. DC input voltage (Volts)
MPPT voltage range (Volts)
Max. input current (Amps)
MPPT number/Max input strings number
Rated grid voltage (Volts)
Rated output current (Amps)
Power Factor (at rated output power)
Operating frequency range (Hertz)
Max.efficiency
EU efficiency
MPPT efficiency
Max. DC input power (Watts)
Grid voltage range (Volts)
Model
Dimensions
Weight
Topology
Operating ambient temperature range
Ingress protection
Noise emission (typical)
Cooling concept
Max.operation altitude
Designed lifetime
Connention
Grid connection standard
Operating surroundings humidity
333W*573H*249D (mm)
600
10+10+10
15.6+15.6+15.6
3/3
220/230
160...285
50/60
98.1%
97.6%
>99.5%
18kg
Transformerless
IP65
<30 dBA
Natural convection
4000m
>20 years
-25℃.. .60℃
Display
Monitoring
Communication connections
Warranty Terms
Rated output power (Watts)
Max. output power (Watts)
Max. apparent output power (VA)
0...100% Condensing
Mc4 connector and Ip67 rated plug
LCD, 2×20 Z.
WiFi or GPRS
4 pins RS485 connector
5 Years STD (Extendable to 20 Years)
EN50438, G83/2, AS4777.2:2015,
VDE0126-1-1, IEC61727, VDE N4105
330
8000
8800
8800
36.4/34.8
9200
THDi (at rated output power) <1.5%
100...500
Startup voltage (Volts) 120
Max short circuit input current (Amps)
Rated DC voltage (Volts)
Rated grid frequency (Hertz)
CSI-7KTL1P-GI-FL CSI-8KTL1P-GI-FL
0.8leading~0.8lagging [1]0.8leading~0.8lagging [1]

.34.
47...52 or 57...62
Max. DC input voltage (Volts)
MPPT voltage range (Volts)
Max. input current (Amps)
MPPT number/Max input strings number
Rated grid voltage (Volts)
Rated output current (Amps)
Power Factor (at rated output power)
Operating frequency range (Hertz)
Max.efficiency
EU efficiency
MPPT efficiency
Max. DC input power (Watts)
Grid voltage range (Volts)
Model
Dimensions
Weight
Topology
Operating ambient temperature range
Ingress protection
Noise emission (typical)
Cooling concept
Max.operation altitude
Designed lifetime
Connention
Grid connection standard
Operating surroundings humidity
333W*573H*249D (mm)
600
10+10+10
15.6+15.6+15.6
3/3
220/230
160...285
50/60
98.1%
97.6%
>99.5%
18kg
Transformerless
IP65
<30 dBA
Natural convection
4000m
>20 years
-25℃.. .60℃
Display
Monitoring
Communication connections
Warranty Terms
Rated output power (Watts)
Max. output power (Watts)
Max. apparent output power (VA)
0...100% Condensing
Mc4 connector and Ip67 rated plug
LCD, 2×20 Z.
WiFi or GPRS
4 pins RS485 connector
5 Years STD (Extendable to 20 Years)
EN50438, G83/2, AS4777.2:2015,
VDE0126-1-1, IEC61727, VDE N4105
330
9000
9900
9900
40.9/39.1
10800
THDi (at rated output power) <1.5%
100...500
Startup voltage (Volts) 120
Max short circuit input current (Amps)
Rated DC voltage (Volts)
Rated grid frequency (Hertz)
47...52 or 57...62
Max. DC input voltage (Volts)
MPPT voltage range (Volts)
Max. input current (Amps)
MPPT number/Max input strings number
Rated grid voltage (Volts)
Rated output current (Amps)
Power Factor (at rated output power)
Operating frequency range (Hertz)
Max.efficiency
EU efficiency
MPPT efficiency
Max. DC input power (Watts)
Grid voltage range (Volts)
Model
Dimensions
Weight
Topology
Operating ambient temperature range
Ingress protection
Noise emission (typical)
Cooling concept
Max.operation altitude
Designed lifetime
Connention
Grid connection standard
Operating surroundings humidity
333W*573H*249D (mm)
600
10+10+10
15.6+15.6+15.6
3/3
220/230
160...285
50/60
98.1%
97.6%
>99.5%
18kg
Transformerless
IP65
<30 dBA
Natural convection
4000m
>20 years
-25℃.. .60℃
Display
Monitoring
Communication connections
Warranty Terms
Rated output power (Watts)
Max. output power (Watts)
Max. apparent output power (VA)
0...100% Condensing
Mc4 connector and Ip67 rated plug
LCD, 2×20 Z.
WiFi or GPRS
4 pins RS485 connector
5 Years STD (Extendable to 20 Years)
EN50438, G83/2, AS4777.2:2015,
VDE0126-1-1, IEC61727, VDE N4105
330
10000
10000
10000
45.5/43.5
11500
THDi (at rated output power) <1.5%
100...500
Startup voltage (Volts) 120
Max short circuit input current (Amps)
Rated DC voltage (Volts)
Rated grid frequency (Hertz)
CSI-9KTL1P-GI-FL CSI-10KTL1P-GI-FL
.35.
0.8leading~0.8lagging [1]0.8leading~0.8lagging [1]
[1]: For Brazil products, the certificated PF range is 0.9 leading~0.9 lagging, but the actual range is 0.8 leading~0.8lagging.
