INSTALLATION INSTRUCTIONS
CITIE
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN FOR 24 HOURS
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (ENGLISH)
1-800-567-2513 (FRENCH)
Monday through Friday 8:00 a.m. to 5:00 p.m. EST
IMPORTANT
FOR YOUR RECORDS, RECORD AND KEEP
THE FOLLOWING INFORMATION
Date of purchase:
Place of purchase:
Model on carton:
I.D.# (bottom of carton):
UPC (bottom of carton):

1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances or
national electrical codes.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, use a metal octagon box.
The outlet box and its support must be able to withstand the moving
weight of the fan (minimum of 35 lbs.).
SAFETY PRECAUTIONS
TOOLS AND MATERIALS REQUIRED
Adjustable wrench
Phillips screwdriver
Blade screw driver
Step ladder
Wire cutters
Wiring supplies as required
• to reduce the risk of personal injury DO NOT bend the blade brackets
when installing the brackets, balancing the blades or cleaning the fan.
Also, DO NOT insert foreign objects in between rotating fan blades.
• mount only to an outlet box marked acceptable for fan support
• mount with the lowest moving parts at least 2.1 meters (6.9 feet) above
floor grade level.
• DO NOT operate reversing switch while fan blades are in motion. Fan
must be turned off and rotating blades stopped, reverse chain pull, the
speed chain pulled again to start in the opposite direction.
WARNING
pg. 1

pg. 2
ASSEMBLY DRAWING
1. wooden joist
2. metal outlet box (not provided)
3. ceiling
4. mounting bracket
5. outlet box screws
6. wood screws & flat washers
7. downrod
8. canopy
9. canopy cover
10. yoke cover
11. bolt
12. cotter pin
13. motor
14. blade screw
15. fiber washer
16. blade
17. light kit plate
18. light kit
19. 75W E11 bulb
20. glass shade
21. receiver
22. remote control
12
11
10
9
5
17
18
19
20
21
22
16
14
15
13
4
2
6
3
1
7
8
WITH DOWNROD

pg. 3
• obtain fan motor
• remove cotter pin and bolt from yoke
• loosen jam screw in yoke until it is flush with the inside surface
• obtain dowrod, canopy, canopy cover and yoke cover
• place downrod inside canopy, canopy cover and yoke cover
• route wires and safety cable exiting motor through canopy and downrod
• insert bolt through hole in shaft and downrod
*be careful not to damage or cut the fan wires
• secure bolt with cotter pin
• secure downrod in position by tightening jam screws and lock nut
• place glass motor housing onto motor top
• slide yoke cover (optional) over yoke
1. MOUNTING
*NOTE: all set screws must be checked and re-tightened where
necessary after installation.
INSTALLATION
DOWNROD MOUNT
jam screw
lock nut
motor
jam screw
yokecotter pin bolt
yoke
jam
screw

pg. 4
• secure rubber gasket and mounting bracket to metal outlet box using
outlet box screws
• secure once more by placing two wood screws and flat washers (supplied)
through outer slots of mounting bracket and into the wood joist. Leave one
of the wood screws sufficiently loose to allow the safety cable to be looped
around before final tightening.
2. INSTALL MOUNTING BRACKET
INSTALLATION
wood screws &
flat washers
outlet box
screws
mounting
bracket
metal outlet box
wood joist
ceiling

pg. 5
• obtain fan and place hemisphere of downrod into mounting bracket
• rotate fan until the slot in the hemisphere locks into the tab of the
mounting bracket
• place looped end of safety cable over the wood screw and flat washer
not previously tightened (in Step 3)
• tighten above wood screw securing the safety cable
3. HOOKING UP SAFETY CABLE (DOWNROD MOUNT)
safety
cable
hemisphere
mounting
bracket
tab
slot
hemisphere
safety
cable
mounting
bracket
INSTALLATION

pg. 6
This remote control unit is equipped with 16 code combinations to prevent
possible interference from or to other remote units. The frequency switches on
your receiver and remote control have been preset at the factory. Please
recheck to make sure the switches on the remote control and the receiver are
set to the same position. Any combination of settings will operate the fan as long
as the remote control and receiver are set to the same position.
Insert the receiver into the mounting bracket with the flat side of the receiver
facing the ceiling.
4. PREPARING THE RECEIVER AND REMOTE CONTROL
INSTALLATION
remote control
receiver
receiver
ON
mounting
bracket

pg. 7
There are several different wiring combinations that can be used in controlling
After connecting the wires, spread them apart so that the green and white
wires are on one side of the outlet box and the black and blue wires are on
the other side. Carefully tuck the wire connections up into the outlet box.
your ceiling fan to meet your specific requirements. Should the following method
not meet your requirements call or visit your nearest Canarm distributor for a full
list of fan accessories.

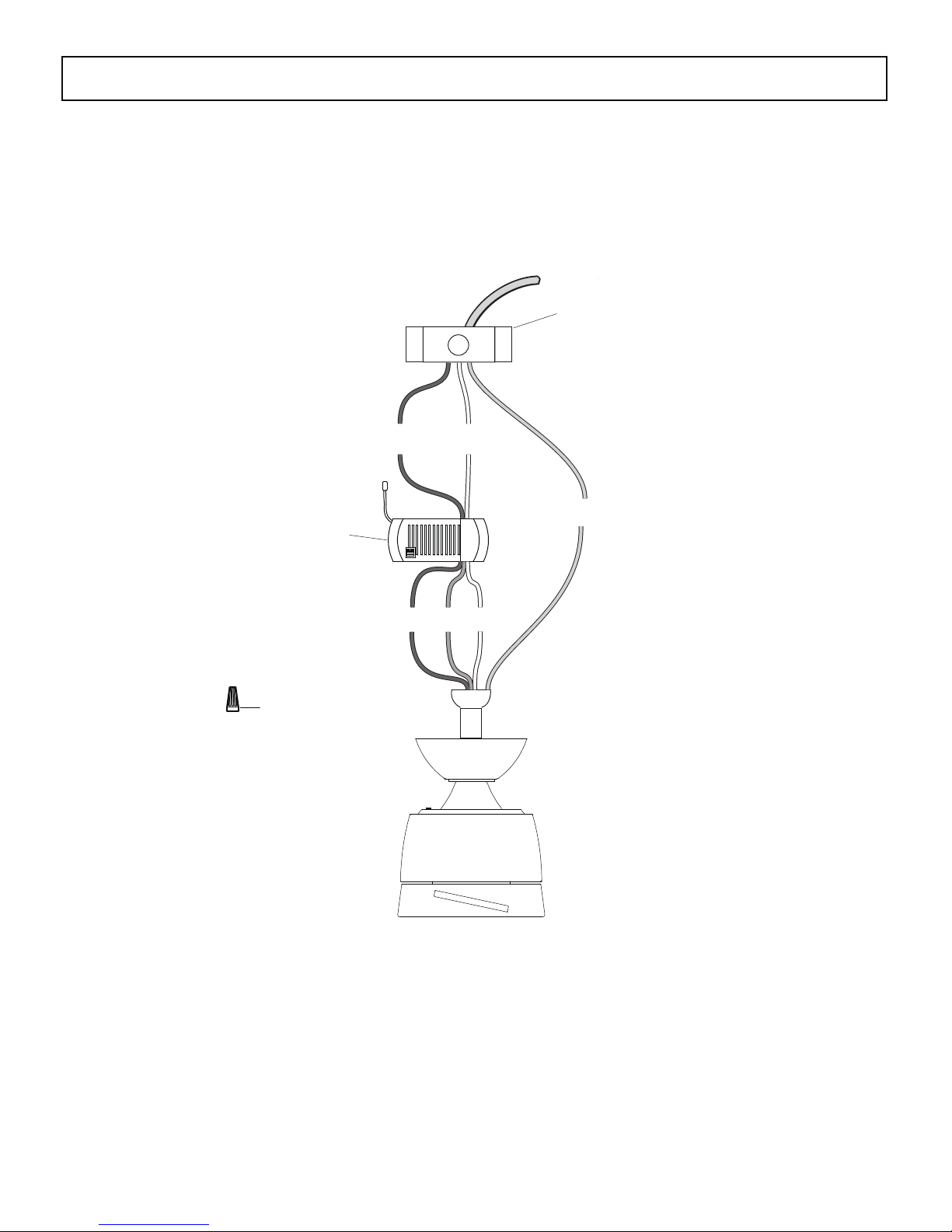

5. MAKING THE ELECTRICAL CONNECTIONS
INSTALLATION
receiver
outlet box
Wire nuts (x6)
Black White
Black White
Green
Black Blue White
Black Blue White
Green

mounting bracket
pg. 8
INSTALLATION
6. SECURING THE FAN MOTOR ASSEMBLY TO
THE MOUNTING BRACKET
screw
screw
canopy
canopy
cover
Remove one screw from the mounting bracket and loosen the other screw
approximately 1/4 turn.
Carefully raise the canopy up to the mounting bracket, and ensure the
loosened screw is inserted into the key hole on the canopy. Rotate the canopy
clockwise.
Secure the canopy by replacing the screw previously removed and tightening
the screw previously loosened.
Place the canopy cover on the canopy, and rotate the canopy cover
clockwise until it locks into position.

pg. 9
INSTALLATION
7. BLADE INSTALLATION
Fan motor assembly
Blade screw
Fiber washer
Blade
Insert the blades through the slots on the fan motor assembly.
Attach the fan blades to the fan motor assembly using the blade screws and
fiber washer and tighten them securely.
Repeat this step for the other blades.

pg. 10
INSTALLATION
7. INSTALLING THE LIGHT KIT
Light kit plate
Mounting ring
Screw Screw
Light kit plate
Light kit
Halogen bulb
White wire
Black wire
Light kit plate
Glass shade
ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped
with a 190 watt limiting device, If lamping exceeds 190watts, the ceiling fan’s
light kit will shut off automatically.
Remove one of three screws from the fan motor assembly mounting ring, and
loosen the other two screws, but do not remove.
Place the key holes from the light kit plate over the two screws previously
loosened from the fan motor assembly mounting ring. Turn the light kit plate
until it locks in place at the narrow section of the key holes. Secure by tightening
the two screws previously loosened and the one screw previously removed.
Remove one of three screws from the light kit plate, and loosen the other two
screws, but do not remove.
Connect the white wire from the fan motor assembly to the white wire from
the light kit.
Connect the black wire from the fan motor assembly to the black wire from
the light kit.
Place the key holes from the light kit over the two screws previously loosened
from the light kit
plate. Turn the light kit until it locks in place at the narrow section of the key
holes. Secure by tightening the two screws previously loosened and the one
screw previously removed.
Install the halogen bulb into the socket located in the light kit.
Attach the glass shade to the light kit plate by twisting tightly.

pg. 11
INSTRUCTIONS
Restore power to the ceiling fan and test for proper operation.
“ , , ” buttons: Sets the fan speed.
“ ” button: Turns the fan off.
“ ” button: Turns the light ON or OFF. Press and hold the button to set the
desired brightness.
The reverse switch is located on the coupling. This switch controls directions:
forward (switch down) or reverse (switch up).
NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.
Warm weather - (Counterclockwise Direction) A downward air flow creates a
cooling effect. This allows you to set your air conditioner on a higher setting
without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves warm air off the
ceiling. This allows you to set your heating unit on a lower setting without
affecting your comfort.
CEILING FAN OPERATION
DOWNDRAFT UPDRAFT
reverse rotation forward rotation
WARM WEATHER COLD WEATHER

pg. 12
TROUBLE SHOOTING
TROUBLE SUGGESTION
Fan will not start • check fuses and circuit breakers
• check wiring connections to the fan
• check wiring connections in switch housing
*CAUTION: Turn power off for last two items
Fan sounds noisy •check to make sure that all screws in motor housing are snug
• check to make sure that blade bracket screws are tight
• check to make sure marrettes in switch housing are not
rattling against the wall of the switch housing
• if fan has a light kit make sure switch housing, screws and
set screws are tight
• some fan motors are sensitive to signals from solid state
variable controls. If solid state controller is used, change to
alternative control (See a Canarm representative for a list of
available controls.)
• allow a 24 hour break in period to eliminate noises
Fan wobbles or
shakes excessively
• check that all blades are screwed firmly into blade brackets
• check that all blade brackets are secured firmlyto motor
•check distance from tip of blades to ceiling. Gently bend
the blade brackets up or down until all distances are the same
•check distance between blade tip to blade tip.
All measurements should be equal. Loosen blade screws
and positionblade until even then re-tighten
• check that the downrod hemisphere notchis engaged in canopy
•check to make sure that jam screws in downrod are tightened
•make sure canopy and mounting bracket are tightened
securely to wooden joist
•make sure warpage has not occurred in woodenblades.
If so, contact the Canarmcustomer service department for
replacement parts
•occasionally slight weight variations can be caused by
moisture during transportation. All fans are supplied with
balancing kits and installationinstructionsto eliminate this
problem

CANARM LTD.
2157 Parkedale Ave.
Brockville, Ontario
K6V 5V6
PH: 613-342-5424
FX: 613-342-8437
CANARM LTÉE.
2555 Rue Bernard Lefebvre
Laval, Quebec
H7C 0A5
PH: 450-665-2535
FX: 450-665-0910
CANARM 5 YEAR LIMITED WARRANTY
“THANK YOU” for purchasing a Canarm product. It is our policy to furnish you
with high quality products at a fair price. With proper installation your fan should
provide you with years of money saving comfort.
This fan is guaranteed to be free from defects in workmanship and material for a
period of five (5) years from date of purchase. Within the first (1) year from date of
purchase any defective product should be returned to your RETAIL OUTLET along
with proof of purchase. For the balance of the warranty, four (4) years, the MOTOR
WINDINGS ONLY, shall be free of defects. We will correct such defects or replace
the motor assembly at our option if the product is returned, FREIGHT PREPAID, to
Canarm. The returned fan must be accompanied by your proof of purchase and a
cheque for $20.00 for handling and labour charges.
All costs of removing and re-installing the product are YOUR RESPONSIBILTY.
Damage to any part as such by accident, misuse, improper installation or by
affixing any accessories IS NOT covered by this warranty. As a result of varying
climatic conditions in our area this warranty does not cover any changes in
finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance
with instructions or REMOVAL of the cUL Sticker.
