Canarm PACIFIC WIND User manual

03/10
INSTALLATION INSTRUCTIONS
PACIFIC WIND - ENERGY STAR
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN FOR 24 HOURS
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (ENGLISH)
1-800-567-2513 (FRENCH)
Monday through Friday 8:00 a.m. to 5:00 p.m. EST
IMPORTANT
FOR YOUR RECORDS, RECORD AND KEEP
THE FOLLOWING INFORMATION
Date of purchase:
Place of purchase:
Model on carton:
I.D.# (bottom of carton):
UPC (bottom of carton):

1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances or
national electrical codes.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, use a metal octagon box.
The outlet box and its support must be able to withstand the moving
weight of the fan (minimum of 35 lbs.).
SAFETY PRECAUTIONS
TOOLS AND MATERIALS REQUIRED
Adjustable wrench
Phillips screwdriver
Blade screw driver
Step ladder
Wire cutters
Wiring supplies as required
• to reduce the risk of personal injury NO NOT bend the blade brackets
when installing the brackets, balancing the blades or cleaning the fan.
Also, NO NOT insert foreign objests in between rotating fan blades.
• mount only to an outlet box marked acceptable for fan support
• mount with the lowest moving parts at least 2.1 meters (6.9 feet) above
oor grade level.
• NO NOT operate reversing switch while fan blades are in motion. Fan
must be turned off and rotating blades topped, reverse chain pull, the
speed chain pllled again to start in the opposite direction.
WARNING
pg. 2

pg. 3

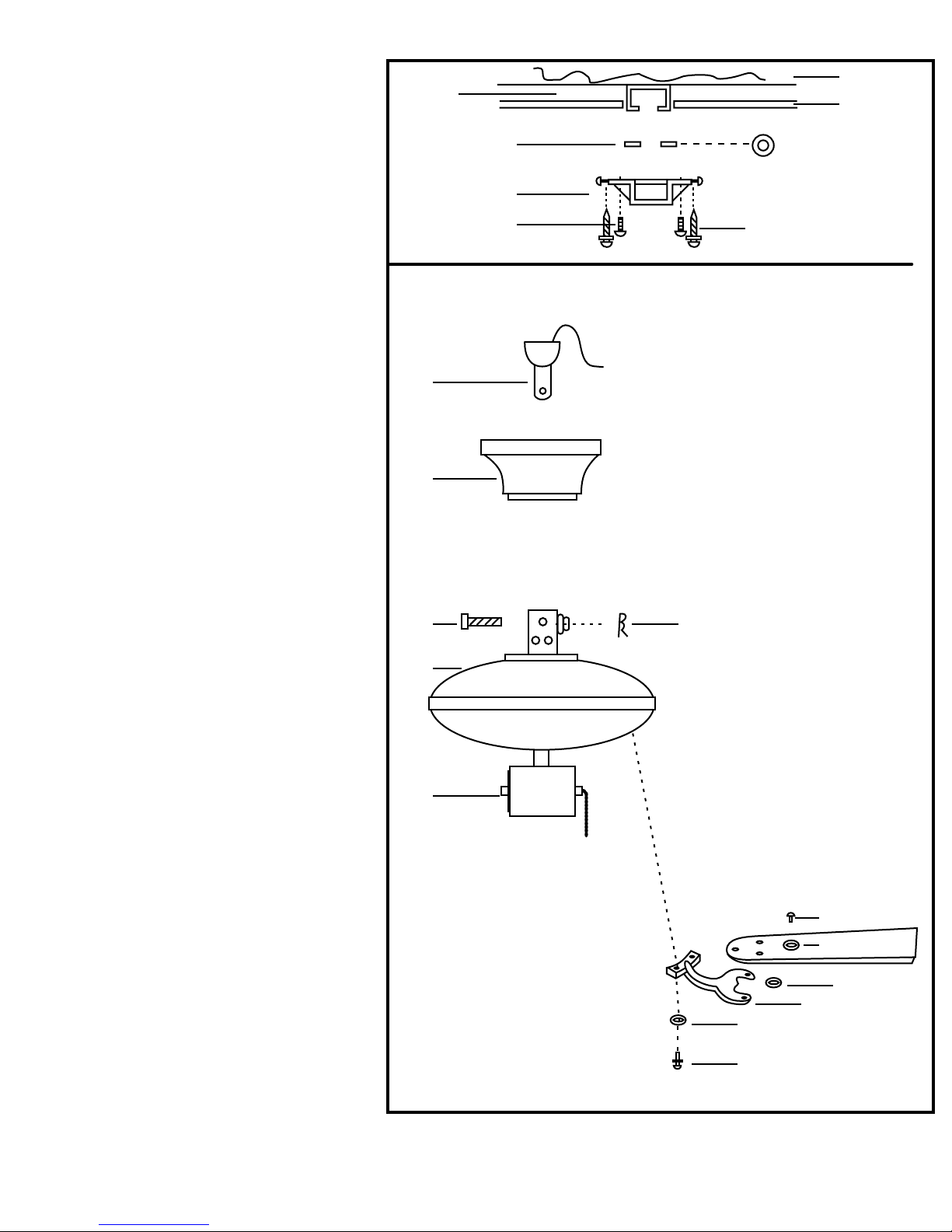

ASSEMBLY DRAWING
1. wooden joist
2. metal outlet box (not provided)
3. ceiling
4. rubber gasket
5. mounting bracket
6. outlet box screws
7. wood screws & at washers
8. downrod
9. canopy
10. bolt
11. cotter pin
12. motor
13. blade bracket screw
14. bre washer
15. blade
16. rubber washer
17. blade bracket
18. lock washer
19. motor screw
20. switch housing
NOTE: Item #16 is only supplied on fans with high gloss blades
1110
12
9
6
19
18 17 16
14 15
13
5
4
2
7
3
1
8
WITH DOWNROD
20

pg. 4
• obtain fan motor
• remove cotter pin and bolt from yoke
• loosen jam screw in yoke until it is ush with the inside surface
• obtain dowrod and canopy (and yoke cover - optional)
• place downrod inside canopy (and yoke cover - optional)
• route wires and safety cable exiting motor through canopy and downrod
• insert bolt through hole in shaft and downrod
*be careful not to damage or cut the fan wires
• secure bolt with cotter pin
• secure downrod in position by tightening jam screws and lock nut
• place glass motor housing onto motor top
• slide yoke cover (optional) over yoke
1. MOUNTING
*NOTE: all set screws must be checked and re-tightened where
necessary after installation.
INSTALLATION
DOWNROD MOUNT
jam screw
lock nut
motor
yoke cover
(optional)
jam screw
yokecotter pin bolt
yoke
jam
screw

pg. 5
• secure rubber gasket and mounting bracket to metal outlet box using
outlet box screws
• secure once more by placing two wood screws and at washers (supplied)
through outer slots of mounting bracket and into the wood joist. Leave one
of the wood screws sufciently loose to allow the safety cable to be looped
around before nal tightening.
2. INSTALL MOUNTING BRACKET
INSTALLATION
wood screws &
at washers
outlet box
screws
mounting
bracket
rubber gasket
metal outlet box
wood joist
ceiling

pg. 6
• obtain fan and place hemisphere of downrod into mounting bracket
• rotate fan until the slot in the hemisphere locks into the tab of the
mounting bracket
• place looped end of safety cable over the wood screw and at washer
not previously tightened (in Step 3)
• tighten above wood screw securing the safety cable
3. HOOKING UP SAFETY CABLE (DOWNROD MOUNT)
safety
cable
hemisphere
mounting
bracket
tab
slot
hemisphere
safety
cable
mounting
bracket
INSTALLATION

pg. 7
There are several different wiring combinations that can be used in controlling
your ceilingfan to meet your specic requirements. Should the following method
not meet your requirements call or visit your nearest Canarm distributor for a full
list of fan accessories.
4. ELECTRICAL HOOKUP
INSTALLATION
NOTE: Once ground wires are connected, carefully tuck wires and marrette into
the metal outlet box making sure that the wires are clear of the hemisphere and
downrod when positioning in the mounting bracket.
A. CONNECTING THE GROUND WIRE (GREEN)
CAUTION
GREEN wire - GROUND
BLACK wire (fan) - POWER
WHITE wire (fan) - COMMON
RED/BLUE wire (light kit) - POWER
See SAFETY PRECAUTIONS
on page 2 before wiring

pg. 8
INSTALLATION
B. CONNECTING BLACK, WHITE & (BLUE OR RED) WIRES
4. ELECTRICAL HOOKUP (CONTINUED)
• connect white wire from outlet box to white wire from fan using marrette (not supplied).
• connect black wire from outlet box to black wire from fan plus (red or blue wire)
using a marrette.
NOTE: A red or blue wire would be power for a light kit if applicable.
NOTE: Once ground wires are connected, carefully tuck wires and marrette into the
metal outlet box making sure that the wires are clear of the hemisphere and downrod
when positioning in the mounting bracket.
white
ground
blue/red
black

pg. 9
5. MOUNTING FAN ASSEMBLY
INSTALLATION
• loosen two screws and washers (B) on mounting bracket which correspond
with the slots in the canopy
• remove two screws and washers (A) on the mounting bracket which
correspond with the oblong holes in the canopy.
• position the canopy to the mounting bracket, aligning slots to the screws (B)
then twist to lock
• position and tighten two screws and washers (A) then tighten the two screws (B)
A
B
B
A

pg. 10

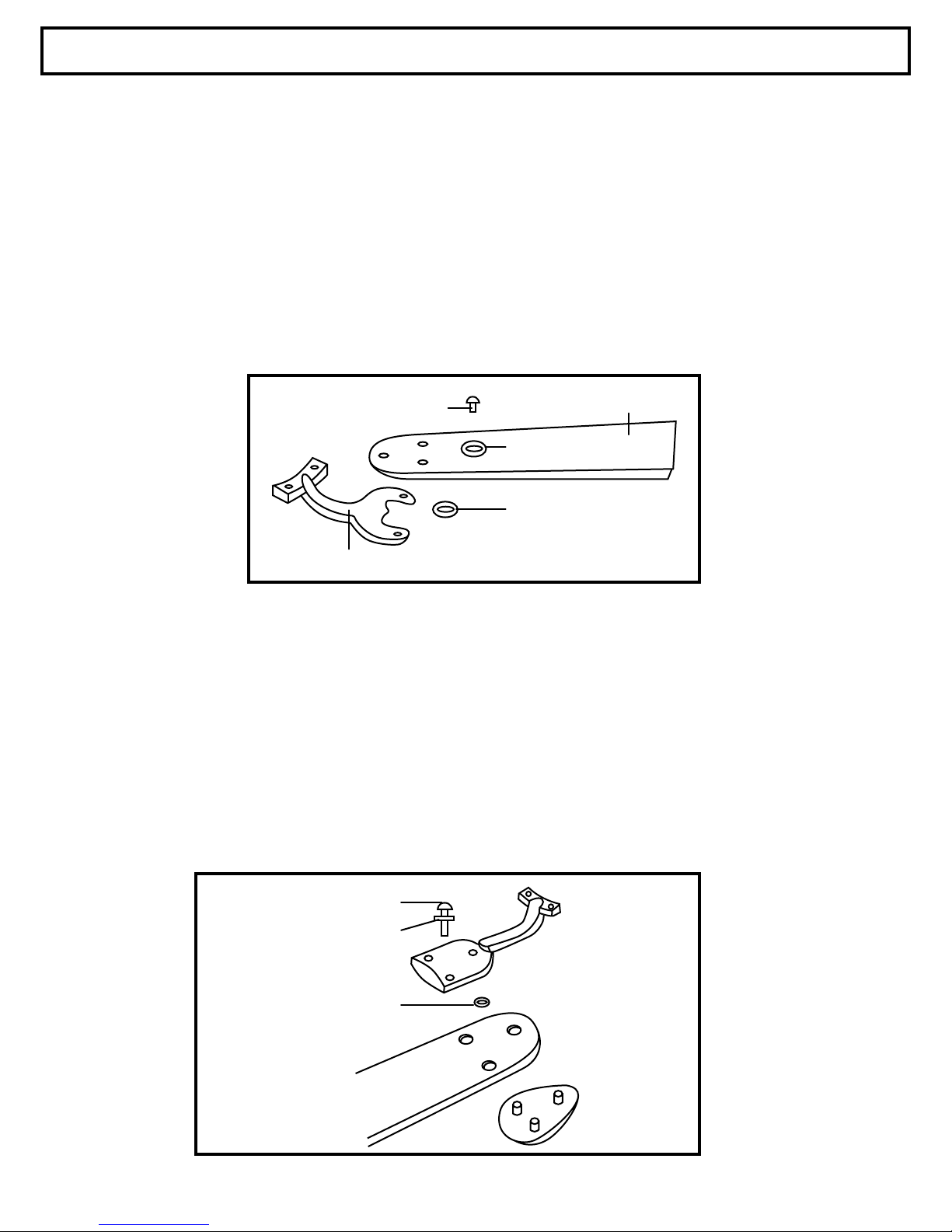

6. MOUNTING BLADE BRACKETS TO BLADES
INSTALLATION
A. “DIECAST” BLADE BRACKETS
• obtain hardware package containing blade bracket screws and washers.
• place bre washer over screw.
• place screw through blade hole and slip a rubber washer over the screw.
• align screw with blade bracket and secure.
• repeat for other two screws.
• once all blade brackets are attached to blades double check that screws are tight.
NOTE: Rubber washers only supplied on those fans with high gloss blades
B. “MEDALLION STYLE” BLADE BRACKETS
• obtain hardware package containing blade bracket screws and washers.
• place bre washer over screw.
• place rubber washers in holes of blades.
• position bottom blade bracket and top blade bracket with blade.
• start screws and bre washers by placing into top blade bracket and blade
and threading into the bottom bracket.
• tighten screws only after the 3 screws have been started and blade brackets
are straight on the blades.
blade bracket screw
blade bracket
blade
bre washer
rubber washer
bre washer
blade bracket screw
blade
bottom
blade bracket
top
blade bracket
rubber washer

pg. 11

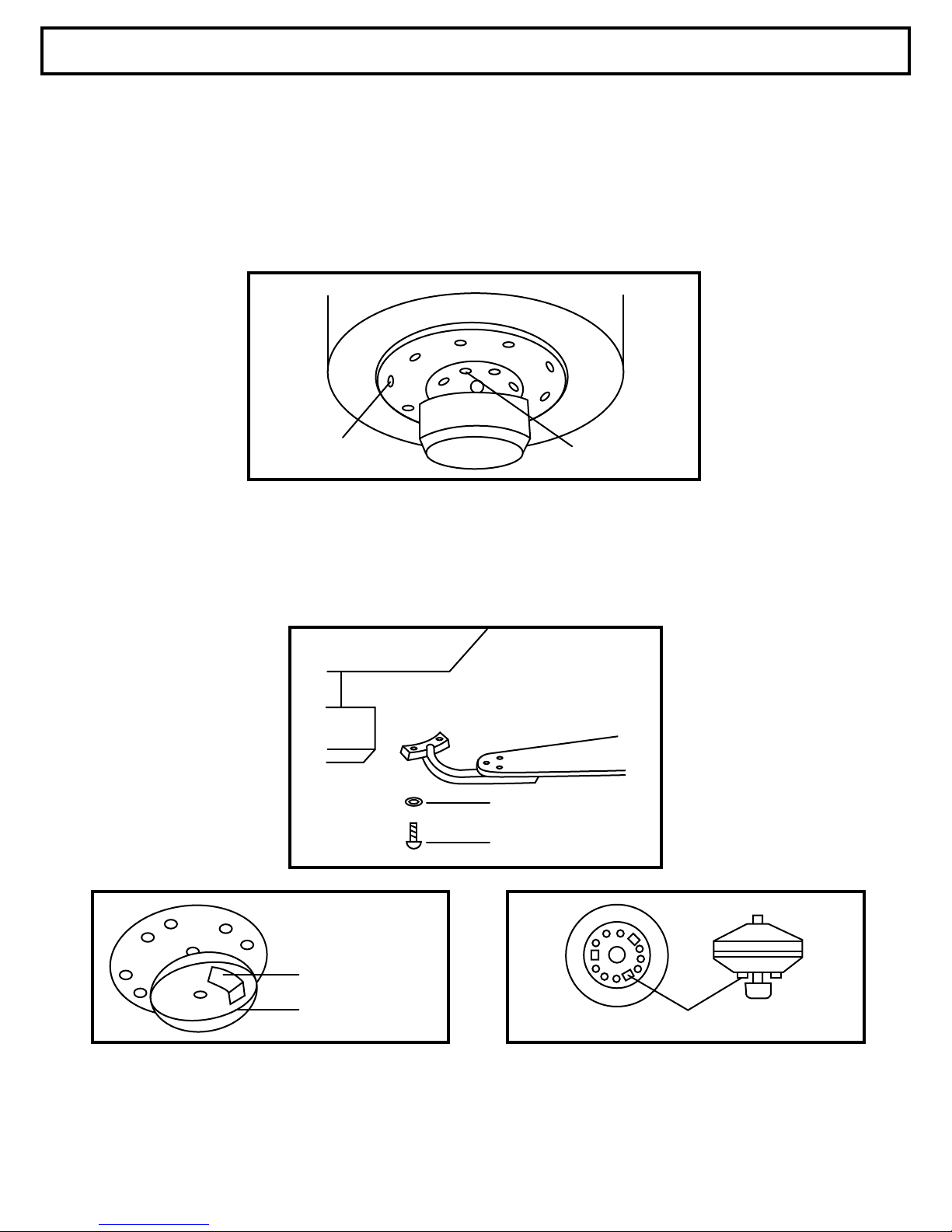

7. MOUNTING BLADE BRACKETS TO BLADES TO MOTOR
INSTALLATION
NOTE: Choice of 4 or 5 blades (option on some fans)
Some fans offer the option of four or ve blade operation. In these cases there will
be two rows of screw holes in the motor casing. The inside row will contain 8 holes
for 4 blades and the outside row will contain 10 holes for 5 blade use.
• obtain hardware containing motor screws and lock washers.
• place lock washers over motor screws, position motor screws in blade
brackets,and secure to motor.
• make sure all screws are tightened securely.
NOTE: On those fans with an extra
wide switch housing cover there will
be a cut out section provided allowing
access to screws when installing the
blade brackets.
NOTE: Fan comes with THREE RUBBER
STOPS on motor for shipping purposes
only. Remove stops before installing the
blades to the motor.
inside holesoutside holes
motor
lock washer
motor screw
cut out section
switch housing
cover remove rubber stops

pg. 12

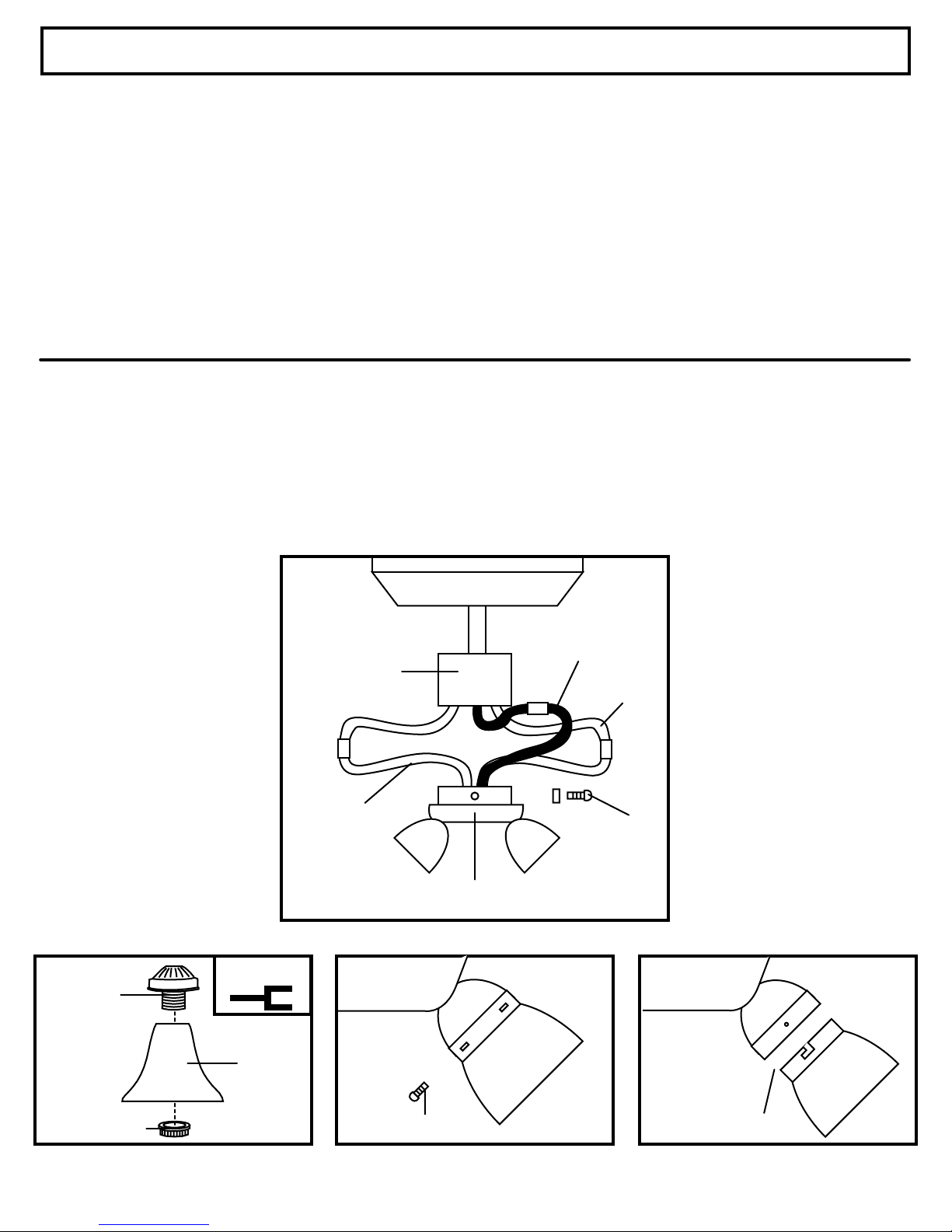

8. DETACHABLE LIGHT KITS
INSTALLATION
WARNING: BE SURE TO TURN OFF POWER BEFORE INSTALLING
• remove light kit screws and washers.
• connect polarized connectors of light kit
to corresponding connectors found in switch housing
• carefully tuck electrical wires back into switch housing, align light kit with
switch housing and secure with three light kit screws and washers.
FIG. A, B, C, D:
• place shades on light kit and secure with either screws, nger tight, or push
and turn for pop-off style shades.
• install proper wattage and type of bulb identied on light kit or shade.
light kit
light kit
screws
black
blue
switch
housing
white
shade shade
light kit light kit
push and turn
thumb screw
tool
glass
xture
socket
spinner nut

pg. 13

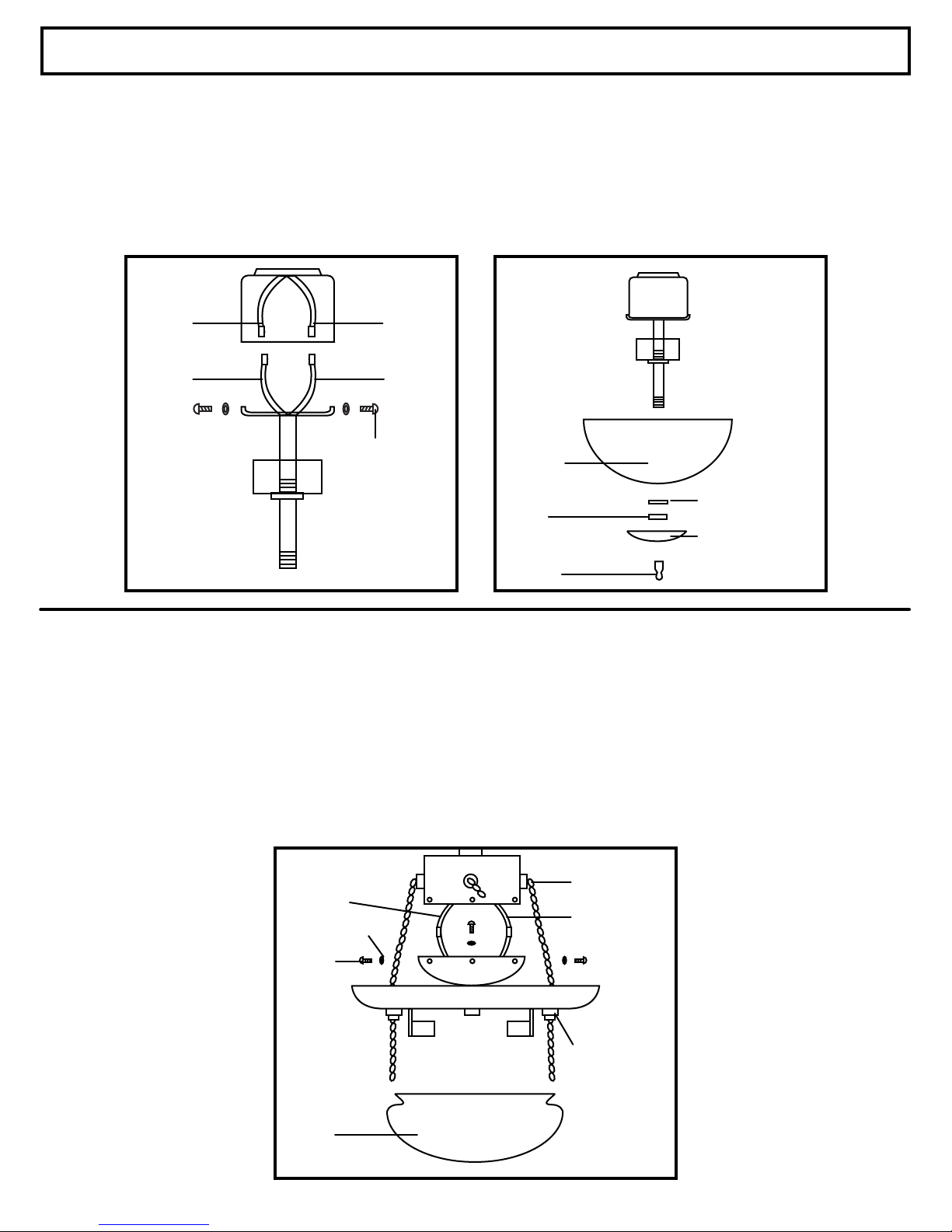

8. DETACHABLE LIGHT KITS (CONTINUED)
INSTALLATION
FIG. E, F:
• install proper wattage and type of bulb identied on light housing or shade.
• place glass on light housing and secure
FIG. G:
• remove 2 clips and nuts. Loosen third clip and nut.
• place proper bulb type and wattage into the xture.
• align slots in glass bowl with nipples on xture. Slide glass into loosened clip.
Assemble the other 2 clips to the xture and then tighten all three nuts in place.
• connect tassels to switches feeding chains through nuts on light kit.
NOTE: Pull chain switches are available for some models.
blue
lock washer
screw
glass
clips and
nuts
chain
white
glass
nial
decorative
cover
nut bre washer
light kit
screws
white
white
blue
black
FIG. E FIG. F
FIG. G

pg. 14
INSTRUCTIONS
A ceiling fan has a totally internal switching system for total operation by way of
pull chain on a fan/light combination. Three pull chains will exist. One for light, on and off.
The second is for fan speeds. This will be marked (SPEED) on the fan switch housing.
1st Pull will give fan High Speed
2nd Pull will give fan Medium Speed
3rd Pull will give fan Low Speed
4th Pull will Shut Fan Off
The second pull chain is for Forward/Reverse (Note: Some models come with a slide
switch instead of a pull chain). This setting would usually be changed once per year.
Downdraft for summer to create a wind chill to give a cooling effect. An Updraft in
winter to circulate the hot stratied air off the ceiling and back down to the oor
without creating a wind chill.
Fans should be installed with the blades at least 3cms below the ceiling, 200cms from the oor and
60cms from the nearest wall. • Air should be moved downwards from the deiling in the summer to
provide a cooling breeze on the room occupants. • If the fan is used in the winter, air should be moved
upwards towards the ceiling to disperse the warm air that tends to accumulate there an distribute it
more evenly in the room. • During the summer, switch the fan and light off when you leave the room.
Fans don’t actually cool a room, they just cool you by circulating air.
CEILING FAN OPERATION
DOWNDRAFT UPDRAFT
reverse rotation forward rotation
WARM WEATHER COLD WEATHER

pg. 15
TROUBLE SHOOTING
TROUBLE SUGGESTION
Fan will not start • check fuses and circuit breakers
• check wiring connections to the fan
• check wiring connections in switch housing
*CAUTION: Turn power off for last two items
Fan sounds noisy • check to make sure that all screws in motor housing are snug
• check to make sure that blade bracket screws are tight
• check to make sure marrettes in switch housing are not
rattling against the wall of the switch housing
• if fan has a light kit make sure switch housing, screws and
set screws are tight
• some fan motors are sensitive to signals from solid state
variable controls. If solid state controller is used, change to
alternative control (See a Canarm representative for a list of
available controls.)
• allow a 24 hour break in period to eliminate noises
Fan wobbles or
shakes excessively
• check that all blades are screwed rmly into blade brackets
• check that all blade brackets are secured rmly to motor
• check distance from tip of blades to ceiling. Gently bend
the blade brackets up or down until all distances are the same
• check distance between blade tip to blade tip.
All measurements should be equal. Loosen blade screws
and position blade until even then re-tighten
• check that the downrod hemisphere notch is engaged in canopy
• check to make sure that jam screws in downrod are tightened
• make sure canopy and mounting bracket are tightened
securely to wooden joist
• make sure warpage has not occurred in wooden blades.
If so, contact the Canarm customer service department for
replacement parts
• occasionally slight weight variations can be caused by
moisture during transportation. All fans are supplied with
balancing kits and installation instructions to eliminate this
problem

CANARM LTD.
2157 Parkedale Ave.
Brockville, Ontario
K6V 5V6
PH: 613-342-5424
FX: 613-342-8437
CANARM LTÉE.
2555 Rue Bernard Lefebvre
Laval, Quebec
H7C 0A5
PH: 450-665-2535
FX: 450-665-0910
CANARM 30 YEAR LIMITED WARRANTY
“THANK YOU” for purchasing a Canarm product. It is our policy to furnish you
with high quality products at a fair price. With proper installation your fan should
provide you with years of money saving comfort.
This fan is guaranteed to be free from defects in workmanship and material for a
period of thirty (30) years from date of purchase. Within the rst (1) year from date
of purchase any defective product should be returned to your RETAIL OUTLET
along with proof of purchase. For the balance of the warranty, twenty nine (29)
years, the MOTOR WINDINGS ONLY, shall be free of defects. We will correct such
defects or replace the motor assembly at our option if the product is returned,
FREIGHT PREPAID, to Canarm. The returned fan must be accompanied by your
proof of purchase and a cheque for $20.00 for handling and labour charges.
All costs of removing and re-installing the product are YOUR RESPONSIBILTY.
Damage to any part as such by accident, misuse, improper installation or by
afxing any accessories IS NOT covered by this warranty. As a result of varying
climatic conditions in our area this warranty does not cover any changes in
nishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance
with instructions or REMOVAL of the cUL Sticker.
