Candela EMR2 User manual

REV 2023 0222
SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT CANDELA LIGHTING FOR UP TO DATE DETAILS.
CANDELA LIGHTING • CANDELA.LIGHTING
Before you begin, read these instructions completely and carefully.
• Be certain electrical power is OFF before and during installation, maintenance and removal.
• Luminaire wiring must be properly grounded in accordance with the NEC and any applicable local code requirements.
• Use only UL or IEC approved wire for input/output connections.
• Verify that supply voltage matches voltage on luminaire label. Installation to any other connection may void the warranty.
• Wear gloves during installation to prevent injury and do not expose wiring to metal or sharp edges.
• Do not install in areas subject to combustible vapors or gases. Verify luminaire location ratings are suitable for installation environment (refer to specification sheet as needed).
• Do not restrict luminaire’s ventilation by covering with material that will cause luminaire to overheat and potentially shorten the life span.
• Ensure LED luminaire has the correct polarity before installation.
IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of personal injury or property damage from fire, electrical shock, falling parts, abrasions, burns
and all other hazards, read all provided warnings and follow installation instructions.
This product should be installed, inspected and maintained by a qualified and licensed electrician. Installation of luminaire
must be in accordance with NEC and local code requirements.
ELECTRIC SHOCK FALLING PARTS
ABRASIONS BURNS
EMR2 EMERGENCY LIGHT ROUND HEADS LED
Installation Manual
SAVE THESE INSTRUCTIONS 1

REV 2023 0222
SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT CANDELA LIGHTING FOR UP TO DATE DETAILS.
CANDELA LIGHTING • CANDELA.LIGHTING
EMR2 EMERGENCY LIGHT ROUND HEADS LED
Installation Manual
SAVE THESE INSTRUCTIONS 2

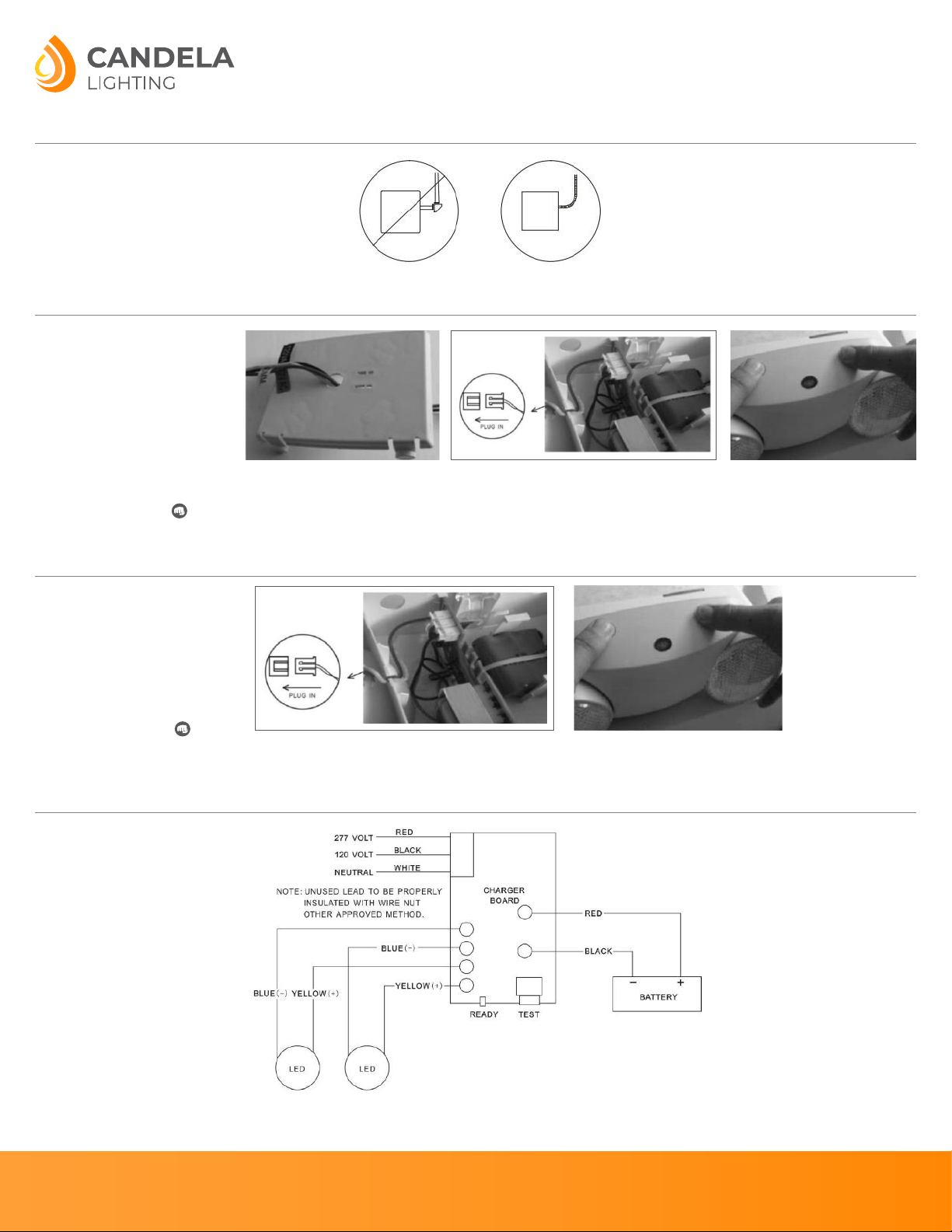

FLEXIBLE CONDUIT ONLY
INSTALLATION INSTRUCTIONS (J-BOX MOUNTING)
INSTALLATION INSTRUCTIONS (CONDUIT)
A) Feed xture leads through the
backplate and connect to AC power
supply. (Figure 1)
B) Connect wires through J-Box.
Mount backplate on J-Box and secure
with screws.
C) Connect battery only after
continuous AC power can be provided
to the unit. (Figure 2)
D) Align clips and push housing
directly onto main bottom case. Apply
continuous AC power and press 'TEST"
button to check the light. (Figure 3)
E) Installation is complete.
A) Secure back plate to wall surface.
Route wires through hole in conduit
ange and make conduit connection.
B) Connect battery only after
continuous AC power can be provided
to the unit (Figure 4).
C) Align clips and push housing
directly onto the backplate (Figure C).
Apply continuous AC power and press
“TEST” button to check the light.
D) Installation is complete.
ELECTRICAL CONNECTIONS
FIGURE 1 FIGURE 2 FIGURE 3
FIGURE 4 FIGURE 5
