INSTALLATION ANDUSER’S MANUAL
Model
CCE 16/1 X-07
CCE 16/1N-07
CCE 16/1 W-07

2
CONTENT
INTRODUCTION.......................................................................3
SAFETYPRECAUTION..........................................................3-4
WALL MOUNTING INSTALLATION.......................................5-9
PREPARE FOR INSTALLATION...............................................5
INSTALLATION(VE NTOUTSIDE)...........................................6-8
INSTALLATION(VE NTINSIDE)..................................................9
ISLAND MODEL INSTALLATION............................................10
MAINTENANCE...................................................................10-11
TROUBLESHOOTING..............................................................11
ENVIRONMENTALPROTECTION......................................11-12

3
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctlyand safety, please read this instruction
manual carefully before installation and usage.
The cooker hood use high quality materials, and is made with a
streamlined design. Equipped with large power electricmotor and
centrifugal fan, it also provides strong suction power, low noiseoperation,
non-stick grease filter and easy assembly installation.
SAFETY PRECAUTION
  Never let the children operate the machine.
 The cooker hood is for home use only,not
suitable for barbecue, roast shop and other
commercial purpose.
 The cooker hood and its filter should be
clean regularly in order to keep in good
working condition.
 Clean the cooker hood according to the
instruction manual and keep the unit from
danger of burning. There is a fire risk if
cleaning is not carried out in accordance
with the instructions.
 Forbid the direct baking from the gas
cooker.
 Please keep the kitchen room a good
convection.
 If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agentor similarly qualified persons in order
to avoid a hazard.
 There shall be adequate ventilation of the
room when the range hoodis used at the
same time as appliances burning gas or

4
other fuels;
 he air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels;
 Regulations concerning the discharge of air
have to be fulfilled.
 This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
 Children should be supervised to ensure
that they do not play with the appliance.
 Cleaning and user maintenance shall not
be made by children without supervision.
 Do not flame under the range hood.
 CAUTION: Accessible parts may become
hot when used with cooking appliance.
 The warning shall be in the same part of the
instructions that include details of how to
mount the equipment.
Electrical ShockHazard
 Only plug this unit into a properly earthed outlet. If
in doubt seek advice from a suitably qualified
engineer.
 Failure to follow these instructions can result in
death, fire, or electrical shock.

5

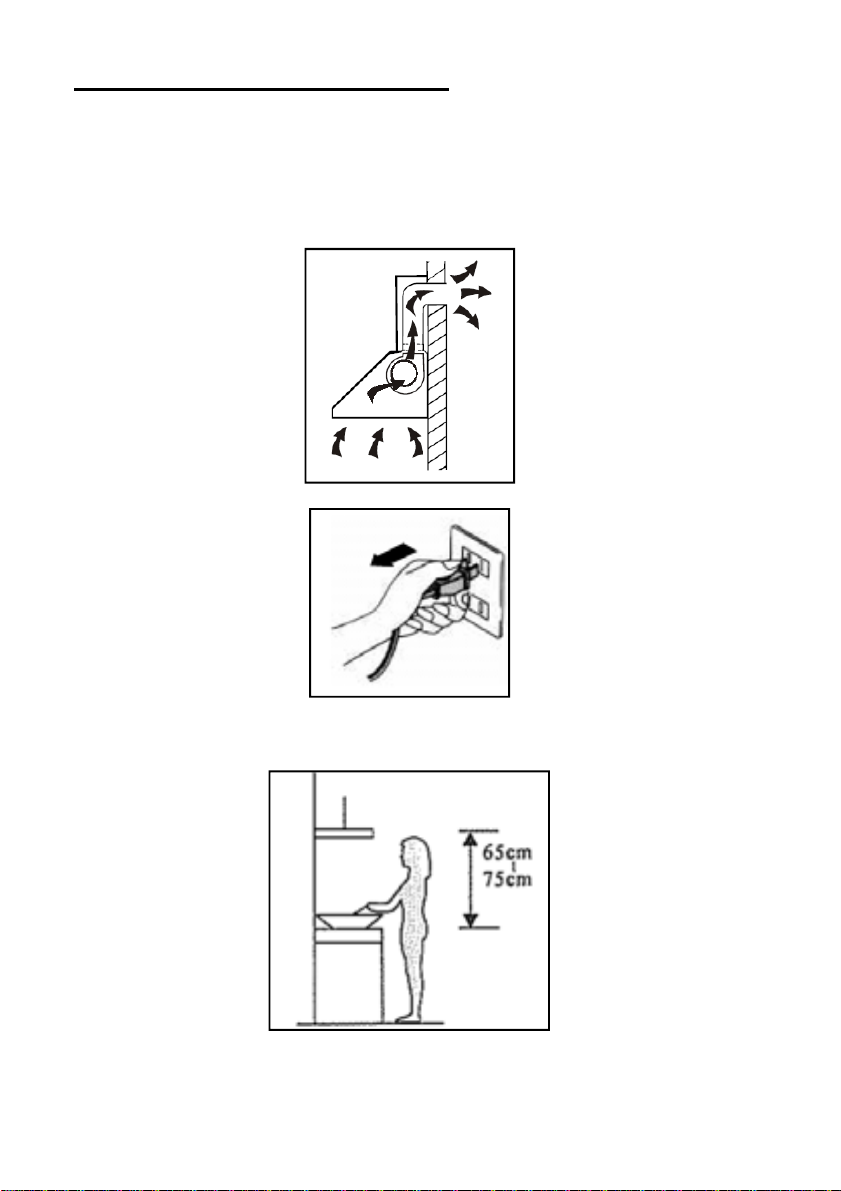

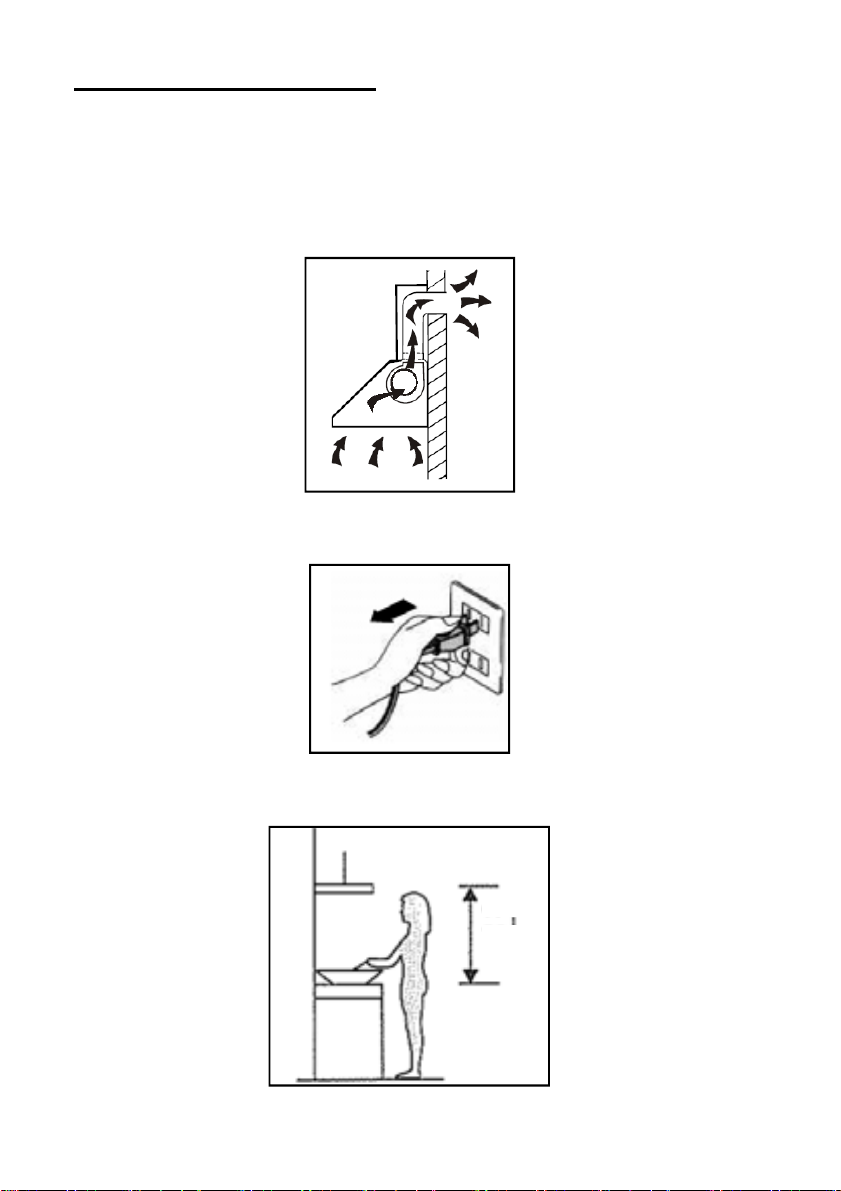

WALL MOUNTINGINSTALLATION
1. Prepare for installation:
a. If you have an outlet to the outside,your cooker hood can be connected
asbelow picture by means of an extraction duct (enamel, aluminum,
flexible pipe or inflammable material with an interior diameter of 150mm)
b. Before installation, turn the unit off and unplug it from the outlet.
c. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.

6
2. Installation (Vent outside):
Attention! Observe the warning in the instruction sheet concerning the
operation of the appliance when air is discharged from the room.
When the range hood and appliance supplied with energy other than
electricity are simultaneously in operation, the negative pressure in the
room must be not exceed 4 Pa (4×10-5 Bar)
Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the
bracket onto the wall with the screws & screw plugs provided.
Leave up the cooker hood and hang onto the wall bracket hook.
Screw plug
Wall bracket
Screw
(4mm x30mm)
Wall bracket
Cooker hood
Holes on wall

7

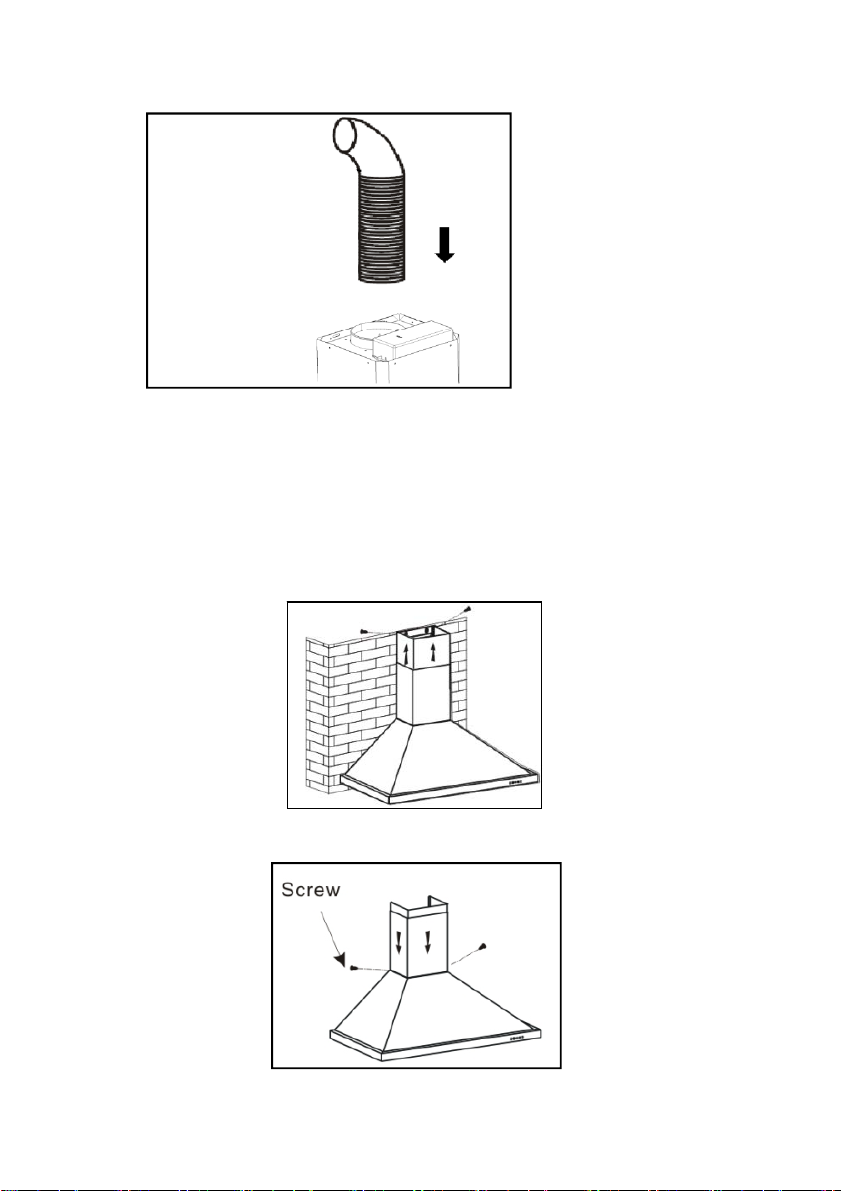

Fix the one-way-valve to the air outlet of the cooker hood. Then,
attached the exhaust pipe onto the one-way-valve as shown below.
Chimney
installation.
For Tower model
By Put the inner chimney into upper chimney .Then pulling out the
upper chimneyupwards. Adjust to reach the height required.
Fix the lower chimney with 2 pcs of 4x8mm screws.
Exhaust pipe
Cooker hood

8
Sliding the chimney to adjust the chimney height. When the height you
required is reached, then fix 2 pcs of 4x8mm screws onto the hole fixing
with plate I as showed in below pictures.
Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the
plate II onto the wall with 2 screws provided.
Assembly the chimney onto the unit and fix it with 2 screws.

9
Installation (Vent inside)
If you do not have an outlet to the outside, exhaust pipe is not required andthe
installation is similar to the one show in section “Installation (Vent outside)”.
Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
oMake sure the filter is securelylocked. Otherwise, it would
loosen and cause dangerous.
oWhen activated carbon filter attached, the suction power will
be lower.

10

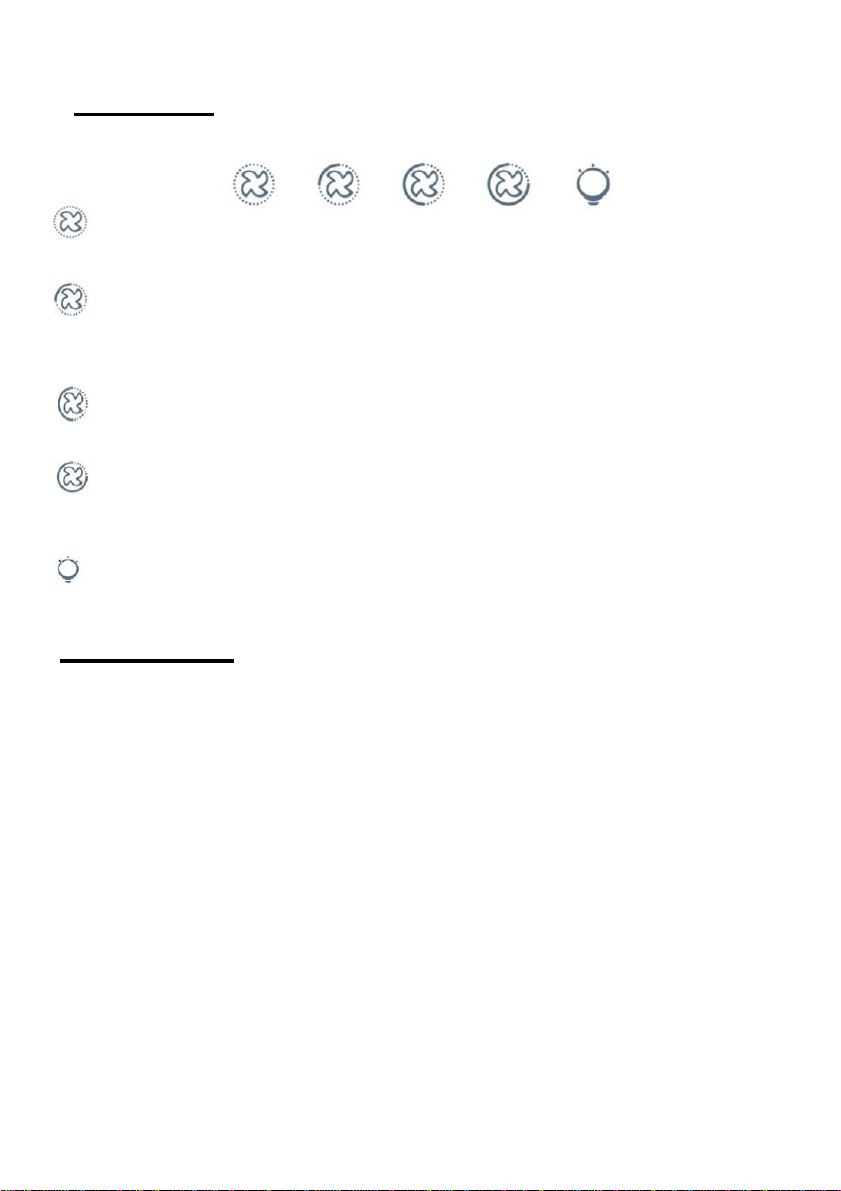

OPERATION
Push button/Electronic button 1
Off button
It’s used for turning off the fan.
Low Speed button
It’s used for Ventilation on the kitchen. It is suitable for simmering
and cooking which do not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed
button for highest effective ventilation.
Light button
MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household
cleaning detergent. Never use metal pads, chemical, abrasive material or stiff
brush to clean the unit.
II. MonthlyCleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…...so the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (potential
flammable) will saturate on the filter. Clean it with household cleaning
detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed asa recirculation unit (not vented to the
outside). This filter traps odours and must be replaced at least once a year
depending on how frequent the cooker hood used.
