Candy CBP613NGR/S User manual

1

CBP613NGR/S
CookerHood
InstructionManual









2
Content


Safetyinstructions…………………………………..…………………………………………………3

Installation…………………………………..…………………………………………………………….5

Startusingyourcookerhood…………………………………..………………………………..9

Troubleshooting…………………………………..……………………………………………………10

Maintenanceandcleaning…………………………………..……………………………………11

Environmentprotection…………………………………..………………………………………..14




















3
SAFETYINSTRUCTIONS
Thismanualexplainstheproperinstallationanduseofyourcookerhood,
pleasereaditcarefullybeforeusingevenifyouarefamiliarwiththeproduct.
Themanualshouldbekeptinasafeplaceforfuturereference.


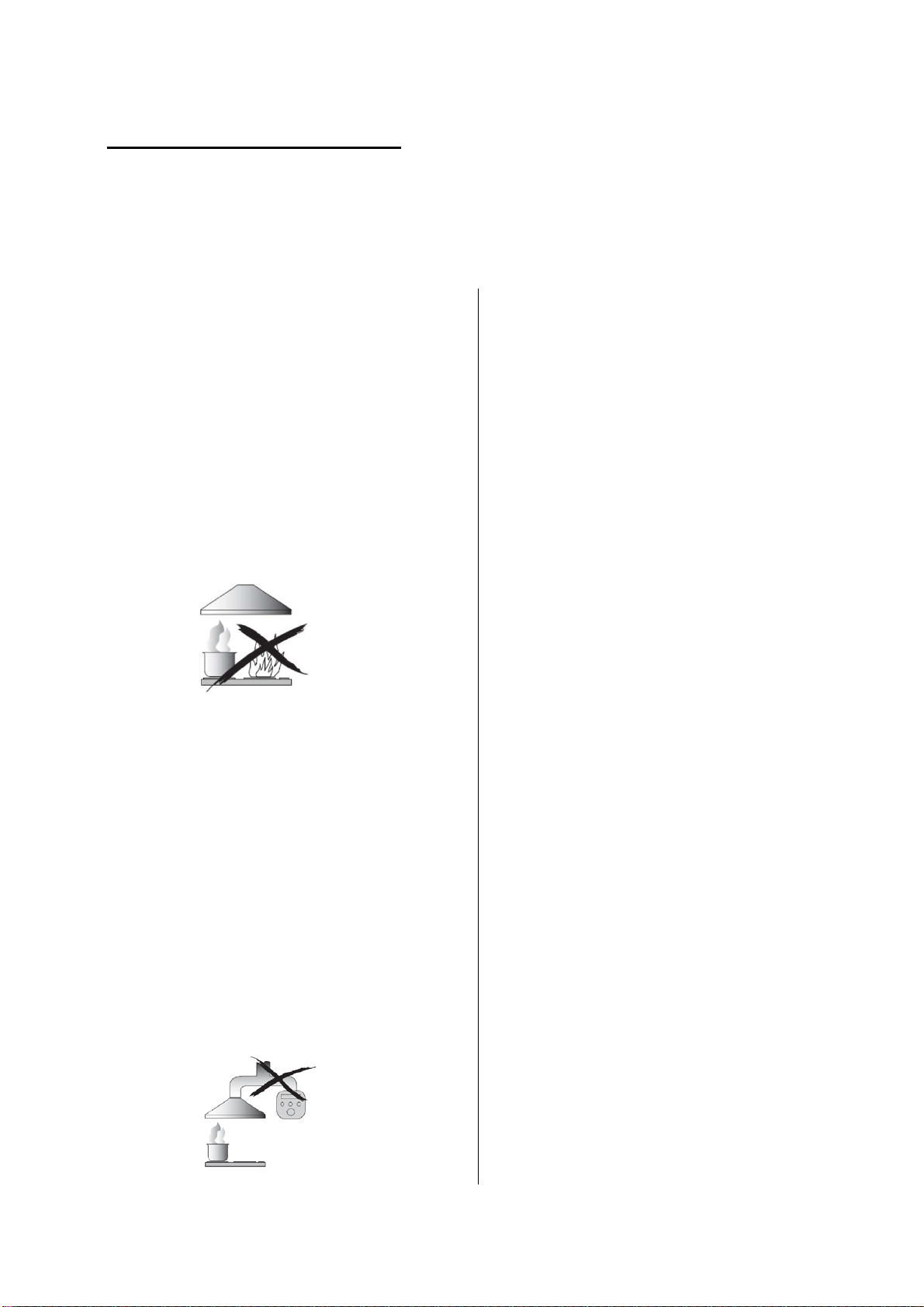

Nevertodo:
●D o not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Alwaystodo:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●P ay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.






4
Alwaystodo:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.


Alwaystodo:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

5
INSTALLATION(VENTOUTSIDE)
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 120mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a height of 65-75cm above the cooking
surface for best efficiency.
3. Install the cooker hood between two cupboards. Drill and screw on the side boards
of the cupboards (the holes ≤2mm).The distance between the head of the screw
and the side board should be 5mm, and the distance between the screw and the
cooking surface should no less than 1040mm. If there is not room enough, you can
place it higher or lower.
65cm
75cm

6
4. Hang the cooker hood on the screws between the two cupboards.
5. Push the fan-shaped door frames to the end, in order to make the outer edges of
the door frames at the same vertical level as the outer edge of the cupboards.
6. Mark the positions where you install the lower screws. Drill the upper hole and fix
the screws. Make sure all four screws are well fixed.
7. Install the outlet as followings: Align the 3 pcs side slots of the outlet with the 3
edges of the blower, insert the 3 edges into the outlet slot, See pic A,then finish as
pic B shown.
A B
600

7
8. Connect the air-outlet board and the air-outlet tube (Vent Hose) which will need to
feed through to the outside of the building. Rigid kits, if preferred, can be obtained
from either the retailer who supplied the hood, or DIY Stores and Builders
Merchants.
9. Door installation: The door should be no less than 16mm thick, 385-700mm high,
and weigh no more than 7KG. Pull out the movable fan-shaped door frames by the
plastic handle, and place the fan-shaped door frames one on left and one on right.
10.Mark the installation position of the door and the size of the fixed screws. If the
upper edge of the door is not as high as the upper edge of the cupboards, please
adjust the size accordingly. Mark the positions of the screws on the door, and make
sure the size is as accurate as 569±1.
11.Take down the fan-shaped door frames,then fix the left and right fan-shaped door
frames with the connected plate by 4pcs ST3.5*8mm countersunk self-tapping
screws.See pic below.Fix the fan-shaped door frames on the door with screws.
Make sure the frames are symmetrical. Install the door into the cooker hood, the
two sides of the door can be pulled to the end and the door can be safely locked. If
the door cannot be safely locked, you can release the plastic handle.
max
700
min
385
2. 1.

8
12.The two screws on both sides of the cooker hood can adjust the sliding of the door,
according to the weight of the door.
13. Install the adjusting plate, in order to cover the gap between the wall and the
bottom of the cooker hood.

Light control
Speed control
10
01
23
10
01
23
StartUsingYourCookerHood
Toggleswitch

9
Electrical Installation
All installation must be carried out by a competent person or qualified electrician.
Before connecting the mains supply ensure that the mains voltage corresponds to the
voltage on the rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar circuit
breaker with a minimum opening of 3mm between the contacts.
The installer must ensure that the correct electrical connection has been made and
that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the
supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
This appliance is supplied with a 2 core mains cable coloured as
follows:
Brown = L or Live
Blue = N or Neutral
WARNING:
For safety reason, please use only the same
size of fixing or mounting screws which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.

10
To operate: pull up the front panel, turn on the cooker hood, and then choose the fan
speed setting.
To turn the unit off, there are two options:
1. Turn off the fan with the slide switch.
2. Push down the front panel (with the fan still switched on). This will turn the hood
off, and when the cooker hood is next opened, the fan speed will be the same
as the last time it was operate.
3. Whether the front panel is open or not, or the fan in use or not, the light can be
operated independently.
How to use the control panel: (Diagram above)
There are 3 speeds for the motor and on off switch for the lamp.
Slide the switches for operation.
Motor Operation
0- off
1- Low Power Setting
2- Mid Power Setting
3- High Power Setting
Light Operation
0- Off
1- On

TROUBLESHOOTING
Fault PossibleCause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken or faulty bulbs Replace blubs as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.

11
The Cooker hood
inclines The fixing screw is not tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above. Always disconnect the unit from the power source when
opening the unit.

MAINTENANCEANDCLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker hood should be
disconnected from the mains power supply. Ensure that the cooker hood is switched
off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appearance of the
appliance and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a
mild detergent and then brush it gently with a soft brush. Please do not apply too much
pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)

12
Filters should be washed separately to crockery and kitchen utensils. It is advisable
not to use rinse aid.
Remove the filter as shown in the diagrams below:
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps .
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habits.
The installation procedure of activated carbon filter is as below:
(1) The aluminum filter should be detached first as explained earlier.
(2) The carbon filters are attached to each end of the motor housing, rotating to
lock/undo.
NOTE:
Make sure the filter is securely locked. Otherwise, it would loosen and cause
danger.
When activated carbon filter attached, the suction power will be lowered.
12
1.
2.

13
BULB REPLACEMENT
Important : The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it has completely cooled
down before any direct contact to hands.
When handling blubs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the blub as this can reduce the life of the blub.
Note:
Before changing the lights that the cooker hood can be isolated from the supply
mains by means of a plug or an all-pole switch.
Protect against danger when changing lights, such as wearing gloves.
Changing the light
Switch off the appliance and make sure it’s disconnected from the mains supply.
You should use a suitable screwdriver to pry up one end of the light and take it out
for replacement.
ILCOS D code for this lamp is: DBS-2/65-H-120/33
–LED modules –rectangle LED lamp
–Max wattage: 1×2 W
–Voltage range: AC 110-240V
–Dimensions:




14
ENVIRONMENTALPROTECTION:

This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with your Local Authority or retainer
for recycling advice.
