Canon PIXMA TS6240 User manual



Посібник для початку
роботи
Спершу прочитайте документ Інформація щодо
безпеки й важливі відомості (додаток).
Руководство по началу
работы
В первую очередь прочтите документ Информация
о безопасности и важные сведения (приложение).
Démarrage
Commencez par lire Sécurité et informations
importantes (addendum).
Getting Started
Read Safety and Important Information
(addendum) rst.

Go


4  ......................................................................
1 .....................................................................................................................................
Установлення принтера........................................................................................................стор. 1
Підключення до комп’ютера та смартфона або планшета...........................стор. 4
Відеоінструкції
Як тримати принтер
Установка принтера....................................................................................................................стр. 1
Подключение к компьютеру и смартфону или планшету...............................стр. 4
Видеоинструкции
Как держать принтер
Installation de l'imprimante..................................................................................................page 1
Connexion avec un ordinateur et un smartphone ou une tablette............page 4
Instructions vidéo
Manipulation de l'imprimante
Installing the Printer...................................................................................................................page 1
Connecting with Computer and Smartphone/Tablet .........................................page 4
How to Hold Printer
Instructional Videos

1
ENGLISH
1. Box Contents
•
Power cord • Ink tanks for setup
•
Safety and Important Information
•
Getting Started (this manual)
•
Setup CD-ROM
2. Removing Packing Materials
1 Remove and dispose of the packing materials
from the device.
• Operating the printer while the orange tape and
protective lm are still on it causes malfunctions. Be
sure to remove them.
2 Open the scanning unit / cover and remove the
orange tape.
b
a
3 Close the scanning unit / cover.
• Lift up the scanning unit / cover briey, and then
close it.
Caution
Watch your ngers.
a
b
3. Turning on the Printer
1 Connect the power cord.
Back
Important
At this time, do not connect any other cables.
2 Open the operation panel and press the ON
button.
a
b
3 Scroll and tap to select your language, and then
tap OK.
4. Installing the Ink Tanks
1 Open the scanning unit / cover.
Caution
Do not touch the print head holder until it stops moving.
2 Remove the tape and lm on the ink tanks.
ba
• Check that no tape is left over.
Setting up the printer
Web Setup

2
Setting up the printer
3 Slowly remove the orange cap.
Important
• Do not push both sides of the ink tank
with the Y-shape air hole blocked.
• Do not touch the red areas shown in the
gure.
4 Install the ink tanks.
• Insert the ink tank into the print head and press it
from above until it clicks.
5 Make sure that the color of the ink tank you
installed appears on the screen.
Important
If the color is not displayed on the screen even though you
have installed the ink tank, the color of the ink tank may be
wrong or you may have installed an ink tank, such as one
with a dierent model number, that is not supported by this
printer. Either install an ink tank for the correct color or use the
provided ink tank for setup.
6 Repeat steps 2 through 5 to install all the ink
tanks.
• Make sure that all the colors appear.
7 Close the scanning unit / cover.
• When you close the scanning unit / cover, the
internal operations start.
Caution
Watch your ngers.
a
b

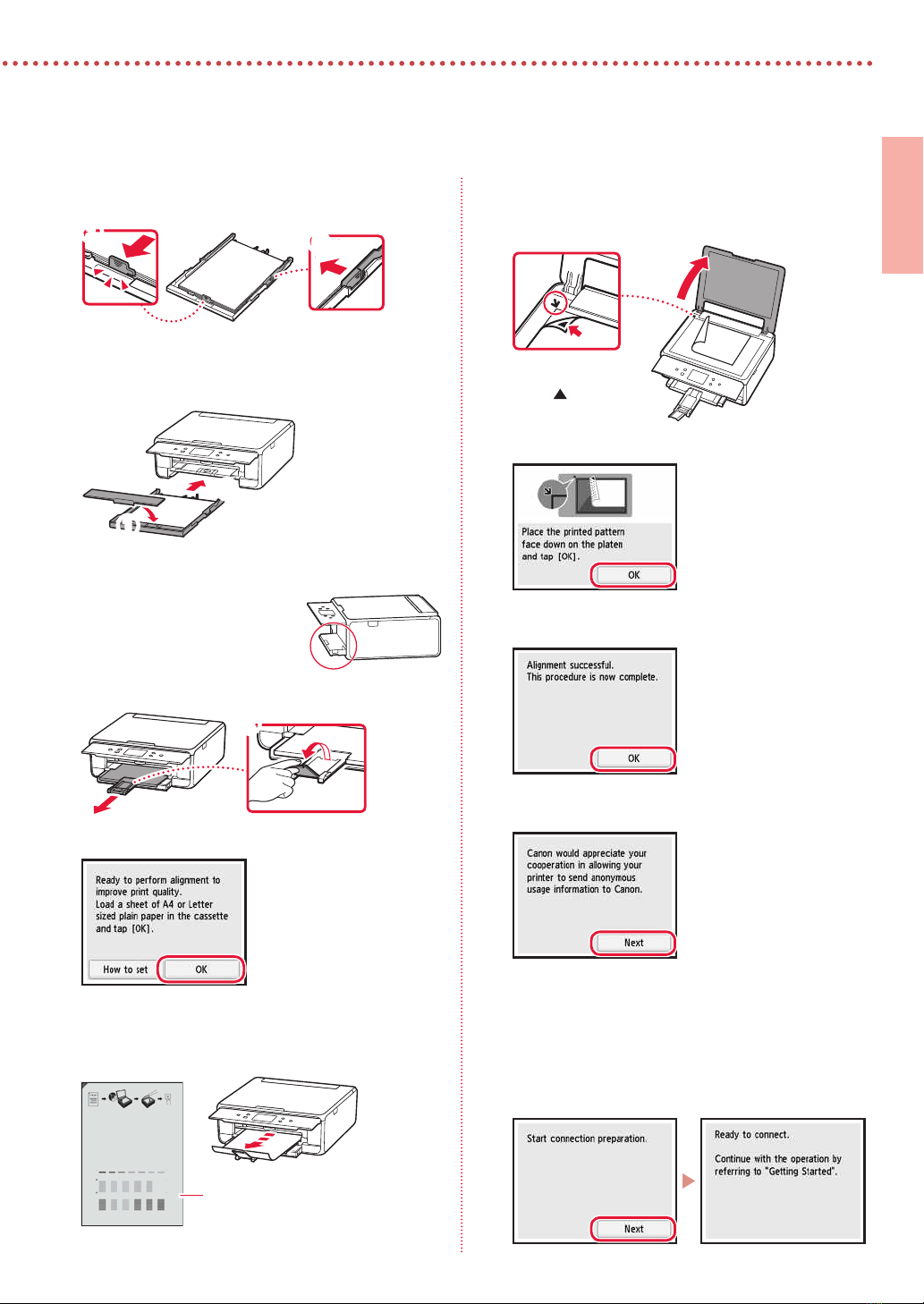

5. Loading Paper / Aligning
Print Head
1 Tap OK.
2 Pull the cassette out of the device.
3 Remove the cassette cover and slide apart the
paper guides.
• Slide the right paper guide to the right edge. Align
the front paper guide with the LTR or A4 mark.
4 Load paper.
• Load plain LTR or A4 size paper with the print side
facing down.

3
ENGLISH
• Place the paper against the front paper guide, and
align the right paper guide to the width of the paper.
ab
5 Load the cassette.
• Attach the cassette cover and put the cassette back
in.
a
b
• Look at it from the side to conrm it looks like the
diagram.
6 Pull out the paper output tray.
b
a
7 Tap OK.
• The Print Head Alignment pattern starts printing.
8 Make sure that the pattern is printed.
• Printing nishes in about 2 minutes.
Printed Print Head Alignment pattern
9 Place the pattern on the Platen.
• Open the document cover and place the print side
facing down.
Align the arrow mark
engraved on the device
and the on the
pattern
10 Close the document cover and tap OK.
11 When the following screen appears, tap OK.
12 Tap Next.
• Next, follow the onscreen instructions to continue
operations. During these operations, you will need
to make selections related to sending information.
Read "Sending Information To Canon" in Safety and
Important Information.
13 Tap Next.

6-a
6-b
page 6
4
Setting up the printer
Press the Stop button,
and then select Do not
connect > Yes, in this
order.
Computer Computer and
smartphone
Smartphone
No device
Connecting to a Computer
If you are using multiple computers, perform these steps on each computer. There are
two methods, " Online Setup" and " Using the Setup CD-ROM (Windows Only)
Provided".
1 Access the Canon website from a
computer.
2 Select Set Up.
3 Enter your printer's model name and
click Go.
4 Click Start.
5 Click If you have already prepared
your printer, go to Connect.
Note
When you are using a computer with Windows
(except for Windows 10 S) or macOS, proceed to
the next step. When you are using a computer with
another OS, continue the setup by following the on-
screen instructions.
6 Click Download.
• The setup le is downloaded to your
computer.
7 Run the downloaded le.
8 Proceed to step 9 on page 5.
Online Setup
What device are you connecting?
Select a device and follow the relevant section.

5
ENGLISH
1 Insert the Setup CD-ROM
into your computer.
2 Follow the instructions for your version
of Windows.
Windows 10/Windows 8.1
aClick on the following message when it
appears on the right-hand side of your
computer screen.
Note
If the message does not appear (or is no longer
visible), click the File Explorer icon in the
taskbar. On the left-hand side of the window, click
This PC. Double click the CD icon that is
displayed on the right-hand side (when the
content of the CD is displayed, and then double
click Msetup4.exe). Proceed to c.
bClick Run
Msetup4.exe.
cIf the User Account Control dialog box
appears, click Yes.
Windows 7
aClick Run Msetup4.exe.
• When the AutoPlay screen appears, click
Run Msetup4.exe.
Note
If the AutoPlay screen does not appear, in the
Start menu, click Computer. On the right-hand
side of the window, double click the CD icon
(when the content of the CD is displayed, double
click Msetup4.exe).
bIf the User Account Control dialog box
appears, click Continue.
3 Proceed to step 9 below.
Using the Setup CD-ROM (Windows Only) Provided
9 Click Start Setup.
10 Follow the on-screen instructions.
• These operations may take some time.
11 When the following screen appears, click Exit.
Your printer is now connected to your computer.
To connect a smartphone as well, see "6-b.
Connecting to a Smartphone" on page 6.

6-b
6
Setting up the printer
1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.
Note
You can also access the Canon website by scanning the QR code shown on the right to
download the app.
Search for "Canon PRINT" in the App Store.
Search for "Canon PRINT" in Google Play.
2 Check the printer's screen as you proceed through the steps.
• "Ready to connect."
• If appears,
• If does not appear,
Note
• The printer's screen turns o when the printer is idle for 10 minutes. Press one of the buttons on the operation panel (except
for the ON button) to turn on the screen.
• If appears, The printer cannot communicate by Wi-Fi connection. For details, see "Frequently Asked Questions" at
"http://ij.start.canon".
Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.
Prepare the following before starting.
aEnable the Wi-Fi setting on your smartphone*.
bConnect your smartphone to the wireless router* (if you have a wireless router).
* See your smartphone and wireless router manuals regarding these procedures for more details.
3 Open the installed app.
4 Follow the on-screen instructions to add
your printer.
5 Check that the following screen appears.
Your printer is now connected to your
smartphone. To print photos, see "Loading
Photo Paper" on page 8.

7
ENGLISH
3 Tap Settings on your smartphone's
home screen, and tap Canon_ij_XXXX
in the Wi-Fi settings.
Note
If Canon_ij_XXXX does not appear, follow the
procedure in , and then search for Canon_ij_
XXXX again.
4 Open the installed app.
• The printer is registered with the
most appropriate connection
method for the environment
you are using.
5 Check that the following screen appears.
3 Open the installed app.
• The printer is registered with the
most appropriate connection
method for the environment
you are using.
Note
If a message saying "No printer has been added.
Perform printer setup?" does not readily appear
after starting the application, follow the procedure in
, and then return to smartphone operations.
4 Check that the following screen appears.
Procedures vary for iOS and Android. Follow the instructions for your operating system.
3 Press the HOME button on the printer.
4 Press and hold the on the HOME
screen for about 3 seconds.
5 When "Follow the instructions on
the computer or smartphone, etc.
to perform the operation." appears,
proceed to .
Your printer is now connected to your smartphone. To print photos, see "Loading Photo Paper" on page 8.

8

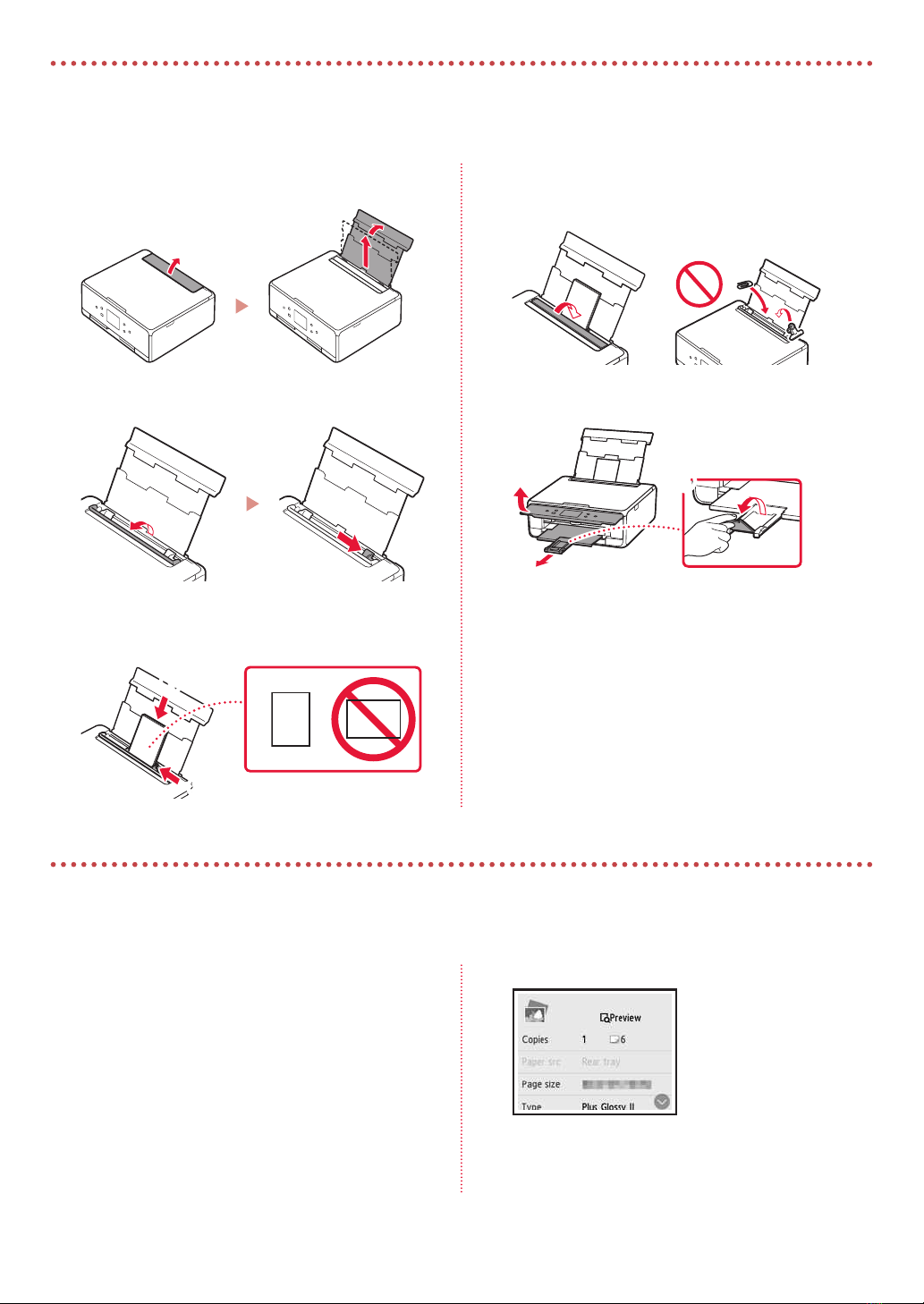

Loading Photo Paper
1 Open the rear tray cover and extend the paper
support.
2 Open the feed slot cover and slide the right-
hand side paper guide to the far right.
3 Load several sheets of photo paper with the
print side facing up and slide the side paper
guide against the edge of the paper stack.
a
b
4 Close the feed slot cover.
• Follow the on-screen instructions to set information
for the loaded paper.
5 Open the operation panel and pull out the
paper output tray.
a
b
c
1 Turn on the printer.
2 Load several sheets of photo paper.
3 Tap Copy on the HOME screen.
4 Scroll and tap Photo copy.
5 Read the messages and tap OK.
6 Follow the on-screen instructions to load the
printed photo on the Platen, and then tap OK.
7 Specify print settings.
8 Press the Color button to start color copying.
Or, press the Black button to start black & white
copying.
Copying Photos
You can scan a printed photo and print it. You can also scan and print several photos at once.
Photo paper can only be loaded in the rear tray.
