Canon BLM 550+ Installation instructions
Canon
SERVICE SUPPORT GUIDE
Canon
BLM550+ Booklet Maker Service Support Guide
Published by
Canon U.S.A., Inc.
One Canon Park
Melville, NY 11747-3336
1-800-OK-CANON
E-Mail: serviceplanning@cusa.canon.com
Canon U.S.A. Homepage: http://www.usa.canon.com
Canon U.S.A. Internet e-Support Center Web Site: http://www.support.cusa.canon.com
Canon U.S.A. ISG Central Web Site: http://isgcentral.cusa.canon.com
Canon Network Access (CNA) Web Site: http://www.cna.cusa.canon.com
Distributed in the United States by Canon U.S.A., Inc.
IMPORTANT
THIS SERVICE SUPPORT GUIDE INCLUDES THE INFORMATION RELATING TO THE BLM550+
BOOKLET MAKER.
SPECIFICATIONS AND OTHER INFORMATION CONTAINED HEREIN MAY VARY SLIGHTLY FROM
ACTUAL DEVICE VALUES OR THOSE FOUND IN ADVERTISING AND OTHER PRINTED MATTER.
USE OF THIS SERVICE SUPPORT GUIDE SHOULD BE STRICTLY SUPERVISED TO AVOID
DISCLOSURE OF CONFIDENTIAL INFORMATION.
ALL PRICES LISTED ARE SUBJECT TO CHANGE WITHOUT NOTICE.
PART NUMBERS LISTED MAY BE CHANGED WITHOUT NOTICE TO REFLECT ENGINEERING
REVISIONS.
REVISION HISTORY
Revision
Date
Section(s)
Details
February 2015 All
Release of the BLM550+ Booklet Maker Service Support
Guide
1
March 2015
All
Release of the Warkiss P2T 2-Knife Trimmer
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page i
Canon
BLM550+ Booklet Maker Service Support Guide
COPYRIGHTS AND TRADEMARKS
This Service Guide is the property of Canon U.S.A., Inc.
© Canon U.S.A., Inc. 2015. All rights reserved.
Canon and Always Ask for Canon Genuine Toner, Parts & Supplies are registered trademarks of Canon
Inc.
Océ and VarioPrint, are registered trademarks of Océ-Technologies B.V.
All other company names and product names may be trademarks or registered trademarks of their
respective owners, and are hereby acknowledged.
LEGAL NOTICES
The information contained in this Service Support Guide constitutes confidential information of Canon
U.S.A., Inc.
Pursuant to the authorized Service Agreement with Canon U.S.A., Inc., this Service Support Guide is
solely for reference purposes and may be used only by an authorized Service Provider of Canon U.S.A.,
Inc. No part of this Service Support Guide may be reproduced or transmitted in any form by any means,
electronic or mechanical, for any purpose without the prior written consent of Canon U.S.A., Inc., except
as expressly permitted herein.
Pursuant to the authorized Service Agreement with Canon U.S.A., Inc., Service Provider agrees to
indemnify Canon U.S.A., Inc. and to hold it harmless from and against any and all claims arising out of
Service Provider’s possession, use, or misuse of this Service Support Guide.
Canon U.S.A., Inc. from time to time updates this online Service Support Guide and may modify the
information and/or specifications contained in it at any time without notice. Additionally, all prices and
availability dates listed herein are subject to change without notice. The latest version is available online
at the ISG Central and e-Support Web Sites noted above. Please make certain that you are using the
latest version. Specimens of Web pages included herein are for illustration purposes only.
DISCLAIMER
NEITHER CANON NOR ITS SUPPLIERS NOR ANY AUTHORIZED SERVICE PROVIDER SHALL BE
LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND
DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY AUTHORIZED SERVICE PROVIDER), LOSS
OF REVENUE OR PROFIT, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS,
EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF
DATA, INCLUDING, WITHOUT LIMITATION, DATA STORED ON THE PRODUCT’S HARD DISK
DRIVE, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE
LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ITS SUPPLIERS OR
ANY AUTHORIZED SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ITS SUPPLIERS OR
ANY AUTHORIZED SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE
OF THE PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING,
THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO
PERSONS AND THE PROPERTY OF THE PURCHASER OR OTHERS ARISING OUT OF THE
POSSESSION, USE, MISUSE, OR INABILITY TO USE THE PRODUCT NOT CAUSED SOLELY AND
DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY AUTHORIZED SERVICE PROVIDER.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page ii
Canon
BLM550+ Booklet Maker Service Support Guide
Contents
I. Overview and Purpose................................................................................................. 1
A. Overview ...................................................................................................................1
B. Purpose.....................................................................................................................1
II. Features ........................................................................................................................ 2
A. BLM550+ Booklet Maker ...........................................................................................2
B. Book Stacker.............................................................................................................3
C. Watkiss P2T 2-Knife Trimmer....................................................................................3
III. Configuration................................................................................................................ 4
IV. Dealer Sales/Service Authorization............................................................................. 5
V. Educational Training.................................................................................................... 5
A. Training Program Overview.......................................................................................5
1. Learning Path for New Service Technicians.........................................................5
2. Learning Path for BLM500/550 Trained Service Technicians...............................5
B. Watkiss P2T 2-Knife Trimmer for BLM550+ Training Course.....................................6
C. Prerequisites..............................................................................................................6
D. Certification................................................................................................................6
E. Who Should Attend....................................................................................................6
F. Training Facilities.......................................................................................................7
1. Online Course Training Facilities .........................................................................7
2. Classroom Training Facilities...............................................................................7
G. Course Equipment.....................................................................................................7
H. Service Materials.......................................................................................................7
VI. Servicing Notes ............................................................................................................ 8
A. Power and Plug Requirements..................................................................................8
B. Installation Weight and Dimensions...........................................................................9
C. Installation Space Requirements ...............................................................................9
D. Estimated Installation Times....................................................................................13
E. Environmental Requirements...................................................................................13
F. Suggested Spare Parts............................................................................................14
G. Operator Maintenance.............................................................................................16
VII. Suggested End-User Customer Service Offerings....................................................17
A. End-User Limited Warranty Conditions....................................................................17
B. Service Parts Availability..........................................................................................17
VIII. Product Technical Support Offerings........................................................................18
A. Dealer Support Requirements .................................................................................18
B. Canon USA Support Offerings.................................................................................19
1. Canon USA Technical Support Center...............................................................19
2. Internet Support.................................................................................................21
IX. Appendix......................................................................................................................24
A. Specifications ..........................................................................................................24
B. List of Tables...........................................................................................................26
C. List of Figures..........................................................................................................26
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page iii
Canon
BLM550+ Booklet Maker Service Support Guide
I. Overview and Purpose
A. Overview
The Océ BLM550+ Booklet Maker developed by Watkiss Automation Ltd. is a
compact all-in-one booklet making system for the VarioPrint 6000+ Series
devices. This booklet maker combines stitching, folding, spine forming and
trimming to produce booklets of up to 208 pages (@ 80 g/m² plain paper) with a
square spine. It features fully automatic settings for different booklet sizes, and
includes variable stitch leg length for varying booklet thickness.
The optional Book Stacker is a high capacity vertical booklet stacking system.
The book stacker has a stacking capacity of up to 36.6” (930 mm).
The solution allows the VarioPrint 6000+ production printers to create a full
bleed printing and booklet making solution for a wide range of on-demand
applications.
B. Purpose
The purpose of this document is to provide the servicing dealer with the tools
necessary to enable a successful integration of VarioPrint 6000+ production
print devices with the BLM550+ Booklet Maker and available options. This
integration expands the market potential for the VarioPrint 6000+ production
print devices. This document has been created to assist servicing dealers to
realize that potential.
Training and support for the BLM550+ and available options described in this
guide are available from Canon U.S.A., Inc.’s (hereinafter referred to as
(“Canon USA”)).
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 1
Canon
BLM550+ Booklet Maker Service Support Guide
II. Features
A. BLM550+ Booklet Maker
The Océ BLM550+ Booklet Maker solution has the following features:
•Makes books from 4 pages up to 208 pages (10.4 mm)
•Saddle stitching from 1 up to 6 stitches
•Fully automatic settings
•Memory for up to 24 jobs
•Supported sheet sizes
•Minimum: 8” x 8” (203 mm x 203 mm)
•Maximum with the Standard PIM: 12.6” x 19.2” (320 mm x 488 mm)
•Maximum with the Paper Input Module Optional A1 (350 x 500 support):
13.78” x 19.7” (350 mm x 500 mm)
•Supported paper weight:
•Uncoated/Plain:
•20 lb bond to 110 lb Text (80 g/m2to 160 g/m2)
•16 lb bond to 90 lb Cover (60 g/m2to 250 g/m2) depending on type
and quality
•Coated:
•Approximately 100 g/m2 up to 155 g/m2 (If greater than 155 g/m2,
testing upfront is recommended)
•Provides front trimming
•Provides sheet rotation
•Provides square folding
•Spine forming is adjustable by the operator.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 2
Canon
BLM550+ Booklet Maker Service Support Guide
B. Book Stacker
The optional Book Stacker has the following features:
•Stacking capacity of up to 36.6” (930 mm). This is approximately:
•400 booklets of 10 sheets/40 pages (2 mm thick spine)
•175 booklets of 25 sheets/100 pages (5 mm thick spine)
•80 booklets of 50 sheets/200 pages (10 mm thick spine)
•Accepts books of different thicknesses and sizes without the need to unload
booklets until the stacker is full.
•Supported book sizes:
•Spine length: minimum 8.0” (203 mm), maximum 19.2” (320 mm)
•Book width: minimum 3.15” (80 mm), maximum 9.6” (244 mm)
•Book thickness: minimum 8 page booklet (dependent on media),
maximum 200 page booklet (10 mm)
Note: The BLM550 and BLM500 require an upgrade kit to connect Book
Stacker.
C. Watkiss P2T 2-Knife Trimmer
The optional 2-Knife Trimmer has the following features:
•Adjustable top and bottom side trimming of booklets (up to 200 pages, 80
g/m2).
•Trim up to 1.57” (40 mm) each from the top and bottom side of the booklet
(up to 3.15” (80 mm) total).
•The operator can configure the trim position so that it can be offset from the
center-line to match the image position.
Note: The BLM550 and BLM500 require an upgrade kit to connect the Watkiss
P2T 2-Knife Trimmer.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 3
Canon
BLM550+ Booklet Maker Service Support Guide
III. Configuration
Note: All configurations shown are for reference purposes only and are subject to
change without notice. Please refer to the Dealer Price List on the ISG Central
Web Site (http://isgcentral.cusa.canon.com)for the most up-to-date Item Numbers.

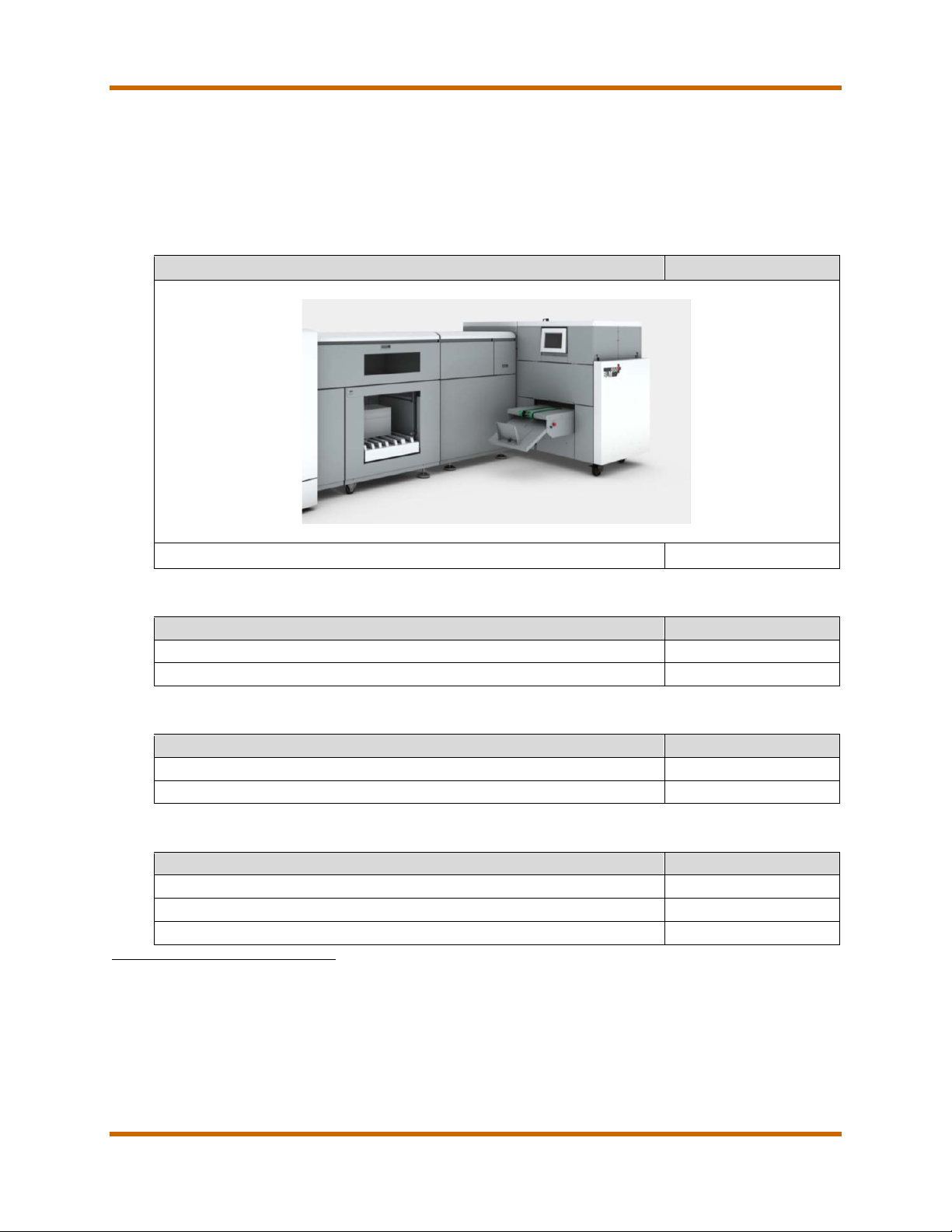

Table 1 – Configuration
Item Item Number
1
BLM 550+ Booklet Maker shown
BLM 550+ Booklet Maker 2, 3
7159B003AA
Table 2 – Hardware Accessories
Item
Item Number1
BLM5X0 Book Stacker
5656B001AA
Watkiss P2T 2-Knife Trimmer for BLM 550+
7603BD40AA
Table 3 – Interface Kit
Item
Item Number1
Interface Kit for the BLM550 4
7603BD36AA
Interface Kit for the BLM500 4
7603BD41AA
Table 4 – Options
Item
Item Number1
Configuration Kit (P2T & PBS configuration)5
7603BD34AA
GUI Pivot Arm Kit for BLM550+ (P2T & PBS configuration)6
7603BD35AA
Trimming Conveyor (P2T & PBS configuration)7
7603BD33AA
1 Item Numbers and Part Numbers are subject to change without notice.
2 Requires one (1) Océ VP6000 DFD2 at Océ iHCS for Online Finisher, one (1) Océ VP6000 R-Sided Docking at iHCS.
3 Service Training is required to purchase the BLM 550+ Booklet Maker.
4 Required to install the Book Stacker to the BLM 550 or BLM 500.
5 Required Configuration Kit when installing the BLM5X0 Book Stacker and Watkiss P2T 2-Knife Trimmer.
6 Mounts the BLM550+ User Interface on a pivoting arm, for easier access when the Book Stacker and Watkiss P2T 2-Knife
Trimmer are attached.
7 Conveys the waste trimmings from the Watkiss P2T 2-Knife Trimmer into a collecting box in the base of the Book Stacker.Not
compatible with the Book Stacker Release 1.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 4
Canon
BLM550+ Booklet Maker Service Support Guide
IV. Dealer Sales/Service Authorization
To become authorized and maintain authorization to sell and service the BLM
550+ Booklet Maker, each authorized VarioPrint 6000+ dealer location must have
at least two (2) technicians who have successfully completed and received
certification on the following:
•VarioPrint 6XX0Ultra/TP/MICR Training Program
•BLM500/550/550+ Training Program (New Technicians)
•BLM550+ Update Online Training (for service technicians that completed the
Finishing Equipment (BLM500/550-Watkiss) Training)
By meeting this combination of requirements, a dealer can be confident that their
service department will have the skills and knowledge needed to be successful in
servicing and supporting this production product.
V. Educational Training
A. Training Program Overview
1. Learning Path for New Service Technicians
The learning path for a new Technician is a comprehensive blended
learning program, which will prepare the new service technician to setup
and service the BLM550+. The online course module, available on Canon
USA’s e-Support Center Web Site (http://www.support.cusa.canon.com),
provides technicians with the theoretical concepts to install, configure, and
support the BLM550+ Booklet Maker. The 5-day Hardware classroom
courses blends the information taught online with hands-on, practical
training in the classroom and lab.
Table 5 – Required Courses for New Technicians
Course Name
Course Code1
BLM500/550/550+ Online Training 19DDSBLM500O
BLM500/550/550+ Classroom Training 19DDSBLM501C
1 Item Numbers and Part Numbers are subject to change without notice.
2. Learning Path for BLM500/550 Trained Service Technicians
Service technicians that completed the Finishing Equipment (BLM500/550-
Watkiss) Training Program must take the BLM550+ Update course online.
Table 6 – Online Course Module for BLM500/BLM550 Certified Technicians
Course Name
Course Code1
BLM500/550/550+ Online Training 19DDSBLM500O
1 Item Numbers and Part Numbers are subject to change without notice.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 5
Canon
BLM550+ Booklet Maker Service Support Guide
B. Watkiss P2T 2-Knife Trimmer for BLM550+ Training Course
To service the optional Watkiss P2T 2-Knife Trimmer for the BLM550+ Booklet
Maker, service technicians must complete the Watkiss P2T 2-Knife Trimmer for
the BLM550+ comprehensive blended learning program. The online course
module, available on Canon USA’s e-Support Center Web Site. The 3-day
Hardware classroom courses blends the information taught online with hands-
on, practical training in the classroom and lab.
The training for the Watkiss P2T 2-Knife Trimmer is a fee based course. To
order from Canon Network Access use item code 2115V542. The course fee is
$742.50.
Table 7 – Watkiss 2-Knife Trimmer Training Course
Course Name
Course Code1
Watkiss P2T-2-knife Trimmer for BLM550+ eLearning Course
19DDSP2T500O
Watkiss P2T-2-knife Trimmer for BLM550+ Technical Training
19DDSP2T501C
1 Item Numbers and Part Numbers are subject to change without notice.
C. Prerequisites
Service technicians must successfully complete the VarioPrint
6XX0Ultra/TP/MICR Training Program.
D. Certification
•BLM 550+ Booklet Maker
Technician certification is required for authorization to sell these products and
to receive support.
E. Who Should Attend
It is highly recommended that any technician responsible for installing,
servicing, or supporting the BLM 550+ Booklet Maker complete the Training
Course.
Note: Our current support policy dictates that only those technicians who have
completed the training program and pass the final assessment exam are
entitled to live, phone-based support through our TSC (Technical Support
Center). However, self-service support (software downloads, knowledgebase
articles, support forums, technical publications) is available through our
e-Support Center Web Site for all technicians. (Refer to the Technical Support
section on the e-Support Center Web Site for entitlement details.)
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 6
Canon
BLM550+ Booklet Maker Service Support Guide
F. Training Facilities
1. Online Course Training Facilities
The online courses are located within the eLearning center on Canon USA’s
e-Support Center Web Site. The eLearning center includes Certification
maps that provide easy access to the training. The online courses can be
conducted at any dealer facility that is suitable for online student learning.
2. Classroom Training Facilities
Classroom training is available in the Itasca, Illinois Canon Regional
Training Centers.
G. Course Equipment
•Windows workstation (Vista, XP, 2007, or higher)
•Microsoft Internet Explorer v7.0 or higher
H. Service Materials
The materials required for the BLM550+ Training Program are listed in the table
below.
Table 8 – Service Materials
Model
Item
Location
BLM550+ Booklet Maker
eLearning Training
Program Conducted online
Service Manual Downloadable from within the
eLearning course and the
e-Support Center Web Site
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 7
Canon
BLM550+ Booklet Maker Service Support Guide
VI. Servicing Notes
A. Power and Plug Requirements
Canon USA strongly suggests dedicated and properly grounded outlets be
provided for the BLM550+ Booklet Makers.
The BLM550+ Booklet Maker requires a dedicated NEMA 6-20 receptacle for
proper operation

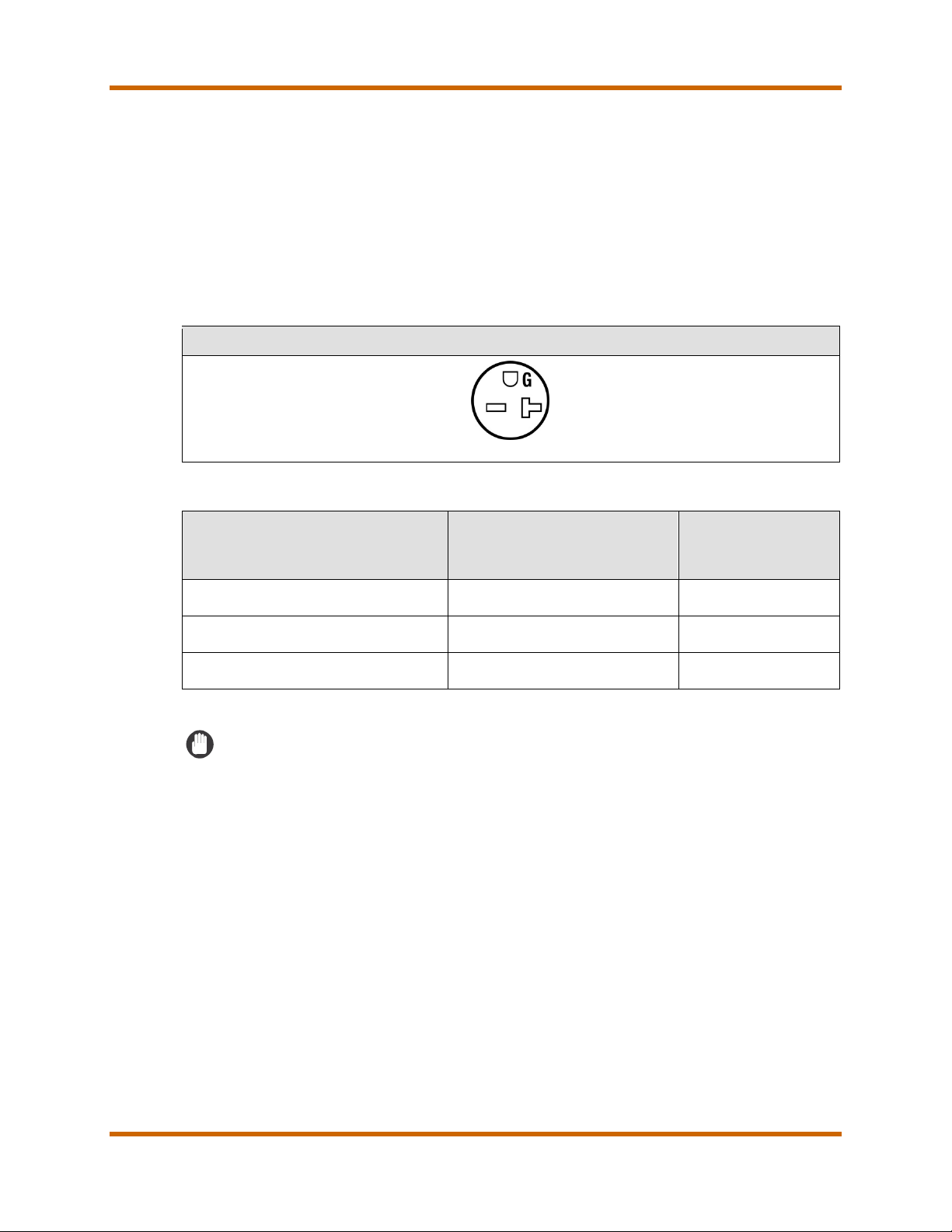

Table 9 – Power Receptacle
BLM550+ and Watkiss P2T 2-Knife Trimmer
NEMA 6-20R
Table 10 – Power and Plug Requirements for Main Unit and Accessories
Description Power Supply Power Supply
Specifications
BLM550+ Booklet Maker
Single Phase
200–240 V / 16A 50/60Hz outlet
NEMA 6-20R
Book Stacker
From the BLM 550+ Booklet
Maker
N/A
Watkiss P2T 2-Knife Trimmer
Single Phase
220–240 V / 5A 50/60Hz outlet
NEMA 6-20R
IMPORTANT
•We recommend an additional standard 120 V/15 A outlet for service tools,
such as a laptop computer or vacuum that may be used when servicing or
configuring the machine.
•Use only dedicated and properly grounded outlets for the BLM550+ Booklet
Maker and accessories. Do not use extension cords. The ground
connection serves to provide the internal electronics with a reference
voltage. Faulty or poor ground sources will cause this reference voltage to
fall into a range that no longer serves as a reliable reference voltage. A
qualified electrician can measure and provide the ground source that the
BLM550+ Booklet Maker or any computer controlled office equipment
requires.
•Before installation, confirm that all necessary receptacles are available.
•Phase converters and step-down transformers are not supported.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 8
Canon
BLM550+ Booklet Maker Service Support Guide
B. Installation Weight and Dimensions
Table 11 – Approximate Weight
Component
Approximate Weight
BLM550+ Booklet Maker 8
1,549 lb
702 kg
Book Stacker
330 lb
150 kg
Watkiss P2T 2-Knife Trimmer
661 lb
300 kg
Table 12 – Dimensions
Unit
Height
Width
Depth
BLM550+ Booklet Maker8
52.4”
1,330 mm
65.9”
1,675 mm
73.6”
1,870 mm
Book Stacker
40.6”
1,030 mm
49.2”
1,250 mm
53.1”
1,350 mm
Watkiss P2T 2-Knife Trimmer
9
38.1” 968 mm 45.0” 1,142 mm 36.4” 924 mm
C. Installation Space Requirements
The BLM550+ Booklet Maker approximate installation space requirements may
differ, depending on how the machine is configured and the optional modules
attached. Always ensure that there is enough space for service and operation
of the device. The Installation space for the BLM550+ Booklet Maker adds to
the VarioPrint 6000+ Series device installation space when configured with the
High Capacity Stacker.
IMPORTANT
•In addition to the space required by the VarioPrint6000+ Series the following
space requirements are necessary for the proper servicing of the equipment
(with all doors and access panels open).:
•The BLM550+ Booklet Maker (including the connecting bridge) requires
approximately 87.8” x 112.6” (2,230 mm x 2,860 mm) of space
•The BLM550+ Booklet Maker (including the connecting bridge),
connected with the Book Stacker requires approximately 91.3” x 129.5”
(2,320 mm x 3,290 mm) of space
•The BLM550+ Booklet Maker (including the connecting bridge),
connected with the Book Stacker and Watkiss P2T 2-Knife Trimmer
requires approximately 107” x 153.5” (2,700 mm x 3,900 mm) of space
•As indicated in Figure 1, for the proper servicing of the equipment (with all
doors and access panels open) make sure to keep the back of the
BLM550+ Booklet Maker at least 23.6” (600 mm) away from a wall and keep
the sides at least 21.7” (550 mm) away from a wall.
8Includes the connecting bridge. The dimensions are when the Booklet Maker is assembled.
9The height is adjustable from 34.8” (885 mm) to 38.1” (968 mm)
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 9
Canon
BLM550+ Booklet Maker Service Support Guide
•The machine should not be moved once it is in place.
•The floor must be level (with no bows) and flat for the stabilization and
support of the machine.
•Do not place anything around the machine. Especially, do not place
anything around the breaker, as doing so may prevent access to the
breaker in an emergency, possibly resulting in personal injury.

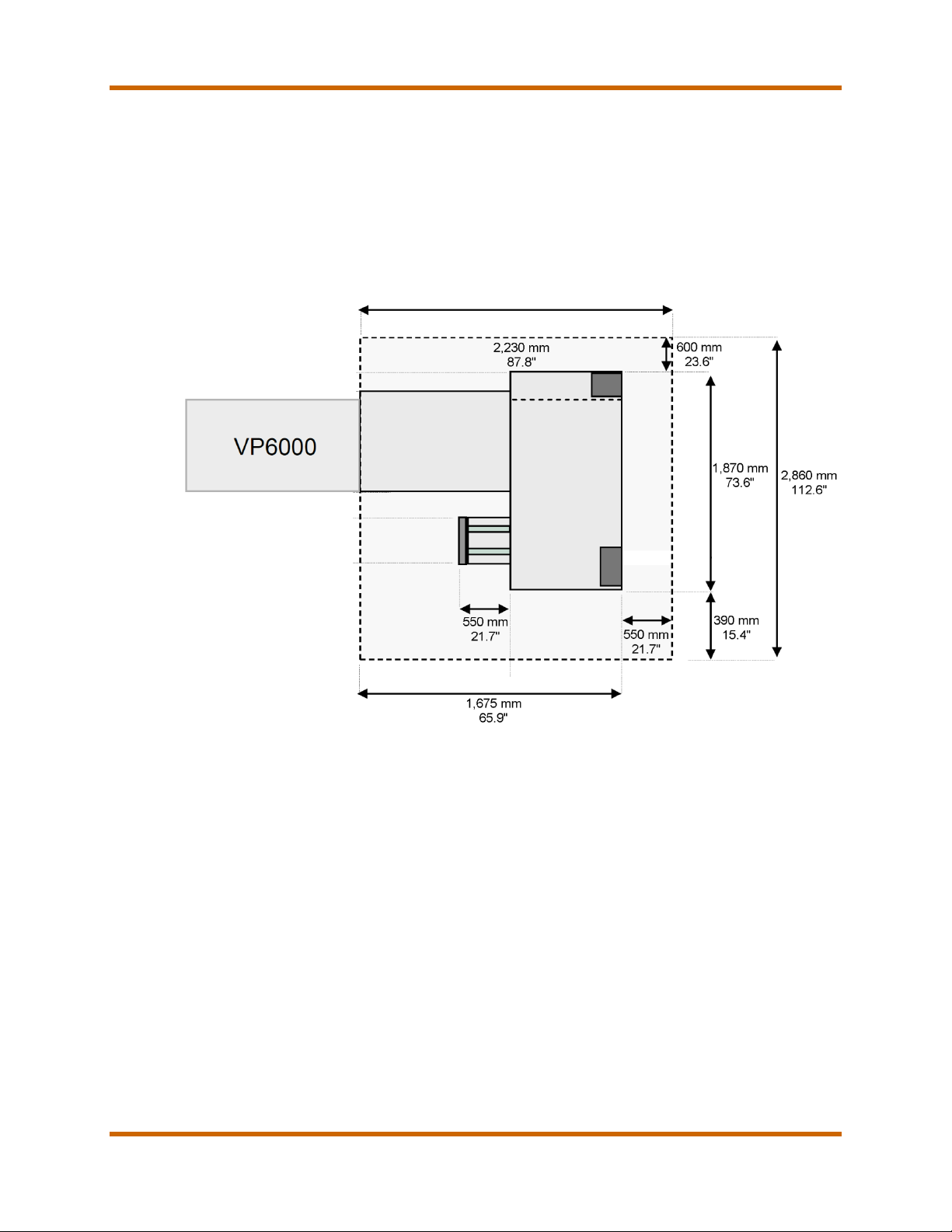

Figure 1 – Installation Space – BLM550+ Booklet Maker
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 10
Canon
BLM550+ Booklet Maker Service Support Guide

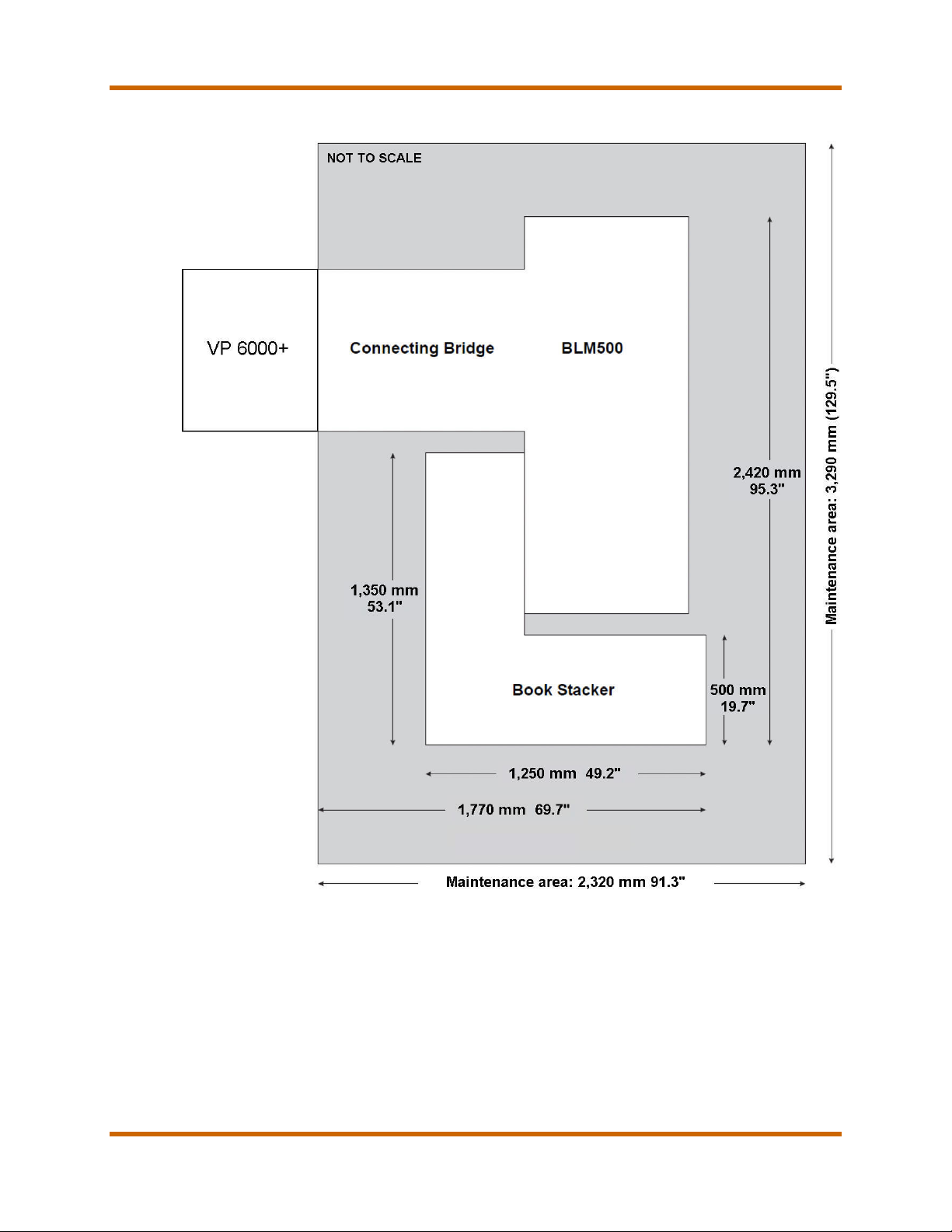

Figure 2 – Installation Space – BLM550+ Booklet Maker with Book Stacker
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 11
Canon
BLM550+ Booklet Maker Service Support Guide
Figure 3 – Installation Space – BLM550+ Booklet Maker with Book Stacker and
Watkiss P2T 2-Knife trimmer
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 12
Canon
BLM550+ Booklet Maker Service Support Guide
D. Estimated Installation Times
The estimated Installation times below are the estimated times required for
installation of the BLM550+ Booklet Maker (including the connecting bridge)
starting from an unpacked condition. The estimated installation times can be
achieved only with a minimum of two (2) experienced technicians on the
BLM550+ Booklet Maker.
Actual work times may differ from the estimated times shown in the table below.
Table 13 – Estimated Installation Times
Description
Estimated Time
BLM550+ Booklet Maker (including the connecting bridge)
6.0 Hours
Book Stacker 2.5 Hours
Watkiss P2T 2-Knife Trimmer
3.0 Hours
E. Environmental Requirements
When installing the BLM550+ Booklet Maker and accessories, the
environmental conditions of the room where the machine is located should be
as described in the table below.
Table 14 – Optimal Environmental Conditions
Optimum Temperature Range Between 50°F (10°C) and 95°F (35°C)
Optimum Humidity Range Between 35% and 85% Relative Humidity
Atmospheric Pressure
(Storage and Transport)
up to 2,000m amsl
Noise (sound level) Maximum: 87 dB
Notes:
•In certain areas of the country and during certain times of the year, it may
be necessary to use a humidifier or dehumidifier to attain the proper
humidity levels for optimal machine performance. There is a risk that
productivity and paper feeding may be affected if the machine is operated
outside of these guidelines.
•The machine should not be installed in locations with significant shifts in
temperature or humidity. Areas containing water, or equipment that can
significantly alter room temperature or humidity, such as a heater, stove, or
portable air conditioner, should be avoided, unless proper environmental
control is available to achieve maximum productivity or quality capability.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 13
Canon
BLM550+ Booklet Maker Service Support Guide
F. Suggested Spare Parts
The suggested spare parts list below contains parts that may require
replacement during service visits or periodic maintenance. These parts can
maintain the reliability, quality, and performance of the BLM550+ Booklet Maker.
This list is provided as a courtesy. A complete parts list is available in the Spare
Parts Catalogue of the BLM550+ Booklet Maker.
Table 15 – BLM550+ Booklet Maker Suggested Car Stock
Item
Item Number1
BELT, (PSQ) TRIMMINGS REM 2
1060059271
RUBBER, ANTI-STATIC CONVE 2 1060059307
CLUTCH, (PSQ)CB6 CCW 24v 1
1060059322
PCB ASSEMBLY, PSQ AXIS MO 1 1060059327
BELT, OUTFEED MAT 02H-25- 2
1060059348
BELT, (PSQ) 2MRx6x288 2 1060059349
BELT, T5-16-1160LG 2
1060059356
BELT, MAT 02H-25-269mmLG 4 1060059357
IONISER BAR, END ENTRY 91 1
1060059360
KLUEBER ISOFLEX NBU15 GRE 1 1060060886
CABLE ASSY, PSQ STITCH SWI 1
1060061836
CABLE ASSEMBLY,PSQ TRIM H 1 1060061838
1060125837 7257PS, G8 CLINCHER POINT 2
1060069177
BEARING,ROLLER FLANGE 22M 2 1060072946
BEARING, FLANGED ROLLER 8 2
1060074061
P.ASSY, (PSQ) INFEED QUADR 1 1060080171
SCREW, SKT HD CAP, M5X25 HI 2
1060080814
SCREW, SKT HD CAP, M4X30MM 2 1060080831
1060123019 SPRING,EXT Pkg of 8
1060080951
SHAFT, (PSQ) CROWNED ROLL 1 1060081435
PL MLDING, (PSQ) SIDE LAY 1
1060081568
NYLON, SHLDER WASHER 18.3 2 1060081632
PIN, (VDPS) dia 3mm x 24 2
1060081652
CABLE ASSY, (PSQ) 10W HIG 1 1060081778
P.ASSY, (PSQ) PICKUP FING 2
1060082011
BELT, MAT 02H_25-1500 2 1060082208
Belt, t5-340-10 2
1060082209
BELT, MAT 02H-25-1500 2 1060082212
BELT, MAT-02H X 25 X 447 2
1060082216
BELT, MAT-02H X 25 WIDE X 2 1060082218
FUSE T16A 2
1060084207
1 Item Numbers and Part Numbers are subject to change without notice.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 14
Canon
BLM550+ Booklet Maker Service Support Guide
Table 15 – BLM550+ Booklet Maker Suggested Car Stock Continued
Item
Item Number1
BEARING, DRAWN CUP 8x12x2 2
1060084221
BEARING, INNER RING 5X8 2
1060084222
NYLON, SPACER 8.1MMX11MM 2
1060084223
1 Item Numbers and Part Numbers are subject to change without notice.
Table 16 – BLM550+ Booklet Maker Suggested Spare Parts
Item
Item Number1
ELECT ASSY, V/FCN CLUTCH
1060059270
FUSE,1.25", 7.0A,HRC-QUIC
1060059289
MOTOR, (PSQ) VALEO GEARED
1060059295
CLUTCH,(PSQ) CB4 CW 24v D
1060059320
PSQ,DELUX G8STITCH HEA RR
1060067208
KIT,(PSQ) BLADE&ANVIL RR
1060067383
STITCHHEAD MAINTENANCE KI
1060068961
G20346B SUPPORTER PIN
1060068964
ADD.ITEMS STITCHHEAD MAIN
1060068969
CLUTCH, PSQ EC75 CW 24V 1
1060096381
SPRING,EXT SPRING 10.67x8
1060123019
7257PS,G8 CLINCHER PT REV
1060125837
1 Item Numbers and Part Numbers are subject to change without notice.
Table 17 – Watkiss P2T 2-Knife Trimmer Suggested Spare Parts
Item
Item Number1
2-Knife Trimmer Care Pack
7603BD38AA
Blade & Anvil Set, 2-Knife Trimmer for BLM500
7603BD39AA
Note: Parts in the 2-Knife Trimmer Care Pack are included in Table 18 below.
Table 18 – Watkiss P2T 2-Knife Trimmer Care Pack contents
Description
Pack size
POWER REG, XP ECG100US28 SMPS 28V 3.6A
1
SWITCH, COMPACT OPTO, 500mm REFLECTIVE
1
FUSE, 1.25",7.0a, HRC-QUICK ACTING, F
10
FUSE, 20mm. 5.0A. GLASS-SLOW EBC, T
10
FUSE, 20mm 250mA GLASS QUICK ACTING, F
10
MOTOR,STEPPER - 57SQx76mm 1.8' 2004
1
PCB ASSEMBLY, STEPPER MTR INTERCONNECT
1
PCB ASSEMBLY, P2T STEPPER MTR CONTEOL
1
PCB ASSEMBLY, (P2T) MAIN CONTROL
1
PCB ASSY, P2T SWITCH PANEL
1
PCB ASSEMBLY, P2T DISCONNECT
1
PCB ASSEMBLY, P2T INTERLOCK
1
ELECT ASSY, PROXIMITY SWITCH 200mm
1
SERVICE AID, USB 2.0A-MiniB CABLE 1.8M
1
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 15
Canon
BLM550+ Booklet Maker Service Support Guide
G. Operator Maintenance
Periodic operator maintenance is required to ensure a specific level of machine
performance. The following tasks should be conducted by the customer
operator(s).
Table 19 – BLM550+ Operator Maintenance
Interval Task
Weekly
Clean the stitcher head (surface only)
(Tools to perform this maintenance are
included with the BLM550+).
Either of the following:
•Monthly
•When a new stich wire is installed
•When the message “OPERATOR
MAINTENANCE”10 is displayed
on the screen (approximately
every 20,000 stitches).
•Lubricate the stitch head (Note: this
should be performed even when the
machine is not in use)
•Lubricate the stitch head
•Clean the square spine forming clamp to
prevent stripes appearing on the side of
the booklet spine
•Clean the square spine form roller to
prevent lines appearing on the booklet
spine
•Clean trimming removals fingers
•Clean excess grease from the stitch
head
10 The “OPERATOR MAINTENANCE” message appears after 20,000 stitches and is accompanied by a repeated beeping from
the machine. After another 2,000 stitches the machine locks. Operator Maintenance (including the lubrication and cleaning) will
reset the counter and resume machine operation.
BLM550+ Booklet Maker Service Support Guide March 2015
Revision 1 Page 16
Table of contents
