Canon EF24-105MM F/4L IS USM User manual

EF24-105mm F4L IS USM
Instruction
10ML00L216cover06.8.93:10PMページ1

ENG-1
Thank you for purchasing a Canon USM lens.
The Canon EF24-105mm f/4L IS USM lens is a
high-performance standard zoom lens
developed for EOS cameras. It is equipped
with an Image Stabilizer, and covers a wide
range of focal lengths from wide angle to
mid-telephoto. It is equipped with an Image
Stabilizer effective for hand-held shooting at
slow shutter speeds.
¡“IS” stands for Image Stabilizer.
¡“USM” stands for Ultrasonic Motor.
Features
1. Aspheric and super UD lens elements for
excellent imaging performance.
2. The Image Stabilizer gives the equivalent
effect of a shutter speed three stops faster.
3. USM for fast, quiet focusing.
4. Great close-ups at 0.45 m/1.5 ft at all focal
lengths.
5. Manual focusing available in autofocusing
mode (ONE SHOT AF).
6. A truly round aperture hole results in a nicer
background blur.
7. Tight seal structure ensures excellent dust-
proof and drip-proof performance.
Conventions used in this instruction
Warning to prevent lens or camera
malfunction or damage.
Supplementary notes on using the lens
and taking pictures.
10ML_01_L216_ENG 06.2.16 5:05 PM Page 2

ENG-2
aSafety Precautions
aSafety Precautions
1. Do not look at the sun or a bright light source
through the lens or camera. Doing so could result in
loss of vision. Looking at the sun directly through the
lens is especially hazardous.
2. Whether it is attached to the camera or not, do
not leave the lens under the sun without the lens
cap attached. This is to prevent the lens from
concentrating the sun’s rays, which could cause a fire.
aHandling Cautions
If the lens is taken from a cold environment into a warm
one, condensation may develop on the lens surface and
internal parts. To prevent condensation in this case, first
put the lens into an airtight plastic bag before taking it from
a cold to warm environment. Then take out the lens after it
has warmed gradually. Do the same when taking the lens
from a warm environment into a cold one.
T his device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult the dealer or an experienced radio/TV technician for
help.
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Industry Canada.
N118
10ML_01_L216_ENG 06.4.7 17:06 Page 3

ENG-3
Distance scale (→4, 8)
Infrared index (→8)
Contacts (→4)
Focus mode switch (→5)
Image stabilizer switch (→6)
Hood mount (→9)
Lens mount index (→4)
Filter mounting
thread (→10)
Zoom ring (→5)
Focusing ring (→5)
Zoom position index
Nomenclature
For detailed information, reference page numbers are provided in parentheses (→ **).
10ML_01_L216_ENG 06.2.16 5:05 PM Page 4

ENG-4
See your camera’s instructions for details on
mounting and detaching the lens.
¡After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
electrical contacts from getting scratched.
¡If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
¡If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
¡If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the
K index of the dust cap as shown
in the diagram, and turn clockwise. To remove it,
reverse the order.
1. Mounting and Detaching the Lens
2. Close-up Photography (Macro Photography)
The lens mount has a rubber ring for enhanced
water- and dust-resistance. The rubber ring may
cause slight abrasions around the camera's lens
mount, but this will not cause any problems. If the
rubber ring becomes worn, it is replaceable by a
Canon Service Center at cost.
The lens can focus as close as 0.45 m/1.5 ft for
close-ups (macro photography).
To focus at 0.45 m/1.5 ft, set the lens focus mode
switch to MF. Look through the viewfinder and
move your body forward or back to focus. Take the
shot when the subject is in focus.
10ML_01_L216_ENG 06.2.16 5:05 PM Page 5

ENG-5

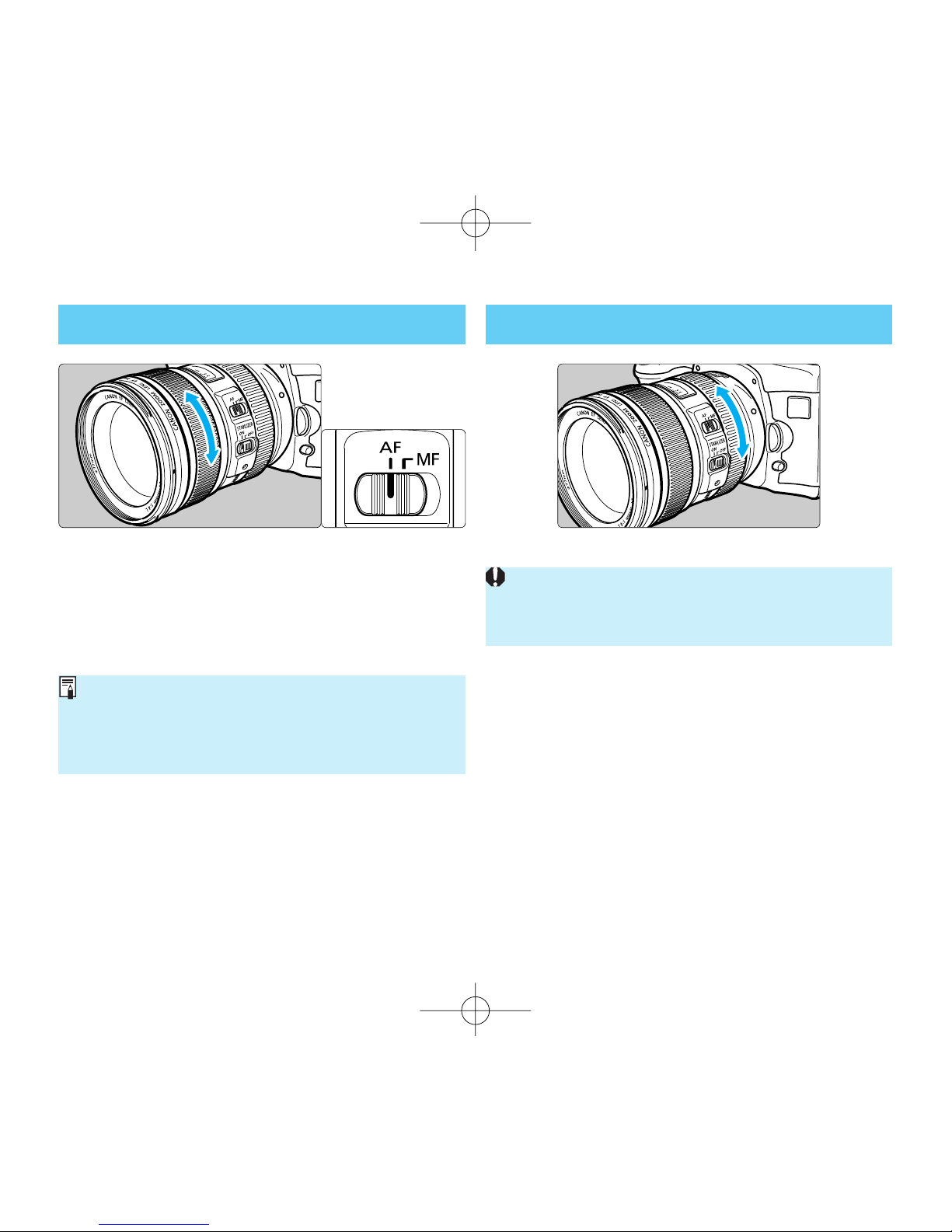

3. Setting the Focus Mode 4. Zooming
After autofocusing in ONE SHOT AF mode, focus
manually by pressing the shutter button halfway
and turning the focusing ring. (Full-time manual
focus)
To shoot in autofocus mode, set the focus mode
switch to AF.
To use only manual focusing, set the focus mode
switch to MF, and focus by turning the focusing
ring. The focusing ring always works, regardless
of the focus mode.
To zo om, turn the lens’ zoom ring.
Be sure to finish zooming before focusing.
Changing the zoom ring after focusing can affect
the focus.
10ML_01_L216_ENG 06.2.16 5:05 PM Page 6

ENG-6
5. Image Stabilizer
You can use the image stabilizer in AF or MF mode.
The image stabilizer is particularly
effective for hand-held shots in
the following conditions.
¡Dimly lit scenes, such as at
dusk or indoors
¡
Locations such as art galleries
or theater stages where flash
photography is forbidden
¡Situations in which your
footing is uncertain
1Set the STABILIZER
switch to .
¡If you are not going to
use the image stabilizer
function, set the switch to
.
2When you press the
shutter button halfway,
the Image Stabilizer
will start operating.
¡Make sure the image in
the viewfinder is stable,
then press the shutter
button the rest of the way
down to take the picture.
10ML_01_L216_ENG 06.7.27 2:33 PM Page 7

ENG-7
Image Stabilizer
¡When you use a tripod, the Image
Stabilizer should be turned off to save
battery power.
¡The stabilizer is equally effective for hand-
held photography and photography with a
monopod.
¡The image stabilizer function also
operates when the lens is used with an
Extension Tube EF12 ll or EF25 ll.
¡If you set the camera’s Custom Function
to change the assigned button to operate
the AF, the Image Stabilizer will operate
when you press the newly assigned AF
button.
¡The Image Stabilizer cannot compensate
for a blurred shot caused by a subject that
moved.
¡Set the STABILIZER switch to when
you are taking pictures using the Bulb
setting (long exposures). If the
STABILIZER switch is set to , the
image stabilizer function may introduce
errors.
¡The Image Stabilizer might not be fully
effective in the following cases:
• You move the camera for a panned shot.
• You shoot while riding on a bumpy road.
¡Compared to using a normal non-IS lens,
fewer shots can be taken when you use
an Image Stabilizer lens because more
power is consumed.
¡The image stabilizer operates for about
two seconds even when your finger is off
the shutter button. Do not remove the lens
while the stabilizer is in operation. This will
cause a malfunction.
¡With the EOS-1V/HS, 3, 30/33/Elan7/7E,
30V/33V/Elan7N/7NE, Elan ll/Elan ll
E/50/50 E, 300/Rebel2000, IX, and D30,
the Image Stabilizer will not work during
self-timer operation.
10ML_01_L216_ENG 06.8.7 1:15 PM Page 8

ENG-8
6. Infinity Distance Mark
To compensate for shifting of the infinity focus
point that results from changes in temperature.
The infinity position at normal temperature is the
point at which the vertical line of the L mark is
aligned with the distance indicator on the
distance scale.
For accurate manual focusing on subjects at
infinity distance, look through the viewfinder while
rotating the focusing ring.
The infrared index corrects the focus setting
when using monochrome infrared film. Focus on
the subject manually, then adjust the distance
setting by moving the focusing ring to the
corresponding infrared index mark.
7. Infrared Index
Some EOS cameras cannot use infrared film. See
the instructions for your EOS camera.
¡The infrared index position is based on a
wavelength of 800 nm.
¡Be sure to observe the manufacturer’s
instructions when using infrared film.
¡Use a red filter also when you take the picture.
10ML_01_L216_ENG 06.2.16 5:05 PM Page 9

ENG-9

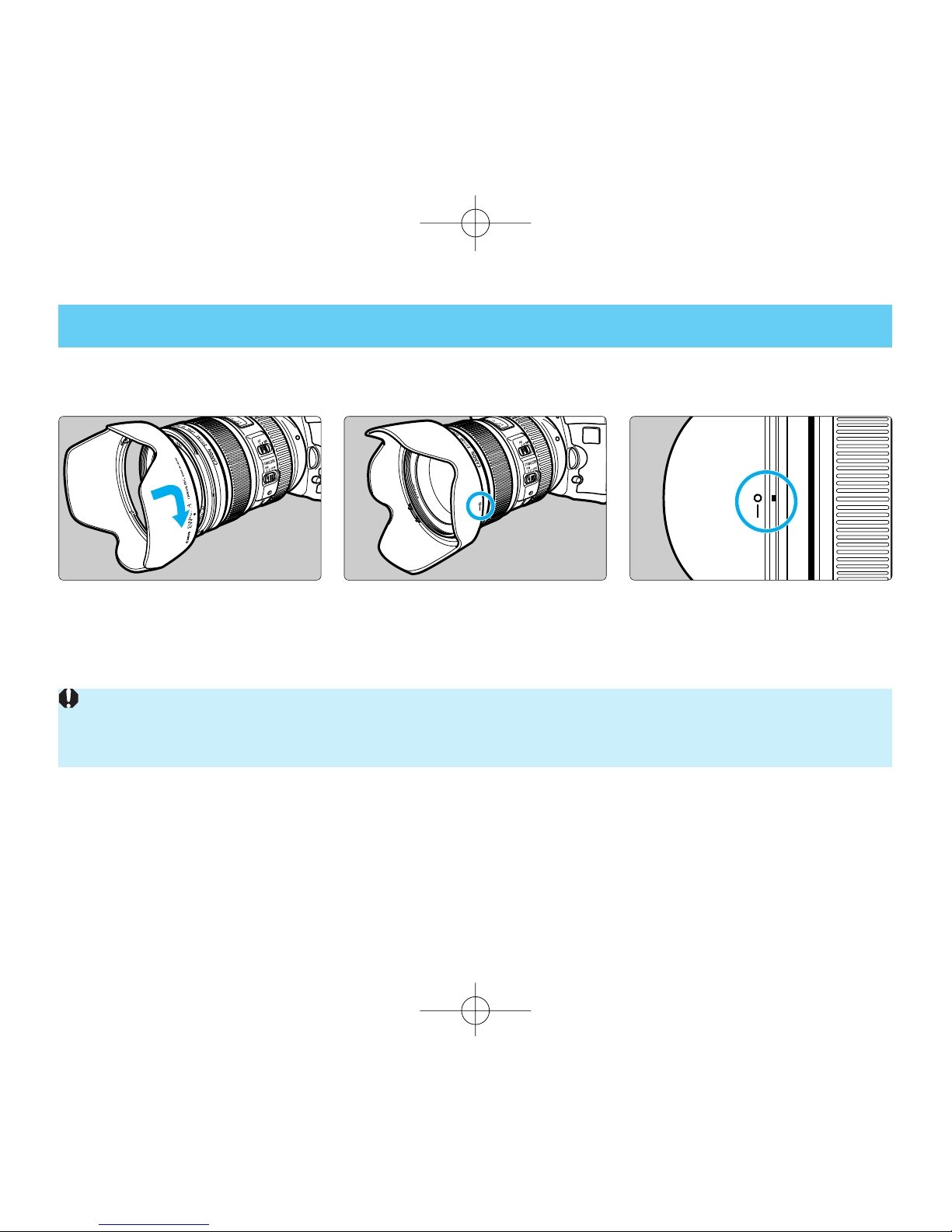

The EW-83H hood can keep unwanted light out of the lens, and also protects the lens from rain,
snow, and dust.
To attach the hood, align the hood’s attachment position mark with the red dot on the front of the
lens, then turn the hood clockwise until the lens’s red dot is aligned with the hood’s stop position
mark.
The hood can be reverse-mounted on the lens for storage.
¡Part of the picture may be blocked if the hood is not attached properly.
¡When attaching or detaching the hood, grasp the base of the hood to turn it. To prevent deformation, do not
grasp the rim of the hood to turn it.
8. Hood
10ML_01_L216_ENG 06.7.27 2:33 PM Page 10

ENG-10
9. Filters (Sold separately) 10. Gelatin Filter Holder (Sold separately)
You can attach filters to the filter mounting
thread on the front of the lens.
¡Only one filter may be attached.
¡If you need a polarizing filter, use Canon’s PL-C
77mm ll polarizing filter.
¡To adjust the polarizing filter, first remove the
lens hood.
¡When the PL-C 77mm ll polarizing filter is
attached, the lens cap cannot be attached.
With the Gelatin Filter Holder, you can use filters
to create various effects.
The Gelatin Filter Holder compatibility is shown
below.
¡Gelatin Filter Holder lll:
Incompatible
¡Gelatin Filter Holder lV:
Compatible (lens hood cannot be used)
10ML_01_L216_ENG 06.7.27 2:33 PM Page 11

ENG-11
11. Extension Tubes (Sold separately)
With Extension Tube EF 12 II or EF 25 II, the
camera-to-subject distance and image
magnification will be as follows:
Camera-to-Subject
Magnification
Distance (mm)
Near Far Near Far
EF12 II 24mm 177 187 0.60×0.50×
105mm 326 1022 0.40×0.12×
EF25 II 24mm Incompatible Incompatible
105mm 280 574 0.61×0.27×
12. Close-up Lenses (Sold separately)
Attaching a 500 or 500D (77mm) Close-up Lens
enables close-up photography.
The magnification will be as follows:
¡Sales of the 500 Close-up Lens may already be
terminated in some areas.
¡Close-up Lens 250D cannot be attached
because there is no size that fits the lens.
¡When using a Close-up Lens, focus manually.
Magnification
24mm 0.05× − 0.11×
105mm 0.02× − 0.34×
When an Extension Tube is attached, focus
manually.
10ML_01_L216_ENG 06.2.16 5:05 PM Page 12

ENG-12
Specifications
Image Size 24 ×36 mm
Focal Length/Aperture 24-105 mm f/4
Lens Construction 13 groups, 18 elements
Minimum Aperture f/22
Angle of View Diagonal: 84° - 23° 20’ Vertical: 53° - 13° Horizontal: 74° - 19° 20’
Min. Focusing Distance 0.45 m/1.5 ft.
Max. Magnification 0.23 × (at 105 mm)
Field of View approx. 345 ×535 mm - 106 ×158 mm/13.6 ×21.1 inch - 4.2 ×6.2 inch (at 0.45 m)
Filter Diameter 77 mm/3.0 inch
Max. Diameter and Length 83.5 ×107 mm/3.3 ×4.2 inch
Weight 670 g/23.6 oz
Hood EW-83H
Lens Cap E-77U
Case LP1219
¡The lens length is measured from the mount surface to the front end of the lens. Add 21.5 mm when including
the lens cap and dust cap.
¡The size and weight listed are for the lens only, except as indicated.
¡Aperture settings are specified on the camera.
¡The EF1.4X II/EF2X II extenders cannot be used with this lens.
¡All data listed is measured according to Canon standards.
¡Product specifications and appearance are subject to change without notice.
10ML_01_L216_ENG 06.7.27 2:33 PM Page 13

©CANON INC. 2005 PRINTED IN JAPAN0000Ni0.0CT1-8520-000
2005.9.1
キヤノン株式会社 http://canon.jp/
キヤノンマーケティングジャパン株式会社
〒108-8011東京都港区港南2-16-6
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA
CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE, AFRICA & MIDDLE EAST
CANON EUROPA N.V.
Bovenkerkerweg 59-61, P.O. Box 2262, 1180 EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S.A.S.
12 Rue de l’Industrie 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8 I-20097 San Donato Milanese, Milano, Italy
CANON Schweiz AG
Geschäftsbereich Wiederverkauf, Industriestrasse 12, CH-8305 Dietlikon,
Switzerland
CANON GMBH
Zetschegasse 11, A-1230 Wien, Austria
CANON España, S.A.
C/Joaquín Costa, 41, 28002 Madrid, Spain
SEQUE Soc. Nac. de Equip., Lda.,
Praça da Alegria, 58, 2°, 1269-149 Lisboa, Portugal
CANON Belgium N.V./S.A.
Bessenveldstraat 7, B – 1831 Diegem, Belgium
CANON Netherland NV
Neptunusstraat 1, 2132 JA Hoofddorp, The Netherlands
CANON LUXEMBOURG S.A.
Rue des Joncs 21, L-1818 Howald, Luxembourg
CANON DANMARK A/S
Knud Hoejgaards Vej 1 DK-2860 Soeborg, Danmark
CANON OY
Huopalahdentie 24 PL 1 00351 Helsinki, Finland
CANON SVENSKA AB
Gustav III:s Boulevard 26 169 88 Solna, Sweden
CANON NORGE as
Hallagerbakken 110, Postboks 33, Holmlia, 1201 Oslo, Norway
CENTRAL & SOUTH AMERICA
CANON LATIN AMERICA, INC.
703 Waterford Way, Ste. 400 Miami, FL 33126, U.S.A.
ASIA
CANON (China) Co., Ltd.
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Startower Bldg.17F,737,Yeoksam-Dong, Kangnam-Ku, Seoul, 135-984, Korea
OCEANIA
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN
CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
この使用説明書は100％再生紙及び揮発性有機化合物（VOC）
ゼロのインキを使用しています。
10ML00L216cover 06.7.312:35 PM ページ2
