Canon Staple Finisher-H1 User manual

7654321
Staple Finisher-H1
Service Manual
Product Outline
Technology
Periodic Servicing
Parts Replacement and Cleaning Procedure
Adjustment
Installation
Appendix

0
0
0-2
0-2
Application
This manual has been issued by Canon Inc. for qualied persons to learn technical theory,
installation, maintenance, and repair of products. This manual covers all localities where the
products are sold. For this reason, there may be information in this manual that does not
apply to your locality.
Corrections
This manual may contain technical inaccuracies or typographical errors due to improvements
or changes in products. When changes occur in applicable products or in the contents of this
manual, Canon will release technical information as the need arises. In the event of major
changes in the contents of this manual over a long or short period, Canon will issue a new
edition of this manual.
The following paragraph does not apply to any countries where such provisions are
inconsistent with local law.
Trademarks
The product names and company names used in this manual are the registered trademarks
of the individual companies.
Copyright
This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may
not be copied, reproduced or translated into another language, in whole or in part, without the
consent of Canon Inc.
Coryright CANON INC. 2011
Caution
Use of this manual should be strictly supervised to avoid disclosure of condential
information.

0
0
0-3
0-3
Explanation of Symbols
The following symbols are used throughout this Service Manual.
Symbols Explanation Symbols Explanation
Check Remove the claw.
Check visually Insert the claw.
Check the noise. Use the bundled part.
Disconnect the connector. Push the part.
Connect the connector. Plug the power cable.
Remove the cable/wire
from the cable guide or wire
saddle.
Turn on the power.
Set the cable/wire to the
cable guide or wire saddle.
Remove the screw.
Tighten the screw.
The following rules apply throughout this Service Manual:
1. Each chapter contains sections explaining the purpose of specic functions and the
relationship between electrical and mechanical systems with reference to the timing of
operation.
In the diagrams, represents the path of mechanical drive; where a signal name
accompanies the symbol, the arrow indicates the direction of the electric
signal.
The expression "turn on the power" means ipping on the power switch, closing the
front door, and closing the delivery unit door, which results in supplying the machine with
power.
2. In the digital circuits, '1' is used to indicate that the voltage level of a given signal is
"High", while '0' is used to indicate "Low". (The voltage value, however, differs from
circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD
signal goes on when '0'.
In practically all cases, the internal mechanisms of a microprocessor cannot be checked
in the eld. Therefore, the operations of the microprocessors used in the machines
are not discussed: they are explained in terms of from sensors to the input of the DC
controller PCB and from the output of the DC controller PCB to the loads.
The descriptions in this Service Manual are subject to change without notice for product
improvement or other purposes, and major changes will be communicated in the form of
Service Information bulletins.
All service persons are expected to have a good understanding of the contents of this Service
Manual and all relevant Service Information bulletins and be able to identify and isolate faults
in the machine.

Blank Page

0
0
0-5
0-5
Contents
Safety Precautions
Notes Before Servicing ------------------------------------------------------0-2
Points to Note at Cleaning --------------------------------------------------0-2
Product Outline
Features -------------------------------------------------------------------------1-2
Specications ------------------------------------------------------------------1-3
Names of Parts ----------------------------------------------------------------1-4
External View ----------------------------------------------------------------------- 1-4
Cross Section ----------------------------------------------------------------------- 1-4
Technology
Basic Conguration -----------------------------------------------------------2-2
Functional Conguration --------------------------------------------------------- 2-2
Overview of Electrical Circuitry ------------------------------------------------- 2-2
Controls --------------------------------------------------------------------------2-3
Controls ------------------------------------------------------------------------------ 2-3
Basic Operation ---------------------------------------------------------------2-4
Outline -------------------------------------------------------------------------------- 2-4
Feed Unit ------------------------------------------------------------------------2-6
Outline -------------------------------------------------------------------------------- 2-6
Feeding Paper to Processing Tray Unit -------------------------------------- 2-6
Processing Tray Unit ---------------------------------------------------------2-7
Outline -------------------------------------------------------------------------------- 2-7
Stacking Operation ---------------------------------------------------------------- 2-8
Tray Auxiliary Guide Operation ------------------------------------------------- 2-9
Alignment / Shifting Operation -------------------------------------------------2-10
Staple Operation ------------------------------------------------------------------2-16
Stack Delivery Operation -------------------------------------------------------2-16
Stack Tray Paper Retainer Operation ---------------------------------------2-17
Stack Tray Unit -------------------------------------------------------------- 2-18
Stack Tray Shift Operation ------------------------------------------------------2-18
Stack Tray Paper Height Detection Control --------------------------------2-18
Stack Tray Paper Full Detection Control ------------------------------------2-19
Controller Unit ---------------------------------------------------------------- 2-20
Outline -------------------------------------------------------------------------------2-20
Detecting Jams -------------------------------------------------------------- 2-21
Outline -------------------------------------------------------------------------------2-21
Power Supply ---------------------------------------------------------------- 2-23
Outline -------------------------------------------------------------------------------2-23
Protective Functions -------------------------------------------------------------2-23
Work of Service -------------------------------------------------------------- 2-24
When replacing the parts -------------------------------------------------------2-24
Periodical Servicing --------------------------------------------------------------2-24
Upgrading ---------------------------------------------------------------------------2-24
Periodic Servicing
List of Work for Scheduled Servicing ------------------------------------3-2
Parts Replacement and Cleaning Procedure
Finisher --------------------------------------------------------------------------4-2
Detaching the Finisher from the Host Machine----------------------------- 4-2
List of Parts ---------------------------------------------------------------------4-4
External / Internal Covers -------------------------------------------------------- 4-4
Front ------------------------------------------------------------------------------------------- 4-4
Rear -------------------------------------------------------------------------------------------- 4-4
Main Units --------------------------------------------------------------------------- 4-5
List of Motors ------------------------------------------------------------------------ 4-5
List of Sensors and Switches --------------------------------------------------- 4-6
List of PCBs ------------------------------------------------------------------------- 4-6
External / Internal Covers ---------------------------------------------------4-7
Removing the Front Cover ------------------------------------------------------ 4-7
Removing the Rear Cover ------------------------------------------------------- 4-7
Removing the Upper Feed Guide Unit --------------------------------------- 4-8
Removing the Upper Cover ----------------------------------------------------- 4-9
Removing the PCB Cover ------------------------------------------------------- 4-9
Main Units --------------------------------------------------------------------- 4-10

0
0
0-6
0-6
Removing the Grate-shaped Guide ------------------------------------------4-10
Removing the Staple Unit ------------------------------------------------------- 4-11
Removing the Upper Processing Tray Unit (Front / Rear) --------------4-12
Removing the Lower Processing Tray Unit ---------------------------------4-15
Motors -------------------------------------------------------------------------- 4-16
Removing the Feed Motor (M1) -----------------------------------------------4-16
Removing the Delivery Motor (M2) -------------------------------------------4-17
Removing the Paddle Motor (M3) --------------------------------------------4-18
Removing the Front Alignment Motor (M4) ---------------------------------4-18
Removing the Rear Alignment Motor (M5) ---------------------------------4-19
Removing the Tray Auxiliary Guide Motor (M6) ---------------------------4-19
Removing the Gripper Motor (M7) --------------------------------------------4-20
Removing the Stack Tray Shift Motor (M8) ---------------------------------4-21
Switches ----------------------------------------------------------------------- 4-23
Removing the Front Door Switch ---------------------------------------------4-23
Removing the Stack Tray Lower Limit Switch -----------------------------4-24
PCBs --------------------------------------------------------------------------- 4-25
Removing the Finisher Controller PCB --------------------------------------4-25
Adjustment
Adjustment Item ---------------------------------------------------------------5-2
Overview ----------------------------------------------------------------------------- 5-2
Dip Switch Function ----------------------------------------------------------5-3
Sensor Detection Check Mode ------------------------------------------------- 5-3
Entering the Sensor Detection Check Mode ----------------------------------------- 5-3
List of Sensor Detection Check States ------------------------------------------------ 5-3
Motor Operation Check Mode -------------------------------------------------- 5-4
Entering the Motor Operation Check Mode ------------------------------------------ 5-4
List of Motor Operation Check States ------------------------------------------------- 5-4
Shifting Operation ON/OFF Setting in Staple Mode ---------------------- 5-5
Installation
How to Utilize This Installation Procedure ------------------------------6-2
Descriptions Used in This Procedure ----------------------------------------- 6-2
When Using the Contained Parts (Bundled Components in the Shipping
Carton) -------------------------------------------------------------------------------- 6-2
Symbols in the Illustration ------------------------------------------------------- 6-2
Unpacking Procedure --------------------------------------------------------6-3
Unpacking Procedure ------------------------------------------------------------- 6-3
Installation Procedure --------------------------------------------------------6-4
Preparation for Installation on Host Machine ------------------------------- 6-4
Connecting to Host Machine ---------------------------------------------------- 6-5
Appendix
Service Tools -------------------------------------------------------------------7-2
Solvents and Oils ------------------------------------------------------------------ 7-2
Applying the Grease ----------------------------------------------------------------------- 7-3
Special Tools ------------------------------------------------------------------------ 7-5
General Circuit Diagram -----------------------------------------------------7-6
General Circuit Diagram --------------------------------------------------------- 7-6

Safety Precautions
■Notes Before Servicing
■Points to Note at Cleaning

0
0
0-2
0-2
Safety Precautions > Points to Note at Cleaning
Safety Precautions > Points to Note at Cleaning
Notes Before Servicing
Caution:
At servicing, be sure to turn off the power source according to the specied steps and
disconnect the power plug.
Caution:
Do not turn off the power switch when downloading is under way.
Turning off the main power switch while downloading is under way can disable the
machine.
Points to Note at Cleaning
Caution:
When performing cleaning using organic solvent such as alcohol, be sure to check that
the component of solvent is vaporized completely before assembling.

1
1Product Outline
Product Outline
■Features
■Specications
■Names of Parts

1
1
1-2
1-2
Product Outline > Features
Product Outline > Features
Features
• Compact, semi-inner nisher which corresponds to A4 black-and-white, high-speed MFP.
• Gripper mechanism for delivering paper to the stack tray.
• Stack tray capacity of approximate 500 sheets.
• Easy to install on the host machine.

1
1
1-3
1-3
Product Outline > Specications
Product Outline > Specications
Specications
●Finisher Unit
Item Specications Remarks
Stacking method Stack tray: moving up and down
Stacking orientation Face down
Stacking paper size Feed direction: 139 to 356 mm
(extra-length paper: 139 to 630 mm)
Cross feed direction: 98 to 216 mm
Alignment stacking
paper size
[Non sort]
Cross feed direction: 98 to 216 mm
[Sort]
Cross feed direction: 138 to 216 mm
[Staple sort]
Cross feed direction: 182 to 216 mm
Paper weight 64 to 128 g/m2
Stacking capacity - Processing tray
[Non sort / sort]
6 sheets or less
[Staple sort]
50 sheets or less
- Stack tray
[Non sort / sort]
73.5 mm or less in height (equivalent of 500 sheets)
[Staple sort]
73.5 mm or less in height, or 22 sets or less
- Equivalent of 80 g/m2
paper
Mixed stacking
capacity
[Non sort / sort]
73.5 mm or less in height
[Staple sort]
73.5 mm or less in height, or 22 sets or less
- Equivalent of 80 g/m2
paper
Dimensions 263 mm (H) × 798 mm (W)× 395 mm (D)
Weight Approx. 10.5 kg
Power supply From host machine: 24V, 5V
Power consumption Standby: 2.5 W or less
Operating: 50 W or less
T-1-1
●Staple Unit
Item Specications Remarks
Stapling method Punching by rotating cam - Flat clinch
Stapling capacity 50 sheets
Paper thickness: 5.7 mm or less
- Equivalent of 80 g/m2
paper
- Including 2 sheets of
128 g/m2 paper
Stapling paper size A4R, B5R, LGL, LTRR, EXECR, 16KR
Staple supply Special staple cartridge (5000 staples)
Staple detection Provided
Manual stapling Not provided
Initial feed of staple
head
Provided
• Staple Position
Front 1-point stapling (45 degrees)
5.0 ± 2.0 mm
5.0 ± 2.0 mm
T-1-2
F-1-1

1
1
1-4
1-4
Product Outline > Names of Parts > Cross Section
Product Outline > Names of Parts > Cross Section
Names of Parts
External View
Stack Tray
Front Door
F-1-2
Cross Section
Inlet Roller
Paddle
Feed Roller
Alignment Plate
Delivery Roller
Stapler
Stack Tray Paper Retainer
Tray Auxiliary Guide
Paper Return Paddle
Gripper
Stack Tray
F-1-3

2
2Technology
Technology
■Basic Conguration
■Controls
■Basic Operation
■Feed Unit
■Processing Tray Unit
■Stack Tray Unit
■Controller Unit
■Detecting Jams
■Power Supply
■Work of Service

2
2
2-2
2-2
Technology > Basic Conguration > Overview of Electrical Circuitry
Technology > Basic Conguration > Overview of Electrical Circuitry

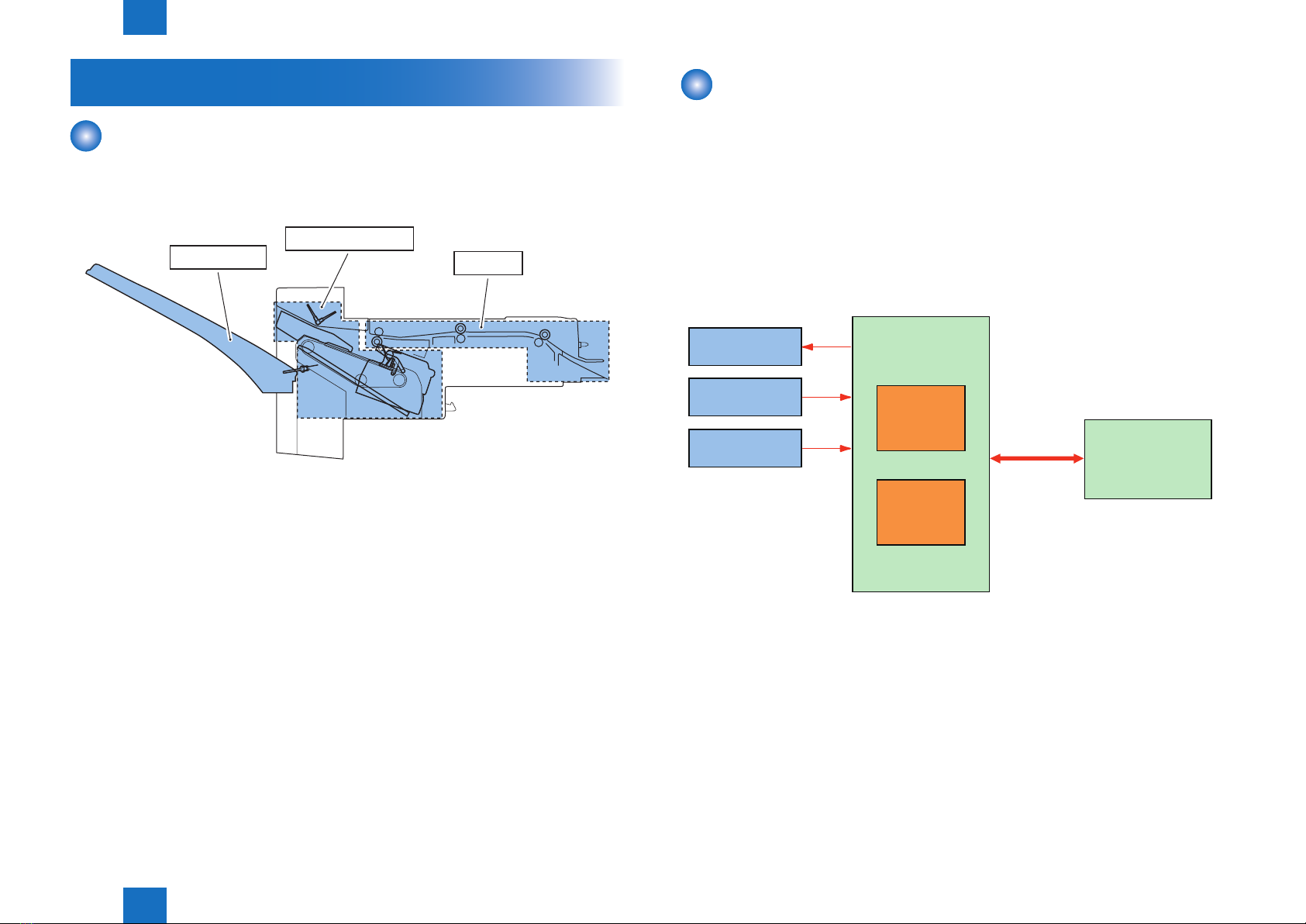

Basic Conguration
Functional Conguration
The components of this nisher are organized into 3 major blocks; feed unit, processing tray
unit and stack tray unit.
Feed Unit
Processing Tray Unit
Stack Tray Unit
F-2-1
Overview of Electrical Circuitry
The nisher's sequence of the operation is controlled by its nisher controller PCB.
The nisher controller PCB has the 16-bit CPU, and the controller also controls the
communication with the host machine in addition to controlling the nisher's operation
sequence.
The CPU on the nisher controller PCB contains a ash ROM used to store the operating
sequence program.
The nisher controller PCB uses the serial communication line to receive various commands
from its host to drive the motors. It also uses serial communications to send information on
the sensors and switches to its host.
Motor
Sensor
Switch
Finisher Controller PCB
CPU
Motor
Driver
Serial
Communication
Host Machine
(DC Controller PCB)
F-2-2

2
2
2-3
2-3
Technology > Controls > Controls
Technology > Controls > Controls
Controls
Controls
Items Reference
Basic Operation Outline Refer to page 2-4
Feed Unit Outline Refer to page 2-6
Feeding Paper to Processing Tray
Unit
Refer to page 2-6
Processing Tray Unit Outline Refer to page 2-7
Stacking Operation Refer to page 2-8
Tray Auxiliary Guide Operation Refer to page 2-9
Alignment / Shifting Operation Refer to page 2-10
Staple Operation Refer to page 2-16
Stack Delivery Operation Refer to page 2-16
Stack Tray Paper Retainer
Operation
Refer to page 2-17
Stack Tray Unit Stack Tray Shift Operation Refer to page 2-18
Stack Tray Paper Height Detection
Control
Refer to page 2-18
Stack Tray Paper Full Detection
Control
Refer to page 2-19
Controller Unit Outline Refer to page 2-20
Detecting Jams Outline Refer to page 2-21
Power Supply Outline Refer to page 2-23
Protective Functions Refer to page 2-23
Work of Service When replacing the parts Refer to page 2-24
Periodical Servicing Refer to page 2-24
Upgrading Refer to page 2-24
T-2-1

2
2
2-4
2-4
Technology > Basic Operation > Outline
Technology > Basic Operation > Outline
Basic Operation
Outline
Basic operations of this nisher are described below.
(1) The paper delivered from the host machine is fed by the inlet roller, feed roller, and
delivery roller.
Feed Roller
Delivery Roller
Inlet Roller
(2) The paper delivered by the delivery roller is stacked on the processing tray by the
paddle. A paddle and a paper return paddle are used to align paper in the feed direction.
If two or more sheets with a length of 150 mm or more are stacked, the tray auxiliary
guides slide out.
Paddle
Paper Return Paddle
Stack Tray Paper Retainer
F-2-3
F-2-4
(3) The alignment plates are used to align paper in the width direction. (In the illustration
below, paper is aligned with reference to the central reference position.)
Rear Alignment Plate
Front Alignment Plate
(4) The operations described in (1) to (3) are repeated for each sheet to be stacked on the
processing tray.
(5) The stacked sheets are stapled (only in the staple mode).
Stapler
F-2-5
F-2-6

2
2
2-5
2-5
Technology > Basic Operation > Outline
Technology > Basic Operation > Outline
(6) After being shifted, the sheets stacked on the processing tray are delivered to the stack
tray.
If the tray auxiliary guides have slid out, they slide back before the sheets are delivered
to the stack tray.
Gripper
F-2-7

2
2
2-6
2-6
Technology > Feed Unit > Feeding Paper to Processing Tray Unit
Technology > Feed Unit > Feeding Paper to Processing Tray Unit

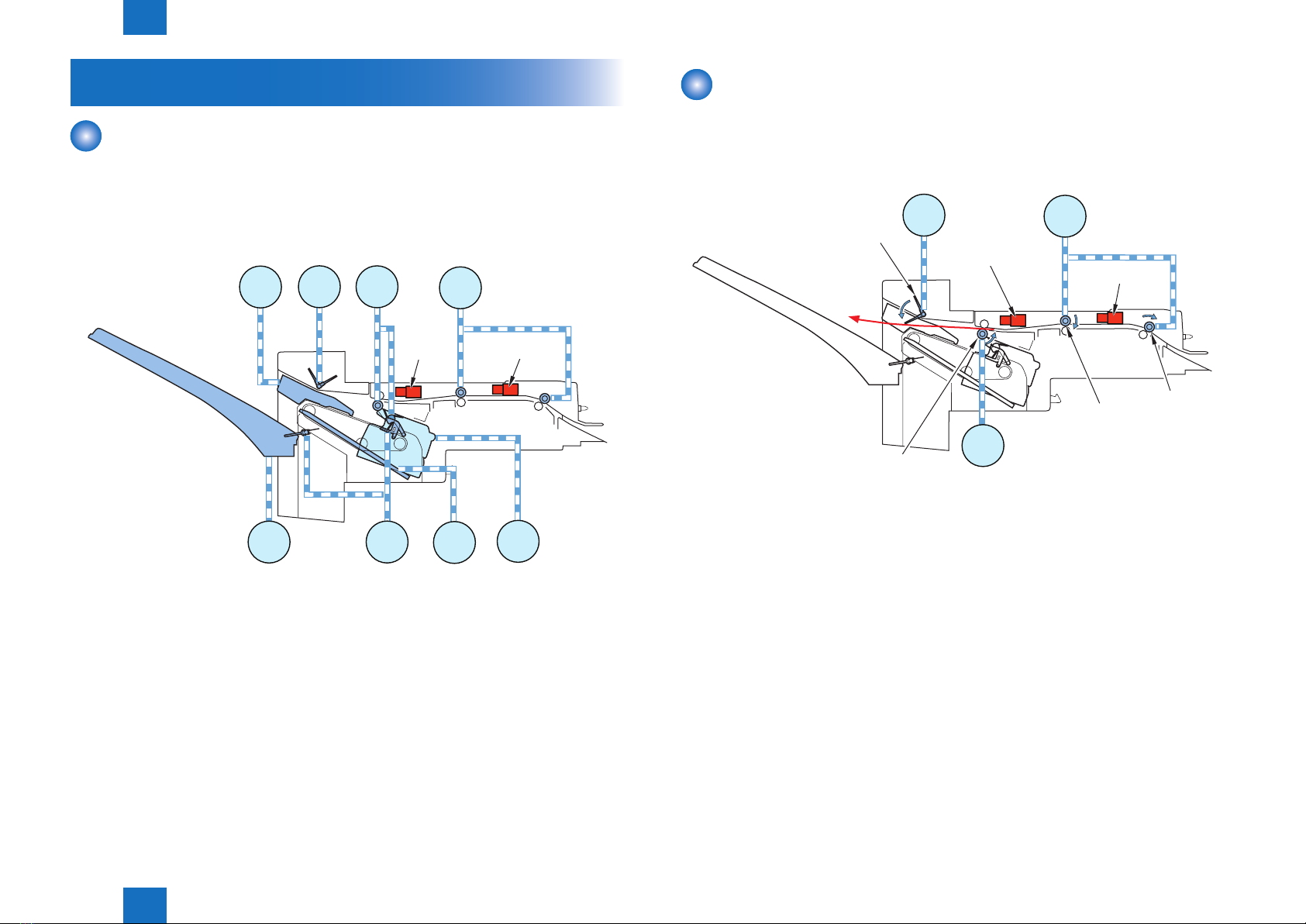

Feed Unit
Outline
The feed unit feeds the paper delivered from the host machine and feeds it to the processing
tray unit.
Two sensors, an inlet sensor (S1) and a delivery sensor (S2), are provided along the paper
feed path in the feed unit to detect the paper feed state and jam.
M1
S1
S2
M2
M3
M4/5
M8 M7 M6 M9
M1 Feed Motor M7 Gripper Motor
M2 Delivery Motor M8 Stack Tray Shift Motor
M3 Paddle Motor M9 Staple Motor
M4 Front Alignment Motor S1 Inlet Sensor
M5 Rear Alignment Motor S2 Delivery Sensor
M6 Tray Auxiliary Guide Motor
F-2-8
T-2-2
Feeding Paper to Processing Tray Unit
The paper delivered from the host machine is fed by the inlet roller, feed roller, and delivery
roller.
The paper delivered by the delivery roller is stacked on the processing tray by the paddle.
M1
M2
M3 Feed MotorPaddle Motor
Delivery Motor
Paddle
Delivery Sensor (S2)
Inlet Sensor (S1)
Inlet Roller
Feed Roller
Delivery Roller
F-2-9

2
2
2-7
2-7
Technology > Processing Tray Unit > Outline
Technology > Processing Tray Unit > Outline

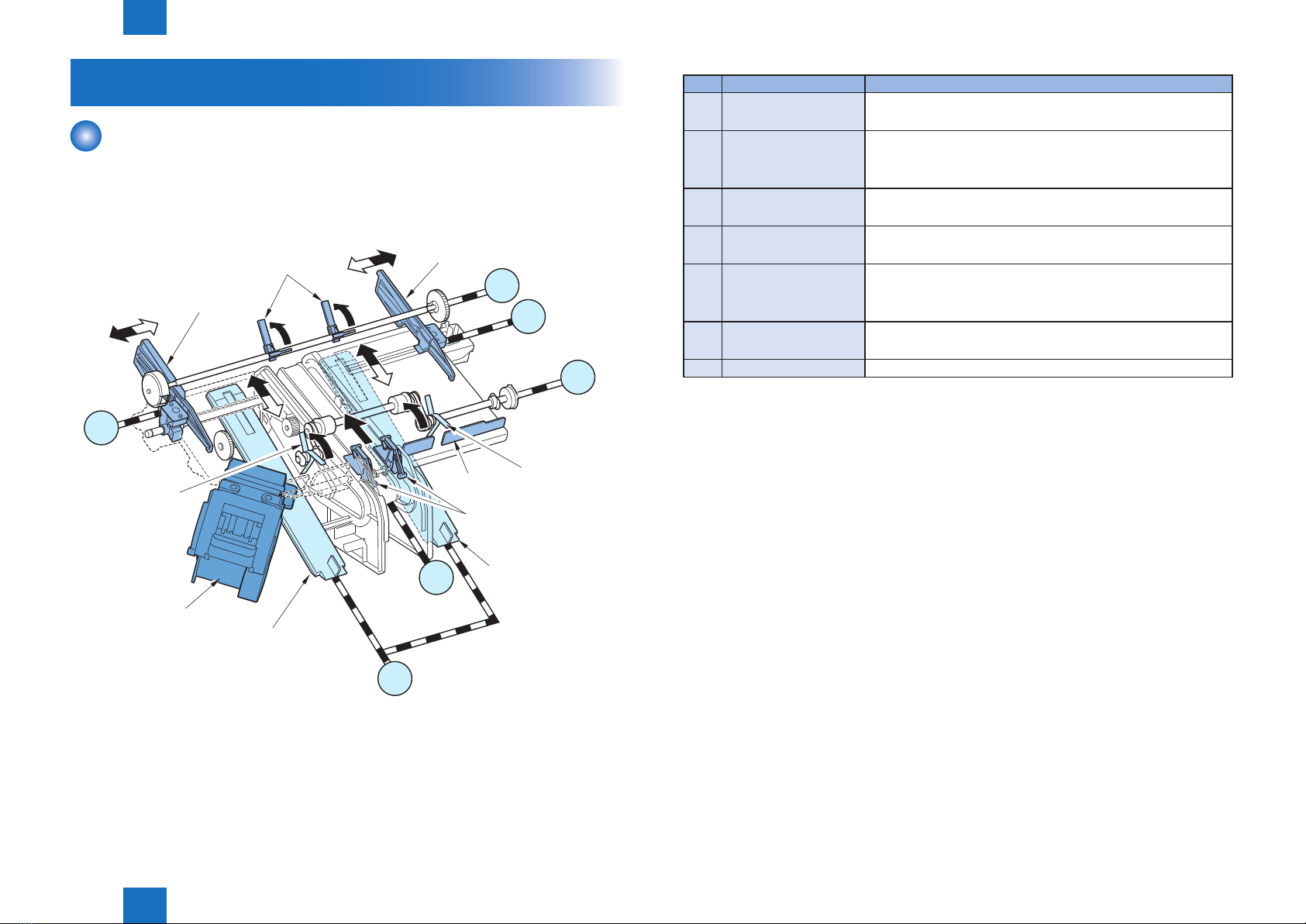

Processing Tray Unit
Outline
The processing tray unit aligns, shifts, and staples the delivered paper, and then delivers the
paper onto the stack tray using a gripper.
Names and roles of the components of the processing tray are as follows:
M4
M6
M7
M3
M5
M2
Paddle Paddle
Motor
Rear Alignment Plate
Rear Alignment
Motor
Delivery
Motor
Paper Return
Paddle
Tray Auxiliary Guide
Tray Auxiliary Guide
Tray Auxiliary Guide Motor
Gripper Motor
Gripper
Stopper
Stapler
Front Alignment
Motor
Front Alignment Plate
Paper Return
Paddle
F-2-10
No. Name Function
[1] Paddle Stacks the paper delivered from the delivery roller on the
processing tray.
[2] Paper Return Paddle Presses the paper stacked on the processing tray against
the stopper (alignment in the feed direction) and prevents
the previously stacked paper from being fed/delivered.
[3] Front / Rear Alignment
Plate
Aligns the paper stacked on the processing tray in the width
direction and shifts the paper.
[4] Gripper Grips the paper stack on the processing tray, and then
delivers it to the stack tray.
[5] Tray Auxiliary Guide When two or more sheets with a length of 150 mm or
more are stacked on the processing tray unit, prevents
misalignment of paper due to curl.
[6] Stopper Allows the paper stacked on the processing tray to be
pressed against itself to align the paper in the feed direction.
[7] Stapler Staples sheets of paper.
T-2-3

2
2
2-8
2-8
Technology > Processing Tray Unit > Stacking Operation
Technology > Processing Tray Unit > Stacking Operation

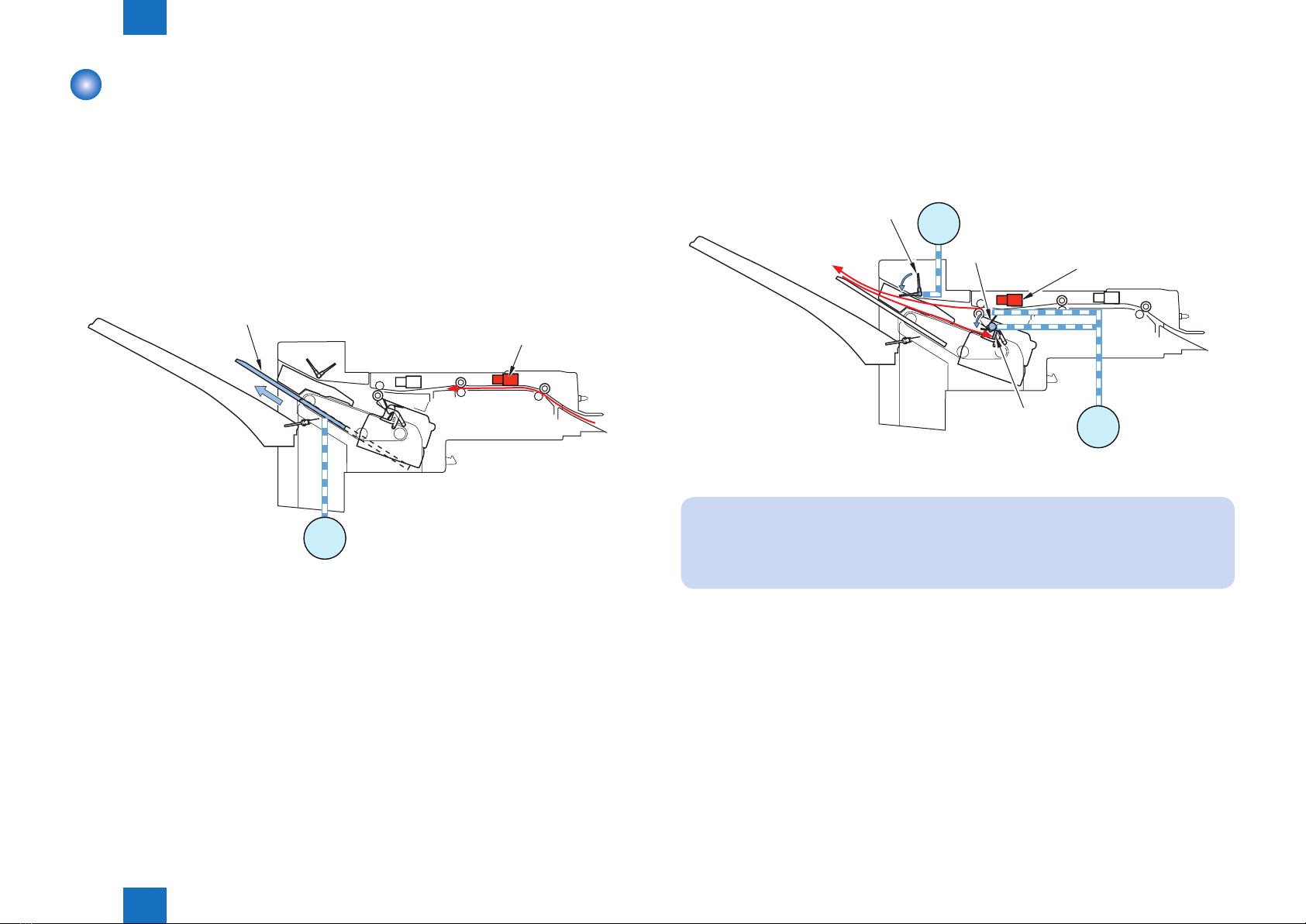

Stacking Operation
The paper delivered from the delivery roller is stacked on the processing tray and the paper is
aligned in the feed direction.
How paper is delivered from the delivery roller and stacked on the processing tray is
described below.
(1) When two or more sheets with a length of 150 mm or more are stacked, the tray
auxiliary guide motor (M6) operates after lapse of the specied time since detection of
paper by the inlet sensor (S1), thus sliding out the tray auxiliary guides.
M6 Tray Auxiliary Guide Motor
Inlet Sensor (S1)
Tray Auxiliary Guide
F-2-11
(2) After the specied time has lapsed since paper has passed through the delivery sensor
(S2), the paddle motor (M3) operates to rotate the paddle once to stack the paper on the
processing tray.
The stacked paper is pressed against the stopper by the paper return paddle which is
driven by the delivery motor (M2), thus aligning the paper in the feed direction.
M2 Delivery Motor
M3 Paddle Motor
Delivery Sensor (S2)
Stopper
Paddle
Paper Return Paddle
NOTE:
When a postcard or a sheet shorter than 150 mm is stacked, the paddle does not
rotate.
F-2-12
