Preface
Shipping Materials
Thank you for purchasing a Canon Bubble Jet Printer.
Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon
Authorized Dealer or Sales Representative.
 Printer
 Photo Paper Tray
 Setup Software & User’s Guide CD-ROM
 Quick Start Guide
 Print Head
 6 Ink Tanks
* A USB cable should be purchased separately according to your computer. For details on cable
specifications, refer to page 2.
Introduction
This Quick Start Guide uses the following symbols to indicate important information. Always observe the
instructions indicated by these symbols.
Instructions that, if ignored, could result in death or serious personal injury caused by incorrect
operation of the equipment. These must be observed for safe operation.
Instructions that, if ignored, could result in personal injury or material damage caused by incorrect operation
of the equipment. These must be observed for safe operation.
The computer screens in this manual refer to the i965. The operations are exactly the same with the i960.
For information about printing when you connect a PictBridge-compliant digital camera and digital video
camcorder, refer to ”Direct Printing for PictBridge-compliant Digital Cameras”.
Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid
personal injury or damage to the printer.
Trademark Notices
• Canon
®
is a registered trademark of Canon Inc.
•BJ
™
is a trademark of Canon Inc.
• Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the U.S. and other
countries.
• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.
• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of
their respective owners.
Copyright ©2003 CANON INC.
All rights reserved. No part of this publication may be transmitted or copied in any form whatsoever
without the express written permission.

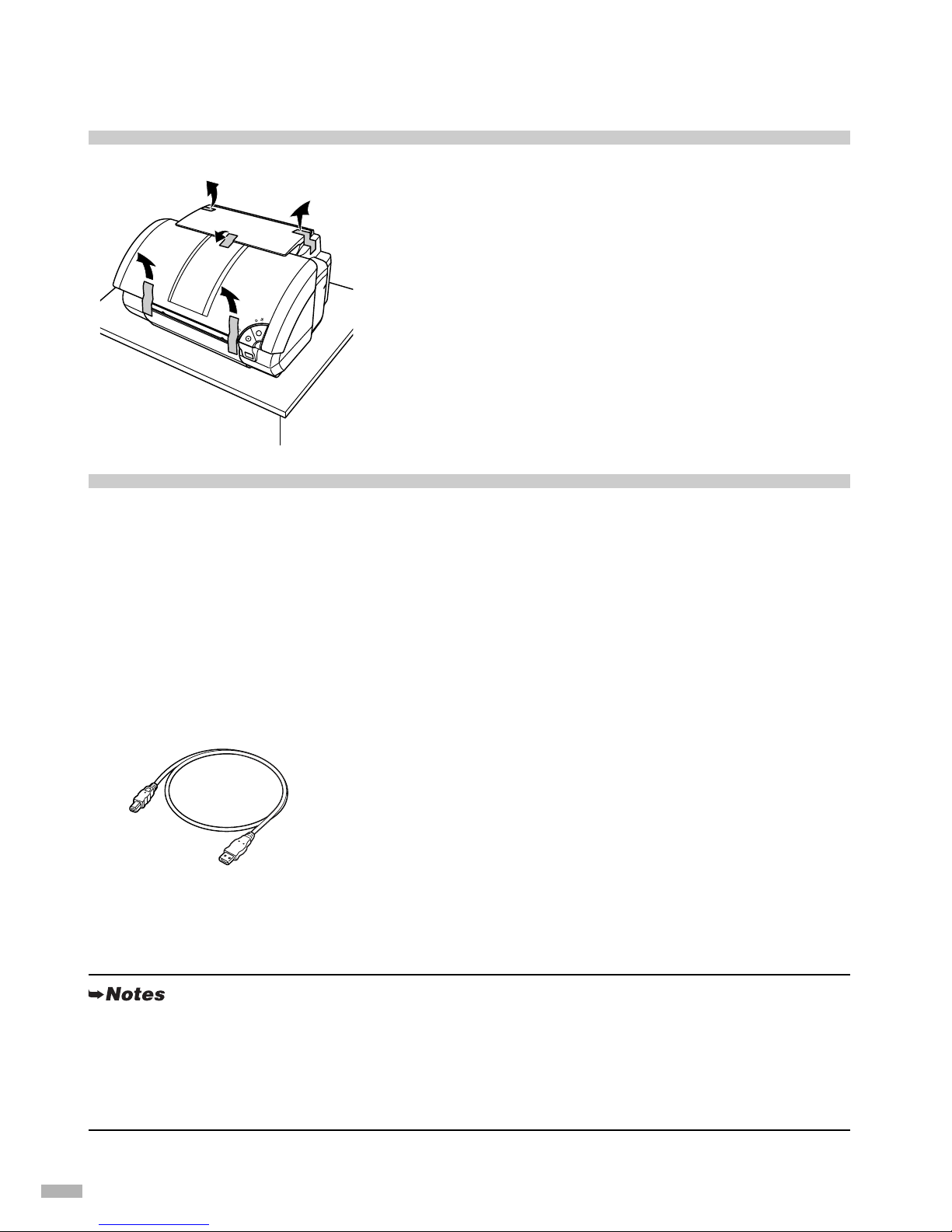

2
Setting Up
1 Preparing the Printer
1
11
1 Place the printer on a flat surface.
2
22
2 Remove the packing material and tape
from the printer as shown.
The tape position is subject to change.
2 Connecting the Printer to the Computer
Use a USB cable.This printer has two types of USB ports.
• USB 2.0 Hi-Speed port (un upper USB port)
Connect to this port only when you use Windows XP or Windows 2000 and, your computer and
USB cables also support USB 2.0 Hi-Speed. To determine whether your computer supports USB 2.0
Hi-Speed, refer to its manual or contact its manufacturer.
• USB 2.0 Full Speed port (a lower USB port)
Connect to this port when your computer or your cables do not support USB 2.0 Hi-Speed or when it
is not clear whether they support it. Connect to this port when using a Macintosh computer.
USB cable
Recommended
USB 2.0 Hi Speed: Certified USB Hi-Speed cable, up to 3 meters in length.
USB 2.0 Full Speed: Canon or other computer manufacturer cable, up to 5 meters in length.
• Correct operation of USB Hi-Speed 2.0 is not guaranteed under Windows Me, Windows 98, Mac
OS 8.6-9.x or Mac OS X.
• If your computer has an earth connection, make sure that this is attached.
• If you do not intend to use the printer for a long period of time, unplug the power cord from the
power outlet after turning off the printer.

3
Follow the steps below to install the printer driver
correctly.
1
11
1 Ensure the printer and the computer are
switched off.
2
22
2 Connect the cable.
Figure A shows the USB 2.0 Hi-Speed cable connection
and figure B shows the USB 2.0 Full Speed cable
connection.
• Use the USB 2.0 driver supplied by Microsoft.
The driver is available when updating Windows or applying a Windows Service Pack.
Correct operation is not guaranteed with non-Microsoft USB 2.0 deivers.
• If your computer has an earth connection, make sure that this is attached.
Figure A
Figure B
If the Add New Hardware Wizard or Found New Hardware Wizard
screen appears when carrying out the following operations, click
Cancel and turn off the computer.

4
3 Installing the Print Head
• Never attempt to plug the power cord into the power outlet or unplug the power cord when your
hands are wet.
• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy
objects on the power cord.
• Never use any power supply other than the standard power supply available in the country of
purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.
• Always push the plug all the way into the power outlet.


Installing the Print Head
1
11
1 Plug the printer in.
2
22

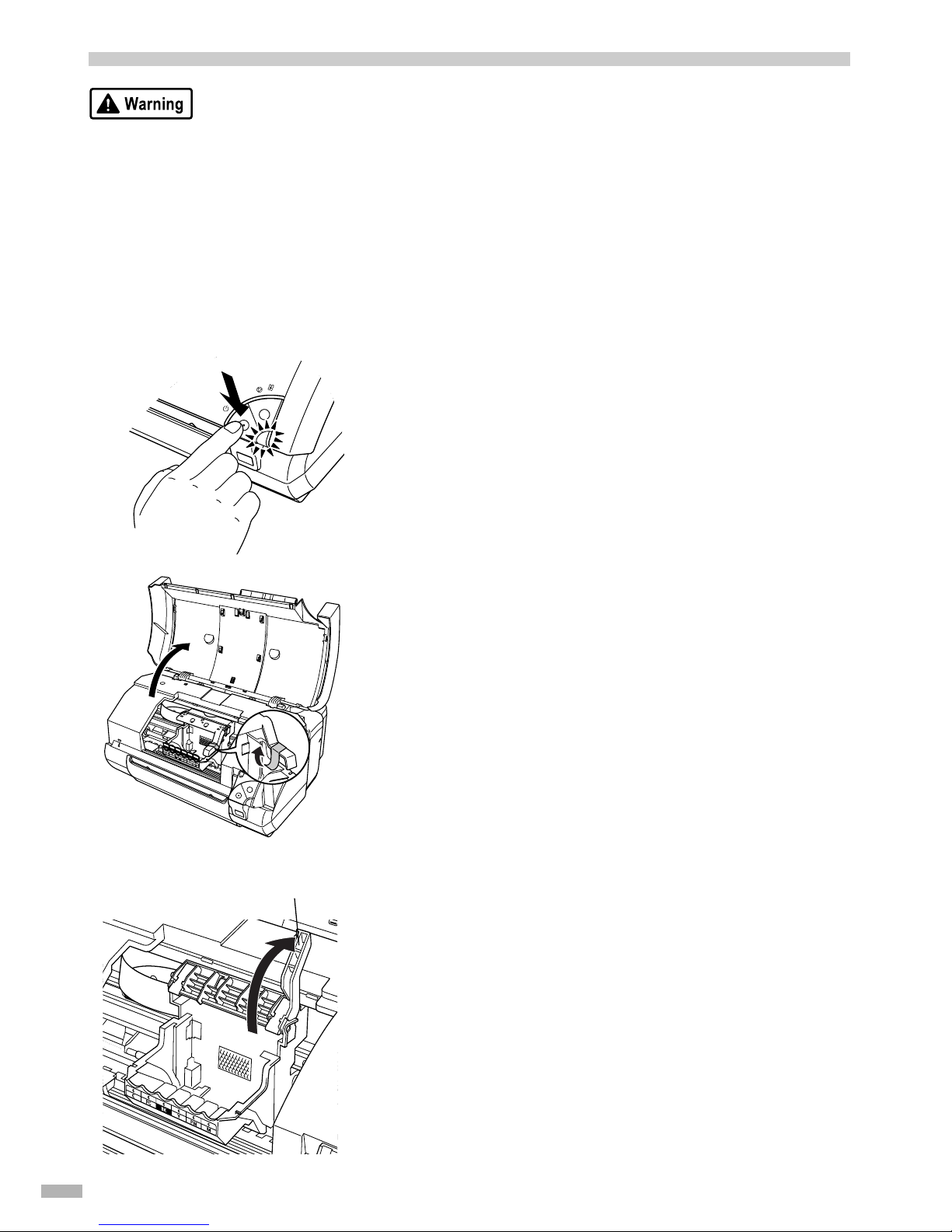

2 Turn on the printer. Do NOT turn on the
computer yet.
The POWER lamp flashes and the printer begins to
operate. Wait until the POWER lamp remains fully lit.
3
33
3 Open the front cover.
4
44
4 Remove the tape.
5
55
5 Raise the lock lever.
Do not touch internal parts other than the lock lever.
PC PM
lock lever

5
6
66

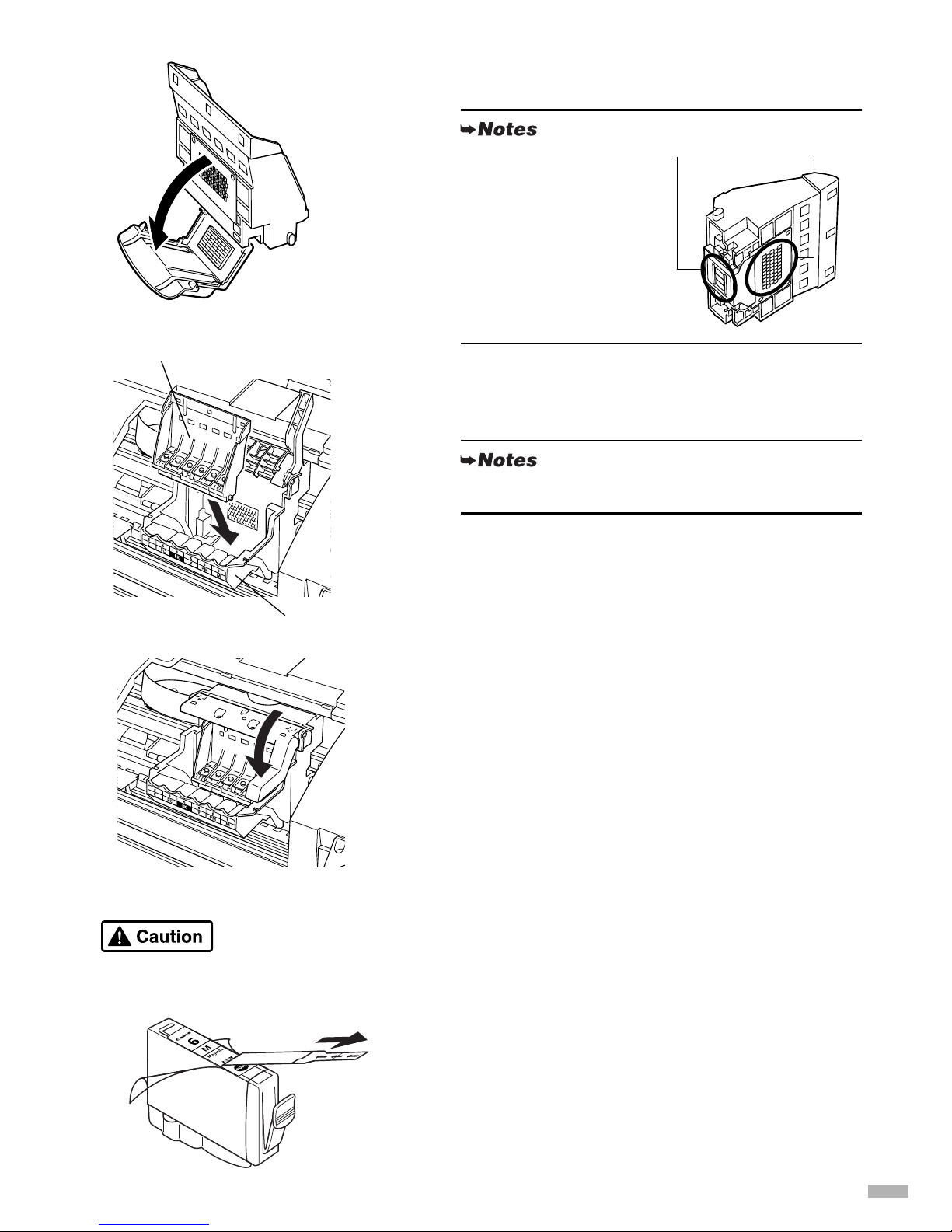

6 Remove the protective cap from the
print head.
7
77
7 Place the print head in the holder.
8
88
8 Lock the print head into place by
lowering the lever.
Do not touch the lock lever once the print head has been
installed.


Installing the Ink Tanks
• For safety reasons, store ink tanks out of the reach of small children.
• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.
1
11
1 Take out the magenta ink tank.
2
22
2 Pull the orange tape in the direction of
the arrow and remove the clear film.
• Do not touch the print
head nozzles or
electrical contacts.
• Do not attempt to
reattach the protective
cap once it has been
removed.
Be careful not to touch any parts inside the printer.
e
l
ectr
i
ca
l
contacts
pr
i
nt
h
ea
d
nozzles
pr
i
nt
h
ea
d
print head holder

6
3
33

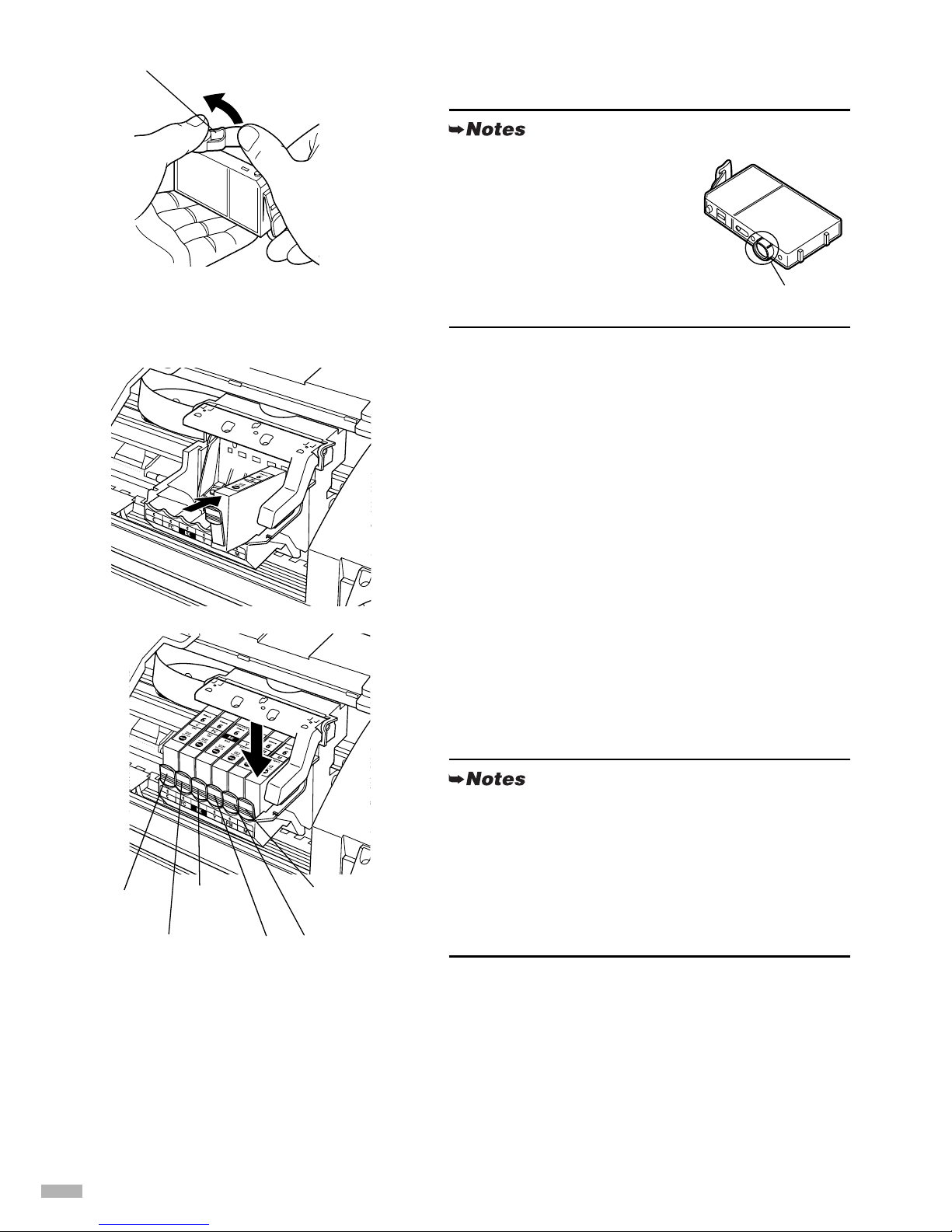

3 Hold the ink tank as shown in the
diagram and remove the protective cap.
4
44
4 Insert the magenta ink tank into the
right-hand slot. Press the top until it
clicks into place.
5
55
5 Use the same procedure to install the
other ink tanks in their appropriate slots.
Check the labels to make sure that each tank is in the
correct position.
6
66
6 Close the front cover.
Wait until the POWER lamp remains fully lit (about 60
seconds).
• Do not squeeze the sides of
the ink tanks as this may
cause the ink to leak out and
stain your clothes and hands.
• Do not touch the ink port.
• Do not attempt to reattach the
protective cap once it has
been removed.
• Only install the ink tanks in the positions specified
by the labels.
• If ink tanks are not installed in the right position,
colors will not be printed correctly. Immediately
reinstall the tank in the correct position and carry
out print head cleaning. For details, refer to the
User’s Guide.
protective cap
ink port
PM
Black
(BCI-6BK)
Yellow
(BCI-6Y)
Magenta
(BCI-6M)
Photo Cyan
(BCI-6PC)
Photo Magenta
(BCI-6PM)
Cyan
(BCI-6C)

7
4 Loading Paper


Loading A4 (Letter) Size Plain Paper
1
11
1 Pull out the paper rest and the output
tray completely as shown.
2
22
2 Load the paper, aligning it with the right
side of the sheet feeder.
You can load up to 150 sheets of plain paper (64 gsm).
Do not exceed this limit.
3
33
3 Pinch the paper guide and slide it
against the left side of the stack of
paper.
You now need to install the printer driver:
Windows: Go to page 8
Mac OS X: Go to page 10
output tray
paper rest
print side

8

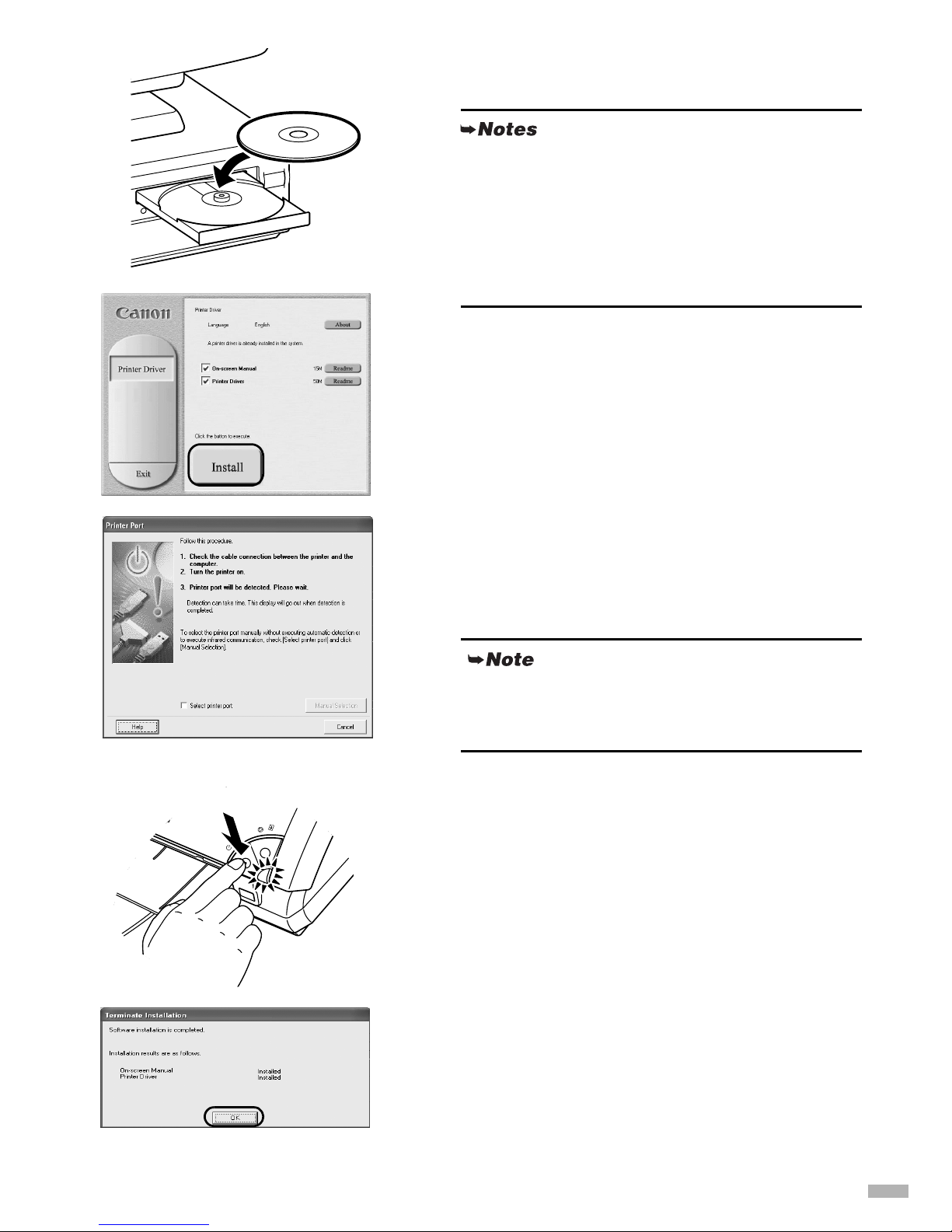

5 Installing the Printer Driver


Installing the Printer Driver – Windows
1
11
1 Ensure the printer and computer are
switched off.
2
22
2 Turn on the computer and start
Windows. If any applications
automatically run, quit them.
Disable any virus detection programs.
Do NOT turn the printer on at this stage.
• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be
correctly installed.
• The screens below refer to Windows XP installation. Screen may differ depending on the operating
system you are using.
• When installing the printer driver in Windows XP, Windows 2000, log on to the system as a
member of the Administrators group.
If the following screen appears automatically, click Cancel and follow steps 1 to 7 to install the printer
driver.
Special Notes for Windows Me or Windows 98 USB Users
Click Cancel to quit the screen and turn off the printer. Next, remove and replace the USB cable
connected to your computer.
OFF

9
3
33
3 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
4
44
4 Follow the instructions displayed on
screen. When the screen shown on the
left is displayed, click Install.
5
55
5 When the screen shown on the left
appears, turn the printer on.
If the printer is recognized, the printer driver will be
automatically installed.
6
66
6 Click OK.
Before you use the printer, you must carry out print head
alignment on page 12.
• If the CD-ROM does not run automatically, click
Start and select My Computer, then double-click
the CD-ROM icon. For non-XP Windows, double-
click My Computer in the Windows screen, then
double-click the CD-ROM icon.
• If the language selection screen appears, select a
language, then click the
OK button.
If the connection is not recognized, refer to the
section “Notes on Handling the USB Interface (for
Windows Users)” on page 22.
ON

10
7
77
7 When the screen shown on the left
appears, click Exit.


Installing the Printer Driver – Macintosh
1
11
1 Turn on the Mac.
2
22
2 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
3
33
3 Double-click the Mac OS X folder, then
double-click the Printer Driver folder.
4
44
4 Double-click i960 220.pkg/i965
220.pkg.
5
55
5 Enter an administrator name and a
password, then click OK.
• The User’s Guide is also installed when you install the printer driver. To view the User’s Guide,
double-click the User’s Guide short-cut icon on the desktop.
• If a message prompting you to restart the computer appears, click Ye s .
• Do not remove or insert the USB cable during installation, as this may result in the computer or
printer not operating normally.
• Before installing the driver, disable all virus detection programs and automatically loading
programs or remove them from your system folder.
• For Mac OS 8.6-9.x users, refer to the Printer Driver Guide for Mac OS 9 for instructions on how to
install the printer driver. To view the Printer Driver Guide for Mac OS 9, double-click the Manual
folder and Additional Guide for OS 9 Users folder and select a language folder.

11
6
66
6 Click Continue.
7
77
7 Read the License Agreement and click
Continue, then click Agree.
8
88
8 Select a destination to where you want
to install the printer driver, and click
Continue.
9
99
9 Click Install.
10
1010
10 A message asking for your confirmation
to restart your computer appears on the
screen. Read the message, then click
Continue Installation.
Software installation will start.
11
1111
11 Software installation is complete.
Restart your computer.
Before you use the printer, you must carry out print head
alignment on page 14.

12
6 Aligning the Print Head
This operation must be carried out when using the printer for the first time. Aligning the print head positions
allows you to print without shifts in the color registration.



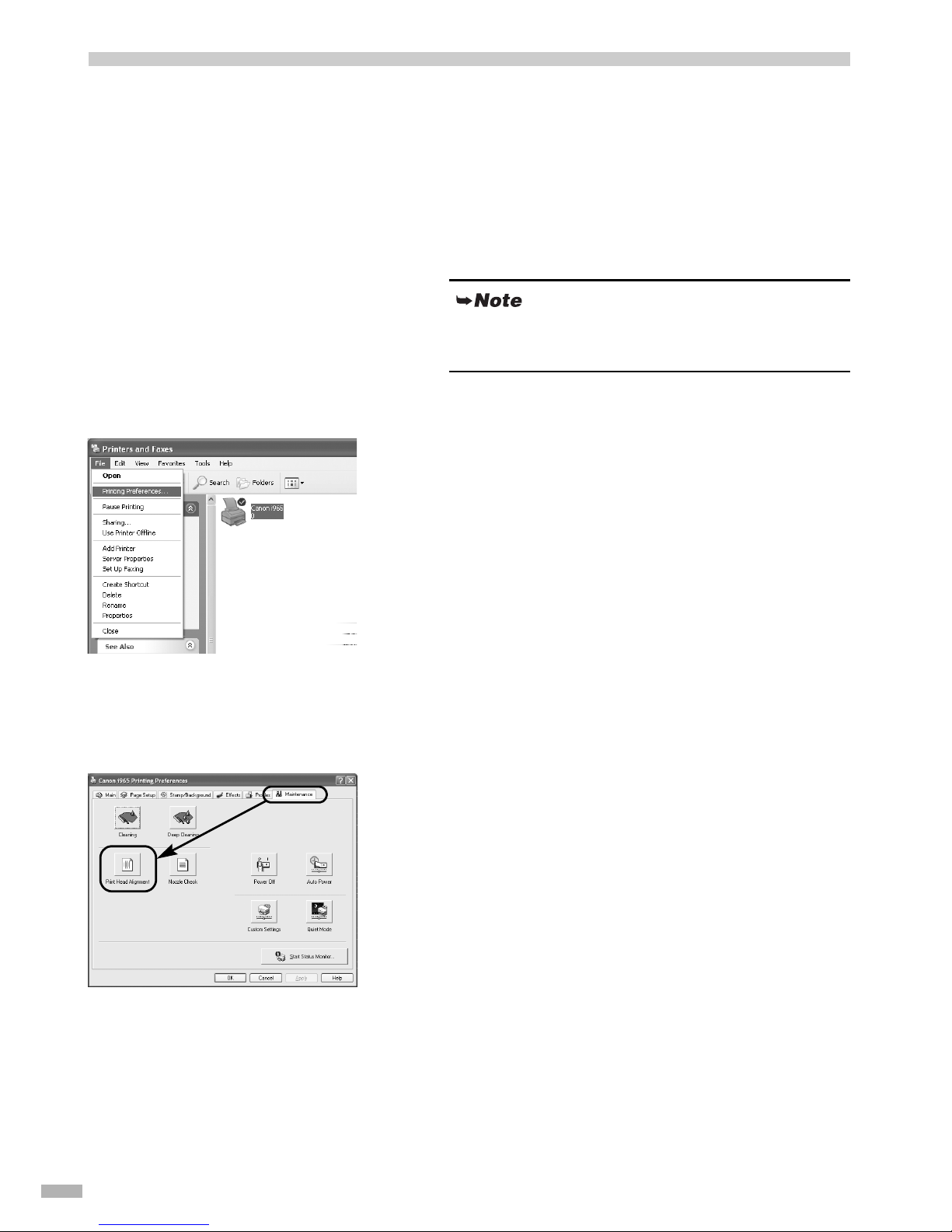

Aligning the Print Head – Windows
1
11
1 Click Start and select Control Panel,
Printers and Other Hardware, and
then Printers and Faxes.
2
22
2 Click the icon for your printer.
3
33
3 Open the File menu and select:
• Windows XP/Windows 2000 →
[Printing Preferences...]
• Windows Me/Windows 98 →[Properties]
to open the setting screen.
4
44
4 Click the Maintenance tab, and click
Print Head Alignment.
For non-XP Windows, click Start, then select
Settings, Printers.

13

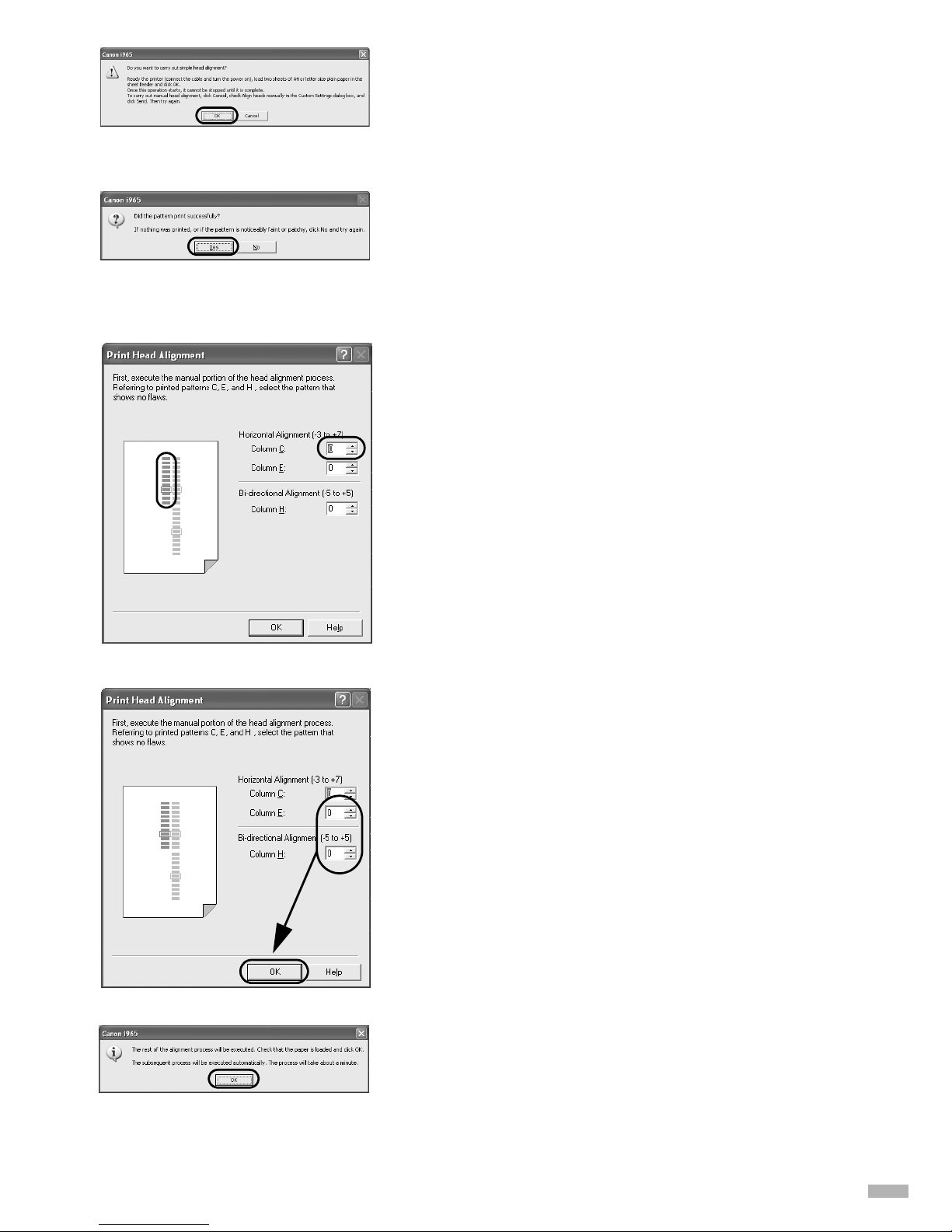

5
55
5 Check that A4 or Letter-sized paper is
loaded in the printer and click OK. If a
message warning you not to perform
other operations appears, click OK.
It takes about 60 seconds to start printing.
6
66
6 After the pattern is printed, click Yes.
If the pattern is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.
7
77
7 Look at the print-out. From the patterns
in Column C, select the most even,
least irregular pattern and enter the
number.
8
88
8 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns E and H, enter their numbers,
and click OK.
9
99
9 Check that A4 or Letter-sized paper is
loaded in the printer and click OK. If a
message warning you not to perform
other operations appears, click OK.

14

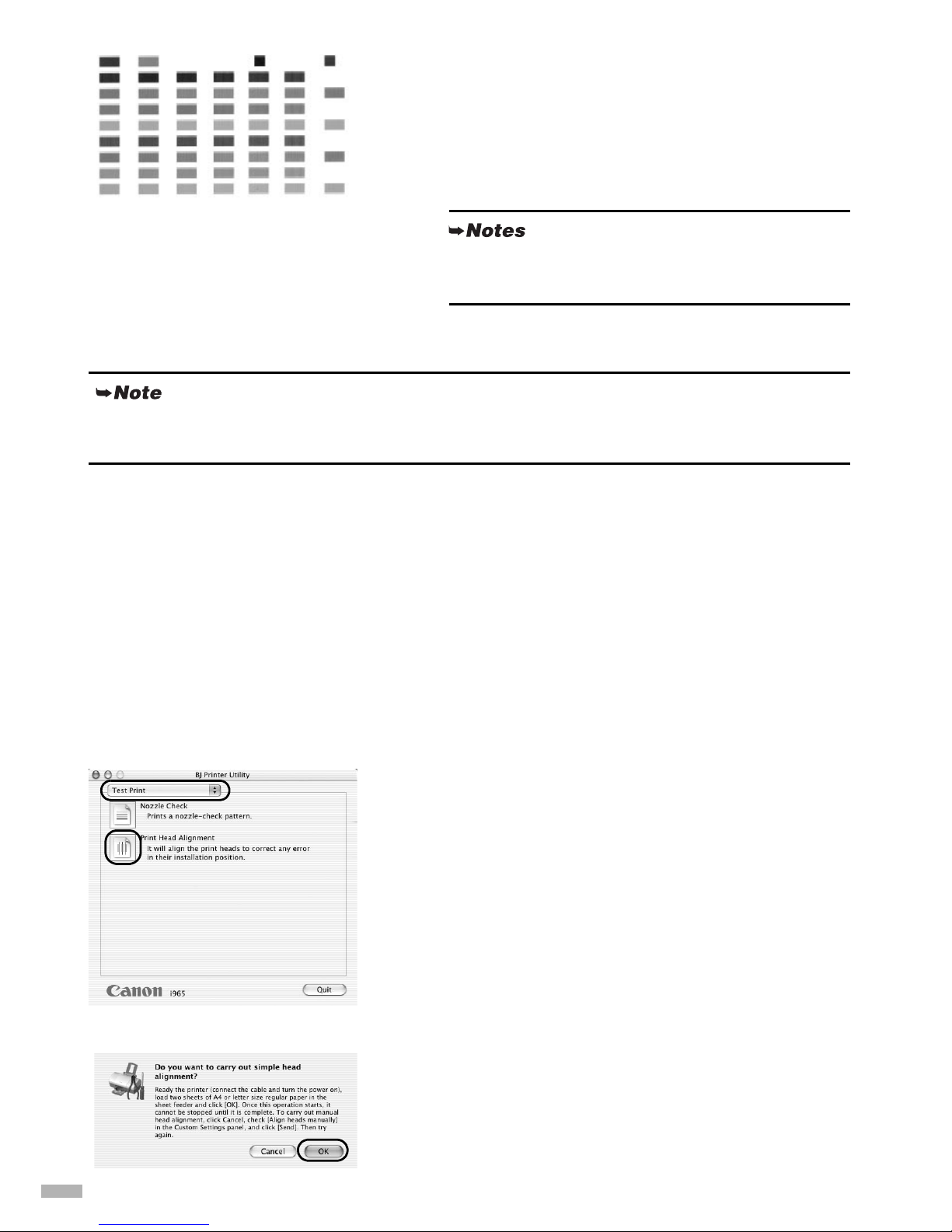

10
1010
10 After the pattarn is printed, the print
head is aligned semi-automatically. The
printer is now ready to use.
If the printer is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.


Aligning the Print Head – Macintosh
1
11
1 Double-click the hard disk icon where
the printer driver was installed, the
Applications folder, and then the
Utilities folder.
2
22
2 Double-click the Print Center icon.
3
33
3 Select your printer from the Name list
and click Configure.
4
44
4 Select your printer from the Product
List and click Select.
5
55
5 Select Test Print from the pop-up
menu, and click Print Head Alignment.
6
66
6 Check that A4 or Letter-sized paper is
loaded in the printer and click OK.
If the pattern is not printed as shown on the left,
refer to Troubleshooting of the User’s Guide.
For Mac OS 8.6-9.x users, refer to the Printer Driver Guide for Mac OS 9 for instructions on how to
align the print head.

15

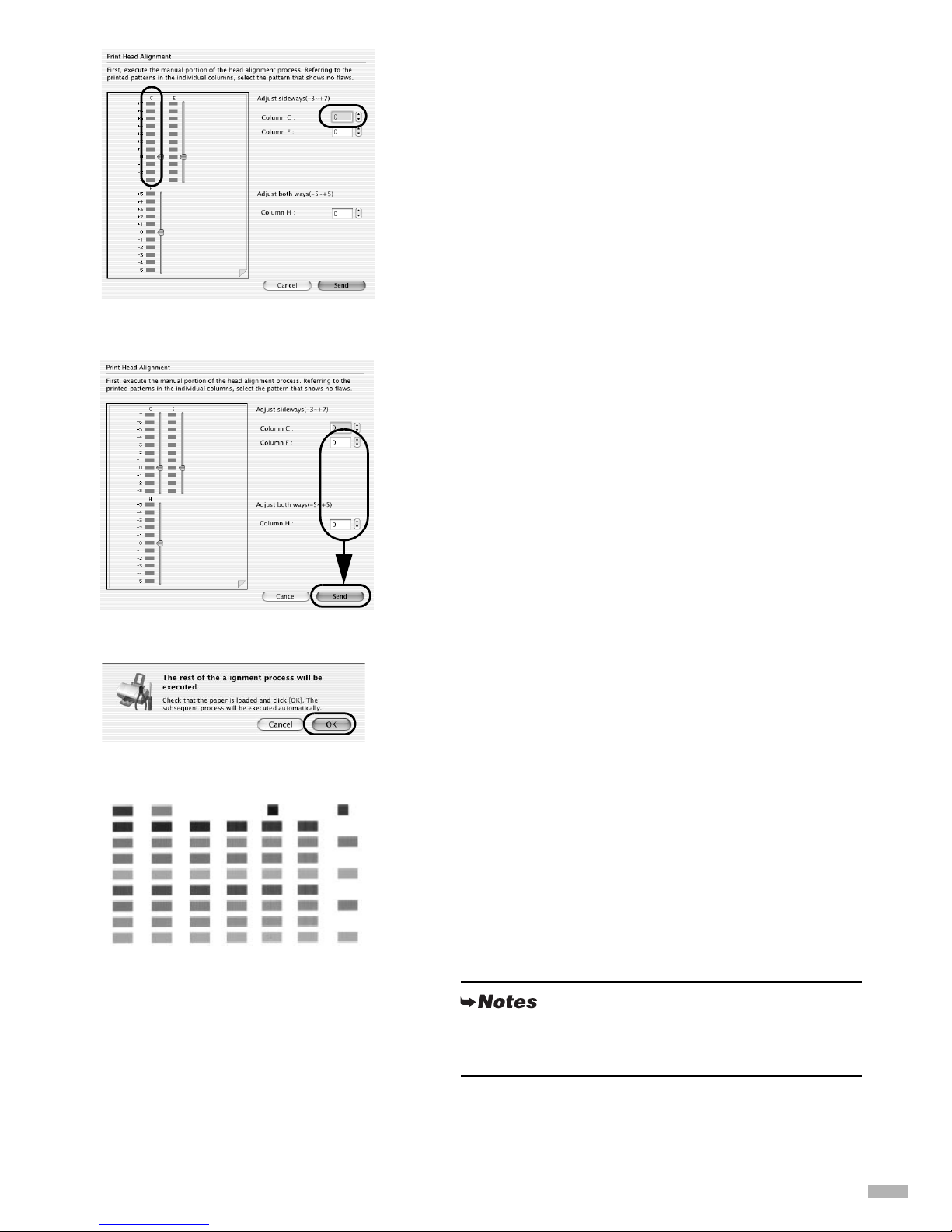

7
77
7 Look at the print-out. From the patterns
in Column C, select the most even,
least irregular pattern and enter the
number.
8
88
8 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns E and H, enter their numbers,
and click Send.
9
99
9 Check that A4 or Letter-sized paper is
loaded in the printer and click OK.
10
1010
10 The pattern is ptinted, and the rest of
the print head is aligned semi-
automatically. The printer is now ready
to use.
If the pattern is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.
If the pattern is not printed as shown on the left,
refer to Troubleshooting of the User’s Guide.

16
Basic Operations
• If you detect smoke, unusual smells or strange noises around the printer, immediately switch the
printer off and always unplug the printer. Contact your local Canon service representative.
• To avoid injury, never put your hand or fingers inside the printer while it is printing.
Printing with Windows
Adjusting the print settings according to your needs allows you to produce better quality prints.
In this section, we will use WordPad for the purpose of explanation. The procedures you use and the screens
that appear on your computer may differ according to the application that you use.


Printing
1
11
1 Print the document from the application.
On the File menu, click Print .
Check the application’s users manual for the actual
procedures.
2
22
2 Ensure your printer is selected, then
click:
• Windows XP →[Preferences]
• Windows Me/Windows 98 →[Properties]
• Windows 2000 →[Main] tab
3
33
3 Specify the required settings and click
OK.
4
44
4 To start printing, click OK.
Printing will start in a few moments.
If you use anything other than plain paper, please
refer to “Basic Printing Settings” on page 17.

17



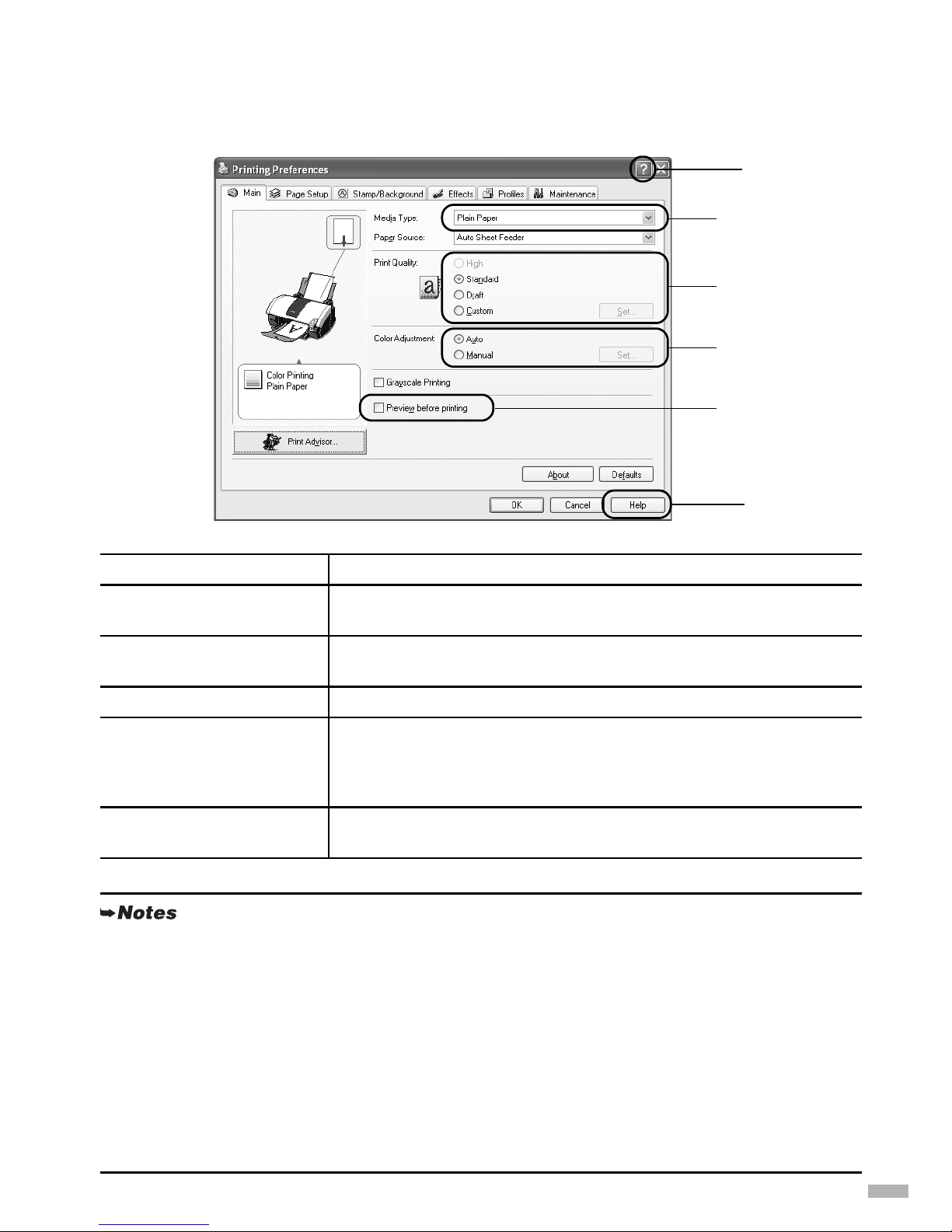

Basic Printing Settings
For the best print quality, specify the minimum requirement settings in the Main tab. To get the
best results, ensure you select the type of media loaded in the printer when printing on paper other
than plain paper.
(1) Media Type Select the type of media loaded in the printer.
(2) Print Quality Select one option from High, Standard and Draft. Select Custom to
set the print quality manually.
(3) Color Adjustment If you wish to control the color adjustment settings in more detail,
select Manual.
(4) Preview before printing Select this to check the layout before printing.
(5) Help Click this for a more detailed explanation of the functions in the tab.
(This may not appear when using Windows XP, Windows 2000. If this
happens, click Start then select All Programs (or Programs) -
Canon i960/i965 - Guide).
(6) ? Click this to change the cursor shape to ?. By clicking on the item’s
name with this ? cursor, an explanation will be displayed.
• Clicking the Print Advisor allows you to change to the most appropriate print settings simply by
answering questions when prompted.
• Use the application to set the paper size and paper orientation. Before printing, open the settings
screen and check that the Page Size in the Page Setup tab is the same as that specified within the
application.
• The print settings are automatically changed according to the type of paper loaded in the printer if
Plain Paper has been selected in Media Type.
This function may not work properly for some media.
To ensure high printing quality, you are recommended to select the desired type of paper in Media
Type first.
• Refer to the User’s Guide for more information about printer driver functionality.
(6)
(1)
(2)
(3)
(5)
(4)

18
Printing with Macintosh
Adjusting the print settings according to your needs allows you to produce better quality prints.


Printing
1
11
1 Open the Page Setup dialog box in
your application.
On the File menu, click Page Setup . Check the
application’s users manual for the actual procedures.
2
22
2 Specify the page setup.
For details, refer to “Page Setup” on page 19.
3
33
3 Open the Print dialog box in your
application to print the document.
On the File menu, click Print . Check the application’s
users manual for the actual procedures.
4
44
4 Specify the printing settings according
to your requirements.
For details, refer to “Basic Printing Settings” on page 19.
5
55
5 Click Print.
Printing will start in a few moments.
