PARTS CATALOG
MF5630/5650/5730/5750
Series

PREFACE
This Parts Catalog contains listings of parts used
Diagrams are provided with the listings to aid the service technician in identifying clearly, the
item to be orderd.
Whenever ordering parts, consult this Parts Catalog for all of the information pertaining to each
item. Be sure to include, in the Parts Request, the full item description, the item part number,
and the quantity.
COPYRIGHT (C) 1999 CANON INC.
Use of this manual should be
strictly supervised to avoid
disclosure of confidential
information.

Contents
Parts List Index
MF5630/5650/5730/5750 Series .............................................................1-1
MF5630/5650/5730/5750 Series
A ASSEMBLY LOCATION DIAGRAM ......................................2-1
001 PACKAGE COMPONENTS .....................................................2-2
100 EXTERNAL COVERS, PANELS, ETC .....................................2-3
101 INTERNAL COMPONENTS 1 .................................................2-5
102 INTERNAL COMPONENTS 2 .................................................2-7
103 INTERNAL COMPONENTS 3 .................................................2-9
104 INTERNAL COMPONENTS 4 ...............................................2-11
105 INTERNAL COMPONENTS 5 ...............................................2-13
110 POWER SUPPLY ASS'Y .......................................................2-15
210 SCANNER ASS'Y .................................................................2-17
211 DOCUMENT FEED ASS'Y ....................................................2-20
300 CASSETTE ...........................................................................2-22
950 BOARD ASS'Y ......................................................................2-24

1-1
PARTS NUMBER
FIGURE
&
KEY NO.
PARTS NUMBER
FIGURE
&
KEY NO.
PARTS NUMBER
FIGURE
&
KEY NO
NUMERICAL INDEX
MF5630/5650/5730/5750 Series
FA7-5588-000 001 -2
FA7-5594-000 001 -2
FA7-5600-000 001 -2
FA7-6157-000 001 -2
FA7-6525-000 001 -3
FA7-6526-000 001 -2
FC5-4775-000 102 -1
FC5-4778-000 102 -8
FC5-4799-000 103 -2
FC5-4800-020 103 -1
FC5-4805-000 103 -6
FC5-4807-000 103 -7
FC5-4808-000 101 -1
FC5-4814-000 101 -2
FC5-4827-000 105 -1
FC5-4828-000 105 -2
FC5-4829-000 105 -3
FC5-4830-000 105 -4
FC5-4832-000 105 -6
FC5-4833-000 102 -3
FC5-4834-000 105 -7
FC5-4850-000 102 -10
FC5-4860-000 105 -17
FC5-4861-000 105 -8
FC5-4862-000 105 -9
FC5-4871-000 105 -5
FC5-4878-000 104 -16
FC5-4908-000 300 -1
FC5-4913-020 300 -6
FC5-4921-000 103 -13
FC5-8062-000 100 -8
FC5-8074-000 210 -14
FC5-8075-000 210 -15
FC5-8076-000 210 -14
FC5-8077-000 210 -15
FC5-8084-000 210 -14
FC5-8085-000 210 -15
FC5-8086-000 210 -14
FC5-8087-000 210 -15
FC5-8088-000 210 -14
FC5-8089-000 210 -15
FC5-8092-000 210 -14
FC5-8093-000 210 -15
FC6-4639-000 300 -3
FC6-4650-000 210 -15
FC6-4652-000 210 -15
FC9-4649-000 210 -14
FC9-4651-000 210 -14
FG3-3648-000 101 -3
FG3-3650-000 950 -2
FG3-3651-000 950 -2
FG3-3656-000 950 -1
FG3-3657-000 950 -1
FG3-3658-000 950 -3
FG3-3660-000 101 -6
FG3-3662-000 101 -6
FG3-3666-000 110 -2
FG3-3836-000 110 -4
FG3-3837-000 110 -6
FG3-3992-000 101 -5
FG3-3999-000 950 -1
FG3-4000-000 950 -1
FG3-4002-000 110 -5
FG3-4003-000 101 -9
FG3-4004-000 101 -6
FH2-7155-000 950 -5
FH2-7156-000 950 -6
FH2-7157-000 101 -8
FH2-7199-000 950 -5
FH3-2681-000 110 -1
FH3-2683-000 110 -1
FH3-2697-000 110 -1
FH4-4003-000 950 -IC2
FH5-1081-000 104 -5
FH5-1130-000 104 -5
FH5-3601-000 001 -1
FH5-3602-000 001 -1
FH5-3718-000 001 -1
FH6-5093-000 104 -1
FH6-5132-000 104 -1
FL2-1042-000 103 -4
FL2-1043-000 102 -5
FL2-1044-000 105 -13
FL2-1046-000 103 -5
FL2-1047-000 300 -7
FL2-1050-000 102 -6
FL2-1750-000 100 -1
FM2-1066-000 105 -11
FM2-1069-000 104 -2
FM2-1081-000 102 -2
FM2-1850-000 105 -11
FM2-1853-000 102 -2
FM2-3449-000 100 -9
FM2-3947-000 101 -5
FM5-5262-000 110 -2
FM5-5263-000 103 -3
FM5-5264-000 105 -10
FM5-5292-000 110 -4
FM5-5293-000 110 -4
FM5-5294-000 110 -4
FM5-5296-000 110 -4
FM5-5304-000 103 -3
FM5-5305-000 105 -10
FM5-5306-000 101 -3
FU5-0698-000 105 -16
FU5-0699-000 102 -9
FU5-0700-000 104 -6
FU5-0701-000 104 -7
FU5-0702-000 104 -8
FU5-0703-000 104 -9
FU5-0704-000 104 -10
FU5-0705-000 104 -13
FU5-0707-000 104 -3
FU5-0709-000 104 -4
FU5-0710-000 104 -14
FU5-0713-000 105 -15
FU5-0714-000 104 -11
FU5-0716-000 103 -8
FU5-2425-000 105 -14
FU5-2429-000 104 -15
FU5-2434-000 300 -9
FY1-1201-000 210 -1
FY1-1202-000 210 -2
FY1-1203-000 211 -8
FY1-1204-000 210 -17
FY1-1205-000 210 -18
FY1-1206-000 210 -4
FY1-1222-000 210 -1
FY1-1223-000 210 -2
FY1-1224-000 211 -8
FY1-1225-000 210 -17
FY1-1226-000 210 -4

1-2
PARTS NUMBER
FIGURE
&
KEY NO.
PARTS NUMBER
FIGURE
&
KEY NO.
PARTS NUMBER
FIGURE
&
KEY NO
NUMERICAL INDEX
MF5630/5650/5730/5750 Series
FY3-0284-000 210 -9
FY3-0288-000 210 -19
FY3-0289-000 210 -20
FY3-0294-000 210 -9
FY3-0295-000 210 -19
FY3-0296-000 210 -20
FY5-0186-000 210 -12
FY5-0188-000 210 -12
FY6-0362-000 210 -3
FY6-0363-000 210 -5
FY6-0364-000 210 -5
FY6-0369-000 210 -13
FY6-0370-000 211 -13
FY6-0371-000 210 -11
FY6-0372-000 210 -
FY6-0373-000 210 -
FY6-0374-000 210 -10
FY6-0391-000 210 -
FY6-0392-000 210 -
FY6-0393-000 210 -3
FY6-0394-000 210 -5
FY6-0395-000 210 -5
FY6-0396-000 210 -10
FY6-0397-000 210 -13
FY6-0398-000 211 -13
FY6-0399-000 210 -11
HB1-4072-000 211 -21
HC1-0563-000 211 -9
HC1-0565-000 211 -4
HC1-0579-000 211 -19
HC1-0582-000 211 -1
HC1-0583-000 211 -5
HC1-0584-020 211 -2
HC1-0585-000 211 -3
HC1-0590-000 211 -6
HC1-0604-000 210 -6
HC1-0625-000 210 -18
HC1-1566-000 100 -8
HC1-1567-000 100 -7
HC1-1569-000 103 -10
HC1-1574-000 300 -3
HC1-1575-000 300 -8
HC1-1578-000 100 -4
HC1-1579-000 100 -2
HC1-1581-000 100 -1
HC1-1582-000 100 -5
HC1-1583-000 100 -6
HC1-1595-000 300 -2
HC1-1613-000 100 -12
HC1-1622-000 210 -16
HC1-1624-000 100 -13
HC1-2045-020 300 -5
HG1-4513-000 101 -5
HG5-3107-000 101 -5
HH2-2074-000 101 -7
HH2-2219-000 101 -7
HH2-2478-000 101 -7
HH2-2824-000 101 -7
HH2-3257-000 101 -7
HH2-3274-000 950 -4
HH4-3198-000 950 -IC701
HK1-0177-000 950 -IC1
HL1-0066-000 211 -22
HM1-0254-000 211 -12
HM1-0256-000 211 -14
HM1-0258-000 211 -7
HM1-0259-000 211 -15
HM1-0655-000 103 -9
HM1-0656-060 300 -4
HM1-0658-000 100 -9
HM1-0660-000 103 -11
HM1-0661-000 100 -3
HU1-2042-000 211 -16
HU1-2046-000 211 -18
HU1-2048-000 211 -10
HU1-6002-000 210 -7
HU1-6003-000 211 -11
HU1-6004-000 210 -8
NPN 001 -
NPN 100 -
NPN 101 -
NPN 102 -
NPN 103 -
NPN 104 -
NPN 105 -
NPN 110 -
NPN 211 -
NPN 300 -
NPN 950 -
RC1-1776-000 103 -6
WG8-5362-000 211 -17
WG8-5382-000 100 -11
WK1-5134-000 950 -7
XA9-0476-000 211 -20
XA9-1386-000 100 -10
XA9-1386-000 101 -4
XA9-1386-000 102 -4
XA9-1386-000 103 -12
XA9-1386-000 104 -12
XA9-1386-000 105 -18
XA9-1386-000 110 -3
XA9-1502-000 102 -7
XA9-1502-000 105 -12
XB1-2300-607 101 -502
XB1-2300-607 950 -501
XB2-7300-607 103 -502
XB2-7300-607 104 -502
XB4-7300-807 300 -501
XB4-7300-809 210 -501
XB4-7300-809 211 -501
XB4-7400-807 100 -501
XB4-7400-807 101 -501
XB4-7400-807 102 -501
XB4-7400-807 103 -501
XB4-7400-807 104 -501
XB4-7400-807 105 -501
XB6-7300-405 950 -502

MF5630/5650/5730/5750 Series
ASIA F14-5641-000AZQ00001-
CN F14-5641-000CZQ00001-
AU F14-5641-000RZQ00001-
ASIA F14-5642-000AZP00001-
CN F14-5642-000CZP00001-
AU F14-5642-000RZP00001-
CN F14-5643-000CZP00001-
GB F14-5691-000BZQ00001-
EUR F14-5691-000EZQ00001-
D/E/F F14-5691-000WZQ00001-
GB F14-5692-000BZP00001-
EUR F14-5692-000EZP00001-
FR F14-5692-000FZP00001-
DE F14-5692-000GZP00001-
JP F14-6511-000KKU00001-
JP F14-6512-000KKV00001-

Contents
A ASSEMBLY LOCATION DIAGRAM ...................................................................2-1
001 PACKAGE COMPONENTS................................................................................2-2
100 EXTERNAL COVERS, PANELS, ETC ...............................................................2-4
101 INTERNAL COMPONENTS 1 ............................................................................2-7
102 INTERNAL COMPONENTS 2 ..........................................................................2-10
103 INTERNAL COMPONENTS 3 ..........................................................................2-13
104 INTERNAL COMPONENTS 4 ..........................................................................2-16
105 INTERNAL COMPONENTS 5 ..........................................................................2-19
110 POWER SUPPLY ASS'Y ..................................................................................2-22
210 SCANNER ASS'Y .............................................................................................2-25
211 DOCUMENT FEED ASS'Y ...............................................................................2-29
300 CASSETTE .......................................................................................................2-32
950 BOARD ASS'Y ..................................................................................................2-35

2-1
FIGURE A
ASSEMBLY LOCATION DIAGRAM
300
210
211
BOARD ASS'Y
950
110
DOCUMENT FEED ASS'Y
POWER SUPPLY ASS'Y
SCANNER ASS'Y
CASSETTE

2-2
FIGURE 001
PACKAGE COMPONENTS
FIGURE
& KEY
NO.
PARTS
NUMBER
R
A
N
K
Q'TY DESCRIPTION SERIAL NUMBER/
REMARKS
S
V
C
Fig.001 NPN RF PACKAGE COMPONENTS
1 FH5-3601-000 1 CD-ROM, USER SOFTWARE MF5630,MF5650DE&FR&
GB
1 FH5-3602-000 1 CD-ROM, USER SOFTWARE MF5630,MF5650CN&ASI
A
1 FH5-3718-000 1 CD-ROM, USER SOFTWARE MF5730,MF5750
2 FA7-5600-000 1 FACSIMILE GUIDE MF5650 DE
2 FA7-5594-000 1 FACSIMILE GUIDE MF5650 FR
2 FA7-5588-000 1 FACSIMILE GUIDE MF5650 GB
2 FA7-6157-000 1 FACSIMILE GUIDE MF5650 KR
2 FA7-6526-000 1 FACSIMILE GUIDE MF5750
3 FA7-6525-000 1 USER'S GUIDE MF5730,MF5750
3
1
2

2-3
FIGURE 100
EXTERNAL COVERS, PANELS, ETC
9
501
501
6
5
501
501
501
8
501
501
24
501
501
1
7
SEE FIGURE 210
501
10
10
11
12
13
3

2-4
FIGURE
& KEY
NO.
PARTS
NUMBER
R
A
N
K
Q'TY DESCRIPTION SERIAL NUMBER/
REMARKS
S
V
C
Fig.100 NPN RF EXTERNAL COVERS, PANELS, ETC
1 HC1-1581-000 1 COVER, REAR MF5630,MF5650 EUR
MF5730,MF5750
1 FL2-1750-000 1 COVER, REAR ASIA&AU&CN&KR
2 HC1-1579-000 1 COVER, FACE-UP
3 HM1-0661-000 1 TOP COVER UNIT
4 HC1-1578-000 1 TRAY, AUXILIARY
5 HC1-1582-000 1 COVER, READER FRONT LEFT
6 HC1-1583-000 1 COVER, READER FRONT RIGHT
7 HC1-1567-000 1 COVER, RIGHT
8 HC1-1566-000 1 COVER, LEFT MF5630,MF5650
8 FC5-8062-000 1 COVER, LEFT MF5650
9 HM1-0658-000 1 FRONT COVER UNIT MF5630,MF5650
9 FM2-3449-000 1 FRONT COVER UNIT MF5730,MF5750
10 XA9-1386-000 3 SCREW,RS,M3X8
11 WG8-5382-000 1 PHOTO-INTERRUPTER, TLP1241
12 HC1-1613-000 1 SHEET,HIGH TEMP,CAUTION
13 HC1-1624-000 1 LABEL,HIGH TEMP,CAUTION
501 XB4-7400-807 14 SCREW,TAPPING,TRUSS HEAD,M4X8

2-5

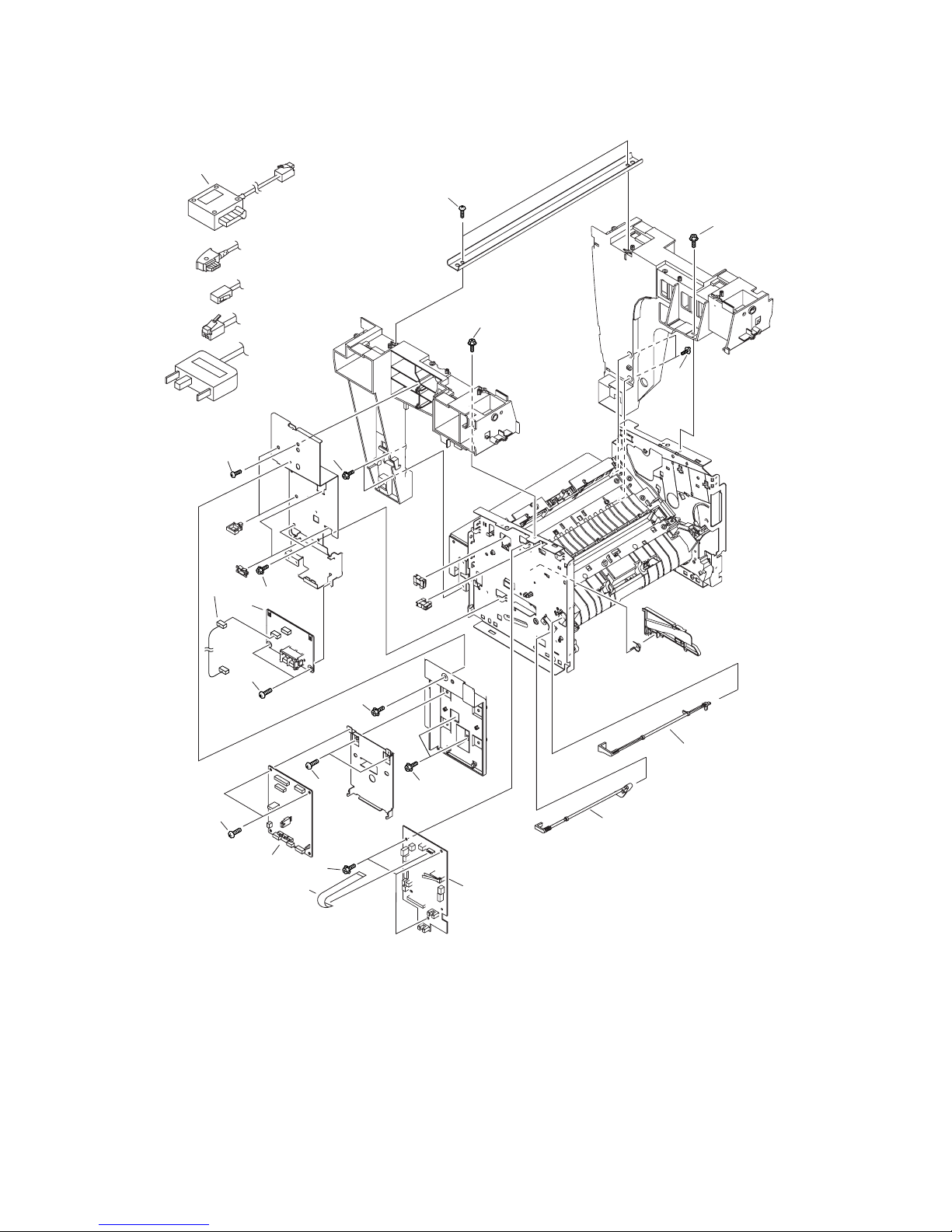

FIGURE 101
INTERNAL COMPONENTS 1
(FR)
(DE)
(GB)
(AU)
(ASIA/CN)
9
3
1
2
501
4
501
501
4
4
8
5
502
4
6
502
4
4
4
4
7

2-6
FIGURE
& KEY
NO.
PARTS
NUMBER
R
A
N
K
Q'TY DESCRIPTION SERIAL NUMBER/
REMARKS
S
V
C
Fig.101 NPN RF INTERNAL COMPONENT
1 FC5-4808-000 1 FLAG, MANUAL FEED SENSOR
2 FC5-4814-000 1 FLAG, CASSETTE SENSOR
3 FG3-3648-000 1 DCNT BOARD ASS'Y MF5630,MF5650
3 FM5-5306-000 1 DCNT BOARD ASS'Y MF5730,MF5750
4 XA9-1386-000 14 SCREW,RS,M3X8
5 HG5-3107-000 1 NCU BOARD ASS'Y MF5650 EUR
5 HG1-4513-000 1 NCU BOARD ASS'Y MF5650 KR
5 FG3-3992-000 1 NCU BOARD ASS'Y MF5650 CN
5 FM2-3947-000 1 NCU BOARD ASS'Y MF5750 JP
6 FG3-3660-000 1 MODULAR PCB ASS'Y MF5650 EUR
6 FG3-3662-000 1 MODULAR PCB ASS'Y MF5650 KR
6 FG3-4004-000 1 MODULAR PCB ASS'Y MF5750 JP
7 HH2-2074-000 1 MODULAR CORD(GERM) MF5650 DE
7 HH2-2219-000 1 MODULAR CORD MF5650 FR
7 HH2-3257-000 1 MODULAR CORD, 2P MF5650 GB
7 HH2-2478-000 1 MODULAR CORD MF5650 KR
7 HH2-2824-000 1 MODULAR CORD, 2P MF5650 KR MF5750 JP
8 FH2-7157-000 1 CABLE, FLAT
9 FG3-4003-000 1 CABLE, MJB-NCU MF5750 JP
501 XB4-7400-807 5 SCREW,TAPPING,TRUSS HEAD,M4X8
502 XB1-2300-607 4 SCREW, BH3X6(S)

2-7

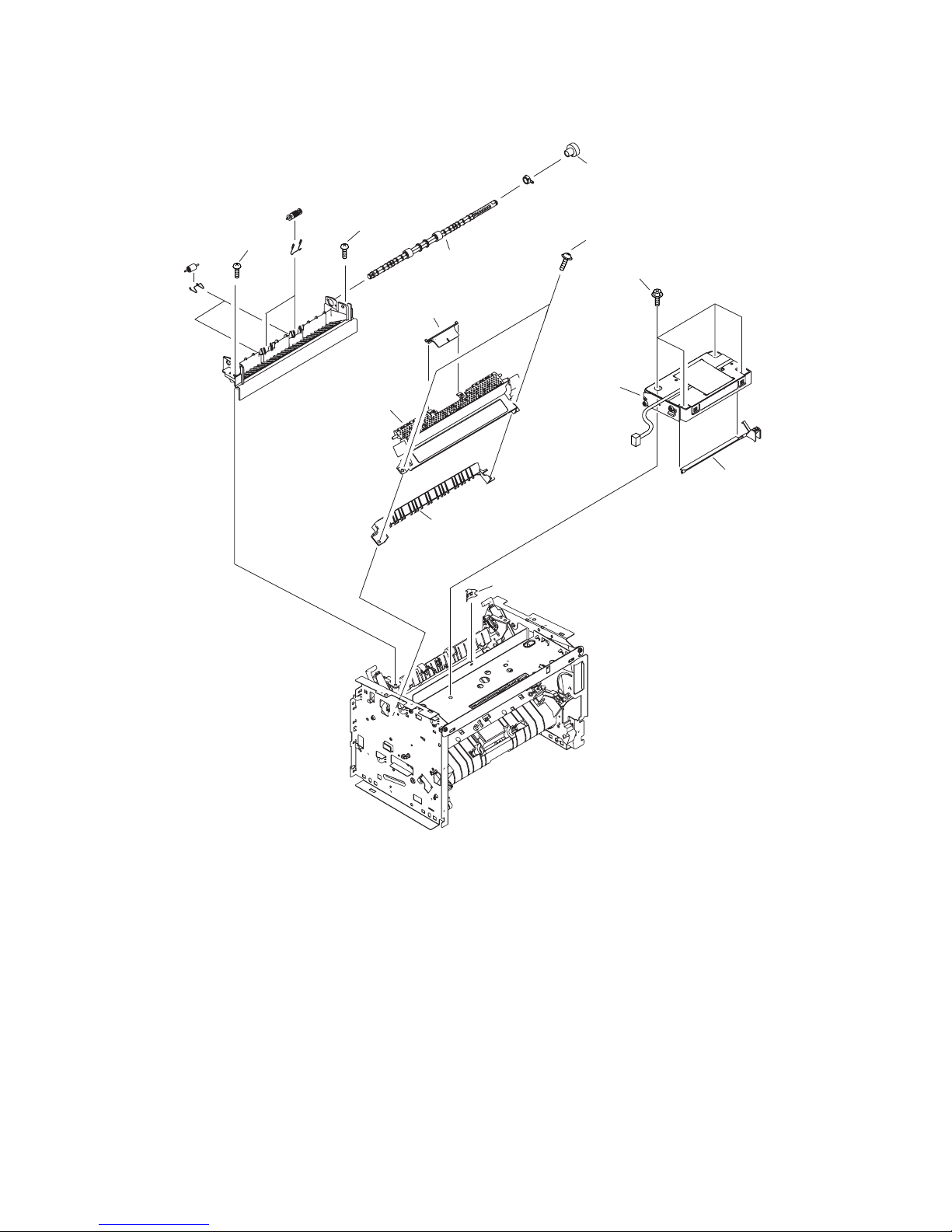

FIGURE 102
INTERNAL COMPONENTS 2
54
2
1
7
501
3
501
6
8
9
10

2-8
FIGURE
& KEY
NO.
PARTS
NUMBER
R
A
N
K
Q'TY DESCRIPTION SERIAL NUMBER/
REMARKS
S
V
C
Fig.102 NPN RF INTERNAL COMPONENTS 2
1 FC5-4775-000 1 ARM, LASER SHUTTER
2 FM2-1081-000 1 LASER/SCANNER UNIT MF5630,MF5650
2 FM2-1853-000 1 LASER/SCANNER UNIT MF5730,MF5750
3 FC5-4833-000 1 GUIDE, FIXING ENTRANCE
4 XA9-1386-000 4 SCREW,RS,M3X8
5 FL2-1043-000 1 ROLLER, FACE-DOWN DELIVERY
6 FL2-1050-000 1 COVER,FIXING
7 XA9-1502-000 2 SCREW,W/WASHER,M4
8 FC5-4778-000 1 PLATE,GROUNDING
9 FU5-0699-000 1 GEAR, 19T
10 FC5-4850-000 1 FLAG, ROLL PREVENTION
501 XB4-7400-807 2 SCREW,TAPPING,TRUSS HEAD,M4X8
