AXIS 1650 User’s Manual 1
AXIS 1650 User’s Manual
The Network Print & Scan Server for Canon Printers
and Multifunctional Products
Including support for
Canon Advanced Printing Technology
Canon Advanced Raster Printing System
as well as Canon BubbleJet Printers

Safety Notices
2 AXIS 1650 User’s Manual
Section 1 Safety Notices
Take some time to read through the safety notices before installing the print server. Please observe all safety
markings and instructions when using this product.
Important: Observe “Important:” in the text to avoid operational impairment. Do not proceed until you have fully
understood the implications.
Electromagnetic
Compatibility (EMC)
USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- reorient or relocate the receiving antenna
- increase the separation between the equipment and receiver
- connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- consult the dealer or an experienced radio/TV technician for help. Shielded (STP) network cables must be
used with this unit to ensure compliance with the class B limits.
Europe This digital equipment fulfils the requirements for radiated emission according to limit B of EN55022, and the
requirements for immunity according to EN55024 residential, commercial, and light industry. Compliance is
not valid for unshielded network cables.
Japan This is a class B product based on the standard of the Voluntary Control Council for Interference from
Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the equipment according to the instruction
manual. Compliance is not valid for unshielded network cables.
Australia This electronic device meets the requirements of the Radiocommunications (Electromagnetic Compatibility)
Standard 1998 AS/NZS 3548. Compliance is not valid for unshielded network cables.
Liability Every care has been taken in the preparation of this manual; if you detect any inaccuracies or omissions,
please inform your local Axis office, which can be found on www.axis.com. Axis Communications AB cannot
be held responsible for any technical or typographical errors and reserves the right to make changes to the
product and manuals without prior notice. Axis Communications AB makes no warranty of any kind with
regard to the material contained within this document, including, but not limited to, the implied warranties
of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor
responsible for incidental or consequential damages in connection with the furnishing, performance or use of
this material.
Axis’ Trademarks AXIS IP JumpStarter, AXIS CAPT Print Monitor.
Other Trademark
Acknowledgments Adobe Acrobat Reader, Canon, Ethernet, Internet Explorer, Microsoft, NetScape, NetSpot Device Installer
(NSDI), Windows, are registered trademarks of the respective holders.
Patent Information Axis AB has intellectual property rights relating to technology embodied in the product that is described in
this document. In particular, and without limitation, these intellectual property rights may include one or
more of the patents listed at http://www.axis.com/patent.htm and one or more additional patents or pending
patent applications in the US and other countries.
AXIS 1650 User’s Manual
Revision 2.2
Part No: 25081
Date: 06-03-14
Copyright © Axis Communications AB, 2006

Table of Contents
AXIS 1650 User’s Manual 3
Section 2 Table of Contents
Section 1 Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Section 2 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Section 3 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Section 4 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Section 5 Print Server Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 10
Set the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Set an IP Address with NetSpot Device Installer software
14
IP Address Host Names . . . . . . . . . . . . . . . . . . . . . . . . 15
Section 6 Windows Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing Printer Ports using AXIS CAPT Print Monitor 17
Print Server Installation using AXIS CAPT Print Monitor in
Windows 2000, XP and Server 2003 . . . . . . . . . . . . . . 17
Print Server Installation using AXIS CAPT Print Monitor in
Windows 98 and Me . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Print Server Installation using the Standard TCP/IP Port in
Windows 2000/XP/2003 . . . . . . . . . . . . . . . . . . . . . . . 25
Section 7 Adding Printers in NetWare . . . . . . . . . . . . . . . . . . . . . . . . . 28
Setup using NetWare 6.5 . . . . . . . . . . . . . . . . . . . . . . . 28
Setup using NetWare 6.0 . . . . . . . . . . . . . . . . . . . . . . . 34
Section 8 Print Server Management and Configuration . . . . . . . . . . . . 40
Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . 40
Print Server Management from the Embedded Web Pages
40
Accessing the Web Pages . . . . . . . . . . . . . . . . . . . . . . 41
Services Available from the User Mode . . . . . . . . . . . . 42
Services Available from the Admin Mode . . . . . . . . . . . 44
Setting General Parameters . . . . . . . . . . . . . . . . . . . . . 47
Setting Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting Network Protocol Parameters . . . . . . . . . . . . . 49
Print Server Management Using FTP . . . . . . . . . . . . . . 52
Print Server Management Using SNMP . . . . . . . . . . . . 53
Section 9 Scanning with AXIS 1650 . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Installing AXIS ScanClient . . . . . . . . . . . . . . . . . . . . . . 54
Using AXIS ScanClient . . . . . . . . . . . . . . . . . . . . . . . . . 56
Invoking a Scan from your Computer . . . . . . . . . . . . . . 56

Table of Contents
4 AXIS 1650 User’s Manual
Invoking a Scan from the Canon Device . . . . . . . . . . . 59
Section 10 The Test Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Section 11 Upgrading the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Section 12 Enabling Unicast Network Communication . . . . . . . . . . . . . 64
Section 13 Internet Connection Firewall in Windows XP SP2 . . . . . . . . 68
Section 14 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Preface
AXIS 1650 User’s Manual 5
Section 3 Preface
Thank you for purchasing the AXIS 1650. This product has been
developed to connect your Canon printer anywhere in your network,
allowing all network users access to shared printer resources.
About this Manual
This manual is applicable for the AXIS 1650 print server with firmware
version 2.00 or later, providing introductory information as well as
detailed instructions on how to set up and manage the print server in
various network environments. It is intended for everyone involved in
installing and managing the print server. To fully benefit from this
manual, you should be familiar with basic networking principles.
These instructions are based on the settings in a new and unconfigured
print server.To reload the default parameters, you can perform a Factory
Default, which will restore all default settings. See “The Test Button” on
page 61.
About Axis
Axis increases the value of network solutions. The company is an
innovative market leader in network video and print servers. Axis'
products and solutions are focused on applications such as security
surveillance, remote monitoring and document management. The
products are based on in-house developed chip technology, which is also
sold to third parties.
Axis was founded in 1984 and is listed on the Stockholmsbörsen
(XSSE:AXIS). Axis operates globally with offices in 14 countries and in
cooperation with distributors, system integrators and OEM partners in 70
countries. Markets outside Sweden account for more than 95 % of sales.
Additional information about Axis can be found at www.axis.com
Support Services
Should you require any technical assistance, please contact your Axis
reseller. If your questions cannot be answered immediately, your Axis
reseller will forward your queries through the appropriate channels to
ensure a rapid response.

Preface
6 AXIS 1650 User’s Manual
If you are connected to the Internet, you can:
• Download user documentation and firmware updates
• Find answers to previously resolved problems in the FAQ database.
Search by product, category or phrase
• Report problems to Axis support staff by logging in to your private
support area
• Visit the Axis support Web: www.axis.com/techsup

Product Overview
AXIS 1650 User’s Manual 7
Section 4 Product Overview
Package Contents
The AXIS 1650 Network Print Server
Supported Devices AXIS 1650 is developed to network Canon printers and multifunctional
products. AXIS 1650 supports host-based printing methods such as
Canon Advanced Printing Technology, Canon Advanced Raster Printing
System and other printer types such as Canon BubbleJet.
If your Canon device also functions as a scanner, you can use your AXIS
1650 as a scanner server as well.
Important:
Devices from other manufacturers than Canon are not supported.
Hardware Model Model/ Part Number
Network Print Server
AXIS 1650
0214-001- 01
0214-001- 02
With firmware version 2.00 or higher
AXIX 1650 Japan
0214-005-01
0214-005-02
With firmware version 2.00 or higher
Adhesive Holder & Clip
ACC AXIS CLIPS K 20119
USB Cable 70 cm, 28 inches USB cable supports USB Low-Speed and
Full-Speed. Hi-Speed is not supported.
20208
Power Adapter PS-H
Network Cable RJ 45 Shielded CAT5 0.5M 16283
CD AXIS 1650 CD rev. 1.0
or higher
Printed Material AXIS 1650 Quick Installation Guide rev. 1.0
or higher
WARRANTY AXIS SERVERS 1YR 21681
Optional accessories (not
included in package) Description Part Number
Cables
Extension Cable 13522
Centronics to Mini Centronics Cable 16453

Product Overview
8 AXIS 1650 User’s Manual
Supported
Environments The AXIS 1650 supports printing over TCP/IP from the following clients:
• Windows 98
• Windows Me
• Windows 2000
• Windows XP
• Windows Server 2003
•Netware
Installation and
Integration The installation of the AXIS 1650 and its integration into the network is performed using one of these software combinations:
•AXIS IP JumpStarter (for IP setting) and then AXIS CAPT Print
Monitor (for printer installation)
•CanonNetSpot Device Installer (for IP setting) and then AXIS CAPT
Print Monitor (for printer installation)
•AXIS ScanClient to enable scanning through the AXIS 1650.
Configuration and
Management Configuration and management of AXIS 1650 is performed using the TCP/IP protocol. The main method is using a standard Web browser. See
“Print Server Management from the Embedded Web Pages” on page 40.
Printing Protocol: TCP/IP
Speed The AXIS ETRAX chip has been specifically designed for LAN products
and benefits users with a faster throughput than a direct PC-to-printer
connection. With a sustained data throughput of over 1 Mbytes per
second (100baseTX) the AXIS 1650 is fast. ECP high-speed
communication is supported.
Security: You can assign a password that restricts unauthorized configuration of
the AXIS 1650.
Monitoring: The AXIS 1650 embedded Web pages allow you to continuously monitor
printer status. Additionally, the AXIS 1650 supports SNMP for remote
monitoring.
Future proof: You can upgrade the AXIS 1650 Flash memory over the network. This
allows you to quickly update and enhance the operational features of
your AXIS 1650 when new print server software becomes available.
AXIS IP JumpStarter, AXIS CAPT Print Monitor and AXIS ScanClient
are available free of charge from the AXIS 1650 CD and on
www.axis.com
NetSpot Device Installer is available on www.canon.com

Product Overview
AXIS 1650 User’s Manual 9
Printer Ports • One Low- and Full-Speed USB 1.1 port that also works with USB 2.0.
Hi-Speed is not supported.
• One high-speed IEEE 1284 compatible parallel port that plugs directly
into the printer´s parallel port.
AXIS 1650 is featured with two ports for ease of integration with most
Canon printers. There is however no support for handling two connected
printers simultaneously.

Print Server Installation
10 AXIS 1650 User’s Manual
Section 5 Print Server Installation
Follow these steps to install and configure your AXIS 1650:
1. ConnecttheHardware, on page 10
2. SettheIPAddress, on page 11
3. WindowsInstallation, on page 17
Connect the Hardware
Backside label of print server
1. Make sure that your printer is switched off and that the print server’s
power adapter is disconnected.
2. Locatetheserial number,found on theundersidelabeloftheprint server,
andwrite itdown.Youwill need this number to configurethe print server.
3. Eitherconnect the printer to theUSB port using the USB cable, or connect
the printer directly to the LPT port or use a printer cable.
Note: AXIS 1650 is featured with two ports for ease of integration with
most Canon printers. There is, however, no support for handling two
connected printers simultaneously.
4. Connect the print server to the network using a shielded twisted pair
(category 5) RJ45 cable, 10baseT or 100baseTX.
5. Switch on the printer and make sure it is ready for use.
6. Connectthepoweradaptertotheprintserver.Thepowerindicatorwilllight
up. When the network indicator starts to flash, the print server is correctly
connected to the network.
Test button
Network indicator
USB Printer Port (USB1)
Power indicator
Power adapter
connector
Ethernet connector
Parallel printer port (LPT1)
Example:Iftheprintserver’sserial number
addresswill be00-40-8c-18-1c-f0
The print server’s MAC/Ethernet address is
based on its serial number (S/N).
is00408c181cf0,theEthernet/MAC

Print Server Installation
AXIS 1650 User’s Manual 11
7. Optionally, you can mount the print server e.g. on the back of the printer
or on a wall, using the supplied clip and holder.
Set the IP Address
Before setting the IP address, make a note of the print server’s serial
number (S/N), located on its backside label. See Backside label of print
server, on page 10.
You should obtain an unused IP address from your network administrator
It is not possible to obtain a dynamic IP address using DHCP, since DHCP
is disabled by default in AXIS 1650. To enable DHCP in the print server,
see DHCP Enabled, on page 50. You can, however, obtain a DHCP address
for the print server via AXIS IPJumpStarter or NetSpot Device Installer. If
you choose to obtain a DHCP address for the print server from these
programs, the DHCP function will be enabled in the print server.
Set a Static IP
Address using AXIS IP
JumpStarter
AXIS IP JumpStarter is an application that helps you to locate your Axis
print server on the network and assign an IP address to it.
Adhesive Holder Fasten to print server by peeling off adhesive tape.
Adhesive Clip Fasten to mounting surface by peeling off adhesive
tape.
Method Platform Comment
AXIS IP JumpStarter
software Windows
Axissoftwarethatallowsyouto find printserversin yournetwork
and assign an IP address to them.
See “SetaStatic IPAddressusingAXISIPJumpStarter” on page 11
Arp/Ping
Windows See “SetaStatic IPAddressusingARP in Windows
98/Me/2000/XP/2003” on page 13
Unix/
Linux See SetaStaticIPAddressusingARPin UNIX, on page 13
Canon’s NetSpot
Device Installer software Windows
Canon software that allows you to find print servers in your net-
work and assign an IP address to them.
See“SettheIPAaddressusingNetSpotDeviceInstaller”onpage14

Print Server Installation
12 AXIS 1650 User’s Manual
1. Install AXIS IP JumpStarter, it is available on the AXIS 1650 CD and on
www.axis.com
2. SelectaprintserverfromtheSerialNumber list. AllAXIS1650appearwith
thedefaultIPaddress192.168.0.90.IfyouareinstallingseveralAXIS1650,
check the Serial Number to locate a specific print server.
3. From the Server menu, select Set IP Address. The Set IP Address dialog
appears.
4. ClicktheradiobuttonthatcorrespondstoyourchoiceofIPsettingmethod
(staticordynamicusingDHCP).WhenassigningastaticIPaddressyoualso
have to define the Subnet Mask and Default Gateway.
5. Click OK to save your settings.
6. You may be prompted to enter the server root password (by default set to
<blank>), click OK and the print server will appear in the list with the
assigned IP address.
7. Toverifythatyouhaveaccesstotheprintserver’sWebpages,highlightthe
print server in the list and select Server Home Page from the Server menu.
8. YouhavenowfinishedtheprocedureofsettingtheIPaddress.Continueto
Windows Installation, on page 17.
All AXIS 1650 have the default IP address 192.168.0.90
Change this default IP address to either a
static IP address or to a DHCP address.

Print Server Installation
AXIS 1650 User’s Manual 13
Set a Static IP
Address using ARP in
Windows
98/Me/2000/XP/2003
1. Open a Command Prompt and type:
Example:
2. Ifthe hostreturns Reply from 192.168.3.191 ... ora similarmessage,
the IP address has been set successfully.
Ifthe host returnsRequesttimedoutyouneed to reboottheprintserverand
perform steps 1-2 above again. Rebooting the print server is done by
disconnecting and then re-connecting the print server’s power adapter.
3. Accesstheprintserver’sWebpages(-Seepage41),selectAdmin|Network
Settings|DetailedView|TCP/IPanddefinetheDefaultRouterandSubnet
Mask. Make sure DHCP, BOOTP and RARP are disabled.
You have now set the IP address of the print server. Continue with
Windows Installation, on page 17.
Note: When you execute the ping command for the first time, you will
experience a significantly longer response time than usual.
Set a Static IP
Address using ARP in
UNIX
Follow the instructions below to set the IP address using ARP.
1. Type the following commands in the shell window:
Example:
2. Thehost will return 192.168.3.191 is alive or asimilar message. This
indicates that the address has been set and that the communication is
established.
3. Accesstheprintserver’sWebpages(-Seepage41),selectAdmin|Network
Settings|DetailedView|TCP/IPanddefinetheDefaultRouterandSubnet
Mask. Make sure DHCP, BOOTP and RARP are disabled.
Notes: • The ARP command varies between different UNIX systems. Some BSD
type systems expect the host name and node address in reverse order.
• When you execute the ping command for the first time, you may
experience a significantly longer response time than usual.
arp -s <IP address> <Ethernet address>
ping -l 479 <IP address>
arp -s 192.168.3.191 00-40-8c-18-1c-f0
ping -l 479 192.168.3.191
arp -s <ip address> <Ethernet address> temp
ping -l 479 <ip address>
arp -s 192.168.3.191 00:40:8c:18:1c:f0 temp
ping -l 479 192.168.3.191

Print Server Installation
14 AXIS 1650 User’s Manual
Set an IP Address with NetSpot Device Installer software
NetSpot Device Installer is software from Canon that allows you to assign
an IP address and manage Canon devices connected to your network.
NetSpot Device Installer software is supplied on CD-ROM with your
Canon printer and on www.canon.com
Depending on the provided CD-ROM, NetSpot Device Installer may not be
included. If this is the case, please download NetSpot Device Installer
from www.canon.com
Install NetSpot Device
Installer 1. In Windows 2000/XP, log on as an Administrator before installing. Insert the CD-ROM supplied with your Canon printer into the CD-ROM drive of
your computer.
2. In Windows Explorer, double-click the CD-ROM drive icon.
3. Double-click NetSpot_Device_Installer => Windows => nsdisetup.exe
4. A license agreement will be shown in the window. Check the contents and
click Yes.
5. Specify the program destination folder and click OK. The installation will
launch.
If you check “Add to Start menu”, you can add NetSpot Device Installer to
your Windows Start menu.
6. Whenthe installation is finished, click OK.Youcan now start the program,
see Set the IP Aaddress using NetSpot Device Installer, on page 14.
Set the IP Aaddress
using NetSpot Device
Installer
Follow these instructions to set the IP address using NetSpot Device
Installer:
1. Start the program. The main window will open. After a while a list of
devices detected on the network will be displayed.
2. Select the AXIS 1650 that displays the unit’s MAC address and default IP
address 196.168.0.90
TheMACaddress isbasedontheSerial Number(S/N)ofyourAXIS1650and
is printed on the underside label of the print server.
3. From the Device menu, select Initial Settings.

Print Server Installation
AXIS 1650 User’s Manual 15
4. From the Initial Settings dialogue box, select the AXIS 1650 print server
from the Product Type drop-down list and click Next.
5. Next, configure the TCP/IP protocol:
6. After you have finished the configuration, click OK.
Note: If you get a message reading “Resetting device”, click OK.
7. ClickOK.Yourprinter’sprotocolconfigurationisnowfinishedandyourAXIS
1650hasreceivedanIPaddress.ContinuetoWindowsInstallation,onpage
17.
IP Address Host Names
If you are using host names, you can map a unique host name to the IP
address. Refer to your system manuals or to your network administrator
for instructions on how to perform name mapping on your system.
Enter IP Address
Enter Subnet Mask
Enter Gateway Address
The Broadcast Address is
filled in automatically
Select Manual Setting

Print Server Installation
16 AXIS 1650 User’s Manual
Notes • You need to know the Ethernet address of your AXIS 1650 to perform
the installation. The Ethernet address is based on the serial number of
your AXIS 1650. For example, an AXIS 1650 with the serial number of
00408C181CF0, will have the corresponding Ethernet address of 00 40
8C 18 1C F0. The serial number is located on a label on the backside of
the print server.
• DO NOT use the IP addresses shown in the following examples when
installing the AXIS 1650.
• ARP/Ping operates on single network segments only, i.e. it cannot be
used over routers.
• The default host name of the print server is ’AXIS’ followed by the last 6
digits in the serial number. e.g. AXIS181636. The host name is changed
in the Print server name field in Admin | General Settings.
• The host name limitations conclude that if you want to register the
same host name at a WINS server and a DDNS server, the host name
should be no longer than 15 characters and it should only contain the
characters ‘A-Z’, ‘a-z’, ’0-9’ and ‘-’.
• Refer to your system manuals or to your network administrator for
instructions on how host name resolutions are performed on your
system.
• At least one WINS server IP address must be included in the DHCP
scope if you are using WINS. Immediately after the IP address has been
received, the AXIS 1650 registers its host name and IP address on the
WINS server.
• If the host name has not been mapped to the IP address, you can still
perform the following instructions to download the IP address. In this
case, simply replace the host name entry with the IP address wherever
required.

Windows Installation
AXIS 1650 User’s Manual 17
Section 6 Windows Installation
Installing Printer Ports using AXIS CAPT Print Monitor
AXIS CAPT Print Monitor is a Windows component that has been
developed for network printing. AXIS CAPT Print Monitor is the
recommended tool for Canon printers, including CAPT, Canon Advanced
Raster Printing System and BubbleJet.
AXIS CAPT Print Monitor allows your AXIS 1650 to be connected in the
same simple fashion as a local printer port and once installed, it is
automatically initialized upon system start-up.
AXIS CAPT Print Monitor needs to be installed on each workstation for
peer-to-peer printing.
Refer to the instructions relevant to your network on how to install a
printer using AXIS CAPT Print Monitor:
•
Print Server Installation using AXIS CAPT Print Monitor in Windows
2000, XP and Server 2003
, on page 17.
•
Print Server Installation using AXIS CAPT Print Monitor in Windows 98
and Me
, on page 22.
See also Print Server Installation using the Standard TCP/IP Port in
Windows 2000/XP/2003, on page 25.
Print Server Installation using AXIS CAPT Print Monitor in Windows 2000, XP and Server 2003
1. Install the AXIS CAPT Print Monitor on your workstation. The software is
available on the AXIS 1650 CD and on www.axis.com
2. Launch the software installation and click Next.

Windows Installation
18 AXIS 1650 User’s Manual
3. Read the License Agreement and click Yes if you accept the terms.
4. Leave this check-box unchecked* and click Next. (If you want to disable
broadcaststatusupdatesandenableunicast,seeEnablingUnicastNetwork
Communication, on page 64.)
Windows XP/Server 2003 only:
MakesuretheAllowthisapplicationtoprocessincomingnetworkprinter
information on the local subnet checkbox is checked.
In Windows XP SP 2, UDP port 10260 must be open in the Internet
Connection Firewall when using Broadcast communication. UDP port
10260isopenedautomaticallyintheInternetConnectionFirewallwhen
Must be checked!

Windows Installation
AXIS 1650 User’s Manual 19
Windows XP SP2 is installed, if Allow this application to process
incoming network printer information on the local subnet is checked.
5. Click Finish to finish the installation.
6. Windows XP/Server 2003:
Go to Start | Printers and Faxes and click the Add a Printer icon to start
the Add Printer Wizard.
(WindowsXPHomeEdition:Start|ControlPanel|PrintersandFaxes|Add
a Printer).
Click Next.
Windows 2000:
Go to Start | Settings | Printers and click the Add Printer icon to
start the Add Printer Wizard. Click Next.

Windows Installation
20 AXIS 1650 User’s Manual

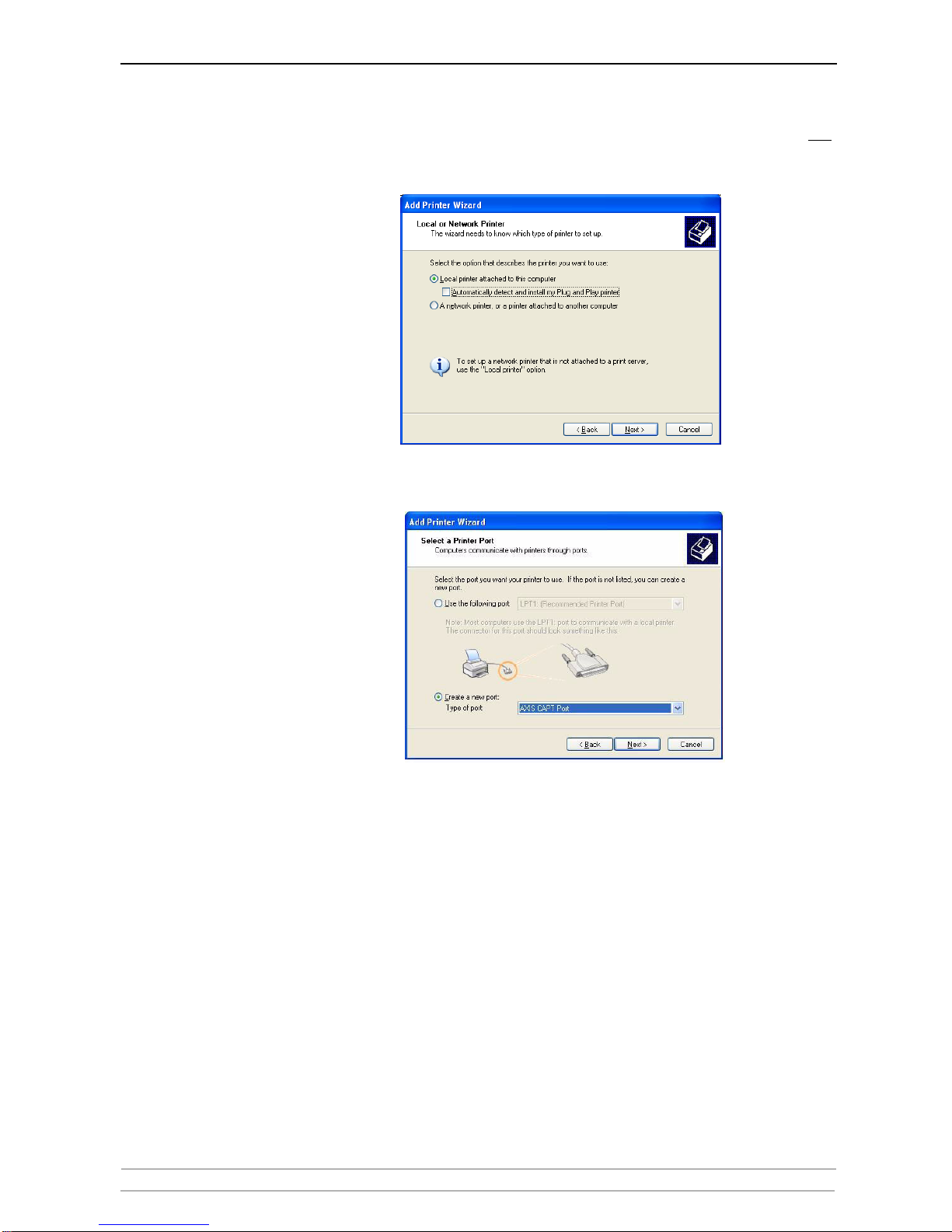

7. Select Local Printer attached to this computer. Make sure the
AutomaticallydetectandinstallmyPlugandPlayprintercheckboxisnot
checked. Click Next.
8. Click the Create a new port radio button and select AXIS CAPT Port. Click
Next.
Note: AXIS CAPT Port is used for all Canon printers, including CAPT,
Canon Advanced Raster Printing System and BubbleJet.
