J127LH
HEAVY DUTY 12”JOINTER

TABLE OF CONTENTS
SAFETY:
General Rules......................................................................................................................................................................1
Specific Rules .....................................................................................................................................................................1
SPECIFICATIONS.............................................................................................................................................................2
RECEIVING THE JOINTER.............................................................................................................................................3
INSTALLATION & ASSEMBLY.....................................................................................................................................3
Fence Installation .................................................................................................................................................................3
Drive Belt Adjustment ..........................................................................................................................................................3
Electrical Connection............................................................................................................................................................3
ADJUSTMENTS:
Replacing Knives .................................................................................................................................................................3
Setting Knives & Outfeed Table .............................................................................................................................................4
Infeed Table Adjustment .......................................................................................................................................................5
Fence Adjustments ...............................................................................................................................................................5
OPERATION INSTRUCTION:
Hand Placement...................................................................................................................................................................6
Edge Jointing ......................................................................................................................................................................6
Jointing Warped Pieces .........................................................................................................................................................6
Jointing Short Or Thin Work..................................................................................................................................................6
Direction of Grain ................................................................................................................................................................6
Beveling.............................................................................................................................................................................7
Taper Cuts ..........................................................................................................................................................................7
MAINTENANCE ...............................................................................................................................................................7
Lubrication .........................................................................................................................................................................7
Whetting Knives ..................................................................................................................................................................7
Cutterhead Repairs ...............................................................................................................................................................7
Blade Care..........................................................................................................................................................................7
TROUBLE SHOOTING ....................................................................................................................................................8
OPTIONAL ACCESSORIES.............................................................................................................................................8
PARTS LISTS & EXPLODED VIEWS:
Base ............................................................................................................................................................................ 9-10
Work Table................................................................................................................................................................. 11-12
3HP/5HP Motor Pulley ................................................................................................................................................. 13-14
Guard...............................................................................................................................................................................15
Cutterhead/Helical Cutterhead ........................................................................................................................................ 16-17
Fence......................................................................................................................................................................... 18-19
ELECTRICAL SCHENATIC ..........................................................................................................................................20

1
△
! SAFETY: General Rules
READ THE MANUAL:Always read the owner'smanual
carefully before attempting to use the machine knows the limitation
and hazards associated with its use.
INSTALLATION:If mounting machine to the floor, use high
quality anchor bolts through the mounting holes on the base. If using
a mobile base, be sure to lock the wheels.
PROTECTION: Take every precaution to protect yourself, others
around you, and the machine itself, from imp- roper use. Safety is a
combination of using common sense, knowing how to use the
machine and being alert at all times when using the machine.
EYES: Always wear approved safety goggles, glasses, or a face
shield when operating this machine. There are no exceptions to this
rule.
DRESS CODE:Do not wear loose clothing, neckties,jewelry, or
gloves that can get caught in moving parts. Confine long hair. Keep
sleeves above the elbow.
PLACEMENT: Place machine so that potential kickback area is not
in line with aisles, doorways, wash stations, or other work areas.
ELECTRICAL GROUNDING:Your machine must be electrically
grounded. If a cord and plug are used, make certain the grounding
lug connects to a suitable ground. Follow the grounding procedure
indicated by National Electric Code. Keep power tools in dry areas
free from moisture.
GUARDS: Be sure machine guards are in place and in good
working order. Use them at all times on operations where they can
be used. If a guard must be removed for any operation, make sure it
is replaced immediately fol- lowing completion of that operation.
POWER OFF: Makesure the machine is either unplugged or
electrically disconnected and locked out when performing mainten-
ance or service work.
HOUSEKEEPING:Before turning on machine, remove all extra
equipment such as keys, wrenches, scrap, stock, and cleaning rags
from the machine. Keep the area around machine clean and free of
scrap material and sawdust to minimize the danger of slipping.
POWER ON: On machines equipped with a manual starter make
sure the starter is in "OFF"position before connecting power to
machine.
△
! SAFETY: Specific Rules
READ THE MANUAL: Read, understand, and follow the
safety instructions found in this manual. Know the limitations and
hazards in using the model 12"Jointer. Safety decals are placed on
each machine as reminders of good safety practice.
NEVER: surface stock less than 12 inches long, or 3 inches wide,
or 3 inches thick without a hold down push block.

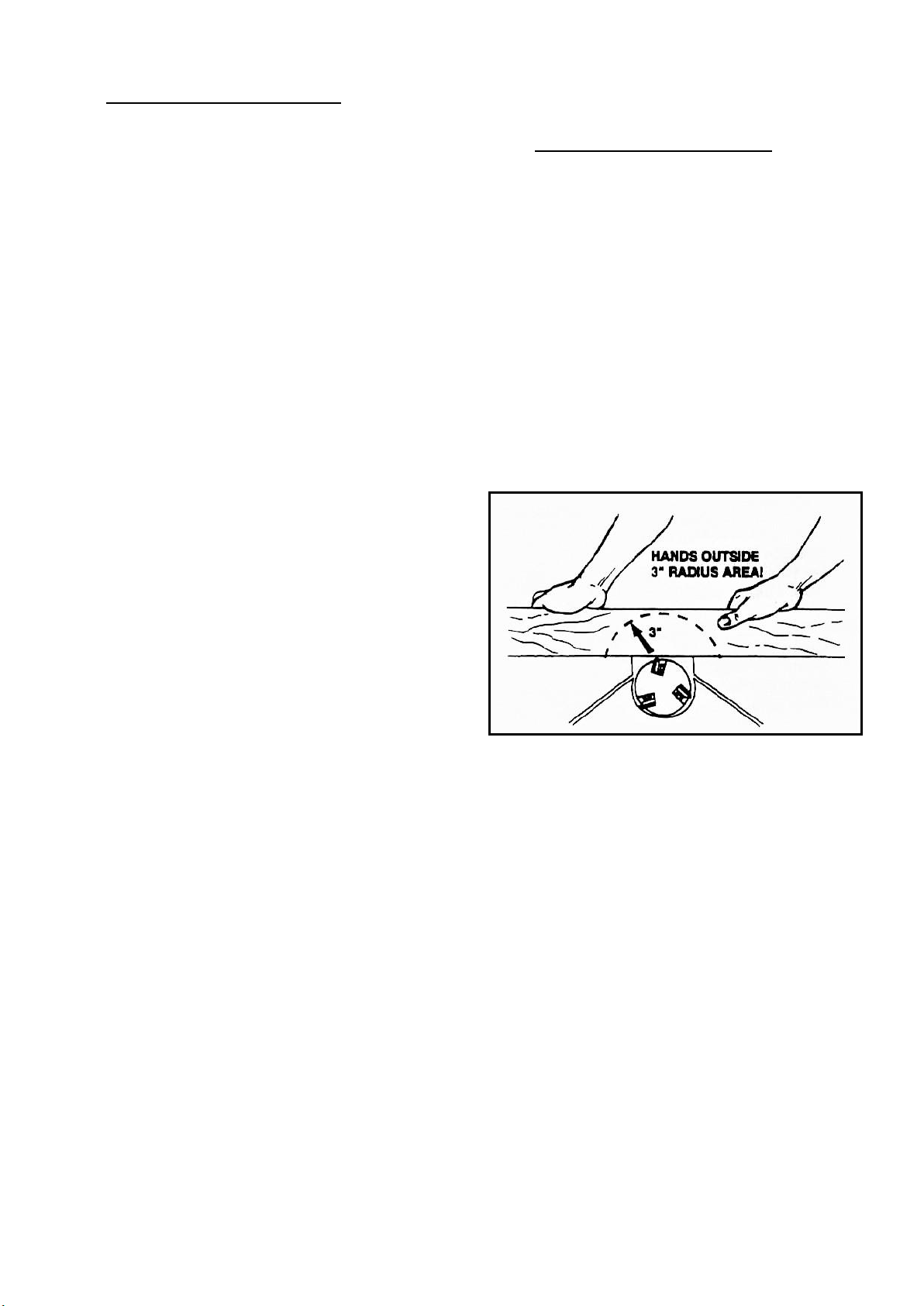

3 INCH RULE: When working a piece of wood on the jointer,
follow the 3 inch radius rule. The hands must never be closer than 3
inches to the cutterhead. Fig. 1
Fig. 1
KICKBACK: Use extra care in the location of the jointer in the
shop. Position the jointer so that a kicked back stock will strike a
wall and not endanger other persons in the area.
AVOID TIP-IN: Never apply pressure to stock directly over the
cutterhead. This may result in the stock tipping into the cutterhead
along with the operator's fingers. Follow the 3 inch rule. Position
hands away from extreme ends of stock, and push through with a
smooth, even motion.
AVOID KICKBACK: "Pull-out" and the danger of kicked back
stock can occur when the work piece has knots, holes, or foreign
materials such as nails. It can also occur when the stock is fed
against the grain on the jointer. The grain must run in the same
direction you are cutting.
Before attempting to joint. Or plane each work must be carefully
examined for stock condition and grain orientation.

2
NOTE: At certain time it may be necessary to plane against the
grain when working with swirl grain wood burls. With this type
work the operator must use a lesser depth of cut and slow rate feed.
Fig. 2

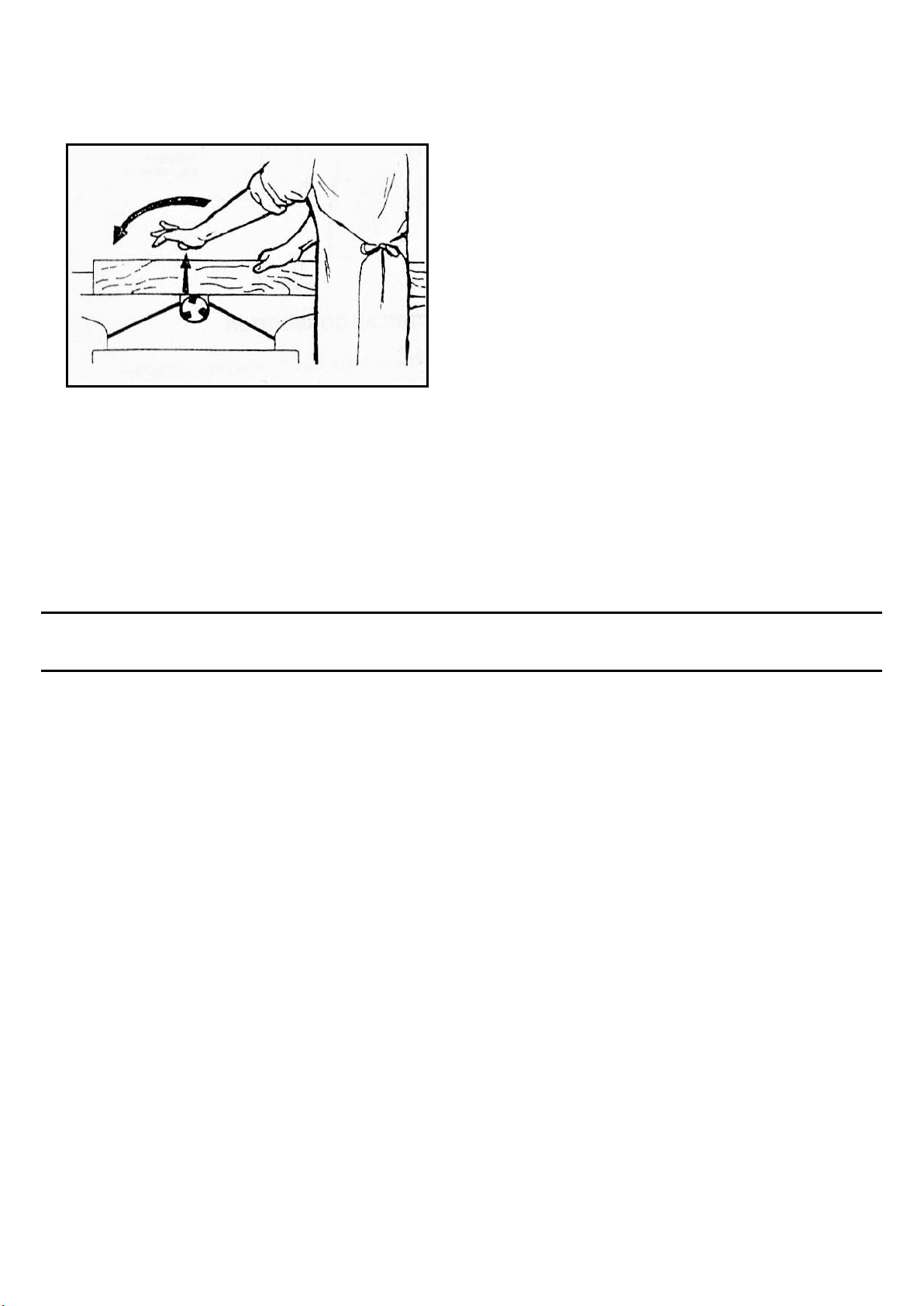

HAND SAFETY: It is good practice to move the hands in an
alternate motion from back to front as the work continues through
the cut. Never pass the hands directly over the cutter knife. As one
hand approaches the knives remove it from the stock in an arc
motion and place it back on the stock in a position beyond the cutter
knife (Fig. 2).
NOTE: At all times hold the stock firmly.
IF YOU ARE NOT thoroughly familiar with the operation of
jointersobtains advice from your supervisor, instructor or other
qualified person.
DRUGS, ALCOHOL, MEDICATION: Do not operate tool while
under the influence of drugs, alcohol, or any medication.
ADDITIONAL HEALTH HAZARDS: Some dust created by power
sanding, sawing, grinding, drilling and other construction activity
contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
Lead from lead-based paint.
Crystalline silica from bricks and cement and other masonry
products.
Arsenic chromium from chemically-treated lumber.
YOUR risk from these exposures varies, depending on how often
you do this type of work.Reduceyour exposure to
thesechemicals.Work in a well-ventilated area, and work with
approved safety equipment, such as those dust masks that
arespecificallydesigned to filter out microscopic particles. Use wood
dustcollection systems whenever possible.
SPECIFICATIONS
J-126L 72"x12"
(1828 x305mm)
J-127L 84"x12"
(2134x305mm)
Table Height from floor
31-1/2"(800mm)
Fence －Size
48"x5-1/2"(1200x140mm)
Tilt
48°
Positive stops
90°/45°/135°
Cutterhead－Speed
5000 RPM
Number of knife
3
Diameter
3-7/8" (98mm)
Cutting Circle
4" (102mm)
Rabbeting Capacity
3/4" (19.05mm)
Power Required
3HP/5HP
Overall Dimension (L x W x H)
J-126L
73"x36"x37"(1854x838x940mm)
J-127L
85"x36"x37"(2165x910x940mm)
Gross Weight
J-126L
880Lbs (400kgs)
J-127L
924Lbs (420kgs)

3
RECEIVING THE JOINTER
Carefully unpack the jointer and all loose items from the wood
crate and inspect for damage. Any damage should be reported to
your distributor and shipping agent immediately. Before proceeding
further, read your manual thoroughly to familiarize yourself with
proper assembly, set-up, maintenance, safety and operating proced-
ure.
Exposed metal parts such as the table and fence have been given a
protective coating at the factory. This should be removed with a
soft cloth moistened with a solvent (such as kerosene). DO NOT
use acetone, gasoline or lacquer thinner this purpose. After cleaning,
we recommend you cover all unpainted surface with a good quality
paste wax.
INSTALLATION & ASSEMBLY
Tools required:
Provided: 14 mm wrench, 10mm Allen head wrench
Not provided: knife setting gauge, 1/2"wrench
FENCE INSTALLATION
Mount the fence to the holes on the jointer table with the provided
Allen head wrench, Fig. 3. Tighten the cap screw securely.
Fig. 3
DRIVE BELT ADJUSTMENT
Remove the three (3) crown nuts and washers on the belt guard
with the 14mm wrench, and remove guard, Fig. 4. Use a
1/2"wrench to adjust the screws and nuts in the motor support.
Using the adjusting slots on the motor support to raise or lower
motor support to obtain proper tension.
Fig. 4
ELECTRICAL CONNECTION
IMPORTANT: Make sure the electrical characteristics are the same
between the motor nameplate and the power source, and make sure
the circuit on which the jointer will be used is properly fused and
that the wire size is correct.
△
!
WARNING:THE MACHINE MUST BE PROPERLY GROUND-
ED TO HELP AVOID ELECTRIC SHOCK AND POSSIBLE
DEATH.
1. Connect wires both to electricconnection box and power
source (see electrical schematic, page20). The green wire
(ground) must be properly grounded.
2. After wiring is complete, turn the drive motor on momentari-
ly to check for proper direction of rotation. If the rotation is
in the wrong direction, reverse the motor rotation according
to the instructions furnished with motor.
△
!
CAUTION: IF THE ELECTRICAL INSTRUCTION ARE NOT
COMPLETELY UNDERSTOOD, OR IF YOU AREIN DOUBT
AS TO WHETHER THE MACHINE IS PROPERLY GROUND-
ED, CHECK WITH A QUALIFIED ELECTRICIAN OR SERVI-
CE PERSON BEFOREPROCEEDING.
ADJUSTMENTS

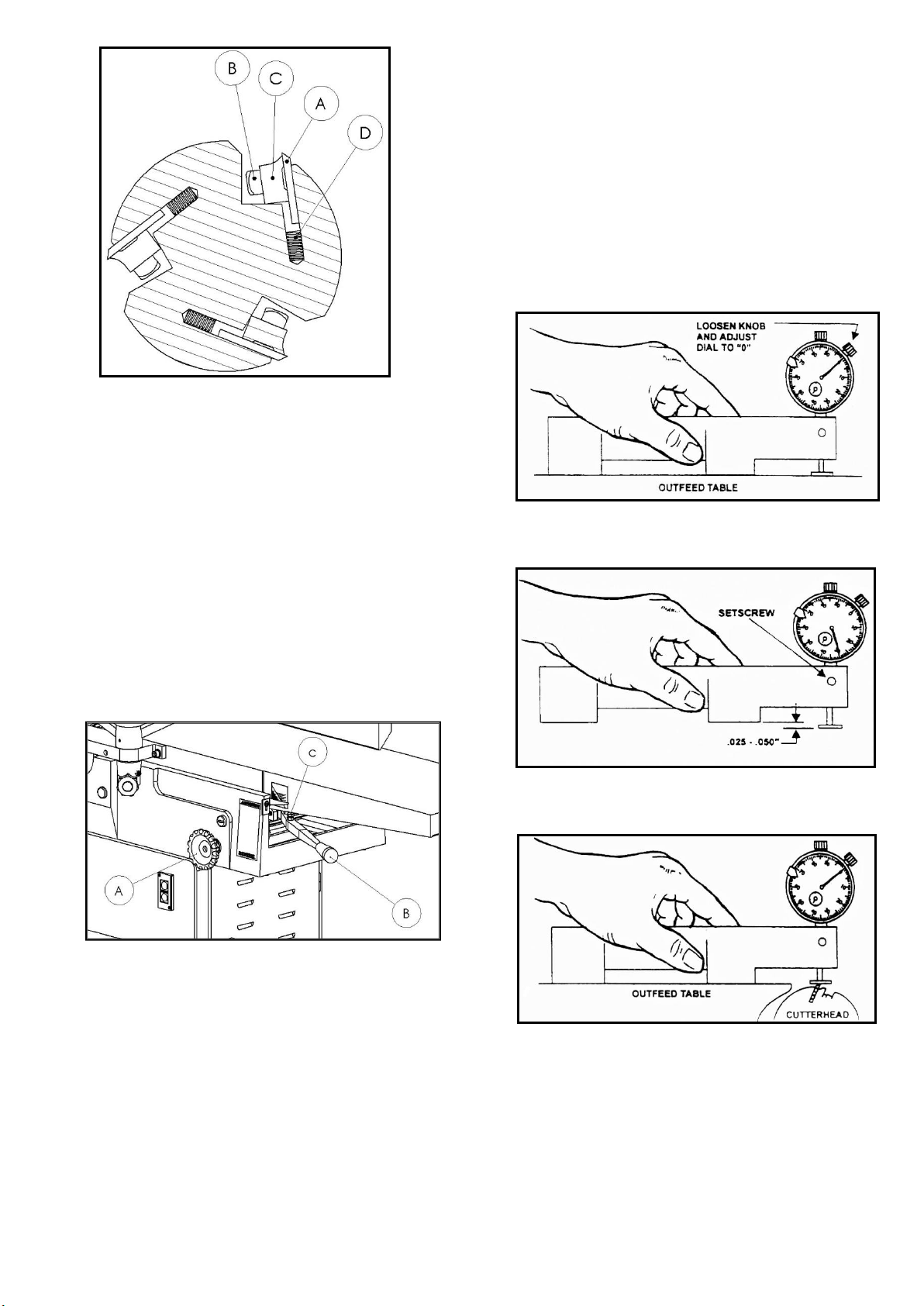

REPLACING KNIVES
After a period of use, the dull knives should be replaced or
reground. To remove the knife (A), release the six (6) gib screws (B)
and gib (C) and springs (D) from the holes of cutterhead, Fig. 5.
To install the knives, insert the springs and put the knife and gib
inplace. Before tightening the knives into cutterhead, they must first
be carefully reset. Refer to "Setting Knives &Outfeed Table".

4
Fig. 5

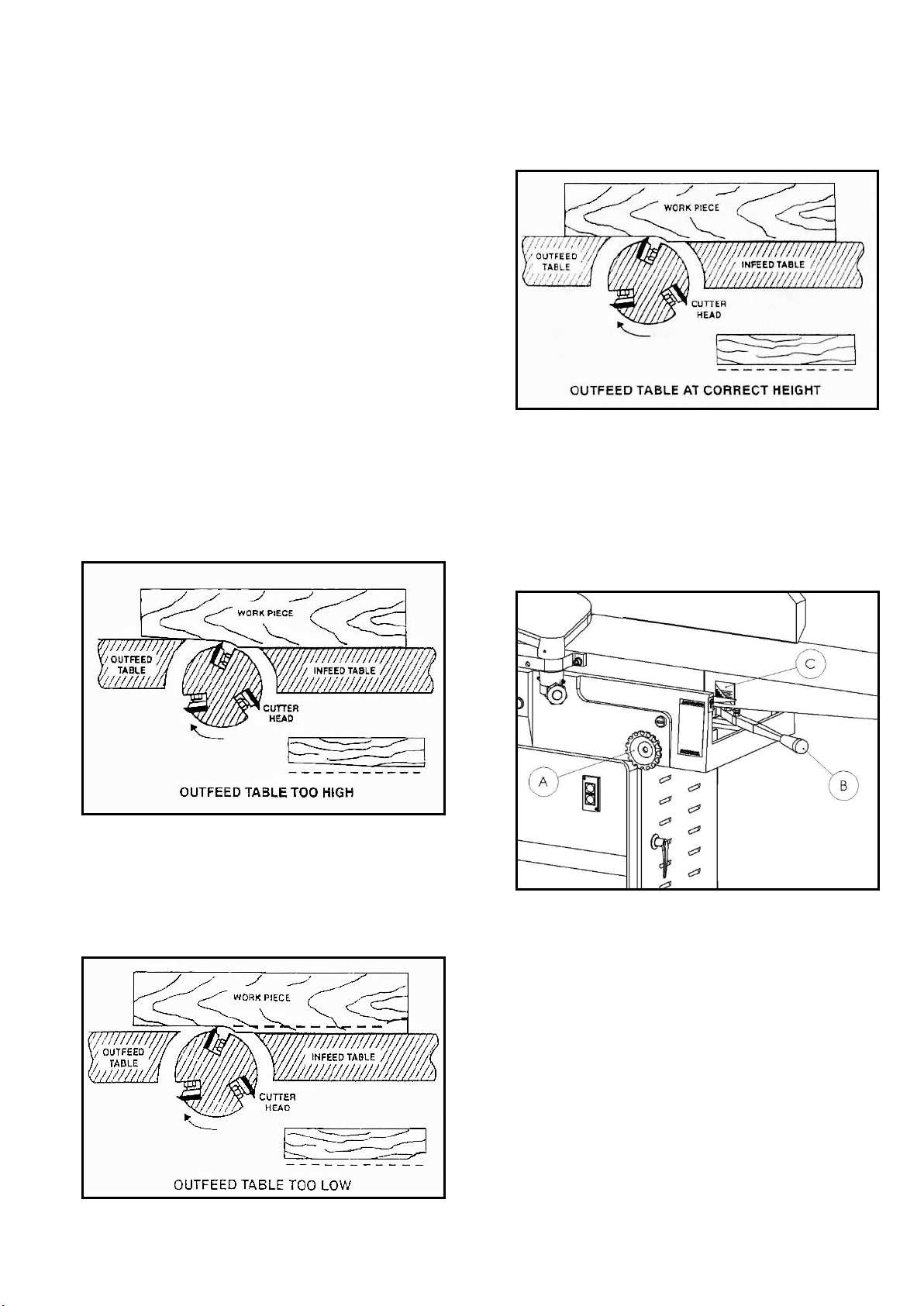

SETTING KNIVES & OUTFEED TABLE
For accurate work in most jointing operations, the outfeed table
must be exactly level with the knives at their highest point of
revolution this means, of course that the knives must be parallel to
the table and project equally from the cutterhead.
To properly set the knives and align them with the outfeed table,
proceed as follows:
1. Disconnect jointer from power source.
2. Loosen the lock handle (A) and raise table adjustment arm
(B), Fig. 6, on the outfeed table so that the screw (C) is just
against the outfeed table.
Fig. 6
3. Place one knife in its groove so that the bevel is 1/16"from
the surface of the cutterhead.
4. Slip knife gib into place and lightly tighten gib locking
screws.
5. A knife-setting bar or steel straight edge can now be used to
set the knives. However, for more precise adjustment, a
Quick-Set Knife Gauge is recommended. Place the gauge on
the outfeed table and "0" the indicator as shown in Fig. 7a.
6. Lift the model 150 gauge off the outfeed table to see how far
below the bottom of the gauge the indicator travels.The
indicator should read between .025 and .050 as shown in Fig.
7b. If the indicator reads outside of this range, loosen the
setscrew in the side of the gauge and adjust the indicator so
that it will read within the range above. Zero the indicator as
shown in Fig. 7a.
7. Repeat this process until indicator reads within the .025
to .050 range. Always zero the indicator (as shown Fig. 7a)
before each use.Now place it on the outfeed table to the rear
of the cutterhead with the flat indicator point over the
cutterhead, Fig. 7c.
Fig.7a
Fig. 7b
Fig. 7c

5
8. Adjust the blade within the cutterhead.Watch the pointer on
the Model 150 gauge. The pointer will begin moving toward
"0". When the pointer reaches "0", it is parallel with the
outfeed table. Move the gauge to the front of the cutterhe- ad
and repeat the above procedure.
This adjusting process puts the knife into the knife slot with
the tip parallel and flush with outfeed table. Once the correct
knife height has been established, secure the gib locking
screw beginning with the center screw to prevent bucking or
uneven knife.
Repeat the procedure for the other two knives.
After the outfeed table has been set at the correct height, it
should not be changed except for special operations or after
replacing knives.
Example of incorrect setting:
If the outfeed table is too high, the finished surface of the work
piece will be curved, Fig. 8.
Fig.8
If the outfeed table is too low, the work will be gouged at the end
of the cut, Fig. 9.
Fig. 9
As a final check of the outfeed table adjustment.Run a piece of
wood slowly over the knives for 6 to 8 inches; it should rest firmly
on both tables, as shown in Fig. 10, with no open space under the
finished cut.
Fig. 10
INFEED TABLE ADJUSTMENT
Loosen lock handle (A) and move table adjustment arm (B) to raise
or lower infeed table. Gauge (C) shows the distance of travel, Fig.
11.
Fig. 11
FENCE ADJUSTMENTS
To tilt the fence backward, loosen the lock screw (B) and tilt the
fence (A), using the handle (C), Fig. 12. Use a machinistprotractor
or adjustable triangle to check the angle. A 45-degree tilt stop (D)
is provided for quick placement of the fence at this angle.

6
Fig. 12
To move the fence forward or backward across the table, loosen
lock handle (E), then turn knob (F). When desire position is reached,
retighten lock handle (E) securely.
OPERATING INSTRUCTION
NOTE: If you are inexperienced at jointing, use scrap pieces of
lumber to check settings and get the feel of operations before attem-
ptingregular work.
△
!
CAUTION: ALWAYS USE GUARD AND KEEP HAND AWAY
FROM CUTTHEAD
HAND PLACEMENT
At the start of the cut, the left hand holds the work firmly against
the front table and fence while the right hand pushes the work
toward the knives. After the cut is under way, the new surface rests
firmly on the outfeed table. The left hand should press down on this
part, at same time maintaining flat contact with the fence. The right
hand presses the work forward and before the right hand reaches
the cutterhead it should be moved to the work on the outfeed table.
FOLLOW THE 3 INCH RULE. NEVER PASS HANDS
DIRECTLY OVER THE CUTTERHEAD.
EDGE JOINTING
This is the most common operation for the jointer. Set guide fence
square with the table. Depth of cut should be the minimum required
to obtain a straight edge. Hold the best face of piece firmly against
the fence throughout the feed.
JOINTING WARPED PIECES
If the wood to be jointed is dished or warped, take light cuts until
the surface is flat. Avoid forcing such material down against the
table; excessive pressure will spring it while passing the knives, and
it will spring back and remain curved after the cut is completed.
JOINTING SHORT OR THIN WORK
When jointing short or thin piece, use a push block to eliminate all
danger to the hands. Two types are shown in Fig. 13.and are easily
made from scrap material.
Fig. 13
DIRECTION OF GRAIN
Avoid feeding work into the jointer against the grain. This will
result in chipped and splintered edges, Fig. 14a. Feed with the grain
to obtain a smooth surface, Fig. 14b.
Fig. 14a
Fig. 14b

7
BEVELING
To cut a bevel, lock the fence at the required angle and run the
work across the knives while keeping it firmly against the fence and
tables. Several passes may be necessary to arrive at the desired
result.
TAPER CUTS
One of the most useful jointer operations is cutting an edge to a
taper. The method can be used on a wide variety of work. Tapered
legs of furniture are a common example.
Instead of laying the piece on the infeed table, lower the forward
end of the work onto the outfeed table. Do this very carefully, as
the piece will span the knives, and they will take a "bite" from the
work with tendency to kick back unless the piece is firmly held.
Now push the work forward as in ordinary jointing the effect is to
plane off all the stock in front of knives to increase depth, leaving a
tapered surface.
The ridge left by the knives when starting the taper may be remove-
d by taking a very light cut according to the regular method for
jointing, with the infeed table raised to its usual position.
Practice is required in this operation, and the beginner is advised to
make trail cuts on waste material. Taper cuts over part of the length
and a number of other special operations can easily be done by the
experienced craftsman.
MAINTENANCE
△
!
CAUTION: DISCONNECT MACHINE FROM POWER SOURCE
BEFORE PERFROMING MAINTENANCE.
Check all screws and fasteners occasionally and keep them tighten
securely.
In time, rust may appear on the table and fence and other parts of
the jointer, resulting in less efficiency and accuracy of the machine,
use paste wax which can be applied to prevent rust formation. If
however, rust has already formed on those parts, use "Rust
Remover" which will restore the machine to its original accuracy.
LUBRICATION
Use a good grade of light grease on the steel adjusting screws for
the raising and lowering mechanisms of the infeed and outfeed
work tables.
The cutterhead runs in two single-row sealed and shielded ball
bearings, which are pre-lubricated for their entire life.
WHETTING KNIVES
1. Disconnect the machine from power source.

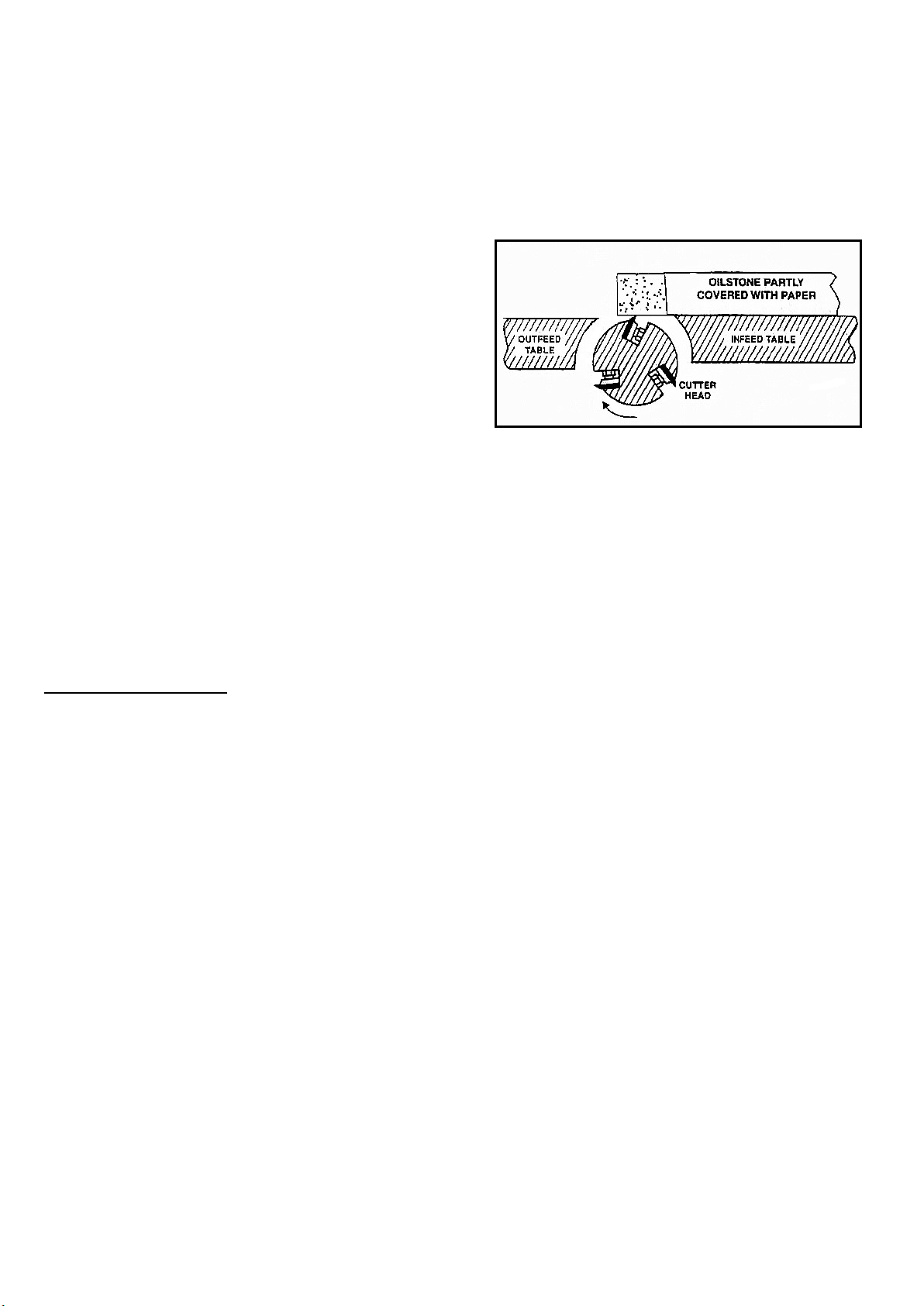

2. Use a fine carborundum stone. Cover it partly with paper as
shown Fig. 15, to avoid marking the table.
3. Lay the stone on the infeed table, lower the table and turn the
cutterhead forward until the stone lies flat on the bevel of the
knife.
Fig. 15
4. Hold the cutterhead from turning, and whet the beveled edge
of the knife, stroking lengthwise by sliding the stone back
and forth across the table. Do the same amount of whetting
on each of the three blades.
5. When finished, reset the knives parallel to the outfeed table
(see "Setting Knives & Outfeed table")
CUTTERHEAD REPAIRES
The entire cutterhead assembly may be removed for cleaning,
bearing or blade replacement or any other cutterhead maintenance
procedures. To remove it, lower both feed tables to clear the
cutterhead. Remove the bearing,retaining stud and then the entire
cutterhead assembly with bearings, studs and bearing housings (see
exploded view pg. 16). Before reinstalling the assembly, be sure the
machine’s curved seated of the base casting are free of dirt, dust
grease, etc. to obtain a good tight fit.
BLADE CARE
When blade become dull enough so that it is noticeable when
cutting, they should be resharpened a sharp blade works easier and
dull blade is less blade life and greater wear and tear on all parts of
the machine.
When the knife cannot be properly re-touched as described in
"Whetting Knives" they must be ground and re-surfaced to a new
bevel edge. Check in the "Yellow Pages" of your local phone
directory under "Sharpening Service" or "Tool Grinding or
sharpening". It may be less expensive to purchase a new set of
blade.
Gum and Pitch which collects on the blades causes excessive
friction as the work continues, resulting in over heating the blade
life. Use"Gum and Pitch Remover" to wipe off the blades.

8
TROUBLE SHOOTING
TROUBLE
POSSIBLE CAUSE
REMEDY
Finished stock is concave on the end
Knife is higher than outfeed table.
Raise outfeed table until it aligns with tip of
knife.
Back end of stock is thicker than front end.
Knife is higher than outfeed table.
Raise outfeed table until it aligns with tip of
knife.
Finished stock is concave in the middle.
Both tables have too much end fall.
Raise both table ends by adjusting four
screws under the tables.
Ends of finished stock are cut more than the
middle.
Table ends are raised higher than the
middle.
Lower table ends by adjusting the four
screws under the tables.
OPTIONAL ACCESSORIES

9

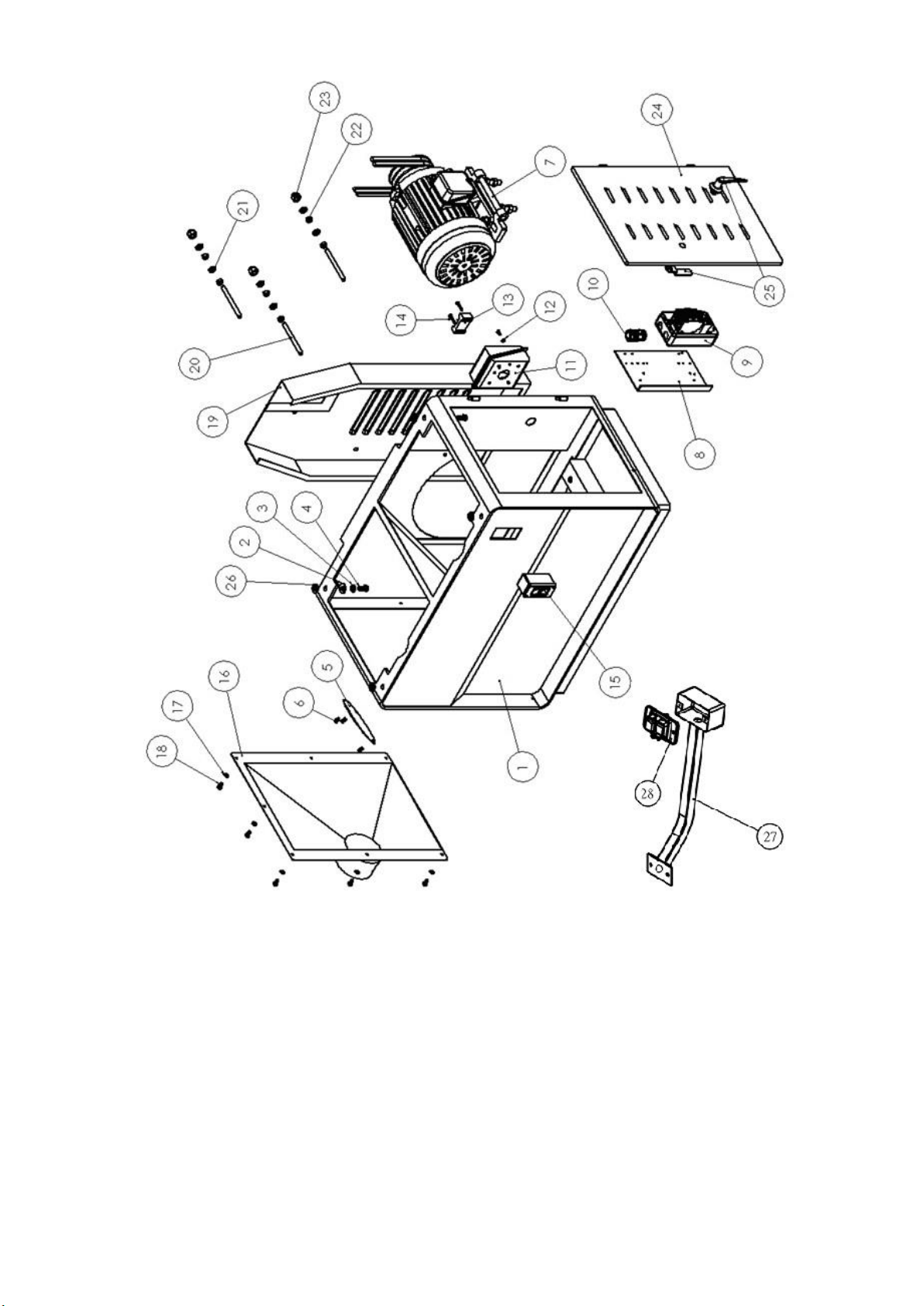

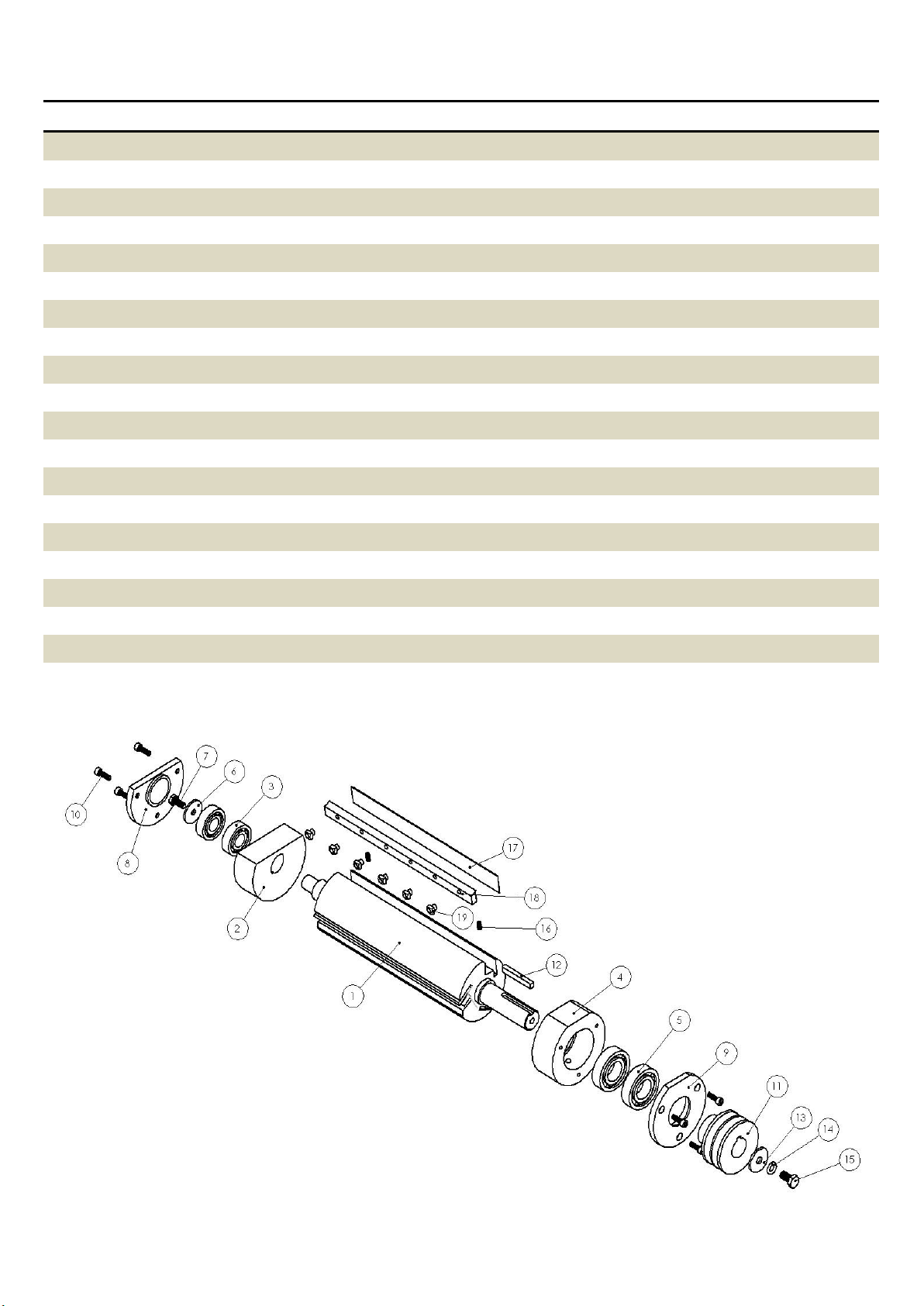

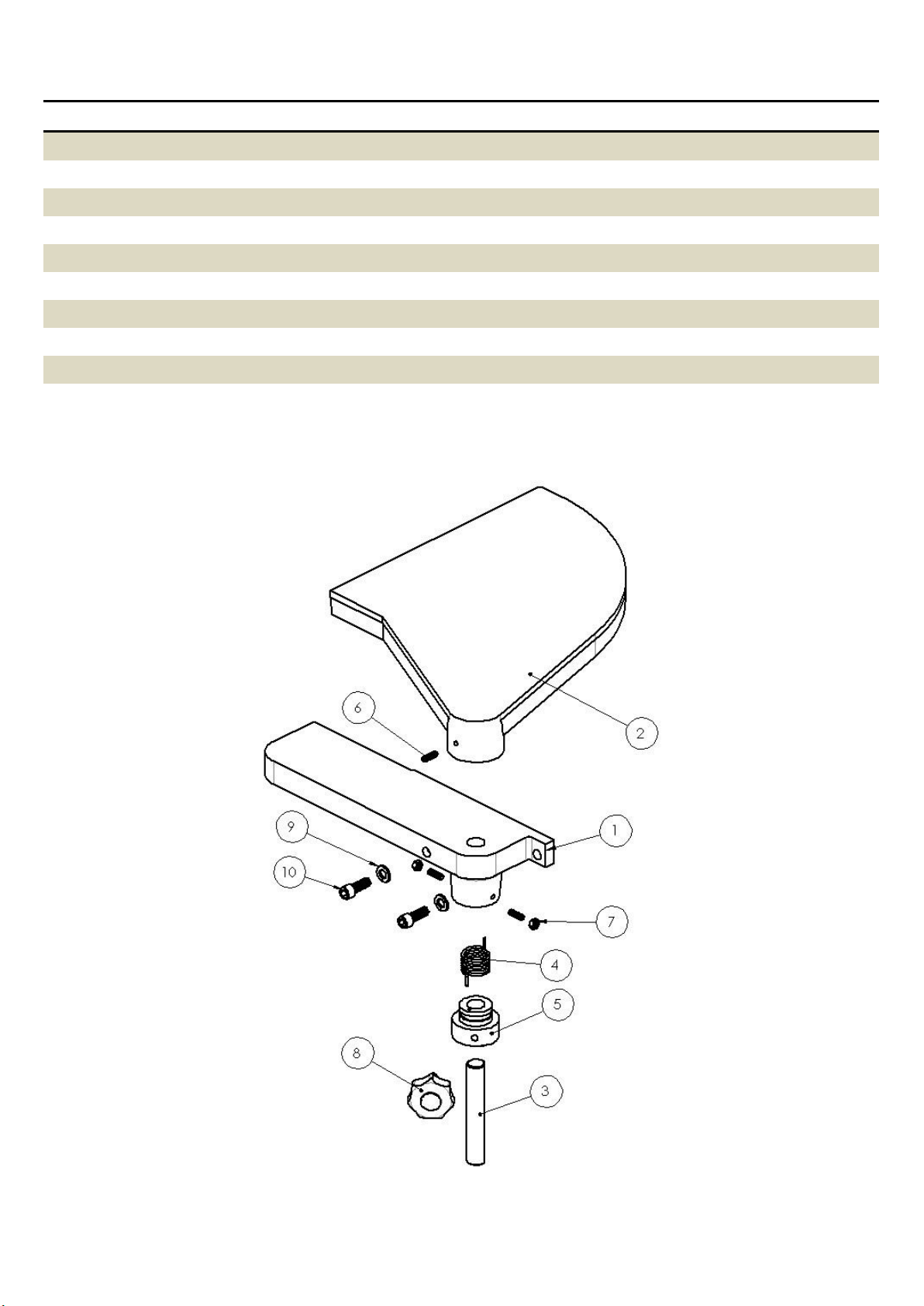

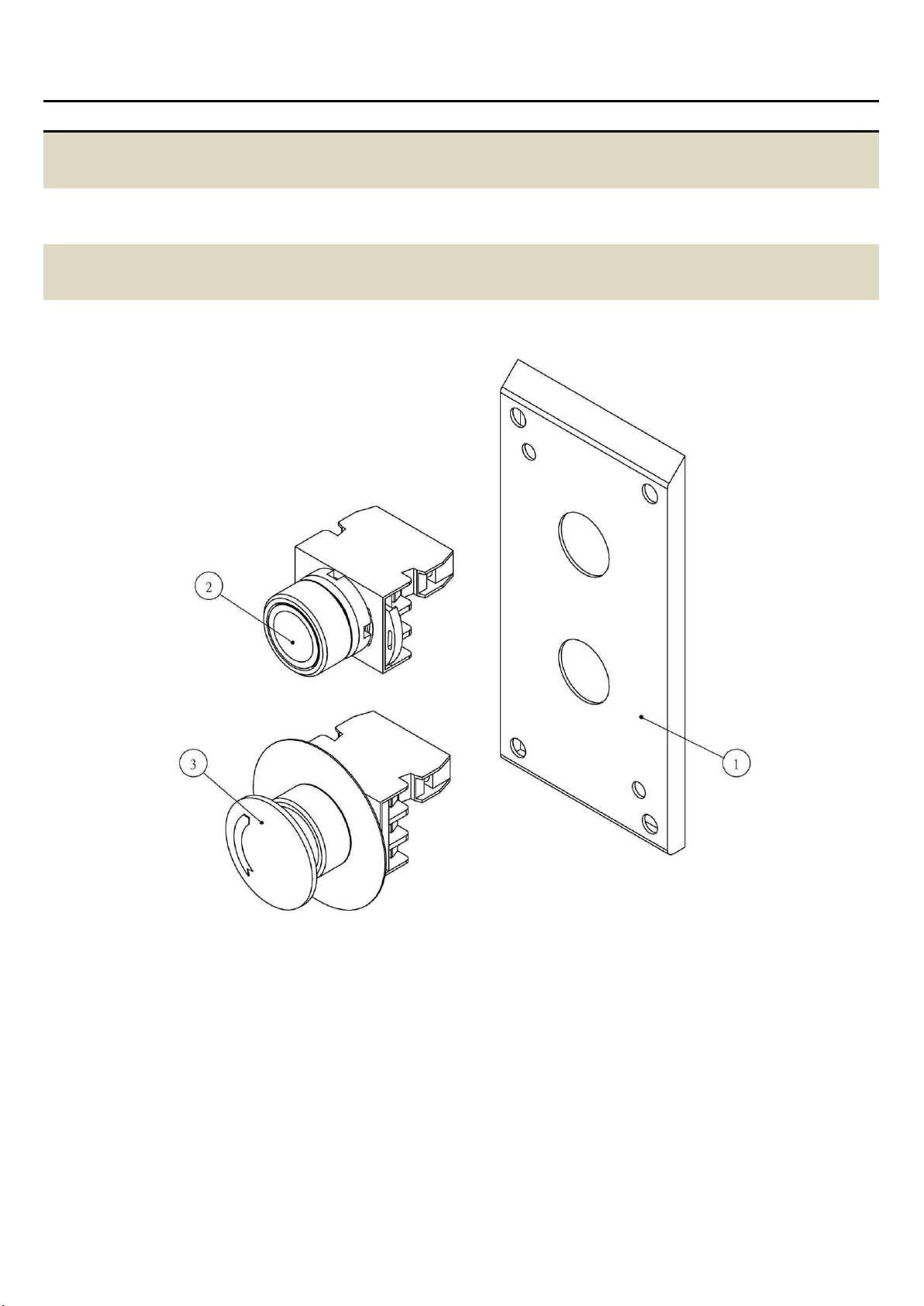

PARTS LIST: Base
NO.
PARTNO.
DESCRIPTION
Q"TY
1
C002011
Stand
1
2
S282052
Washer, Φ3/8"
4
3
S284023
Spring Washer, Φ3/8"
4
4
S100002
Hex. Head Screw,Φ3/8"-16NC
4
5
C074013
Cover, Dust Chute
1
6
S239003
Screw, Dust Chute,Φ3/16"-24NC
5
7
T004014
Assembly, Motor Pulley, 3HP
1
*
T004041
Assembly, Motor Pulley, 5HP
1
8
C022027
Plate, Switch
1
9
P074013P18
Contactor, 1PH
1
*
P074011E11G
Contactor, 3PH
1
10
P092302
Plastic bushing gland, BG20
1
11
S312001
Box, Junction
1
12
S284025
Spring Washer, Φ3/16"
2
13
S313001
Strip, Terminal
1
14
S239007
Screw,Φ3/16"-24NC
2
15
P082001
Switch, PB2
1
*
T075007
Switch Plate Set
1
16
C077013
Hood, Dust
1
17
S284024
Spring Washer, Φ1/4"
7
18
S098001
Hex. Head Screw, Φ1/4"-20NC
7
19
C074027
Cover, Pulley
1
20
C034034
Screw, 105L
3
21
S282052
Washer, Φ10
6
22
S274012R
Nut, Hex, Φ3/8"-16NC
6
23
S277512R
Nut,Cap,Φ3/8"-16NC
3
24
C073014
Door, Access
1
25
P027001
Assembly, Handle
1
26
P066001
Rubber Washer
4
27
C019162
Switch Arm
1
28
P082024
Switch
1

10

11

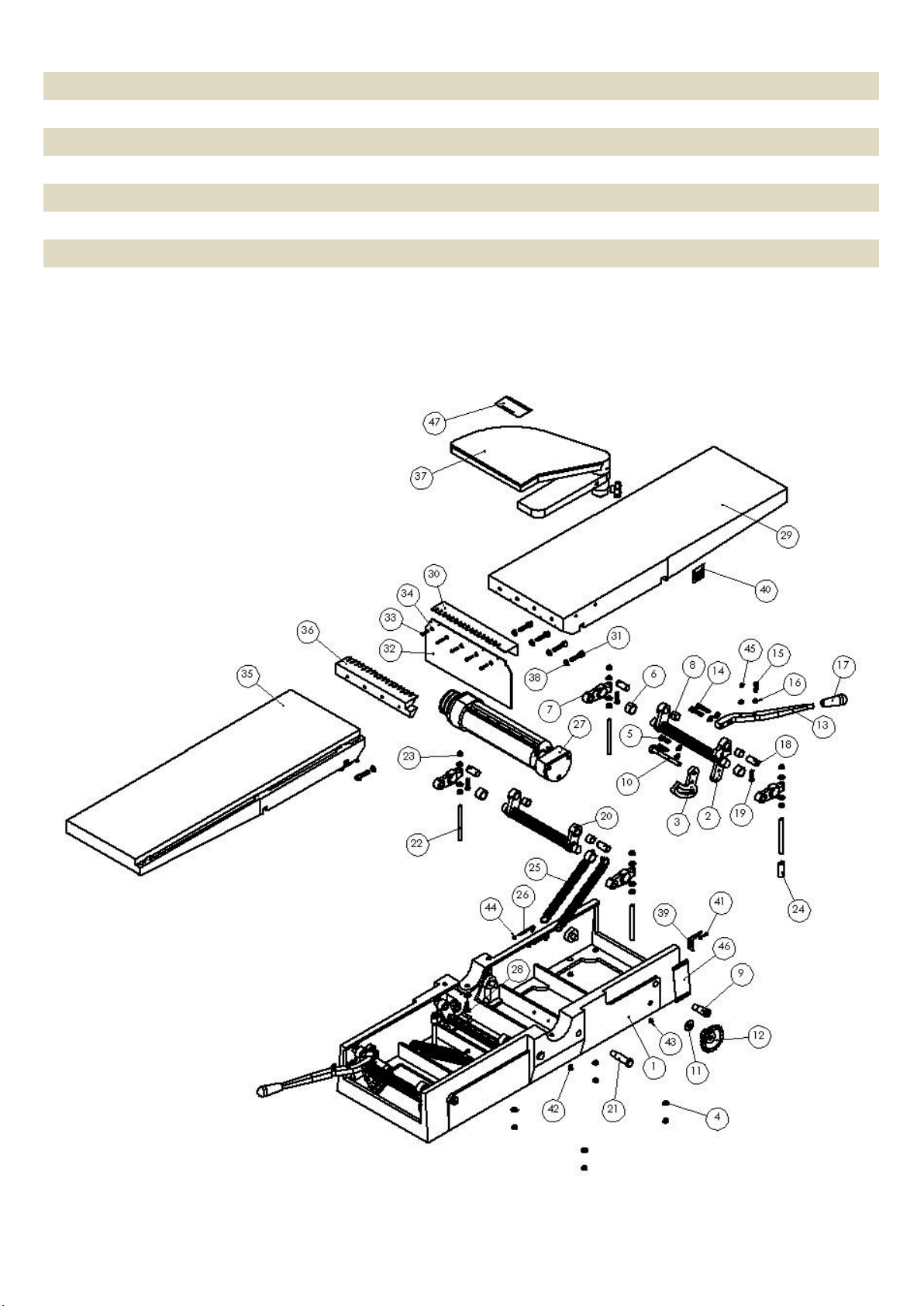

PARTS LIST: Work Table
NO.
PARTNO.
DESCRIPTION
Q”TY
1
C004014
Base, Table
1
2
C048014
Table Raising Link Bar, front
2
3
C017026
Bracket
2
4
S284023
Spring Washer, Φ3/8"
32
5
S186006
Hex. Socket Head Screw, Φ3/8"-16NC
4
6
P051003
Bushing
8
7
C015052
Support
8
8
P051001
Bushing
8
9
C047015
Axis, Pivot
4
10
C034122
Elevation Fix Bolt
2
11
S282054
Washer, Φ1/2"
2
12
C057041
Handwheel
2
13
C057018
Handle
2
14
S186007
Hex. Socket Head Screw,Φ3/8"-16NC
4
15
S136025
Hex. Head Screw, M8-P1.25
2
16
S273008
Nut, M8-P1.25
4
17
P029304Y
Knob
2
18
C047013
Axis, Pivot
8
19
S099004
Hex. Head Screw,Φ5/16"-18NC
8
20
C048013
Table Raising Link Bar, Back
2
21
C047014
Axis, Pivot
4
22
C034040
Screw
8
23
S274012
Nut, Φ3/8"-16NC
24
24
C052025
Tube
2
25
C060019
Spring
4
26
S326001
Screw, For Spring
4
27
T001008
Assembly, Cutterhead
1
*
T001050
Assembly, Helical Cutterhead
1
28
S137025
Hex. Head Screw, M10-P1.5
2
29
C006020
Table, Infeed
1
30
C087011
Lip, Table
1
31
S203040
Hex. Socket Head Screw, M10-P1.5
8
32
C008004
Deflector, Dust
1
33
S225025
Round Head Screw, M5-P0.8
5
34
S282105
Washer, M5
6
35
C006021
Table, Outfeed
1
36
C087010
Lip, Table
1
37
T025016
Assembly, Guard
1
38
S284008
Spring Washer, M10
10

12
39
C070005
Indicator
1
40
P108116
Plate, Measure
1
41
S239003
Round Head Screw, Φ3/16"－24NC
1
42
S196004
Fixed Screw, Φ3/8"-16NC
4
43
S196003
Fixed Screw, Φ3/8"-16NC
4
44
S273089
Nut, Φ1/4"-20NC
4
45
S213008
Fixed Screw, M8-P1.25
2
46
P105105
Sticker, Warning
1
47
P105104
Sticker, Warning
1

13
PARTS LIST: T004014 3HP Motor Pulley Assembly
NO.
PARTNO.
DESCRIPTION
Q”TY
1
P041205R
Motor, 3HP/3PH
1
*
P040205R
Motor, 3HP/1PH
1
2
C064038
Pulley, 50HZ
1
*
C064019
Pulley, 60HZ
1
3
S214013
Fixed Screw, M10-P1.5
1
4
C063054
Bracket, Motor
1
5
S282011
Washer, M10
3
6
S284008
Spring Washer, M10
6
7
S137040
Hex. Head Screw, M10-P1.5
3
8
S273010R
Nut, M10-P1.5
3
9
C015033
Plate
1
10
C048005
Rod
1
11
S282012
Washer, M12
2
12
S273012R
Nut, M12-P1.75
6
13
S214014
Fixed Screw, M10-P1.5
1
14
S300053
Belt,A-53"L
2
*
S300056
Belt,A-56"L
2

14
PARTS LIST: T004041 5HP Motor Pulley Assembly
NO.
PARTNO.
DESCRIPTION
Q”TY
1
P041206R
Motor, 5HP/3PH
1
*
P040206R
Motor, 5HP/1PH
1
2
C064039
Pulley, 50HZ
1
*
C064040
Pulley, 60HZ
1
3
S214013
Fixed Screw, M10-P1.5
1
4
C063054
Bracket, Motor
1
5
S282011
Washer, M10
3
6
S284008
Spring Washer, M10
6
7
S137045
Hex. Head Screw, M10-P1.5
3
8
S273010R
Nut, M10-P1.5
3
9
C015033
Plate
1
10
C048005
Rod
1
11
S282012
Washer, M12
2
12
S273012R
Nut, M12-P1.75
6
13
S214014
Fixed Screw, M10-P1.5
1
14
S300055
Belt,A-55"L
2

15
PARTS LIST: T075007 Switch Plate Set
NO.
PARTNO.
DESCRIPTION
Q"TY
1
C085048
Cover
1
2
P082710
Button, Green
1
3
P082711
Stop Botton, Red
1

16
PARTS LIST: T025016 Guard
NO.
PARTNO.
DESCRIPTION
Q”TY
1
C017027
Ledge, Table
1
2
C075017
Guard
1
3
C046025
Shaft
1
4
C060018
Spring
1
5
C051033
Collor-Guard
1
6
S194006
Fixed Screw, Φ1/4"-20NC
3
7
S273089
Nut, Φ1/4"-20NC
2
8
P031010
Knob
1
9
S284023
Spring Washer, Φ3/8"
2
10
S186006
Hex. Socket Head Screw, Φ3/8"-16NC
2

17
PARTS LIST: T001008 Cutterhead Assembly
NO.
PARTNO.
DESCRIPTION
Q”TY
1
C011004
Cutterhaed
1
2
C009024
Support, Bearing (LH)
1
3
S026204ZZ
Bearing, 6204ZZ
2
4
C009025
Support, Bearing(RH)
1
5
S026206ZZ
Bearing, 6206ZZ
2
6
C053071
Washer
1
7
S136020
Hex. Head Screw, M8-P1.25
1
8
C010007
Support,Cover (LH)
1
9
C010008
Support, Cover (RH)
1
10
S201020
Hex. Socket Head Screw, M6-P1.0
6
11
C064020
Pulley
1
12
S003178
Key
1
13
S282113
Washer, M10
1
14
S284008
Spring Washer, M10
1
15
S137020
Hex. Head Screw, M10-P1.5
1
16
C060014
Spring
6
17
P054005
Knife, 12"
3
18
P056006
Knife, Gib
3
19
P056026
Square Head Screw,Φ5/16"
18

18
PARTS LIST: T001050 HelicalCutterhead Assembly
NO.
PARTNO.
DESCRIPTION
Q”TY
1
P052006
HelicalCutterhaed
1
2
C009024
Support, Bearing (LH)
1
3
S026204ZZ
Bearing, 6204ZZ
2
4
C009025
Support, Bearing(RH)
1
5
S026206ZZ
Bearing, 6206ZZ
2
6
C053071
Washer
1
7
S136620
Hex. Head Screw, M8-P1.25
1
8
C010007
Support,Cover (LH)
1
9
C010008
Support, Cover (RH)
1
10
S201020
Hex. Socket Head Screw, M6-P1.0
6
11
C064020
Pulley
1
12
S003178
Key
1
13
S282113
Washer, M10
1
14
S284008
Spring Washer, M10
1
15
S137620
Hex. Head Screw, M10-P1.5
1
16
P052701
Gib
42
17
S267202W
Pin
84
18
P052704
Insert Knife
39
19
P052702
Nut
42
20
P052703
Screw
42
21
P052708
Insert Knife-Rabbet
3
