Canvas 088-0538-4 User manual

ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.
MODEL NO. 088-0538-4
Production Number : xxxxxxxx
FIRE TABLE OF RIDEAU
5-PC FIRE DINING SET

We believe in the power of décor and its
ability to make up the fabric of your home.
That’s why CANVAS™ collections draw
inspiration from Canadians and the way
they live.
From on-trend furniture pieces to holiday
décor and all your outdoor living essentials,
CANVAS™ makes it easy to refresh your space
your unique style and the way you
live every day.
We would love to hear from you and welcome
your thoughtful feedback. Visit our website
at canadiantire.ca to tell us about your
experience, and share your photos with us
using #mycanvasstyle.
Show us how you bring ™SAVNAC products
to life. We can’t wait to see!

FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET3
WARNING: For Outdoor Use Only.
DANGER
If you smell gas:
2. Extinguish any open flame.
odour
property
flammable vapours
shall
odour.
3.
1 AA 1.5V battery required (not included)
CAUTION: Rechargeable batteries contain
nickel-metal hydride and must be recycled
or disposed of properly. Do not mix old and
new batteries. Do not mix alkaline, standard
(carbon-zinc), or rechargeable batteries. Do
not dispose of batteries in fire. Batteries may
explode or leak. The battery cannot be ingested.
WARNING:
DANGER
Fire Table of Rideau 5-pc Fire Dining Set
Propane cylinder required (not included)

General information 4
5
6
9
7
11
10
20
20
20
21
21
22
23
24
25
4
TABLE OF CONTENTS
WARNING: Failure to position the parts in accordance with these
diagrams or to use only parts specifically approved with this
appliance may result in property damage or personal injury.
WARNING: This product can expose you to carbon monoxide,
which is known to cause birth defects or other reproductive
GENERAL INFORMATION
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 4
Specifications
Important safety information and precautions
Expanded view
Parts list
Before you begin assembly
Location
Setup
Gas connection
Leak test
Lighting
Storage and maintenance
Troubleshooting
Limited warranty
Technical data
Please take time to read these instructions thoroughly and follow each step carefully
for safe and easy operation. Keep this manual for installer and consumer future
reference/use. We would like to hear from you with any comments or suggestions.
IMPORTANT
Step-by-step guide
TOOLS REQUIRED
2 people
Tools required
Wrench M6
harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS
IMPORTANT SAFETY INFORMATION AND PRECAUTIONS
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET5
Product name
Model No.
Rated Heat Output
Fuel
Gas Supply
Manifold Pressure
Orifice Size (diameter)
Gas Supply Pressure
Fire Table of Rideau 5-pc Fire Dining Set
Propane—LP
20 lb (9 kg) LP-Gas cylinder
11" W.C.
1.9 mm
25 PSI (minimum) to 250 PSI (maximum)
088-0538-4 (A208041010)
38,000 BTU/HR






The installation must comply with local codes, or in the absence of local codes
with the National Fuel Gas Code, ANSI Z223.1/NF-PA54; the International Fuel
Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or the Propane
Storage and Handling Code, B149.2, as applicable.
The LP gas supply cylinder to be used must be:
1-Constructed and marked in accordance with the U.S. Department of
Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and
Commission, CAN/CSA-B339 as applicable;
2-Provided with a listed overfilling prevention device;
3-Provided with a cylinder connection device compatible with the connection
for the appliance.
Always place the appliance on a firm and level surface.
Solid fuels must not be burned in this gas appliance. When using decorative lava
rocks, use only lava rocks (INCLUDED).
The appliance must be used only outdoors in a well-ventilated space and shall
not be used in a building, garage or any other enclosed area.
When in use, keep the appliance area clear and at least 40" (101.6 cm) side, back
and top clearance from combustible materials, gasoline and other flammable
liquids and vapours . Do not use the appliance under overhead combustible
surfaces. Certain items or materials, when stored under the appliance or nearby,
will be subjected to radiant heat and could be damaged.

FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 6
IMPORTANT SAFETY INFORMATION AND PRECAUTIONS


















Open the door and inspect the hose assembly and burner prior to each use. If there
is evidence of excessive abrasion or wear or if the hose or burner is damaged, it must
be replaced by an appropriate part from the manufacturer.
Inspect the gas connections of the appliance prior to each use. Do not operate the
unit if there is a gas leak. Have the appliance inspected annually by a qualified service
person.
The pressure regulator and hose assembly provided with the appliance must be used.
The replacement part must be the same as the part specified by the manufacturer.
For instructions on how to connect the LP-Gas tank and check for leaks, please refer
to “Gas Connection” on page 19 and “Leak Test” on page 20.
Children and adults should be alerted to the hazards of high surface temperatures
and should stay away to avoid burns and prevent clothing ignition.
Young children and pets should be carefully supervised when they are in the area
of the appliance.
Any guard or other protective device removed for servicing the appliance must be
replaced prior to operation.
Clothing or other flammable materials should not be hung from the appliance or
placed on or near the appliance.
Do not use this appliance if any part has been under water. Immediately call a
service technician to inspect the appliance and to replace any part of the control
system which has been under water.
The LP-Gas supply cylinder to be used must be constructed and marked in
accordance with the specifications for LP-Gas cylinders of the U.S. Department of
Transportation (DOT).
The cylinder supply system must be arranged for vapour withdrawal and the cylinder
must include a collar to protect the cylinder valve.
Use only 20 lb (9 kg) LP-Gas cylinders.
Do not burn wood or any other materials in this appliance.
The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping
system at test pressure equal to or less than 1/2 PSI (3.5 kPa).
Other cylinders may be acceptable for use with the appliance provided they are
compatible with the appliance retention means and accompanied by illustration(s)
depicting the cylinder mounted on the appliance using the cylinder retention means
and the point of contact between the cylinder and the retention means.
Properly place the hose out of pathways where people may trip over it or in areas
where they may be subject to accidental damage.
The burner must be replaced prior to the appliance being
put into operation if it is clear that the burner is damaged.
The replacement burner must be the same as the part
specified by the manufacturer.
To clean the appliance, including the burner, please refer
to “Storage and Maintenance” on page 22.
18" (46 cm)
12 1/2" (32 cm)

P00210053001
P00400037201
P00380065501
P002500130
P006600026
P00210053101
PARTS LIST
1
1
1
1
1
1
1
1
1
1
Metal Mesh Lid
P00310010301
A
Q
B
C
D
E
F
G
J
K
L
P00410018401
P00380065401
P00670006801
Table Top
Glass Rocks
Turning Tray
Door
Rear Door
Panel 1
Panel 2
Cylinder Rack
Fire Bowl
P00540065001 2
MLeg
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET7

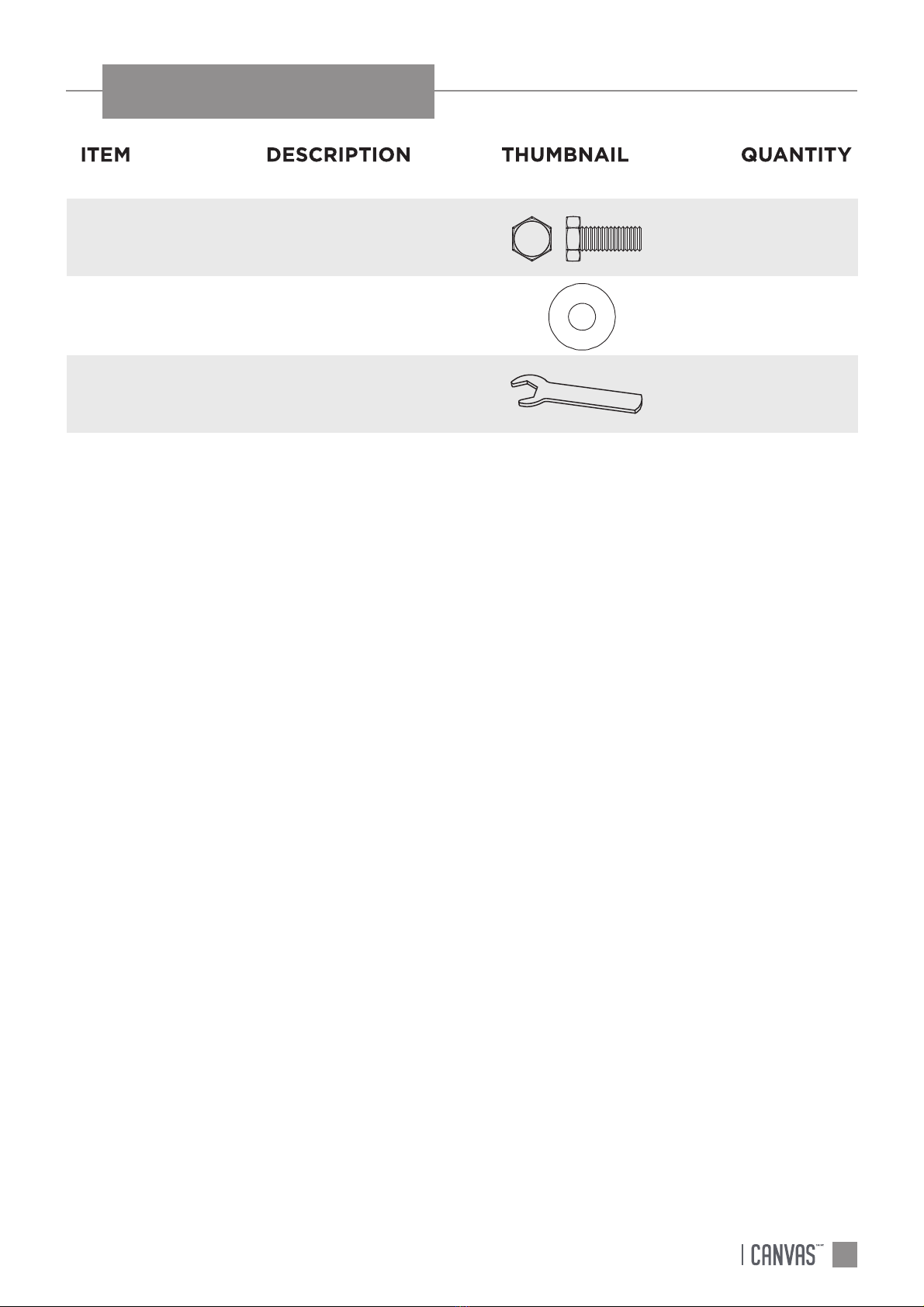

PARTS LIST
H050030001
26+4 Spare
26+4 Spare
1
Bolt M6*15
H010010003
H1
H2
HWH090010017
Flat Washer M6
Wrench M6
If you want to replace the parts listed, please contact Customer Service Centre: 1-888-670-6684
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 8

L
EXPANDED VIEW
D
B
A
G
F
C
K
E
J
M
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET9

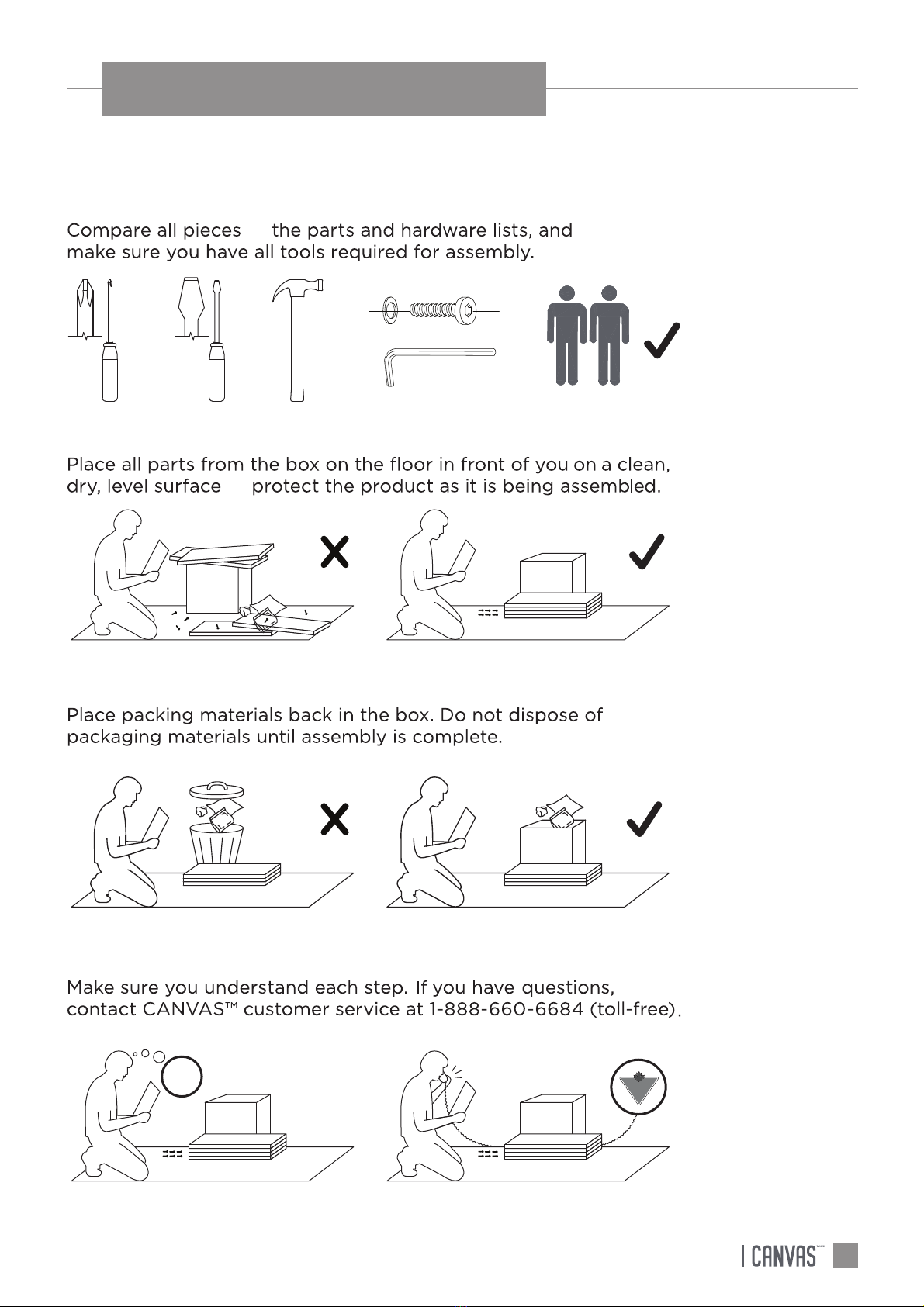

BEFORE YOU BEGIN ASSEMBLY
?
MAKE SURE ALL PARTS ARE PRESENT
to
REMOVE PACKAGING MATERIALS
READ EACH STEP CAREFULLY
ASSEMBLE IN A CLEARED AREA
to
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 10

STEP-BY-STEP GUIDE
STEP 1
H2 X4H1 X4
MX2DX1
H1
H2
M
D
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET11
Place Rear Door Dface down on a
non-abrasive surface. Attach Legs
M using Bolts H1 and Flat Washers
H2. Do not tighten completely.

STEP 2
Attach Panel 2 Fto the Rear Door assembly
using Bolts H1 and Flat washers H2.
F
XF1
XH2 2 XH1 2
H1
D
D
H2
M
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 12

XE1
XH2 2 XH1 2
H1
E
H2
STEP-BY-STEP GUIDE
D
F
M
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET13
STEP 3

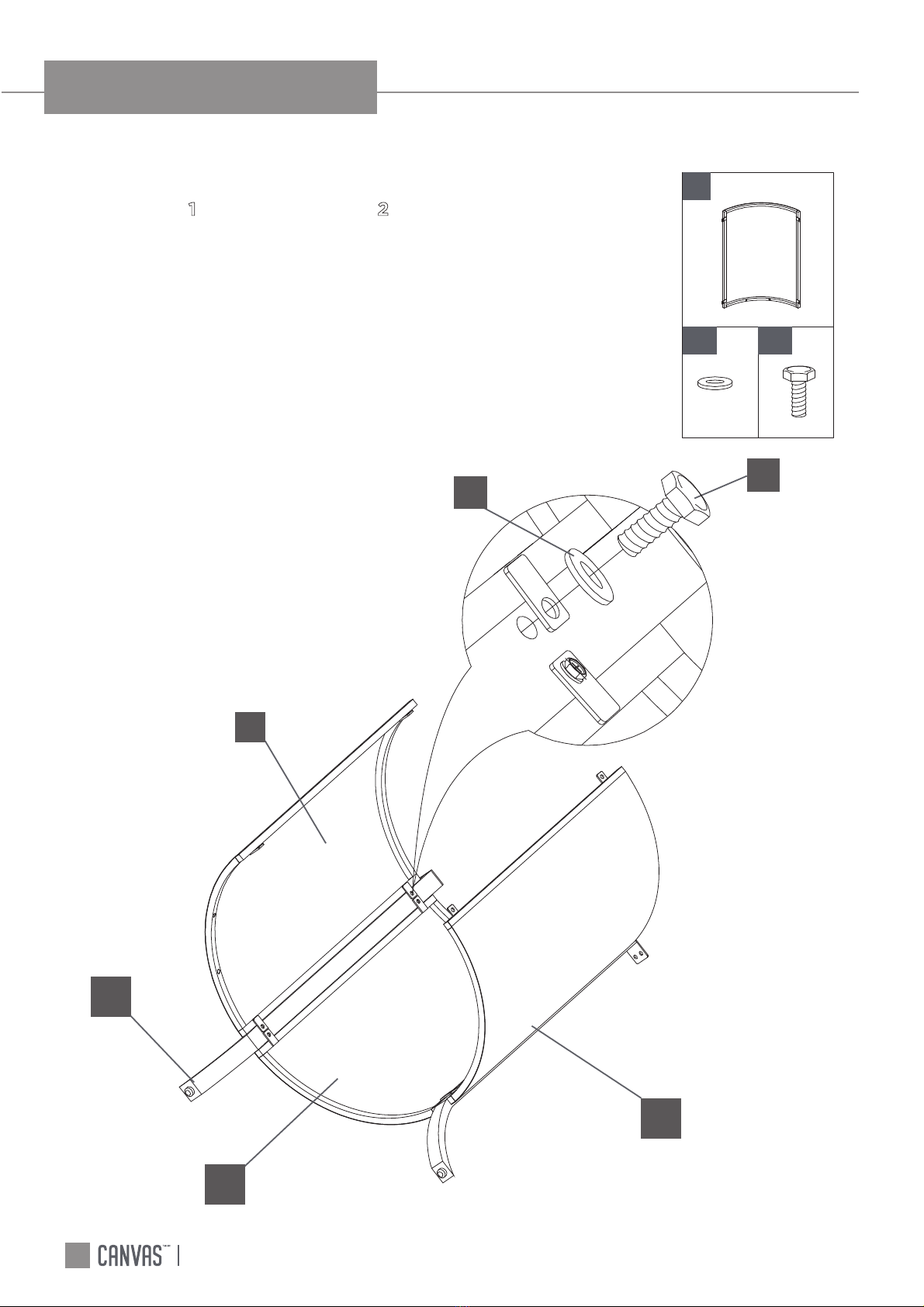

Attach Panel 1 Eto the Rear Door assembly
using Bolts H1 and Flat washers H2.

STEP 4
XH2 4 XH1 4
XG1
H1
H2
G
G
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 14

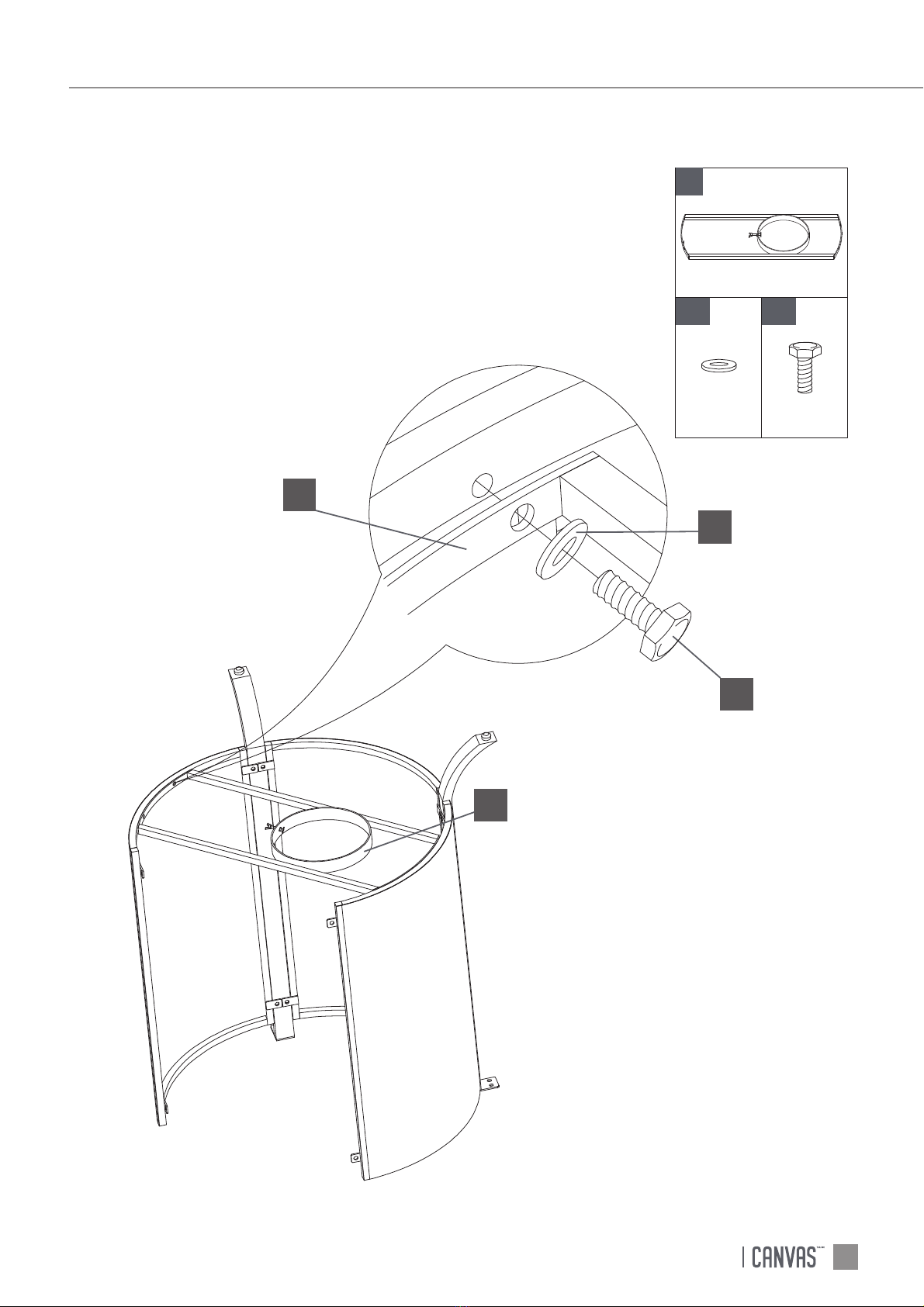

Turn assembly upside down and attach Cylinder
Rack Gusing Bolts H1 and Flat Washers H2.

STEP 5
XH2 4 XH1 4
H1
H2
STEP-BY-STEP GUIDE
CX1
C
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET15
Attach Door Cto base assembly using
Bolts H1 and Flat Washers H2.

STEP 6
XH2 2 XH1 2
XB2 XJ2
H1
H2
J
BB
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 16
Place Table Top Bupside down on
a non-abrasive surface. Install Fire
Bowl J to centre using Bolts H1 and
Flat Washers H2.

STEP 7
XH2 8 XH1 8
H2
H1
STEP-BY-STEP GUIDE
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET17
Place base assembly upside down onto
Table Top assembly as shown below and
fasten using Bolts H1 and Flat Washers
H2.

XK1
A
K
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 18
STEP 8
Turn Fire Table assembly upright.
Pour Glass Rocks Kinto centre of
Fire Table and place eta
on top.
AX1

STEP-BY-STEP GUIDE
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET19
L
STEP 9
Place Turning Tray L over
centre of Table Top to cover
fire pit as desired. LX1
A

Fig. 1
Fig. 4
Fig. 3Fig. 2
Your gas appliance must be installed on a flat, stable surface, away from any
combustible materials or construction.
1-Remove the appliance from container box and place it on any level, outdoor,
non-combustible surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper
safety venting.
2-Open the gas door and put the cylinder inside.
Your gas appliance comes assembled, ready for a gas connection.
1) Open the door and control valve outside. See Fig 4.
2) Put the cylinder into the cylinder rack. See Fig 5.
3) Connect the regulator and the cylinder as per Fig. 6. Make sure there is no leakage
or damage (please refer to “Leak Test” on page 20 and the safety information
on page 6).
4) Turn the butterfly nut on the cylinder frame, so that the nut is held against the
bottom of the cylinder, to make sure the cylinder can be fixed. See Fig 7.
5) Disconnect the regulator and the cylinder as per Fig 8.
3-Unscrew the battery box as shown in Fig. 1. Insert the negative electrode side
of the battery into the bottom of battery box as shown in Fig. 2. Then screw the
battery box as shown in Fig. 3.
Fig. 8
Fig. 7
Fig. 5
Fig. 6
Fig. 7
LOCATION
SETUP
GAS CONNECTION
Fig. 6
FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET 20
