BANGARI FIRE TABLE
MODEL NO. 088-0733-8
ASSEMBLY INSTRUCTIONS
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
.
Propane tank not included.
AA battery needed; not included.

2
Made in China
Imported by TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8
This appliance complies with ANSI Z21.97-2014/CSA 2.41-2014, outdoor decorative gas appliances.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
WARNING: For outdoor use only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from the appliance and immediately
call your gas supplier or fire department.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Read the installation, operating and
maintenance instructions thoroughly before installing or servicing this
equipment.
WARNING
Do not store or use gasoline or other flammable vapours and liquids in the
vicinity of this or any other appliance.
An LP cylinder not connected for use should not be stored in the vicinity
of this or any other appliance.
MODEL NO. 088-0733-8

3
Table of Contents 3
Specifications 4
Safety Warnings 4
Parts list 7
6
Installation 8
IMPORTANT: Retain for future reference, and read carefully.
TABLE OF CONTENTS
9
9
10
9
10
01
11
12
IMPORTANT
Pleasetake time toread these instructions thoroughly and follow each step
carefully for safe and easy operation. Keep this manual for future
Location
Set Up
Gas Connection
Operation
Leak Check
Lighting
Storage and Maintenance
Troubleshooting
12
31
13Warranty
Cleaning and Maintenance
Technical Specifications
Exploded View
reference/use.

3. Provided with a cylinder connection device compatible with the connection for the appliance.
used in a building, garage or any other enclosed area.
SPECIFICATIONS
SAFETY WARNINGS
•
When the appliance is connected to a fixed-gas system, the installation must conform
with local codes, or in the absence of local codes with the National Fuel Gas Code, ANSI
Z223.1/NFPA54; International Fuel Gas Code, Natural Gas and Propane Installation Code,
CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
•
The LP gas supply cylinder used must be:
1. Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable.
2. Provided with a listed overfill prevention device.
•
Always place the appliance on a firm and level surface.
•
Solid fuels shall not be burned in this gas appliance.
•
The appliance shall be used only outdoors in a well-ventilated space and shall not be
•
When in use, keep the appliance area clear and at least 40" (101.6 cm) from
combustible materials, gasoline and other flammable liquid and vapours. Do not use the
appliance under overhead, combustible surfaces. Certain items or materials, when stored
under the appliance or nearby, will be subjected to radiant heat and could be damaged.
Inspect the hose assembly and burner prior to each use. If there is evidence of excessive
abrasion or wear, or if the hose or burner is damaged, it must be replaced by an
•
•
Inspect the gas connections of the appliance prior to each use. Do not to operate the
Product Name Bangari
Model No. 088-0733-8
Rated Heat Input 50,000BTU/hr
enaporPleuF
Gas Supply 20 lb LP gas cylinder
Manifold Pressure 11" wc
Orifice Size(diameter) 2.18 mm
Gas Supply Pressure Max. 250 PSI
4
SPECIFICATIONS
SAFETY WARNINGS
unit if there is a gas leak. Have the appliance inspected annually by a qualified service
person.
appropriate part from the manufacturer.
MODEL NO. 088-0733-8
fire table

5
.
SAFETY WARNINGS
•
The pressure regulator and hose assembly provided with the appliance must be used.
The replacement part must be the same as the part specified by manufacturer.
•
To attach the LP gas cylinder please refer to the Gas Connection section on page 9
and perform the leak test on page 10.
•
Children and adults should be alerted to the hazards of high surface temperatures
and should stay away to avoid burns or prevent clothing ignition.
•
Young children and pets should be carefully supervised when they are in the area of
the appliance.
•
Any guard or other protective device removed for servicing the appliance must be
replaced prior to operation.
•
Clothing or other flammable materials should not be hung from the appliance.
•
Do not use the appliance if any part has been under water. Immediately call a qualified
technician to inspect the appliance and to replace any part of the control system and any
gas control which has been under water.
•
LP gas supply cylinder to be used must be constructed and marked in accordance with
the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT).
•
The cylinder supplies system must be arranged for vapour withdrawal and the cylinder
must include a collar to protect the cylinder valve.
•
Use only 20 lb (9 kg) LP gas cylinders.
•
Do not burn wood or any other materials in this appliance.
•
The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressure equal to or less than 1/2 PSI (3.5 kPa).
•
Properly place the hose out of pathways where people may trip over it or in areas where
there may be subject to accidental damage.
•
The burner must be replaced prior to the appliance being put into operation if it is
evident that the burner is damaged. The replacement burner must be the same as the
part specified by manufacturer.
To clean the appliance, including the burner, please refer to Cleaning and
Maintenance on page 12.
•

6
EXPLODED VIEW
MODEL NO. 088-0733-8

7
PARTSLIST
Bolt M6x15 - 4
Flat washer M6 - 4
AA
BB
Spring washer M6 - 4
Hex key - 1
CC
DD
Lid- 1 Battery box - 1
Table top - Control knob - 1
Main body - 1Control valve - 1
Base - 1Pressure regulator - 1
Tempered glass - 1 (3.5KG) Nozzle subassembly - 1
Armor plate screen -1Thermocouple - 1
Windshield 1 - 1Nozzle support bar - 1
Windshield 2- 1Burner -1
Ignition wire - 2Fire bowl - 1
A J
B K
C L
D M
E N
F O
G P
H Q
I R
1
Parts List
Hardware Pack

MODEL NO. 088-0733-8
88
INSTALLATION
Installation will be much easier with two or more people.

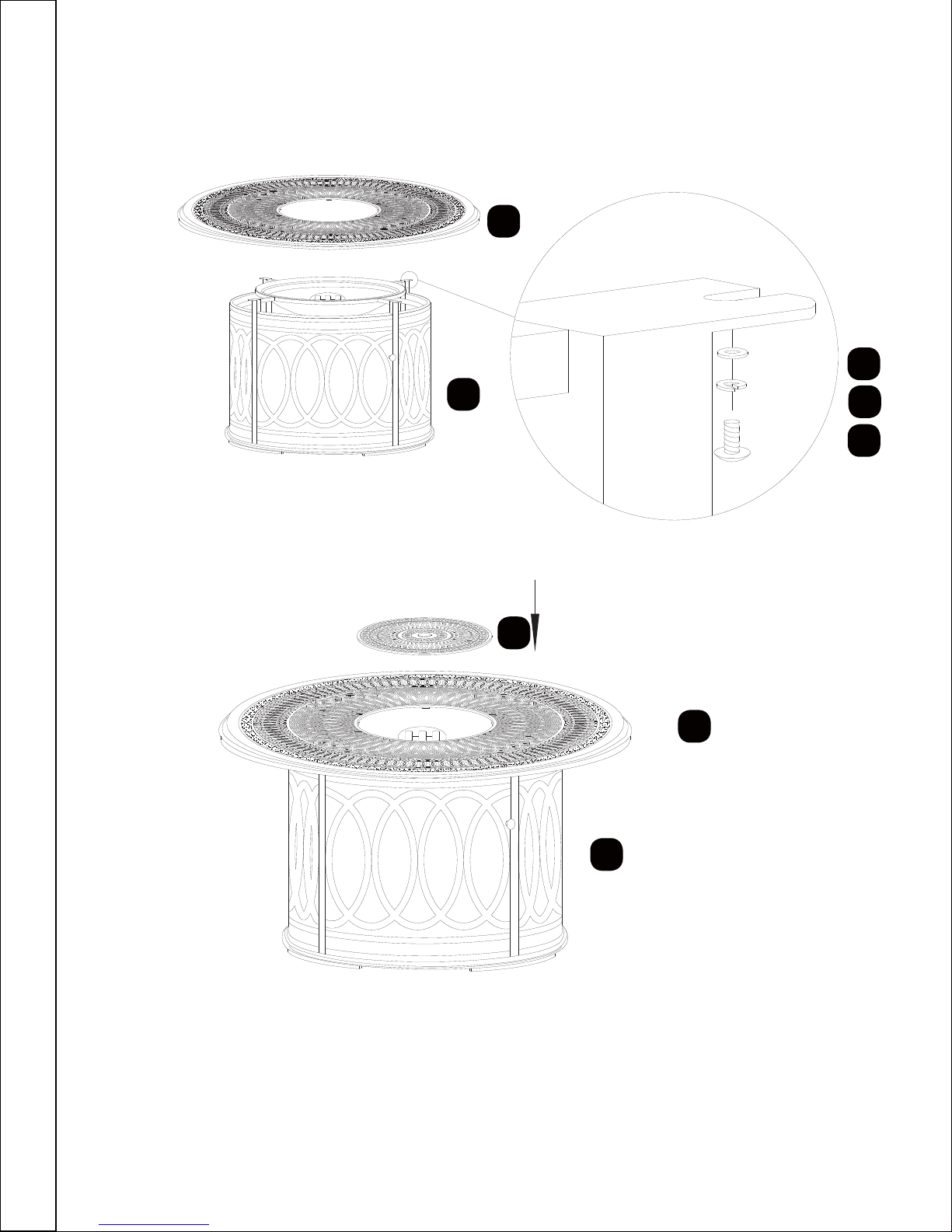

Fig. 2:Put lid (A) on table top (B).
Fig. 1: Put table top (B) on main body (C), then secure them using bolt (AA), spring
washer (CC) and flat washer (BB).
B
C
BB
CC
AA
B
C
AFig. 2
Fig. 1

99
LOCATION
Your gas appliance must be installed on a flat, stable surface, away from any
combustible materials or construction.
Your gas appliance comes assembled, ready for a gas connection.
1. Remove the appliance from container box and place it on any level, outdoor,
non-combustible
surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2. Open the gas door, put the cylinder inside.
3. Unscrew the battery box as shown in Fig. 3. Insert the negative electrode side of the
battery into the bottom of battery box as shown in Fig. 4. Then replace the battery
Fig. 3 Fig. 4 Fig. 5
Note: If the battery of the pulse electronic igniter runs out of power, please replace
with a new battery following the above instructions.
1. Open the door, put the chain and control valve outside (see Fig. 6).
2. Put the cylinder into the cylinder rack (see Fig. 7).

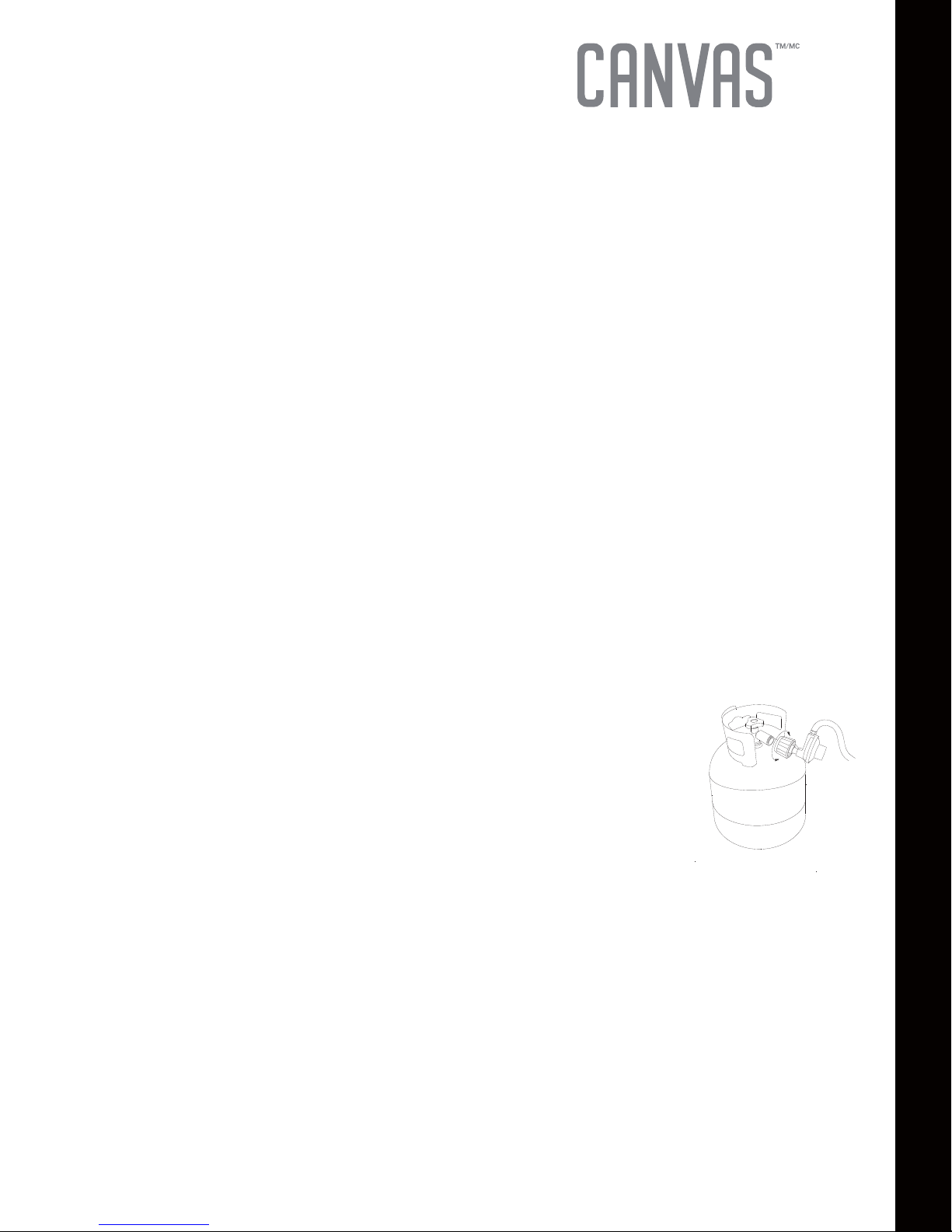

3. Connect the regulator and the cylinder as per Fig. 8. Make sure there is no leakage or
damage (please refer to Leak Test on page 10 and how to check for damage on page 5).
4. Secure the cylinder with the chain (see Fig. 9).
box as shown in Fig. 5.
SET-UPGAS CONNECTION
. 7giF. 6giF

MODEL NO. 088-0733-8
810
LIGHTING
LEAK TEST
1. Make sure the control knob is on the “ ” position.
2. Make sure the gas cylinder is correctly and se curely connected to the pressure regulator, without
over-tightening it.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and
connections between the control knob and gas cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the
leaking connection, reconnect it and try aga in. If the leak persists, consult the customer service
centre for assistance.
5. If the connection is sound, continue to the next step.
1. Make sure control valve is “ ”.
2. Turn on gas tank valve.
3. Press in and turn control valve knob counterclockwise
to the left “ ” to ignite. See the figure to the right.
4. If burner is lit, do not stop pressing in the control valve knob for
a minute to heat the thermocouple.
5. When control valve knob is released, the burner should be lit.
after completing Step 3 before attempting to reignite.
6. Press in and turn control valve knob to desired heat setting: left “ ” is high;
!!!WARNING!!!
Do not use an open flameto check for leaks.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas cylinder is replaced.
If not, turn control valve knob clockwise to “ ”. Wait 5 minutes
down “ ” is low.
GAS CONNECTION
LEAK CHECK
OPERATION
Fig. 8
Fig. 9

11
LIGHTING
NOTE:
While in use, the burner flame should be mainly blue in appearance with a small
amount of yellow. The flame can be identified by the following figure.
Warning: Lighting the appliance improperly could lead to an unsafe condition.
7. Press in and turn the control valve knob clockwise to “ ” to shut down appliance.
Close the gas cylinder valve when the appliance is not in use.
(CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
STORAGE AND MAINTENANCE
To obtain the best performance from your appliance, you must perform the following storage and
maintenance activities on a regular basis:
•
Allow at least 35 minutes for the appliance to cool down after use, before disconnecting and
removing the gas cylinder.
•
Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather
and dust, out of the reach of children, and not in a building, garage or any other closed area.
•
The appliance may be stored indoors only if the cylinder is disconnected and removed.
•
Keep the appliance area clear and free from combustible materials, gasoline and other flammable
vapours and liquids.
•
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required necessary. It is imperative that the control compartment,
burner and circulating air passageways of the appliance be kept clean.
•
If disassembling the burner when cleaning the appliance, please reassemble
it according to the picture on the right to make sure the burner induction tunnel is
on and exactly covers the orifice base.It is imperative that the control compartment, burner and
circulating air passageways of the appliance be kept clean. It is recommended that the burner not
be disassembled.

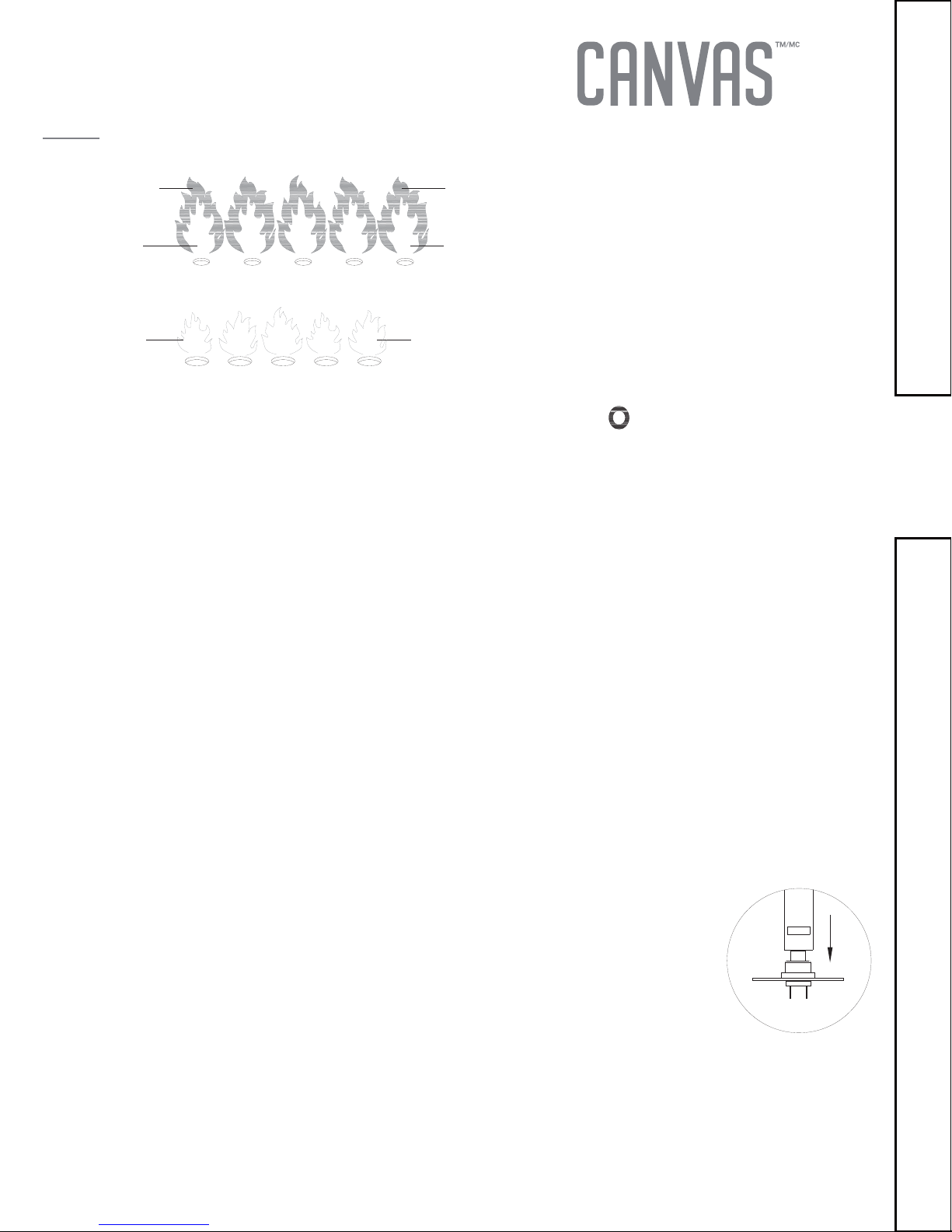

Incorrect Flame
Y E LLO W T IP S
B LU E
H IG H
LO W Correct Flame
BLUELOW
•
Permanent installation and repair should be done by a qualified service person. The appliance
should be inspected annually by a qualified service person.

12
TROUBLESHOOTINGCLEANING AND MAINTENANCE
PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES
Gas odour —Gas leak. —See “If you smell gas ” on second
page of manual.
—Check all gas connections.
Delayed ignition —Low gas pressure.
—Clogged or dirty burner
ports.
—Blocked orifice.
—Spent battery.
—Check gas supply pressure.
—Clean burner ports.
—Check orifice opening.
—Change the battery.
Incorrect burner flame —Incorrect gas supply or
pressure.
—Blocked orifice.
—Clogged or dirty burner
ports.
—Check gas supply pressure.
—Check and clean orifice opening.
—Clean burner ports.
To enjoy outstanding performance of your appliance for years make sure to perform the following
maintenance activities on a regular basis.
•
Keep exterior surfaces clean.
•
Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners.
•
Clean the holes in the burner using a swab that is moistened with soapy water. Keep the holes
unobstructed by using a heavy-duty pipe cleaner. The burner must be dry before normal use. Clean
anually. Compressed air may help clear away smaller particles.
•
While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. If the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
•
After a long break from operation, the unit should be inspected for spiders, spider webs or other
insects. Spider and insects can nest in burner or orifices.
•
Air flow must be unobstructed. Keep controls, burner and circulating air passageways clean.
Signs of possible blockage include:
—Gas odour with extreme yellow tipping of flame.
—Table does not reach the desired temperature.
—Table flow is excessively uneven.
—Table makes popping noises.
MODEL NO. 088-0733-8

122 X 122 X 72 cm)HxWxL(snoisnemiD
48 X 48 X 28 3/8"
gk83thgiewtcudorP
83 lb 12 oz
13
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from
defects in workmanship and materials for five ( 5 ) years from the date of purchase.
•
Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for
any claim under the warranty to be enforceable.
•
This warranty covers all parts found defective in workmanship and/or materials during the warranty
period and can be repaired or replaced at the discretion of the manufacturer at no cost to the original
purchaser.
•
This warranty will be void if the product has not been assembled, installed or operated according to
the instructions, or subjected to abuse, improperly treated, neglected, rusted by exposure to the
elements, misused and/or if any repairs, maintenance, or service has been done by an unauthorized
person.
•
Returns must be properly packaged and freight prepaid to the dealer from whom the product was
acquired.
•
The manufacturer, distributor and retailer will not be liable for any incidental or consequential loss or
damage arising from the installation or operation of the product and/or the failure of any part for any
reason.
•
There are no other express or implied warranties, except for those stipulated herein. This warranty
gives specific rights and the original purchaser may have additional rights and remedies in law.
•
This warranty does not cover commercial use.
TECHNICAL SPECIFICATIONSWARRANTY
