Canvas MIRAMAR 088-0798-4 User manual

Model No. 088-0798-4
ASSEMBLY INSTRUCTIONS
Toll-free: 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
MIRAMAR OFFSET
UMBRELLA

Made in China. Imported by Trileaf Distribution Trifeuil Toronto, Canada, M4S 2B8
Important Safety Instructions
Parts List
Assembly Preparation
Operation
Assembly
Cleaning and Maintenance
3
4
6
7
26
27
27
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the umbrella.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
Caution! Always keep children underclose supervision while they are using or
around this product.
• This product is intended for domestic, outdoor use only.
• The product should be placed on flat, horizontal ground.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Check all nuts and bolts periodically for tightness. When required tighten them again.
•If the product will not be used for a long period of time (e.g. wintertime), it should be
stored in a clean, dry environment.
• Do not light any fires inside or near the product!
• Do not hang any weights on the frame.
• Retain the original package to store the product.
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.
3
Warranty 28

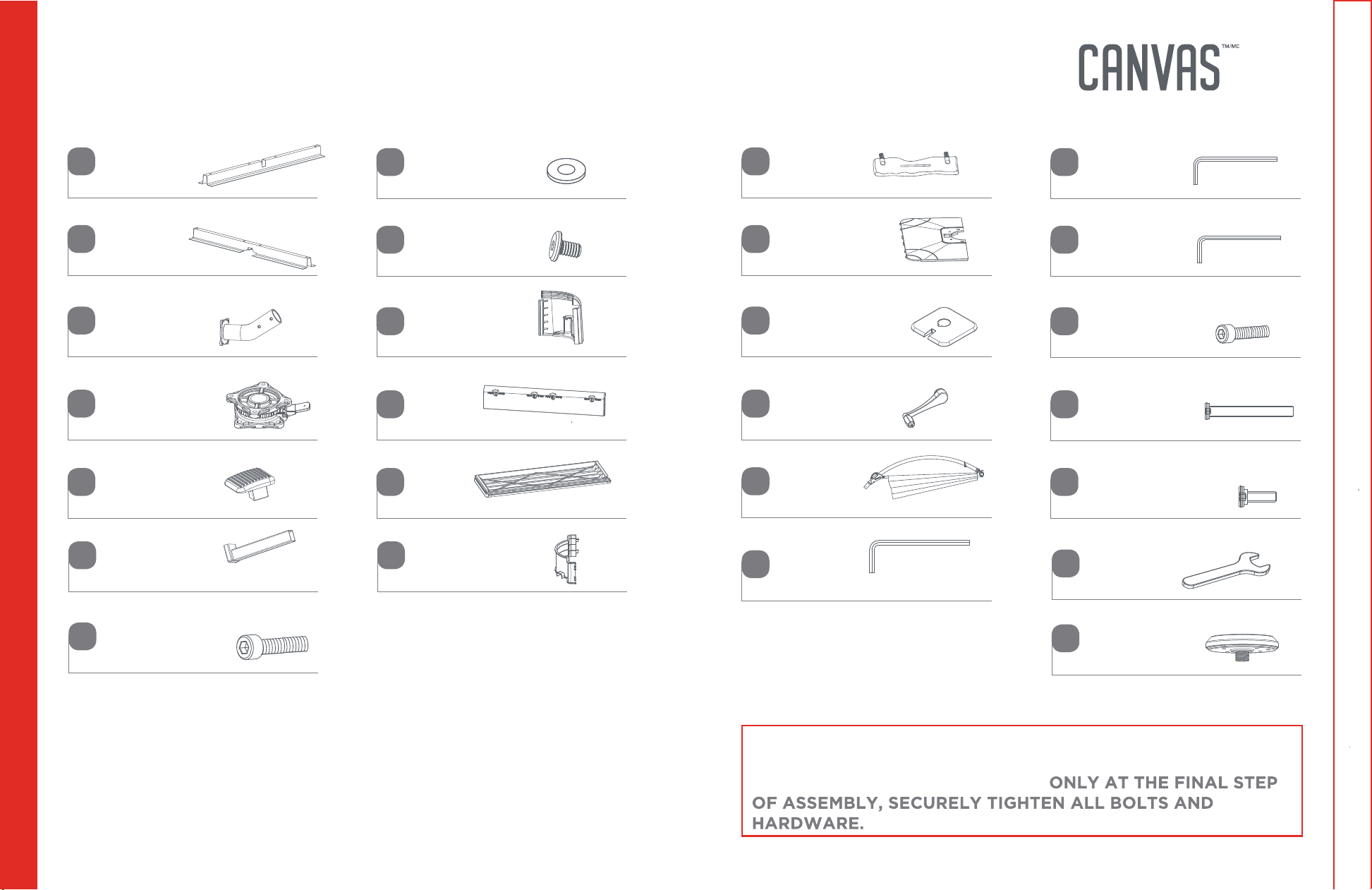

PARTS LIST
54
Lower bracket - 1
A
Upper bracket - 1
B
Base tube - 1
C
360° Rotating unit - 1
D
Foot pedal - 1
E
Foot plate support arm - 1
F
M10x25 mm Bolt - 4
G
M10 Washer - 8
H
M6x10 mm Bolt - 2
I
Corner connector - 4
J
Lock panel - 2
K
Side panel - 2
L
Support tube rim- 2
M
Sandbag - 2
N
Lower base cover - 2
O
Upper base cover - 1
P
Crank - 1
Q
Umbrella shade - 1
R
Hex wrench S8 - 1
S
Hex wrench S5 - 1
T
Hex wrench S4 - 2
U
M10x20 mm Bolt - 4
V
M6x66 mm Bolt - 2
W
M6x15 mm Bolt - 2
X
Wrench - 1
Y
Model No. 088-0798-4
PARTS LIST
Solar receiver - 1
Z
FOR EASY ASSEMBLY, DO NOT COMPLETELY TIGHTEN BOLTS
INTO THE FRAME UNTIL ALL BOLTS HAVE BEEN INSERTED
FOR THAT PHASE OF ASSEMBLY.

2 people
ASSEMBLY PREPARATION
• Do not place the product underneath electrical lines.
• Keep children away during assembly.
• This product contains small parts which can be swallowed by children.
• Keep fingers away from places where they can be pinched or trapped.
CAUTION!
Let us help you!
DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!
1-888-670-6684
If you have questions regarding your product, require warranty assistance,
or have damaged or missing parts, please call our customer service toll-free
helpline. Contact us for assistance; we're here to help.
IMPORTANT: Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging contents list.
If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove
all packing materials and place them back into the box. Do not dispose of the packing materials until
assembly is complete. Read each step carefully before beginning any assembly and make sure you
understand each step.
Needed for assembly:
ASSEMBLY
67
Model No. 088-0798-4

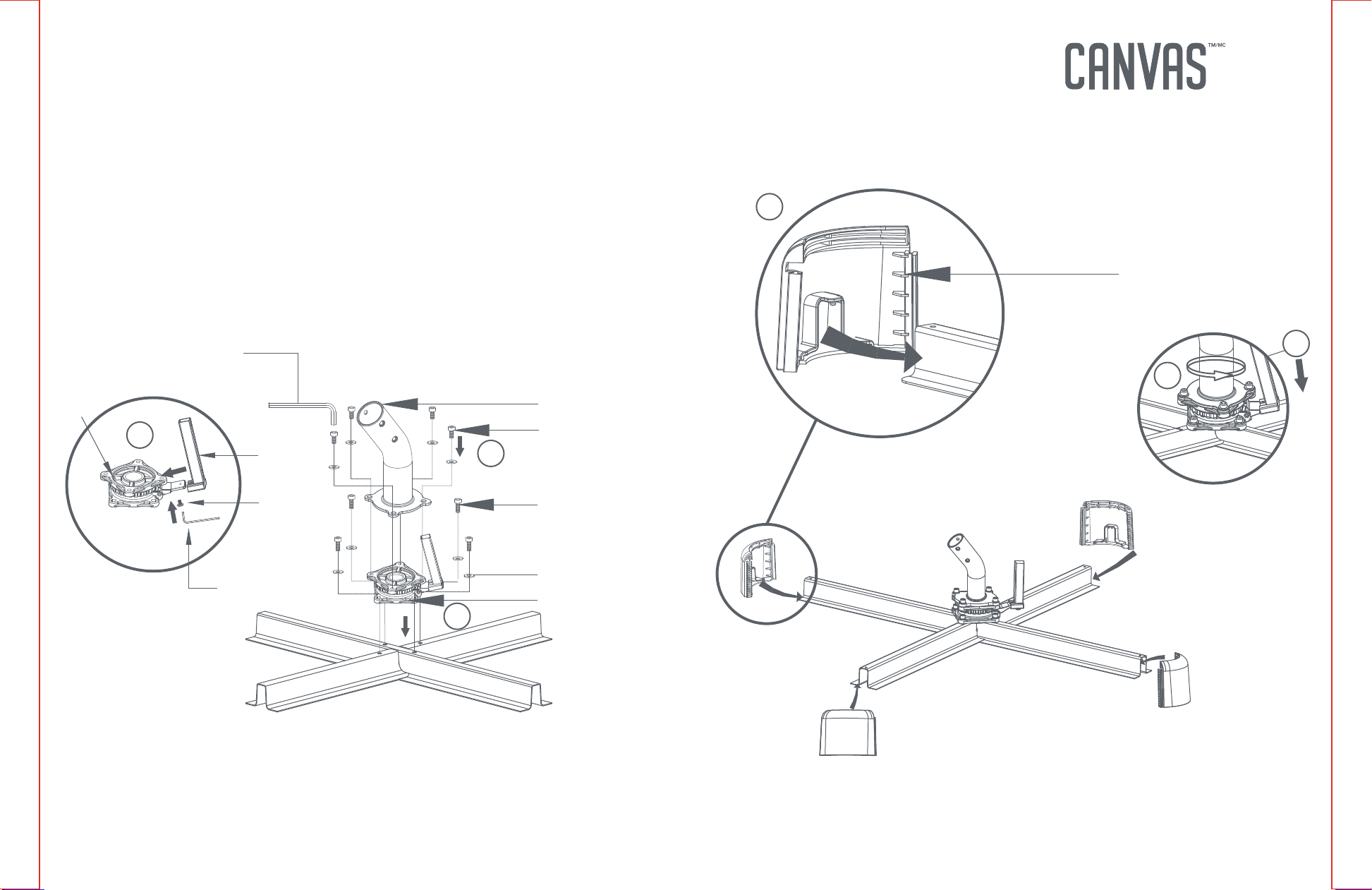

Step 1
Requires A, B
Attach the upper bracket (B) onto the lower bracket (A).
B
A
BEFORE YOU START ANY ASSEMBLY STEP, FIRST LOCATE WHERE YOU WILL
PLACE YOUR NEW UMBRELLA.

8 9
Model No. 088-0798-4
ASSEMBLYASSEMBLY ASSEMBLYASSEMBLY
Step 2
Requires A, B, C, D, F, G, H, I, S, T, V
1. Attach the bottom part of the foot plate support arm (F) to the 360°
rotating unit (D), use M6x10mm bolt (I) and hex wrench S5 (T) to
secure.
2. Line up the bolt holes on the 360° rotating unit (D) with the
corresponding bolt hole on the two brackets (A & B), use M10x25 mm
bolt (G), M10 washer (H) and hex wrench S8 (S) to secure.
3. Attach the base tube (C) to the 360° rotating unit (D), use M10x20
mm bolt (V), M10 washer (H) and hex wrench S8 (S) to secure.
Step 3
Requires J
Insert corner connector (J) into the four ends of assembled brackets.
T
F
D
I
S
C
G
H
D
V
J
1
2
3
1
2
3
NOTE: Do not completely tighten.

10 11
Model No. 088-0798-4
ASSEMBLYASSEMBLY ASSEMBLYASSEMBLY

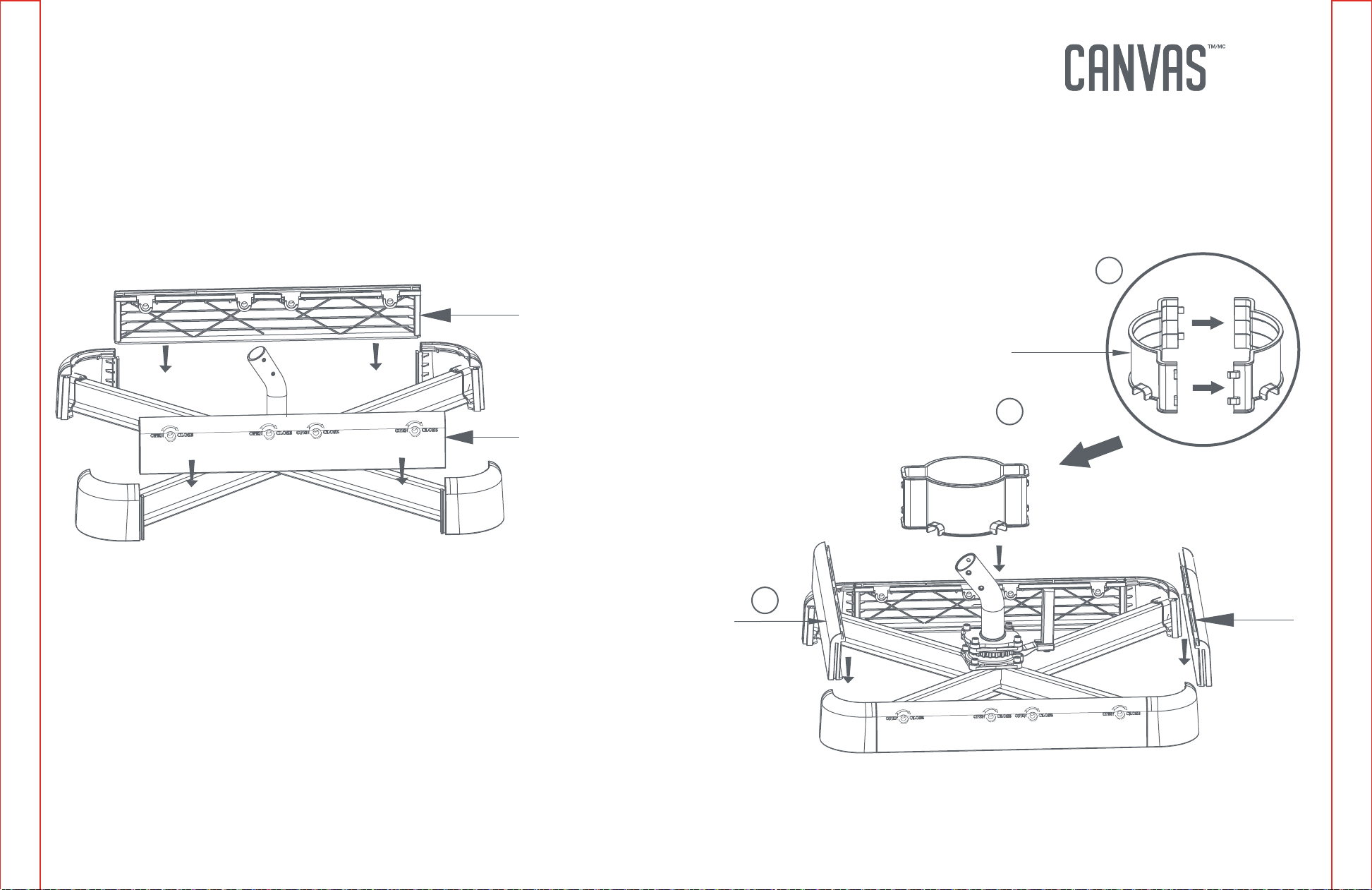

Step 4
Requires J, K
Lock panel (K) downward between corner connector (J).
Step 5
Requires C, J, L, M
1. Slide side panel (L) downward between corner connector (J).
2. Assemble the two pieces of the support tube rim (M) together.
3. Slide the assembled support tube rim (M) down the base tube (C) and connect it to
the two brackets (A & B).
K
K
L
M
L
1
2
3

12 13
Model No. 088-0798-4
ASSEMBLYASSEMBLY
ASSEMBLYASSEMBLY
Step 6
Requires N

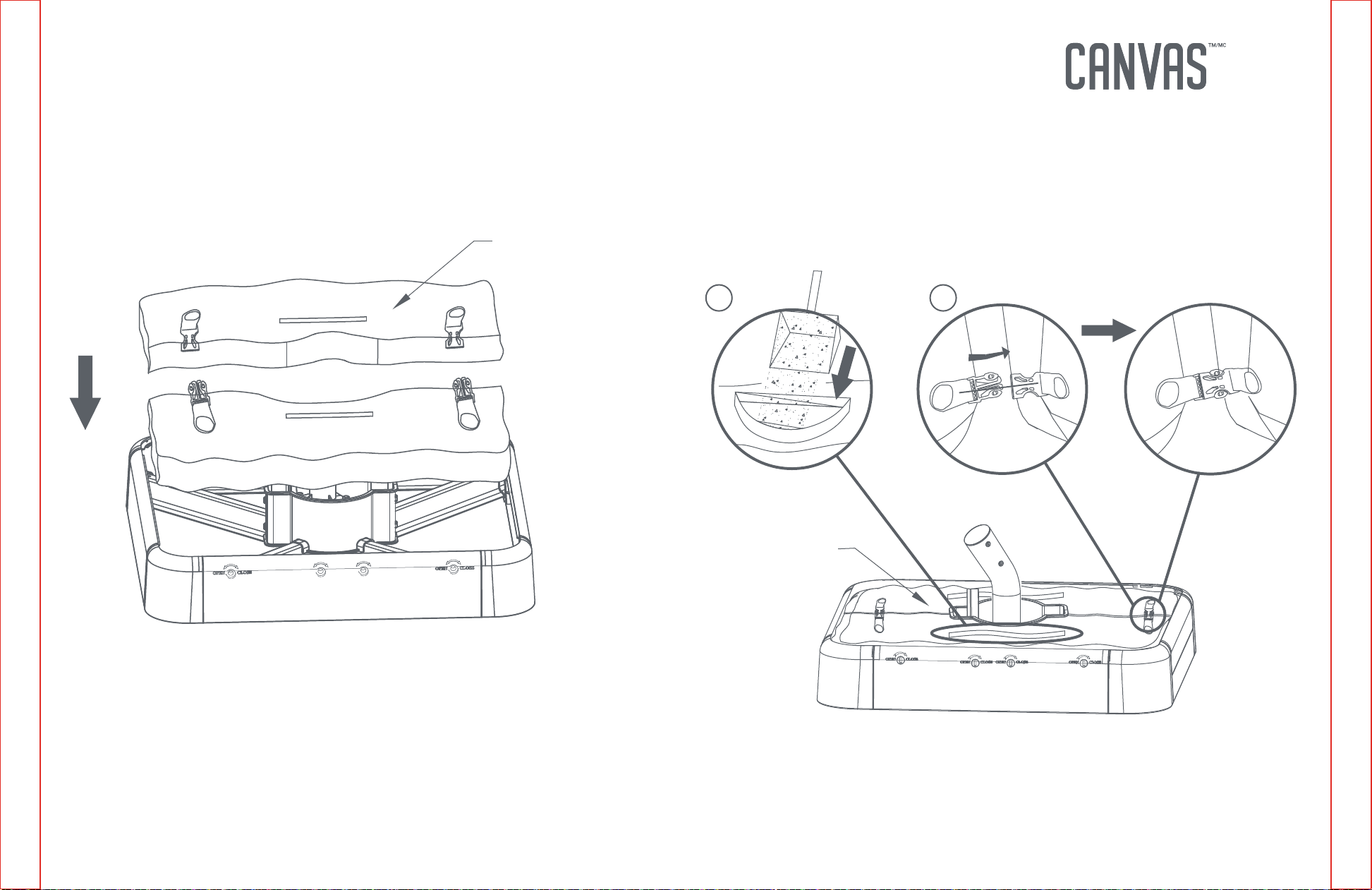

Place the sandbag (N) into the umbrella base as the picture shows.
Step 7
Requires N
1. Pull to open the hook and loop pouch on the sandbag (N) and fill with sand.
2. After filling the sand bags (N), close the pouch and ensure the hook and loop
openings are sealed.
3. Lock the two sections of the sandbag (N) together.
N
N
2
1

14 15
Model No. 088-0798-4
ASSEMBLYASSEMBLY ASSEMBLYASSEMBLY

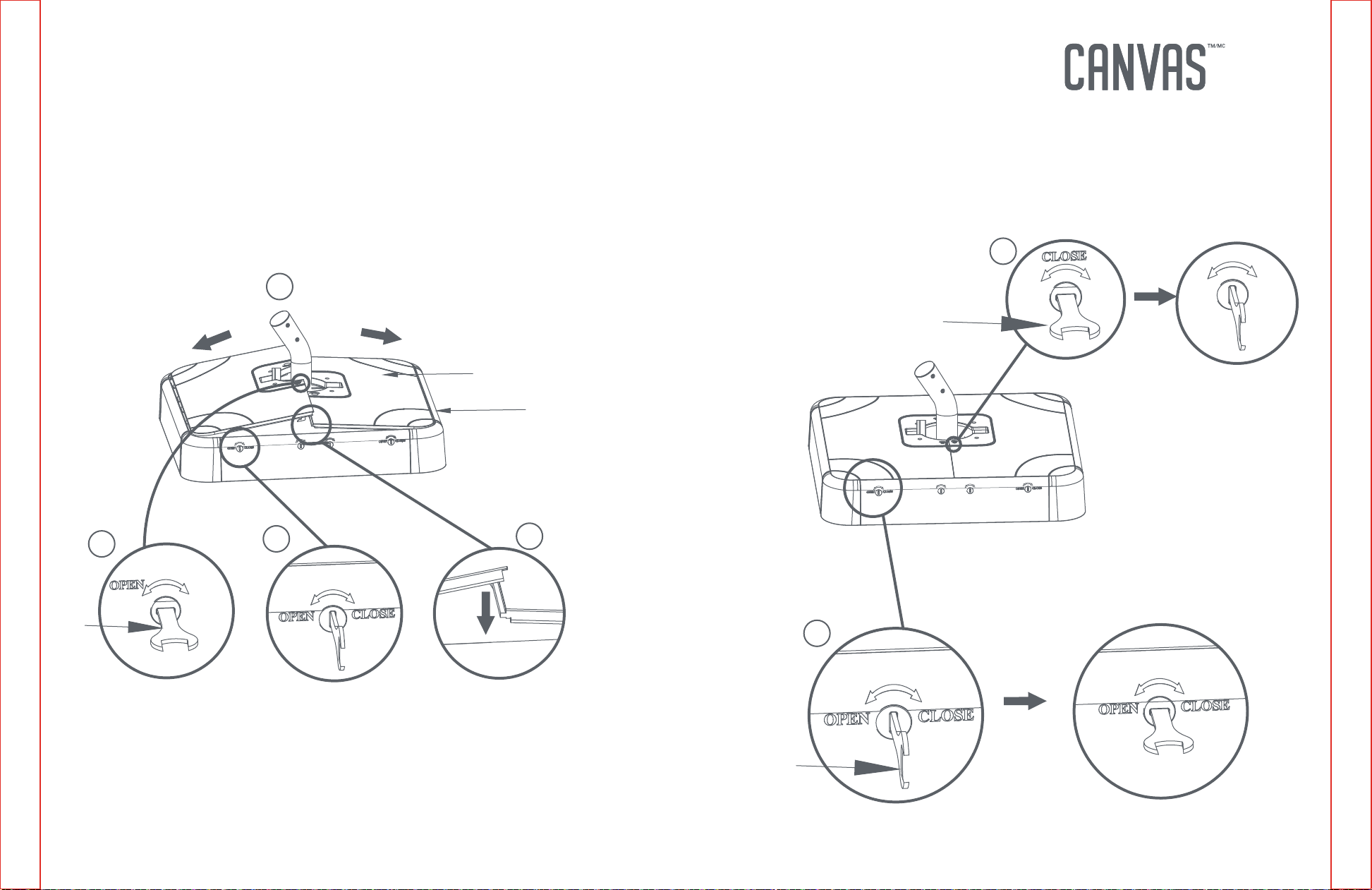

Step 8
Requires K, L, O, Y
1. Ensure the locking mechanism on the lower base cover (O) is in the
OPEN position by using the wrench (Y).
2. Ensure the locking mechanism on the lock panel (K) is in the OPEN
position by using the wrench (Y).
3. Attach the lower base cover (O) to the side panels (L).
4. Close the lower base cover (O) and ensure they are fully closed.
Step 9
Requires K, O, Y
Lock the lower base cover (O) and the lock panel (K) by turning the locking
mechanisms to the CLOSE position using the wrench (Y) as shown.
O
L
Y
Y
Y
3
124
2
1

16 17
Model No. 088-0798-4
ASSEMBLYASSEMBLY ASSEMBLYASSEMBLY
Step 10
Requires E, F, I, P, T
1. Place the upper base cover (P) onto the foot plate support arm (F).
2. Insert the foot pedal (E) into the foot plate support arm (F),
securing by inserting M6x10 mm bolt (I) and tighten with the hex
wrench S5 (T).
Step 11
Requires R, Z
1. Attach the solar receiver (Z) to the umbrella shade (R) by turning the solar receiver
(Z) clockwise until fully tightened.
2. Insert the plug into the plug hole of the solar receiver (Z).
P
TI E Z
1
1
2
2
3

18 19
Model No. 088-0798-4
ASSEMBLYASSEMBLY
ASSEMBLYASSEMBLY
Step 12
Requires C, Q, R, U, W, X
1. Insert the umbrella shade (R) into the base tube (C).
2. Insert M6x66 mm bolt (W) and M6x15 mm bolt (X) into the base
tube (C), tighten using hex wrench S4 (U).
3. Attach the crank (Q) to the handle as shown.
Step 13
1. Shake the canopy to separate the umbrella ribs.
2. Loosen the knob on the handle by turning it counter clockwise.
3. Slide umbrella handle upward a little.
4. Securely tighten the knob on the handle clockwise to lock into position.
UU
QX W
R
1
2
3
1
4
3
2
NOTE: Do not
completely tighten.

20 21
Model No. 088-0798-4
ASSEMBLYASSEMBLY ASSEMBLYASSEMBLY
Step 14
Requires Q
1. Slowly turn the crank (Q) clock-wise to open the umbrella, loosen
the knob on the handle by turning it counter clockwise.
2. Slide umbrella handle upward until the pole is fully extended and
stops.
3. Securely tighten the knob on the handle clockwise to lock into
position.
Step 15
1
2
Q
1
23
ON-OFF

22 23
Model No. 088-0798-4
ASSEMBLYASSEMBLY ASSEMBLYASSEMBLY
Step 16
1. Loosen the knob on the handle by turning it counter clockwise.
2. Pull the hand holder down to adjust the angle of the umbrella.
3. When it is the ideal angle to shade the sunlight, tighten the knob
clockwise.
Step 17
Requires E
Step on the foot pedal (E) to allow 360° rotation of umbrella. Release the foot pedal
(E) when the desired position is reached.
ON-OFF
3
1
2
360°
1
2
3

24 25
Model No. 088-0798-4
ASSEMBLYASSEMBLY
ASSEMBLYASSEMBLY
Step 18
Requires Q
1. Turn the crank (Q) counter-clockwise to close umbrella.
2. When the umbrella is closed, fully loosen the knob on the handle by
turning it counter-clockwise. Hold the handle and pull the long bent
tube downward.
3. Tighten the knob on the handle by turning clockwise after closing
the umbrella.
Step 19
Tie the umbrella to the umbrella pole with the strap when not in use as shown below.
1
2Q
3
2
1

26 Model No. 088-0798-4
OPERATION
ATTACHING THE CRANK
1. Attach the crank (Q) to the handle as shown in Figure 1.
2. Attach the crank (Q) by aligning the tap with the hole on the crank
(Q) until it snaps into place.
DETACHING THE CRANK
1. To detach the crank, the hex wrench S4 (U) is required to press
the tap to take the crank (Q) out.
2. Attach the crank (Q) without using the tap as shown in Figure 2.
3. To detach the crank (Q), just take the crank out.
• Check all screws and nuts periodically for tightness, tightening them
again as required.
• Disassemble the umbrella in the reverse order of the assembly steps.
• Always disassemble the umbrella completely. A partially disassembled
umbrella is not stable enough to resist wind and bad weather, and
thereforecan be damaged and/or cause damage.
• Clean the umbrella with mild soap and water. Rinse thoroughly, and wait
until the umbrella is completely dry before reassembling it.
CAUTION!
• Always use a mild soap, never detergent.
- Water should be cold to lukewarm, never more than 25 °C (77 °F).
• Steel components of garden accessories and furniture are treated with
rust-inhibiting paint. However, due to the nature of steel, surface oxidation (rusting)
will occur if this protective coating is scratched. This is a natural process. To minimize
this condition, it is recommended that care be taken when assembling and handling
the product, in order to prevent the paint from being scratched. Surface rust can be
removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may
start dripping onto the assembly surface, which may cause damaging stains that may
lt to remove.
Dimensions (DIA x H)
Product weight
137.79 x 108.27 in
350 x 275 cm
69.45 lb
31.5 kg
27
CLEANING & MAINTENANCE
SPECIFICATIONS
Figure 1
Figure 2
1
2
1
2
1
2

This CANVAS product carries a one (1) year warranty against defects in
workmanship and materials. Trileaf Distribution agrees to replace a
defective product free of charge within the stated warranty period, when
returned by the original purchaser with proof of purchase. This product is
not guaranteed against wear or breakage due to misuse and/or abuse.
WARRANTY
28 Model No. 088-0798-4 29

Nº de modèle : 088-0798-4
INSTRUCTIONS D’ASSEMBLAGE
Numéro sans frais : 1 888 670-6684
IMPORTANT : Veuillez lire attentivement ce guide avant de procéder à l’assemblage
PARASOL DÉPORTÉ AVEC
LUMIÈRES À DEL ET SOCLE
Nº de modèle : 088-0798-4
ASSEMBLAGE

Consignes importantes en matière de sécurité
Liste des pièces
Préparation de l’assemblage
Utilisation
Assemblage
Nettoyage et entretien
Caractéristiques techniques
3
4
6
7
26
27
27
Avertissement! Veuillez lire les consignes de sécurité suivantes
avant d’assembler et d’utiliser ce parasol afin de réduire le risque
de blessures graves.
TABLE DES MATIÈRES
CONSIGNES DE SÉCURITÉ IMPORTANTES
Avertissement! Surveillez toujours les enfants étroitement lorsqu’ils utilisent
cet article ou qu’ils se trouvent à proximité de celui-ci.
• Cet article est uniquement destiné à un usage domestique et doit être utilisé à l’extérieur.
• L’article doit être placé sur une surface plane et horizontale.
• Au besoin, demandez à d’autres personnes de vous aider à assembler ou déplacer l’article.
•Certaines pièces peuvent contenirdes bords tranchants. Portez des gants de protection si nécessaire.
• Assurez-vous périodiquement que tous les écrous et boulons sont bien serrés. Au besoin,
resserrez-les.
• Si l’article n’est pas utilisé pendant une longue période (p. ex. pendant l’hiver), il doit être entreposé
dans un environnement propre et sec.
• N’allumez pas de feu à l’intérieur ou près de l’article!
• Ne suspendez aucun poids sur le cadre.
• Conservez l’emballage original aux fins d’entreposage de l’article.
IMPORTANT : CONSERVEZ CE GUIDE AUX FINS DE CONSULTATION
3
Garantie 28
Fabriqué en Chine. Importé par Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8 ULTÉRIEURE, ET LISEZ-LE ATTENTIVEMENT.

LISTE DES PIÈCES
54
Support inférieur - 1
A
Support supérieur - 1
B
Tube du socle - 1
C
Unité pivotante de 360 - 1
D
Pédale - 1
E
Bras de support de repose-pied - 1
F
Boulon M10 x 25 mm - 4
G
Rondelle M10 - 8
H
Boulon M6 x 10 mm - 2
I
Connecteur de coin - 4
J
Panneau de verrouillage - 2
K
Panneau latéral - 2
L
Support circulaire pour tube - 2
M
Sac pour sable - 2
N
Couvercle de socle inférieur - 2
O
Couvercle de socle supérieur - 1
P
Manivelle - 1
Q
Parasol - 1
R
Clé hexagonale S8 - 1
S
Clé hexagonale S5 - 1
T
Clé hexagonale S4 - 2
U
Boulon M10 x 20 mm - 4
V
Boulon M6 x 66 mm - 2
W
Boulon M6 x 15 mm - 2
X
Clé - 1
Y
Nº de modèle : 088-0798-4
LISTE DES PIÈCES
Récepteur solaire - 1
Z
POUR FACILITER L’ASSEMBLAGE, NE SERREZ PAS COMPLÈTEMENT
LES BOULONS DANS LE CADRE AVANT D’AVOIR INSÉRÉ TOUS LES
BOULONS POUR CETTE ÉTAPE DE MONTAGE. SERREZ TOUS LES
BOULONS ET LES AUTRES ÉLÉMENTS DE FIXATION SEULEMENT À
LA FIN DE L’ASSEMBLAGE.
Nº de modèle : 088-0798-4

2personnes
PRÉPARATION DE L’ASSEMBLAGE
•Neplacez pas l’articlesous des lignes électriques.
•Tenez les enfants à l'écart del'article pendant son assemblage.
•Cet article contient des petites pièces que les enfants peuvent avaler.
•Tenez vos doigts éloignés des endroits où ils risquent d’être pincés oupris.
ATTENTION!
Laissez-nousvousaider!
NE RETOURNEZ PAS VOTRE ARTICLE AU MAGASIN. APPELEZ-NOUS D’ABORD!
1 888 670-6684
Si vous avez des questions concernant votre article, des questions degarantie, ou
avez des pièces endommagées oumanquantes, communiquez avec notre service à
la clientèle encomposant le numéro sans frais.Communiquez avec nous si vous avez
besoin d’assistance, nous sommes là pour vous aider.
IMPORTANT : Veuillezlire et biencomprendre ceguideavant deprocéder à l’assemblage. Avant
de procéder àl’assemblage del’article, assurez-vous quetoutes les pièces sont présentes. Comparez
les pièces àlaliste de contenu de l’emballage. S’il manquedes pièces,ou si vous avez des questions,
communiquez avec le service d’assistance téléphonique en composant le 1 888 670-6684 (sans frais).
Mettez toutes les pièces de la boîte dans une zone dégagée et positionnez-les sur le sol devant vous.
Retirez tout le matériel d’emballage et remettez-ledans la boîte. Ne les jetez pas avant d’avoir
terminé l’assemblage. Veuillez lire attentivement chaque étape avant de procéder à l’assemblage, et
assurez-vous de comprendretoutes les étapes.
Requis pour l’assemblage :
ASSEMBLAGE
67
Étape 1
Pièces requises : A, B
Fixez le support supérieur (B) au support inférieur (A).
B
A
AVANT DE COMMENCER UNE ÉTAPE D’ASSEMBLAGE, DÉTERMINEZ D’ABORD
L’EMPLACEMENT DE VOTRE NOUVEAU PARASOL.
Nº de modèle : 088-0798-4

8 9
ASSEMBLAGE ASSEMBLAGE
Étape 2
Pièces requises : A, B, C, D, F, G, H, I, S, T, V
1. Fixez la partie inférieure du bras de support de repose-pied (F) à
l’unité pivotante de 360° (D) au moyen d’un boulon M6x10 mm (I).
Serrez le boulon à l’aide de la clé hexagonale S5 (T).
2. Alignez les trous de boulon de l’unité pivotante de 360° (D) aux
trous correspondants sur les deux supports (A et B), puis utilisez les
boulons M10x25 mm (G) et les rondelles M10 (H) pour fixer ces
pièces ensemble à l’aide de la clé hexagonale S8 (S).
3. Fixez le tube du socle (C) à l’unité pivotante de 360° (D) au moyen
des boulons M10x20 mm (V) et des rondelles M10 (H). Serrez les
boulons à l’aide de la clé hexagonale S8 (S).
Étape 3
Pièce requise : J
Insérez les connecteurs de coin (J) dans les quatre extrémités des supports assemblés.
T
F
D
I
S
C
G
H
D
V
J
1
2
3
1
2
3
REMARQUE : Ne serrez pas
Nº de modèle : 088-0798-4
ASSEMBLAGE ASSEMBLAGE
