Canyon 28-705 User manual

CANYON FURNITURE COMPANY
DO NOT COMPLETELY TIGHTEN ALL BOLTS UNTIL ALL COMPONENTS ARE CONNECTED.
CONFIGURATION TYPE # 1CONFIGURATION TYPE # 1

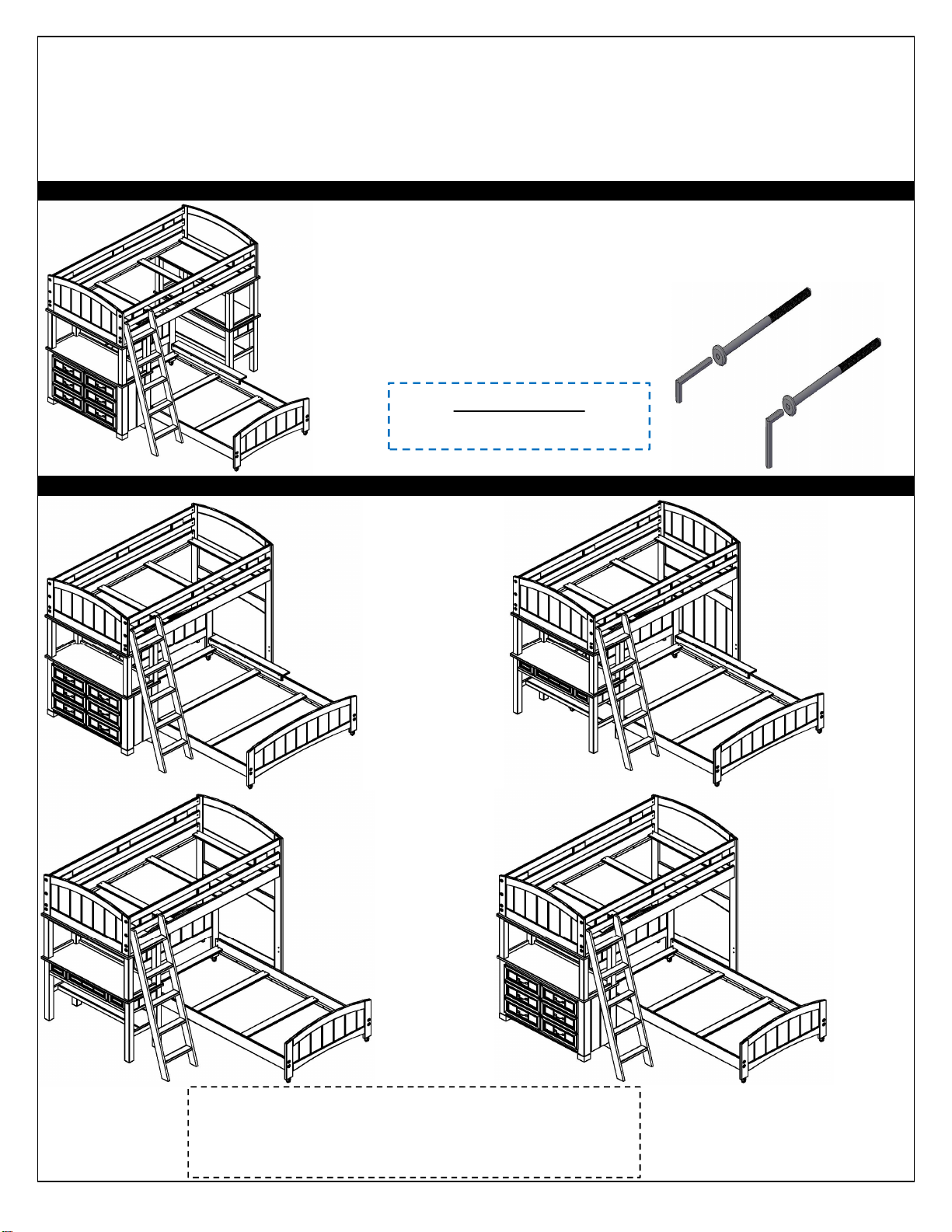

(28-705) COTTAGE COLORS COLLECTION TOP BUNK BED ASSEMBLY INSTRUCTIONS
READ ALL THE INSTRUCTIONS AND IDENTIFY ALL COMPONENTS AND CHOOSE YOUR CONFIGURATION AND BE SURE YOU HAVE ALL PARTS
TWO PEOPLE ARE NEEDED TO ASSEMBLE.
THANK YOU FOR YOUR PURCHASE !
PLEASE CONTACT YOUR RETAIL STORE WITH SERVICE OR PARTS REPLACEMENT REQUESTPLEASE CONTACT YOUR RETAIL STORE WITH SERVICE OR PARTS REPLACEMENT REQUEST
CONFIGURATION TYPE # 2
TIPS : SEE ILLUSTRATION BELOW
1.- USE THE LONG END OF THE ALLEN WRENCH TO FASTEN BOLTS LOOSELY AND QUICKLY.
2.- USE THE SHORT END OF THE ALLEN WRENCH FOR FINAL TIGHTENING.
TOOLS NEEDED
PHILIPS HEADSCREWDRIVER (NOT INCLUDED)
5MM ALLEN WRENCH (INCLUDED)
TIPS #1
TO ASSEMBLE THIS BUNK BED
REQUIRES TWO PERSONS
28-705 TOP BUNK BED (2 PCS)
28-207 6 DRAWER LOFT DRESSER
28-603 LOFT DESK
28-766 LOFT HUTCH (2 PCS)
28-730 6 PIECE RAILS
28-707 TWIN BOTTOM HDBD&FTBD
28-720 LADDER
28-735 RAIL CAP
100-645 TWIN SLATS (2 PCS)
TIPS #2
OPTION #1
28-705 TOP BUNK BED
28-207 6 DRAWER LOFT DRESSER
28-766 LOFT HUTCH
28-706 1 PC BUNK BED END TWIN
28-730 6 PIECE RAILS
28-709 FULL BOTTOM HDBD&FTBD
28-720 LADDER
28-735 RAIL CAP
100-645 TWIN SLATS
100-646 FULL SLATS
OPTION #1
28-705 TOP BUNK BED
28-603 LOFT DESK
28-766 LOFT HUTCH
28-706 1 PC BUNK BED END TWIN
28-730 6 PIECE RAILS
28-709 FULL BOTTOM HDBD&FTBD
28-720 LADDER
28-735 RAIL CAP
100-645 TWIN SLATS
100-646 FULL SLATS
OPTION #2
28-705 TOP BUNK BED
28-603 LOFT DESK
28-766 LOFT HUTCH
28-706 1 PC BUNK BED END TWIN
28-730 6 PIECE RAILS
28-707 TWIN BOTTOM HDBD&FTBD
28-720 LADDER
100-645 TWIN SLATS (2 PCS)
OPTION #3
28-705 TOP BUNK BED
28-207 6 DRAWER LOFT DRESSER
28-766 LOFT HUTCH
28-706 1 PC BUNK BED END TWIN
28-730 6 PIECE RAILS
28-707 TWIN BOTTOM HDBD&FTBD
28-720 LADDER
100-645 TWIN SLATS (2 PCS)
OPTION #4
WARNING:
THE BED SLATS WILL NO SUPPORT A MATTRES ALONE, A SLAT PACK
OR A BUNKIE BOARD IS REQUIRED FOR PROPER SAFETY.
(NOT INCLUDED)
REV 02 04/02/2019 PAGE 1 OF 5 KIS01179-0

CANYON FURNITURE COMPANY
A.- (1) TOP BUNK BED
B.- (2) 4"METAL DOWEL PINS
C.- (1) LOFT DRESSER M.- (1) CASTER BED HEADBOARD
D.- (1) LOFT DESK
E.- (1) LOFT HUTCH J.- (6) 1 1/4" SCREW
B.- (2) 4"METAL DOWEL PINS
F.- (4) SIDE RAILS
G.- (2) GUARD RAILS
H.- (24) 80MM FLAT HEAD BOLTS
I.- (24) 5/16"-18 X 5/8" CROSS DOWEL NUTS BLACK
J.- (1) 5MM ALLEN WRENCH
K.- (1) HEADBOARD
L.- (1) FOOTBOARD
M.- (4) CASTER SOCKETS
N.- (1) LADDER
Q.- (4) 39'' SLATS
O.- (2) METAL HOOK BRACKETS
P.- (6) 1" SCREWS R.- (8) 1 1/4" SCREWS
1.- ASSEMBLE TOP BUNK BED, USING TWO TOP BUNK BEDS (A),ONE LOFT DRESSER (C),ONE LOFT DESK (D),TWO LOFT HUTCH (E) TWO SIDE RAILS (F),&TWO GUARDRAILS (G)
2.- TAKE LOFT DRESSER (C) AND LOFT DESK (D), THEN PLACED THEM IN DESIRED POSITION IN THE ROOM,
(PLACE FRONT FACE OF DESK OUTWARDS).
3.- INSERT TWO METAL DOWEL PINS (B) ON TOP IN EACH OUTSIDE CORNER OF LOFT DRESSER&LOFT DESK, TAKE THE LOFT HUTCH (E),&PLACE IT ON TOP OF LOFT DRESSER
& LOFT DESK ALIGNING THE METAL DOWEL PIN WITH EACH PRE - DRILLED HOLE IN EVERY END OF THE LOFT HUTCH UNTIL THE METAL DOWEL PIN ARE ALL THE WAY IN THE
HOLE OF THE LOFT HUTCH, REPEAT THE SAME PROCESS WITH TOP BUNK BED (A), SEE FIG.9
4.-INSERT 2 CROSS DOWEL NUTS (I) IN ACCESS HOLE INSIDE THE SIDE RAIL&GUARDRAIL,ALIGN THE CROSS DOWEL NUT,MAKE SURE THE GROOVE IS HORIZONTAL,SEE FIG.10
5.- ATTACH TWO SIDE RAILS & TWO GUARD RAILS TO LOFT DRESSER/HUTCH/TOP BUNK BED ASSEMBLY&LOFT DESK/HUTCH/TOP BUNK BED ASSEMBLY, INSERTING TWO FLAT
HEAD BOLST (H) INTO TOP BUNK BED HOLES, USE THE 5MM ALLEN WRENCH (J) TO TIGHTEN BOTH BOLTS,
(DO NO TIGHTEN COMPLETELY UNTIL ALL PIECES
ARE CONNECTED TOGETHER)
SEE FIG.11,
REPEAT THE SAME PROCESS ON ALL FOUR CORNERS.
6.- PLACE FOUR SLATS (Q) ON TOP SIDE RAIL CLEATS,ONE SLAT IN BOTH ENDS,PUSH THE SLAT AGAINST THE BED END POST
(FIG.A)
&TWO SLATS IN THE MIDDLE AT EQUAL
DISTANCE FROM THE END SLATS, THEN EACH SLAT MUST BE FASTEN WITH TWO 1 1/4" SCREWS (R), SEE FIG.12
N.- (1) CASTER BED FOOTBOARD
LOFT HUTCH BOX (28-766) FIG.4 (2PCS)
HARDWARE PACK
(HPK00012-0)
6 PIECE RAILS BOX (28-730) FIG.5
LOFT DESK BOX (28-603) FIG.3
TOP BUNK BED BOX (28-705) FIG.1 (2PCS)
COTTAGE COLORS COLLECTION
LIST OF CONTENTS
TOP BUNK BED ASSEMBLY INSTRUCTIONS CONFIGURATION TYPE # 1
K.- (1) 3 DRAWER NIGHT STAND
3 DRAWER NIGHT STAND BOX ( 90-503 )
6 DRAWER LOFT DRESSER BOX (28-207) FIG.2
L.- (1) DESK TOP
CASTER TWIN BED BOX ( 90-707,90-709 )
O.- (4) METAL CASTER SOCKET
TWIN SLATS BOX (100-645) FIG.8 (2 BOXES)
DESK TOP BOX ( 90-602 )
HARDWARE PACK
(HPK00123-0)
HARDWARE PACK (HPK00016-0)
TWIN BOTTOM HDBD&FTBD BOX (28-707) FIG.6
HARDWARE PACK (HPK00008-0)
HARDWARE PACK (HPK00104-0)
HARDWARE PACK
(HPK00127-0)
LADDER BOX (28-720) FIG.7
A
FIG.1
B
FIG.5
C
FIG.2
FG
I
J
FIG.3
M
L
K
FIG.6
FIG.10
YES,
HORIZONTAL GROOVE
FIG.9
FIG.11
FIG.12
NO
D
E
B
FIG.4
H
HARDWARE PACK
HPK00123-0
HARDWARE PACK
HPK00012
-
0
HARDWARE PACK
HPK00104-0
HARDWARE PACK
HPK00127-0
N
O
P
HARDWARE PACK
HPK00008-0
FIG.7
Q
R
HARDWARE PACK
HPK00016-0
FIG.8
FIG.A
REV 02 04/02/2019 PAGE 2 OF 5 KIS01179-0

CANYON FURNITURE COMPANY
A.- (1) TOP BUNK BED
B.- (2) 4"METAL DOWEL PINS
C.- (1) LOFT DRESSER
D.- (1) LOFT DESK
E.- (1) LOFT HUTCH
B.- (2) 4"METAL DOWEL PINS
F.- (4) SIDE RAILS
G.- (2) GUARD RAILS
H.- (24) 80MM FLAT HEAD BOLTS
I.- (24) 5/16"-18 X 5/8" CROSS DOWEL NUTS BLACK
J.- (1) 5MM ALLEN WRENCH
T.- (1) HEADBOARD
U.- (1) FOOTBOARD
V.- (4) CASTER SOCKETS
N.- (1) LADDER
O.- (2) METAL HOOK BRACKETS
P.- (6) 1" SCREWS
1.- ASSEMBLE TOP BUNK BED,USING ONE TOP BUNK BED
Q.- (4) 39", 54" SLATS END (A), ONE LOFT DRESSER (C),OR ONE LOFT DESK (D),
2 LOFT HUTCH (E) 2 SIDE RAILS (F),&2 GUARDRAILS (G).
R.- (8) 1 1/4" SCREWS 2.- TAKE LOFT DRESSER (C ) & LOFT DESK (D ),& PLACED
THEM IN DESIRED POSITION IN THE ROOM,
( PLACE
S.- (1) 1 PC BUNK BED END TWIN FRONT FACE OF DESK OUTWARDS).
3.- INSERT TWO DOWEL PINS (B ) ON TOP IN EACH OUTSIDE CORNER OF LOFT DRESSER
OR LOFT DESK, TAKE THE LOFT HUTCH (E), &PLACE IT ON TOP OF LOFT DRESSER&LOFT DESK ALIGNING THE METAL DOWEL PIN WITH EACH PRE - DRILLED HOLE IN EVERY
END OF LOFT HUTCH UNTIL THE METAL DOWEL PIN ARE ALL THE WAY IN THE HOLE OF THE LOFT HUTCH, REPEAT THE SAME PROCESS WITH TOP BUNK BED (A),
(FIG.9)
4.- INSERT 2 CROSS DOWEL NUTS (I) IN ACCESS HOLE INSIDE THE SIDE RAIL&GUARD RAIL,ALIGN CROSS DOWEL NUT,MAKE SURE THE GROOVE IS HORIZONTAL,
(FIG.10)
5.- ATTACH TWO SIDE RAILS &TWO GUARDRAILS TO DRESSER/HUTCH/TOP BUNK BED ASSEMBLY& 1 PC BUNK BED END TWIN (S), INSERTING TWO FLAT BOLST (H) INTO TOP
BUNK BED&1 PC BUNK BED END TWIN HOLES,USE ALLEN WRENCH TO TIGHTEN BOLTS,(DO NO TIGHTEN COMPLETELY UNTIL ALL PIECES ARE CONNECTED TOGETHER),FIG.11
5.- PLACE FOUR SLATS (Q) ON TOP SIDE RAIL CLEATS,ONE SLAT IN BOTH ENDS,PUSH THE SLAT AGAINST THE BED END POST (FIG.A) &TWO SLATS IN THE MIDDLE AT EQUAL
DISTANCE FROM THE END SLATS, THEN EACH SLAT MUST BE FASTEN WITH TWO 1 1/4" SCREWS (S), SEE FIG.12
6 PIECE RAILS BOX (28-730) FIG.4
HARDWARE PACK (HPK00008-0)
LADDER BOX (28-720) FIG.6
TOP BUNK BED ASSEMBLY INSTRUCTIONS CONFIGURATION TYPE # 2
HARDWARE PACK
(HPK00012-0)
HARDWARE PACK
(HPK00123-0)
TOP BUNK BED BOX (28-705) FIG.1
HARDWARE PACK
(HPK00016-0)
TWIN/FULL SLATS BOX (100-645,100-646) FIG.7
1 PC BUNK BED END TWIN BOX (28-706) FIG.8
HARDWARE PACK (HPK00104-0)
HARDWARE PACK
(HPK00127-0)
FULL BOTTOM HDBD&FTBD BOX (28-709) FIG.5
6 DRAWER LOFT DRESSER BOX (28-207) OR
LOFT DESK BOX (28-603) FIG.2
LOFT HUTCH BOX (28-766) FIG.3
LIST OF CONTENTS
COTTAGE COLORS COLLECTION
A
B
HARDWARE PACK
HPK00123-0
FIG.1
C
FIG.2
S
FIG.8
D
E
B
FIG.3
HARDWARE PACK
HPK00012-0
FIG.4
FG
I
J
H
HARDWARE PACK
HPK00104-0
T
U
V
FIG.5
HARDWARE PACK
HPK00127-0
O
P
N
HARDWARE PACK
HPK00008-0
FIG.6
Q
R
HARDWARE PACK
HPK00016-0
FIG.7
FIG.9
FIG.10
YES,
HORIZONTAL GROOVE
NO
FIG.11
FIG.A
FIG.12
REV 02 04/02/2019 PAGE 3 OF 5 KIS01179-0

CANYON FURNITURE COMPANY

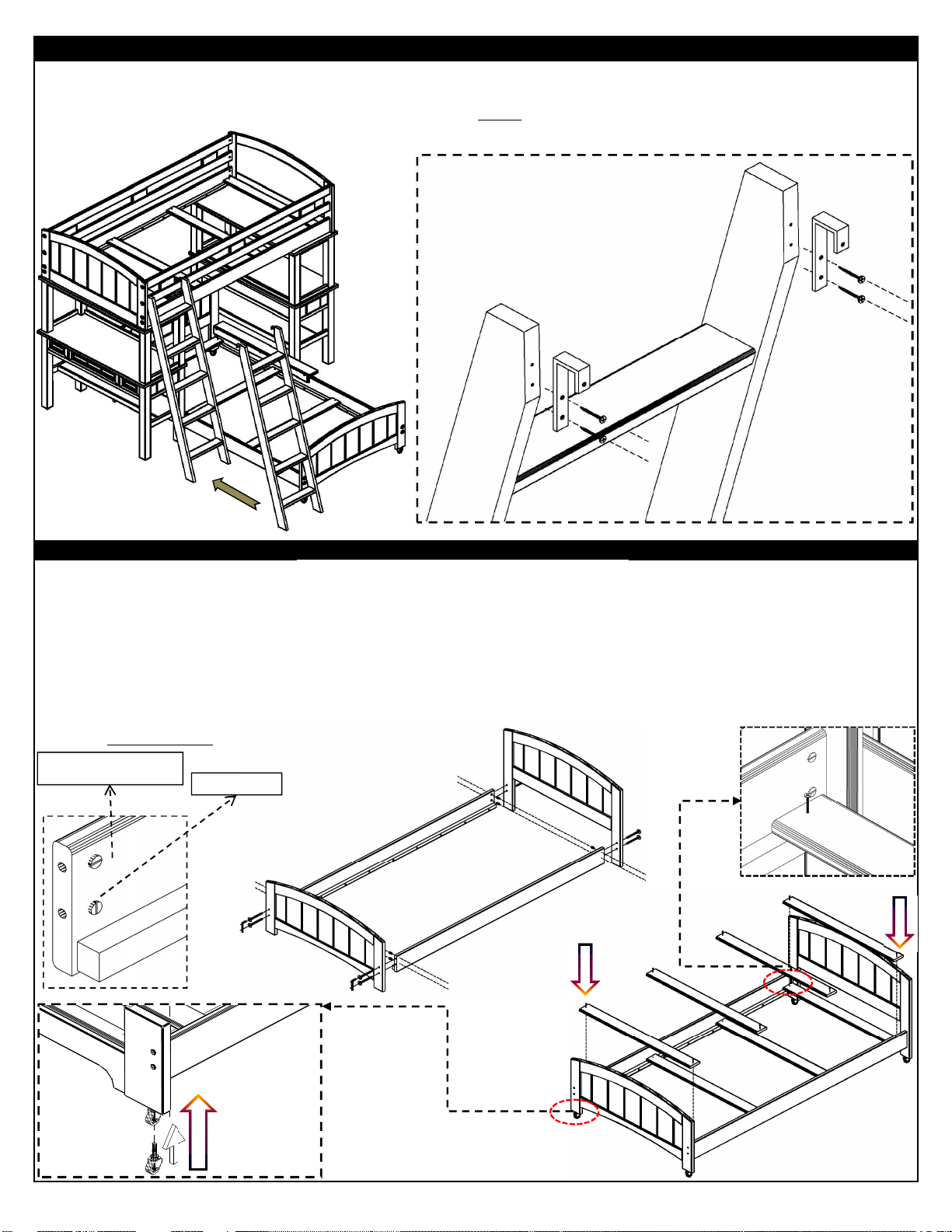

1.- ALIGN THE PRE- DRILLED HOLES IN LONG PART OF METAL HOOKS BRACKETS (O) WITH THE PRE- DRILLED HOLES IN THE LADDER (N), SECURE WITH 1" SCREWS (P) USING
PHILLIPS HEADSCREWDRIVER (NOT INCLUDED),SEE FIG.B & HOOK THE LADDER IN THE PROPER POSITION, ADJUST AND ALIGN THE PRE-DRILLED HOLES IN THE SHORT
PART OF METAL HOOKS ON TOP GUARDRAIL AND SECURE THE LADDER, AS SHOWN IN FIG.13 CASTER TWIN BED BOX ( 90-707,90-709 )
CASTER TWIN BED BOX ( 90-707,90-709 )
J.- (6) 1 1/4" SCREW
1.- ASSEMBLE TWIN/FULL BOTTOM HDBD&FTBD, USING ONE HEADBOARD (K), ONE FOOTBOARD (L) AND TWO SIDE RAILS (F).
2.- INSERT TWO CROSS DOWEL NUTS (I) IN ACCESS HOLE INSIDE THE SIDE RAIL, ALIGN THE CROSS DOWEL NUT,MAKE SURE THE GROOVE IS HORIZONTAL,SEE FIG.1
3.- ATTACH THE HDBD&FTBD INTO THE SIDE RAILS, INSERTING TWO FLAT HEAD BOLTS (H) INTO THE HEADBOARD &FOOTBOARD HOLES, USE THE 5MM ALLEN WRENCH (J) TO
TIGHTEN BOLTS UNTIL SECURE, SEE FIG.2
4.- PLACE FOUR SLATS (Q) ON SIDE RAIL CLEATS, ONE SLAT IN BOTH ENDS, PUSH THE SLAT AGAINST THE BED END POST (FIG.A)
AND TWO SLATS IN THE MIDDLE AT EQUAL
DISTANCE FROM THE END SLATS, THEN EACH SLAT MUST BE FASTEN WITH TWO 1 1/4" SCREWS (R), SEE FIG.3
5.- INSERT THE CASTER SOCKETS (M) INTO BOTTOM CORNERS OF THE HEADBOARD&FOOTBOARD, SEE FIG.C
6.- ROLL THE TWIN/FULL BOTTOM HDBD&FTBD&PLACE IT BETWEEN LOFT DRESSER/HUTCH/TOP BUNK BED &LOFT DESK/HUTCH/TOP BUNK BED OR 1 PC BUNK BED END TWIN
AS SHOWN IN
ALL OPTIONS
K.- (1) 3 DRAWER NIGHT STAND
LADDER ASSEMBLY INSTRUCTIONS
O.- (4) METAL CASTER SOCKET
TWIN/FULL BOTTOM HDBD&FTBD ASSEMBLY INSTRUCTIONS
N.- (1) CASTER BED FOOTBOARD
M.- (1) CASTER BED HEADBOARD
YES,
HORIZONTAL GROOVE
FIG.1
NO
FIG.2
FIG.3
FIG.C
FIG.13
FIG.B
FIG.A
REV 02 04/02/2019 PAGE 4 OF 5 KIS01179-0

CANYON FURNITURE COMPANY
3.- ROLL THE TWIN/FULL BOTTOM HDBD&FTBD & PLACE IT BETWEEN LOFT DRESSER/HUTCH/TOP BUNK BED&LOFT DESK/HUTCH/TOP BUNK BED OR 1 PC BUNK BED END TWIN
AS SHOWN IN
BOTH CONFIGURATIONS.
1.- FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
2.- ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
3.- SURFACE OF MATTRESS MUST BE AT LEAST 5 IN BELOW THE UPPER EDGE OF GUARDRAILS.
4.- DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
5.- PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
6.-PERIODICALLY CHECK AND ENSURE THAT THE GUARD RAIL, LADDER AND OTHER COMPONENTS ARE IN THEIR PROPER POSITION,
FREE FROM DAMAGE
, AND THAT
ALL CONNECTORS ARE TIGHT.
7.- DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
8.- ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
9.- DO NOT USE SUBSTITUTE PARTS. CONTACT THE MANUFACTURER OR DEALER FOR REPLACEMENT PARTS.
10.- USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE UPPER BUNK.
11 .-IF THE BUNK BED WILL BE PLACED NEXT TO THE WALL THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT
ENTRAPMENT BETWEEN THE BED AND THE WALL.
12.- ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK.
13.- THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
14.-
STRANGULATION HAZARD.
NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED, FOR EXAMPLE
BUT NOT LIMITED TO HOOKS, BELTS AND JUMP ROPES.
15.- KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THE UPPER&LOWER BUNK BED IS DESIGNED TO USE ONLY A MATTRESS WHICH IS 74" TO 75" LONG AND 37 1/2" TO 38 1/2" WIDE FOR TWIN BED.
WHEN THE LOWER BUNK BED IS A FULL BED, THE LOWER BUNK IS DESIGNED TO USE ONLY A MATTRESS WHICH IS
74"
TO
75"
LONG AND
52 1/2"
X
53 1/2"
WIDE.
THE BUNKIE BOARD IS REQUIRED TO 37 1/2" WIDE X 74" LONG FOR TWIN BED AND 52 1/2" WIDE X 74" LONG FOR FULL BED.
NOTE:
ENSURE THICKNESS OF MATTRESS AND FOUNDATION COMBINED DOES NOT EXCEED
10"
AND MATTRESS IS AT LEAST
5"
BELOW UPPER EDGE OF GUARDRAILS.

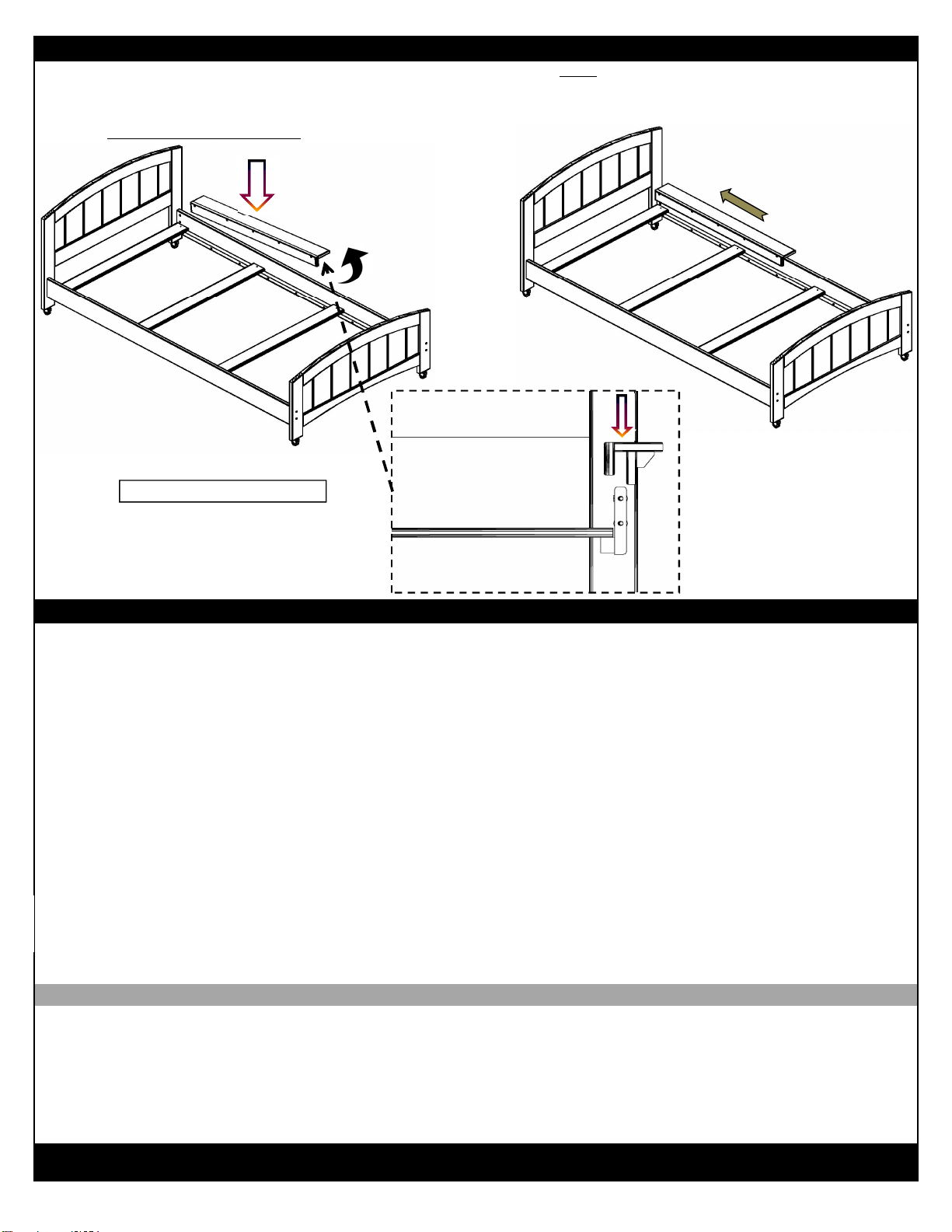

RAIL CAP ASSEMBLY INSTRUCTIONRAIL CAP ASSEMBLY INSTRUCTION
REPLACEMENT PARTS, INCLUDING ADDITIONAL GUARDRAILS, MAY BE OBTAINED FROM ANY OF OUR CANYON FURNITURE COMPANY DEALERS.
REPLACEMENT PARTS
SIZE OF MATTRESS AND FOUNDATION
SAFETY WARNINGS
1.- WHEN PURCHASING TWIN/FULL BOTTOM HDBD&FTBD, WE RECOMMEND YOU TO USE THE RAIL CAP (28-735)
2.- TO INSTALL THE RAIL CAP, PLACE IT AS FIG.D, MAKE SURE THE RAIL CAP IS INSERTED ON THE SIDE RAIL AND PUSHED TO THE HEADBOARD, SEE FIG.2
FIG.1
FIG.D
FIG.2
NO TOOLS REQUIRED
REV 02 04/02/2019 PAGE 5 OF 5 KIS01179-0
