Canyon Creekside 3899401P User manual

CANYON FURNITURE COMPANY
DO NOT COMPLETELY TIGHTEN ALL BOLTS UNTIL ALL COMPONENTS ARE CONNECTED.
FULL/FULL BUNK BED
THANK YOU FOR YOUR PURCHASE !
(94,95,96-804) CREEKSIDE COLLECTION FULL/FULL BUNK BED ASSEMBLY INSTRUCTIONS
PLEASE CONTACT YOUR RETAIL STORE FOR SERVICE OR REPLACEMENT PARTS REQUEST
TWO PEOPLE ARE NEEDED TO ASSEMBLE.
READ ALL THE INSTRUCTIONS AND IDENTIFY ALL COMPONENTS AND CHOOSE YOUR CONFIGURATION AND BE SURE YOU HAVE ALL PARTS
TO ASSEMBLE THIS
CONFIGURATION
REQUIRES TWO
PERSONS
TIPS: SEE ILLUSTRATION
BELOW
1.- USE THE LONG END OF THE ALLEN WRENCH TO FASTEN
BOLTS LOOSELY AND QUICKLY.
2.- USE THE SHORT END OF THE ALLEN WRENCH FOR
FINAL TIGHTENING.
WARNING:
THE BED SLATS WILL NO SUPPORT A
MATTRESS ALONE, A SLAT PACK OR A
BUNKIE BOARD IS REQUIRED FOR
PROPER SAFETY.
(NOT INCLUDED)
MAKE SURE ALL BOLTS
ARE TIGHTENED
COMPLETELY
3899401P FULL/FULL BUNK BED (TAFFY)
36794015 94H-804 FULL BUNK END
36794015 94H-804 FULL BUNK END
35794014 94H-730 6 PIECE BUNK RAILS
35894016 94 H-720 LADDER
38200236 100-647 FULL SLAT ROLL
38200236 100-647 FULL SLAT ROLL
3899503P FULL/FULL BUNK BED (CHARCOAL)
36795031 95G-804 FULL BUNK END
36795031 95G-804 FULL BUNK END
35795030 95G-730 6 PIECE BUNK RAILS
35895032 95G-720 LADDER
38200236 100-647 FULL SLAT ROLL
38200236 100-647 FULL SLAT ROLL
3899602P FULL/FULL BUNK BED (STONE WASH)
36796021 96C-804 FULL BUNK END
36796021 96C-804 FULL BUNK END
35796020 96C-730 6 PIECE BUNK RAILS
35896022 96C-720 LADDER
38200236 100-647 FULL SLAT ROLL
38200236 100-647 FULL SLAT ROLL
REV 03 05/09/2019 PAGE 1 OF 4 KIS01164-0

CANYON FURNITURE COMPANY
A.- (1) TOP HEADBOARD
3 DRAWER NIGHT STAND BOX ( 90-503 )
B.- (1) BOTTOM HEADBOARD K.- (1) 3 DRAWER NIGHT STAND
DESK TOP BOX ( 90-602 )
C.- (2) 4"METAL DOWEL PINS L.- (1) DESK TOP
CASTER TWIN BED BOX ( 90-707,90-709 )
D.- (4) SIDE RAILS M.- (1) CASTER BED HEADBOARD
E.- (2) GUARD RAILS N.- (1) CASTER BED FOOTBOARD
O.- (4) METAL CASTER SOCKET
F.- (24) 5/16" X 4" HEX TAP BOLTS
G.- (24) 5/16"-18 X 5/8" CROSS DOWEL NUTS J.- (6) 1 1/4" SCREW
H.- (1) 5MM ALLEN WRENCH
I.- (1) SLAT PACK 94,95,96-720 LADDER FIG.5
L.- (1) LADDER
J.- (14) 1 1/4" SCREWS HARDWARE PACK (HPK00008-0)
M.- (2) METAL HOOK BRACKETS
K.- (1) TRUNDLE BED N.- (6) 1" SCREWS
1.- ASEMBLE
TOP BUNK BED
BY USING TWO TOP HDBDS (A), TWO SIDE RAILS (D) AND TWO GUARD RAILS (E).
2.- INSERT TWO CROSS DOWEL NUTS (G) IN ACCESS HOLE INSIDE THE SIDE RAIL & GUARDRAIL, ALIGN CROSS DOWEL NUT MAKE SURE THE GROOVE IS HORIZONTAL, FIG.A
3.- ATTACH TWO SIDE RAILS & TWO GUARD RAILS TO TOP HEADBOARDS, INSERTING TWO HEX TAP BOLTS (F) IN EACH CORNER OF TOP HEADBOARD HOLES, USE THE 5MM
ALLEN WRENCH (H) TO TIGHTEN BOTH HEX TAP BOLTS, (DO NOT TIGHTEN COMPLETELY UNTIL ALL PIECES ARE CONNECTED TOGETHER)
SEE FIG.6,
REPEAT THE SAME PROCESS ON ALL FOUR CORNERS.
4.- PLACE FULL SLAT ROLL (I) INSIDE THE TOP BUNK BED PUSH SLAT PACK AGAINST THE BED END POST (FIG.B) AND SECURE WITH TWO 1 1/4" SCREWS (J ) IN EACH SLAT
SEE FIG.7.
LIST OF CONTENTS
94,95,96-804 FULL BUNK END FIG.1 (2 PCS)
HARDWARE PACK (HPK00121-0)
94,95,96-730 6 PIECE BUNK RAILS FIG.2
100-647 FULL SLAT ROLL FIG.3 (2 PCS)
HARDWARE PACK (HPK00042-0)
94,95,96-744 KD TRUNDLE STORAGE FIG.4
HARDWARE PACK (HPK00093-1)
TOP HEADBOARD ASSEMBLY
(USE FULL SLAT ROLL 100-647)
FULL/FULL BUNK BED ASSEMBLY INSTRUCTIONS CONFIGURATION
FIG.1
A
B
I
G
F
D
H
J
C
E
K
FIG.6
TOP HEADBOARD
ASSEMBLY
HARDWARE
PACK
HPK00121-0
HARDWARE PACK
HPK00093-1
HARDWARE PACK
HPK00042-0
YES,
HORIZONTAL
GROOVE
NO
FIG.A
TOOLS NEEDED
PHILIPS HEAD SCREWDRIVER (NOT INCLUDED)
5MM ALLEN WRENCH (INCLUDED)
FIG.2
FIG.3 FIG.4
FIG.7
FIG.B
MAKE SURE ALL BOLTS
ARE TIGHTENED
COMPLETELY
L
HARDWARE PACK
HPK00008-0
M
N
FIG.5
REV 03 05/09/2019 PAGE 2 OF 4 KIS01164-0

CANYON FURNITURE COMPANY
1.- ASEMBLE
BOTTOM BUNK BED
BY USING TWO BOTTOM HEADBOARDS (B), AND TWO SIDE RAILS (D).
2.- INSERT TWO CROSS DOWEL NUTS (G) IN ACCESS HOLE INSIDE THE SIDE RAIL, ALIGN CROSS DOWEL NUT MAKE SURE THE GROOVE IS HORIZONTAL,
SEE FIG.A
3.- ATTACH TWO SIDE RAILS TO BOTTOM HEADBOARDS, INSERTING TWO 4" HEX TAP BOLTS (F) IN EACH CORNER OF BOTTOM HEADBOARD HOLES, USE 5MM ALLEN WRENCH
(H) TO TIGHTEN BOTH HEX TAP BOLTS, (DO NOT TIGHTEN COMPLETELY UNTIL ALL PIECES ARE CONNECTED TOGETHER),
SEE FIG.8
4.- REPEAT THE SAME PROCESS ON ALL FOUR CORNERS.
5.- PLACE FULL SLAT ROLL (I ) INSIDE THE BOTTOM BUNK BED PUSH SLAT PACK AGAINST THE BED END POST (FIG.B) AND SECURE WITH TWO 1 1/4" SCREWS (J ) IN EACH
SLAT,
SEE FIG.9
6.- INSERT ONE METAL DOWEL PIN (C) IN EACH BOTTOM HDBD TOP HOLES (FIG.I), WITH HELP PLACE IT ON TOP HDBD ASSEMBLY ON TOP BOTTOM HDBD ASSEMBLY ALIGNING
METAL DOWEL PINS WITH EACH PRE-DRILLED HOLE IN BOTH ENDS UNTIL THE METAL DOWELS PIN ARE ALL IN,
SEE FIG.10
J.- (6) 1 1/4" SCREW
CASTER TWIN BED BOX ( 90-707,90-709 )
BOTTOM HEADBOARD ASSEMBLY
(USE FULL SLAT ROLL 100-647)
O.- (4) METAL CASTER SOCKET
BOTTOM HEADBOARD
ASSEMBLY
YES,
HORIZONTAL
GROOVE
NO
FIG.A
FIG.B
FIG.8
FIG.9
FIG.10
FIG.I
MAKE SURE ALL BOLTS
ARE TIGHTENED
COMPLETELY
REV 03 05/09/2019 PAGE 3 OF 4 KIS01164-0

CANYON FURNITURE COMPANY
ALIGN THE PRE-DRILLED HOLES IN LONG PART OF METAL HOOKS BRACKETS (M) WITH THE PRE-DRILLED HOLES IN THE LADDER (L), SECURE WITH 1" SCREWS (N) USING
PHILLIPS HEAD SCREWDRIVER (NOT INCLUDED),
SEE FIG.C
AND HOOK THE LADDER IN THE PROPER POSITION, ADJUST AND ALIGN THE PRE-DRILLED HOLES IN THE
SHORT PART OF METAL HOOKS ON TOP GUARD RAIL TO SECURE THE LADDER SEE FIG.D, AS SHOWN IN
FIG.12
1.- FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
2.- ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
3.- SURFACE OF MATTRESS MUST BE AT LEAST 5 IN BELOW THE UPPER EDGE OF GUARDRAILS.
4.- DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
5.- PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
6.- PERIODICALLY CHECK AND ENSURE THAT THE GUARD RAIL, LADDER AND OTHER COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT
ALL CONNECTORS ARE TIGHT.
7.- DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
8.- ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
9.- DO NOT USE SUBSTITUTE PARTS. CONTACT THE MANUFACTURER OR DEALER FOR REPLACEMENT PARTS.
10.- USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE UPPER BUNK.
11.- IF THE BUNK BED WILL BE PLACED NEXT TO THE WALL THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT
ENTRAPMENT BETWEEN THE BED AND THE WALL.
12.- ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK.
13.- THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
14.-
STRANGULATION HAZARD.
NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED, FOR EXAMPLE
BUT NOT LIMITED TO HOOKS, BELTS AND JUMP ROPES.
15.- KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THE UPPER & LOWER BUNK BED IS DESIGNED TO USE ONLY A MATTRESS WHICH IS
74"
TO
75"
LONG AND
52 1/2"
TO
53 1/2"
WIDE FOR
FULL BED
.
THE BUNKIE BOARD IS REQUIRED TO
52 1/2"
WIDE X
74"
LONG FOR
FULL BED.
NOTE:
ENSURE THICKNESS OF MATTRESS AND FOUNDATION COMBINED DOES NOT EXCEED
10"
AND MATTRESS IS AT LEAST
5"
BELOW UPPER EDGE OF GUARDRAILS.
SAFETY WARNINGS
SIZE OF MATTRESS AND FOUNDATION
REPLACEMENT PARTS, INCLUDING ADDITIONAL GUARDRAILS, MAY BE OBTAINED FROM ANY OF OUR CANYON FURNITURE COMPANY DEALERS.

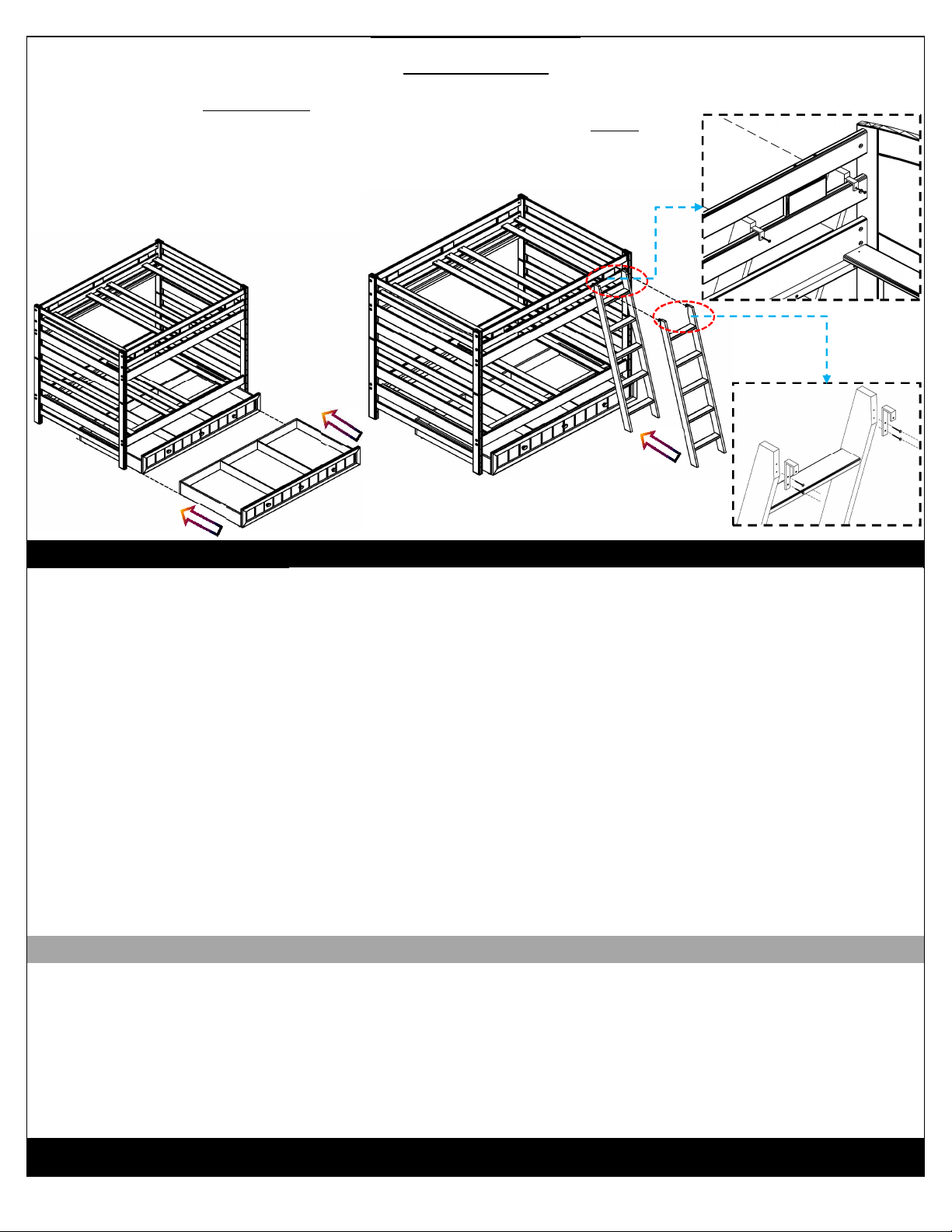

IF YOU PURCHASE KD TRUNDLE STORAGE (K), SLIDE UNDER BOTTOM SIDE RAILS IN THE BED,
SEE FIG.11
LADDER ASSEMBLY
REPLACEMENT PARTS
FIG.11
FIG.12
FIG.C
FIG.D
MAKE SURE ALL BOLTS
ARE TIGHTENED
COMPLETELY
REV 03 05/09/2019 PAGE 4 OF 4 KIS01164-0
