Caple Di477 User manual

Di477
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Review the section on troubleshooting tips as it will
help you to solve some common problems by
yourself .
Dear Customer,
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety instructions,
operating instructions, installation instructions
and troubleshooting tips.
The manufacturer, following a policy of constant
development and product improvement, may
make modifications without giving prior notice.
Please carefully read this manual before using
the dishwasher, it will help you to use and
maintain your Caple dishwasher properly.
Keep it to refer to it at a later date.
If you can not solve the problems by yourself,
please contact Caple Service.
Dishwasher features.......................................3
A Water softener...............................................4
Before or after loading the dishwasher
baskets........................................................9

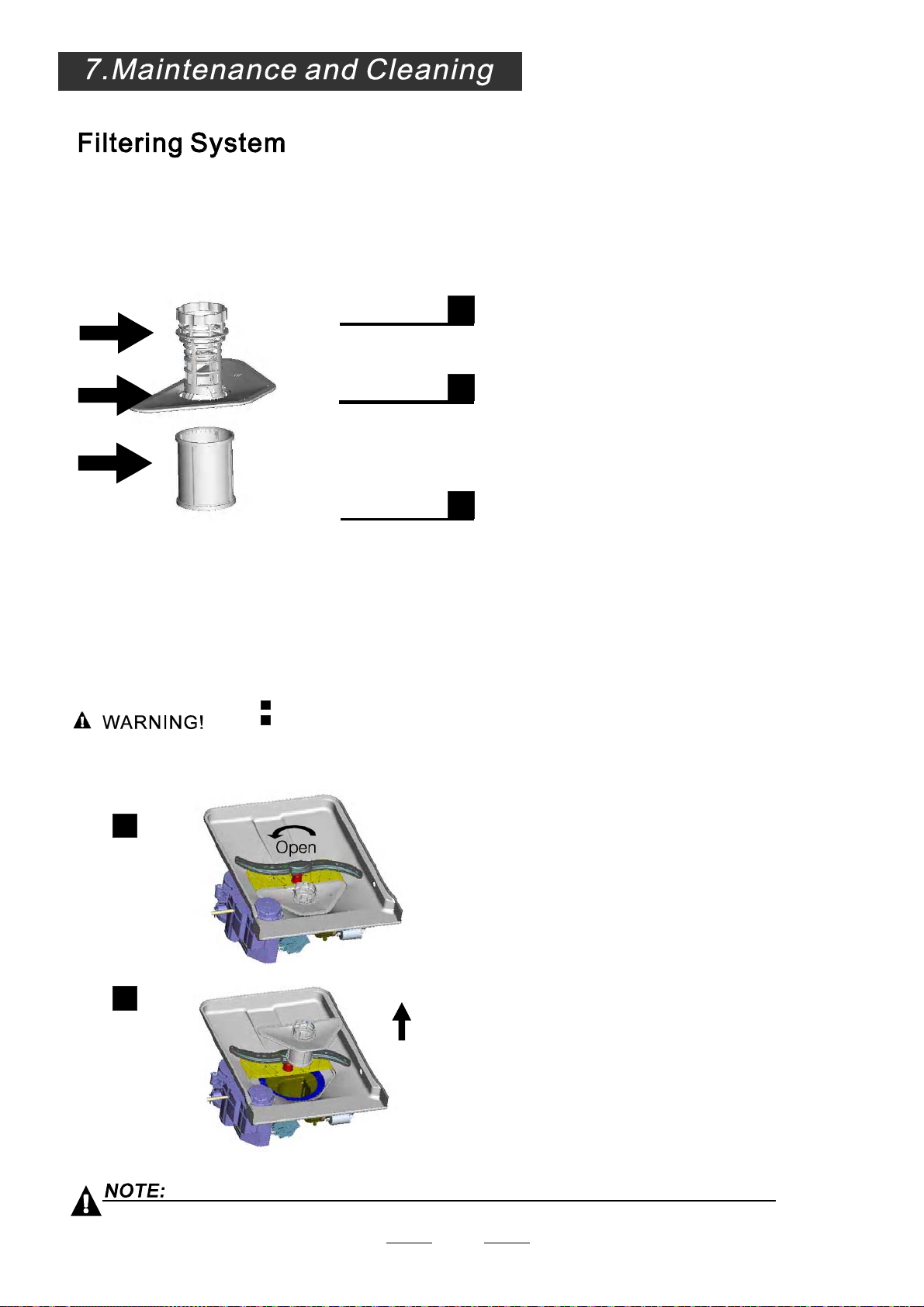

Filtering system.............................................13
Caring for your dshwasher..................................14
B Loading the salt into the softener..................5
C Fill the rinse aid dispenser...............................5
D The function of detergent .................................6
Loading the upper basket.................................10
Loading the lower basket...............................10
Wash cycle table..........................................11
Turning on the appliance..................................11
Change the programme................................12
At the end of the wash cycle..........................12
Before calling for service........................... .....22.
Error codes.................................... ..............23.
Technical information.............................. .....24..
Control panel.................................................3
.................................. 15Installation preparation
Furniture doors dimensions and installation.......16
..............18Tension adjustment of the door spring
.............................. 18Connection of drain hoses ......................... 19Dishwasher installation steps
Electrical connection....................................20
Cold water connection.................................. 21
Before contacting Caple Service

This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision. For EN60335-1
This appliance is not intended for use by persons
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. For IEC60335-1
This appliance is for indoor use only, for household
use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the
appliance .
Use a soft cloth moisten with mild soap, and then use
adryclothtowipeitagain.
（）
（）
When using your dishwasher,
follow the precautions listed below:

This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and a grounding plug.
The plug must be plugged into an appropriate outlet that
is installed and earthed in accordance with all local
codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
Do not modify the plug provided with the appliance;
If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;

2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Check that the detergent powder is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do not
play with the appliance.
The door should not be left open, since this could increase
the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
The maximum number of place settings to be washed
is 10.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.

Dispose of the dishwasher packaging material
correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard
international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control
Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please
go to a recycling centre. Therefore cut off the power
supply cable and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.

With eachwashcycle.
Compartment
For programs with pre-wash only.
(Follow the user instructions)
Electric indicator on control panel.
Check the rinse aid level
he  electric warning light is located on the control panel. This will
illuminate when salt is required.
Check the regeneration
salt level
Load the baskets
Select a program
Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout10seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing the program
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the program button until the selected program lights up.
( See the section entitled 'Operation instruction...
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the initial start up).
For the detailed operating method read the corresponding content on the instruction manual.
Switch on the appliance Open the door, press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the p
for more than 3 seconds to cancel the running program.
3.
Select a new program.
4. Restart the dishwasher.
rogram button
CC
A B

3
beforeusingit for the firsttime.
To getthe best performance from yourdishwasher,read all operating instructions
11 12
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery tray
Top spray arm
1
Inner pipe
5
6
7
8
9
10
12
11
3
2
4
6
13
Adjuster
13
1.
On/Off button: Press to turn the power on/off.
2.
Alt button: Dual zone wash function, press the
button to select either upper basket or lower
basket loaded and the response indicator will
illuminate to inducate what has been selected.
3.
Extra drying button:
Extra drying can be used when you select one of
the following programs: Intensive, Normal, ECO,
Glass, 1hour.
4.
Program button : Press the button to select a
wash program.
5.Delay button : Press the button to delay the start time.
6.
Display screen: to show the selected program, delay time
etc.
Program indicators:
Delay time or error codes indicator:
Alt functions indicator:
Water inlet warning Light :
Illuminates when there is no mains water supply.
Rinse aid indicator:
Indicates when the dispenser needs to be refilled.
Add salt indicator:
Indicates when the dispenser needs to be refilled.
Extra drying indicators:
NOTE: For more information on additional wash features, please see page 8.
11445566
Alt
2233

The water softener must be set manually, using the water hardness settings.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness
of the water used. This is intended to optimise and customise the level of salt consumption.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
The factory setting is: H4 (EN 50242)
Contact your local water board for information on the hardness of your water supply.
4
°
Clark: British degree
°
fH: French degree
°
dH: German degree
dH=1.25 Clark=1.78 fH=0.178mmol/l
°° °
1
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with
C. Fill the rinse aid container
D. Add detergent
dH mmol/l
0~90~5 0~0.94 H1 0
10-20
6-11 1.0-2.0 H2 9
21-30
12-17 2.1-3.0
H3
12
H4 20
FH
0~6
7-14
15-21
Clark
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0 H5 30
H6 60
29-42
35-55 61-98 43-69 6.1-9.8
1. Open the door, switch on the appliance;
2. Press the program button for more than 5 seconds to start the water softener
set model within 60 seconds after the appliance was switched on (The salt and rinse
aid warning lights will be on periodically when it get in the set model );
3. Press the program button to select the correct setting according to your local environment,
the settings will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the power button to end the set up model.
Please follow the steps below for adjustment in salt consumption.

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every other type of
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
5

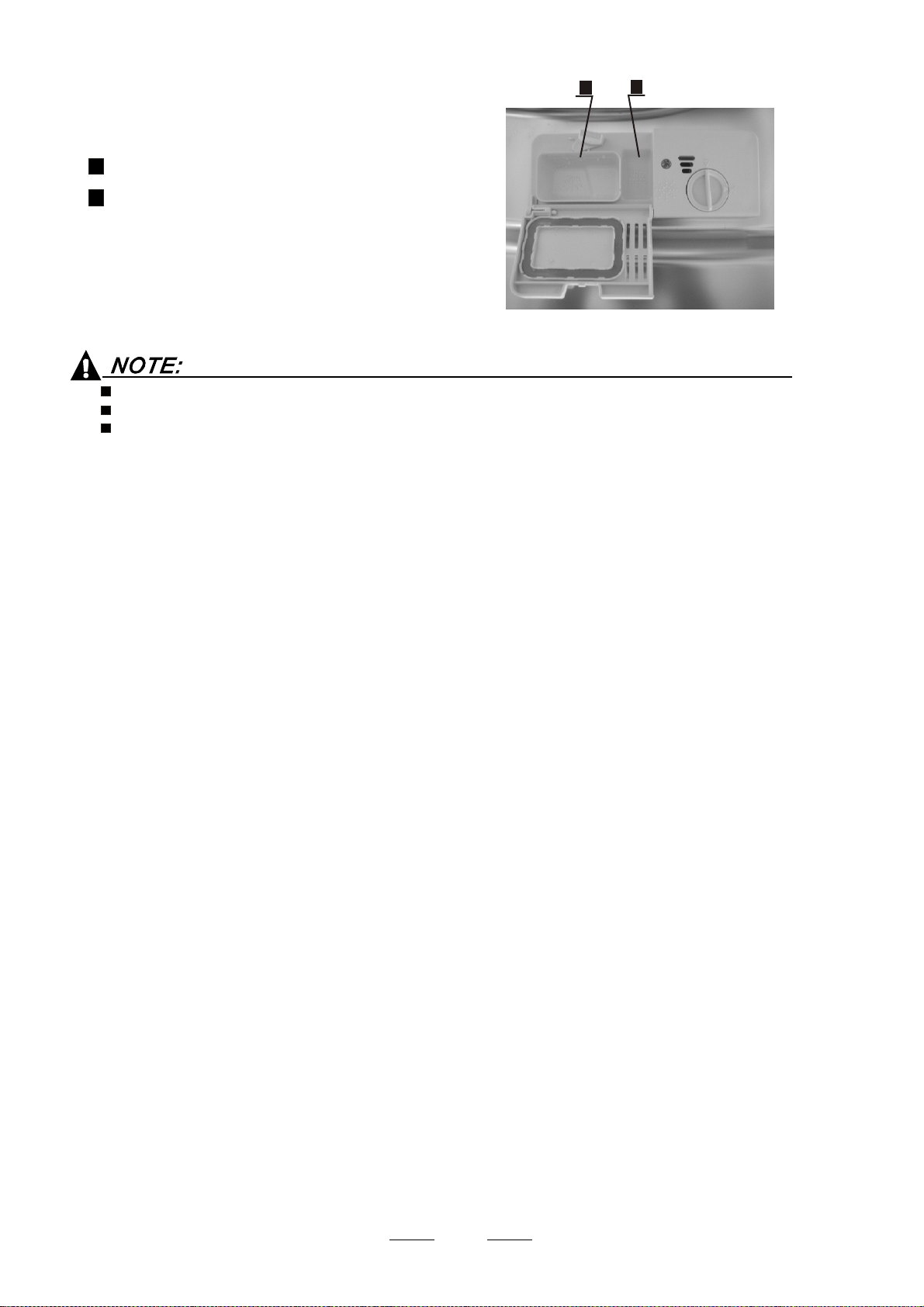

Rinse aid dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
The function of rinse aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, also spot and streak free drying.
Attention!
Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Full fill the salt container with water, it is normal for a small amount of water to come out of the
salt container.
AAfter the lower basket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
D After filling the container, screw the cap tightly back clockwise.
E The salt warning light will stop illuminating after the salt container has been filled with salt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This issue would not be covered by the warranty.
(we suggest to use a short
).
B. Loading salt into the water softener
C. How to fill the rinse aid dispenser
