Caple BUCH User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Built under extractor
Instruction manual

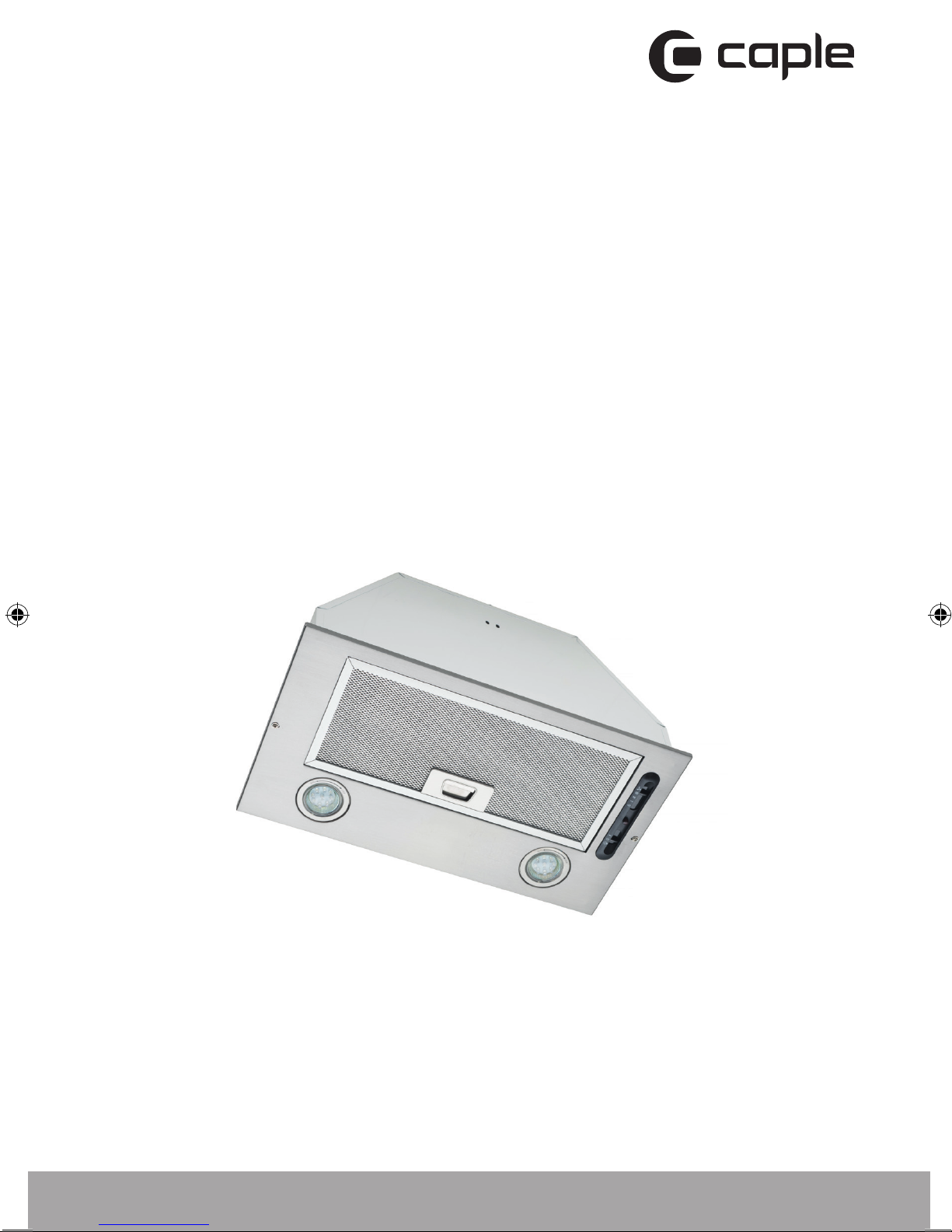

BUCH
BUCH Extractor Instruction manual.indd 1 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
2
CONTENTS
Safety Warnings 3
Safety Instructions 4
Electrical Shock Hazard 7
Environmental Protection 8
Product Overview 9
Ducting Options 10
Installation Position 11
Installation 12
Operating Instructions 13
Guarantee 14
Exclusions 15
BUCH Extractor Instruction manual.indd 2 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
3
IMPORTANT
This appliance must only be used for the
purpose it is intended. Other types of use are not
permitted and may prove dangerous. Caple will
not be held liable for any damage caused by the
incorrect use of the appliance
-Do not use any accessories or attachments not
recommended by Caple as this may result in fire, electric
shock or injury.
-To protect against fire, electrical shock and injury to
persons, do not immerse cords or plugs in water or any
other liquid.
-Never touch the appliance with wet or damp hands.
-Never pull the power cable as you could damage it.
If the appliance is faulty, do not attempt to repair it.
Isolate it from the mains electric supply and contact
Caple Service either by phone [phone] or email
[e-mail]
-Keep all packaging (including plastic bags, polystyrene
foam etc) out of the reach and away from children.
-Do not rest large or unstable objects on any part of the
appliance.
BUCH Extractor Instruction manual.indd 3 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
4
Caple cannot be held responsible for injuries or
losses caused by incorrect use or installation of
this product. Please note that Caple reserve the
right to invalidate the guarantee supplied with
this product following incorrect installation or
misuse of the appliance. Under no circumstances
should any external covers be removed for
servicing or maintenance except by suitably
qualified personnel.
SAFETY INSTRUCTIONS:
-Never let children operate the machine.
-The cooker hood is for home use only, not suitable for
barbecuing, restaurants or other commercial purposes.
-The cooker hood and its filter should be cleaned regularly
in order to keep in good working condition.
-Clean the cooker hood according to the instruction
manual to reduce the risk of fire.
-When using a gas hob, do not leave naked flames under
the extractor.
-Before connecting this appliance check that the power
supply cord is not damaged.
BUCH Extractor Instruction manual.indd 4 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
5
-If the room where the hood is to be used contains a fuel
burning appliance such as a central heating boiler then
its flue must be of the sealed or balanced flue type. If
other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room.
-The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
-Regulations concerning the discharge of air have to be
conformed to.
-Do not flambé under the cooker hood.
-Never leave frying pans unattended during use as over-
heated fats and oils may catch fire.
-To ensure the best performance, we recommend
switching on the extractor 15 minutes before cooking
and leave it running 15 minutes after. This will ensure
that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after
cooking has finished.
-The performance of your extractor will vary depending
on a number of factors. These include type of extraction,
room volume, length of ducting, ventilation available and
the cleanliness of the filters.
BUCH Extractor Instruction manual.indd 5 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
6
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-Children should be supervised to ensure that they do not
play with the appliance.
-Cleaning and user maintenance must not be made by
children without supervision.
-Never immerse the appliance in water.
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be used
in:
• Staff kitchen areas in shops, offices and other working
environments.
• Bed and breakfast type environments.
• By clients in hotels, motels and other residential type
environments.
-To avoid all risk, if the power cable is damaged, it must
only be replaced by a Caple appointed engineer.
BUCH Extractor Instruction manual.indd 6 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
7
-Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
-Children must not play with this appliance.
-When not in use and before cleaning, always isolate the
appliance from the electrical supply.
ELECTRICAL SHOCK HAZARD
-Only plug this unit into a properly earthed outlet. If in
doubt seek advice from a suitably qualified engineer.
-Failure to follow these instructions can result in death,
fire, or electrical shock.
-This appliance must be connected to the mains by a
competent person. We recommend that the appliance is
connected by a qualified electrician who is a member of
the N.I.C.E.I.C who will comply with the I.E.E and local
regulations. Electrical information can be found on the
rating plate.
BUCH Extractor Instruction manual.indd 7 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
8
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
This appliance is marked according to the European directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electronic
equipment. Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service
or the retailer where you purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been designed, constructed and marketed in compliance with
safety requirements in force. This appliance has been manufactured to the strictest
standards and complies with all applicable legislation.
BUCH Extractor Instruction manual.indd 8 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
9
IMPORTANT:
1. Please read the entire instructions before installing the rangehood.
2. Always switch power off prior to installation
3. Stainless steel is very easily damaged during installation if scratched or knocked
by tools. Protect the rangehood with the cardboard box or plastic bag during
installation.
4. All electric work must be done in accordance with the local and national electrical
codes as applicable.
5. For safety, this product must be earthed.
6. A power outlet should be within 1500mm of the power cord exit from the
rangehood.
7. The power socket must be accessible and enable the end user to isolate the
rangehood from the power for the purpose of internal cleaning or maintenance.
8. 150mm round ducting adapters are supplied. All other ducting accessories are not
supplied. All ducting must comply with local requirements and building codes.
9. See Ducting options next page.
PRODUCT OVERVIEW
NOTE: This product should be installed using 150mm ducting
910
scratched
the external wall.
BUCH Extractor Instruction manual.indd 9 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
10
CONTENTS OF PACKAGING:
1 x Hood body
1 x face plate
1 x 150mm ducting adapter
1 x packet of fasteners and wall plugs
TYPICAL EQUIPMENT REQUIRED:
1. Electric drill
2. Screwdriver
3. Tape measure
4. Spirit level
5. Duct tape (if ducting)
6. Jig saw (if ducting)
7. Ladder (if ducting)
DUCTING OPTIONS
The method of ducting should be carefully considered before installing the
range hood. The guide below recommends the ducting components to use for
all common ducting configuration - through the top of the home (the roof and
soffit) and through the external wall. 150mm round ducting should be used in
conjunction with this model rangehood. Alternatively this rangehood can be
operated in recirculation mode (see Recirculation mode Pg.5).
NOTE: THIS PRODUCT SHOULD BE INSTALLED USING 150MM DUCTING
NOTE: This product should be installed using 150mm ducting
910
scratched
the external wall.
BUCH Extractor Instruction manual.indd 10 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
11
Extra lengths and/or bends may be required, depending on the length required and
whether there is any structural material in the run e.g. rafters.
Some authorities require rangehoods to be vented outside. Ducted models should
comply with this requirement in every aspect.
INSTALLATION POSITION
When installing the rangehood, the lower edge of the unit must be a minimum of
600mm (650 for gas cooker) above the cooking range. The recommended position
for the hood is 650mm above hotplates.

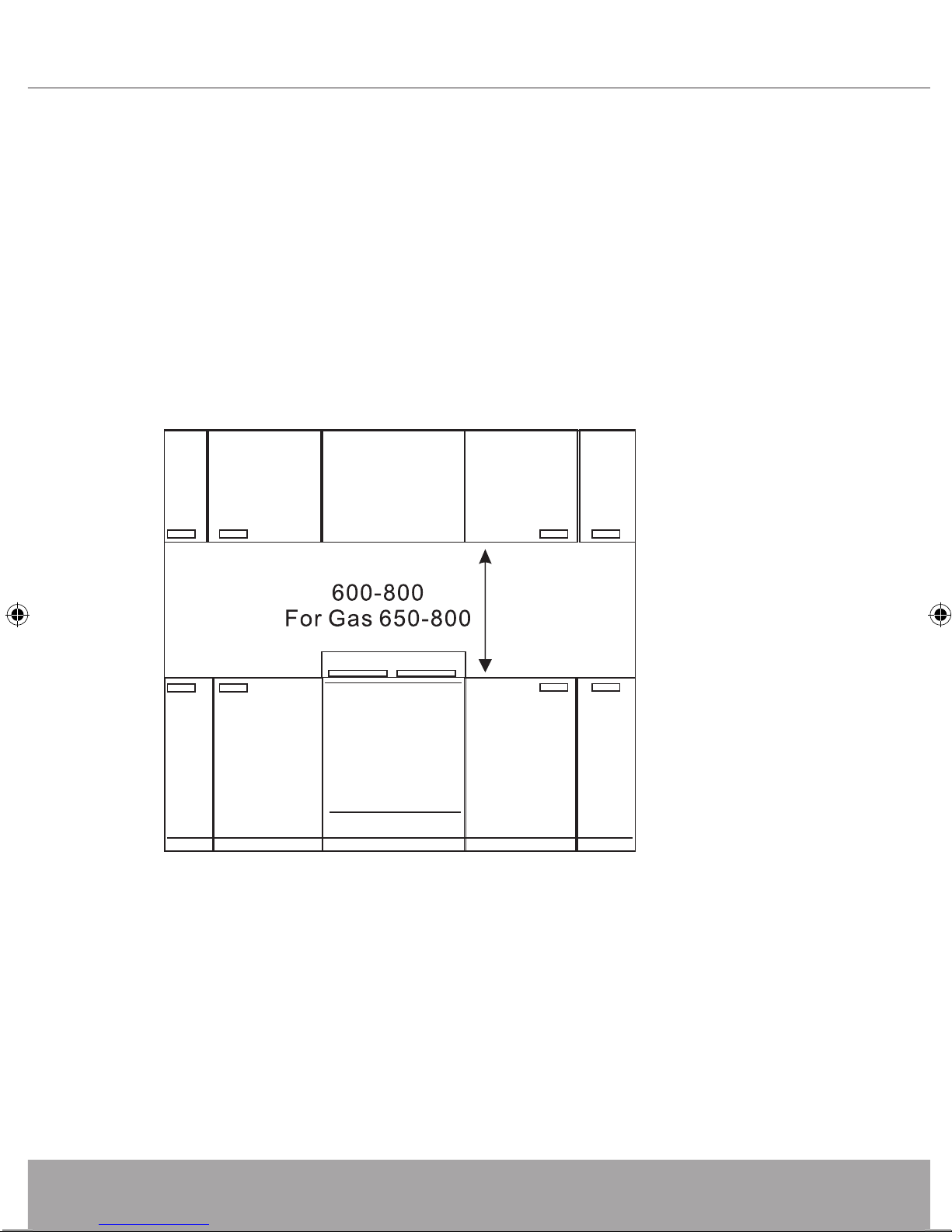

Pictures: Minimum height from the hob surface to the underside face of the
rangehood is : 600mm for electric hob, 650mm for gas hob.
Notes:
If the instructions for the gas hob specify a greater distance, this has to be taken
into account. Any installation above 750mm will compromise performance.
11 12
BUCH Extractor Instruction manual.indd 11 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
12
INSTALLATION
MOUNTING THE RANGEHOOD
Fit the ducting adapter to the rangehood using the short screws supplied. Provide
an opening on the underside of the cupboard to suit models/provide 490mm x
256mm for 600 model.

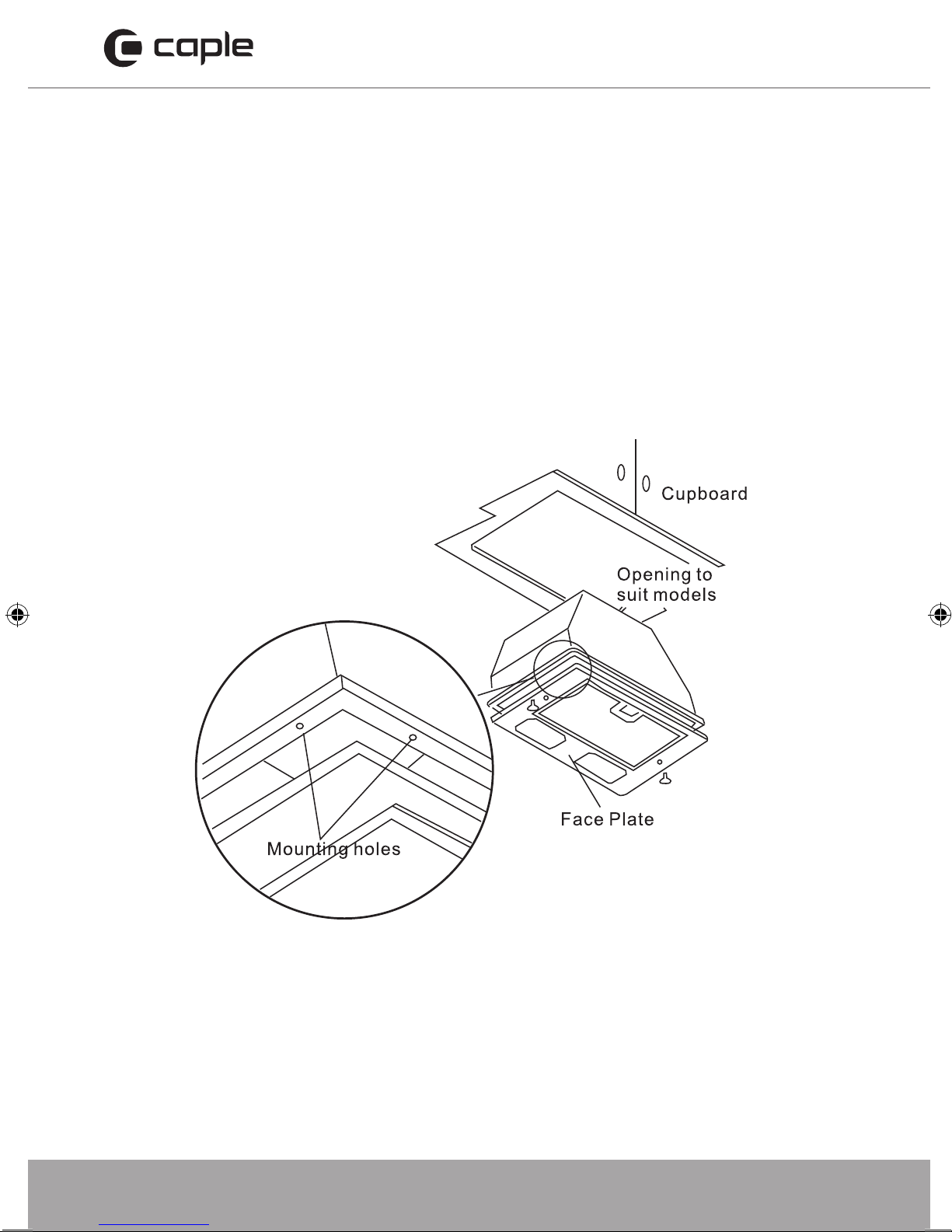

Remove the face plate of the rangehood by undoing the two visible screws located
on both side-ends. Eight mounting holes around the unit then are accessible.
Lift the rangehood and fit through the opening cupboards. Secure unit using long
screws supplied. Refit face plate.
11 12
BUCH Extractor Instruction manual.indd 12 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
13
OPERATING INSTRUCTIONS
Controls
Light:
The light can be operated independently by sliding the light switch on/off despite
the working status of the fan. Please refer to the icon switch panel.
FAN:
The fan is operated by sliding the power switch on. It can be run at three different
speeds (Speed 1/Speed 2/Speed 3) depending on the cooking requirements. Please
refer to the icon on the switch panel.
CLEANING AND MAINTENANCE:
Switch off the rangehood before cleaning or maintenance. To prevent surface
damage never use abrasive or oil based liquid cleaners. To clean the surfaces of
the appliance, use mild detergent and warm water. In areas of high humidity and
coastal environments cleaning should be carried out frequently.
WARNING:
A build up of oil may occur if the range is not cleaned regularly.
FILTER MAINTENANCE:
To maintain efficiency, the filters should be removed regularly (approximately
monthly), and washed using hot soapy water of the dishwasher.
Note:
some discolouration of the frame may occur if washed in the dishwasher.
Rangehoods fitted with charcoal filters are designed to remove grease and odours
from cooking vapours prior to the cleansed air re-entering the kitchen. (when the
rangehood is in recirculation mode). Charcoal filters should be replaced every 6
months, these can be ordered from www.caple.co.uk (code CAP73CF)
Note:
Fully saturated charcoal filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could be
flammable and therefore require replacement is recommended.
BUCH Extractor Instruction manual.indd 13 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
14
Bulb replacement:
To replace a bulb, first disconnect the rangehood from the power supply. Use a
small blade screwdriver to prise off the lamp cover. Care must be taken to avoid the
lamp lens falling to the hob top. The bulb is a screw fit into the lamp socket. Insert
the replacement bulb into the lamp socket and replace the lamp cover.
Parts and Accessories list:
1. Charcoal filter (replacement code CAP73CF)
2. LED 2x2W
Replacement charcoal filters can be ordered from www.caple.co.uk, order the code
CAP73CF for this extractor. You can also order by calling 0117 938 1900
GUARANTEE
Caple undertake that if within 2 years from the date of the purchase, this
appliance or any part thereof that is proved to be defective by reason only of faulty
workmanship or materials, we will at our option repair or replace the same free of
any charge for labour or materials on condition that:
- Documentation must be provided before a guarantee repair commences to
confirm that the extractor is within the guarantee period.
- The appliance has been correctly installed and used only on the electrical supply
stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in
accordance with the operating and maintenance instructions.
- The appliance has not been serviced, maintained, repaired, taken apart or
tampered with by any person not authorised by us.
- All service work under this guarantee must be undertaken by Caple Service
Centre.
- Any appliance or defective part replaced shall become the property of this
company.
- If a service call is made and it is found that the installation has not been carried
out correctly or customer misuse/abuse is involved the cost of the service call has
to be paid for by the user before any service work is carried out.
BUCH Extractor Instruction manual.indd 14 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
15
EXCLUSIONS
THIS GUARANTEE DOES NOT COVER:
- Damage or calls resulting from transportation, improper use or neglect, the
replacement of any light bulbs or removable parts of glass or plastic.
- Costs incurred for calls to put right appliances improperly installed or calls to
appliances outside the United Kingdom.
- Appliances found to be in use within a commercial environment, plus those which
are the subject of rental agreements.
- This guarantee is in addition to and does not affect your statutory and legal rights.
BUCH Extractor Instruction manual.indd 15 06/07/2017 14:45

Instruction manual BUCH
Please keep this instruction manual for future reference
16
Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
t: 0117 938 7420
e: [email protected]
www.caple.co.uk
BUCH Extractor Instruction manual.indd 16 06/07/2017 14:45
