Caple AS611 User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Wall chimney hood instruction manual
AS611 / AS911
AS611BK-AS911BK - Instruction Manual.indd 1 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
2
CONTENTS
Introduction 3
Safety precautions 5
Environmental protection 9
Instructions for installation 10
Operating instructions 17
Care and maintenance 20
Troubleshooting 23
Guarantee and servicing 24
Caple Service contact details 28
AS611BK-AS911BK - Instruction Manual.indd 2 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
3
INTRODUCTION
Thank you for choosing this Caple extractor hood.
To ensure that you get the best results from your
new extractor, we strongly suggest that you read
this instruction manual thoroughly before use. If
treated with care, your Caple extractor should give
you years of trouble-free use.
To register ownership, please ensure you complete
and return the guarantee card supplied with the
appliance or visit www.caple.co.uk and register
here.
This instruction manual is designed to provide you
with all the required information related to the
installation, use and maintenance of the appliance.
This hood is designed to extract unpleasant odours
from the kitchen; it is not intended to extract steam.
In order to operate the unit correctly and safely,
please read this instruction manual carefully before
installation and use.
The cooker hood uses high quality materials and is
made with a streamlined design. Equipped with an
electric motor and centrifugal fan, it provides strong
extraction with low noise. It also features non-stick
grease filters and an easy installation.
AS611BK-AS911BK - Instruction Manual.indd 3 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
4
IMPORTANT
This appliance must only be used for the purpose
it is intended. Other types of use are not permitted
and may prove dangerous. Caple will not be held
liable for any damage caused by the incorrect use of
the appliance.
Do not use any accessories or attachments not
recommended by Caple as this may result in fire,
electric shock or injury.
To protect against fire, electrical shock and injury to
persons, do not immerse cords or plugs in water or
any other liquid.
Never touch the appliance with wet or damp hands.
Never pull the power cable as you could damage it.
If the appliance is faulty, do not attempt to repair it.
Isolate it from the mains electric supply and contact
Caple Service either by phone [phone] or
email [email protected].
Keep all packaging (including plastic bags,
polystyrene foam etc) out of the reach and away
from children.
Do not rest large or unstable objects on any part of
the appliance.
AS611BK-AS911BK - Instruction Manual.indd 4 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
5
IMPORTANT
Caple cannot be held responsible for injuries or
losses caused by incorrect use or installation of
this product. Please note that Caple reserve the
right to invalidate the guarantee supplied with this
product following incorrect installation or misuse
of the appliance. Under no circumstances should
any external covers be removed for servicing or
maintenance except by suitably qualified personnel.
SAFETY PRECAUTIONS
- Never let children operate the machine.
- The cooker hood is for home use only, not suitable
for barbecuing, restaurants or other commercial
purposes.
- The cooker hood and its filter should be cleaned
regularly in order to keep in good working
condition.
- Clean the cooker hood according to the
instruction manual to reduce the risk of fire.
- When using a gas hob, do not leave naked flames
under the extractor.
- Before connecting this appliance check that the
power supply cord is not damaged.
- If the room where the hood is to be used contains
AS611BK-AS911BK - Instruction Manual.indd 5 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
6
a fuel burning appliance such as a central
heating boiler then its flue must be of the sealed
or balanced flue type. If other types of flue or
appliances are fitted ensure that there is an
adequate supply of air to the room.
- The air must not be discharged into a flue that
is used for exhausting fumes from appliances
burning gas or other fuels.
- Regulations concerning the discharge of air have
to be conformed to.
- Do not flambé under the cooker hood.
- Never leave frying pans unattended during use as
over-heated fats and oils may catch fire.
- To ensure the best performance, we recommend
switching on the extractor 15 minutes before
cooking and leave it running 15 minutes after.
This will ensure that the air in the kitchen is being
circulated before cooking commences and the air
is being cleaned after cooking has finished.
- The performance of your extractor will vary
depending on a number of factors. These include
type of extraction, room volume, length of
ducting, ventilation available and the cleanliness of
the filters.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
AS611BK-AS911BK - Instruction Manual.indd 6 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
7
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
- Cleaning and user maintenance must not be made
by children without supervision.
- Never immerse the appliance in water.
- This product is not designed for commercial use, it is
a household appliance only. It is not intended to be
used in:
- Staff kitchen areas in shops, offices and other
working environments,
- Bed and breakfast type environments,
- By clients in hotels, motels and other residential
type environments.
- To avoid all risk, if the power cable is damaged,
it must only be replaced by a Caple appointed
engineer.
- Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
AS611BK-AS911BK - Instruction Manual.indd 7 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
8
the appliance in a safe way and understand the
hazards involved.
- Children must not play with this appliance.
- When not in use and before cleaning, always
isolate the appliance from the electrical supply.
ELECTRICAL SHOCK HAZARD
- Only plug this unit into a properly earthed outlet.
If in doubt seek advice from a suitably qualified
engineer.
- Failure to follow these instructions can result in
death, fire, or electrical shock.
- This appliance must be connected to the mains
by a competent person. We recommend that the
appliance is connected by a qualified electrician
who is a member of the N.I.C.E.I.C who will
comply with the I.E.E and local regulations.
Electrical information can be found on the rating
plate.
AS611BK-AS911BK - Instruction Manual.indd 8 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
9
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice.
This appliance is marked according to the European
directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product indicates that this
product may not be treated as household waste.
Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local council, your household waste
disposal service or the retailer where you purchased
the product.
AS611BK-AS911BK - Instruction Manual.indd 9 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
10
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the
strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and
Electromagnetic Compatibility (EMC).
INSTRUCTIONS FOR INSTALLATION
Before you start
- The cooker hood conforms to related appliances standards. Please check your
local building codes for any additional requirements.
- The appliance has been manufactured as class I, therefore earthed connection is
necessary. The cooker hood must be installed so that the plug is easily accessible.
- For ease of installation, the light assembly should be fitted using a magnetic
screwdriver before the hood is installed on the wall.
- The plastic cover is to protect the light assembly in transit. Once the light is fitted
to the hood, the plastic cover is easily removed by slackening the screws and
pulling the cover off.
AS611BK-AS911BK - Instruction Manual.indd 10 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
11
Planning your installation

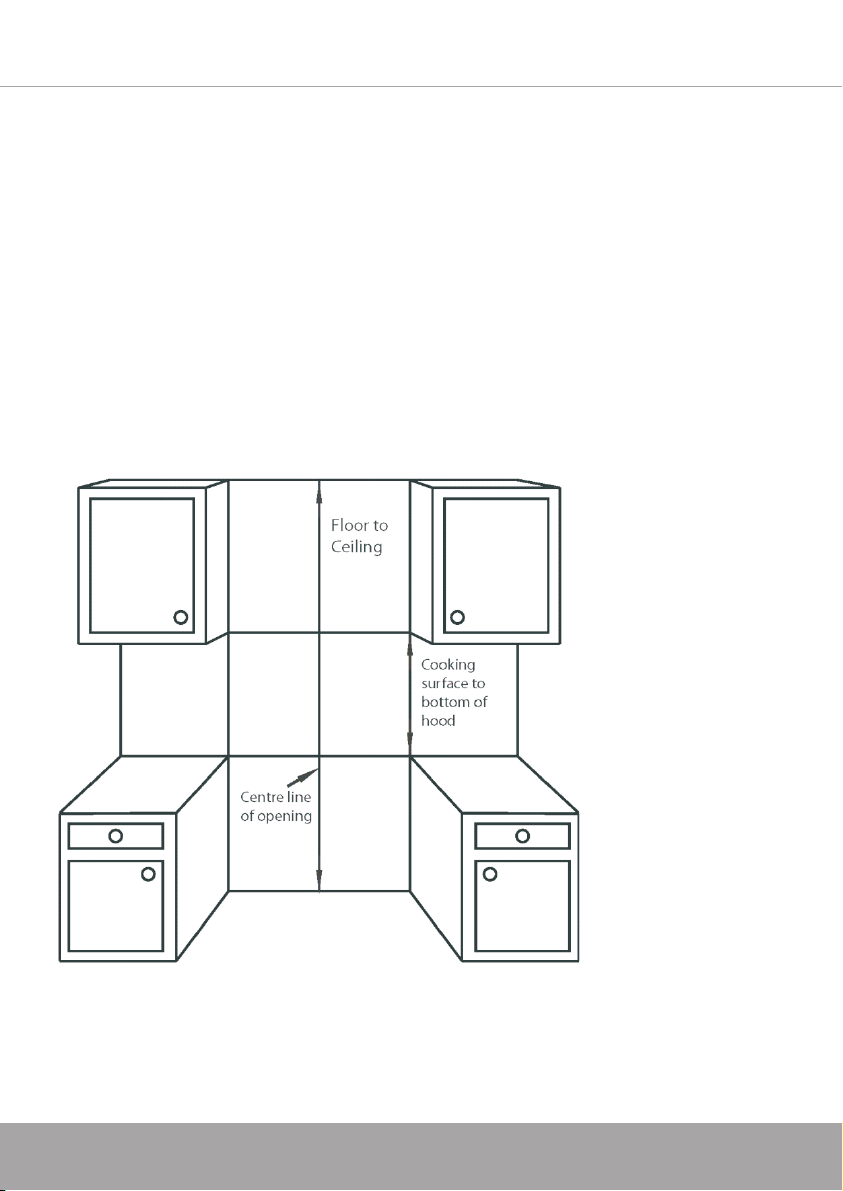

- Measure the floor to ceiling height. This hood can be installed on walls between
8ft and 9ft tall.
- Find the centre point of your opening. Mark a plumb line through this point from
ceiling to your range/hob.
- Check your range/hob user manual for the minimum distance above your
cooking surface. The minimum distance between any element or flame height
and the nearest combustible surface is 61cm.
- Decide where the ductwork will run between the hood and the outside. Short,
straight duct runs will provide the most air flow.
- If a recirculating kit is required (Code: 2 x CAP55CF), you may purchase one
through your dealer or visit www.caple.co.uk.
AS611BK-AS911BK - Instruction Manual.indd 11 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
12
Remove all packaging
- Remove the packaging with the product in place. Cut off the packing ribbons
and carefully cut open the packaging (do not cut too deeply), remove the
packaging. Check that the product is free from transport damage. Any damage
should be reported immediately to the carrier or retailer. Damage, faults and
missing parts must be reported immediately to the retailer.
Installing the ductwork
- Plan where the ductwork will run between the hood and the outside. The hoods
exhaust vertically but can be ducted to the rear behind the chimney duct through
an outside wall or vertically up through the ceiling to the roof. A short straight
duct run will produce the most air flow. Length and elbows will reduce the
efficiency of the blower.
- Install a roof or wall cap. Connect a 150mm round duct to the cap and work
backwards toward the hood. Ensure joints are completely sealed with duct tape.
AS611BK-AS911BK - Instruction Manual.indd 12 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
13

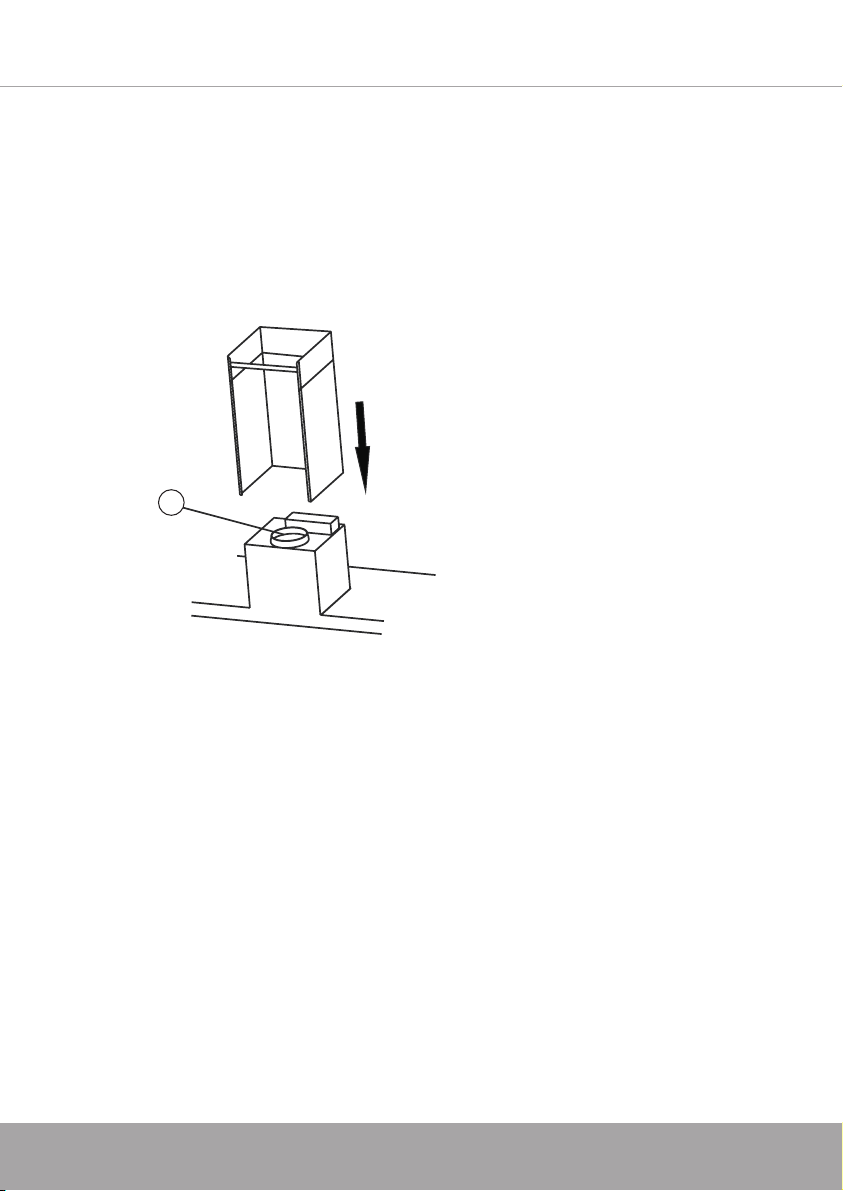

Fixing the chimney flu
- Carefully loosen but do not separate the telescopic chimney duct pieces.
- Arrange the electrical power supply within the dimensions of the chimney duct.
- Adjust the width of the support bracket to match the upper duct. Fix it to the
ceiling using the screws so that it is centred in line with your hood and at a
distance from the ceiling indicated.
B
AS611BK-AS911BK - Instruction Manual.indd 13 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
14
Fixing to the wall
- Before mounting the hood, plug in and test all functions for correct operation.
- Remove the filters from the bottom of the hood to prevent damage during the
installation.
- With assistance, hold the hood temporary in position ensuring the bottom is
above the minimum clearance for the cooking surface. Mark on the wall the
holes for the two mounting screws.
- Drill the holes and install the mounting bracket (1). Use the appropriate screws
and screw anchors for your wall type (e.g. reinforced concrete, drywall,etc.). If
necessary, prepare back wall with cross framing for secure installation.
- Mount the hood onto the bracket (2).
- Install two mushroom tapping screw into the wall.
- Connect a duct tube (not included) to the exhaust piece using duct tape on all
seals (B).
38
39
40
Mounting bracket
Hook
1
2
mushroom tapping screw
3
AS611BK-AS911BK - Instruction Manual.indd 14 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
15
Installation guidelines
400-510mm
690mm
460mm
600/900mm
800mm
320mm
320mm
1080-1350mm
650 -760mm
1200 - 1700mm
Note:
The above installation guideline is for reference only, please contact your local
dealer for a installation service.
Note:
The cooker hood should be placed at a minimum distance of 40-51cm above the
hob. It is the manufacturer of the hob who determines the clearance required. The
clearance quoted by the hob manufacturer must be followed. In the absence of any
instructions supplied with a gas hob the minimum distance between the hob and
the bottom of the hood must be at least 51cm.
AS611BK-AS911BK - Instruction Manual.indd 15 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
16
Installation alternatives
- The cooker hood can be installed in the following ways:
- Circulating indoor air (A) or outdoor venting (B)
Important
- If a two-part connection tube is used, the lower section must sit outside the
upper section.
- Do not connect the cooker hood exhaust to a duct used to circulate hot air or
vent steam from another appliance.
- Always use protective gloves when installing the appliance.
AB
AS611BK-AS911BK - Instruction Manual.indd 16 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
17
OPERATING INSTRUCTIONS
Operations
- For optimum performance when removing cooking odours, it is recommended
that you turn on your cooker hood 15 minutes prior to cooking and you leave it
operating for 15 minutes after cooking.
- Clean the surfaces of the cooker hood regularly using a non-abrasive detergent.
- The anti-grease filters capture the grease particles suspended in the air. They
will accumulate grease and dirt depending on the frequency of the use of your
range/hob.
- In order to prevent a fire hazard, it is recommended that you clean the aluminium
filter at least every 2 months
Warning:
- Do not attempt to remove the filters while the cooker hood is operating.
- Disconnect the electrical plug prior to any maintenance.
- This appliance is not intended for use by young children or infirm persons
without supervision.
- There should be adequate ventilation in the room when the cooker hood is used
at the same time as other fuel burning appliances.
AS611BK-AS911BK - Instruction Manual.indd 17 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
18

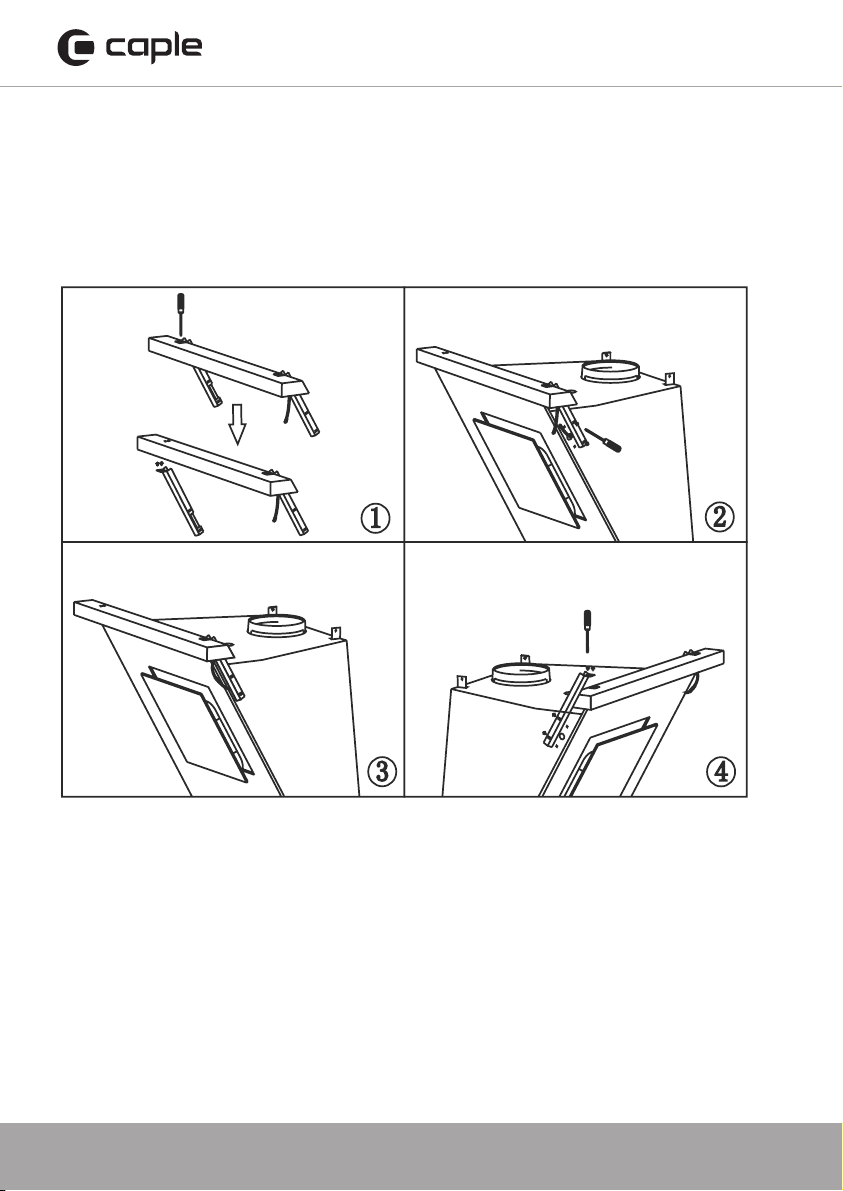

Installation for lamp cover
- Separate lamp cover and lift the bracket by unscrewing.
- Install the right bracket to the cooker hood, then tighten the screws.
- Connect two cables.
- Re-Install left bracket and tighten the screws.
AS611BK-AS911BK - Instruction Manual.indd 18 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
19
Description of touch controls
123
Touch
Touch
Touch 3 seconds
Touch
Touch
Touch 3 seconds
Touch
Touch
Touch
Touch
1
2
3
Low speed setting
Turn off after 5 min.
Turn off after 5 min.
Medium speed setting
Off
High speed setting
Off
On
Off
Off
AS611BK-AS911BK - Instruction Manual.indd 19 22/03/2016 15:04

Instruction manual AS611 / AS911
Please keep this instruction manual for future reference
20
CARE AND MAINTENANCE
Important
- Before cleaning or maintenance please switch off the electricity supply and
remove the plug from the wall.
Regular cleaning
- Use a soft damp cloth with lukewarm mildly soapy water or household cleaning
detergent. Never use metal pads, chemicals, abrasive material, abrasive cleaning
creams or stiff brushes to clean the appliance.
Cleaning the grease filter
- Clean the filter every month to help minimise the risk of fire.
- The filter collects grease, smoke and dust, therefore the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (which
is potentially flammable) will saturate the filter. Clean with warm water and
washing up liquid or clean it in the dishwasher. Please ensure no other items are
washed with the filters to prevent food becoming trapped in the gauze. Cleaning
the grease filters in the dishwasher may lead to discolouration, this is normal and
is a not a fault with the product.
Replacing your charcoal filter
- This only applies if you are using the hood in recirculation mode (not vented to
the outside). The charcoal filter need to be replaced, this can vary depending on
how frequently the cooker hood is used. We recommend replacing them at least
every 6 months.
- This extractor uses 2 x CAP55CF charcoal filter. Filters can be purchased directly
from www.caple.co.uk.
AS611BK-AS911BK - Instruction Manual.indd 20 22/03/2016 15:04
