Caple DD925CO User manual

Downdraft Hood
Instruction Manual
DD925CO
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual DD925CO
2Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Dimensions 8
Installing the Extractor 9
Grease Filter Removal, Installing the Activated Charcoal Filter 15
Electrical Connection 16
Remote Control 18
Cleaning the Extractor 22
Troubleshooting 23
Aftersales Service 24
Caple Contact Details 28

Instruction manual DD925CO 3
Please keep this instruction manual for future reference
INTRODUCTION
This downdraft extractor is designed to work in both
recirculation mode and ducted with outside evacuation.
WARNING
Keep these instructions for use with the appliance. If the
appliance should be sold or passed on to others, make
sure that the instructions are passed on with it. We thank
you for taking note of these suggestions before installing
and using the appliance. They have been written for your
personal safety and the safety of others.

Instruction manual DD925CO
4Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
This hood has been designed for personal use in the home.
The appliance must be used by adults. Make sure that the
appliance is out of reach of children and that they do not
use it to play with. Make sure that children do not operate
the controls.
-When the appliance is delivered, check the overall
appearance of the packaging.
-Any remarks should be written on the delivery note, of
which you keep a copy. Your appliance is designed for
normal domestic use. It is not designed for commercial or
industrial use, or for purposes other than those for which
it was designed.
-Any consequences of or damage from incorrect
installation or incorrect use of the appliance will not be
covered by the manufacturer’s guarantee.
-Do not ever change or try to change the characteristics
of this appliance. This would be a danger. Repairs must
be performed only by an authorised Caple engineer.
-Always disconnect the hood before carrying out cleaning
or maintenance operations.
-Adequately ventilate the room when a cooker hood
and other appliances, powered by energy other than
electricity, are used simultaneously, so that the hood
does not suck any-combustion fumes.

Instruction manual DD925CO 5
Please keep this instruction manual for future reference
-Do not cook food over open flames (flambé) or operate
gas hobs without pots or pans on them while using the
hood (the flames may get sucked into the hood causing
damage to the appliance).
-Frying whilst using this extractor must be done under
constant supervision as hot oils and fats may ignite.
-Respect the guidelines for cleaning and replacement of
grease filters. Accumulated deposits of grease are a
fire hazard.
-This appliance must not be used near hobs powered by
wood or coal or in any case, near hobs with power levels
that could damage the appliance.
-Never use steam or high pressure devices for cleaning
your hood (regulations regarding electrical safety).
-Never use the cooker hood without the grease
filters fitted.
- The minimum distance between the Downdraft extractor
(closed) and the surface above must be at least 400mm.
- When handling the Downdraft, never put your hands in
the field of action of the extractable unit. Do not touch
any moving parts.

Instruction manual DD925CO
6Please keep this instruction manual for future reference
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.
We are constantly seeking to improve our products, we
reserve the right to modify their technical, functional, or
aesthetic characteristics deriving from their upgrading.
In the event a downdraft is installed with an external
motor, for normal downdraft operation, it is necessary to
use an external motor made by Caple.
The air collected must not be conveyed into a flue used
for smoke or fumes from appliances powered by anything
other than electricity (central heating systems, etc.). As far
as discharging exhaust air is concerned, please follow the
guidelines given by competent authorities.
There must be a minimum space of 50mm between the
edge of a gas hob and the downdraft frame.

Instruction manual DD925CO 7
Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU. This declaration is issued under the sole
responsibility of the manufacturer. Hereby, Caple declares that the radio equipment included in
the products is in compliance with the RED 2014/53/EU. The full text of the EU Declaration of
Conformity is available on our website: www.caple.co.uk
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk.

Instruction manual DD925CO
8Please keep this instruction manual for future reference
DIMENSIONS
DESCRIPTION
OF THE APPLIANCE
EN
5
Note: The Downdraft worktop cutout can be connected to the hob cutout,
but only for electric hobs.
For gas hobs, a minimum 50mm gap must be left beetween the edge of
the gas hob and the downdraft frame
NOTE:
The Downdraft worktop cutout can be connected to the hob cutout, but only for electric hobs.
For gas hobs, a minimum 50mm gap must be left between the edge of the gas hob and the
downdraft frame.

Instruction manual DD925CO 9
Please keep this instruction manual for future reference
INSTALLING THE EXTRACTOR
1. Before carrying out the appliance installation, please check
that all components are not damaged, in such a case contact your retailer and do not carry out
any installation operation.
Before the installation of the Downdraft, please remove the safety piece you can see in the
picture. Furthermore, please read carefully all of the following installation instructions:
› Use an air exhausting pipe whose maximum length does not exceed 5 meters.
› Do not use flexible ducting.
› Limit the number of elbows in the piping, since each elbow reduces the air capacity of 1
linear meter.
(eg. if you use no. 2 x 90° elbows, the length of piping should not exceed 3 meters).
› Avoid abrupt direction changes.
› Use a 150mm constant diameter rigid ducting pipe for the whole length
(or equal surface area).
› Only use ducting approved by the standards in force.
The manufacturer shall not be deemed responsible for air capacity or noise problems caused by
failure to comply with the above instructions and no warranty on the product shall be provided.
2. Before making the hole, check that there are no structural or other parts inside the cabinet,
where the appliance is to be placed, which could hinder a proper installation. Check that the
dimensions of the Downdraft and the ones of the hob are compatible with the cabinet so that
the installation can be carried out properly.
3. Make a rectangular opening of 842 x 100mm in the back of the worktop.

Instruction manual DD925CO
10 Please keep this instruction manual for future reference

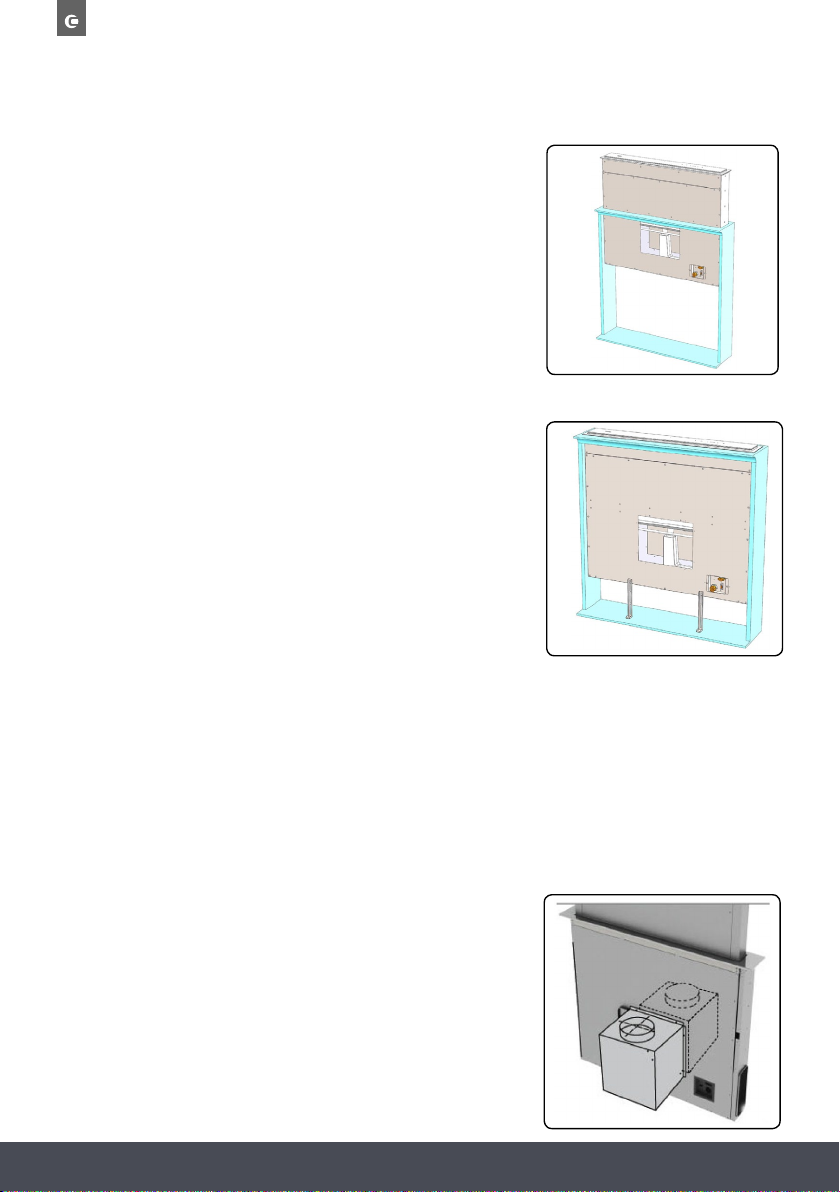

4. Put the Downdraft in the opening, inserting it from above
as shown in (Fig. 1).
5. Fix the downdraft inside the cabinet, using the special
fixing brackets supplied with the product (Fig. 2). Insert the
brackets in the lower side of the downdraft (Fig. 2), in such
a way that there is a 2mm distance between the lower side
of bracket and the bottom of the cabinet (Fig. 2).
This distance will allow the traction to be positioned
downwards of the product, at the moment of fixing, in
order to have the stainless steel trim perfectly adhering
with the work surface. Before inserting the screws,
please make sure that the appliance is perfectly
perpendicular with the work surface.
6. If using an internal motor with the downdraft, place the internal motor in the desired position,
with the air outlet facing either upwards or downwards (Fig.3).The motor can be installed
either on the front or rear of the downdraft. Once the motor is installed, connect the ducting
to the air outlets.
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13

Instruction manual DD925CO 11
Please keep this instruction manual for future reference

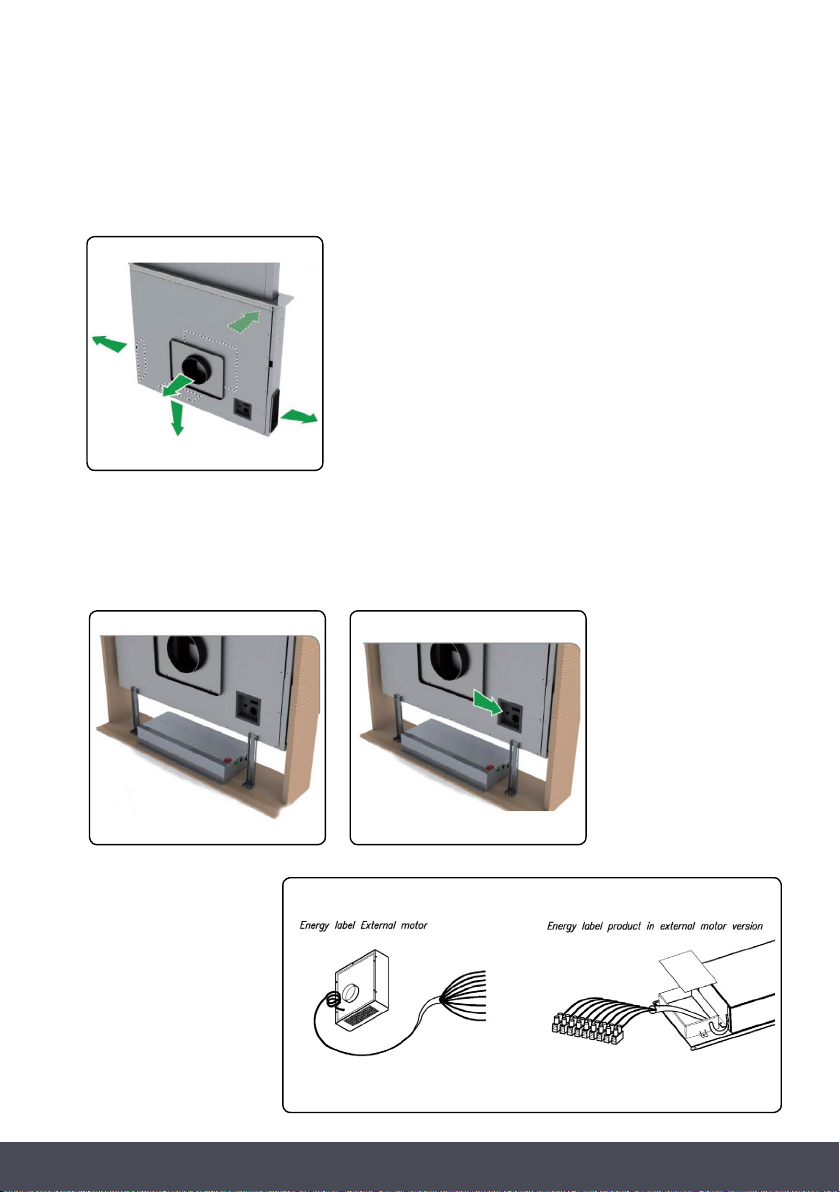

7. If using an external motor, install the motor in the required position, and then fit the ducting
from the motor to the downdraft. There are 5 air duct positions on the downdraft to choose
from (Fig.4).
8. Place the electrical box in an easily reachable area for future maintenance and service
operations (Fig.5). Connect the 3 connections (9 pole connector for the actuator control and
safety control, 4 pole connector for the neon lamp turn on and push button connector) (Fig.6).
9. Connect the motor unit
cable to the relevant
connector on the
electrical components
box (Fig.7).
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13
Fig. 4
Fig. 1
Fig. 5 Fig. 6
Fig. 2
Fig. 3
13
Fig. 7
14
Fig. 8 Fig. 9
Fig. 10 Fig. 11

Instruction manual DD925CO
12 Please keep this instruction manual for future reference
10. Power the downdraft
11. Let the downdraft rise, as described in the ‘How the downdraft works’ section. When the
downdraft has fully risen, unscrew and remove the safety locks (see Fig.8). Install the metal
filter cover in this location. (Fig.9).
Fig. 7
14
Fig. 8 Fig. 9
Fig. 10 Fig. 11

Instruction manual DD925CO 13
Please keep this instruction manual for future reference
HOW TO USE THE EXTRACTOR
This appliance is intended to suck cooking fumes, greases and some steam. It has been designed
to work in both ducted mode, with outside evacuation, and recirculating mode.
OUTSIDE - DUCTED VERSION
The cooker hood can be mounted in the version with outside discharge of extracted air: in this
case it is necessary to connect the exhausting channel/ducting to the outside (exhausting pipes are
not supplied with this product).
Check for a non-return valve blockage
WARNING:
Before connecting the air exhaust hose, make sure that the non-return valves can move freely.
EN
HOW TO USE THE COOKER HOOD
This appliance is intended to suck cooking fumes,
greases and steam. It has been designed to work
in both suctioning mode, with outside evacuation,
and ltering mode.
Outside - discharge version
The cooker hood can be mounted in the version
with outside discharge of suctioned air: in this case
it is necessary to connect the exhausting channel
to the outside (exhausting pipes are not supplied
with the products.)
Non-return valve blockage
In case of outside air discharge installation, t a
non-return valve to prevent wind and back air from
entering.
Before connecting the air exhaust hose, make
sure that the non-return valves can rotate fre-
ely.
WARNING
Recirculation mode
In case fumes and vapour cannot be
evacuated outside, the appliance can be used in
recirculation mode.
Activated charcoal filters are required for this type
installation. To purchase the Charcoal filters
please visit www.caple.co.uk, or call our sales
office on 0117 938 1900.
Air recycled through the charcoal filters is recircu-
lated back into the kitchen, thanks to a vent
conveying the air in the cabinet and kitchen plinth
(Fig. 11).
CAUTION
WARNING
Removing/installing the grease and charcoal
filters
The removal and fitting of the grease and
charcoal filters need to be carried out with the
downdraft in the upright/open position. To open
the downdraft, push the key.
Remove the metal grease filters, which are
magnetically secured to the appliance, by using
either a hand tool or a knife edge. Using the slot
found in the filter sides, as shown in Fig. 9.
The charcoal filter is installed directly on the
back of the grease filter (see Fig. 12). Charcoal
filters shall be replaced accordingly to the
effective use of the Downdraft, and in any
case at least once every 6 months.
7
After having replaced the charcoal filters,
ensure the front stainless steel panel is re-
applied, otherwise the downdraft will not be
able to function
Installation must comply with the regulations
in force regarding the ventilation of enclosed
environments. In particular, discharged air
must not be conveyed into a duct used for
fumes discharge or discharge from
appliances using gas or other combustible
materials. The use of discontinued ducts is
not allowed without the approval of a
qualified technician.

Instruction manual DD925CO
14 Please keep this instruction manual for future reference
Fig. 7
14
Fig. 8 Fig. 9
Fig. 10
Fig. 11
CAUTION:
Installation must comply with the regulations in force regarding the ventilation of enclosed
environments. In particular, discharged air must not be conveyed into a duct used for fumes
discharge or discharge from appliances using gas or other combustible materials. The use of
discontinued ducts is not allowed without the approval of a qualified technician.
RECIRCULATED MODE
In case fumes and vapour cannot be evacuated outside, the appliance can be used in the
recirculating mode. Activated charcoal filters are required for this type of installation.
In case of outside air discharge installation, fit a non-return valve to prevent wind and back air
from entering.
Air recycled through the charcoal filters is recirculated into the kitchen, thanks to a duct conveying
the air beneath the cabinet (Fig 11).
NOTE:
Activated charcoal filters are required for this type installation. To purchase the Charcoal filters
please visit www.caple.co.uk, or call our sales office on 0117 938 1900.

Instruction manual DD925CO 15
Please keep this instruction manual for future reference
GREASE FILTER REMOVAL,
INSTALLING THE CHARCOAL FILTERS
The removal and fitting of the grease and charcoal filters need to be carried out with the
downdraft in the upright/open position. To open the downdraft, push the key.
Remove the metal grease filters, which are magnetically secured to the appliance, by using either a
hand tool or a knife edge. Using the slot found in the filter sides, as shown in Fig. 9.
The charcoal filter is installed directly on the back of the grease filter (see Fig. 12). Charcoal filters
shall be replaced accordingly to the effective use of the Downdraft, and in any case at least once
every 6 months.
Fig. 13
15
Fig. 12
WARNING:
After having replaced the charcoal filters, ensure the front stainless steel panel is re-applied,
otherwise the downdraft will not be able to function.

Instruction manual DD925CO
16 Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
WARNING:
Place the metal box containing the electronic components at a distance of no less than 65cm from
gas operated hobs or in any case, 65cm from the suctioning surface of the cooker hood.
NOTE:
We recommend installing the metal box containing the electronic components at least 10cm
above floor level and at a suitable distance from all heat sources (e.g. ovens or hobs).
CAUTION:
This appliance is fitted with an H05 VVF 3 conductor, 0.75mm2(neutral, phase, and ground)
power cord.
This can be connected up to a 220 - 240 V monophase electrical network through a CEI 60083
approved power socket, which must remain accessible after installation, in compliance with
installation regulations. We decline any responsibility in case of accidents caused by a lack
of ground connection or incorrect ground connection. The appliance must be fed through a
differential protection device (RCD), with a nominal residual current not exceeding 30mA. If the
power cord is damaged, call the Caple after-sales service to avoid any risk.
WARNING:
› The downdraft connection to the electrical network must be carried out only by professional
and qualified technicians.
› The downdraft must be connected to a properly installed and suitable electrical network.
› The electrical system must comply with VDE0100 standard.
DANGER:
If the cooker hood presents any anomaly, disconnect the appliance or remove the fuse
corresponding to the appliance power disconnecting line.
If the appliance has no plug or if the plug is not easily accessible, then a device needs to be
fitted to cut it off from the electric network; this device must have an opening distance between
contacts on all poles of at least 3mm.

Instruction manual DD925CO 17
Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
While installing the appliance and carrying maintenance operation, make sure it is disconnected
from the electrical network or the fuses are cut out or removed.
Check that:
› Power is enough.
› Feeder lines (mains) are in good condition.
› The cable diameter complies with installation regulations.

Instruction manual DD925CO
18 Please keep this instruction manual for future reference

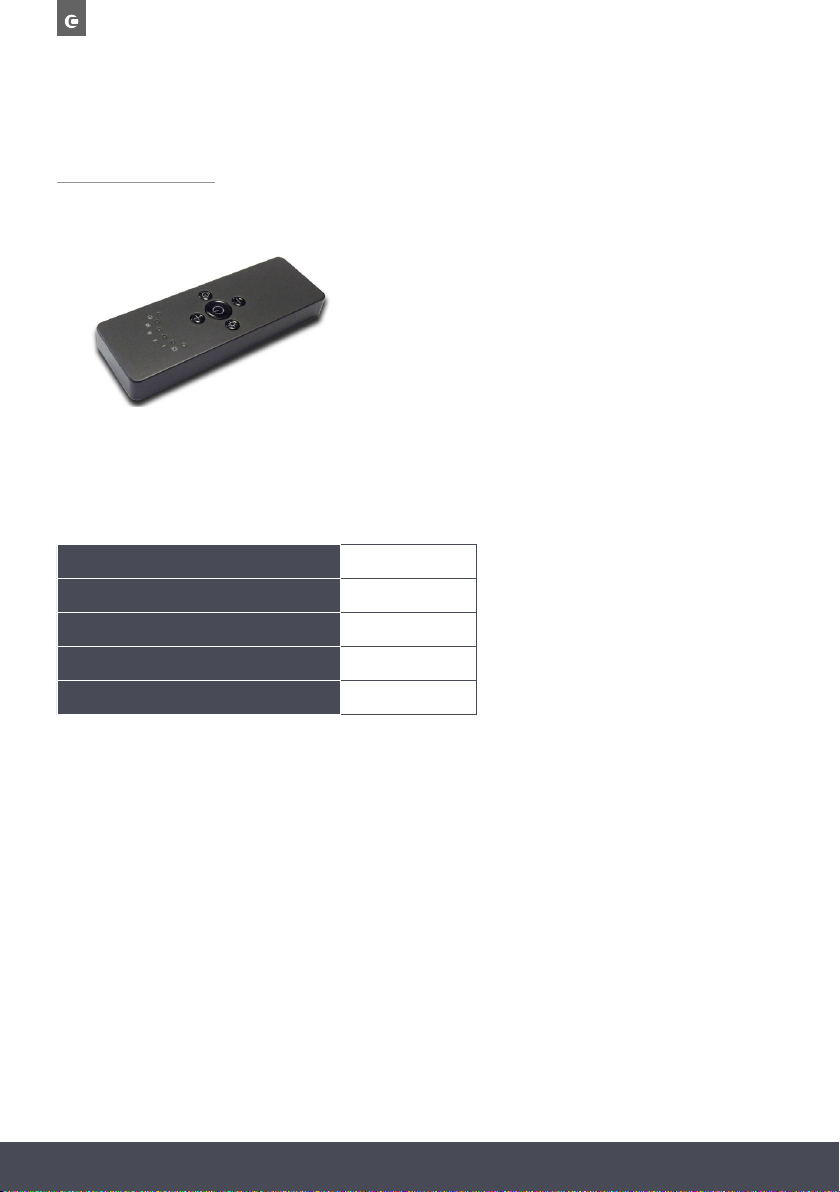

REMOTE CONTROL
Remote control used for the remote operation of Caple island hoods:
TECHNICAL DATA:
ALKALINE BATTERY POWERED: 12V mod. 27A
OPERATING FREQUENCY: 433.92 Mhz
COMBINATIONS: 4096
MAX. CONSUMPTION: 25 mA
OPERATING TEMPERATURE: -20 ÷ + 55 °C
EN
HOW THE COOKER
HOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the
downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed
will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the downdraft unit upward movement
and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the
motor and if on, the light; then it retracts the
downdraft unit.
C: Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switches
off, without closing the pull-out carriage.
D: Indicators
• This signals the speed setting, by only the
relevant LED switching on.
E: Key
This increases the speed of the extractor motor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
9
After 10 minutes from its setup, it allows to stop
the motor , close the extractable unit and turn the
lights off, if on.
Push the key again to annul this function.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25mA
Operating temperature: -20° : +55°C
Standard con iguration.
If two cooker hoods-radio control system are in-
stalled in the same room or in the immediate vi-
cinity, each system may affect the operation of
the other, due to the fact that they have the same
code. Therefore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the manufacturer
with default codes stored. If you want to create a
new set of codes, proceed as follows: press and
hold the UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS light up,
press the UP and DOWN buttons within 5 secon-
ds. The LEDS will flash 3 times to indicate that the
process is completed.
WARNING: This procedure deletes all previously
stored codes.
Learning the new transmission code.
After changing the transmission code on the ra-
dio control, the cooker hood electronic control unit
must be made to set the new code as follows:
press the main Power Off button on the cooker
hood and then restore power to the electronic
control unit. Within the next 15 seconds, press
the Light button. This will ensure the control unit is
synchronized with the new code.
Warning:
The battery should be replaced every year to gua-
rantee the optimal range of the transmitter.
To replace the exhausted battery, take the plastic
lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used
batteries should be discarded in special collection
bins.

Instruction manual DD925CO 19
Please keep this instruction manual for future reference
EN
HOW THE COOKER
HOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the
downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed
will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the downdraft unit upward movement
and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the
motor and if on, the light; then it retracts the
downdraft unit.
C: Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switches
off, without closing the pull-out carriage.
D: Indicators
• This signals the speed setting, by only the
relevant LED switching on.
E: Key
This increases the speed of the extractor motor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
9
After 10 minutes from its setup, it allows to stop
the motor , close the extractable unit and turn the
lights off, if on.
Push the key again to annul this function.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25mA
Operating temperature: -20° : +55°C
Standard con iguration.
If two cooker hoods-radio control system are in-
stalled in the same room or in the immediate vi-
cinity, each system may affect the operation of
the other, due to the fact that they have the same
code. Therefore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the manufacturer
with default codes stored. If you want to create a
new set of codes, proceed as follows: press and
hold the UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS light up,
press the UP and DOWN buttons within 5 secon-
ds. The LEDS will flash 3 times to indicate that the
process is completed.
WARNING: This procedure deletes all previously
stored codes.
Learning the new transmission code.
After changing the transmission code on the ra-
dio control, the cooker hood electronic control unit
must be made to set the new code as follows:
press the main Power Off button on the cooker
hood and then restore power to the electronic
control unit. Within the next 15 seconds, press
the Light button. This will ensure the control unit is
synchronized with the new code.
Warning:
The battery should be replaced every year to gua-
rantee the optimal range of the transmitter.
To replace the exhausted battery, take the plastic
lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used
batteries should be discarded in special collection
bins.
LIGHT ON/OFF KEY
The light switches on and off only when the downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it is on.
EN
HOW THE COOKER
HOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the
downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed
will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the downdraft unit upward movement
and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the
motor and if on, the light; then it retracts the
downdraft unit.
C: Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switches
off, without closing the pull-out carriage.
D: Indicators
• This signals the speed setting, by only the
relevant LED switching on.
E: Key
This increases the speed of the extractor motor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
9
After 10 minutes from its setup, it allows to stop
the motor , close the extractable unit and turn the
lights off, if on.
Push the key again to annul this function.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25mA
Operating temperature: -20° : +55°C
Standard con iguration.
If two cooker hoods-radio control system are in-
stalled in the same room or in the immediate vi-
cinity, each system may affect the operation of
the other, due to the fact that they have the same
code. Therefore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the manufacturer
with default codes stored. If you want to create a
new set of codes, proceed as follows: press and
hold the UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS light up,
press the UP and DOWN buttons within 5 secon-
ds. The LEDS will flash 3 times to indicate that the
process is completed.
WARNING: This procedure deletes all previously
stored codes.
Learning the new transmission code.
After changing the transmission code on the ra-
dio control, the cooker hood electronic control unit
must be made to set the new code as follows:
press the main Power Off button on the cooker
hood and then restore power to the electronic
control unit. Within the next 15 seconds, press
the Light button. This will ensure the control unit is
synchronized with the new code.
Warning:
The battery should be replaced every year to gua-
rantee the optimal range of the transmitter.
To replace the exhausted battery, take the plastic
lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used
batteries should be discarded in special collection
bins.
ON/OFF KEY
This starts the downdraft unit upward movement and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the motor and if on, the light; then it retracts the
downdraft unit.
EN
HOW THE COOKER
HOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the
downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed
will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the downdraft unit upward movement
and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the
motor and if on, the light; then it retracts the
downdraft unit.
C: Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switches
off, without closing the pull-out carriage.
D: Indicators
• This signals the speed setting, by only the
relevant LED switching on.
E: Key
This increases the speed of the extractor motor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
9
After 10 minutes from its setup, it allows to stop
the motor , close the extractable unit and turn the
lights off, if on.
Push the key again to annul this function.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25mA
Operating temperature: -20° : +55°C
Standard con iguration.
If two cooker hoods-radio control system are in-
stalled in the same room or in the immediate vi-
cinity, each system may affect the operation of
the other, due to the fact that they have the same
code. Therefore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the manufacturer
with default codes stored. If you want to create a
new set of codes, proceed as follows: press and
hold the UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS light up,
press the UP and DOWN buttons within 5 secon-
ds. The LEDS will flash 3 times to indicate that the
process is completed.
WARNING: This procedure deletes all previously
stored codes.
Learning the new transmission code.
After changing the transmission code on the ra-
dio control, the cooker hood electronic control unit
must be made to set the new code as follows:
press the main Power Off button on the cooker
hood and then restore power to the electronic
control unit. Within the next 15 seconds, press
the Light button. This will ensure the control unit is
synchronized with the new code.
Warning:
The battery should be replaced every year to gua-
rantee the optimal range of the transmitter.
To replace the exhausted battery, take the plastic
lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used
batteries should be discarded in special collection
bins.
KEY
This reduces the speed of the extractor motor from the 4th speed until the motor switches off,
without closing the pull-out carriage.
EN
HOW THE COOKER
HOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the
downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed
will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the downdraft unit upward movement
and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the
motor and if on, the light; then it retracts the
downdraft unit.
C: Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switches
off, without closing the pull-out carriage.
D: Indicators
• This signals the speed setting, by only the
relevant LED switching on.
E: Key
This increases the speed of the extractor motor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
9
After 10 minutes from its setup, it allows to stop
the motor , close the extractable unit and turn the
lights off, if on.
Push the key again to annul this function.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25mA
Operating temperature: -20° : +55°C
Standard con iguration.
If two cooker hoods-radio control system are in-
stalled in the same room or in the immediate vi-
cinity, each system may affect the operation of
the other, due to the fact that they have the same
code. Therefore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the manufacturer
with default codes stored. If you want to create a
new set of codes, proceed as follows: press and
hold the UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS light up,
press the UP and DOWN buttons within 5 secon-
ds. The LEDS will flash 3 times to indicate that the
process is completed.
WARNING: This procedure deletes all previously
stored codes.
Learning the new transmission code.
After changing the transmission code on the ra-
dio control, the cooker hood electronic control unit
must be made to set the new code as follows:
press the main Power Off button on the cooker
hood and then restore power to the electronic
control unit. Within the next 15 seconds, press
the Light button. This will ensure the control unit is
synchronized with the new code.
Warning:
The battery should be replaced every year to gua-
rantee the optimal range of the transmitter.
To replace the exhausted battery, take the plastic
lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used
batteries should be discarded in special collection
bins.
INDICATORS
This signals the speed setting, by only the relevant LED switching on.
EN
HOW THE COOKER
HOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the
downdraft is fully OPEN/UP.
Pressing this button with the downdraft closed
will cause the downdraft to open and then the
light will switch on.
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the downdraft unit upward movement
and when it is fully open, it sets the second
extraction speed.
With the downdraft open/up: it switches off the
motor and if on, the light; then it retracts the
downdraft unit.
C: Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switches
off, without closing the pull-out carriage.
D: Indicators
• This signals the speed setting, by only the
relevant LED switching on.
E: Key
This increases the speed of the extractor motor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
9
After 10 minutes from its setup, it allows to stop
the motor , close the extractable unit and turn the
lights off, if on.
Push the key again to annul this function.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25mA
Operating temperature: -20° : +55°C
Standard con iguration.
If two cooker hoods-radio control system are in-
stalled in the same room or in the immediate vi-
cinity, each system may affect the operation of
the other, due to the fact that they have the same
code. Therefore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the manufacturer
with default codes stored. If you want to create a
new set of codes, proceed as follows: press and
hold the UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS light up,
press the UP and DOWN buttons within 5 secon-
ds. The LEDS will flash 3 times to indicate that the
process is completed.
WARNING: This procedure deletes all previously
stored codes.
Learning the new transmission code.
After changing the transmission code on the ra-
dio control, the cooker hood electronic control unit
must be made to set the new code as follows:
press the main Power Off button on the cooker
hood and then restore power to the electronic
control unit. Within the next 15 seconds, press
the Light button. This will ensure the control unit is
synchronized with the new code.
Warning:
The battery should be replaced every year to gua-
rantee the optimal range of the transmitter.
To replace the exhausted battery, take the plastic
lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used
batteries should be discarded in special collection
bins.
KEY
This increases the speed of the extractor motor, from 1st to 4th speed, without moving the
extractor panel.
10
MODEL DD911
A: Light ON/OFF key
The light switches on and off only when the
carriage is fully OPEN.
Pressing this button with the carriage closed
will cause the carriage to open and then the
light will switch on .
The button also serves to switch off the light
if it is on.
B: ON/OFF key
This starts the extraction carriage upward
movement and when it is fully open, it sets the
second extraction speed.
With the carriage open: it switches off the mo-
tor and if on, the light; then it retracts the ex-
traction carriage.
C: (-) Key
This reduces the speed of the extractor motor
from the 4th speed until the motor switch-
es off, without closing the pull-out car-
riage.
D: Indicators
•This signals the speed setting, by only
the relevant LED switching on.(see
'Timing' on pg 11 for further information)
• This signals that all filters have been satu-
rated by all LEDs switching on.
E: (+) Key
This increases the speed of the extractor mo-
tor, from 1st to 4th speed, without moving the
extractor panel.
F: Timer
10 min after setting, it serves to stop the ex-
tractor motor, close the carriage and switch
the lights off, if they are on. The set function is
signalled by the flashing LEDs “D” for the set
speed. The timer can be cancelled by press-
ing the key again.
Other functions:
Automatic turn off:
After 4 hours of continuous working from
the last function selection, the appliance
turns off and closes automatically.
Grease filters saturation:
After 30 hours of working, the speed indica-
tors “D” will all flash simultaneously, signaling
the grease filters saturation.
To reset this alarm, hold down the “TIMER”
button for at least 3 seconds, while the car-
riage is open.
Calibration:
The cooker hood carries out its self
calibration every 3 complete cycles of its
extractable unit.
By pushing the “TIMER” key 6 times consec-
utively (MAX break between one push and the
other is 3 sec.) all the leds will flash and the
calibration will be reset.
After the next 3 cycles the downdraft will carry
out its self calibration.
Stand-by:
When the extractable unit is closed and the
light is switched off, the control panel,
after 6 seconds, activates the stand-by
function, reducing the brightness of the leds.
This function can be stopped by pressing ON/
OFF or LIGHT key.
How the downdraft works
TIMER
After 10 minutes from its setup, it allows to stop the motor , close the extractable unit and turn
the lights off, if on.
Push the key again to annul this function

Instruction manual DD925CO
20 Please keep this instruction manual for future reference
OTHER FUNCTIONS:
AUTOMATIC TURN OFF
After 4 hours of continuous working from the last function selection, the appliance turns off and
closes automatically.
SECURITY SAFTEY SYSTEM:
If there is an obstacle while the extractable unit is closing, the Downdraft stops closing and rises
again thanks to a security system.
WARNING:
This operation has to be carried out by a specialised technician.
STANDARD CONFIGURATION:
Standard configuration requires all cooker hood remote controls to be provided with the same
transmission code. In the event two cooker hoods radio control system are installed in the same
room or nearby, each system may affect the operation of the another. Therefore, the code of one
radio control system must be changed.
GENERATING A NEW TRANSMISSION CODE:
The radio control system is provided with preset codes. Should new codes be required, proceed as
follows: Press simultaneously buttons:
for two seconds. When LED’s light on, press buttons:
(within 5 seconds). LED’s flashing 3 times indicate the procedure is completed.
WARNING:
This operation permanently deletes the preset codes.
STANDARD CONFIGURATION:
Standard configuration requires all cooker hood remote controls to be provided with the same
transmission code. In the event two cooker hoods radio control system are installed in the same
room or nearby, each system may affect the operation of the another. Therefore, the code of
one radio control system must be changed.
GENERATING A NEW TRANSMISSION CODE:
The radio control system is provided with preset codes. Should new codes be required, proceed
as follows: Press simultaneously buttons:
for two seconds. When LED’s light on, press buttons:
(within 5 seconds). LED’s flashing 3 times indicate the procedure is completed.
WARNING:
This operation permanently deletes the preset codes.
LEARNING THE NEW TRANSMISSION COD E
Once the transmission code is changed in the remote control unit, the electronic central unit of
the cooker hood must be made to set the new code in the following way:
Press the main power-off button on the hood and then restore power to the electronic control
unit. Within the next 15 seconds, press the Light Button to synchronise the central unit with
the code.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the transmitter.
To replace the battery, take the plastic lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used batteries should be discarded in special
collection bins.
STANDARD CONFIGURATION:
Standard configuration requires all cooker hood remote controls to be provided with the same
transmission code. In the event two cooker hoods radio control system are installed in the same
room or nearby, each system may affect the operation of the another. Therefore, the code of
one radio control system must be changed.
GENERATING A NEW TRANSMISSION CODE:
The radio control system is provided with preset codes. Should new codes be required, proceed
as follows: Press simultaneously buttons:
for two seconds. When LED’s light on, press buttons:
(within 5 seconds). LED’s flashing 3 times indicate the procedure is completed.
WARNING:
This operation permanently deletes the preset codes.
LEARNING THE NEW TRANSMISSION COD E
Once the transmission code is changed in the remote control unit, the electronic central unit of
the cooker hood must be made to set the new code in the following way:
Press the main power-off button on the hood and then restore power to the electronic control
unit. Within the next 15 seconds, press the Light Button to synchronise the central unit with
the code.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the transmitter.
To replace the battery, take the plastic lid off, remove the battery and replace it with a new
one, observing the correct battery polarities. Used batteries should be discarded in special
collection bins.
Table of contents
Other Caple Ventilation Hood manuals

Caple
Caple CHIMNEY FGC600SS User manual

Caple
Caple SP912 User manual

Caple
Caple DD600SS User manual

Caple
Caple CCH600 User manual

Caple
Caple BUCHB User manual

Caple
Caple COR540SL User manual

Caple
Caple TSCH601 User manual

Caple
Caple ZEL900GM User manual

Caple
Caple BU525BK User manual

Caple
Caple DD911BK User manual
Popular Ventilation Hood manuals by other brands

Electrolux
Electrolux ICON E488WV120S Factory parts catalog

Cole Parmer
Cole Parmer FHD-400 Series Operation manual

ERV Systems
ERV Systems PRO-C-1000 Installation & owner's manual

Siemens
Siemens LC 6KAJ 0T Series instruction manual

Cosmo
Cosmo COS-63175 quick start guide

Carrefour Home
Carrefour Home CHD550X-11 instruction manual
