Caple CCH600 User manual

Instruction manual for chimney hood
Model code: CCH600 CCH700 CCH900 CCH100







Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

Contents
Introduction 2
Safety precautions 2
Installation 4
Installing the charcoal filer 8
Operation 9
Care and maintenance 10
Troubleshooting 11
uarantee 12
Environmental protection 12

2
Introduction
Thank you for choosing this Caple extractor hood.
To ensure that you get the best results from your new extractor, we
strongly suggest that you read this instruction manual thoroughly before
use.
. .
. If treated with care, your Caple extractor should give you years of
trouble-free use
To register ownership, please ensure you complete and return the
guarantee card supplied with the appliance.
This instruction manual is designed to provide you with all required
information related to the installation, use and maintenance of the
appliance.
These cooker hoods are designed to extract unpleasant odours from the
kitchen; they are not intended to extract steam.
In order to operate the unit correctly and safety, please read this
instruction manual carefully before installation and use.
The cooker hood uses high quality materials, and is made with a
streamlined design. Equipped with an electric motor and centrifugal fan,
it provides strong extraction with low noise. It also features non-stick
grease filters and an easy installation.
Safety precautions
- Never let children operate the machine.
- The cooker hood is for home use only, not suitable for barbecuing,
restaurants or other commercial purposes.
- The cooker hood and its filter should be cleaned regularly in order to keep
in good working condition.
- Clean the cooker hood according to the instruction manual to reduce the
risk of fire.
- When using a gas hob, do not leave naked flames under the extractor.
- Before connecting this appliance check that the power supply cord is not

3
damaged. A damage supply cord must be replaced by qualified service
personnel only. Please contact the Caple service department.
- If the room where the hood is to be used contains a fuel burning
appliance such as a central heating boiler then its flue must be of the
sealed or balanced flue type. If other types of flue or appliances are fitted
ensure that there is an adequate supply of air to the room.
- The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
- Regulations concerning the discharge of air have to be conformed to.
- This appliance if not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance for their safety.
- Children should be supervised to ensure that they do not play with the
appliance.
- Do not flambé under the cooker hood.
- Never leave frying pans unattended during use as over-heated fats and
oils may catch fire.
- To ensure the best performance, we recommend switching on the
extractor 15 minutes before cooking and leave it running 15 minutes after.
This will ensure that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after cooking has
finished.
- The performance of your extractor will vary depending on a number of
factors. These include type of extraction, room volume, length of ducting,
ventilation available and the cleanliness of the filters.
Electrical shock hazard
- Only plug this unit into a properly earthed outlet. If in doubt seek advice
from a suitably qualified engineer.
- Failure to follow these instructions can result in death, fire, or electrical
shock.
- This appliance must be connected to the mains by a competent person.
We recommend that the appliance is connected by a qualified electrician
who is a member of the N.I.C.E.I.C. who will comply with the I.E.E. and
local regulations. Electrical information can be found on the rating plate.

4

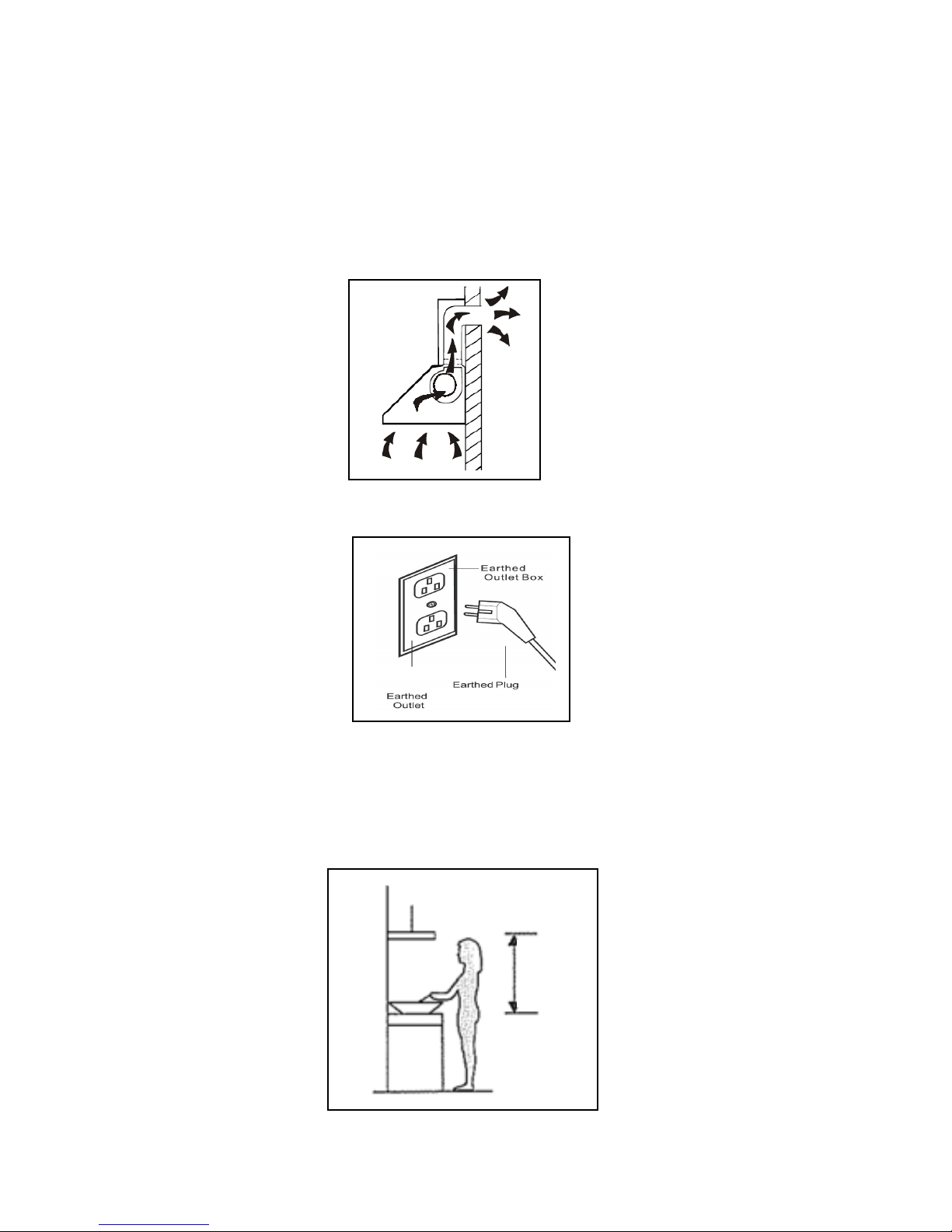

Installation
Prepare for the installation:
a. If you have an outlet to the outside, your cooker hood can be connected as
per the below picture by means of an extraction duct with an interior
diameter of 150mm.
b. Before installation, turn the unit off and unplug it from the outlet.
c. The cooker hood should be placed at a minimum distance of 65~76cm above
the hob. It is the manufacturer of the hob who determines the clearance
required and the clearance quoted by the hob manufacturer must be
followed. In the absence of any instructions supplied with a gas hob the
minimum distance between the hob and the hood must be at least 760mm.
65cm
- 76cm

5
Installation – ducted
Attent
AttentAttent
Attention! Obse
ion! Obseion! Obse
ion! Observe the warning
rve the warning rve the warning
rve the warning concerning the operation of the appliance
concerning the operation of the appliance concerning the operation of the appliance
concerning the operation of the appliance
when air is discharged from the room.
when air is discharged from the room.when air is discharged from the room.
when air is discharged from the room.
When the range hood and appliance supplied with energy other than
electricity are simultaneously in operation, the negative pressure in the room
must be not exceed 4 Pa (4 × 10-5 Bar)
Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the
bracket onto the wall with the screws and screw plugs provided.
Level up the cooker hood and hang it onto the wall bracket hooks.
Screw plug
Wall bracket
Screw
(4mm x 30mm)
Holes on wall
Wall
bracket
Cooker hood

6
Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the
exhaust pipe to the one-way-valve as shown below.
Chimney installation.
Chimney installation.Chimney installation.
Chimney installation.
Place the inner chimney into the upper chimney .Then pull the upper
chimney upwards. Adjust to reach the height required and fix the lower
chimney with two 4x8mm screws.
Slide the chimney to adjust the chimney height. When the height you
require is reached, fix the two 4x8mm screws into the hole fixing with
plate I as showed in below pictures.
Exhaust pipe
Cooker hood

7
•Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten
the plate II onto the wall with two screws provided.
•Assemble the chimney onto the unit and fix it with the two screws
provided.

8
Installation – recirculation mode
If you do not have an outlet to the outside, the exhaust pipe is not required
(as shown in the section “Installation - ducted”).
Installing the charcoal filter
An activated charcoal filter can be used to trap odours.
In order to install the charcoal filter, the grease filter should be detached
first. Press the lock and pull it downward.
Fit the activated charcoal filter onto the side of the motor and turn it in a
clockwise direction. Repeat the same on the other side.
NOTE:
- Make sure the filter is securely locked in position. Otherwise, it may
loosen and become dangerous.
- When the charcoal filter is attached, the extraction power may be
slightly reduced.

9
Operation
Low s
Low sLow s
Low speed button
peed button peed button
peed button
Is suitable for simmering and cooking which does not produce much
odour.
Medium
Medium Medium
Medium s
ss
speed button
peed button peed button
peed button
The airflow speed is ideal for extracting with regular cooking.
High
High High
High s
ss
speed button
peed button peed button
peed button
When a high amount of smoke or odour is produced, press the high
speed button for the most effective extraction.
Light button
Light button Light button
Light button
This switches the light on and off
NOTE: If the low, medium and high speed buttons are pressed at the
same time, the unit will only operate at the highest speed.

10
Care and maintenance
IMPORTANT: Before cleaning or maintenance please switch off the electricity
supply and remove the plug from the wall.
Regular
Regular Regular
Regular c
cc
cleaning
leaningleaning
leaning
Use a soft cloth moistened with lukewarm mildly soapy water or household
cleaning detergent. Never use metal pads, chemicals, abrasive material, abrasive
cleaning creams or stiff brushes to clean the appliance.
Cl
ClCl
Cleaning
eaningeaning
eaning the g
the gthe g
the grease
rease rease
rease f
ff
filter
ilterilter
ilter
Clean the filter every month to help minimise the risk of fire.
The filter collects grease, smoke and dust, therefore the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (which is
potentially flammable) will saturate the filter. It can be easily cleaned with warm
water and washing up liquid, alternatively the filters can be cleaned in your
dishwasher. Please ensure no other items are washed with the filters, they must
be washed separately to prevent food becoming trapped in the gauze. Cleaning
the grease filters in the dishwasher may lead to discolouration, this is normal and
is a not a fault with the product.
Replacing your
Replacing yourReplacing your
Replacing your charcoal
charcoalcharcoal
charcoal f
ff
filter
ilterilter
ilter
This only applies if you are using the hood in recirculation mode (not vented to
the outside). The charcoal filter traps your cooking odours and they need to be
replaced, this can vary depending on how frequently the cooker hood is used.
We recommend replacing them at least every 6 months.

11

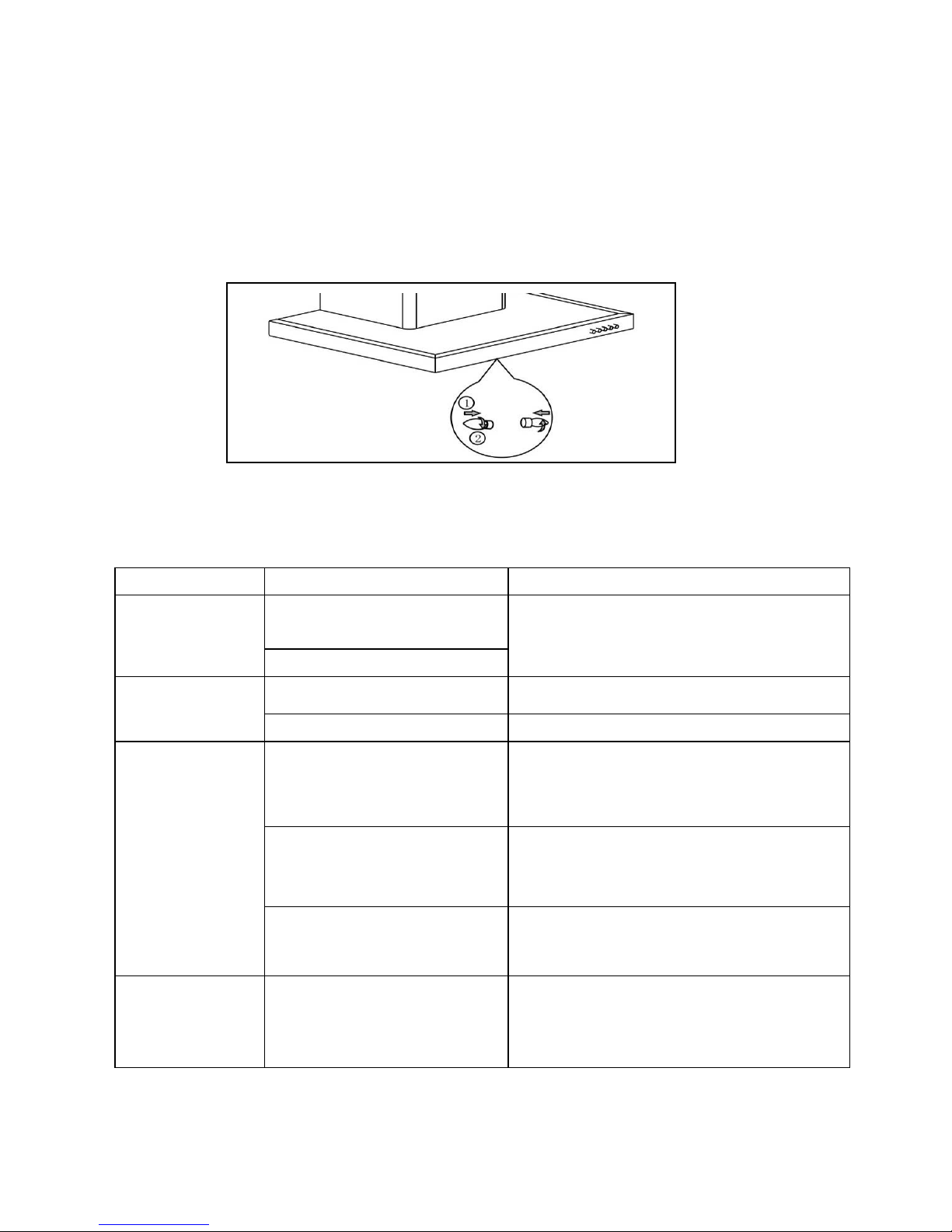

Replac
ReplacReplac
Replacing the bulb
ing the bulbing the bulb
ing the bulb
1.Switch the unit off and unplug the appliance.
2.Remove the lamp cover by unscrewing the 2 screws.
3.Unscrew the bulbs
4.Replace with the same type and rated bulb (see below)
E14 Incandescent Bulb: (220V E14 Max 40W).
Troubleshooting
Fault
FaultFault
Fault Cause
CauseCause
Cause Solution
SolutionSolution
Solution
The lights on,
but the fan does
not work
The fan blade is jammed.
Switch off the unit and contact Caple
Service. To be repaired by qualified
service personnel only.
The motor is damaged.
The lights and
fan do not work
A blown fuse Replace the fuse
The power cord is loose. Plug into the power supply again.
Serious vibration
of the unit
The fan blade is damaged.
Switch off the unit and contact Caple
Service. To be repaired by qualified
service personnel only.
The fan motor is not fixed
tightly.
Switch off the unit and contact Caple
Service. To be repaired by qualified
service personnel only.
The unit is not hung
correctly on the bracket.
Take down the unit and check whether
the bracket is in the correct location.
The extraction
performance is
not good
The filter requires cleaning
Clean the grease filter as directed in
the ‘Care and maintenance’ section.
Replace the charcoal filter (if in
recirculation mode)
If the above table has not solved the problem please contact Caple Service by phone
on 0844 800 3830 or by email [e-mail]

12
uarantee
Caple undertake that if within twelve months of the date of the purchase this
appliance or any part thereof that is proved to be defective by reason only of faulty
workmanship or materials, we will at our option repair or replace the same free of
any charge for labour or materials on condition that:
- Documentation must be provided before a guarantee repair commences to
confirm that the extractor is within the guarantee period.
- The appliance has been correctly installed and used only on the electrical supply
stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in
accordance with the operating and maintenance instructions.
- The appliance has not been serviced, maintained, repaired, taken apart or
tampered with by any person not authorised by us.
- All service work under this guarantee must be undertaken by Caple Service
Centre.
- Any appliance or defective part replaced shall become the property of this
company.
- If a service call is made and it is found that the installation has not been carried
out correctly or customer misuse/abuse is involved THE COST OF THE SERVICE CALL
HAS TO BE PAID FOR BY THE USER BEFORE ANY SERVICE WORK IS CARRIED OUT.
Exclusions
This uarantee does not cover:
- Damage or calls resulting from transportation, improper use or neglect, the
replacement of any light bulbs or removable parts of glass or plastic.
- Costs incurred for calls to put right appliances improperly installed or calls to
appliances outside the United Kingdom.
- Appliances found to be in use within a commercial environment, plus those
which are the subject of rental agreements.
- This guarantee is in addition to and does not affect your statutory and legal rights.

13
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point
for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for
waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service
or the retailer where you purchased the product.
CE Declarations of Conformity
This appliance has been manufactured to the strictest standards and complies
with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic
Compatibility Directive (EMC).
Caple
Fourth Way
Avonmouth
BS11 8DW
www.caple.co.uk
