Caple COR541SL User manual

Ceiling Hood
Instruction Manual
COR541SL
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual COR541SL2Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 8
Opening the Panel 10
Installation 11
Remote Control 14
Timing 18
Cleaning and Maintenance 19
Caple Contact Details 22

Instruction manual COR541SL 3
Please keep this instruction manual for future reference
WARNINGS
The appliance is not intended for use by young children or
infirm persons without supervision. Young children should
be supervised to ensure they do not play with
the appliance.
The extracted air can’t be conveyed through or into a duct
used to let out fumes from appliances fed by energy other
than electric power (eg. centralized heating, radiators,
water heaters, etc.).
To evacuate the air outlet, please comply with the
pertaining rules given by competent authorities.

Instruction manual COR541SL4Please keep this instruction manual for future reference
-Provide the room with an adequate aeration when a
cooker hood and appliances fed by energy other than
electric power (gas, oil, or coal stoves, etc.) are used
simultaneously. The cooker hood, when evacuating the
extracted air, could generate a negative pressure in the
room which can’t exceed the limit of 0.04 mbar, in order
to avoid the suck of exhausts deriving from the heat
source. Therefore the room should be provided with air-
intakes to allow a constant flow of fresh air.
-If the rating label in the cooker-hood does show the
symbol the appliance is built in class 11° and it does
not need the earth connection.
-If the rating label in the cooker hood does not show the
symbol , the appliance is built in class I° and it needs
the earth connection.
-When performing the electrical connections on the
appliance, please make sure that the current tap is
provided with earth connection and that voltage values
correspond to those indicated on the label placed inside
the appliance itself.
-Before carrying out any cleaning or maintaining
operations, the appliance needs to be removed from the
electric grid.

Instruction manual COR541SL 5
Please keep this instruction manual for future reference
-If the appliance is not provided with a non-separable
flexible cable and plug, or with another device ensuring
omnipolar disconnections from the grid, with an opening
distance between the contacts of at least 3 mm, then
such disconnecting devices must be supplied within the
fixed installation. If the appliance is endowed with a
supply cord and a plug, the appliance has to be put in a
place where the plug can be reached easily.
The use of materials which can burst into flames should
be avoided in close proximity of the appliance. When
frying, please pay particular attention to fire risk due to
oil grease. Being highly inflammable, fried oil is especially
dangerous.
Do not use uncovered electric grills. In order to avoid
possible fire risk, all instructions for grease filter cleaning
and for removing eventual grease deposits should be
strictly followed.
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.

Instruction manual COR541SL6Please keep this instruction manual for future reference
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. Gas Safe in
the UK) if necessary.
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.
-Children 8 years and older may only use the cooker hood
unsupervised if they have been shown how to use it
safely and recognise and understand the consequences
of incorrect operation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead. These
are a fire hazard and do not guarantee the required
safety of the appliance.
-The cooker hood can get very hot during cooking due to
heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.

Instruction manual COR541SL 7
Please keep this instruction manual for future reference
APPROPRIATE USE:
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

Instruction manual COR541SL8Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.

Instruction manual COR541SL 9
Please keep this instruction manual for future reference
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU.
This Declaration is issued under the sole responsibility of the manufacturer.
Hereby, Caple declares that the radio equipment included in the product is in compliance with the
RED directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available on our website
www.caple.co.uk.
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk

Instruction manual COR541SL10 Please keep this instruction manual for future reference

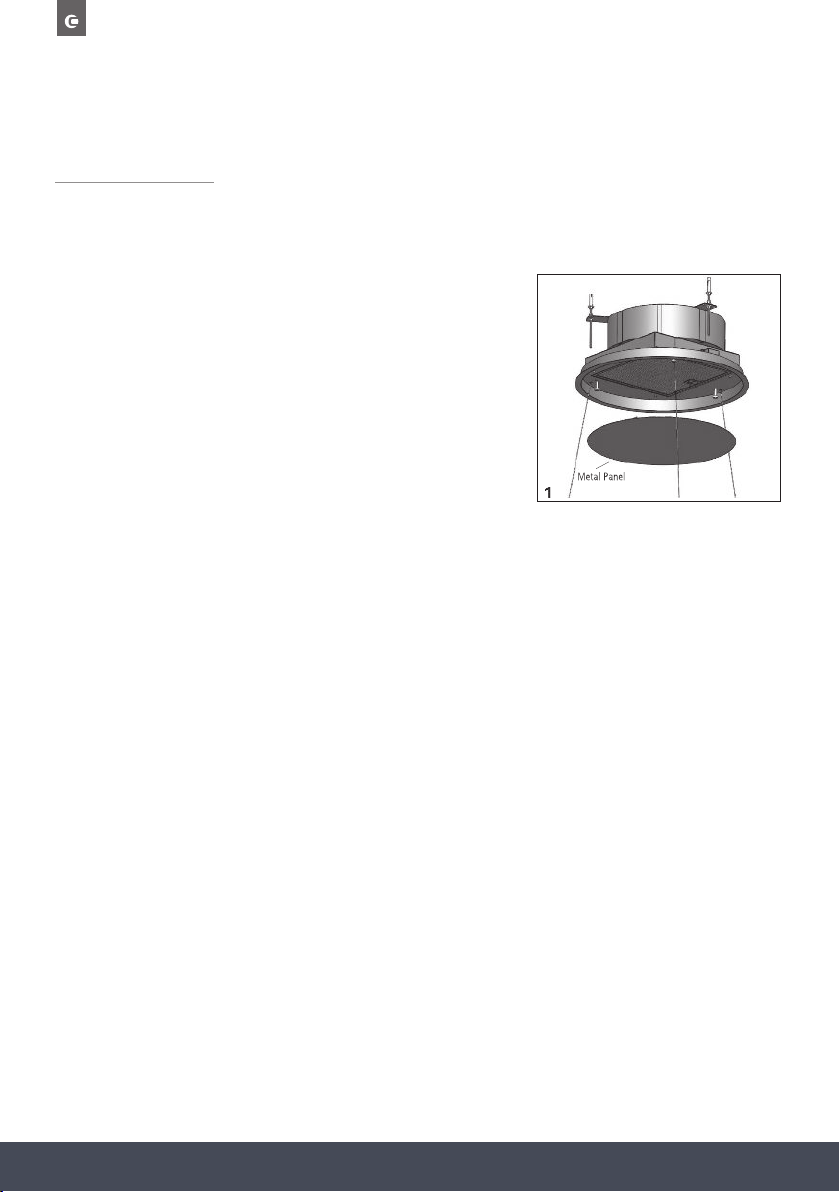

It is possible to open the grease filter cover panel pulling it gently, as shown in fig. 1.
The panel is fixed with three magnets, there are two safety
cables to release in order to remove the panel from
the product.

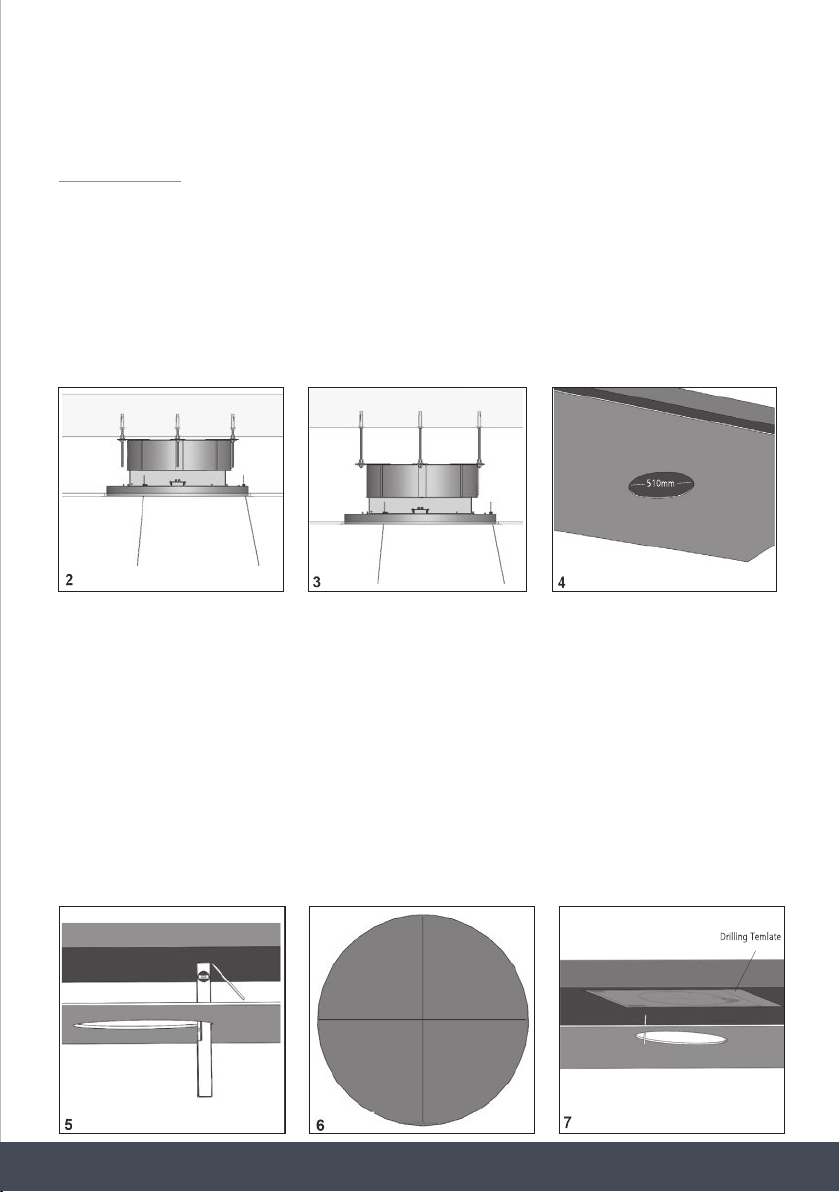

For the correct working, it is recommended to install
the product at a maximum distance of 2000 - 2100mm,
from the floor level.
Before proceeding with the installation of the appliance,
check that all the components are not damaged, otherwise
please contact your retailer and do not continue with
the installation.
Use an air outlet pipe with a maximum length of no more than 5 metres.
› Reduce the number of curves in the duct as each curve reduces the suction efficiency
equivalent to 1 linear meter. (E.g. If 2 90° curves are used, the length of the duct should not
exceed 3 meters in length).
› Avoid abrupt changes of direction.
› Use a duct with a diameter of 150mm constant over the entire length.
› Use a duct of recognised and approved material.
The cooker hood should be placed at a minimum distance of 65cm above the hob. It is the
manufacturer of the hob who determines the clearance required and the clearance quoted by the
hob manufacturer must be followed. In the absence of any instructions supplied with a gas hob
the minimum distance between the hob and the hood must be at least 760mm.
