Caple Zalto ZAL48CO User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Zalto Island Extractor
instruction manual
ZAL48CO | ZAL48BK | ZAL48SL

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
2
CONTENTS
WARNINGS 3
ENVIRONMENTAL PROTECTION 6
INSTALLATION 7
REMOTE CONTROL 11
OPERATION MODE 12
TIMING 14
MAINTENANCE 15

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
3
WARNINGS
The cooker surface and the inferior part of the cooker hood
must be at a minimum distance of 65 cm.
-The appliance is not intended for use by young children
or infirm persons without supervision. Young children
should be supervised to ensure they do not play with the
appliance.
-When performing the electrical connections on the
appliance, please make sure that them current-tap is
provided with earth connection and that voltage values
correspond to those indicated on the rating label placed
inside the appliance itself.
-Please disconnect the appliance from power mains,
before carrying out any cleaning or maintenance
operation. If the appliance is not equipped with a non-
separable flexible cable and plug, or with another device
ensuring omnipolar disconnection from the mains, with
anopening distance between the contacts of at least 3
mm, then such disconnecting devices must be provided
in the fixed installation.
If the appliance is equipped with a powercord and a
plug, it shall be placed in such a way that the plug can be
reached easily.
-The use of materials which can burst into flames should
be avoided in close proximity of the appliance. When
frying, please pay particular attention to fire risk due

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
4
to oil and grease. Being highly inflammable, fried oil
isespecially dangerous. Do not use uncovered electric
grills. In order to avoid possible fire risk, all instructions
for grease filter cleaning and for removing eventual
grease deposits should be strictly followed.
-Two persons are needed for the installation of this
product.
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. GasSafe in
the UK) if necessary.
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.
-Children 8 years and older may only use the cooker hood
-unsupervised if they have been shown how to use it
safely and recognise and understand the consequences
of incorrect operation.

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
5
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead.
These are a fire hazard and do not guarantee the
required safety of the appliance.
-The cooker hood can get very hot during cooking due
to heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
6
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU
This Declaration is issued under the sole responsibility of the manufacturer.
Hereby, Caple declares that the radio equipment included in the product is in
compliance with the RED directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available on our website
www.caple.co.uk.

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
7
INSTALLATION
The appliance is suitable for recirculation only, and cannot be vented externally. In
recirculation mode the air and fumes conveyed by the appliance are cleaned both
by a grease filter and by an active charcoal filter, and put again into circulation.
At the beginning make sure that the package is intact and all the parts are
unbroken, otherwise stop the installation and contact the dealer. The manufacturer
is not responsible for damages caused by material handling or product installation.
Before installing the appliance read all these instructions carefully.
Remove the product from the packaging and lay it on a suitable place, a soft
material such as sponge or fabric should be used to place the product on it.
Take the mounting plate out of the packaging (fig.1); to install the hood, position
it in the desired place of the ceiling, making sure the centre of the plate is aligned
with the centre of the hob.
Check that the ceiling structure is suitable to bear the weight of the appliance.
Mark the holes to be drilled at the smaller openings of the plate (fig.2).Drill the
holes using an 8mm diameter twist drill.
Fix the plate to the ceiling, by using the plastic dowels and the screws supplied with
the appliance.
Take the ceiling plate cover out of the packaging and then introduce the power
cord and the three steel wires into the holes (fig.3). Place the appliance close to the
ceiling plate, and then insert the steel wires into the specific supports, as shown in
fig. 4.
Adjust the hood desired height, paying attention to keeping the appliance perfectly
in line with the floor by sliding the steel wire inside the support ; you will need to
loosen and push the support in order to allow the wire to slide, see fig. 5.
Secure the steel wires by tightening the support and screwing it as shown in
fig.6.Use some clamps in order to further secure the steel wire, see fig. 7.Perform
the electrical connection.
Place the ceiling plate cover in such a way as to hide the plate previously mounted,
then secure it by using the three screws provided (fig.8).

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
8

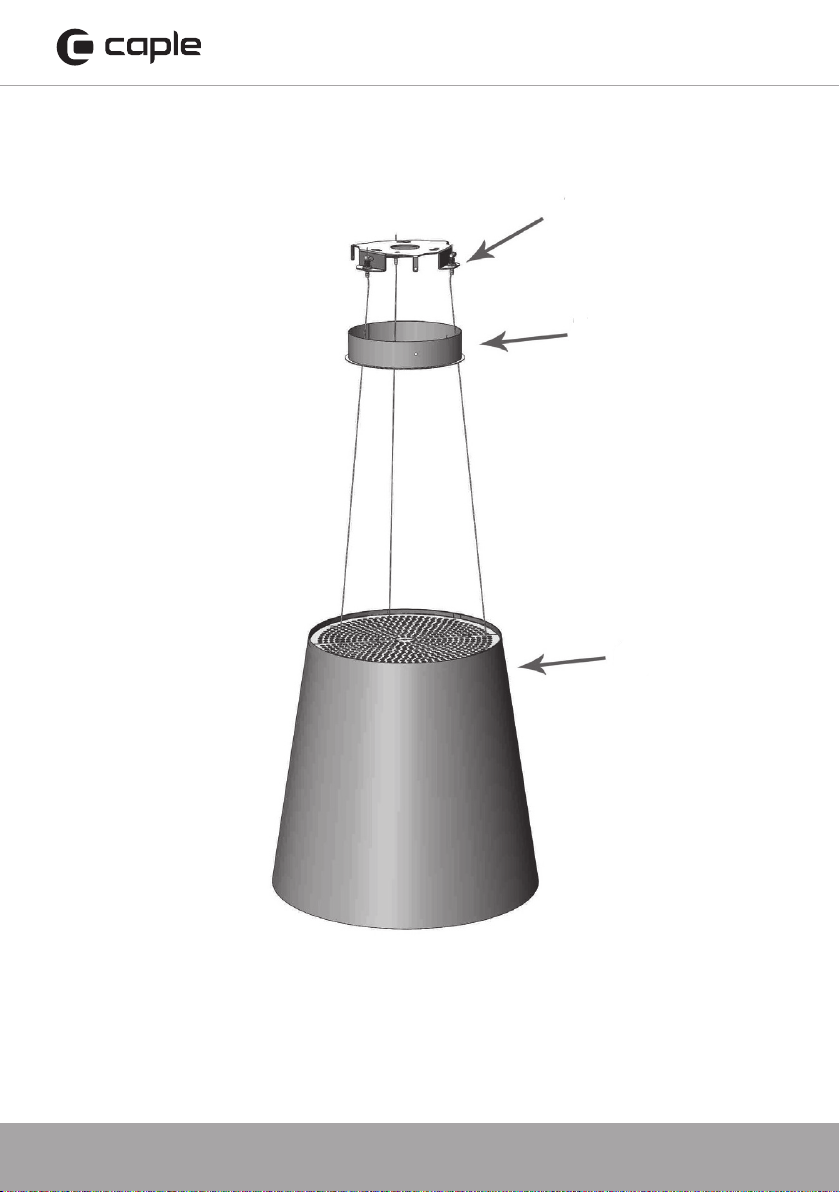

A
B
C

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
9
1
3
5
2
4
6

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
10

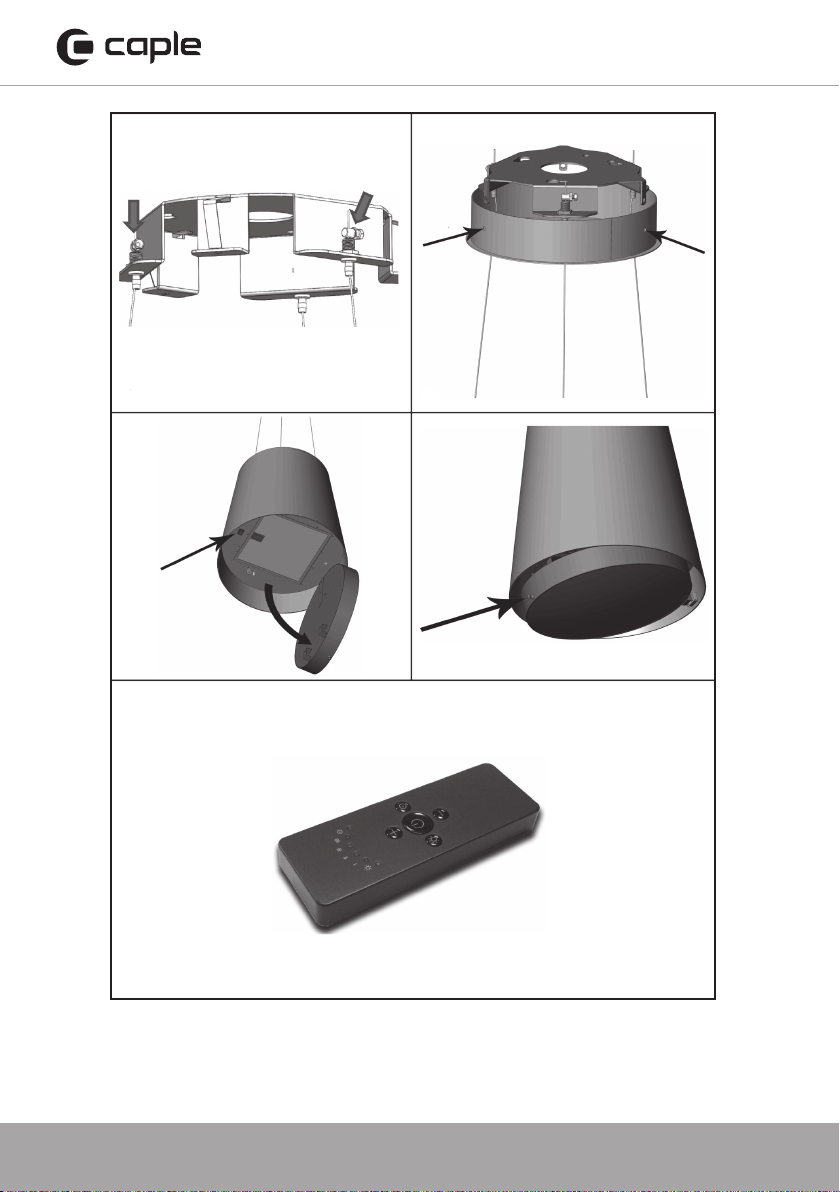

7
9
11
8
10

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
11
REMOTE CONTROL
Remote control used for the operation of island cooker hoods:
At first ignition, keep pressed the lighting button for 5 seconds.
Technical Data
Alkaline battery powered : 12 V mod. 27 A
Operating frequency : 433.92 Mhz
Combinations : 32.768
Max. consumption : 25 mA
Operating temperature: -20 ÷ + 55 °C
Dimensions : 120 x 45 x 15 mm
OPERATING DESCRIPTION

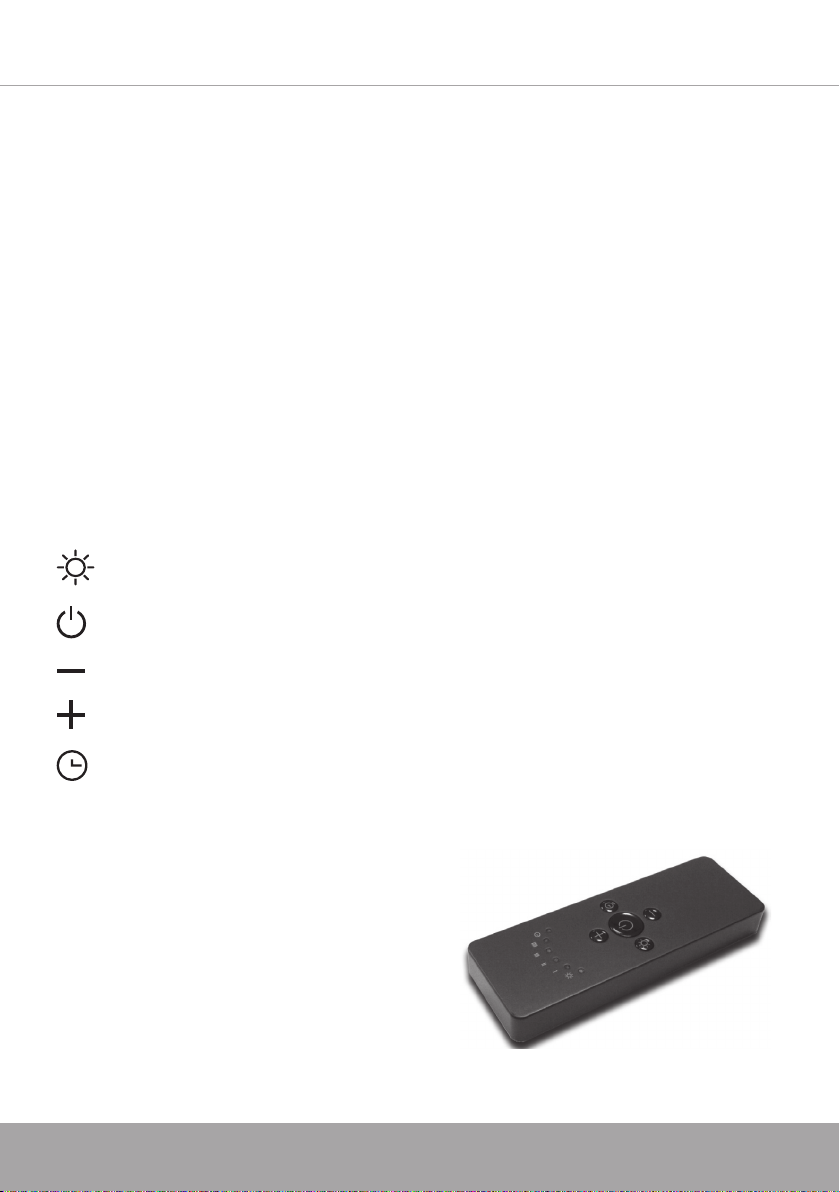

The transmitter is equipped with 5 buttons for cooker hood management, as
specified below:
Light ON/OFF command.
Motor ON (speed level 1) / OFF command.
Reduce speed.
Increase speed.
10-minute timer.
Initial Operating Condition
The manufacturer supplies the radio control
unit ready to be used with codes preset in the
Factory.

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
12
OPERATION MODE
Standard configuration:
Standard configuration requires all “cooker hoods radio control system” to be
provided with the same transmission code. In the event two cooker hoods radio
control system are installed in the same room or nearby, each system may affect the
operation of the another. Therefore, the code of one radio control system must be
changed.
Generating a new transmission code:
The radio control system is provided with preset codes. Should new codes be
required, proceed as follows: Press simultaneously buttons:
for two seconds. When Leds light on, press buttons:
(within 5 seconds). Leds flashing 3 times indicate the procedure is completed.
WARNING:
This operation deletes permanently the preset codes.
Learning the new transmission code:
Once the transmission code is changed in the radio control unit, the electronic
central unit of the cooker hood must be made to set the new code in the following
way:
Press the main power-off button of the hood and then restore power to the
electronic control unit. Within the next 15 seconds, press the Light Button
to synchronise the central unit with the code.
Reset of the Factory configuration:
To restore the Factory configuration, follow the procedure described below: press
simultaneously buttons:

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
13
for 2 seconds. When Leds light on, press buttons
(within 5 seconds). Leds flashing 6 times indicate the procedure is completed.
WARNING:
This operation deletes permanently the preset codes.
Emergency button:
In the event that the radio control does not work, use the emergency button to
switch the appliance off.
After any necessary repairs have been performed, reset the emergency button.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the
transmitter. To replace the exhausted battery, take the plastic lid off, remove the
battery and replace it with a new one, observing the correct battery polarities. Used
batteries should be discarded in special collection bins.
WARNING:
Any adjustments or modifications which have not been expressly approved by the
holder of the legal conformity certificate may invalidate the user’s rights relating to
the operation of the device.
The products are endowed with an electronic device which allows the automatic
switching off after 4 hours working from the last operation.

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
14
TIMING
- As a result of the new EU65 “Energy label” and EU66 “ Ecodesign” regulations
issued by the European Commission, which came into force as from January 1st,
2015 , our products have been adapted to comply with these new requirements
- All of the models complying with the energy label requirements, are equipped
with new electronics including a timer device for suction speeds control, when the
air capacity exceeds 650m³/h.Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer device that automatically switches
the suction speed from 4th to 3rd speed, after 5 minutes operation.
- External motor models are equipped with remote motors that, as for internal
motor versions, include a timer device that switches down the suction speed when
it exceeds 650 m³/h. (See External Motors Instructions ). Remote motors, whose air
capacity exceeds 650m³/h at both 4th and 3rd speed, will have the following by
default timer control functions: The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
- If the appliance is working at 3rd speed, it is automatically switched to 2nd
speed, after 7 minutes operation. Operation speeds can also be changed during
operation.The energy consumption of the appliance in standby mode is lower than
0.5W.

Instruction manual ZAL48CO ZAL48SL ZAL48BK
Please keep this instruction manual for future reference
15
MAINTENANCE
- An accurate maintenance guarantees good functioning and long-lasting
performance.
- Particular care is due to the grease filter. Rotate the lower panel of the appliance
by pulling the side knob (see fig. 10). Remove the grease filter by acting on the
side handle.After cleaning or replacement operations refit the grease filter and
close the lower panel previously opened.
- The active charcoal filter used in these hoods can be washed and re-used for up to
a maximum 3 years. We recommend that these are replaced during this period.
- To purchase replacement charcoal filters please visit www.caple.co.uk or
call 0117 938 1900.
- To wash the charcoal filters, wash by hand with warm water or in the dishwasher,
and then bake in the oven at 90 degrees for 1 hour.
- To clean the appliance itself tepid water and neutral detergent are recommended,
while abrasive products should be avoided.
- The power cord must be replaced only by qualified person.
- Fluorescent circular lamp replacement. Rotate the lower panel of the appliance by
pulling the side knob (see fig. 9-10). Remove the screws found on the panel and
open it; replace the fluorescent lamp and then refit the panel.

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
t: 0117 938 7420
e: [email protected]
www.caple.co.uk
