Built-Under Extractor
Instruction Manual
INCH

2Please keep this instruction manual for future reference
Instruction manual INCH
CONTENTS
Introduction 3
Safety Instructions 4
Installation 13

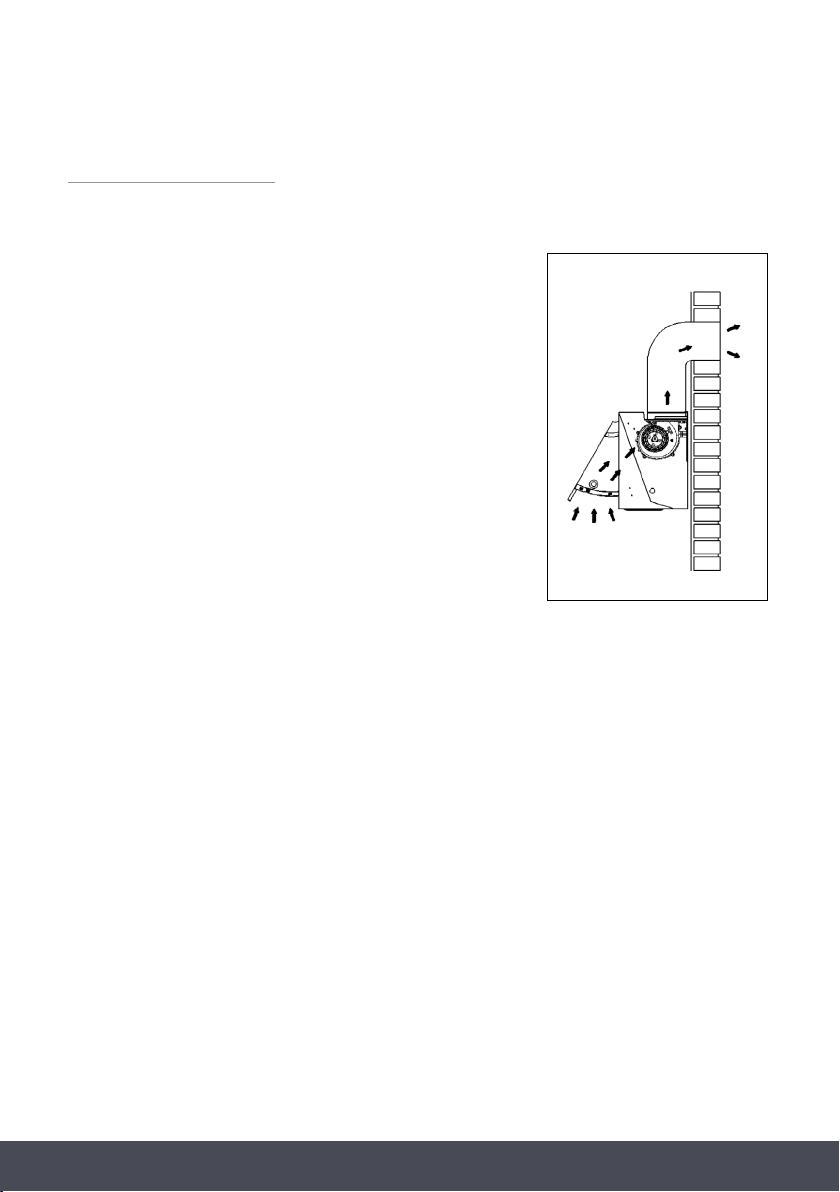

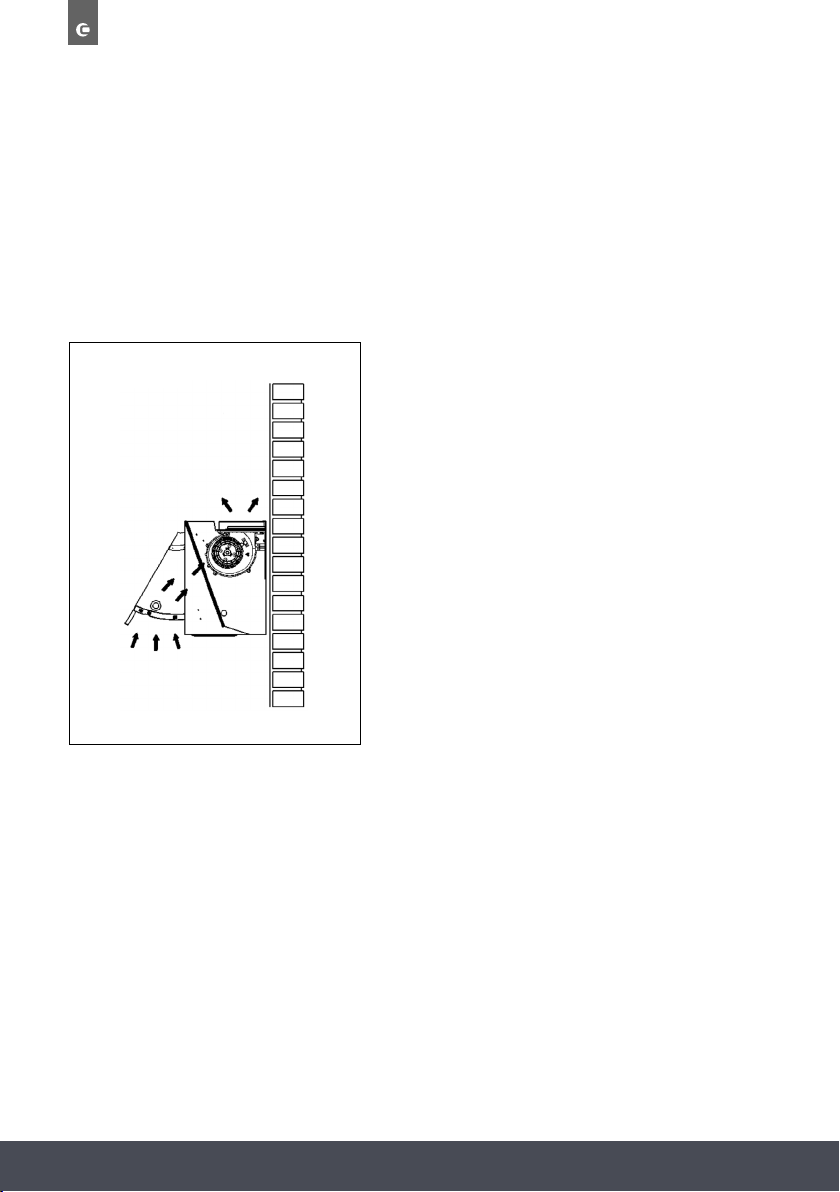

Methods of Extracting 15
Operation 18
Cleaning and Maintenance 19

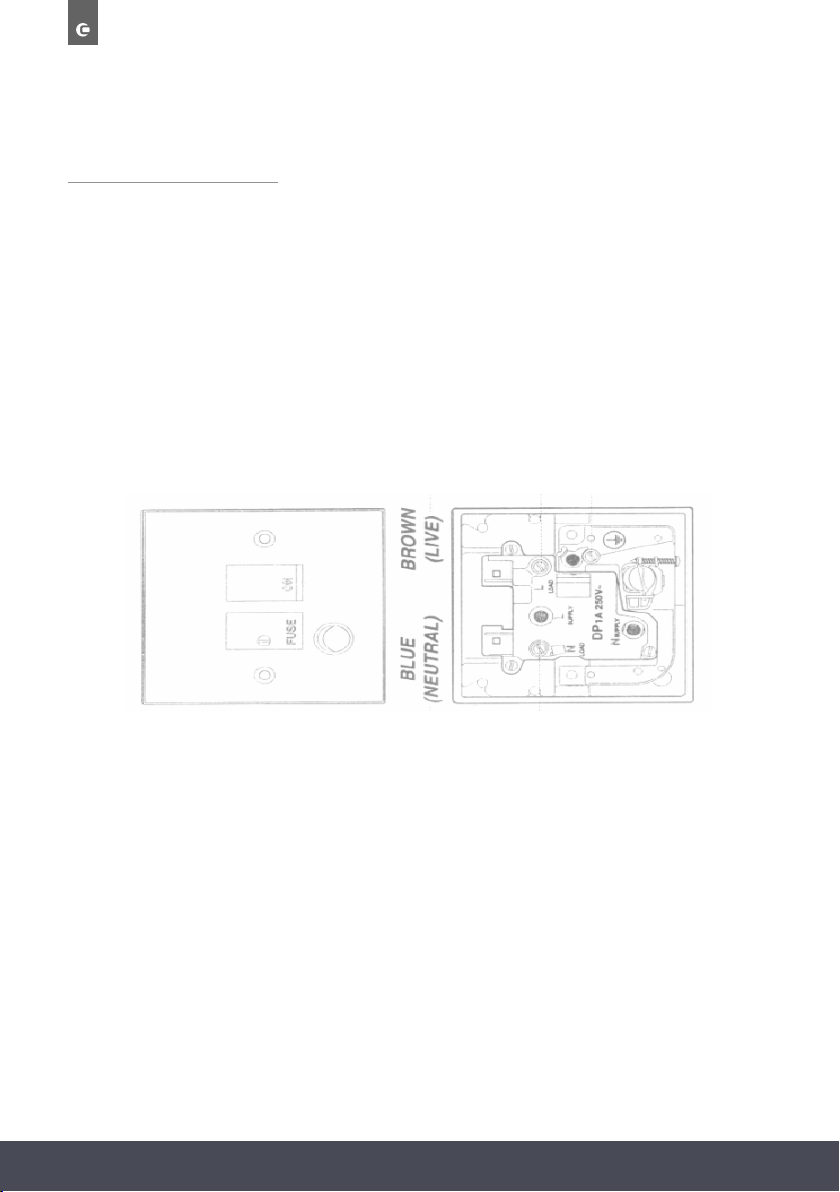

Electrical Connection 20
Troubleshooting 22
Technical Data 23
Caple Contact Details 24

3Please keep this instruction manual for future reference Instruction manual INCH
INTRODUCTION
Thank you for choosing this Caple extractor hood.
To ensure that you get the best results from your new extractor, we strongly suggest that you
read this instruction manual thoroughly before use. If treated with care, your Caple extractor
should give you years of trouble-free use.
To register ownership, please follow the instructions on the guarantee card supplied with the
appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related to
the installation, use and maintenance of the appliance.
This hood is designed to extract unpleasant odours from the kitchen; it is not intended to
extract steam. In order to operate the unit correctly and safely, please read this instruction
manual carefully before installation and use.
The cooker hood uses high quality materials and is made with a streamlined design. Equipped
with an electric motor and centrifugal fan, it provides strong extraction with low noise. It also
features non-stick grease filters and an easy installation.

4Please keep this instruction manual for future reference
Instruction manual INCH
IMPORTANT
-This appliance must only be used for the purpose it
is intended. Other types of use are not permitted and
may prove dangerous. Caple will not be held liable for
any damage caused by the incorrect use of
the appliance.
-Do not use any accessories or attachments not
recommended by Caple as this may result in fire,
electric shock or injury.
-To protect against fire, electrical shock and injury to
persons, do not immerse cords or plugs in water or any
other liquid.
-Never touch the appliance with wet or damp hands.
-Never pull the power cable as you could damage it.
If the appliance is faulty, do not attempt to repair it.
Isolate it from the mains electric supply and contact
Caple Service either by phone [phone] or
email [e-mail]
-Keep all packaging (including plastic bags, polystyrene
foam etc) out of the reach and away from children.
-Do not rest large or unstable objects on any part of
the appliance.

5Please keep this instruction manual for future reference Instruction manual INCH
IMPORTANT
Caple cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that Caple reserve the right to invalidate
the guarantee supplied with this product following
incorrect installation or misuse of the appliance. Under
no circumstances should any external covers be removed
for servicing or maintenance except by suitably
qualified personnel.

6Please keep this instruction manual for future reference
Instruction manual INCH
SAFETY INSTRUCTIONS
-Never let children operate the machine.
-The cooker hood is for home use only, not suitable for
barbecuing, restaurants or other commercial purposes.
-The cooker hood and its filter should be cleaned
regularly in order to keep in good working condition.
-Clean the cooker hood according to the instruction
manual to reduce the risk of fire.
-When using a gas hob, do not leave naked flames
under the extractor.
-Before connecting this appliance check that the power
supply cord is not damaged.
-If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its flue must be of the sealed or balanced
flue type. If other types of flue or appliances are fitted
ensure that there is an adequate supply of air to
the room.
-If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its flue must be of the sealed or balanced
flue type. If other types of flue or appliances are fitted
ensure that there is an adequate supply of air to
the room.
-The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.

7Please keep this instruction manual for future reference Instruction manual INCH
-Regulations concerning the discharge of air have to be
conformed to.
-Do not flambé under the cooker hood.
-Never leave frying pans unattended during use as over-
heated fats and oils may catch fire.
-To ensure the best performance, we recommend
switching on the extractor 15 minutes before cooking
and leave it running 15 minutes after. This will ensure
that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after
cooking has finished.
-The performance of your extractor will vary depending
on a number of factors. These include type of
extraction, room volume, length of ducting, ventilation
available and the cleanliness of the filters.
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
-Children should be supervised to ensure that they do
not play with the appliance.
-Cleaning and user maintenance must not be made by
children without supervision.
-Never immerse the appliance in water.

8Please keep this instruction manual for future reference
Instruction manual INCH
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.
-To avoid all risk, if the power cable is damaged, it must
only be replaced by a Caple appointed engineer.
-Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved.
-Children must not play with this appliance.
-When not in use and before cleaning, always isolate
the appliance from the electrical supply.

9Please keep this instruction manual for future reference Instruction manual INCH
CAUTION:
-Accessible parts may become hot when used with
cooking appliances.
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.

10 Please keep this instruction manual for future reference
Instruction manual INCH
ELECTRICAL SHOCK HAZARD
-This unit must be correctly earthed. If in doubt seek
advice from a suitably qualified engineer.
-Failure to follow these instructions can result in death,
fire, or electrical shock.
-If the appliance is not provided with a non-separable
flexible cable and plug, or with another device ensuring
omni-polar disconnections from the gird, with an
opening distance between contacts of at least 3mm,
then such disconnecting devices must be supplied
within the fixed installation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-This appliance must be connected to the mains by a
competent person. We recommend that the appliance
is connected by a qualified electrician who is a member
of the N.I.C.E.I.C who will comply with the I.E.E and
local regulations. Electrical information can be found
on the rating plate.

11Please keep this instruction manual for future reference Instruction manual INCH
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk

12 Please keep this instruction manual for future reference
Instruction manual INCH
ATTENTION:
Before use, remove all plastic films protecting some parts of the appliance (fascia - panel, parts
in stainless steel, etc.).
Do not use the appliance to heat a room.
When the appliance is not in use, we recommend you turn it off, and isolate it from the
electrical supply.
IMPORTANT:
› Please read the entire instructions before installing the extractor.
› Always switch power off prior to installation.
ELECTRICAL SAFETY
› Before installing this extractor, give careful consideration to the power connection. It is vital
that the supply cable should be well shielded from your grill, hob or oven. If it isn’t, heat from
any one of these sources may damage the cable insulation and give rise to a fire risk. Under
no circumstances should the exposed power supply cable come within 70cm of a direct source
of heat. Ideally it should be channelled into the wall.

13Please keep this instruction manual for future reference Instruction manual INCH
INSTALLATION
The installation instruction must be strictly followed as failure to comply could result in
overheating and serious damage to your appliance.

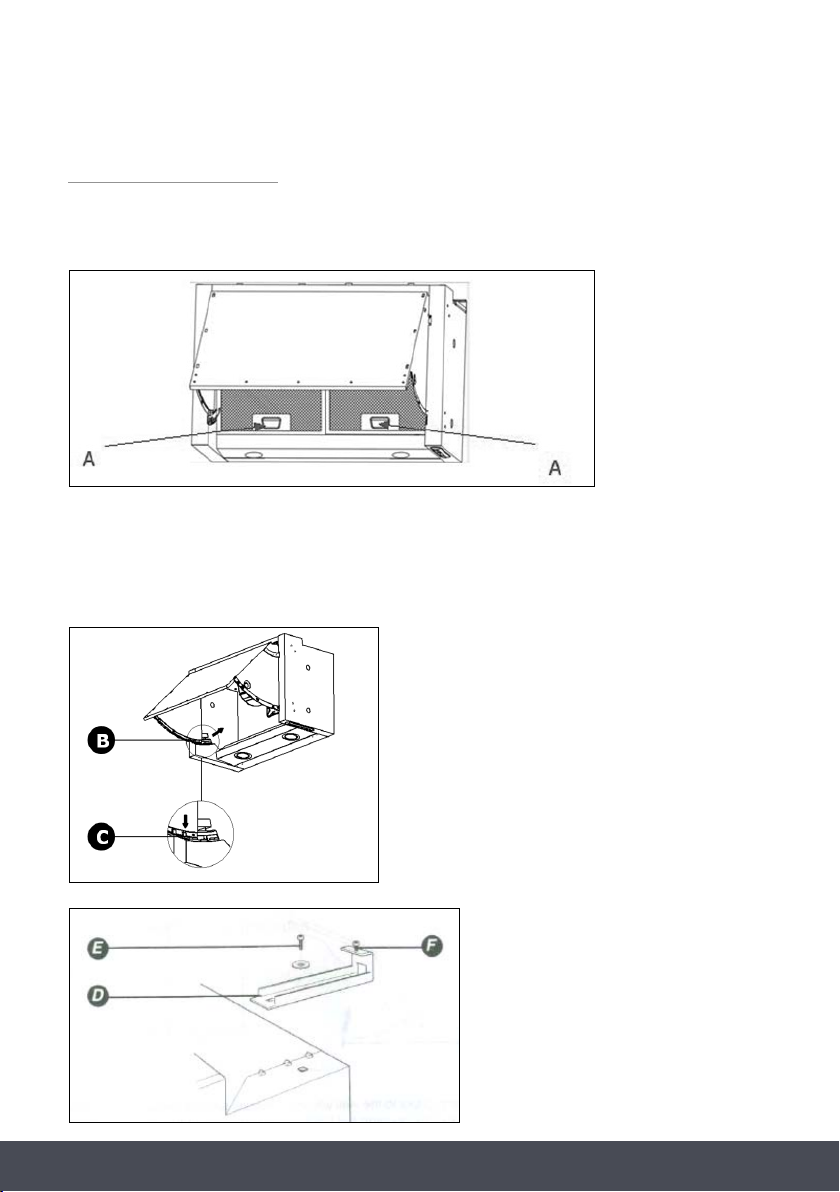

To secure the product to the wall you must initially remove the grease filters. This is achieved by
opening the front panel and pushing the two catches (A) upwards which will then release the
grease filters. Once the grease filters have been removed the front panel should also
be removed.
To secure the product to the wall you must initially remove the grease filters. This is achieved by
opening the front panel and pushing the two catches (A) upwards which will then release the grease
filters. Once the grease filters have been removed the front door panel should also removed.
Open the front panel and remove the two screws (B) as illustrated above. Press the tab (C) down
and remove the front panel from its guides
Secure brackets (D) onto the top of the extractor using the fitting screws and washer (E)
provided. Check that adjustment screw (F) is fitted.
Note: Note some units this bracket may already be fitted.
2
To secure the product to the wall you must initially remove the grease filters. This is achieved by
opening the front panel and pushing the two catches (A) upwards which will then release the grease
filters. Once the grease filters have been removed the front door panel should also removed.
Open the front panel and remove the two screws (B) as illustrated above. Press the tab (C) down
and remove the front panel from its guides
Secure brackets (D) onto the top of the extractor using the fitting screws and washer (E)
provided. Check that adjustment screw (F) is fitted.
Note: Note some units this bracket may already be fitted.
2
Open the front panel and remove the two screws
(B) as illustrated above. Press the tab (C) down and
remove the front panel from its guides.
Secure brackets (D) onto the top of
the extractor using the fitting screws
and washer (E) provided. Check that
adjustment screw (F) is fitted.
NOTE:
Some units this bracket may already
be fitted.
Instruction manual INCH Instruction manual INCH
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
10 11
EXTRACTION WITHOUT INTRUSION
The extractor is design to give you the option to extract air to the outside (via
exterior wall), or to re-circulate the air through carbon filters to minimize odours
and vapours.
The choice is yours to decide at the point of installation, and both systems are
explained in this instruction manual.
We recommend that you read this manual from cover to cover before attempting to
install or operate the extractor
INSTALLATION
THE INSTALLATION INSTRUCITON MUST BE STRICTLY FOLLOWED AS FAILURE TO
COMPLY COULD RESULT IN OVERHEATING AND SERIOUS DAMAGE TO YOUR
APPLIANCE
To secure the product to the wall you must initially remove the grease filters. This is achieved by
opening the front panel and pushing the two catches (A) upwards which will then release the grease
filters. Once the grease filters have been removed the front door panel should also removed.
Open the front panel and remove the two screws (B) as illustrated above. Press the tab (C) down
and remove the front panel from its guides
Secure brackets (D) onto the top of the extractor using the fitting screws and washer (E)
provided. Check that adjustment screw (F) is fitted.
Note: Note some units this bracket may already be fitted.
2
To secure the product to the wall you must initially remove the grease filters. This is achieved by
opening the front panel and pushing the two catches (A) upwards which will then release the grease
filters. Once the grease filters have been removed the front door panel should also removed.
Open the front panel and remove the two screws (B) as illustrated above. Press the tab (C) down
and remove the front panel from its guides
Secure brackets (D) onto the top of the extractor using the fitting screws and washer (E)
provided. Check that adjustment screw (F) is fitted.
Note: Note some units this bracket may already be fitted.
2
To secure the product to the wall you must initially remove the grease filters. This
is achieved by opening the front panel and pushing the two catches (A) upwards
which will then release the grease filters. Once the grease filters have been removed
the front door panel should also removed.
Open the front panel and remove the
two screws (B) as illustrated above. Press
the tab (C) down and remove the front
panel from its guides
Secure brackets (D) onto the top
of the extractor using the fitting
screws and washer (E) provided.
Check that adjustment screw (F) is
fitted.
Note: Note some units this bracket
may already be fitted.
Ensuring there is a minimum distance if 65cm between the bottom of the extractor
and hob surface., the two mounting brackets (G) to the rear wall.
Once the two mounting brackets are in position hook the extractor mounting
bracket (D) onto the wall mounting bracket
Some adjustment is provide within the brackets. For forward and backward
adjustment use screw (E) and for height alignment adjust screws (F).
Once the adjustment is complete fully tightening all screws.
If after installation there is a gap between the rear wall and the extractor a spacer is
provided. This can be fixed to the rear of the extractor and cut to accommodate the
gap.

14 Please keep this instruction manual for future reference
Instruction manual INCH
Ensuring there is a minimum distance of 65cm between the bottom of the extractor and hob
surface, fix the two mounting brackets (G) to the rear wall.
Once the two mounting brackets are in position hook the extractor mounting bracket (D) onto
the wall mounting bracket.
Some adjustment is provided within the brackets. For forward and backward adjustment use
screw (E) and for height alignment adjust screws (F).
Once the adjustment is complete fully tightening all screws.
If after installation there is a gap between the rear wall and the extractor, a spacer is provided.
This can be fixed to the rear of the extractor and cut to accommodate the gap.
IMPORTANT:
After the extractor has been positioned correctly it must be fixed to the adjacent wall through
the fixing holes in the sides of the extractor.
Then fix the furniture door panel to the extractor using the diagram below.
Ensuring there is a minimum distance if 65cm between the bottom of the extractor and hob surface.,
the two mounting brackets (G) to the rear wall.
Once the two mounting brackets are in position hook the extractor mounting bracket (D) onto the wall
mounting bracket
Some adjustment is provide within the brackets. For forward and backward adjustment use screw (E)
and for height alignment adjust screws (F).
Once the adjustment is complete fully tightening all screws.
If after installation there is a gap between the rear wall and the extractor a spacer is provided. This
can be fixed to the rear of the extractor and cut to accommodate the gap.
IMPORTANT NOTE : After the extractor has been positioned correctly the extractor must be fixed to
the adjacent through the fixing holes in the sides of the extractor.
All that remains is to fix the front wooden door panel to the extractor by using the diagram below fix
the front panel
Electrical Safety
Before you think about installing this extractor, give careful consideration to the power connection. It
is vital that the supply cable should be well shielded from your grill, hob or oven. If it isn’t, heat from
any one of these sources may damage the cable insulation and give rise to a fire risk. Under no
circumstances should the exposed power supply cable come within 70cm of a direct source of heat.
Ideally it should be channeled into the wall, well out of harm’s way.
3
Ensuring there is a minimum distance if 65cm between the bottom of the extractor and hob surface.,
the two mounting brackets (G) to the rear wall.
Once the two mounting brackets are in position hook the extractor mounting bracket (D) onto the wall
mounting bracket
Some adjustment is provide within the brackets. For forward and backward adjustment use screw (E)
and for height alignment adjust screws (F).
Once the adjustment is complete fully tightening all screws.
If after installation there is a gap between the rear wall and the extractor a spacer is provided. This
can be fixed to the rear of the extractor and cut to accommodate the gap.
IMPORTANT NOTE : After the extractor has been positioned correctly the extractor must be fixed to
the adjacent through the fixing holes in the sides of the extractor.
All that remains is to fix the front wooden door panel to the extractor by using the diagram below fix
the front panel
Electrical Safety
Before you think about installing this extractor, give careful consideration to the power connection. It
is vital that the supply cable should be well shielded from your grill, hob or oven. If it isn’t, heat from
any one of these sources may damage the cable insulation and give rise to a fire risk. Under no
circumstances should the exposed power supply cable come within 70cm of a direct source of heat.
Ideally it should be channeled into the wall, well out of harm’s way.
3

15Please keep this instruction manual for future reference Instruction manual INCH
METHODS OF EXTRACTING
DUCTED VERSION
The very best method of cleaning the kitchen of unwanted
odours is by connecting the appliance to an exhaust duct
and venting to the outside via an exterior wall (suitable
150mm diameter ducting kits may be purchased from
www.caple.co.uk.) Ducting your extractor negates the need
for charcoal filters.(Fig.1)
For more information on venting, please see our ‘Extraction
& Ventilation guide’ available at www.caple.co.uk
IMPORTANT:
Before drilling or chiselling the wall, check for the pipes and
power cables.
NOTE:
150mm diameter ducting must be used to vent this extractor.
1. Ensure the ducting tube is kept as short as possible and with minimum bends to ensure a
smooth airflow movement. (Maximum length 3M)
2. Ducted air must not be discharged into a flue which is used for exhausting fumes from
appliances supplied with energy other than electricity.
3. Ensure the requirement of the local authorities and building regulations are adhered to
concerning the discharged of exhaust air.
4. Ensure adequate room ventilation is provided when the extractor is used on the same
room as appliances supplied with energy other than electricity.
5. Never duct into a hot air flow such as a central heating duct.
WE STRONGLY ADVISE THAT ALL EXTERIOR OUTLETS BE FITTED WITH A
NON RETURN VALVE WITH LOUVRED SLOTS.
For Your Safety
In order to protect your appliance and minimize the risk of fire, do not prepare flambé dishes under
the extractor. Your extractor is designed to draw cooking fumes and vapours up and away from your
hob. This means that exposed flames may behave unpredictably in the vicinity of the appliance
while it is switch on. When frying take particular care to prevent the oil from catching fire and never
leave unattended.
Cleaning
IMPORTANT: Before attempting any cleaning or maintenance, ensure your extractor is
disconnected from the power source.
GENERAL CLEANING: Regular cleaning guarantees correct and long lasting operation.
Wipe the external surface of the appliance regularly using warm and a mild detergent, never use
products containing abrasive cleaners.
Particular care must be paid to the grease filtering panels which must be periodically cleaned in
relation to use (at least once every two months). These can be cleaned in warm soapy water or
placed in the dishwasher (using the dishwasher may cause some slight discoloration, this is normal
and not as fault with the product).
Alternative Methods of Extracting
1. Extraction Via Ducting (fig.1)
The very best method of cleaning the kitchen of unwanted odours is by connecting the appliance
to an exhaust duct and venting to the outside atmosphere via exterior wall (suitable 150mm
diameter ducting kits may be purchased from the retailer where you purchased your extractor,
alternatively www.caple.co.uk.) Ducting your extractor negates the need for charcoal
filters.(Fig.1)
or chiseling the wall, check for the
1.

16 Please keep this instruction manual for future reference
Instruction manual INCH
RECIRCULATING VERSION
When there is no easy access to an outside wall, the extractor
can easily be adapted to clean air polluted by cooking smells
by using a charcoal filter (code: CAP73CF).
NOTE:
A charcoal filter must be used for recirculation mode.
For Your Safety
In order to protect your appliance and minimize the risk of fire, do not prepare flambé dishes under
the extractor. Your extractor is designed to draw cooking fumes and vapours up and away from your
hob. This means that exposed flames may behave unpredictably in the vicinity of the appliance
while it is switch on. When frying take particular care to prevent the oil from catching fire and never
leave unattended.
Cleaning
IMPORTANT: Before attempting any cleaning or maintenance, ensure your extractor is
disconnected from the power source.
GENERAL CLEANING: Regular cleaning guarantees correct and long lasting operation.
Wipe the external surface of the appliance regularly using warm and a mild detergent, never use
products containing abrasive cleaners.
Particular care must be paid to the grease filtering panels which must be periodically cleaned in
relation to use (at least once every two months). These can be cleaned in warm soapy water or
placed in the dishwasher (using the dishwasher may cause some slight discoloration, this is normal
and not as fault with the product).
Alternative Methods of Extracting
1. Extraction Via Ducting (fig.1)
The very best method of cleaning the kitchen of unwanted odours is by connecting the appliance
to an exhaust duct and venting to the outside atmosphere via exterior wall (suitable 150mm
diameter ducting kits may be purchased from the retailer where you purchased your extractor,
alternatively www.caple.co.uk.) Ducting your extractor negates the need for charcoal
filters.(Fig.1)
Remember: Before drilling or chiselin
NOTE: 150mm diameter ducting must be used to vent this extractor.
1. Ensure the ducting tube is kept as short as possible and with minimum of bends to ensure a
smooth airflow movement. (Maximum length 3M)
4
THE CHARCOAL FILTER
Charcoal filters (CAP73CF) should be replaced at least every 6 months, or sooner with heavier
use. These can be purchased directly from www.caple.co.uk.
To change the charcoal filter, remove the existing filter by twisting an pulling off. Re-fit the new
version by pushing onto the lugs and twisting to the fixed position.
Fig 2

17Please keep this instruction manual for future reference Instruction manual INCH
TOP OUTLET TO REAR DUCTING OUTLET
Top extraction and rear extraction modes can be selected depending on the cabinet and other
requirements. Please follow the below instructions if the change in extraction is required:
2. Ducted air must not be discharged into a flue which is used for exhausting fumes from appliances
supplied with energy other than electricity.
3. Ensure the requirement of the local authorities and building regulations are adhered to concerning
the discharged of exhaust air.
4. Ensure adequate room ventilation is provided when the extractor is used on the same room as
appliances supplied with energy other than electricity.
5. Never duct into a hot air flow such as a central heating duct.
We strongly advise that all exterior outlets be fitted with a non return valve with louvered slots.
2. The Re-circulation Mode (Fig.2)
When there is no easy access to an outside wall, the extractor can easily be adapted to clean air
polluted by cooking smells by using a charcoal filter (code: CAP73CF). Replacements can be
purchased from www.caple.co.uk. Remember the re-circulation mode cannot be used without a
charcoal filter.
The Charcoal Filter
Charcoal filters have a limited life. We advise you to change it when there is a noticeable drop in
performance. The intervals between changing the filter will be depend entirely upon the amount of
cooking you do. But on average they will last about 6 months, they should then be replaced.
Operating Your Extractor
The motor will automatically operate by opening and closing the front door panel as long as the
switch is set to the desired speed level. The extractor fan has three speed settings for light, medium
or heavy extraction of cooking vapors. The different levels of extraction are number 1, 2 & 3 and can
be recognized by the changes in noise level of the extractor fan when operating.
3.Top outlet to rear ducting outlet
Top extraction and rear extraction modes can be selected depending on the cabinet and other
requirements. Please follow the below instructions if the change in extraction is required:
1.Top outlet 2.Open the front panel ,take out the 3.Remove the transfer
filters and release the wiring tie screws shown above
5
1. Top outlet
4. Rotate the transfer box
to the back position and
replace the screws
2. Open the front panel,
take out the filters and
release the wiring tie
3. Remove the
transfer screws
shown above
4.Turn round the transfer box to 5.The rear outlet is now selected
the back position and replace the screws
Operation
To switch on the light simply move the switch to position 1.
NOTE: The light is not effected by opening or closing the front panel.
To change the charcoal filter remove the old cassette by twisting an pulling off. Re-fit the new
version my pushing onto the lugs and twisting to fixing in position.
6
5. The rear outlet is
now selected
2. Ducted air must not be discharged into a flue which is used for exhausting fumes from appliances
supplied with energy other than electricity.
3. Ensure the requirement of the local authorities and building regulations are adhered to concerning
the discharged of exhaust air.
4. Ensure adequate room ventilation is provided when the extractor is used on the same room as
appliances supplied with energy other than electricity.
5. Never duct into a hot air flow such as a central heating duct.
We strongly advise that all exterior outlets be fitted with a non return valve with louvered slots.
2. The Re-circulation Mode (Fig.2)
When there is no easy access to an outside wall, the extractor can easily be adapted to clean air
polluted by cooking smells by using a charcoal filter (code: CAP73CF). Replacements can be
purchased from www.caple.co.uk. Remember the re-circulation mode cannot be used without a
charcoal filter.
The Charcoal Filter
Charcoal filters have a limited life. We advise you to change it when there is a noticeable drop in
performance. The intervals between changing the filter will be depend entirely upon the amount of
cooking you do. But on average they will last about 6 months, they should then be replaced.
Operating Your Extractor
The motor will automatically operate by opening and closing the front door panel as long as the
switch is set to the desired speed level. The extractor fan has three speed settings for light, medium
or heavy extraction of cooking vapors. The different levels of extraction are number 1, 2 & 3 and can
be recognized by the changes in noise level of the extractor fan when operating.
3.Top outlet to rear ducting outlet
Top extraction and rear extraction modes can be selected depending on the cabinet and other
requirements. Please follow the below instructions if the change in extraction is required:
1.Top outlet 2.Open the front panel ,take out the 3.Remove the transfer
filters and release the wiring tie screws shown above
5
For Your Safety
In order to protect your appliance and minimize the risk of fire, do not prepare flambé dishes under
the extractor. Your extractor is designed to draw cooking fumes and vapours up and away from your
hob. This means that exposed flames may behave unpredictably in the vicinity of the appliance
while it is switch on. When frying take particular care to prevent the oil from catching fire and never
leave unattended.
Cleaning
IMPORTANT: Before attempting any cleaning or maintenance, ensure your extractor is
disconnected from the power source.
GENERAL CLEANING: Regular cleaning guarantees correct and long lasting operation.
Wipe the external surface of the appliance regularly using warm and a mild detergent, never use
products containing abrasive cleaners.
Particular care must be paid to the grease filtering panels which must be periodically cleaned in
relation to use (at least once every two months). These can be cleaned in warm soapy water or
placed in the dishwasher (using the dishwasher may cause some slight discoloration, this is normal
and not as fault with the product).
Alternative Methods of Extracting
1. Extraction Via Ducting (fig.1)
The very best method of cleaning the kitchen of unwanted odours is by connecting the appliance
to an exhaust duct and venting to the outside atmosphere via exterior wall (suitable 150mm
diameter ducting kits may be purchased from the retailer where you purchased your extractor,
alternatively www.caple.co.uk.) Ducting your extractor negates the need for charcoal
filters.(Fig.1)
Remember: Before drilling or chiselin
NOTE: 150mm diameter ducting must be used to vent this extractor.
1. Ensure the ducting tube is kept as short as possible and with minimum of bends to ensure a
smooth airflow movement. (Maximum length 3M)
4

18 Please keep this instruction manual for future reference
Instruction manual INCH
OPERATION
To switch on the light simply move the switch to position 1.
NOTE:
The light will turn on when the front panel is open and turn off when the front panel is closed.
Light
Neon Indicates
Motor Operation
Levels of Extraction
The motor will automatically operate by opening and closing the front panel as long as the
switch is set to the desired speed level. The extractor fan has three speed settings for light,
medium or heavy extraction of cooking vapours. The different levels of extraction are number 1,
2 & 3 and can be recognised by the changes in noise level of the extractor fan when operating.
IMPORTANT:
In order to protect your appliance and minimise the risk of fire, do not prepare flambé dishes
under the extractor. Your extractor is designed to draw cooking fumes and vapours up and
away from your hob. This means that exposed flames may behave unpredictably in the vicinity
of the appliance while it is switch on. When frying take particular care to prevent the oil from
catching fire and never leave unattended.

19Please keep this instruction manual for future reference Instruction manual INCH
BULB REPLACEMENT
This product is supplied with LED bulbs. To replace, isolate the electrical supply, release the
spring holding the bulb and remove. Replace with a new bulb of the same type.
NOTE:
The bulb is a consumable part and it not covered by the guarantee.
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY PRIOR TO CHANGING
THE BULB.
CLEANING AND MAINTENANCE
CLEANING AND MAINTENANCE:
Switch off the extractor before cleaning or maintenance. To prevent surface damage never use
abrasive or oil based liquid cleaners. To clean the surfaces of the appliance, use mild detergent
and warm water. In areas of high humidity and coastal environments cleaning should be
carried out frequently.
WARNING:
A build up of oil may occur if the extractor is not cleaned regularly.
GREASE FILTER MAINTENANCE:
To maintain efficiency, the filters should be removed regularly (approximately monthly), and
washed using hot soapy water of the dishwasher.
NOTE:
Some discolouration of the frame may occur if washed in the dishwasher.

20 Please keep this instruction manual for future reference
Instruction manual INCH
ELECTRICAL CONNECTION
IMPORTANT:
Ensure that the electricity supply is switched off before connecting.
Your appliance must be connected to fix wiring via the use of a double pole switched fused
spur outlet with at least 3 mm contact separation, and preferably with a pilot lamp. (See
technical data for fuse rating). We strongly recommend the appliance is connected by a
qualified electrician.
NOTE:
The terminology “DOUBLE POLE” means that both the live and neutral supplies are switched
and disconnected at the same time.
Bulb Replacement
This product is supplied with LED lamps. To replace, isolate the electrical supply, release the spring
holding the lamp and remove the lamp. Then replace a new damp of the identical type.
Note: The bulb is a consumable part and it not covered by the guarantee.
Always switch off the electricity supply prior to changing the bulb.
Electrical Connections
IMPORTANT: ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE
CONNECTING.
Your appliance must be connected to fix wiring via the use of a double pole switched fused
spur outlet with at least 3 mm contact separation, and preferably with a pilot lamp. (See
technical data for fuse rating). We strongly recommend the appliance is connected by a
qualified electrician who is a member of the N.I.C.E.I.C or Corgi who will comply with the
I.E.E and any local regulations
NOTE: The terminology “DOUBLE POLE” means that both the
live and neutral supplies are switched and disconnected at the
same time.
The terminations labelled SUPPLY are for the connection of the internal house wiring and
the terminations labelled LOAD are for connection of the appliance.
Important:
The wires in this mains lead are coloured in accordance with the following code:
Blue Neutral
Brown Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colors markings
identifying the terminals in your spur box, proceed as follow:
The wire which is colored blue must be connected to the terminal which is marked with the letter “N” or
colored black. The wire which is colored brown must be connected to the terminal which is marked with
the Letter ‘L’ or colored red.
7
The terminals labelled SUPPLY are for the connection of the internal house wiring and the
terminals labelled LOAD are for connection of the appliance.
