Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
2
CONTENTS
WARNINGS 3
ENVIRONMENTAL PROTECTION 6
INSTALLATION 7
REMOTE CONTROL 12
OPERATION 12
TIMING 15
MAINTENANCE 16
CR700_CR750_Instruction manual.indd 2 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
3
WARNINGS
-The cooking surface and the inferior part of the cooker
hood must be at a minimum distance of 65 cm.
-The appliance is not intended for use by young children
or infirm persons without supervision. Young children
should be supervised to ensure they do not play with the
appliance.
-The cooker hood, when evacuating the extracted air,
could generate negative pressure in the room, which
can’t exceed the limit of 0.04 mbar, in order to avoid the
suck of exhausts deriving from the heat-source. Therefore
the room should be provided with air-intakes to allow a
constant flow of fresh air.
-When performing the electrical connections on the
appliance, please make sure that the current tap is
provided with earth connection and that voltage values
correspond to those indicated on the rating label placed
inside the appliance itself.
-Please disconnect the appliance from power mains,
before carrying out any cleaning or maintenance
operation. If the appliance is not equipped with a
nonseparable flexible cable and plug, or with another
device ensuring omnipolar disconnection from the mains,
with an opening distance between the contacts of at
least 3 mm, then such disconnecting devices must be
provided in the fixed installation.
CR700_CR750_Instruction manual.indd 3 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
4
-If the appliance is equipped with a power cord and a
plug, it shall be placed in such a way that the plug can
be reached easily.
-The use of materials which can burst into flames should
be avoided in close proximity of the appliance. When
frying, please pay particular attention to fire risk due
to oil and grease. Being highly inflammable, fried oil is
especially dangerous. Do not use uncovered electric grills.
In order to avoid possible fire risk, all instructions for
grease-filter cleaning and for removing eventual grease
deposits should be strictly followed.
-Two persons are needed for the installation of this
product.
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. GasSafe in
the UK) if necessary.
CR700_CR750_Instruction manual.indd 4 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
5
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.
-Children 8 years and older may only use the cooker hood
-unsupervised if they have been shown how to use it
safely and recognise and understand the consequences
of incorrect operation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead. These
are a fire hazard and do not guarantee the required
safety of the appliance.
-The cooker hood can get very hot during cooking due to
heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.
CR700_CR750_Instruction manual.indd 5 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
6
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU
This Declaration is issued under the sole responsibility of the manufacturer.
Hereby, Caple declares that the radio equipment included in the product is in
compliance with the RED directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available on our website
www.caple.co.uk.
CR700_CR750_Instruction manual.indd 6 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
7
INSTALLATION
The appliance can only be used in recirculation mode only. In recirculation mode the
air and fumes conveyed by the appliance are cleaned by both a grease filter and an
active charcoal filter, and then re put into the air circulation.
At the beginning make sure that the package is intact and all the parts are
unbroken, otherwise stop the installation and contact the retailer. The manufacturer
is not responsible for damages caused by material handling or product installation.
Before installing the appliance read all these instructions carefully.
WARNING: This product is made of ceramic, for that reason it requires an
appropriate and accurate handling, as well as a professional and accurate
installation.
Remove the product from the packaging and lay it on a suitable place, a soft
material such as sponge or fabric should be used to place the product on it.
By using the supplied drilling jig, perforate the wall according to the four pattern
indicated by the jig itself. The center of the drilling jig should correspond to the
center of the hob. Insert the supplied dowel into the holes made, tighten them, but
do not tighten until they are flush; the three screws into the dowels corresponding
to the holes with discharge head (Fig.8 A) leaving the hole for the locking screw
empty (Fig. 9 B) because it will be added later.

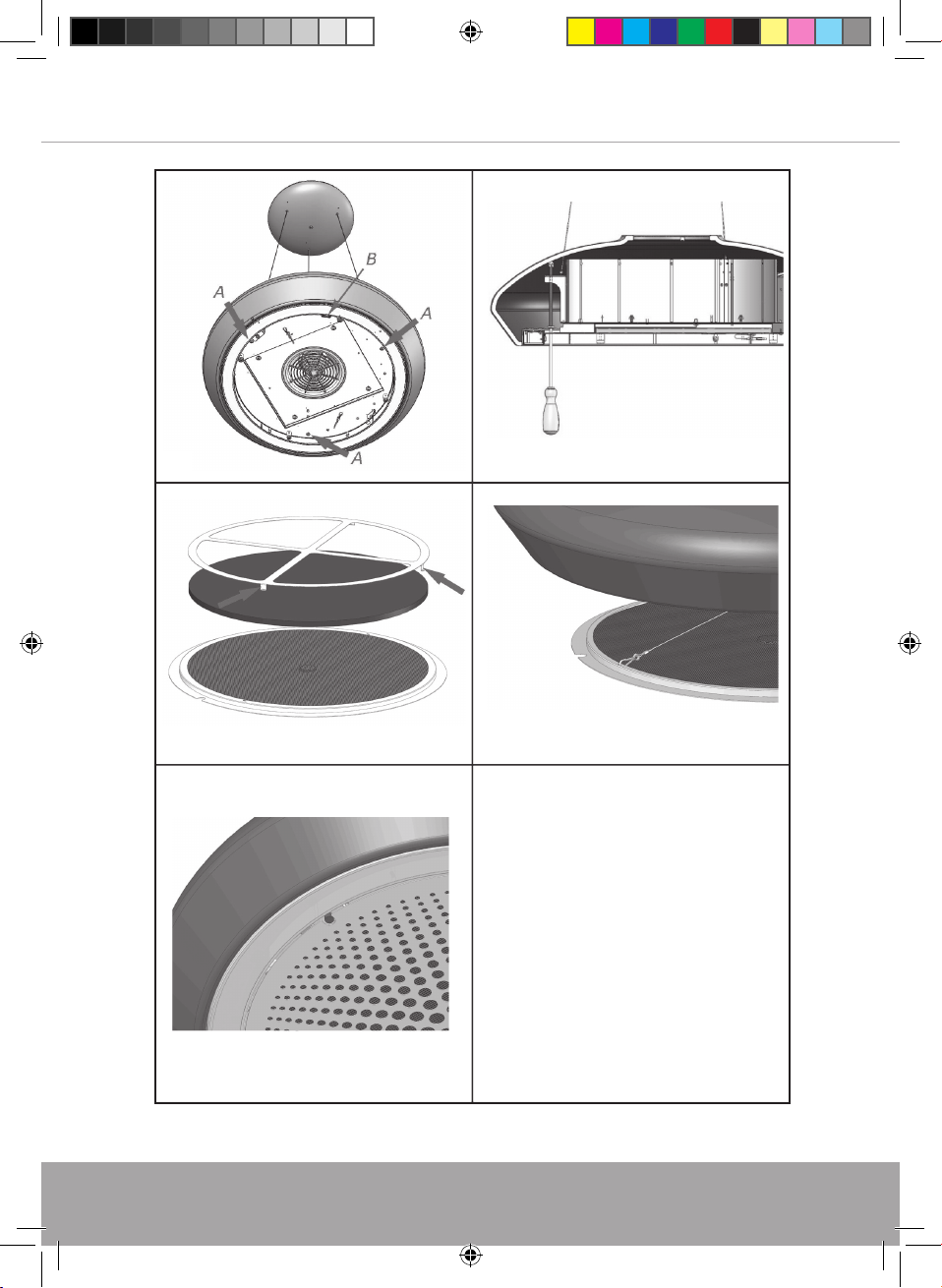

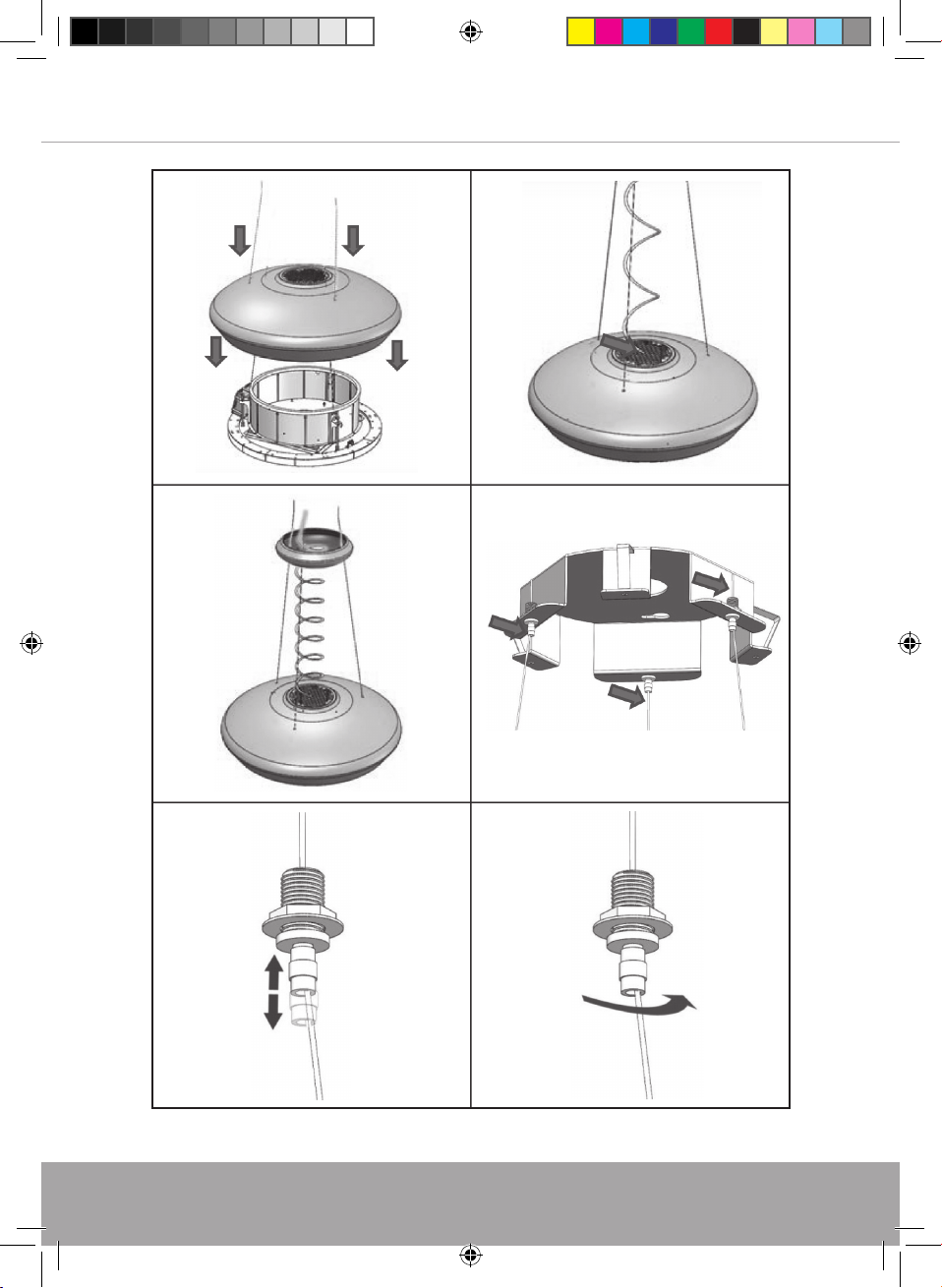

Place the ceramic cover over the suctioning element and insert the steel cables into
the three holes of the ceramic, as shown in the figure (Fig. 1). Put the power cable
through the air outlet grill, see Figure 2 The ceramic part must perfectly cover the
metal part named “D” in the exploded view.
Remove from the packaging the ceramic cover for the ceiling plate (see the detail
B on the exploded view), place the cover over the hood and put the steel cables
through the three holes in the ceramic body, the power cable should be put
through the central hole of the ceramic, see Fig.3. Extract the metal plate from the
packaging and then put the steel cables through the appropriate supports,
as shown in figure 4.
Adjust the height of the product scrolling the steel cables up and down inside
the support, it is necessary to unscrew and push the support in order to allow the
scrolling of the cable, see fig. 5.
CR700_CR750_Instruction manual.indd 7 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
8
Check that the remaining length of steel cables from the supports indicated in fig.
6 is the same, in order to ensure that it will be installed perfectly parallel to the
ceiling. Tightening the appropriate support by screwing it as shown in fig.6, block
the steel cables. Add the clips as a further safety precaution for cable blocking
fig. 7. Put the hood near the ceiling and hook the plate to the screws previously
installed (fig.8 A) Tighten the three screws fixing the plate to the ceiling, then block
the hood definitively adding the security screw , see fig.9 B. Connect the appliance
to the electric grid.
Lift up the ceramic cover until reaching the ceiling (fig.10 ), make sure that the
springs have hooked the ceramic cover. Install the grease filter making sure to hook
first the security steel cable, as shown in fig. 16.
The grease filter must be positioned by orienting the dedicated opening, near the
speed indicator (fig. 17). In case the ceramic cover of the body, is not perfectly flat
or parallel to the body, it is possible to make an adjustment after installation.
Remove the grease filter as described in Maintenance Section. Using a Phillips screw
head screwdriver, (fig. 13A) tighten or loosen the three screws in order to raise or
lower the ceramic body on a specific side (fig. 14). After the adjustment insert the
rubber tips and the grease filter again.
CR700_CR750_Instruction manual.indd 8 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
9
1
3
5
2
4
6
CR700_CR750_Instruction manual.indd 9 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
10
7
9
11
8
10
12
CR700_CR750_Instruction manual.indd 10 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
11
13
15
17
14
16
CR700_CR750_Instruction manual.indd 11 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
12
REMOTE CONTROL
At first ignition, keep pressed the lighting button for 5 seconds.
Remote control used for the operation of island extractors:
Technical Data
Alkaline battery powered : 12 V mod. 23 A
Operating frequency : 433.92 Mhz
Combinations : 32.768
Max. consumption : 25 mA
Operating temperature: -20 ÷ + 55 °C
Dimensions : 120 x 45 x 15 mm
OPERATION
The transmitter is equipped with 5 buttons for cooker hood management, as
specified below:
Light ON/OFF command.
Motor ON (speed level 1) / OFF command.
Reduce speed.
Increase speed.
10-minute timer.
The set extraction speed is indicated by the LED in the extraction perimeter channel.
To each color generated by the LED, it corresponds a specific speed, as shown
below:
First speed WHITE
Second speed BLUE
Third speed DARK BLUE
Fourth speed RED
CR700_CR750_Instruction manual.indd 12 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
13
Initial Operating Condition
The manufacturer supplies the radio control unit
ready to be used with codes preset in the Factory
OPERATION MODE
Standard configuration:
Standard configuration requires all “cooker hoods radio control system” to be
provided with the same transmission code. In the event two cooker hoods radio
control system are installed in the same room or nearby, each system may affect the
operation of the another. Therefore, the code of one radio control system must be
changed.
Generating a new transmission code:
The radio control system is provided with preset codes. Should new codes be
required, proceed as follows: Press simultaneously buttons:
for two seconds. When Leds light on, press buttons:
(within 5 seconds). Leds flashing 3 times indicate the procedure is completed.
WARNING:
This operation deletes permanently the preset codes.on the air outlet of the motor,
can swing.
Learning the new transmission code:
Once the transmission code is changed in the radio control unit, the electronic
central unit of the cooker hood must be made to set the new code in the following
way:
Press the main power-off button of the hood and then restore power to the
electronic control unit. Within the next 15 seconds, press the Light Button
to synchronise the central unit with the code.
CR700_CR750_Instruction manual.indd 13 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
14
Reset of the Factory configuration:
To restore the Factory configuration, follow the procedure described below: press
simultaneously buttons
for 2 seconds. When Leds light on, press buttons
(within 5 seconds). Leds flashing 6 times indicate the procedure is completed.
WARNING:
This operation deletes permanently the preset codes.
Emergency button:
In the event that the radio control does not work, use the emergency button to
switch the appliance off.
After any necessary repairs have been performed, reset the emergency button.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the
transmitter. To replace the exhausted battery, take the plastic lid off, remove the
battery and replace it with a new one, observing the correct battery polarities. Used
batteries should be discarded in special collection bins.
WARNING:
Any adjustments or modifications which have not been expressly approved by the
holder of the legal conformity certificate may invalidate the user’s rights relating to
the operation of the device.
The products are endowed with an electronic device which allows the automatic
switching off after 4 hours working from the last operation.
CR700_CR750_Instruction manual.indd 14 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
15
TIMING
- As a result of the new EU65 “Energy label” and EU66 “ Ecodesign” regulations
issued by the European Commission, which came into force as from January 1st,
2015 , our products have been adapted to comply with these new requirements.
All of the models complying with the energy label requirements, are equipped
with new electronics including a timer device for extraction speeds control, when
the air capacity exceeds 650m³/h. Internal motor models, with maximum air
capacity higher than 650m³/h, are equipped with a timer device that automatically
switches the extraction speed from 4th to 3rd speed, after 5 minutes operation
- External motor models are equipped with remote motors that , as for internal
motor versions, include a timer device that switches down the extraction speed
when it exceeds 650 m³/h. (See External Motors Instructions ). Remote motors,
whose air capacity exceeds 650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
- The extraction speed is automatically switched from 4th to 2nd speed, after 6
minutes operation. If the appliance is working at 3rd speed, it is automatically
switched to 2nd speed, after 7 minutes operation. Operation speeds can also be
changed during operation. The energy consumption of the appliance in standby
mode is lower than 0.5W.
CR700_CR750_Instruction manual.indd 15 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
16
MAINTENANCE
- An accurate maintenance guarantees good functioning and long lasting
performance. Particular care is due to the grease filter. The grease filter is fixed
through magnets, therefore it is sufficient to insert a hand tool or the tip of a
knife in the dedicated opening and push upwards in order to pull the filter out
of its place. See Fig. 12. In order to remove the filter from the hood, unhook the
two security cables opening their snap-hooks, The active charcoal filter has to be
removed after the extraction of the grease filter by pushing the specific handle
(fig.15).
- The active charcoal filter used in these hoods can be washed and re-used for up
to a maximum 3 years. We recommend that these are replaced during this period.
To purchase replacement charcoal filters please visit www.caple.co.uk or call 0117
938 1900.
To wash the charcoal filters, wash by hand with warm water or in the
dishwasher, and then bake in the oven at 90 degrees for 1 hour.
- To clean the appliance itself tepid water and neutral detergent are recommended,
while abrasive products should be avoided. The power cord must be replaced only
by a qualified person. The LED lamps must be replaced only by qualified person.
CR700_CR750_Instruction manual.indd 16 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
17
Notes:
CR700_CR750_Instruction manual.indd 17 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
18
Notes:
CR700_CR750_Instruction manual.indd 18 04/04/2018 14:08

Instruction manual CR700 / CR750
Please keep this instruction manual for future reference
19
Notes:
CR700_CR750_Instruction manual.indd 19 04/04/2018 14:08

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
t: 0117 938 7420
e: [email protected]
www.caple.co.uk
CR700_CR750_Instruction manual.indd 20 04/04/2018 14:08
