Car-Interface.com r.LINK CI-RL3-UCON8-LV User manual

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
r.LiNK Video-inserter
CI-RL3-UCON8-LV
Compatible with
Maserati vehicles with Uconnect VP4-NA
and 8.4 inch monitor
Video-inserter with 2 video inputs, rear-view camera input
and CAN control
Product features
Video-inserter for factory infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …)
FBAS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Video-in-motion in drive mode (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connectors –video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation
2.1.1. Place of installation –video interface
2.1.2. Place of installation –exchange metal sheets
2.2. Connection schema
2.3. Installation and connection –daughter PCB
2.3.1. Warning notes concerning the installation of ribbon cables
2.4. Connection head unit –picture signal cable
2.5. Connection head-unit –Power / CAN
2.5.1. 10pin Power / CAN cable
2.5.2. 12pin interface cable
2.6. Connection - video sources
2.6.1. Audio-insertion
2.6.2. After-market rear-view camera
2.6.2.1. Case 1: Video-interface receives the reverse gear signal
2.6.2.2. Case 2: Video interface does not receive the reverse gear signal
2.7. Connection video-interface - keypad
2.8. Picture settings
3. Interface operation
4. Specifications
5. FAQ –Trouble shooting

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page4
Compatibility
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio inserting, use the possibly existing factory audio-AUX-input
or a FM-modulator. If 2 AV-sources shall be connected to the
infotainment, for audio switching an additional electronic part is
required.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back, an additional electronic part is required.
Video input signal Only NTSC compatible
1.2. Checking the compatibility of vehicle and accessories
Brand
Compatible vehicles
Infotainment systems
Maserati
Levante since model year 2016
and other vehicles with
Uconnect VP4 infotainment
and 8.4 inch Monitor and capacitive
touch

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page5
1.3. Connection - Video-Interface
The video-interface converts the connected after-market sources video signals into an RGB
digital signal which is inserted in the factory monitor using separate trigger options and it
reads vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video
interface.
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the 8 dip-switches at the
video-interface. Dip position down is ON and position up is OFF.
See the following chapters for detailed information.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
Dip
Function
ON (down)
OFF (up)
1
No function
set to OFF
2
CVBS Video 1-input
enabled
disabled
3
CVBS Video 2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
Monitor selection
Try all possible combinations of dip 7 and 8 to find the
best picture (quality and size)
8

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page6
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It`s recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory RGB digital picture while the reverse gear is
engaged to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input “Camera-IN” while the
reverse gear is engaged.
Note: Dip 1, 4 und 6 are out of function and have to be set to OFF.
1.5. Settings of the 4 Dip switches (CAN function - red)
Dip position down is ON and position up is OFF.
Navigation / System
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF
For all vehicles, use the OFF position of all the 4 dip switches.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
2. Installation
Switch off the ignition and disconnect the vehicle’s battery! The interface needs a
permanent 12V source. If -according to factory rules- a disconnection of the battery has to
be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode
doesn’t succeed, the battery has to be disconnected with a resistor lead.
The Interface needs a permanent power supply! If power isn’t directly taken from the
battery, the connection’s power has to be checked for being start-up proven and
permanent.
Before a final installation, we recommend a test-run to ensure the compatibility of the
vehicle and the interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page7
2.1. Place of installation
2.1.1. Place of installation –video-interface
The video-interface has to be installed on the backside of the head-unit.
2.1.2. Place of installation - daugter PCB
The daughter PCB has to be installed inside the head unit.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page8

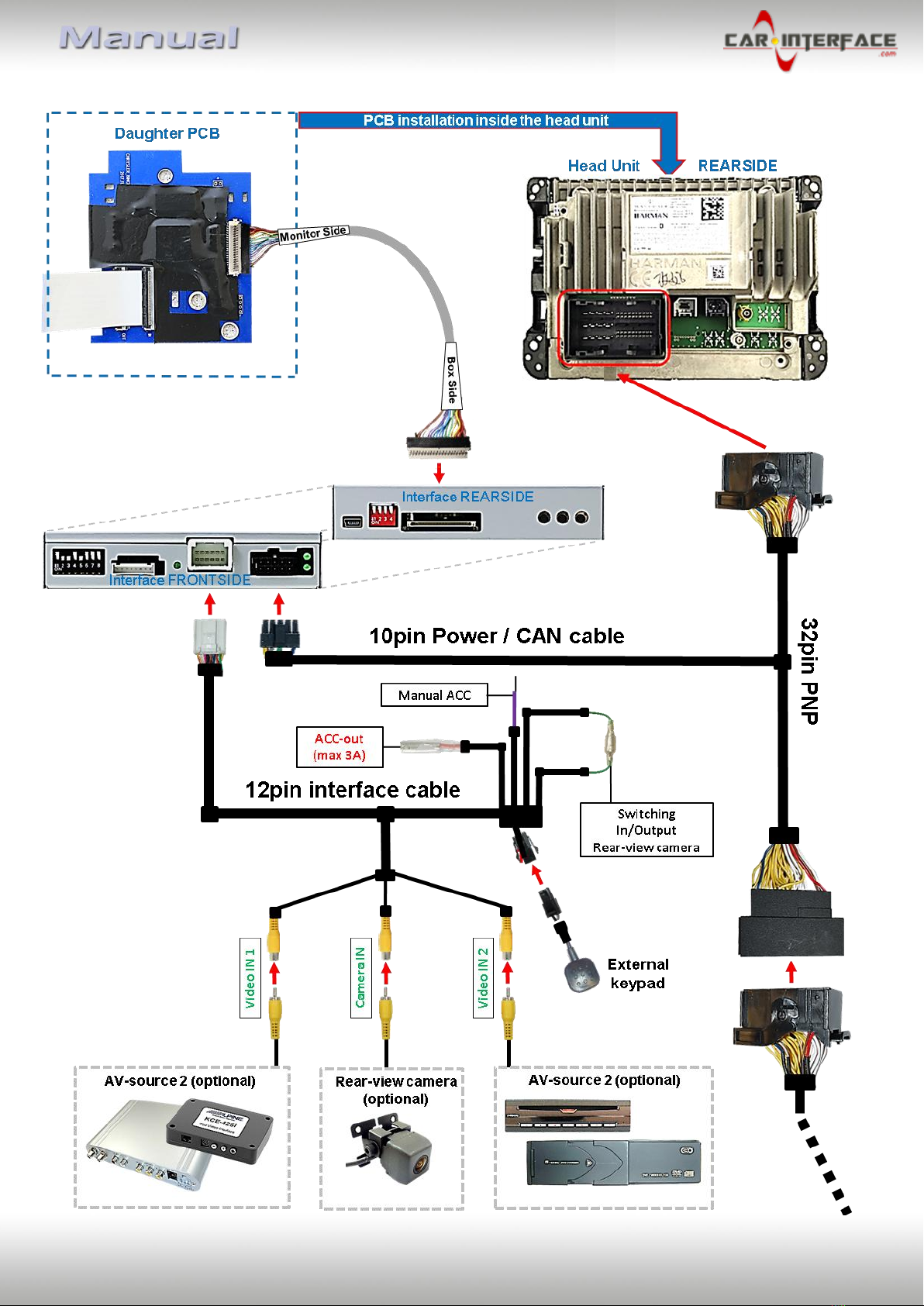

2.2. Connection schema

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page9
2.3. Connections and installation –daughter PCB

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page10
2.3.1. Warning notes, concerning the installation of ribbon cables
1) The contacting ends of ribbon cables always have to be installed in a straight and
precise 180° position to the connector. Each deviation from a perfect contact position will
curse faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of
the connector, concerning the mounting position.
3) Avoid cable contusion or cable injury caused by sharp-edged metal.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page11
2.4. Connection to head unit –picture signal cable
Connect the picture signal cable’s beige coloured female 20pin connector which is lead out
from the head unit, to the male 20pin connector of the video-interface.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page12
2.5. Connection head-unit –Power / CAN
2.5.1. 10pin Power / CAN cable
Connect the 10pin Power/CAN cable’s female 10pin connector to the
male 10pin connector of the video-interface.
Disconnect the female 52pin connector of the vehicle harness from the
rear of the head-unit and connect it to the 10pin Power / CAN cable’s male
52pin connector.
Connect the 10pin Power / CAN cable’s female 52pin connector to the male
52pin connector of the head-unit.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page13
2.5.2. 12pin interface cable
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the single red wire ACC-out (max 3A) and the purple coloured wire Manual
ACC of the 12pin interface cable to +12V S-contact terminal 86s
(e.g. glove compartment illumination).

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page14
2.6. Connecting the Video sources
It is possible to connect two after-market Video-sources and one after-market rear-view
camera to the video-interface.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video-interface.
Connect the video RCA of the video source 1 and 2 to the female RCA connector
“Video IN1” and ”Video IN 2” of the 12pin interface cable.
Connect the video RCA of the Rear-view camera to the female RCA connector
“Camera IN” of the 12pin interface cable.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page15
2.6.1. Audio insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.6.2. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 12pin
cable should carry +12V while the reverse gear is engaged. See the following illustration for
the according connection.
Note: Do not forget to set dip5 of the video-interface to ON before testing.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page16
2.6.2.1. Case 1: Video interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) should be taken from the
green wire of the 20pin cable to avoid an unnecessary permanent power supply to
the camera electronic.
For the operation, both green cables “Reverse IN” and “Reverse OUT” have to stay
connected.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page17
2.6.2.2. Case 2: Interface does not receive any reverse gear signal
If the video interface does not deliver +12V on the green wire of the 20pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s pre-connected male- and female connectors of the
20pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input connector (30).

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page18
2.7. Connection video-interface - keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin
connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the invisible connection and availability is strongly recommended.

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page19
2.8. Picture settings
The picture settings can be adjusted by the 3 buttons on the video-interface. Press the
MENU button to open the OSD settings menu. To switch to the next menu item, pressing UP
and DOWN will change the selected value. The buttons are embedded in the housing to
avoid accidental changes during or after installation. The picture settings have to be done
separately, AV1 and AV2 while the corresponding input is selected and visible on the
monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
For the rearIR-AV1 (out of function)
IR-AV2 (out of function)
Guide-lines left (out of function)
Guide-lines right (out of function)
Guide lines (ON/OFF) (out of function)

Version 30.01.2020 HW: CAM(V97) CI-RL3-UCON8-LV
Page20
3. Interface operation
The interface’s enabled inputs can be switched by the external keypad.
Each press of the external keypad switches the input from factory mode to the inserted
video sources. If, by dip switch setting, all inputs are enabled, the order is the following:
Factory video  video IN1  video IN2  factory video  …
By dip switch deactivated inputs will be skipped. If an audio switch has been connected in
the system, also the audio signal will be switched when switching from video IN1 to video
IN2
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 10mA
Power 140mA @12V
Video input 0.7V –1V
Video input formats NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Dimensions Video-Box 118 x 25 x 88 mm (W x H x D)
Dimensions daughter PCB 110 x 7 x 92 mm
