Car-Interface.com v.LOGiC CI-V5-MMI3G-PNP User manual

Version 19.10.2017 CI-V5-MMI3G-PNP
v.LOGiC Intelligent Solution
Interface
CI-V5-MMI3G-PNP
Compatible with Audi MMI3G Basic/High and
MMI3G+ High navigation systems with 4pin HSD
LVDS connector

Version 19.10.2017 CI-V5-MMI3G-PNP
Page1
Product features
Interactive lane lines
Own on-screen display and setup
Rear-view camera input
Automatic switching to rear-view camera input on engagement of reverse gear from
all operation modes
Front camera input
Manual switching to rear-view camera
2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,
camera, reverse gear)
Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
USB update-port for software-updates by consumer

Version 19.10.2017 CI-V5-MMI3G-PNP
Page2
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M653
1.4. LED’s of the interface-box V5C-M653
2. Connection schema
3. Installation
3.1. Connecting interface-box and harnesses
3.2. LVDS connection
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
3.2.1.2. Settings for connecting an after-market front camera
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
3.2.2.2. Settings for connecting an after-market rear-view camera
3.2.2.3. Settings for OEM rear-view camera
3.2.3. Configurable trigger outputs
3.3. Interactive lane lines
3.4. Picture settings
4. Operation
4.1. OSD –On-screen display
4.1.1. OSD –Operation
4.1.2. OSD –Additional setting options
4.2. Selecting the interface as current video source
5. Specifications
6. Connections (interface-box)

Version 19.10.2017 CI-V5-MMI3G-PNP
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

Version 19.10.2017 CI-V5-MMI3G-PNP
Page4
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
Requirements
Navigation Audi MMI3G Basic/High, Audi MMI3G+ High
Factory OPS Display of an optical park display (OPS) isn’t possible if an
after-market rear-view camera is connected and reverse gear is
engaged. Acoustic signals are still existing
Limitations
Unsupported vehicles Audi –A1, Q3.
Interface-box
V5C-M653
HW_____ SW_____
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
LVDS cable
CAB-HSD-ML060-OZ
LVDS cable
CAB-HSD-DD075-O
V5C-AU03
harness

Version 19.10.2017 CI-V5-MMI3G-PNP
Page5
1.3. Setting the dip switches of the interface-box V5C-M653
Dip 1 on the back of the interface-box V5C-M653 are used to set the monitor type. The
default setting is:
Head unit
Dip 1
Dip 2
Dip 3
MMI3G High, MMI3G+ High
ON
No function
No function
MMI3G Basic
OFF
No function
No function
After each change of the dip switch settings you have to execute a power reset of the
interface-box!
1.4. LED‘s of the interface-box V5C-M653
Validinput source
CAN ok
Power

Version 19.10.2017 CI-V5-MMI3G-PNP
Page6
2. Connection schema
Rear-view
camera
Interface-box
V5C-M653
REAR
LVDScable
CAB-HSD-DD075-O
4-PinHSD
LVDSfemale
vehicle harness
LVDScable
CAB-HSD-MR-060-OZ
Interface-box
V5C-M653
FRONT
Quadlock female
vehicle harness
Frontcamera
+12Vinput
(rear gear signal)
V5C-AU03
harness
+12Vpowerout1
+12Vpowerout2
CANHIGH
CANLOW
Backof
head unit

Version 19.10.2017 CI-V5-MMI3G-PNP
Page7
3. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Prior to wire and device installation we suggest to connect and test correct function of all
after-market and factory infotainment equipment!
The interface is installed on the backside of the head unit.

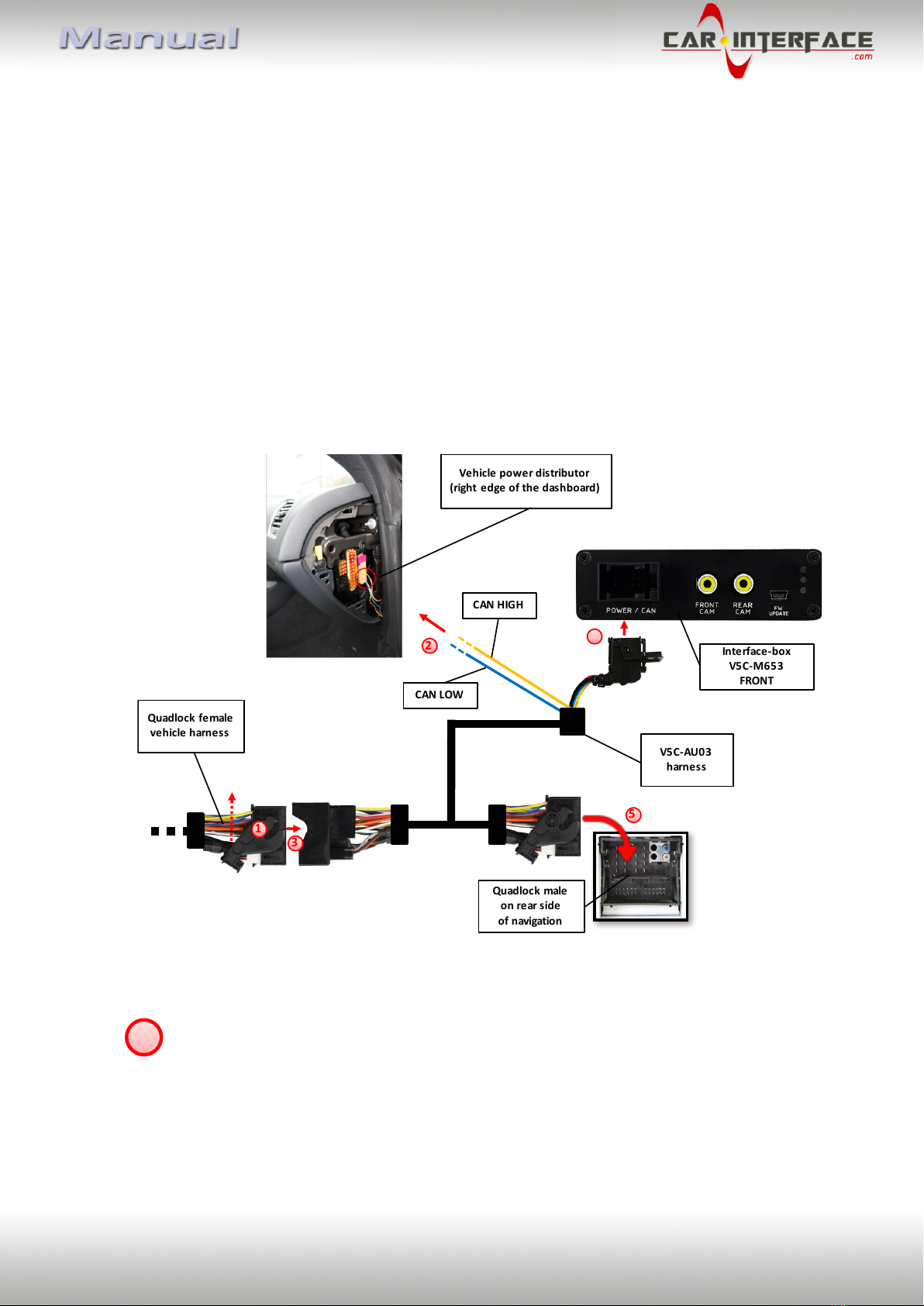

3.1. Connecting interface-box and harnesses
Remove the female Quadlock connector of the vehicle harness from the rear of the
navigation computer.
V5C-AU03
harness
Quadlock male
onrear side
of navigation
Quadlock female
vehicle harness
2
1
Interface-box
V5C-M653
FRONT
CANHIGH
CANLOW
Vehicle powerdistributor
(right edge of the dashboard)
3
5
4
1

Version 19.10.2017 CI-V5-MMI3G-PNP
Page8
Connect the loose blue cable (CAN-low) of harness V5C-AU05 to the orange-brown
Cable and the loose yellow cable (CAN-high) of harness V5C-AU05 to the orange-
purple or orange-green cable on the vehicle power distributor (right edge of the
dashboard).
Note: The orange cable in the vehicle is always CAN-bus. The cable colour orange-
brown is always CAN-low, the additional cable colour of orange for CAN-high can
vary.
Connect female Quadlock connector of vehicle harness to the male Quadlock
connector of harness V5C-AU03.
Connect female 12pin AMP connector of the harness V5C-AU03 to the front site of
the V5C-M653 interface box.
Connect female Quadlock connector of harness V5C-AU03 to the male Quadlock
connector of the navigation computer.
5
2
3
4

Version 19.10.2017 CI-V5-MMI3G-PNP
Page9
3.2. LVDS connection
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O
to the male 4pin HSD LVDS connector (LVDS-IN) on the rear of the
interface-box V5C-M653.
Remove the grey female 4pin HSD LVDS connector of the vehicle harness at the back
of the head unit and connect it to the male 4pin HSD LVDS of the
CAB-HSD-MR-060-OZ LVDS cable.
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-MR-060-OZ
to the male 4pin HSD LVDS connector (LVDS-OUT) on the rear of the
interface-box V5C-M653.
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O
to the grey male 4pin HSD LVDS connector on the rear of the head unit.
Interface-box
V5C-M653
REAR
LVDScable
CAB-HSD-DD075-O
Backof
head unit
4-PinHSD
LVDSfemale
vehicle harness
LVDScable
CAB-HSD-MR-060-OZ
13
2
4
1
2
3
4

Version 19.10.2017 CI-V5-MMI3G-PNP
Page10
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
Connect the video RCA of the after-market front camera to the female RCA connector
“FRONT CAM” of the interface box V5C-M653.
-The pink wire of harness V5C-AU03 can be used
for +12V electric power supply (max. 1A) of the
after-market front camera. Configure in the OSD-
menu “OPTION”, menu item “POWER OUT 1” the
designated electric power supply (see chapter
“Configurable switching outputs”).
Interface-box
V5C-M653
FRONT
Frontcamera
+12Vcamera
power
V5C-AU03
harness
Powerout1(max.1A)
1
2
1
2

Version 19.10.2017 CI-V5-MMI3G-PNP
Page11

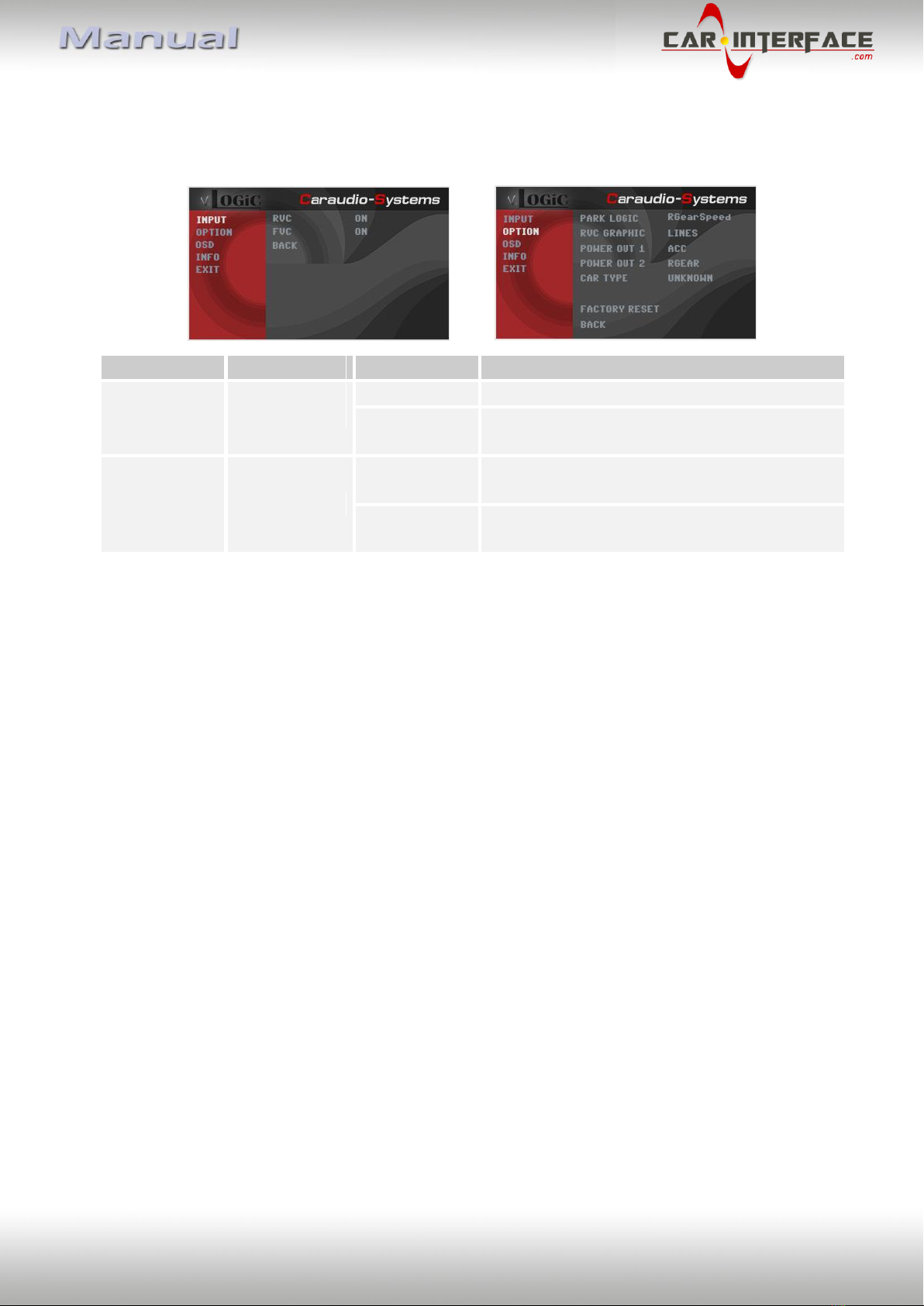

3.2.1.2. Settings for connecting an after-market front camera
You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
FVC
OFF
Keine Frontkamera angeschlossen
ON
Switches to front camera if parking process is
enabled and reverse gear is released
OPTION
PARK LOGIC
RGearSpeed
Enabled while parking process and up to
30 km/h
RGearTime
Enabled while parking process and up to
20 second
Note: You can deactivate the enabled parking process by long pressing (3 sec.) the
“control knob”button.

Version 19.10.2017 CI-V5-MMI3G-PNP
Page12
3.2.2. After-market rear-view camera

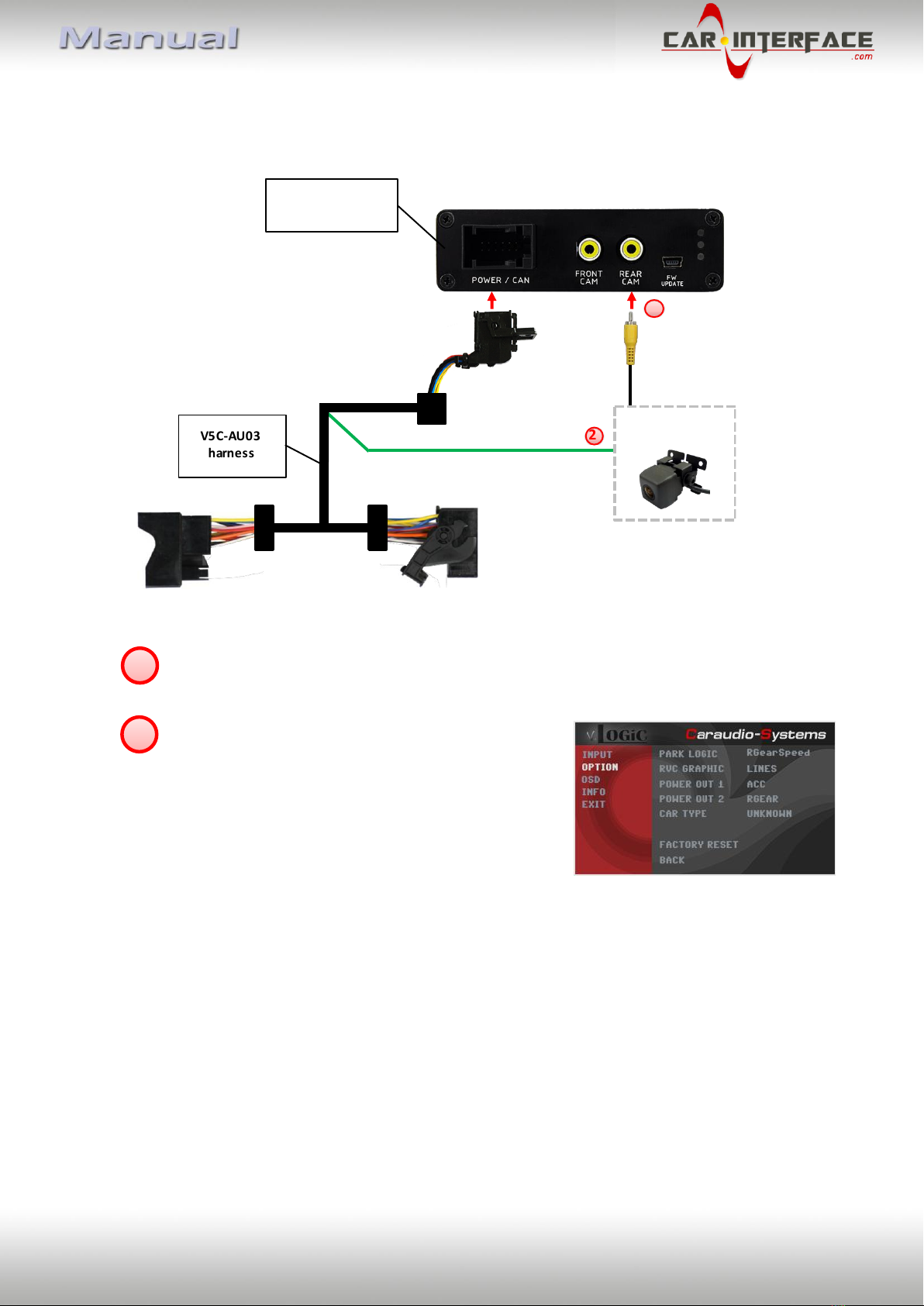

3.2.2.1. Connection to the after-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector “REAR CAM” of the interface box V5C-M653.
-The green wire of harness V5C-AU03 can be used
for +12V electric power supply (max. 1A) of the
after-market rear-view camera. Configure in the
OSD-menu “OPTION”, menu item “POWER OUT 2”
the designated electric power supply (see chapter
“Configurable switching outputs”).
V5C-AU03
harness
2
1
Interface-box
V5C-M653
FRONT
Rear-view
camera
Powerout2(max.1A)
1
2

Version 19.10.2017 CI-V5-MMI3G-PNP
Page13

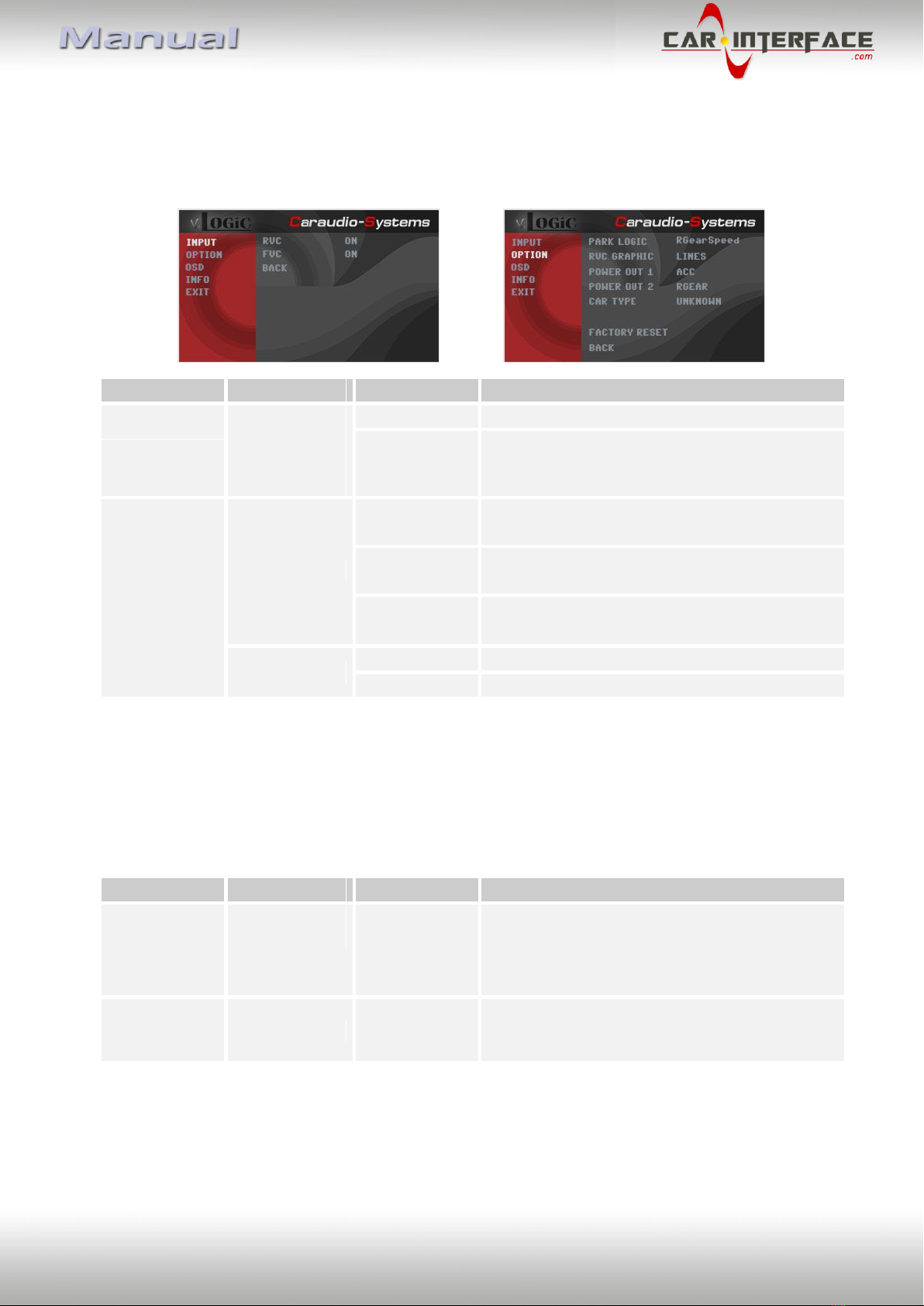

3.2.2.2. Settings for connecting an after-market rear-view camera
You have to configure some settings in the OSD-menus INPUT and OPTION if you want to
connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD-
Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
RVC
OFF
No rear-view camera connected
ON
Switches to rear-view camera if reverse gear
is engaged and/or PDC-display is displayed
OPTION
PARK LOGIC
RGearOnly
Enabled while parking process
RGearSpeed
Enabled while parking process and up to
30 km/h
RGearTime
Enabled while parking process and up to
20 second
RVC GRAPHIC
OFF
Interactive lane lines deactivated
LINES
Interactive lane lines activated
Note: You can deactivate the enabled parking process by long pressing (3 sec.) the
“control knob”button.
3.2.2.3. Settings for OEM rear-view camera
OSD-menu
Menu item
Setting
Explication
INPUT
RVC
OEM
If a factory rear-view camera is existing!
The interface turns off, if reverse gear is
enabled and it displays factory rear-view
camera
OPTION
PARK LOGIC
RGearSpeed
Enabled while parking process and up to
30 km/h

Version 19.10.2017 CI-V5-MMI3G-PNP
Page14
3.2.3. Configurable trigger outputs
You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu OPTION separately
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
POWER OUT1
(pink)
POWER OUT2
(green)
CAN
+12V when the interface is on (red LED on)
ACC
+12V when ignition is on
CAM
+12V when the rear-view camera input is
activated
RGEAR
+12V when reverse gear is engaged
AVS
+12V when interface video-source is active
OFF
Trigger output deactivated
1
V5C-AU03
harness
Interface-box
V5C-M653
FRONT
Powerout2(max.1A)
Powerout1(max.1A)
1

Version 19.10.2017 CI-V5-MMI3G-PNP
Page15
3.3. Interactive lane lines
You have to configure some settings in the OSD-menu
OPTION if you want to activate interactive lane lines
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
RVC GRAPHIC
OFF
Interactive lane lines deactivated
LINES
Interactive lane lines activated
CAR TYPE
A1/A4/A5/A6/
A7/A8/Q5/Q7
Vehicle type selection
3.4. Picture settings
You can change the picture settings in the OSD-menu IMAGE (activation only from interface
video level possible –push “SETUP” button for 3 sec.).
◦ Brightness
◦ Contrast
◦ Saturation
◦ Hue
◦ Sharpness
Note: The picture settings will be retained for each AV-source separately.

Version 19.10.2017 CI-V5-MMI3G-PNP
Page16
4. Operation
4.1. OSD –On-screen display
You can change the basic configurations of the interface in the OSD (on screen display).
4.1.1. OSD –Operation
You can control the OSD by MMI control buttons.
OK
Options
Longpress=enter OSD

Version 19.10.2017 CI-V5-MMI3G-PNP
Page17
4.1.2. OSD –Additional setting options
The following settings in the OSD-menus OPTION and OSD can be configured over and above
the described settings in this manual (Operation of the OSD: see chapter “OSD-Operation”):
OSD-menu
Menu item
Setting
Explication
OSD
POS. X
0-xxx
Horizontal position of the OSD
POS. Y
0-xxx
Vertical position of the OSD
SIZE
SMALL
Small OSD menu windows
LARGE
Large OSD menu windows
OSD TIMEOUT
2-20
Time setting for automatic OSD shutoff
INFO
VERSION
X.XX.XX
Displays the current SW-version
OPTION
FACTORY RESET
Resetting to factory settings

Version 19.10.2017 CI-V5-MMI3G-PNP
Page18
4.2. Selecting the interface as current video-source
Long press “MEDIA” button to choose the interface as current video source.
Short press ”MEDIA” button switch the video sources (cameras). Each short press will switch
to the next enabled input. If all inputs are enabled the order is:
FRONT CAM  REAR CAM  …
Inputs which are not enabled are skipped.
The exiting of the video interface level is achieved by long press of BACK button or short
press of „NAV“, „CAR“, „SETUP“, „RADIO“, „NAME“, „TEL“button.

Version 19.10.2017 CI-V5-MMI3G-PNP
Page19
5. Specifications
Operation voltage 10.5 –14.8V DC
Stand-by power drain <0,1mA
Operation power drain 190mA
Power consumption 2,6W
Temperature range -20°C to +80°C
Weight (box only) 285g
Measurements (box only) B x H x T 141 x 30 x 105 mm
6. Connections (interface-box)
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
Interface-box
V5C-M653
REAR
Male4pinHSD
LVDSconnector
Male12pinAMP
connector
Rear-view
camera input
Female
update-connector
MiniUSB
Interface-box
V5C-M653
FRONT
Male4pinHSD
LVDSconnector
Frontcamera
input
