Car-Interface CI-RL4-R40-E User manual

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
r.LiNK Video-inserter
CI-RL4- R40-E
Compatible with
Chevrolet vehicles
with MyLink infotainment and 7inch monitor
with separated radio unit
Opel vehicles
with R4.0 IntelliLink infotainment and 7inch monitor
with separated radio unit
Video-inserter for front- and rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the interface compatibility of vehicle and accessories
1.3. Connectors Video Interface
1.4. Dip-switch settings
1.4.1. 8 dip –black
1.4.1.1. Activating the front camera input (dip 1)
1.4.1.2. Enabling the interface’s video inputs (dip 2-3)
1.4.1.3. Rear-view camera setting (dip 5)
1.4.1.4. Guide lines (dip 6)
1.4.1.5. Vertical picture mirroring (dip7)
1.4.2. 4 dip - red
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Connection - picture signal cable
2.4. Connection –20pin PNP harnes
2.5. Analogue power supply
2.6. Power supply output
2.7. Connection –video sources
2.7.1. Audio insertion
2.7.2. After-market front camera
2.7.3. After-market rear-view camera
2.7.3.1. Case 1: Interface receives the reverse gear signal
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
2.8. Connection –external keypad
3. Interface operation
3.1. By infotainment button
3.2. By external keypad
4. Picture settings
5. Specifications
6. Frequently asked questions

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page4
Requirements
Brand
Compatible vehicles
Infotainment
Chevrolet
Camaro model years since 2016
MyLink - 7" monitor
with separate radio-bo
Opel
Astra K (Sports Tourer + 5-Türer) model year since 2016
Insignia B model year 2017 - 06/2018
Karl up to 03/2018
R4.0 IntelliLink - 7" monitor
with separate radio-box
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory audio-AUX-input
or a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio switching will
require additional electronic.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera
is only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is possible by
external keypad.
Guide lines Displayed guide lines are not available in all vehicles.
1.2. Checking the compatibility of vehicle and accessories

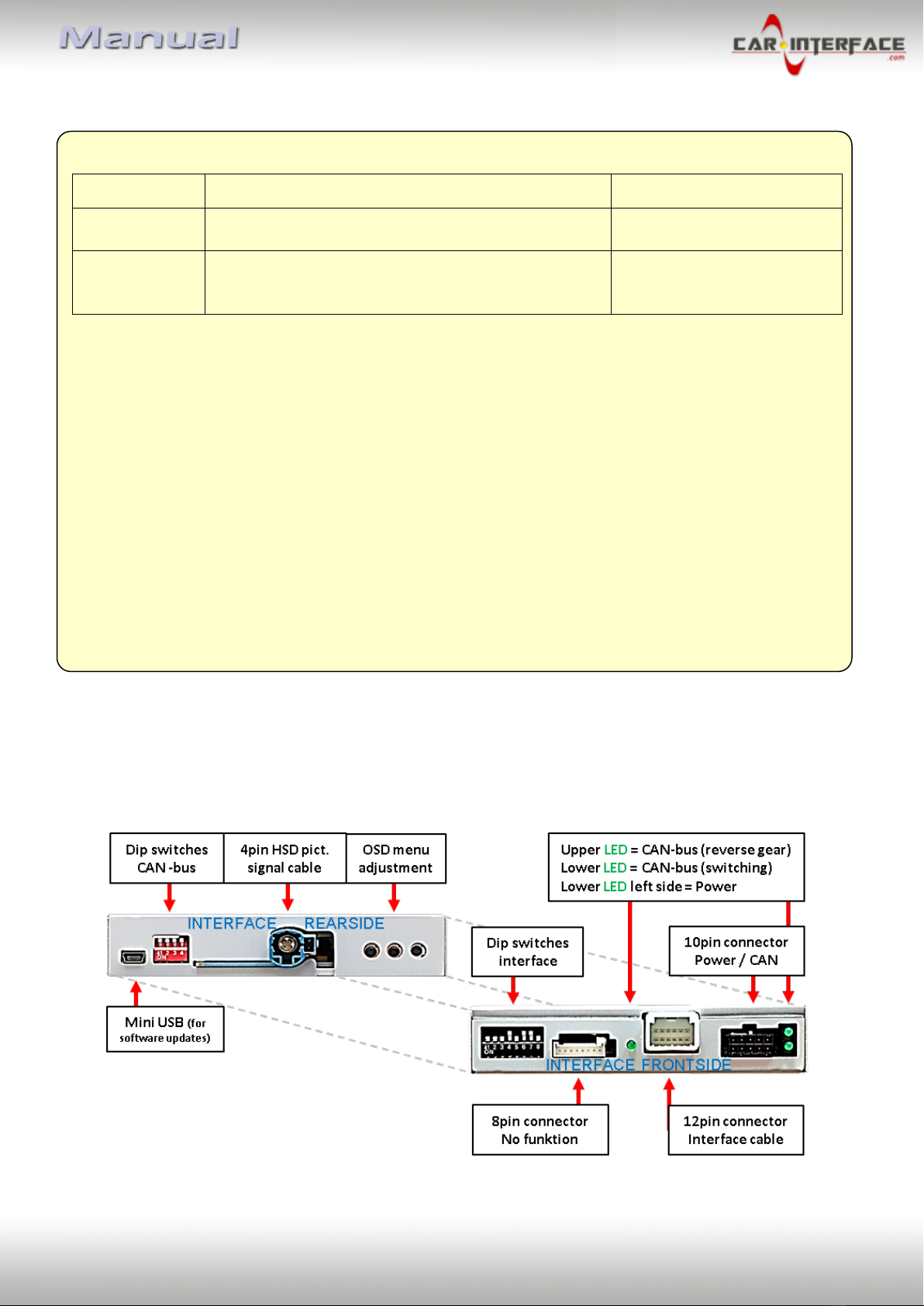

1.3. Connectors Video Interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page5

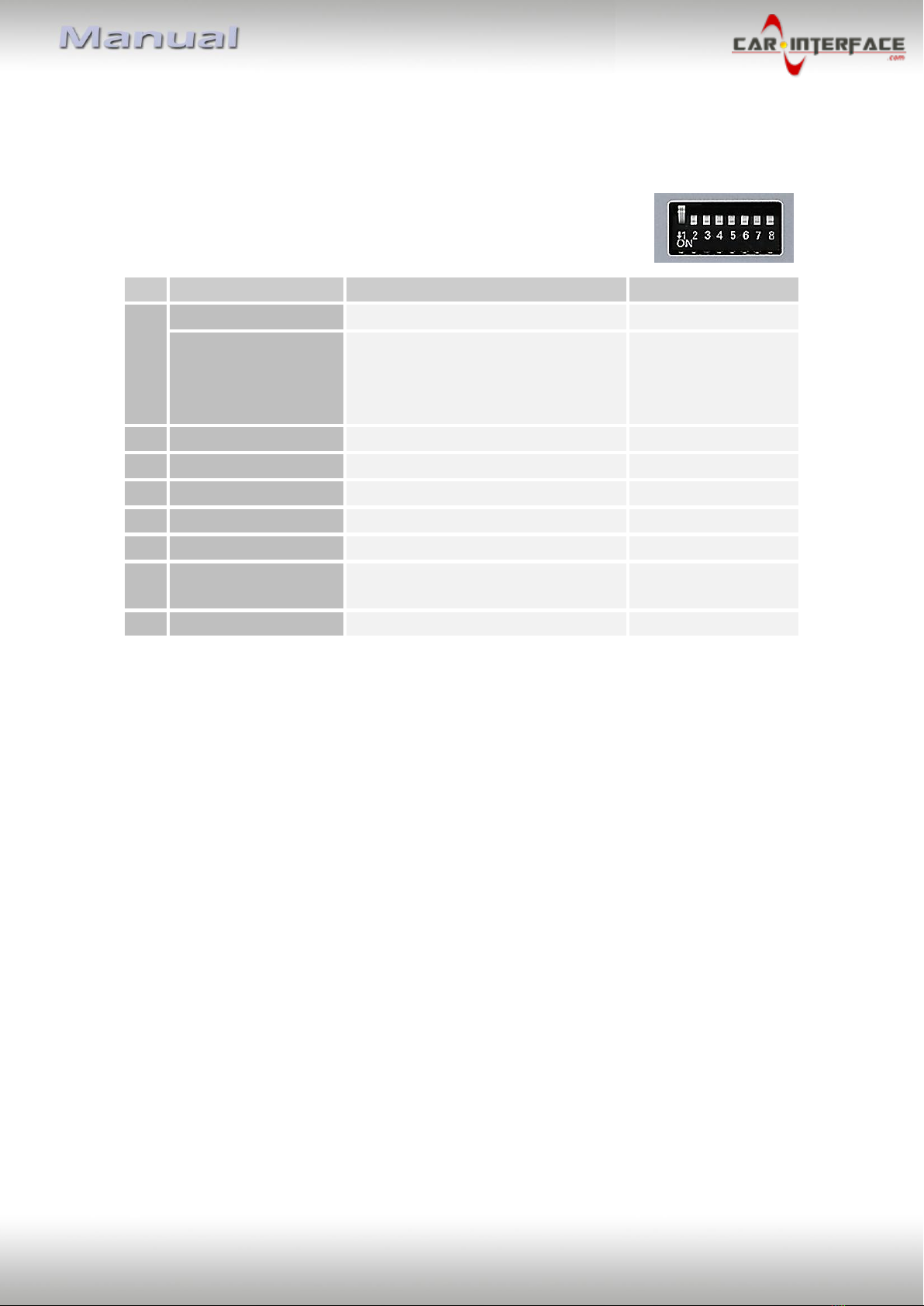

1.4. Dip-switch settings
1.4.1. 8 dip - black
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the Video interface has to be performed!
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
No function
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
Guide lines
enabled
disabled
7
Vertikale
Bildspiegelung
enabled
disabled
No function
set to OFF

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page6
1.4.1.1. Activating the front camera input (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the power supply output: see chapter “Power supply output”.
1.4.1.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.
1.4.1.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the
reverse gear is engaged.
1.4.1.4. Guide lines (Dip 6)
If set to ON, the interface is activated to show the guide lines for the rear-view camera while
the vehicle is in reverse mode (not available for all vehicles).
Note: Some vehicles have a different code on the CAN-bus which the video-interface is not
compatible with. If the interface does not completely communicate with the vehicle CAN
bus, the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they
in some vehicles once appear after having switched the system to powerless!
1.4.1.5. Vertical picture mirroring (dip7)
Dip 7 adjusts a vertical mirroring of the inserted videos on the monitor. If the monitor
representation of inserted videos should be shown 180° twisted, the setting for dip7 has to
be ON.
Note: Dips 4 and 8 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page7
1.4.2. 4 dip - red
By using the Dip-switches, the factory Head-unit or vehicle can be chosen
which the interface will be connected to.
Dip position down is ON and position up is OFF.
Set all dip switches to off
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The video interface is designated to be connected behind the vehicle`s head unit.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page8
2.2. Connection Scheme

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page9
2.3. Connection –picture signal cable
Disconnect the factory picture signal cable’s female USB connector with the blue coloured
cable from the rear-side of the head unit and connect it to the black coloured male USB
connector of the enclosed picture signal cable.
Connect the opposite black coloured female connector of the enclosed picture signal cable
to the previously become free male HSD+2 connector of the video interface.
Connect the female waterblue coloured HSD+2 connector of the picture signal cable to the
waterblue coloured male HSD+2 connector of the video interface.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page10

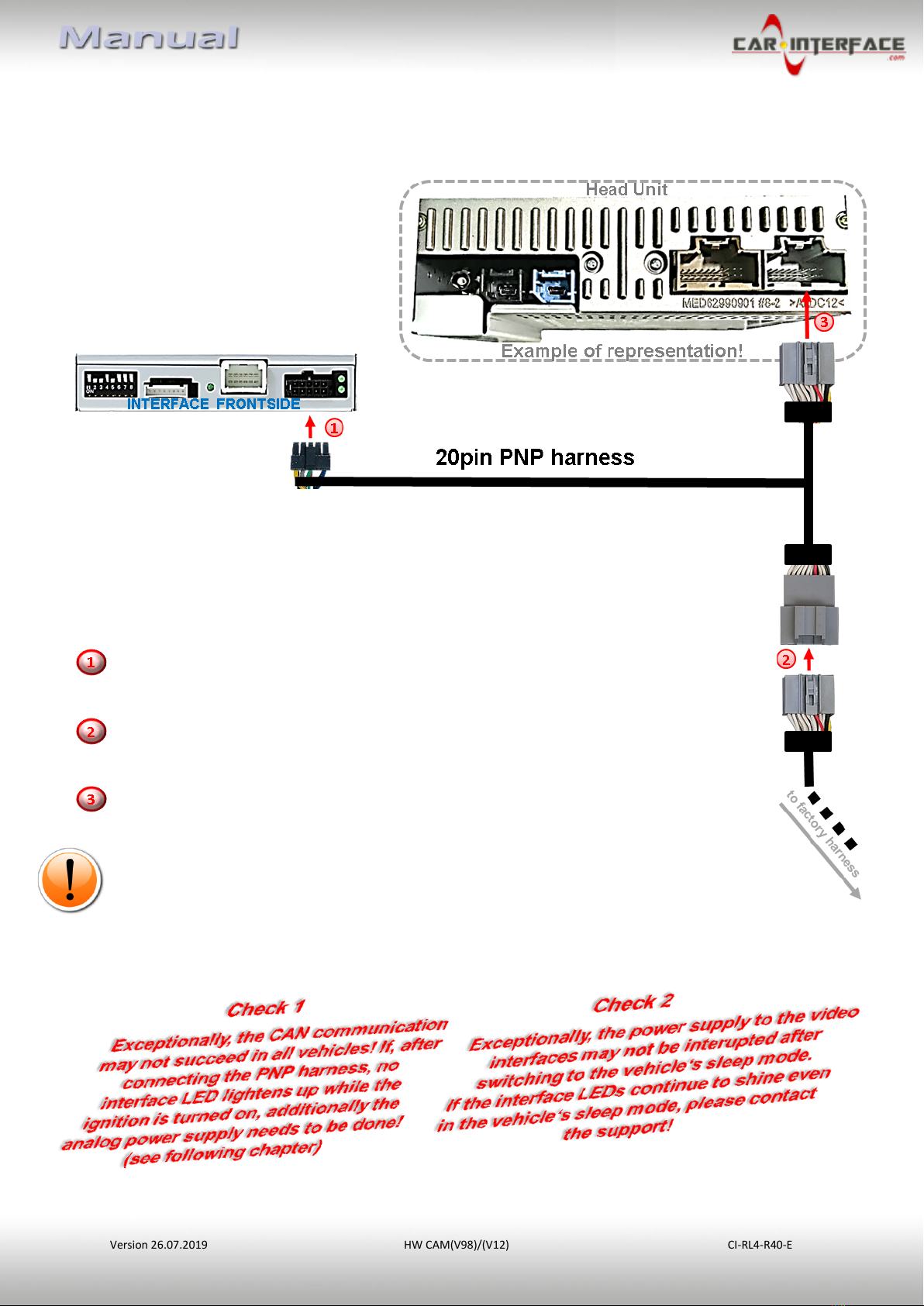

2.4. Connection –20pin PNP harness
Connect the female 10pin connector of the 20pin PNP harness cable to the
10pin Power / CAN connector of the video interface.
Disconnect the female 20pin connector of the factory harness at the rear-side of the
head-unit and connect it to the male 20pin connector of the 20pin PNP harness.
Connect the opposite female 20pin connector of the 20pin PNP harness to the
previously become free male 20pin connector at the rear-side of the head unit.
Note: If, after connecting the 10pin Power / CAN cable, no interface LED lightens up while
the ignition is turned on, refer to chapter “Analogue power supply for the video interface”.
Please carry out the following checks:

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page11
2.5. Analog power supply
If the communication between the CAN box and the vehicle’s CAN bus does not
succeed (not all vehicles are compatible), an analogue connection is required.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition
power or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination).

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page12

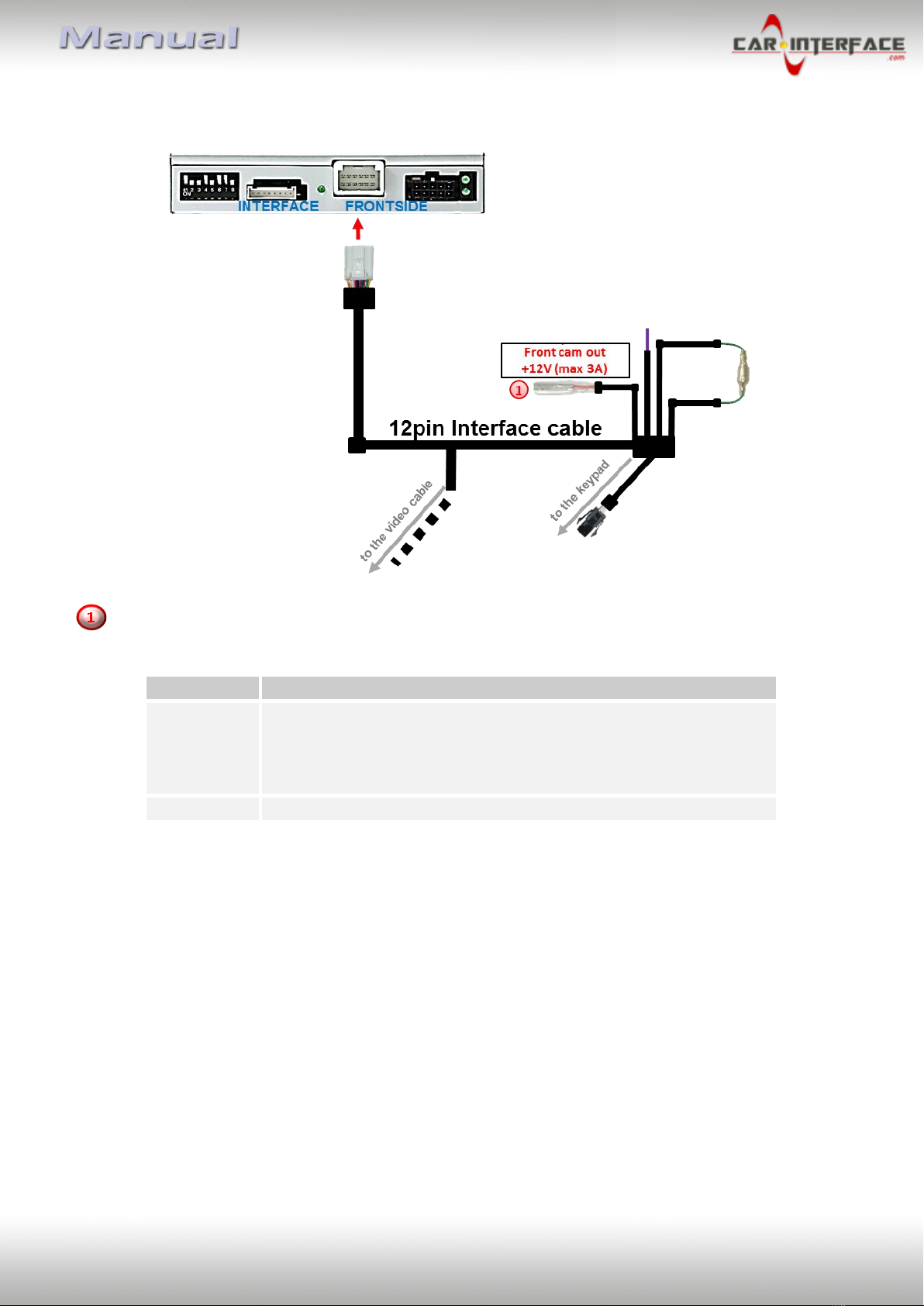

2.6. Power supply output
The red power supply output Front cam out +12V (max 3A) can be used to power a front
cam with dip switch 1 (of the black 8 dips) to ON.
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)
Dip 1 OFF
No function

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page13

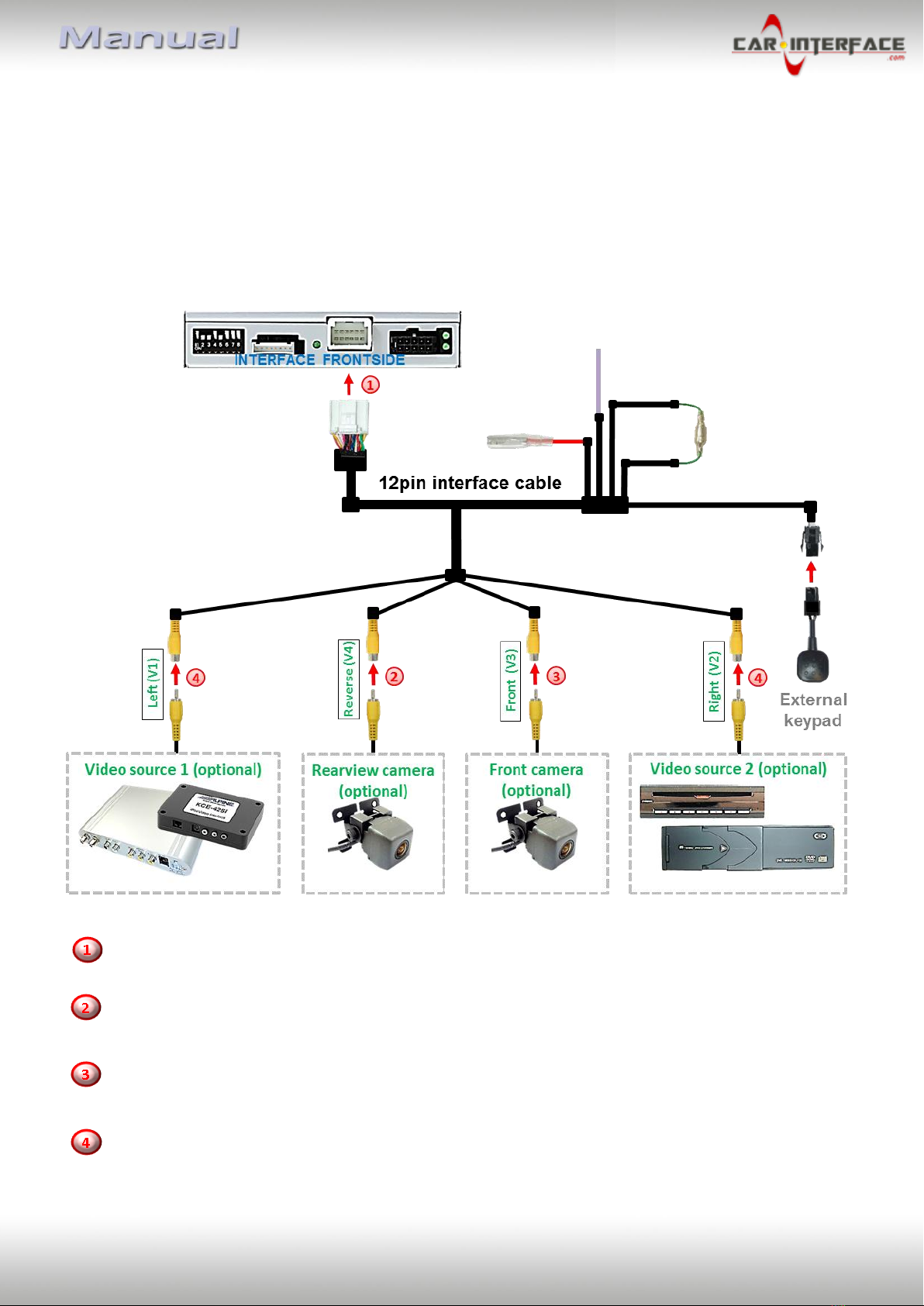

2.7. Connecting Video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.

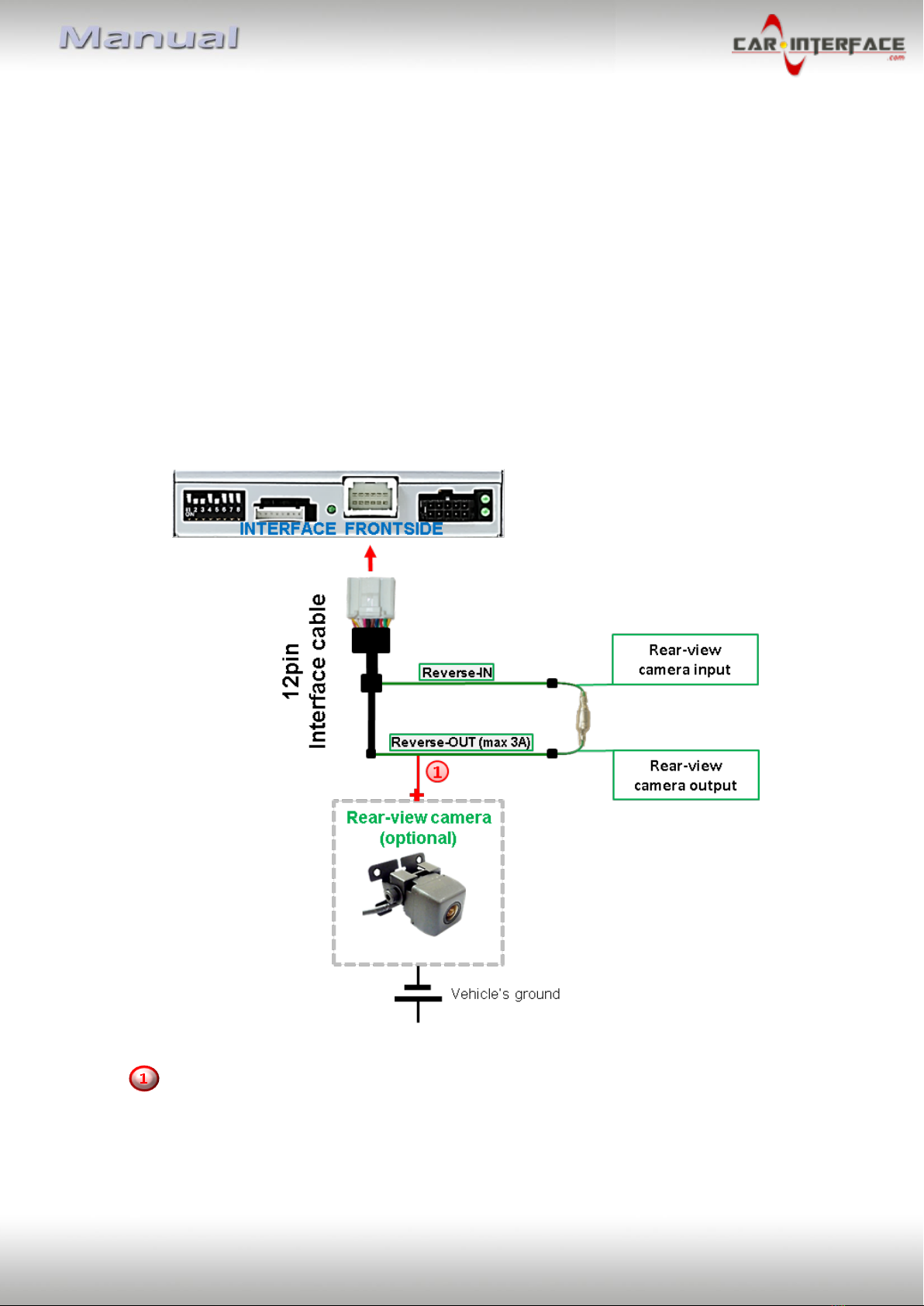

Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page14
2.7.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.7.2. After-market front camera
The red power supply output Front cam out 12V (max 3A) can be used to power a
front camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives +12V
(max 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is
disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).
Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page15
2.7.3. After-market rear-view camera:
Some vehicles have a different reverse gear code on the CAN-bus which doesn’t
communicate with the interface’s CAN. In this case there are two different ways of
installation. If the interface’s CAN is able to detect an enabled vehicle’s reverse gear, the
green wire of the 6pin to 12pin cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of video-interface to ON before testing.
2.7.3.1. Case 1: Interface receives the reverse gear signal
If the interface receives +12V on the green wire of the 12pin interface cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“CAMERA-IN” while the reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the
12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary,
permanent power supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page16
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
If the video interface does not receive +12V on the green wire of the 12pin interface cable
when reverse gear is engaged (not all vehicles are compatible), an external switching signal
from the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s pre-connected male- and female connectors of the
12pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input connector (30).

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page17

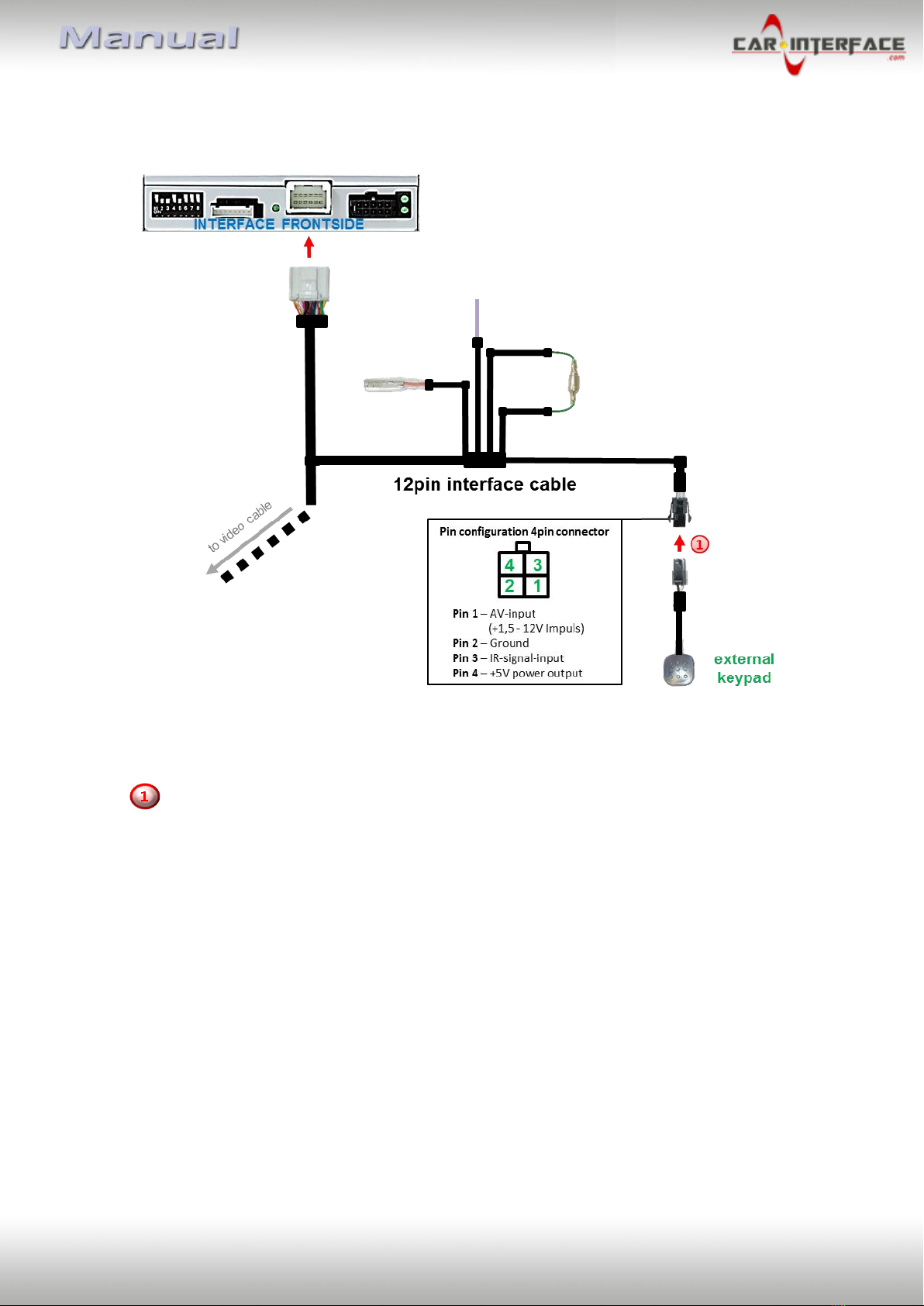

2.8. Connection - external keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin
connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the keypad’s invisible connection and availability is strongly recommended.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page18
3. Interface operation
3.1. By factory infotainment button
To switch the interface’s activated video sources, the factory infotainment buttons can be
used.
Press the according infotainment button to switch the input from the factory video to the
inserted video sources. If all inputs are activated by dip switch settings, the order is the
following:
Factory video  Video IN 1  Video IN 2  factory video
Each press will switch to the next enabled input. Inputs which are not enabled will be
skipped.
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external
keypad has to be used.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page19
3.2. By keypad
The interface’s external keypad can be used to switch the enabled inputs.
Long press of keypad (2-3 seconds)
By long pressing the external keypad (2-3 seconds), the video interfaces witches the input
from the factory video to the inserted video sources.
Each press (approx. 2 sec) will switch to the next enabled input. If all inputs are enabled the
order is:
Factory video  video IN1  video IN2  factory video  …
Disabled inputs will be skipped.
Note: The interface switches after releasing the switch (after long pressure).
Short press of keypad (only if DIP 1 is set to ON)
By short pressing the external keypad, the video interfaces switches from the factory video
to the front camera input and back to factory video.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E
Page20
4. Picture settings
The picture settings are adjustable by the 3 push-buttons of the daughjter PCB’s menu
keypad. Press the 1. button to open the OSD settings menu or to switch to the next menu
item. By pressing the other both push buttons the selected value will be changed. To avoid
accidental changes during or after the installation, we recommend to disconnect the keypad
from the pushbutton cable after the adjustments are done. Adjustments have to be done,
while the selected input is visible on the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
IR-AV1/2 (no function)
Guide L/R (no function)
UI-CNTRL (guide lines ON/OFF)
Size H/V (picture size horizontal/vertical)
Note: To adjust the reverse picture settings, engage the reverse gear.
