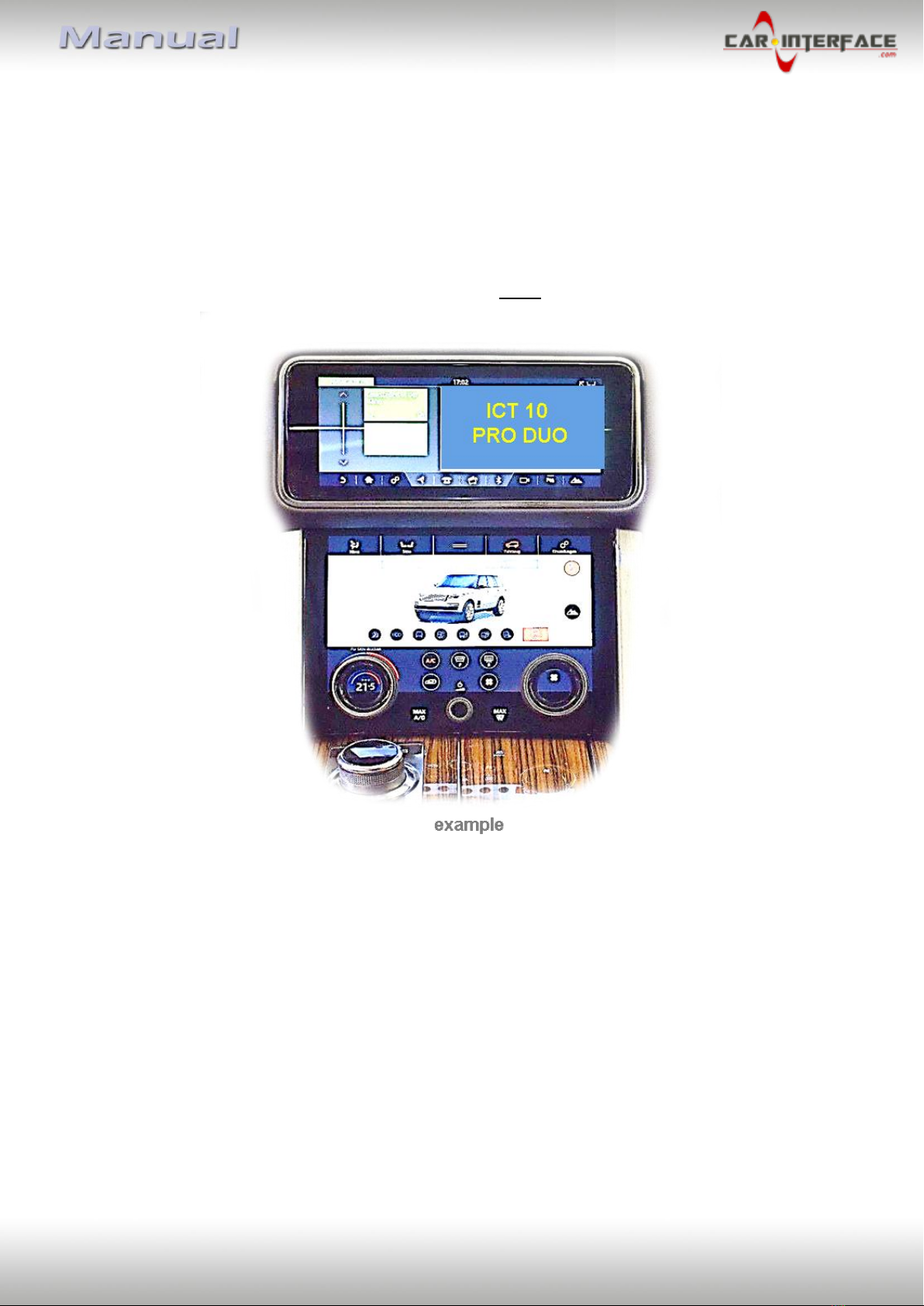

Car-Interface CI-RL4-LR17 User manual

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
r.LiNK Video inserter
CI-RL4-LR17
Compatible with
Land Rover and Jaguar vehicles
with Incontrol Touch Pro Duo infotainment
and 10.2 inch monitor
Video-inserter for front- and rear-view camera
and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connection video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Activating the front camera input (dip 1)
1.4.2. Enabling the interface’s video inputs (dip 2-3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Activating the guide lines (dip6)
1.4.5. Activating the PDC (dip7)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation
2.2. Monitor removal –example Land Rover
2.3. Note for test run
2.4. Connection schema
2.5. Connection –picture signal cable
2.6. Analog power supply for the video interface
2.7. Power supply output
2.8. Connection - video-sources
2.8.1. Audio insertion
2.8.2. After-market front camera
2.8.3. After-market rear-view camera
2.8.3.1. Case 1: Interface receives the reverse gear signal
2.8.3.2. Case 2Interface does not receive the reverse gear signal

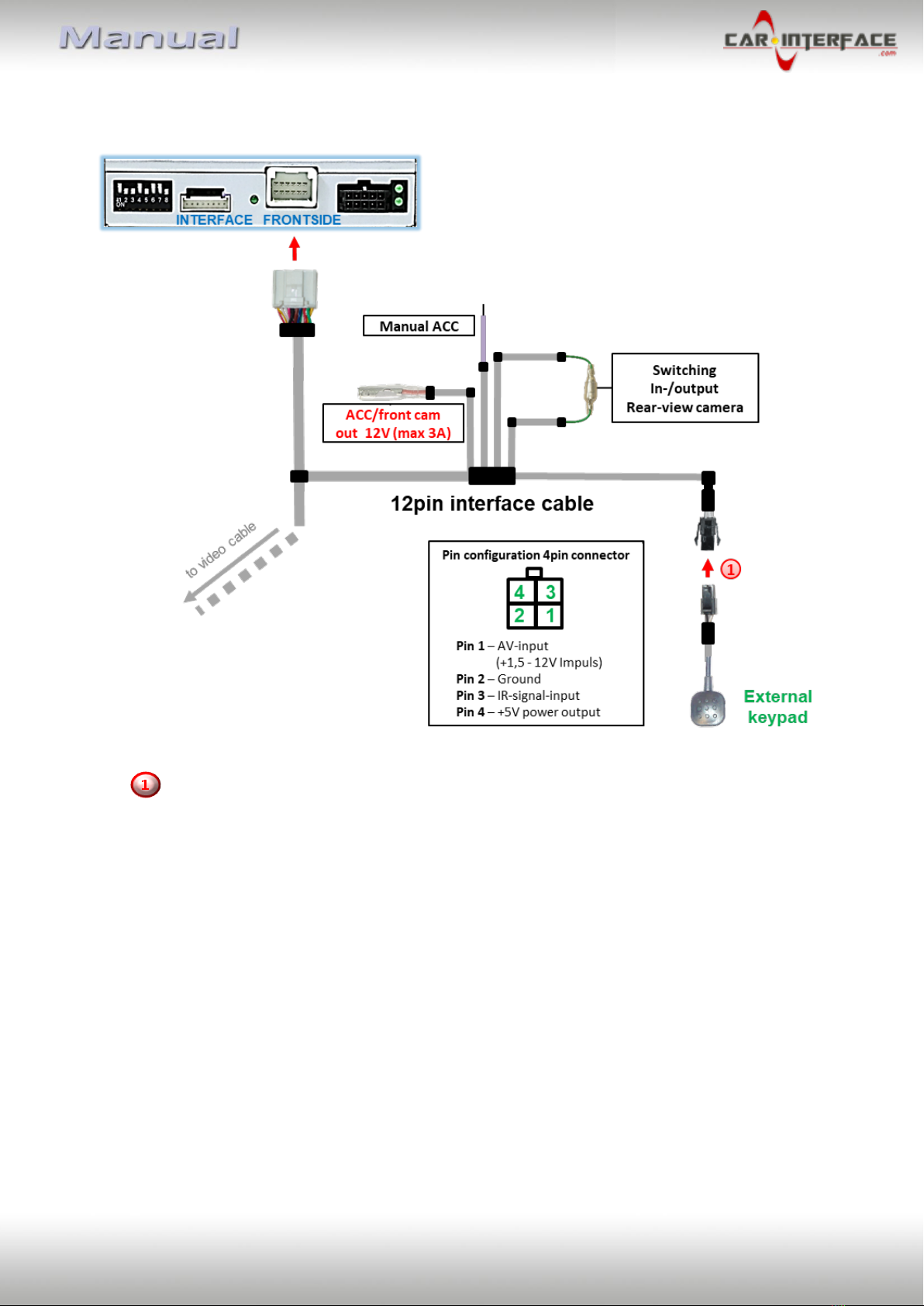

2.9. Connection - video-interface and external keypad

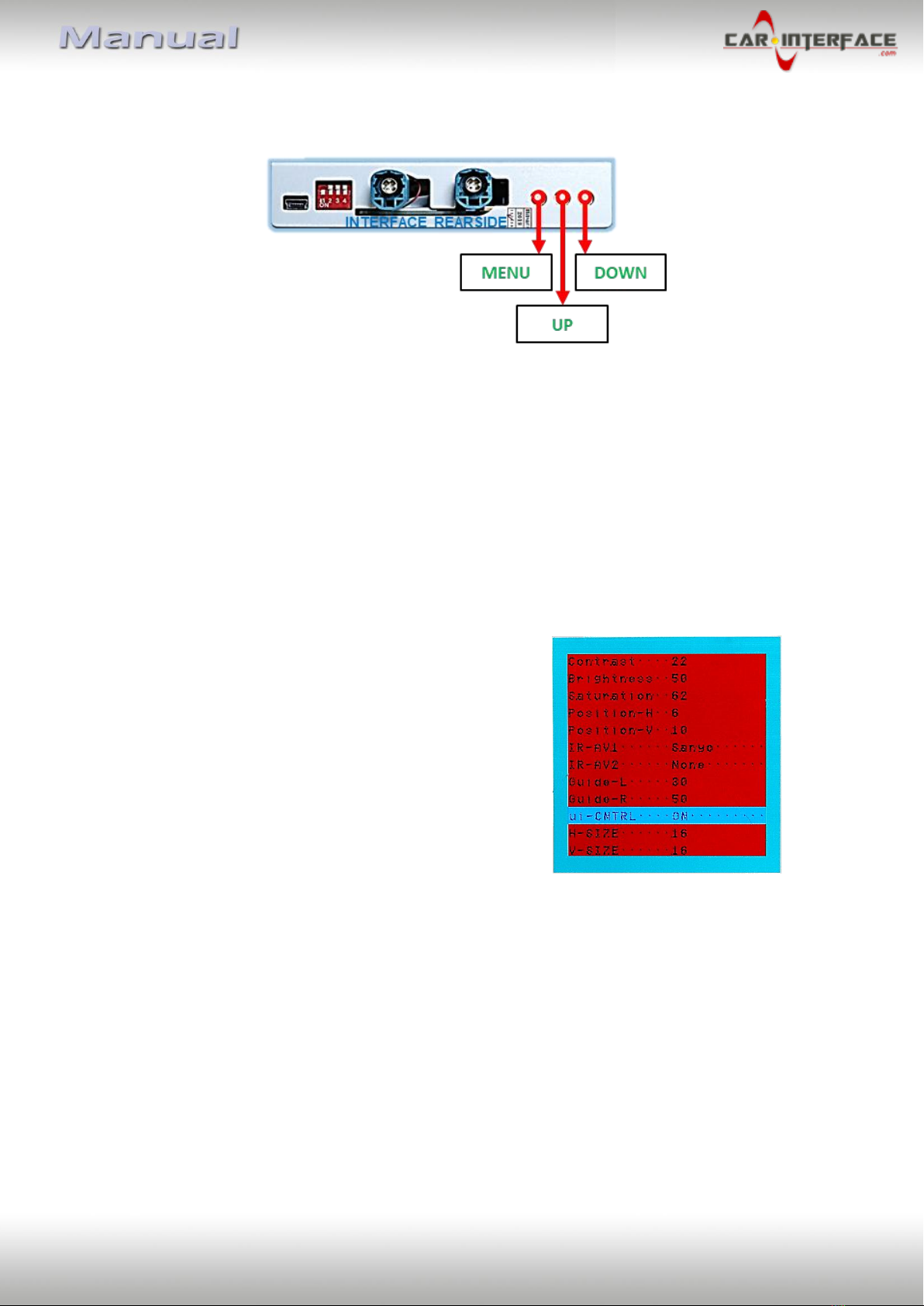

2.10. Picture settings
3. Interface operation
3.1. By factory touch screen
3.2. By keypad
4. Specifications
5. FAQ –Trouble Shooting-Interface functions

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.

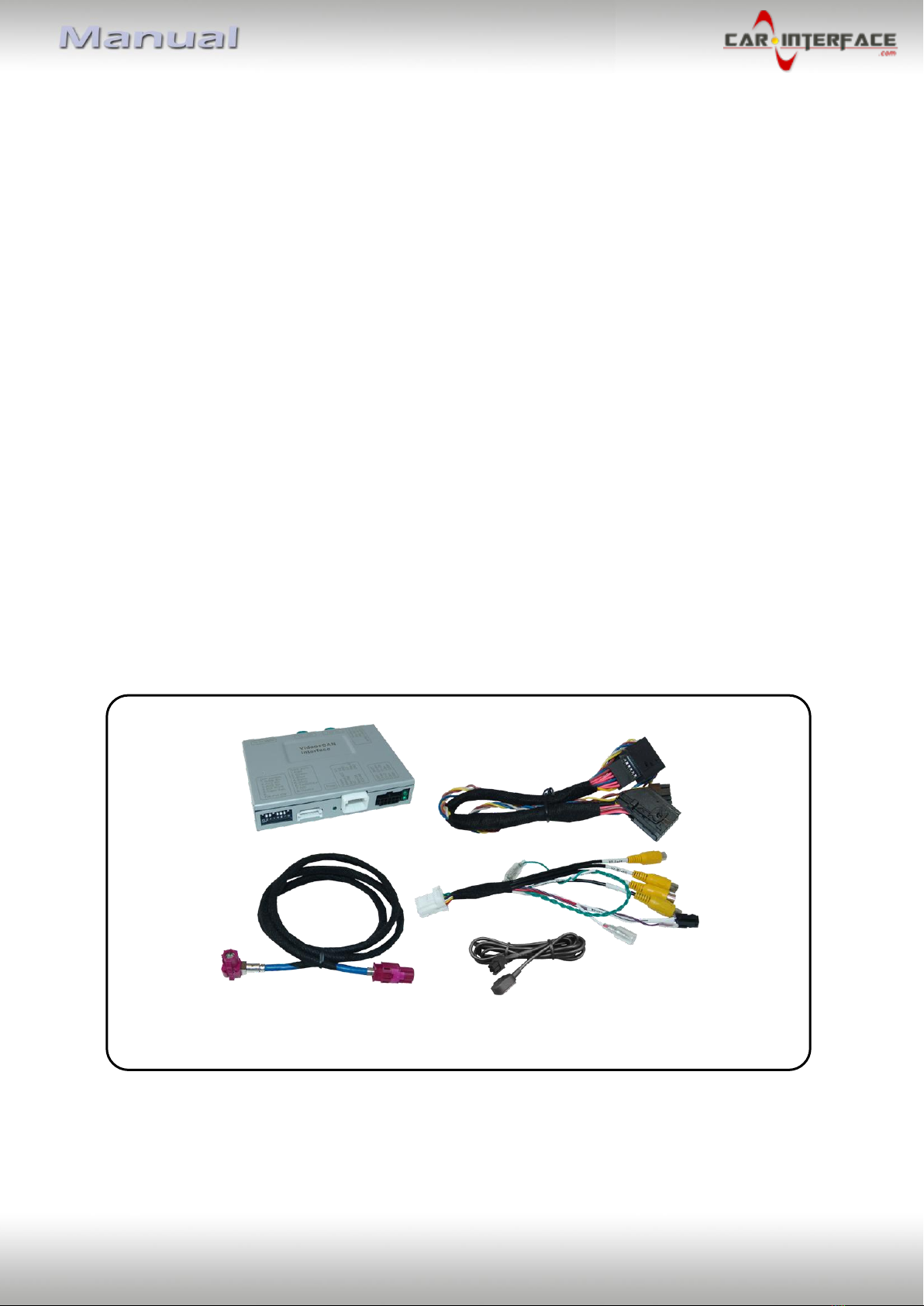

1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Land Rover
Range Rover since model year 2018
Range Rover Sport since model year 2018
Range Rover Velar since model year 2017
Range Rover Evoque since model year 2020
Discovery 5
Incontrol Touch Pro Duo
with 10.2 inch 24:9 monitor (glossy)
and climate control panel via 2nd
touch monitor
XE since model year 2019
I-Pace since model year 2019
Limitations
Video only The interface inserts ONLY video signals into the infotainment. For
inserting Audio signals either the possibly existing factory audio-AUX-
input or a FM-modulator can be used. If 2 audio sources shall be
connected to the infotainment, an additional electronic is necessary to
switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is
possible by external keypad.
PDC and guide lines If the video interface does not receive the required information from
the vehicle CAN-bus, neither guide-lines nor optical PDC display will be
supported.
Video input signal only NTSC compatible
1.2. Checking the compatibility of vehicle and accessories
Jaguar

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page5
1.3. Connection video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down = ON and position up = OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
See the following chapters for detailed information.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
Set to OFF
5
Rear-view cam type
after-market
factory or none
6
Guide lines
enabled
disabled
7
PDC
enabled
disabled
8
No function
Set to OFF

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page6
1.4.1. Activating the front camera input (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the front camera power supply: see chapter “Power supply output”.
1.4.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.
1.4.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „V4 Reverse “ while the
reverse gear is engaged.
1.4.4. Enabling the Guide lines (dip 6)
If set to ON, the interface is activated to show the guide lines for the rear-view camera while
the vehicle is in reverse mode (not available for all vehicles).
Note: Some vehicles have a different code on the CAN-bus which the video-interface is not
compatible with. If the interface does not completely communicate with the vehicle CAN
bus, the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they
in some vehicles once appear after having switched the system to powerless!
1.4.5. Activating the PDC (dip7)
If set to ON, the PDC car will be displayed on the screen and the park distance will be shown
by using the signals of the vehicle’s CAN-bus. If there is no communication between the
interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the park distance
can’t be shown. In this case, set dip7 to OFF.
Note: Dip 4 and 8 are out of function and have to be set to OFF!

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page7
1.5. Settings of the 4 Dip switches (CAN functions –red)
All 4 dip-switches of the video interface have no function for normal use
and have to be set to OFF.
Dip position “down”is ON and position up is OFF.
Navigation / system
Dip 1
Dip 2
Dip 3
Dip 4
Range Rover,
Range Rover Sport,
Discovery 5,
Range Rover Velar,
New Jaguar XE
ON
OFF
OFF
OFF
Jaguar XF protocol
OFF
ON
OFF
OFF
Jaguar XE 2016 protocol
OFF
OFF
OFF
OFF
If the CAN communication doesn’t succeed with the mentioned CAN positions, the other
CAN protocol can also be tried.
After each Dip-switch-change a power-reset of the video interface has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The video interface is supposed to be installed at a suitable location behind the factory
monitor. This requires the vehicle’s centre console to be removed.

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page8

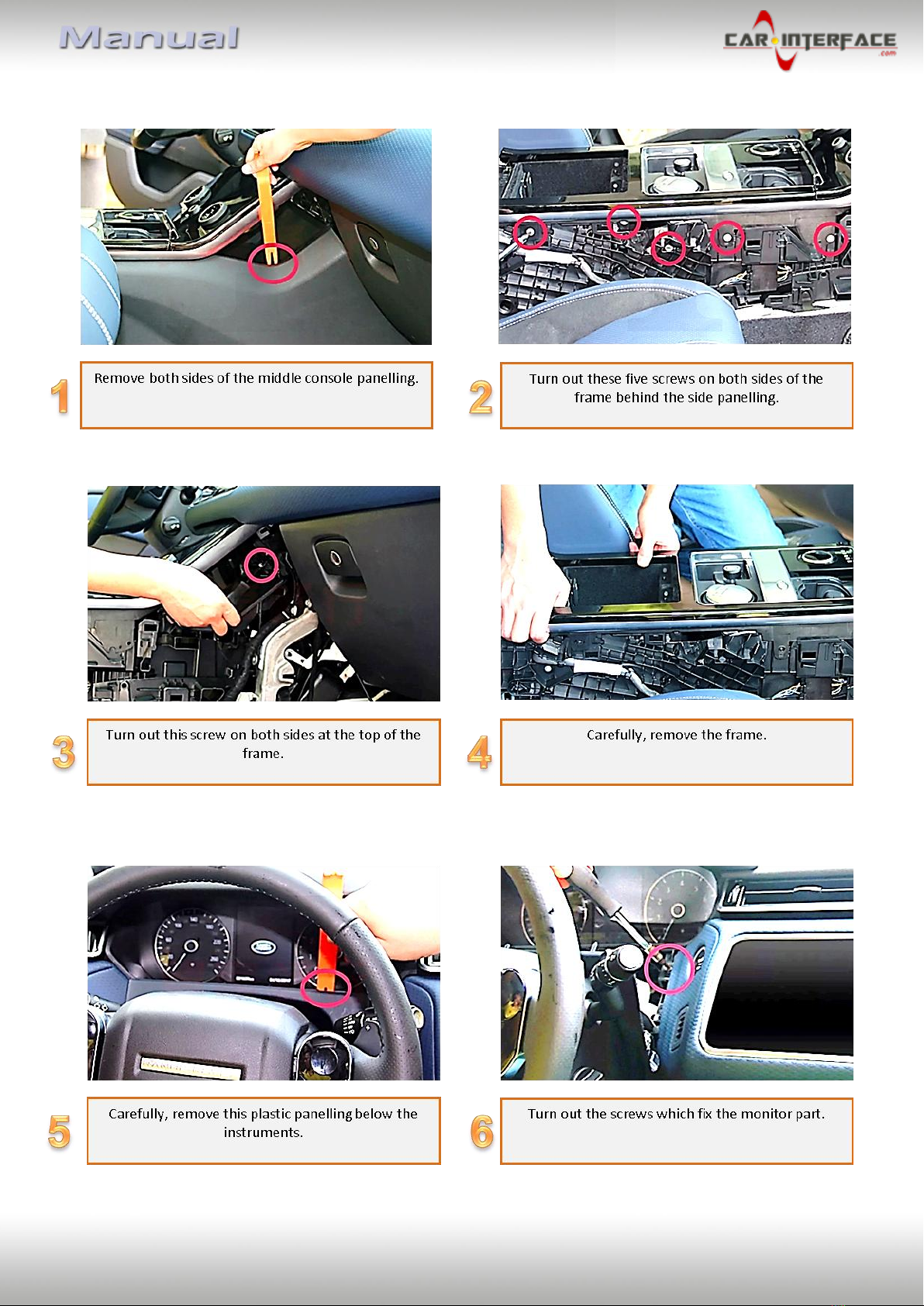

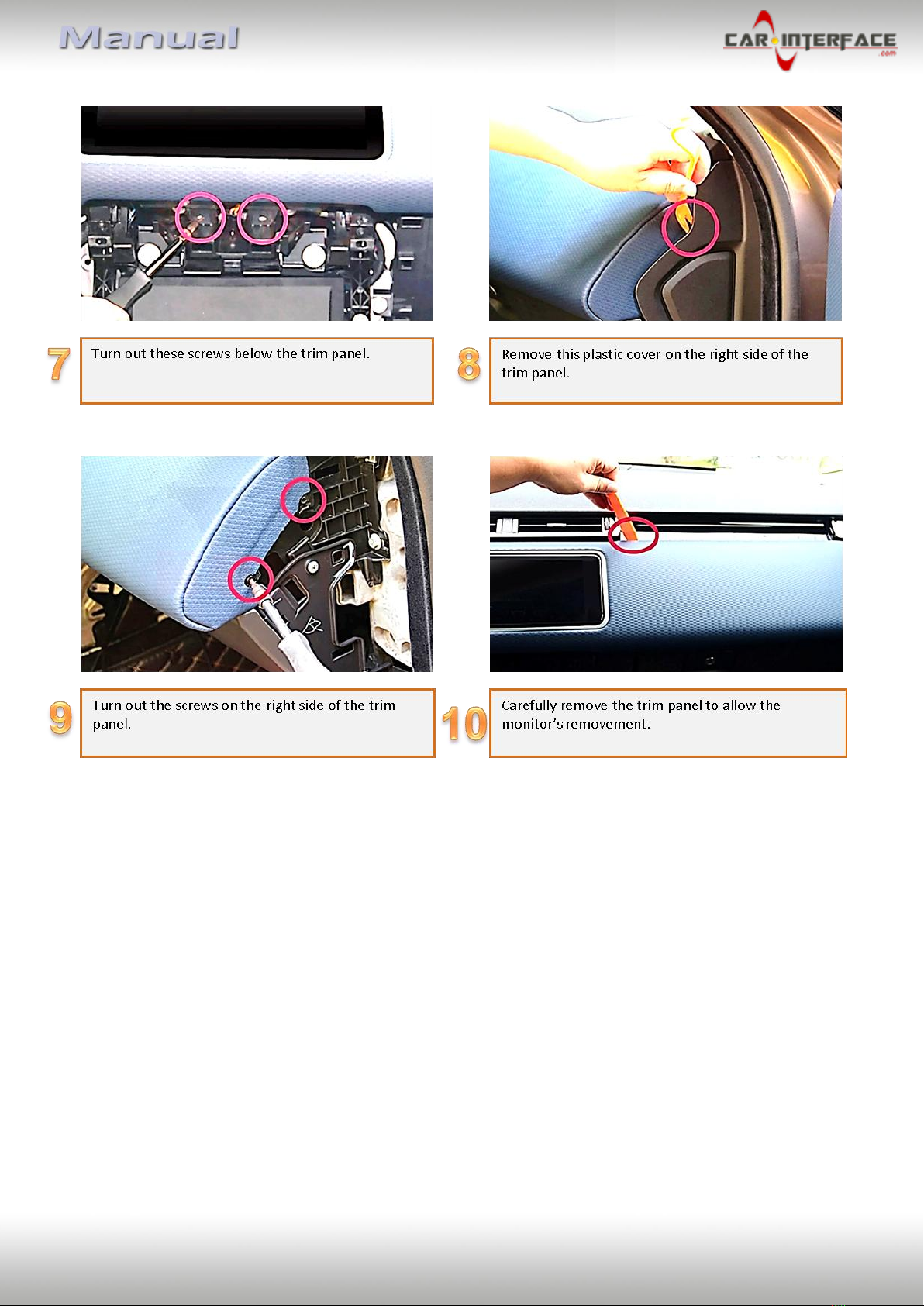

2.2. Monitor removal –example Land Rover

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page9
2.3. Note for test run
In vehicles in which the climate control system is operated by the touchscreen monitor, it is
necessary to have the monitor connected for an interface test run.
(Concerns e.g. all Land Rover and some other vehicles)

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page10

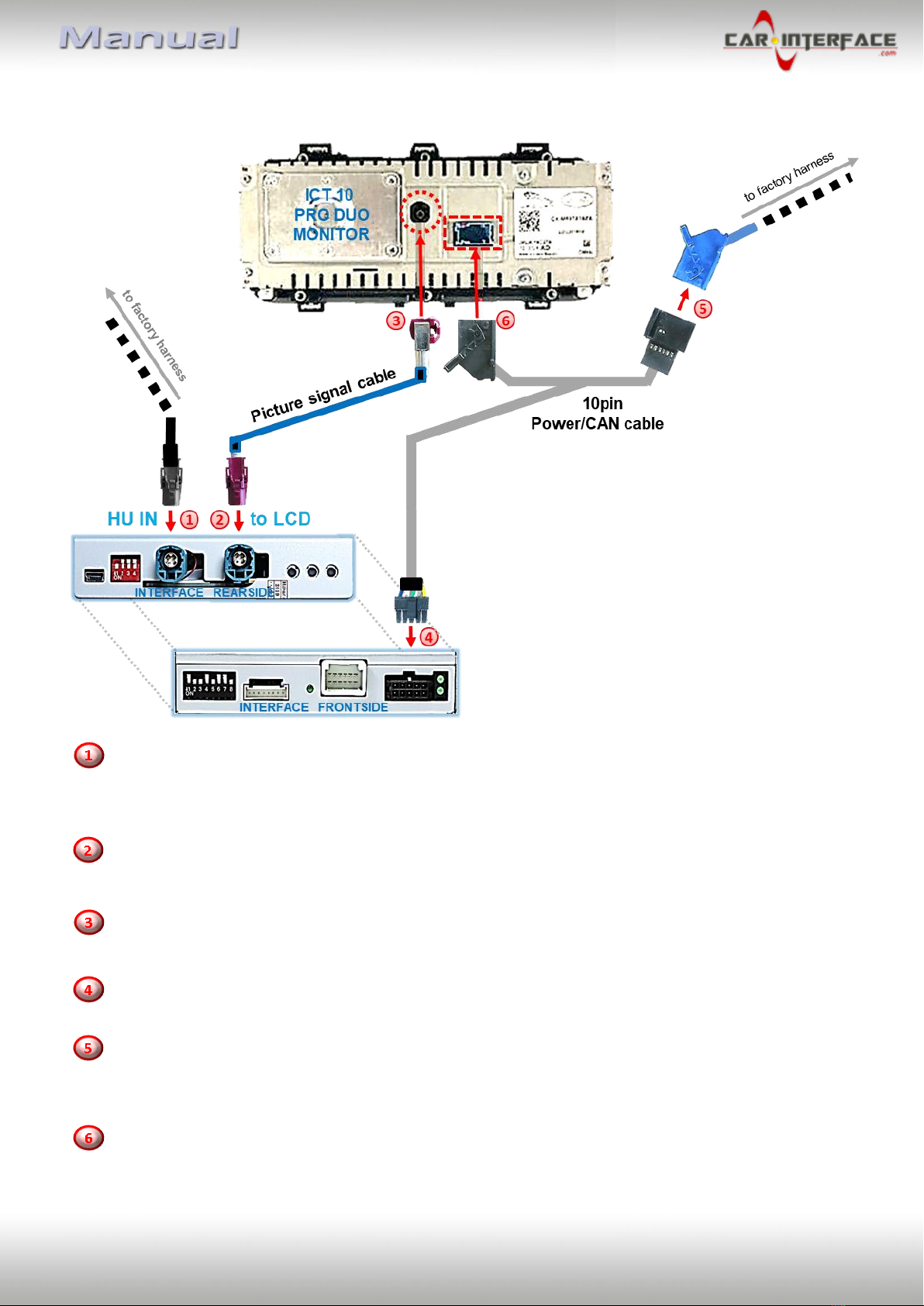

2.4. Connection schema

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page11
2.5. Connection –picture signal cable
Disconnect the female HSD connector of the vehicle harness from the rear-side of the
factory monitor and connect it to the waterblue coloured HSD connector ”HU IN”of the
video interface.
Connect the not-angled female HSD connector of the enclosed picture signal cable to the
video interfaces’HSD connector “TO LCD“.
Connect the opposite angled female HSD connector of the enclosed picture signal cable to the
previously become free male 4pin HSD connector of the factory monitor
Connect the 10pin Power/CAN cable’s female 10pin connector to the 10pin connector of the
video interface.
Disconnect the female 12-Pin AMP locking connector of the vehicle harness from the rear of
the factory monitor and connect it to the male 12-Pin AMP connector of the 10pin
Power/CAN cable.
Connect the 10pin Power/CAN cable’s female 12pin AMP locking connector to the previously
become free 12pin AMP connector of the monitor.

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page12
Note: The colours of the HSD connectors at monitor and head unit may vary.
The picture signal cable’s connecting direction doesn’t have an impact on the system’s
function, for that the angled and not-angled HSD connectors are allowed to be interchanged,
depending on the HSD connectors mounting space at the monitor.
However, mixing up/interchanging the connections of „HU IN“ and „TO LCD“ may cause
dysfunktion or even damage to the system!
After the connections of the video interface have been done, carry out the following
technical checks:

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page13

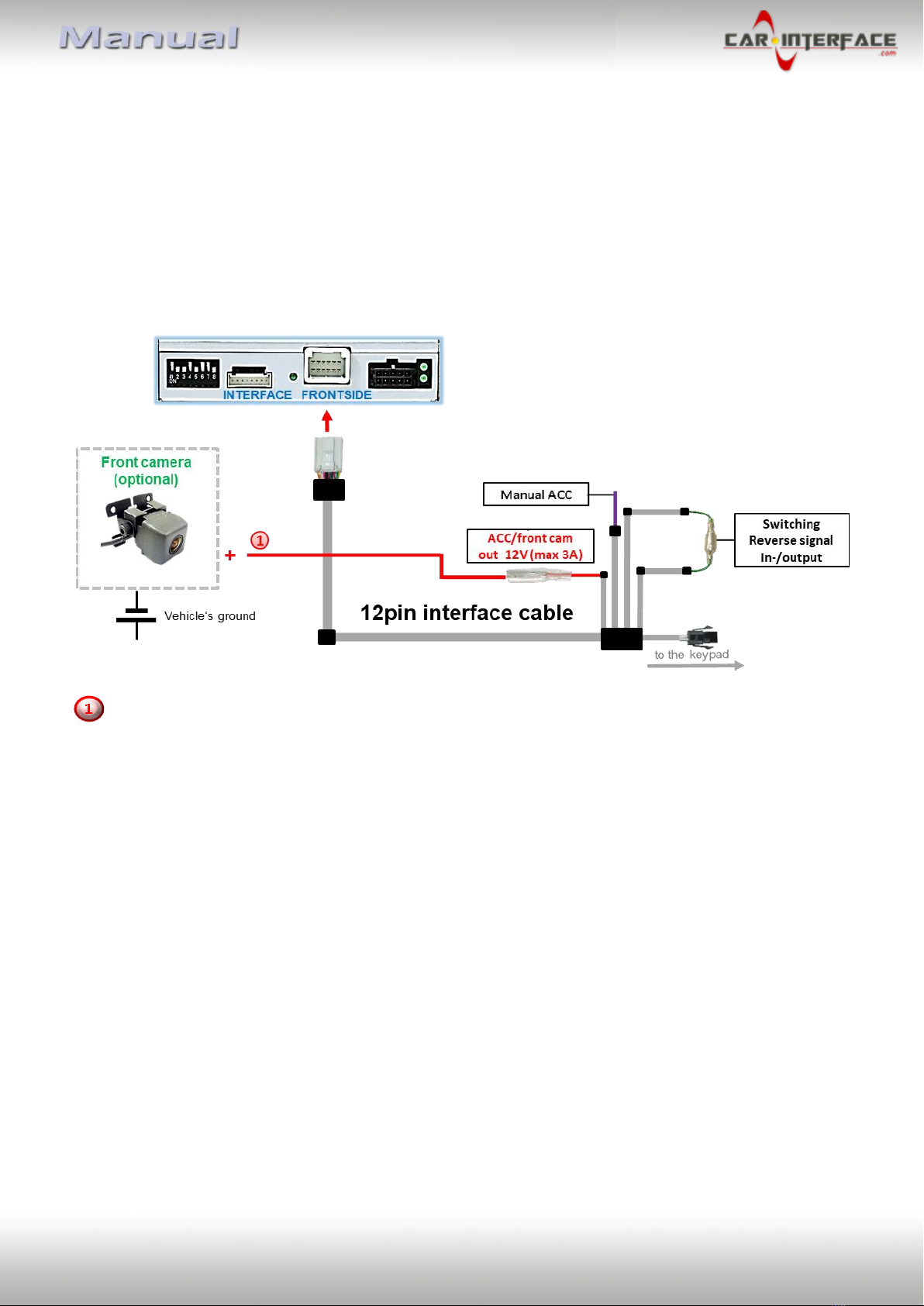

2.6. Analog power supply for the video interface
If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned
on, the purple coloured wire Manual ACC of the 12pin interface cable has to be connected
additionally to S-contact terminal 86s +12V (e.g. glove compartment illumination).

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page14
2.7. Power supply output
The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment, depending on the position of dip switch 1
(of 8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay
after reverse gear is disengaged and
+12V when manually switched to front camera by keypad (short press)
Dip 1 OFF
+12V permanent (max. 3A) ACC

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page15
2.8. Connection - video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video-interface.
Connect the video RCA of the Rear-view camera to the female RCA connector “Reverse (V4)“
of the 12pin interface cable.
(refer also to chapter “after-market rear-view camera”).
Connect the video RCA of the front camera to the female RCA connector “Front (V3)“ of the
12pin interface cable.
(refer also to chapter “After-market front camera”).
Connect the video RCA of the video source 1 and 2 to the female RCA connector „Left (V1)“
and „Right (V2)“ of the 12pin interface cable.

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page16
2.8.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.8.2. After-market front camera
The red power supply output ACC/front cam out 12V (max 3A) can be used to power a front
camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives +12V (max 3A)
when reverse gear is engaged plus 10 seconds delay after reverse gear is disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).
Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page17
2.8.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.
2.8.3.1. Case 1: Interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input „Reverse (V4)“while the reverse gear is engaged.
Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken
from the green wire of the 12pin interface cable.

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page18
2.8.3.2. Case 2: Interface does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
cable and connect the green input cable “Reverse-IN” to the output connector (87)
of the relay.
Note: To avoid short circuits, the best solution should be, to crimp a male 4mm
connector to the relay’s output cable and connect it to the green cable’s female 4mm
connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page19
2.9. Connection - video-interface and external keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
12pin interface cable.
Note: Even if switching through several video sources by the keypad mightn’t be
required, the invisible connection and availability is strongly recommended.

Version 10.08.2020 HW:CAM(V98)/(V31/ZK) CI-RL4-LR17
Page20
2.10. Picture settings
The picture settings are adjustable by the 3 push-buttons on the video-interface. Press the
MENU button to open the OSD settings menu or to switch to the next menu item. Press UP
and DOWN to change the selected value. The buttons are placed inside in the housing to
avoid accidental changes during or after the installation. Picture settings must be done
separately for Video1, Video2 and Camera while the corresponding input is selected and
visible on the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (no function)
Position V (no function)
IR-AV1/2 (no function)
Guide L/R (no function)
Guide-CNTRL (no function) (Dip switch 6) -
Size H/V (no function)
