Car-Interface CI-UCON5N User manual

Version 17.02.2020 HW GD(V97) CI-UCON5N
v.LiNK Video-inserter
CI-UCON5N
Compatible with
Alfa Romeo, Citroen, Dodge,Crysler,Jeep,Fiat, Lancia with
Uconnect 5 VP2 / RA2 System
Video-inserter with 2 video inputs, rear-view camera input and CAN control
Product features
Video-inserter for factory infotainment monitors
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …)
FBAS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for the rear-view camera (not available on all
vehicles)
Video-in-motion in drive mode (ONLY for connected video-sources)
AV-inputs PAL and NTSC compatible

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. The video interface’s connectors
1.4. Settings of the 8 Dip switches (black)
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation –video interface
2.1.1. Place of installation –Exchange housing base plate with daughter PCB
2.2. Connection schema
2.3. Connection to the head-unit –LVDS
2.3.1. Exception fot Chrysler vehicles
2.3.2. Warning notes, concerning the installation of ribbon cables
2.4. Head unit –frame customizing
2.5. Connection to head unit –20pin RGB digital cable
2.6. Connection of Quadlock, head-unit and interface cable
2.7. Connecting video sources
2.7.1. Video-sources to Video IN1 and Video IN2
2.7.2. Audio-insertion
2.7.3. After-market rear-view camera

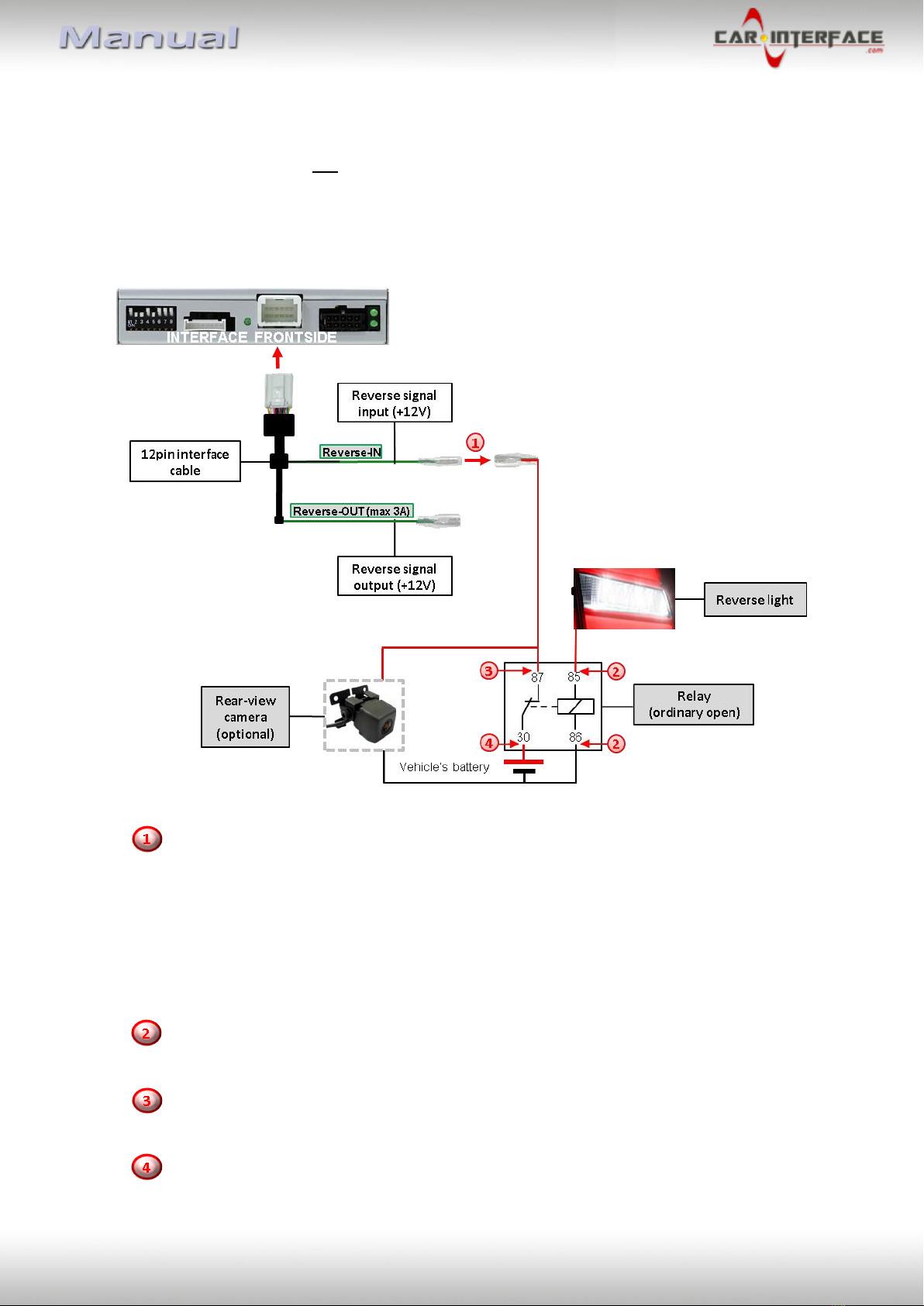

2.7.3.1. Case 1: Video-interface receives the reverse gear signal
2.7.3.2. Case 2: Video interface does not receive the reverse gear signal
2.7.3.3. Video signal connection
2.8. Connecting video-interface and keypad
2.9. Picture settings and guide lines
3. Interface operation
3.1. By voice key button
3.2. By keypad
4. Specifications
5. FAQ –Trouble shooting

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.

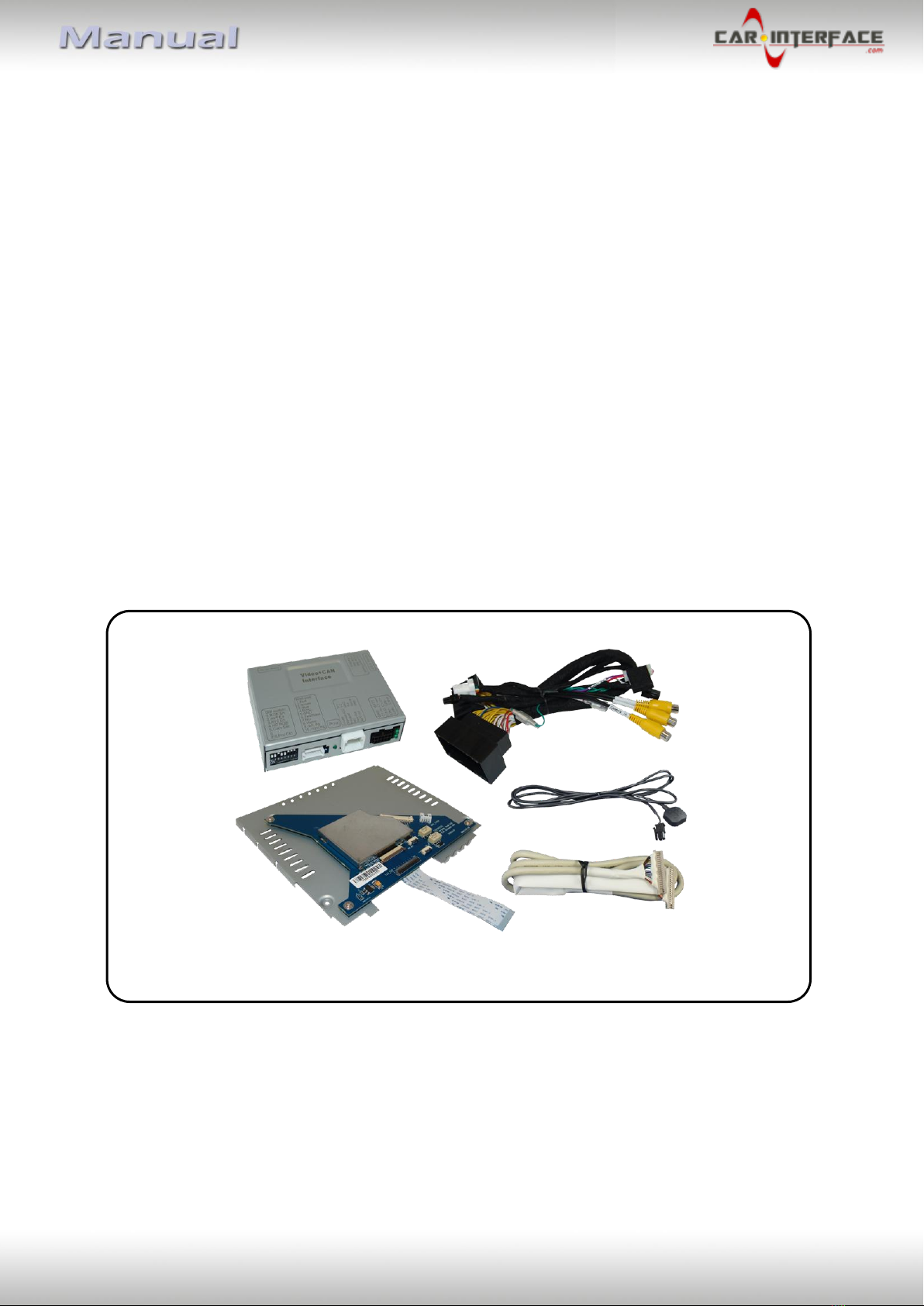

1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page4
Compatibility
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio inserting, use the possibly existing factory audio-AUX-input
or a FM-modulator. If 2 AV-sources shall be connected to the
infotainment, for audio switching an additional electronic part is
required.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay
the switch-back, an additional electronic part is required.
1.2. Checking the compatibility of vehicle and accessories
Brand
Compatible vehicles
Infotainment systems
Alfa Romeo
Giulietta, Mito from about 2014
Uconnect 5 VP2/RA2 with CD-
drive and DIN-shell behind
front-panel
Citroen
Jumper from 2014, Relay 2014
Dodge
Chrysler
RAM 1500/2500/3500 model years 2013 and
other models with
Fiat Lancia
500, 500L, Doblo, Ducato
and other models with
Peugeot
Boxer from model year 2012

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page5

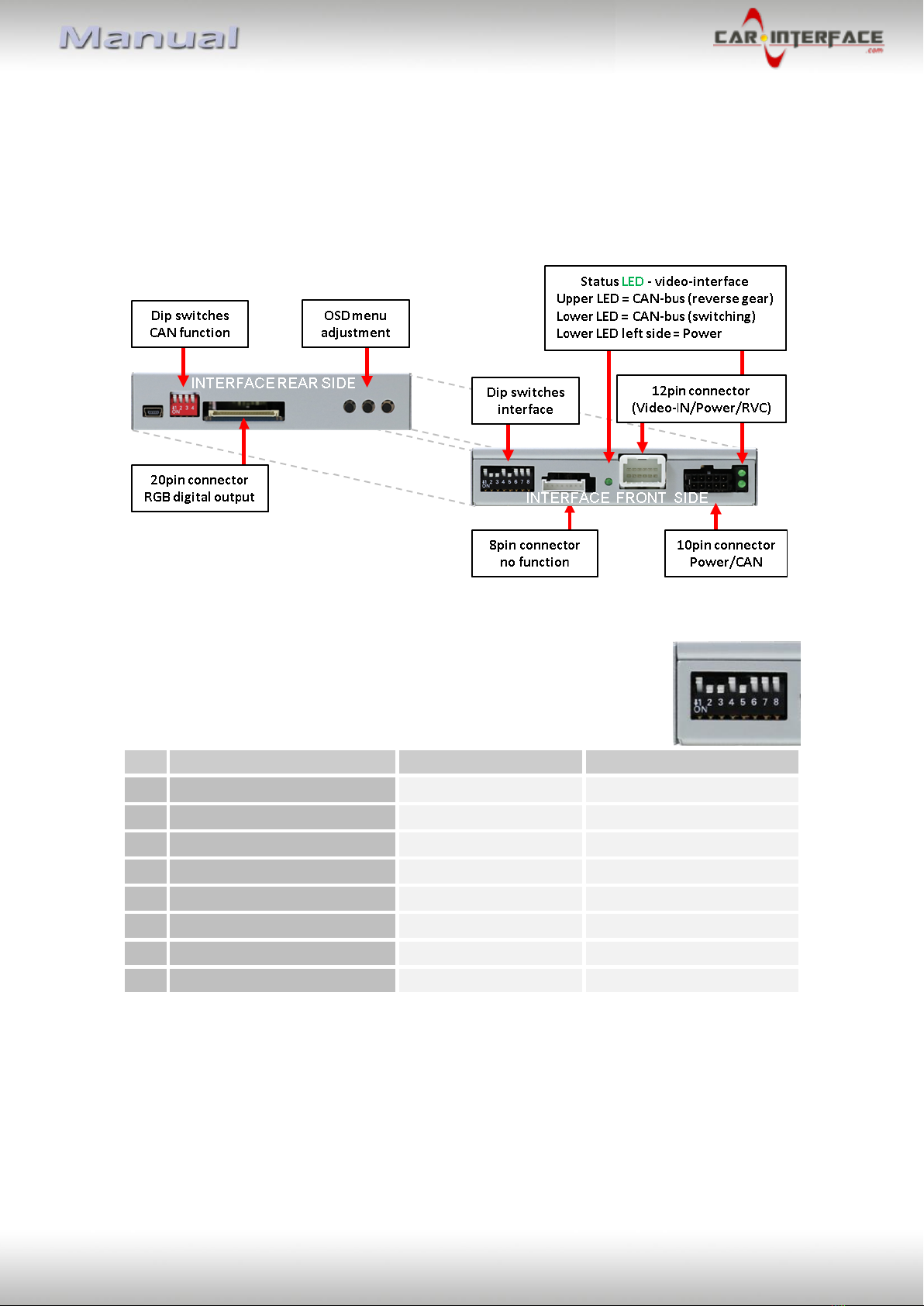

1.3. Connection Video-Interface
The video-interface converts the connected after-market sources video signals into an RGB
digital signal which is inserted in the factory monitor using separate trigger options and it
reads vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video
interface.
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the 8 dip-switches at the
video-interface. Dip position down is ON and position up is OFF.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
No function
set to OFF
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
Set to Off
7
No function
set to OFF
8
No function
set to OFF

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page6
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It`s recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory RGB digital picture while the reverse gear is
engaged to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input “Camera-IN” while the
reverse gear is engaged.
Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.
1.5. Settings of the 4 Dip switches (CAN function - red)
Dip position down is ON and position up is OFF.
Navigation / Sy5tem
Dip 1
Dip 2
Dip 3
Dip 4
FIAT Uconnect 5 VP2 / RA2
OFF
OFF
OFF
OFF
For Fiat vehicles, use the OFF position of all the 4 dip switches.
Different vehicle manufacturers require trying out other dip switch positions for a possible
CAN communication.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page7
2. Installation
Switch off the ignition and disconnect the vehicle’s battery! The interface needs a
permanent 12V source. If -according to factory rules- a disconnection of the battery has to
be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode
doesn’t succeed, the battery has to be disconnected with a resistor lead.
The Interface needs a permanent power supply! If power isn’t directly taken from the
battery, the connection’s power has to be checked for being start-up proven and
permanent.
2.1. Place of installation –video-interface
The video-interface is installed on the backside of the head-unit.
2.1.1. Place of installation - Exchange housing base plate with daugter PCB

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page8

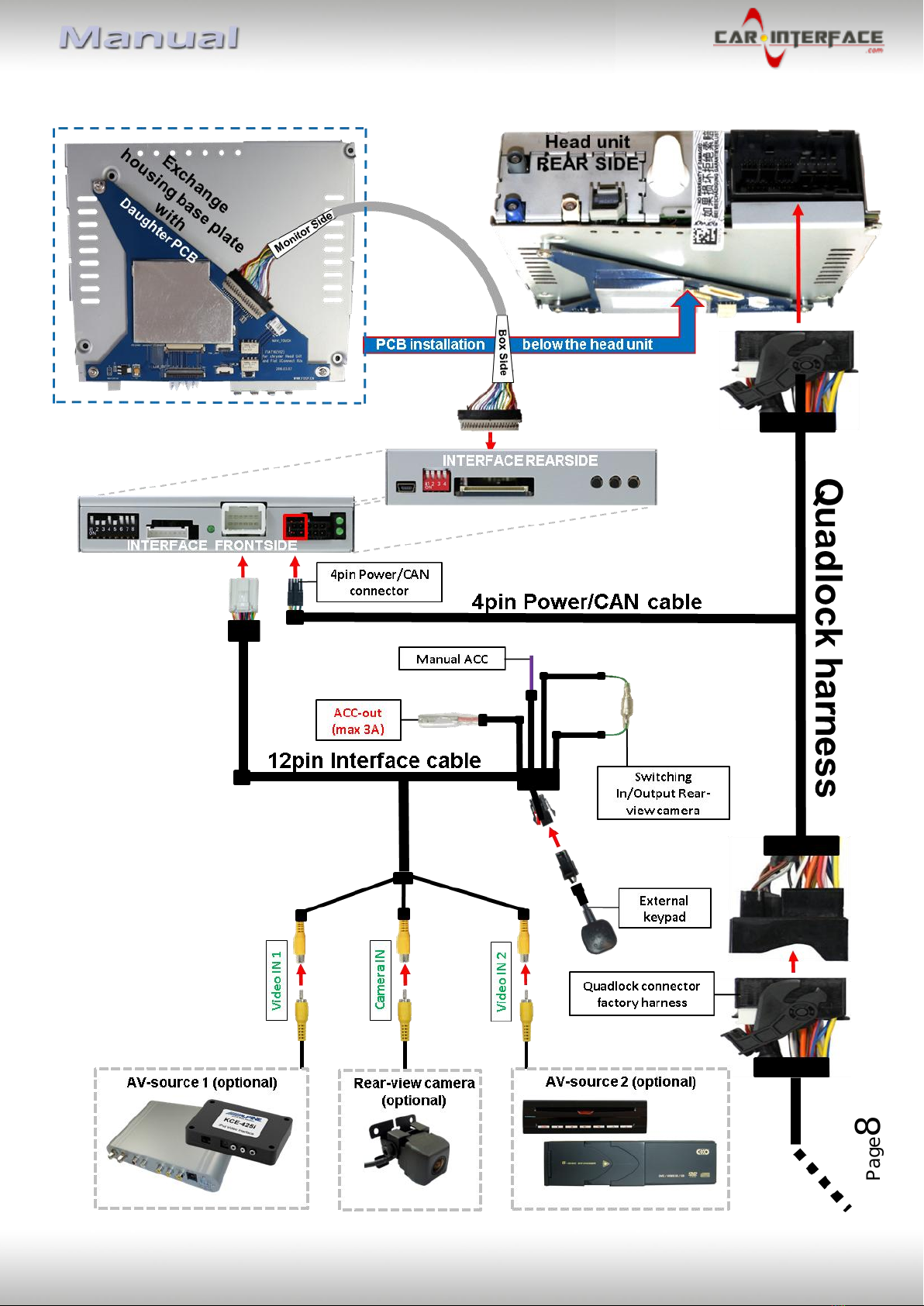

2.2. Connection schema

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page9

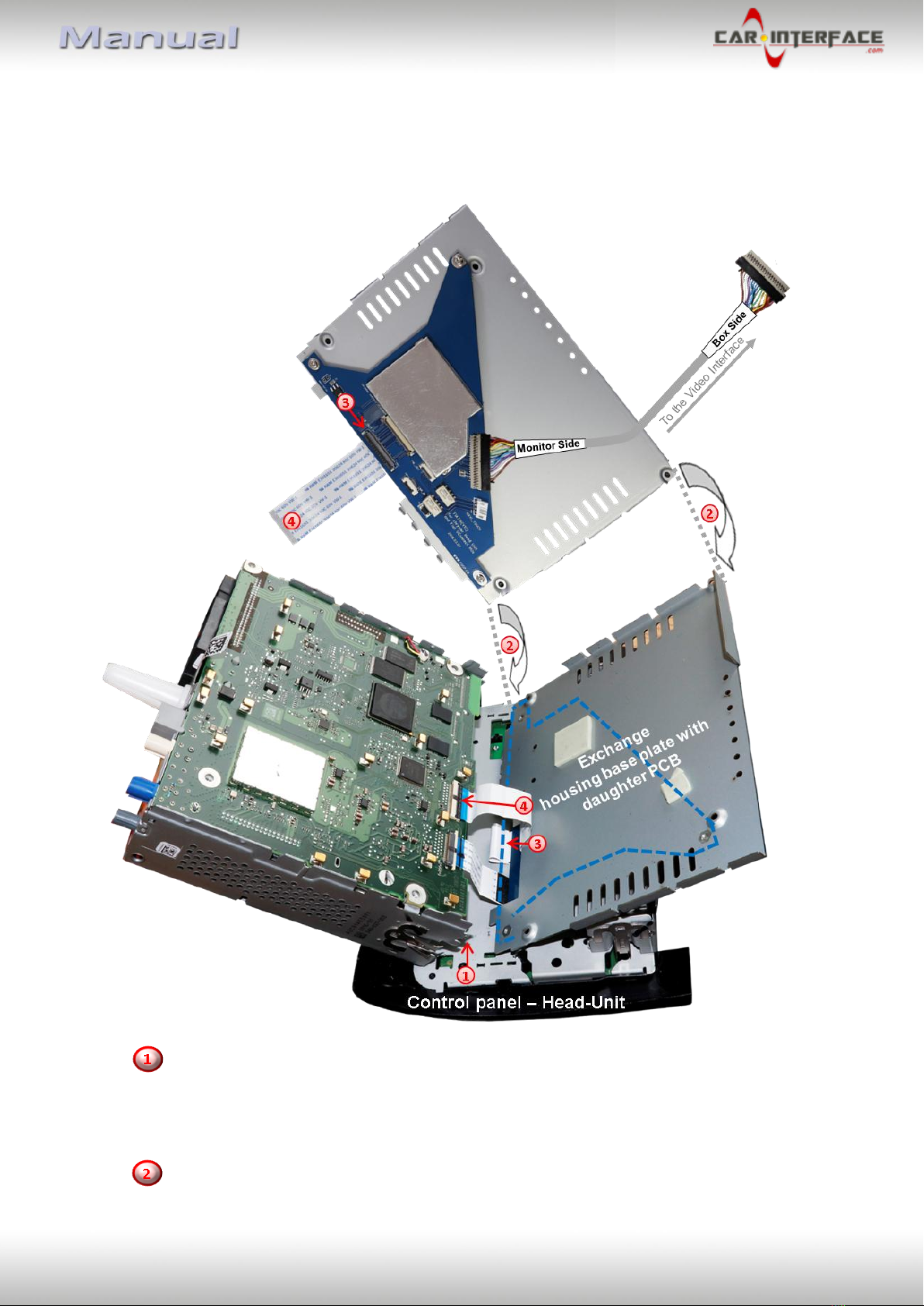

2.3. Connections to the head-unit - LVDS
Remove the head-unit and further remove the original housing base plate, which is fixed to
the head-unit housing by 4 Torx screws (T9).
Clip out the head-unit housing at the head-unit control panel and fold it to the side,
like shown in the picture above.
Note: The connected ribbon cables have to be handled with care to avoid each
damage of the sensitive electrical inducters.
Position the Exchange housing base plate with the daugter PCB in place of the
original base plate

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page10

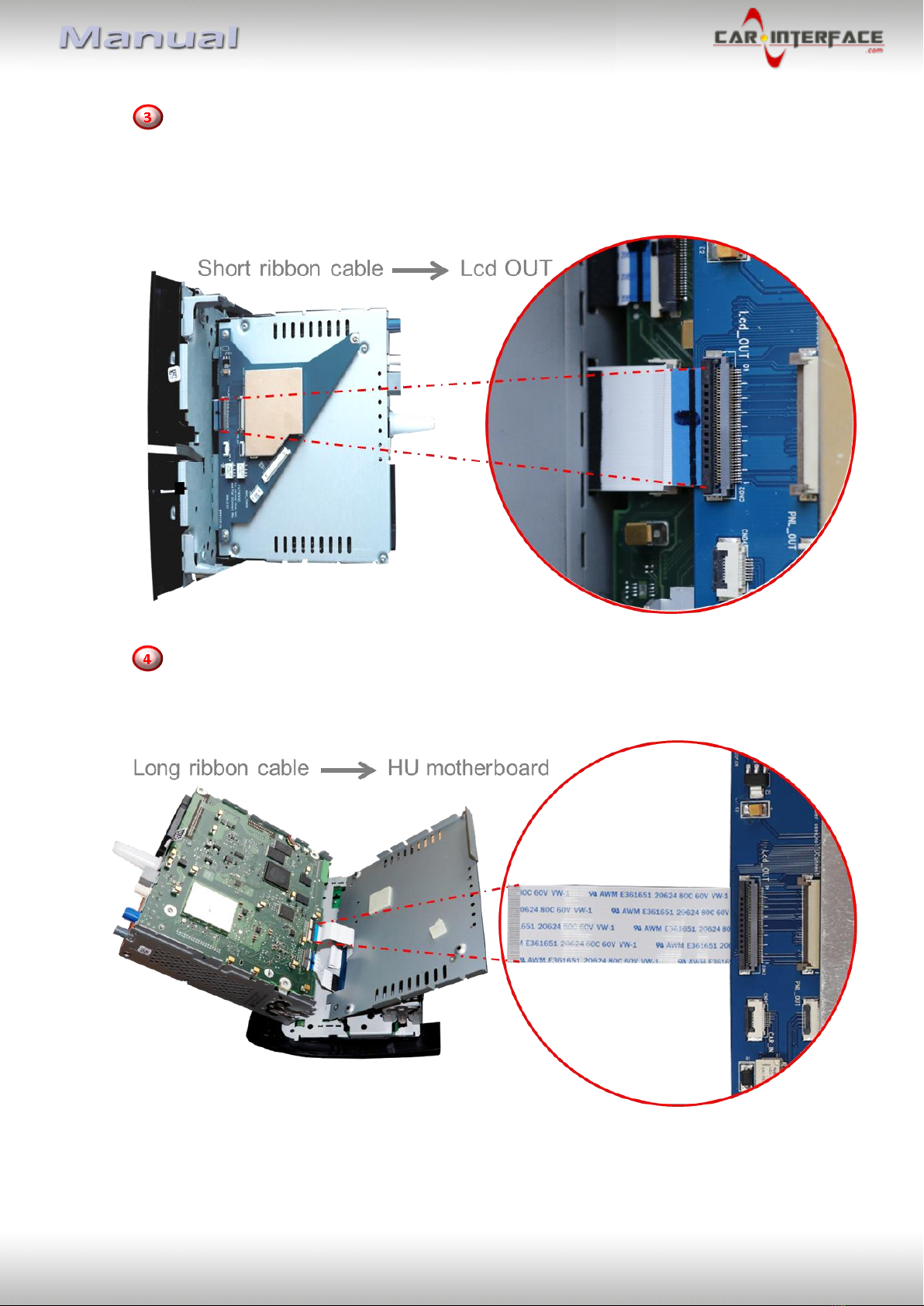

Clip out the original 40pin ribbon cable which is connected at the head-unit’s ribbon
cable base and connect it to the lower free ribbon cable base “Lcd OUT”of the
daughter PCB. (heed the following warning notes!)
Note: Due to the very short length of the ribbon cable, there’s only limited space
for mounting available.
Connect the daughter PCB’s pre-assembeled 40pin ribbon cable to the previously
become free ribbon cable base of the head-unit mainboard. (heed the following
warning notes!).
After a check of the perfect ribbon cable connection, in reverse order fold back and
clip in the head-unit housing to the head-unit control panel and fix the exchange
housing base plate to the head-unit’s housing.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page11
2.3.1. Exception for Jeep - Chrysler vehicles
In Chrysler vehicles, the ribbon cable
connection takes place at the daughter PCB’s
upper ribbon cable base „CHRYSLER USES“
(see illustration beside). For that, the daughter
PCB first has to be removed from the Exchange
housig base plate. The daughter PCB is pre-built to
be fixed inside the head unit housing by using the 3
screws, after the ribbon cable connection is done (heed
the following warning notes!).
2.3.2. Warning notes, concerning the installation of ribbon cables:
1) The contacting ends of ribbon cables always have to be installed in a straight and
precise 180° position to the connector. Each deviation from a perfect contact position will
curse faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of
the connector, concerning the mounting position.
3) Avoid cable contusion or cable injury caused by sharp-edged metal.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page12
2.4. Head unit –frame customizing
To reinstall the head-unit’s DIN housing with the daughter PCB below, in most cases a
modification of the vehicle’s head unit frame is reqired. For that, the sheet metal plate
between the red marked lines has to be cut away, like shown in the following picture.
2.5. Connection to head unit –20pin RGB digital cable
Connect the 20pin RGB digital cable’s female 20pin connector to the male 20pin connector
of the video-interface.
Connect the male beige-coloured 20pin connector of the 20pin RGB digital cable to the
female 20pin connector of the daughter PCB.
Pay special attention to the cable’s direction because its connectors both seem to be
identical. (Strictly respect the lables „MONITOR SIDE“ and „BOX SIDE“).

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page13

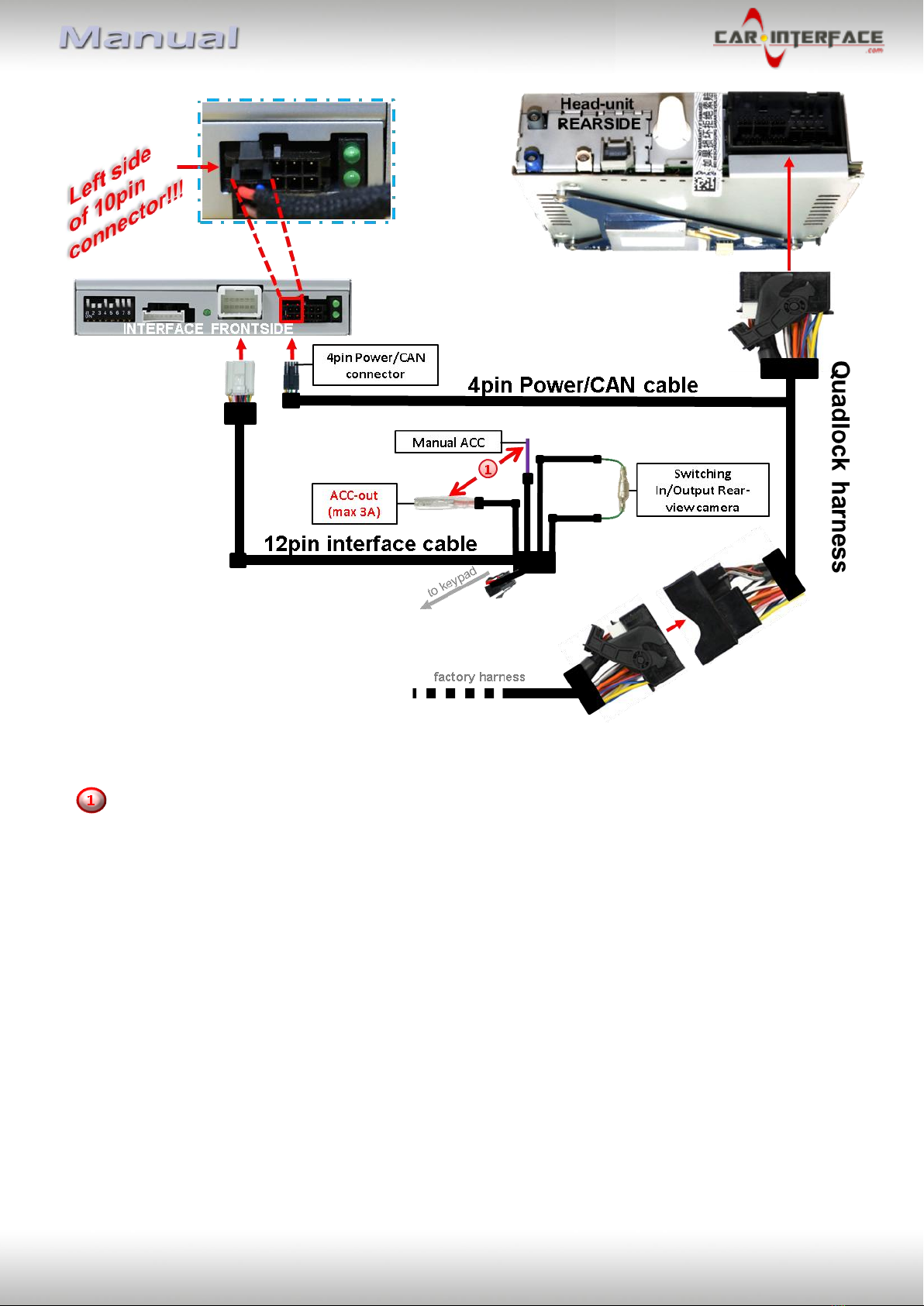

2.6. Connection of Quadlock, head-unit and interface cable
Connect the Power/CAN cable’s female 4pin connector to the the left side of the
male 10pin connector of the video-interface.
Remove the female Quadlock connector of the vehicle harness from the rear of the
Head-unit and connect it to the male Quadlock connector of the Quadlock cable.
Connect the female Quadlock connector of Quadlock harness to the male Quadlock
connector of the head-unit.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin
connector of the video interface.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page14
If, after connecting the 20-Pin PNP harness, no interface LED lightens up while the ignition is
turned on, the single red wire ACC-out (max 3A) and the purple coloured wire Manual ACC
of the 12pin interface cable both have to be connected additionately to +12V S-contact
terminal 86s (e.g. glove compartment illumination).

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page15
2.7. Connecting the AV sources
It is possible to connect two after-market AV-sources and an after-market rear-view camera
to the video-interface.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.

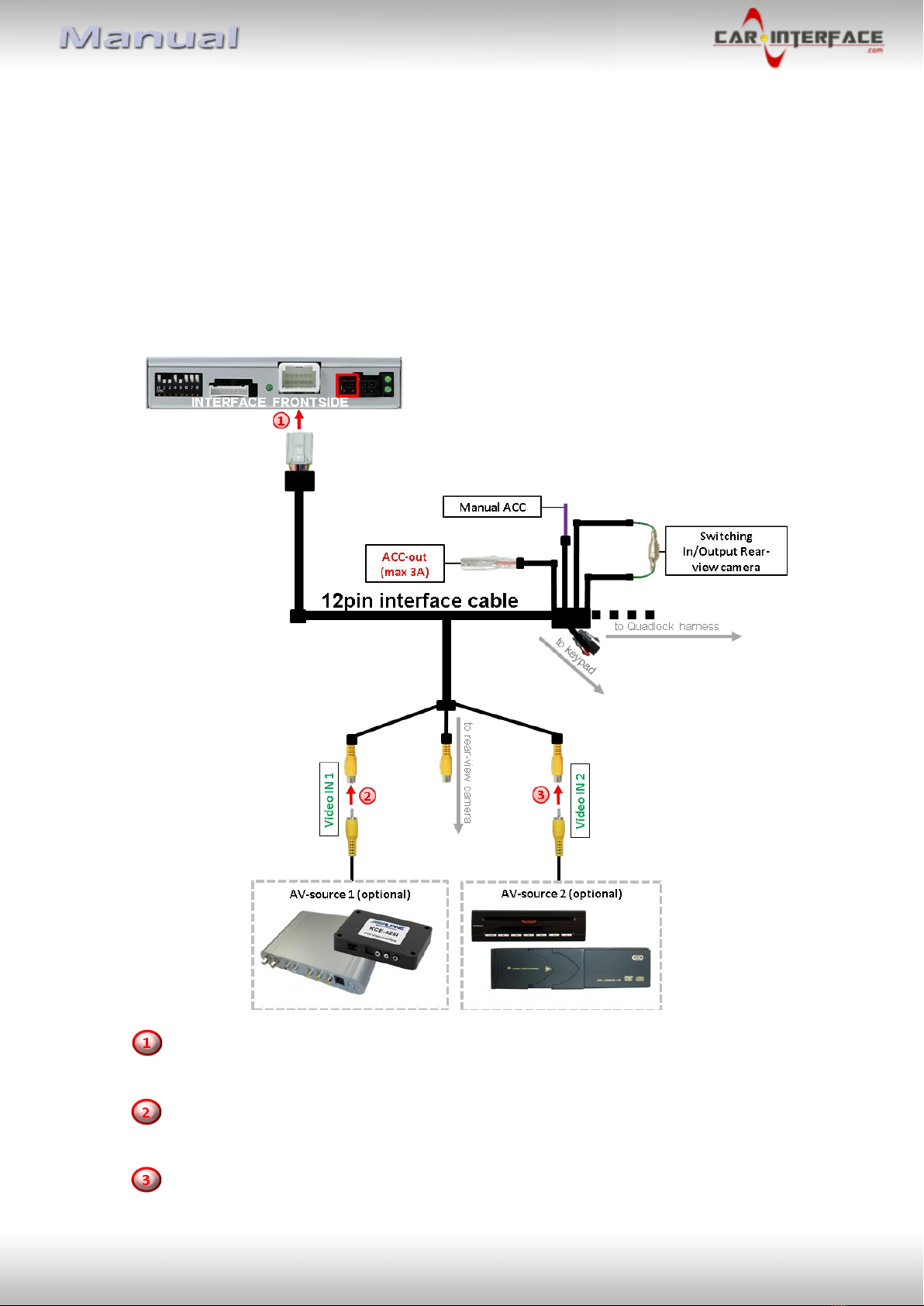

2.7.1. Video-sources to Video IN1 and Video IN2
Connect the interface cable’s female 12pin connector to the interface’s male 12pin
connector.
Connect the video RCA of the AV-source 1 to the female RCA connector “VideoIN1”
of the video cable.
Connect the video RCA of the AV-source 2 to the female RCA connector “Video -IN2”
of the video cable.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page16
2.7.2. Audio insertion
This interface can only insert video signals into the factory infotainment and switch audio
signals. If an AV-source is connected to AV1 or AV2, the audio insertion has to be done by
the factory audio AUX input or a FM-modulator to which the interface’s sound-switch output
is connected. The inserted video-signal can be activated simultaneously to each audio-mode
of the factory infotainment.
If 2 AV-sources shall be connected to the infotainment, for audio switching an additional
electronic part is required.
2.7.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of the video-interface to ON before testing.
2.7.3.1. Case 1: Video interface receives the reverse gear signal
If the CAN-bus interface delivers +12V on the green wire of the 20pin cable when reverse
gear is engaged, it will automatically be switched to the rear-view camera input “Camera IN”
while reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the
green wire of the 20pin cable to avoid an unnecessary permanent power supply to
the camera electronic.
For the operation, both green cables “Reverse IN” and “Reverse OUT” have to stay
connected.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page17
2.7.3.2. Case 2: Interface does not receive any reverse gear signal
If the video interface does not deliver +12V on the green wire of the 20pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s pre-connected male- and female connectors of the
20pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input connector (30).

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page18

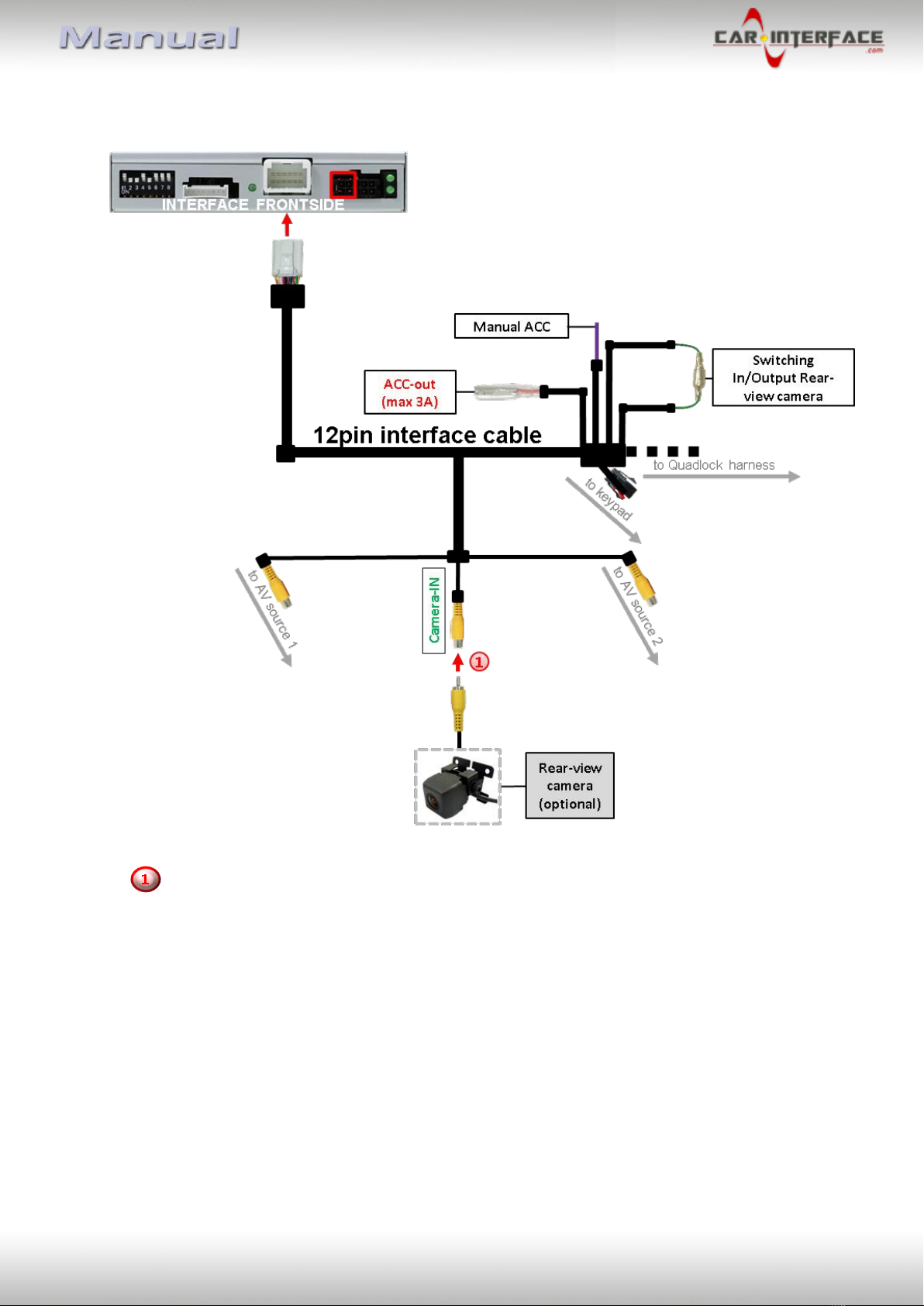

2.7.3.3. Video signal connection for the rear-view camera
Connect the video-RCA of the after-market rear-view camera to the female RCA port
“Camera-IN” of the video-cable.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page19

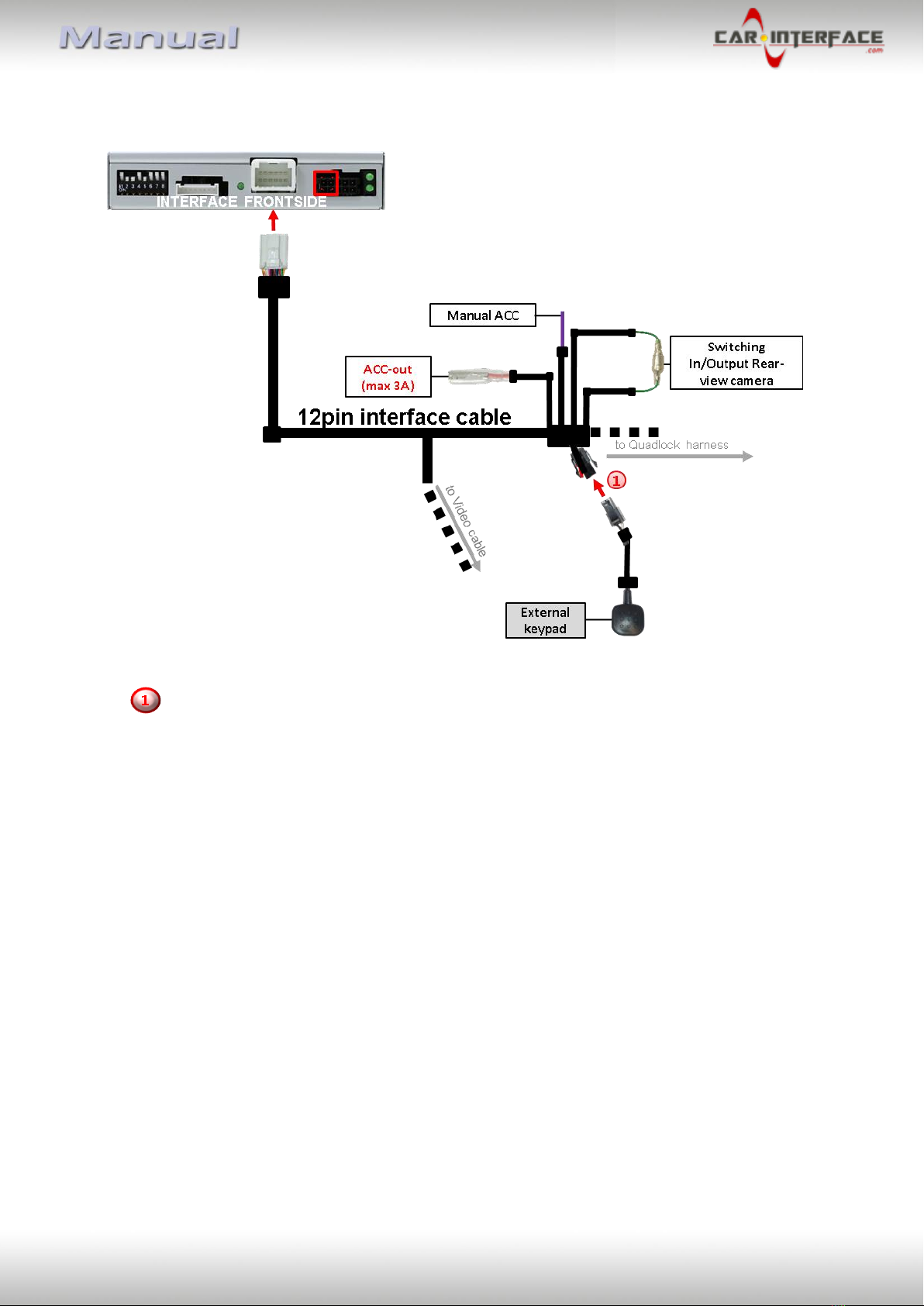

2.8. Connecting video-interface and keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin
connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the invisible connection and availability is strongly recommended.

Version 17.02.2020 HW GD(V97) CI-UCON5N
Page20

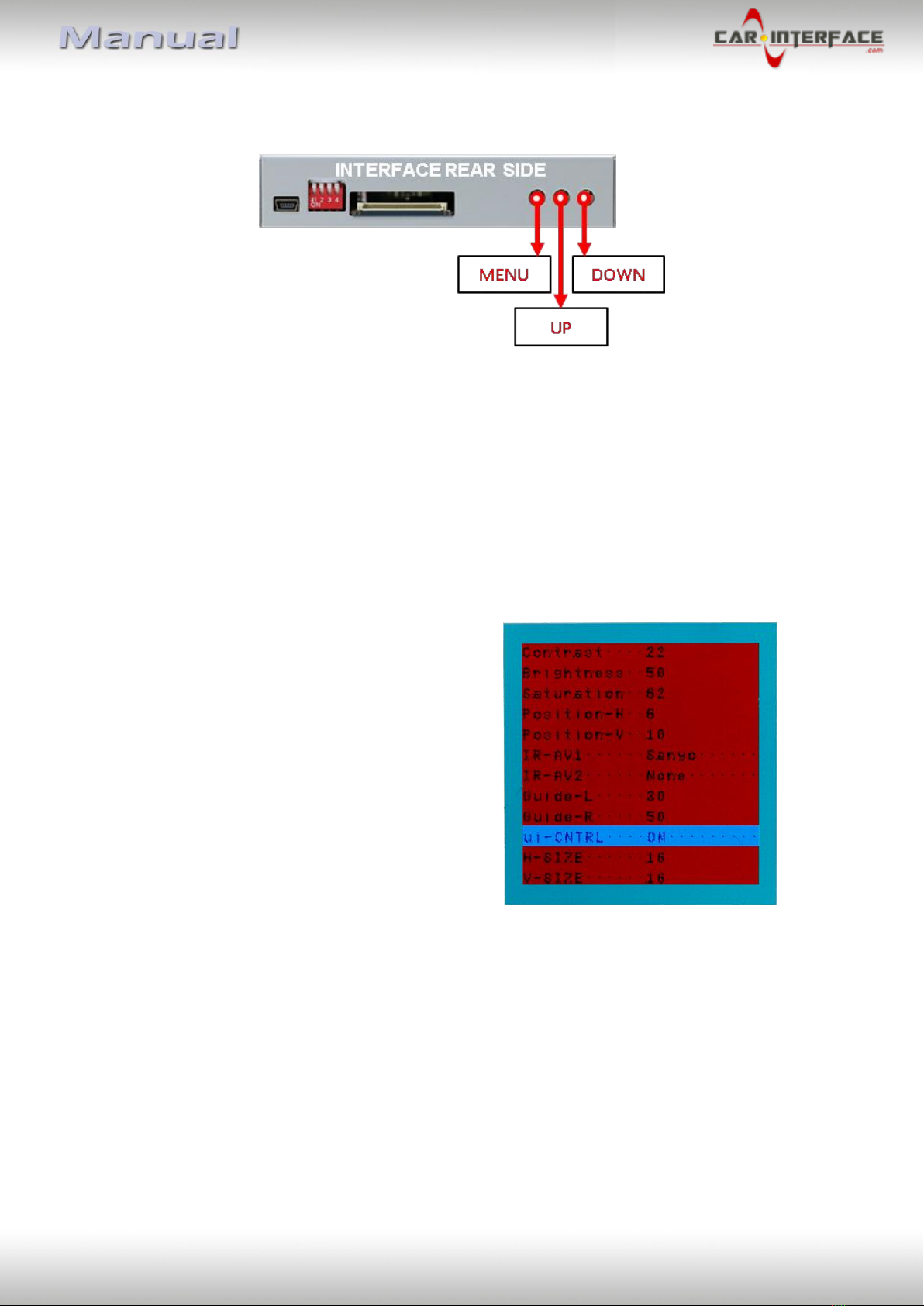

2.9. Picture settings and guide lines
The picture settings can be adjusted by the 3 buttons on the video-interface. Press the
MENU button to open the OSD settings menu. To switch to the next menu item, pressing UP
and DOWN will change the selected value. The buttons are embedded in the housing to
avoid accidental changes during or after installation. The picture settings have to be done
separately, AV1 and AV2 while the corresponding input is selected and visible on the
monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
For the rearIR-AV1 (out of function)
IR-AV2 (out of function)
Guide-lines left
Guide-lines right
Guide lines (ON/OFF)
Note: If the CAN-box does not support the vehicle’s CAN, the guide-lines cannot be used.
