Carlos mendoza Showco Wash 575 User manual
1. Open the box and checking
Congratulations on choosing our products! Please carefully read this instruction manual in its
entirety and keep it well for using reference. This manual contained about the installation and the
relative using information of this products. Please according to this manual's relative speaking when
using this equipment.
This equipment was made of new style, high intensity plastic and cast aluminium. It fully
shows the modem times light characteristic with beauty structure. And it was made according to CE
standard. Fully up the international standard of DMX512 agreement. Master or slave in phase
control. Can be use in large entertainment, theater, performing and playing hall, etc.
This product uses MSR 575/2 electrical arc lamp. When receiving this product please carefully
bring and put; and check that whether this equipment has been damaged or not during transportation.
And please also check the following thing was enclosed:
Signal line ----------------------- one piece Safety string ----------------------- one pieces
User Manual----------------------- one set
2. Safety instructions
Every person involved with installation and maintenance of this device have to:
- be qualilfied
- follow the instructions of this manual
CAUTION:
ØKeep this device away from rain and moisture!
ØUnplug mains lead before opening the housing!
ØFOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
ØBEFORE YOU INITIAL START - UP!
ØBe careful with your operations.
ØWith a high voltage you can suffer a dangerous electric shock when touching the
wires!
ØThis device has left our premises in absolutely perfect condition. In order to maintain
this condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes writtenin this manual.
Important:
ØThe manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorized modification to the device.
ØPlease consider that damages caused by manual modifications to the device are not
subject to warranty.
ØNever let the power-cord come into contact with other cables! Handle the power-cord
and all connections with the mains with particular caution!
ØMake sure that the available voltage is not higher than stated on the rear panel.
ØAlways plug in the power plug least. Make sure that the power-switch is set to OFF-
position before you connect the device to the mains. The power-plug has to be
accessable after installing the device.
ØMake sure that the power-cord is never crimped or damaged by sharp edges. Check the
device and the powercord from time to time.
1
www.carlosmendoza.com.mx
Øby the plug. Never pull out the plug by tugging the power-cord.
ØThis device falls under protection class I. Therefore it is essential to connect the
yellow/green conductor to earth.
ØThe electric connection, repairs and servicing must be carried out by a qualified
employee.
ØDo not connect this device to a dimmer pack.
ØDo not switch the fixture on and off in short intervals as this would reduce the lamp s
life.
ØDuring the initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective.
ØDo not touch the device s housing bare hands during its operation (housing becomes hot)!
ØFor replacement use lamps and fuses of same type and rating only.
CAUTION :
EYE DAMAGES !
Avoid looking directly into the light source(meant especially for epileptics) !
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
3. Operating determinations
This device is a moving-head spot for creating decorative effects and was designed for
indoor use only.
If the device has been exposed to drastic temperature fluctuation (e.g. After transport-
ation), do not switch it on immediately. The arising condensation water might damage
your device. Leave the device switched off until it has reached room temperature.
Never run the device without lamp!
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be
damaged. Always hold thefixture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to
extreme heat, moistureor dust.There should not be any cables lying around. You
endanger your own and the safety of others!
The minimum distance between light-output and the illuminated surface must be more
than 2 meters.
Make sure that the area below the installation place is blocked when rigging, derigging
or servicing the fixture.Always fix the fixture with an appropriate safety-rope. Fix the
safety-rope at the correct holes only.
Only operate the fixture after having checked that the housing is firmly closed and all
screws are tightly fastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as
discharge lamps mayexplose and emit a high ultraviolet radiation, which may cause
burns.
The maximum ambient temperature ta = 40 must never be exceeded. Otherwise, the
lamp is switched off andthe fixture is out of operation for 5 minutes.
2
www.carlosmendoza.com.mx
POWERPOWER
LAMP:
MSR 575/2
LAMP:
MSR 575/2
POWER SUPPLYPOWER SUPPLY FUSE 10AFUSE 10A
ONON
OFFOFF
1=GND
2=SIG.-
3=SIG.+
OUT DMX INOUT DMX IN
SERIAL DATA LINK
LIGHTING CONTROL PROTOCOL:DMX512
Serial number:
4.Description of the device

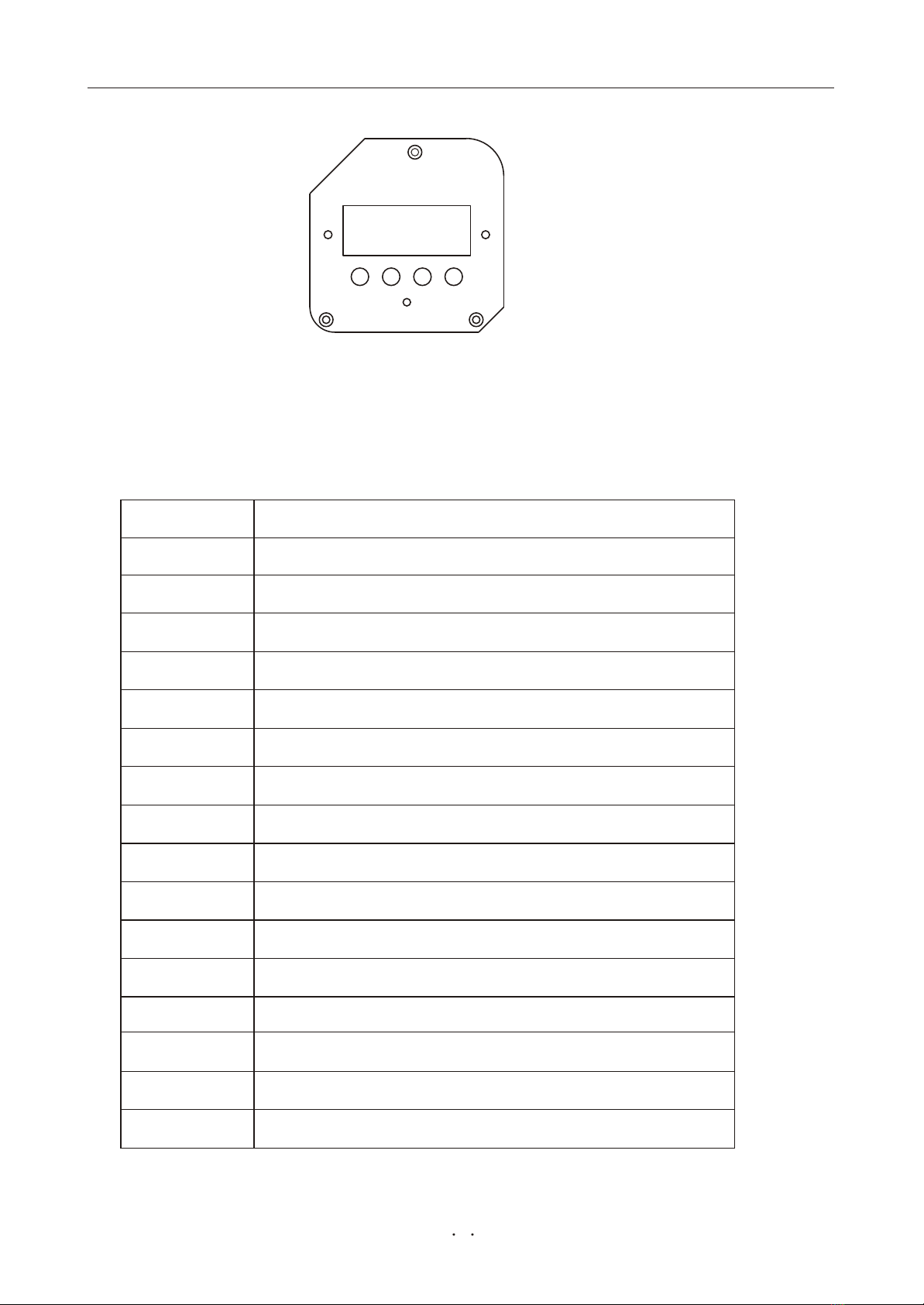

Front panel:
10 - Mode-button
11 - Enter-button
12 - Up-button
13 - Down-button
14 - Display
Rear panel:
5 - Power switch
6 - DMX output
7 - DMX input
8 - Power cord
9 - Fuse holder
1 - Moving head
2 - Yoke
3 - Carry handles
4 - Base
1
2
3
4
5
6 7 8
9
10 11 12 13
14
3
www.carlosmendoza.com.mx
5.Installion

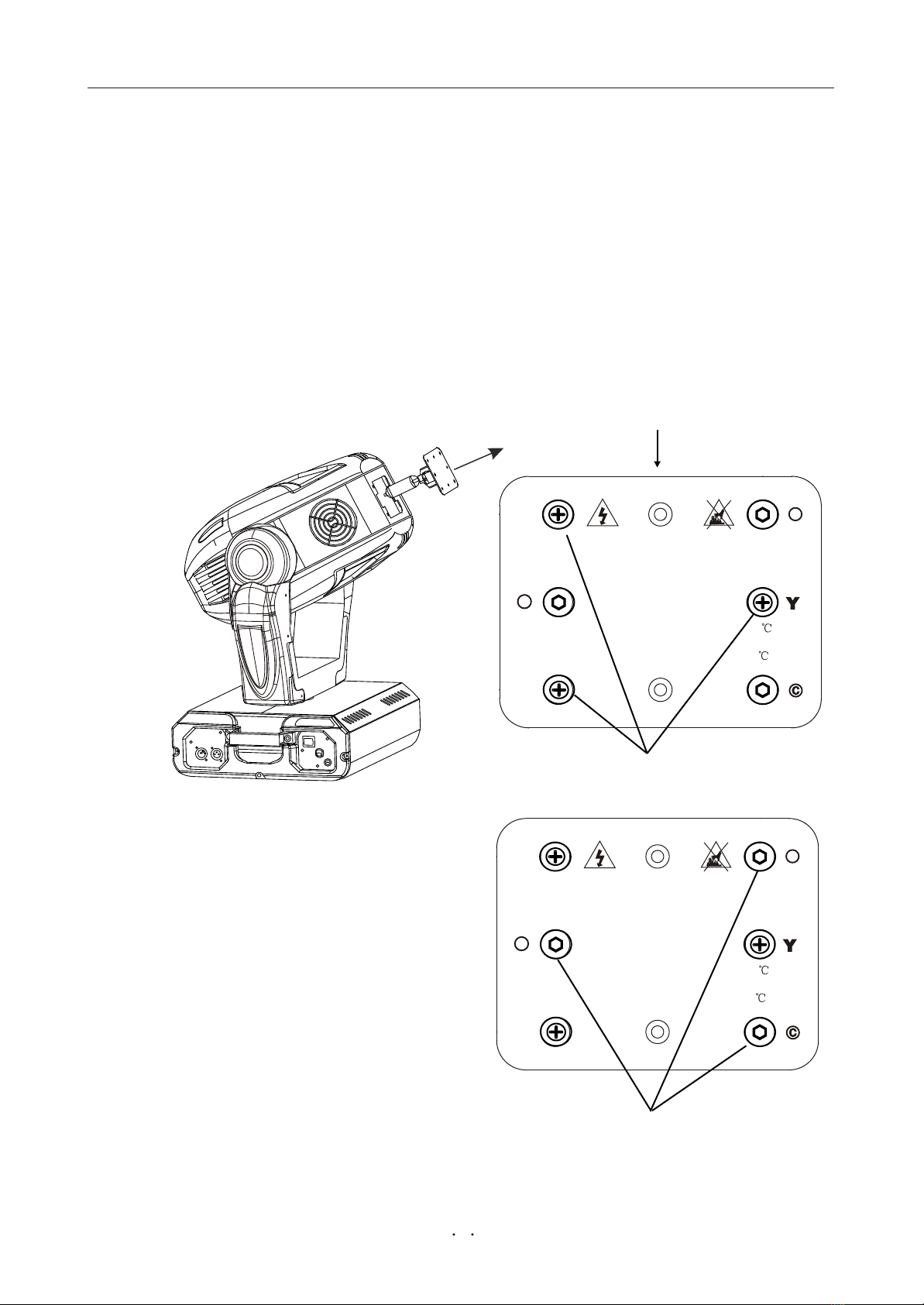

To insert the lamp MSR 575/2 95V/575W GX-9,5 loosen the lamp cover at the rear of
head (see the drawings ) byremowing the 3 fastening screws which are marked "X,Y,Z".
Carefully pull out the cover with the lamp socketassembly.If changing the lamp, remove
the old lamp from the socket. Insert the lamp to the socket.
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the
device is not de-signed for.Damages caused by non-observance are not subject to warranty.
Please follow the lamp manufacturer notes!Do not touch the glass-bulb with bare hands
during the installation! Make sure that thelamp is installed tightly into the lampholder
system.
Reclose the lamp cover and tighten the 3 screws.
.Lamp assembly:
5.1 Fitting the lamp
Lamp cover
Do not operate this fixture with opened housing-cover!
5.2 Lamp adjust
The WASH 575 lampholder is aligned at the
factory. Due to differences between lamps ,
fine adjustment may improve light
performance.Strike the lamp,open the shutter
and the iris,set the dimmer intensity onto
100% and focus the light on a flatsurface
(wall).Center a hot-spot(the brightest part of
the image) by using the 3 adjustment screws
"A,B,C".Turn one screw after another a
quarter-turn clokwise(counter-clokwise. If
you cannot detect the hot-spot,adjust the lamp
until the light is evenly distributed.
3 phillips screws "X,Y,Z"
Remove the screws X,Y and Z for re-lamping
WARNING!
Disconnect the fixture from AC power before re-lamping.
Lamp is hot! Risk of fire! Protect hands and eyes.
Wait at least 15min.Before opening the covers
and removing lamp from the fixture.
Maximum room temperature ta=40
Minimum distance from flammable material d=0.5m.
Exterior surface temperature T=80 .
Not for domestic use.
XX
ZZ
AA
BB
Adjust lamp position by turning screws A, B and C
3 adjustment screws "A,B,C"
Remove the screws X,Y and Z for re-lamping
WARNING!
Disconnect the fixture from AC power before re-lamping.
Lamp is hot! Risk of fire! Protect hands and eyes.
Wait at least 15min.Before opening the covers
and removing lamp from the fixture.
Maximum room temperature ta=40
Minimum distance from flammable material d=0.5m.
Exterior surface temperature T=80 .
Not for domestic use.
XX
ZZ
AA
BB
Adjust lamp position by turning screws A, B and C
4
www.carlosmendoza.com.mx

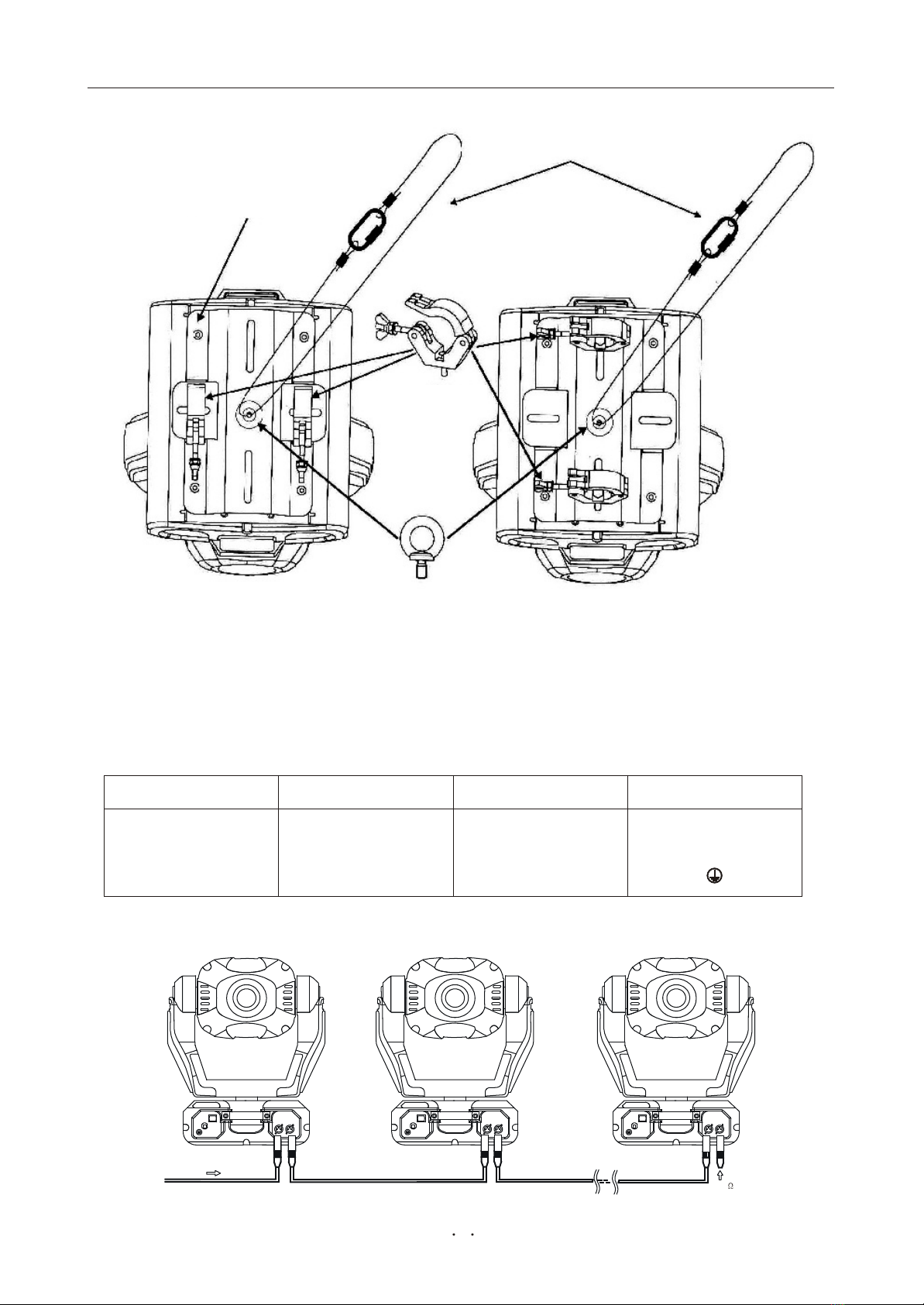

5.3 Rigging the fixture
DANGER T O LIFE:Please consider the respective national norms during the
installation!The installation must only be carried out by an authorized dealer!
ØThe installation of the projector has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
ØThe installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in a way that
no part of the installation can fall down if the main attachment fails.
ØWhen rigging, derigging or servicing the fixture staying in the area below the installation
place, on bridges, under high working places and other endangered areas is forbidden.
ØThe operator has to make sure that safety-relating and machine-technical installations are
approved by an expert before taking into operation for the first time and after changes
before taking into operation another time.
ØThe operator has to make sure that safety-relating and machine-technical installations are
approved by an expert after every four year in the course of an acceptance test.
ØThe operator has to make sure that safety-relating and machine-technical installations are
approved by a skilled person once a year.
ØThe projector should be installed outside areas where persons may walk by or be seated.
ØIMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE,
including (but not limited to)calculating working load limits, installation material being
used, and periodic safety inspection of all installationmaterial and the projector. If you
lack these qualifications, do not attempt the installation yourself, but instead use a
professional structural rigger. Improper installation can result in bodily injury and or
damage to property.
ØThe projector has to be installed out of the reach of people.
ØIf the projector shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The projector must never be fixed swinging freely in the room.
ØCaution: Projectors may cause severe injuries when crashing down! If you have doubts
concerning the safety of a possible installation, do NOT install the projector!
ØBefore rigging make sure that the installation area can hold a minimum point load of 10
times the projector s weight.
ØThe projector can be placed directly on the stage floor or rigged in any orientation on a
truss without altering its operation characteristics.
ØFor overhead use, always install a safety-rope that can hold at least 10 times the weight of
the fixture. You must only use safety-ropes with screw-on carabines. Pull the safety-rope
through the two apertures on the bottom of the base and over the trussing system etc.
Insert the end in the carabine and tighten the fixation screw.
5
www.carlosmendoza.com.mx
5.4 Connection to the mains
Verify the power supply settings before applying power!
If you wish to change the power supply settings,see the chapter Appendix.
Connect the fixture to the mains with the enclosed power cable and plug.
The earth has to be connected!
The occupation of the connection-cables is as follows:
Pin
Cable (EU) International
Brown
Light blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
Cable (US)
L
N
5.5 DMX-512 connection/connection between fixtures
Secure chain
Mounting plate
Clamp
Eye bolt
DMX 512 120
6
www.carlosmendoza.com.mx
Control board Function :
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect
the controller with the fixture or one fixture with another.
DMX-OUTPUT DMX-input
1- Ground
2 - Signal (-)
3 - Signal (+)
1 - Ground
2 - Signal (-)
3 - Signal (+)

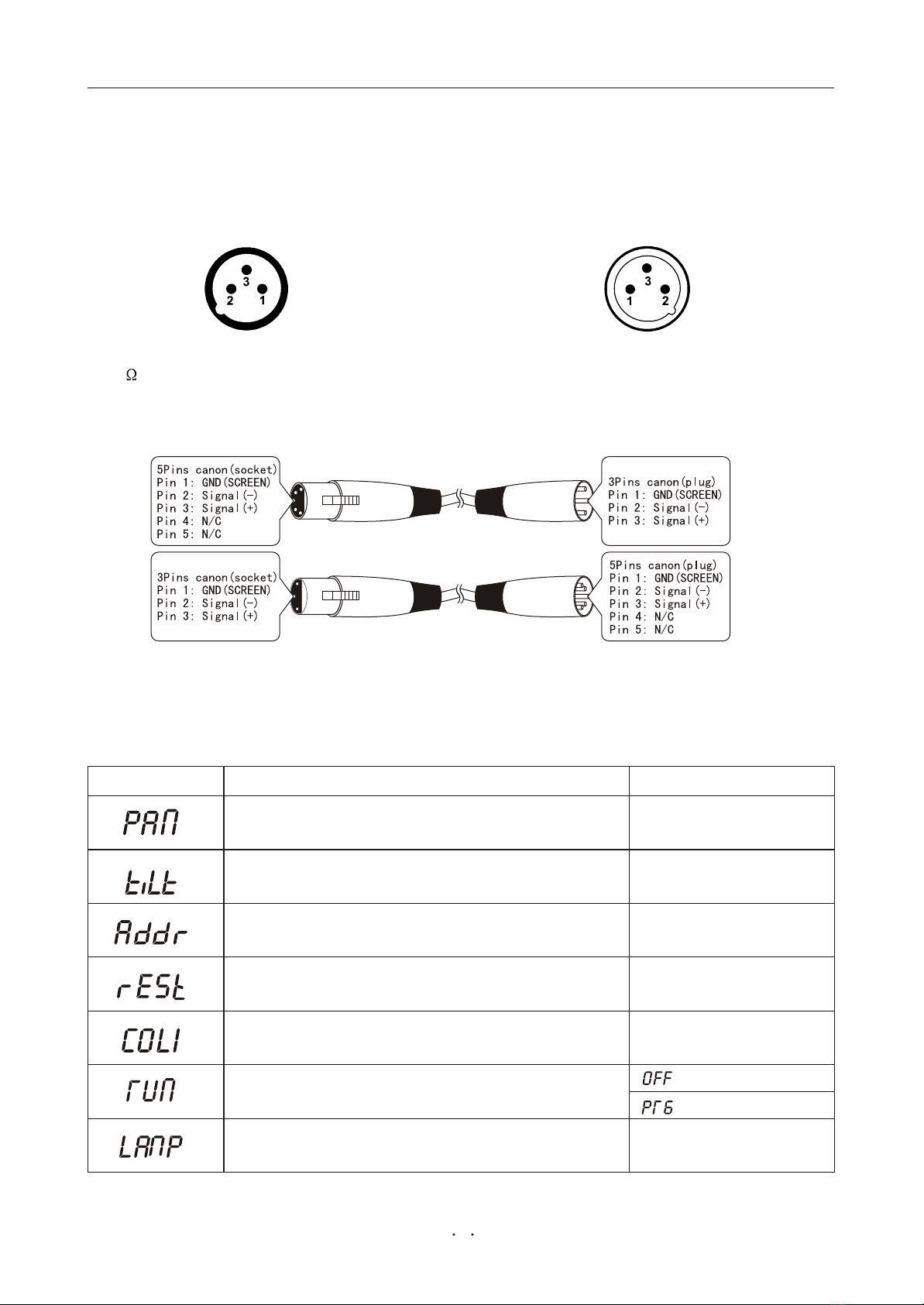

Occupation of the XLR-connection:
XLR mounting-socket: XLR mounting-plug:
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a
120 resistor between Signal (-) and Signal (+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last fixture.
The transform of the controller line of 3 pins and 5 pins (plug and socket)
6.Control board Operation
Pan movement in positive or negative direction
Function Condition
Mode
YES--negative direction
Tilt movement in positive or negative direction
Address code set
Reset YESreset
YES--linear
Color wheel change color linear or stepping
YES--negative direction
Working mode DMX512 mode
Automatic
Lamp on/off
7
www.carlosmendoza.com.mx
7.DMX512 Channel Function
MODEMODE ENTERENTER UPUP DOWNDOWN
Control board operation way:
LED
1.Select working mode by pressing MODE.
2.Press ENTER to confirm the selection.
3.Press UP and DOWN to select working condition.
4.Press ENTER to confirm the selection.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CHANNEL FUNCTION
PAN
TILT
PAN movement fine adjust
TILT movement fine adjust
Scan speed adjust
Lamp on/off & reset
Rainbow effect
Cyan
Magenta
Yellow
CMY color change speed
CMY effect wheel
Effect wheel
Zoom
Shutter/strobe
Dimmer
8
www.carlosmendoza.com.mx
CHANNEL 7: Color
200-255
175-199
150-174
125-149
100-124
75-99
50-74
25-49
0-24
Rainbow effect form
slow to fast
79-100
69-78
59-68
50-58
40-49
30-39
20-29
10-19
0-9
Decrease color
temperature clip
(3200K)
Effect
Value
Orange
Green
Blue
Red
White beam
Increase color
temperature clip
(6000K)
Ultraviolet wave
filter(firefly light)
CHANNEL 8: Cyan
255
0White beam
0.0
100
Effect
Value
Full cyan(gradually)
12
www.carlosmendoza.com.mx
CHANNEL 11 CMY color change speed
255
00.0
100
Effect
Value
Slow
Fast
Slow
Fast
CHANNEL 12: CMY color effect wheel
254-255
239-253
224-238
209-223
194-208
179-193
164-178
149-163
134-148
119-133
104-118
89-103
74-88
59-73
44-58
29-43
14-28
8-13
0-7
99-100
94-98
88-93
82-87
77-81
71-76
65-70
59-64
53-58
47-52
41-46
35-40
30-34
24-29
18-23
12-17
6-11
3-5
0-2
Effect
Value
Color 17
Color 16
Color 15
Color 14
Color 13
Color 12
Color 11
Color 10
Color 9
Color 8
Color 7
Color 6
Color 5
Color 4
Color 3
Color 2
Color 1
White beam
White beam
CMY under control
14
www.carlosmendoza.com.mx
8.
Voltage:
AC210/230/240V ,50/60Hz Fuse T10
AC100/110/120V,50/60Hz Fuse T15
Rated Power 850W
DMX512 Channel 16CHS
Color Temperature 7000K
Luminous 49000 LUX
Philips MSR575/2 95V/575W GX 9,5
Rigging
-Stands directly on the floor
-Mounts horizontally or vertically with 2 clamps
-2 truss orientation
-Safety chain/cord attachment bolt
Temperatures
-Maximum ambient temperature ta: 40
-Maximum housing temperature tb (steady state): 80
Minimum distances
-Min.distance from flammable surfaces: 0.5m
-Min.distance to lighted object: 2.0m
Dimensions and weight
-Length of base (including handles): 379 mm
-Width of yoke: 428 mm
-Height (head horizontal): 476 mm
-Weight (net): 35.5 kg
Technical specifications
A @230V
A @110V
Lamp:
Optical system:
-High luminous-efficiency parabolic reflector
-Zoom 7 -28
-Fresnel lens of diameter 200 mm
-All lenses are anti-reflection coated
17
www.carlosmendoza.com.mx
9. Beampath
7 radiation a ngle - m in.zoom
28 radiation a ngle - m in.zoom
Beam opening (m)
2123
22850
530
5710
236
2540
133 Foot-candles
1430 LUX
20 Distance (m)
2,45 Diameter (m)
5
0,62
10
1,22
15
1,83
4
3
2
1
0
1
2
3
4
7
Beam opening (m)
4
5
3
2
1
0
1
2
3
4
5
577
6210
144
1550
64
690
36 Foot-candles
390 LUX
20 Distance (m)
9,97 Diameter (m)
5
2,49
10
4,99
15
7,47
Distance=5m
Diameter(m)
24000
(LUX)
18000
12000
6000
0
10,8 0,6 0,4 0,2 00,2 0,4 0,6 0,8 1
2330
(Foot-candles)
1672
1115
557
0
7 radiation a ngle
28 radiation an gle
18
www.carlosmendoza.com.mx
10. Maintenance and cleaning
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid
residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will
be significantly reduced. Regular cleaning willnot only ensure the maximum light-output,
but will also allow the fixture to function reliably throughout its life.A soft lint-free cloth
moistened with any good glass cleaning fluid is recommended, under no circumstances
should alcohol or solvents be used!
DANGER :Disconnect from the mains before starting anymaintenance work
The front objective lens will require weekly cleaning as smoke-fluid tends to building up
residues, reducing thelight-output very quickly . The cooling-fans should be cleaned
monthly.
The gobos may be cleaned with a soft brush. The interior of the fixture should be cleaned at
least annually usinga vacuum-cleaner or an air-jet.
The dichroic colour-filters, the gobo-wheel and the internal lenses should be cleaned
monthly.
To ensure a proper function of the gobo-wheel , we recommend lubrication in six month
intervals. The quantity of oil must not be excessive in order to avoid that oil runs out when
the gobo-wheel rotates.
Here are no serviceable parts inside the device except for the lamp and the fuse.Please
refer to the instructions under "Fitting/Exchanging the lamp".Maintenance and service
operations are only to be carried out by authorized dealers.
Replacing the fuse
If the lamp burns out, the fine-wire fuse of the device might fuse, too. Only replace the
fuse by a fuse of same typeand rating.Before replacing the fuse, unplug mains lead.
Procedure:
1) Unscrew the fuseholder on the rear panel of the base with a fitting screwdriver from the
housing (anti- clockwise).
2) Remove the old fuse from the fuseholder.
3) Install the new fuse in the fuseholder.
4) Replace the fuseholder in the housing and fix it.
19
www.carlosmendoza.com.mx
Table of contents
Other Carlos mendoza Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands
Selecon
Selecon Pacific Dowser Operation manual
Hydrel
Hydrel 4400 Series installation instructions
ACR Electronics
ACR Electronics RCL-100 LED Product support manual
LED's light
LED's light 2400112-01 quick start guide
JARDINICO
JARDINICO LUNA LED LIGHT Assembly and operation guide
Cree
Cree C-LITE C-WP-A-FCT3 Series installation instructions
