Carnage Tools CT210 User manual

CT210 BATTERY conductance TESTER
user manual

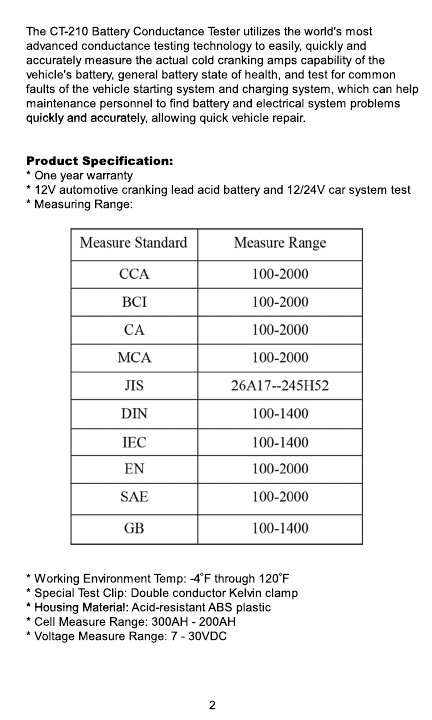

The CT-210 Battery Conductance Tester utilizes the world's most
advanced conductance testing technology to easily, quickly and
accurately measure the actual cold cranking amps capability of the
vehicle's battery, general battery state of health, and test for common
faults of the vehicle starting system and charging system, which can help
maintenance personnel to find battery and electrical system problems
quickly and accuratelquickly and accurately, allowing quick vehicle repair.
Product Specification:
* One year warranty
* 12V automotive cranking lead acid battery and 12/24V car system test
* Measuring Range:
* Working Environment Temp: -4 F through 120 F
* Special Test Clip: Double conductor Kelvin clamp
* Housing Material:* Housing Material: Acid-resistant ABS plastic
* Cell Measure Range: 300AH - 200AH
* Voltage Measure Range: 7 - 30VDC
o o
2

How to use:
1. Connect the red test clamp with battery positive post and the black
clamp with battery negative post, the tester will power on automatically.
Voltage battery below 7.0VDC can’t be tested properly, then press OK key
to continue.
2. Accoring to the tester, you can press UP/DOWN key to choose:
1 battery test
2 starting system test
3 charging system test
4 battery test result
5 print test result
6 select language
(1) Battery Test
Select the battery test and press OK key to continue:
* Input testing standard: the standard which you can see the front of the
battery, such as CCA, BCI, DIN. If you can’t find any info about the
standard, you can choose GB standard.
* Input rated capacity: you can see the starting current standards on the
battery label, such as BCI/300A or CCA/550A.
* Then press OK key to start testing.
NOTENOTE:
For deeply discharged batteries (the battery is not charged fully; such as
a vehicle that sat for a long time, forgot to turn off the lights, etc...resulting
in serious loss of battery power and the vehicle can not be started), in
the actual testing process may be prompted to "Please replace the
battery," for such batteries, please consult the battery manufacturers,
recharge, and then retest.
3

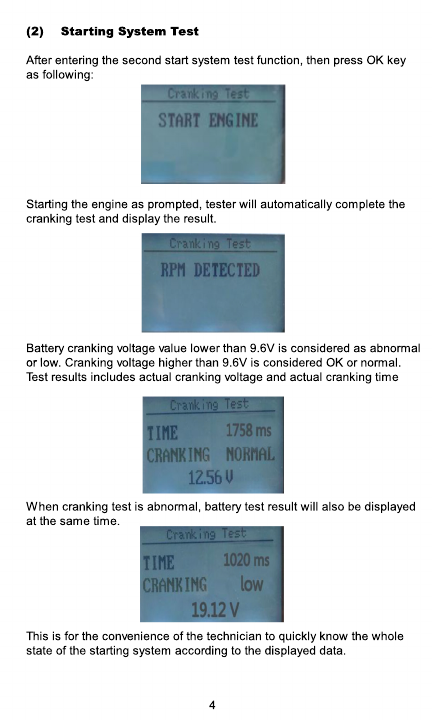

(2) Starting System Test
After entering the second start system test function, then press OK key
as following:
Starting the engine as prompted, tester will automatically complete the
cranking test and display the result.
Battery cranking voltage value lower than 9.6V is considered as abnormal
or loor low. Cranking voltage higher than 9.6V is considered OK or normal.
Test results includes actual cranking voltage and actual cranking time
When cranking test is abnormal, battery test result will also be displayed
at the same time.
This is for the convenience of the technician to quickly know the whole
state of the starting system according to the displayed data.
4

(3) Charging System Test
When entering the charging test, tester will prompt “Loaded Testing”
Note: Do not shut down the engine during the test. Ensure all electrical
accessories and device are turned OFF. Turn on/off any electrical
device in the vehicle during the test will affect the accuracy of the
test result.
Follow the screen prompt and increase the engine rotating speed to Follow the screen prompt and increase the engine rotating speed to
2500 RPM and hold the RPM for 5 seconds.
Tester automatically starts the charging volt test after the RPM increase
is detected.
After the test is finished, the tester displays the effective charging volts,
a diode ripple voltage test, and the overall charging test result.
5

NOTE: If no increase RPM detected, it may be the fault of generator
regulator or connection with battery that has failed. The tester will try 3
times to further detect, if it still fails, it will skip the increase RPM detect
and the test result displays "No Volt Output".
Check the connection between alternator and battery, then retest.
Charging Test Result:
1. Charging 1. Charging Volt: Normal
The alternator output normal, no problem detected.
2. Charging Volt: Low
Check drive belt of the alternator whether slip or running off. Check the
connection between alternator and battery is normal or not. If both of the
drive belt and the connection are in good condition, follow the
manufacturer's suggestion to troubleshoot the alternator fault.
3. Charging 3. Charging Volt: High
Since most of the vehicle alternators are using internal voltage regulators,
the entire alternator assembly has to be replaced. (Some old style cars
are using external voltage regulators, then only replace the regulator.)
The normal high voltage of the voltage regulator is maximum 14.7 ± 0.5V.
If charging voltage is too high, it will overcharge the battery and the
battery life will be shortened.
4. No 4. No Volt Output:
No generator volt output is detected. Check the generator connection
cable, the drive belt of generator and engine whether normal or not.
5. Diode Test:
Through the test of charging current ripple, tester will find out whether
the diode is normal or not. When ripple volt is too high, it proves at least
one diode is damaged. Check and replace the diode.

(4) View Test Result
After entering the forth function, then press OK key you can view the
final test result
(5) Print Test Result
About Printing function, please contact with customer service
(6) Select Language
After entering the language function, press up/down key to chooseAfter entering the language function, press up/down key to choose
Language options:
English, French, German, Spanish, Italian, Polish
7
